ZHB4551I - Hand blender Zelmer - Free user manual and instructions

Product Type	Hand Blender
Brand	Zelmer
Model	ZHB4551I
Dimensions (L x W x H)	40 x 7 x 7 cm
Weight	0.8 kg
Power	600 W
Voltage / Frequency	220-240 V, 50/60 Hz
Cord Length	1.2 m
Speed Settings	2 variable speeds + turbo
Blending Shaft Material	Stainless steel
Handle Material	Plastic, non-slip
Functions	Blending, pureeing, whipping, chopping
Included Accessories	Whisk, chopper bowl (500 ml), beaker (800 ml)
Dishwasher Safe Parts	Blending shaft, whisk, chopper bowl, beaker
Safety Features	Overheat protection, non-slip grip
Warranty	2 years
Noise Level	80 dB approx.
Ice Crushing	Yes
Blade Material	Stainless steel
Ergonomic Handle	Yes

Frequently Asked Questions - ZHB4551I Zelmer

How do I clean the hand blender?

The blending shaft, whisk, chopper bowl, and beaker are dishwasher safe. The motor unit should be wiped with a damp cloth; never immerse in water.

Can I blend hot liquids?

Yes, but allow liquids to cool to at least 60°C before blending to avoid splashing or damage. Use the turbo function for short pulses.

What accessories are included?

The ZHB4551I comes with a whisk attachment, a chopper bowl (500 ml), and a beaker (800 ml).

How do I change speeds?

Use the slider on the handle to select between two speed levels. Press the turbo button for maximum power during short bursts.

Is the blender suitable for crushing ice?

Yes, the stainless steel blades can crush ice. Use the turbo setting and pulse in short bursts.

What is the power consumption?

The appliance has a 600 W motor, suitable for blending, pureeing, and chopping.

Can I use the blender for dough?

No, the hand blender is not designed for heavy dough. It is intended for soft ingredients like fruits, vegetables, and liquids.

How long is the cord?

The power cord is 1.2 m long, providing enough reach for most countertops.

What does the warranty cover?

The product comes with a 2-year warranty covering manufacturing defects. Normal wear and tear, misuse, or damage from improper cleaning are excluded.

Can I replace the blending shaft?

The blending shaft is not user-replaceable. If damaged, contact Zelmer customer service for repair or replacement options.

USER MANUAL ZHB4551I Zelmer

Three white zelmer brand hair blisters with black bases, displayed side by side (no text or symbols visible on the product itself)

PL INSTRUKCJE UŻYTKOWANIA Blender ręczny
EN USER MANUAL Hand blender
DE BENUTZERHANDBUCH Stabmixer
CZ NÁVOD K POUŽITÍ Tyčový mixér
SK NAVODILA ZA UPORABO Tyčový mixér

HU HASZNÁLATI UTASÍTÁS Botmixer
RO INSTRUCTIUNI DE UTILIZARE Mixer vertical
RU ИНСТРУКЦИЯ ПО ПРИМЕНЕНИЮ Ручной блендер
BG ИНСТРУКЦИИ ЗА УПОТРЕБА Ръчен блендер
UA ІНСТРУКЦІЯ ПО ЗАСТОСУВАННЮ Ручний блендер

FIG. 1

FIG. 2

White ceramic pitcher with a handle and spout, labeled with number 2 (no text or symbols on the object itself)

FIG. 3

FIG. 4

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. MAMY NADZIEJE, ŻE PRODUKT SPEŁNI PAŃSTWA OCZEKIWANIA.

OSTRZEŻENIE

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

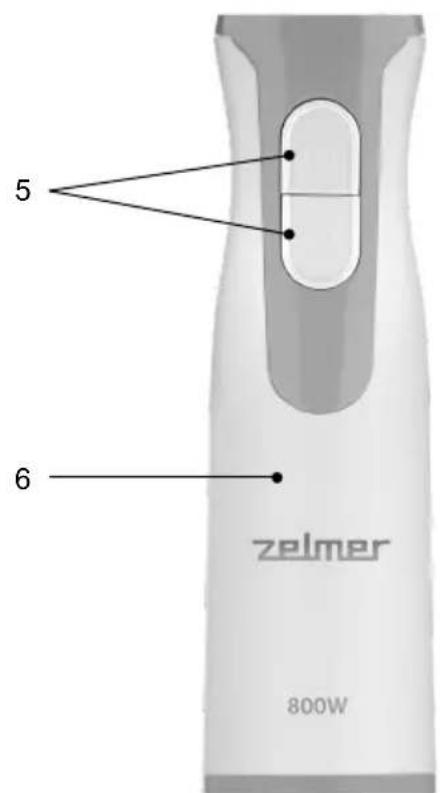

DESCRIPTION

1. Stainless steel blender attachment / Plastic blender attachment
2. Measuring Cup
3. Whisk accessory (*)
4. Chopping accessory (*)
5. Button I / Button II
6. Motor subset
7. Adaptor
8. Stainless steel/plastic blender attachments
9. Whisk
10. Whisk mechanism
11. Cup lid
12. Cup
13. Blade

*Only available in model ZHB4552

SAFETY INSTRUCTIONS

If the power cable is damaged, the manufacturer, its technical assistance agent or other professionals with equivalent qualifications should replace it to prevent hazards.

Observe the operating times of the accessories, as indicated in each section of the manual.

To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

Warning: Improper use could result in an injury.

Be careful when handling the sharp blades when emptying the cup and during cleaning.

Be careful when pouring hot liquid into the mixing

recipient, as it may bubble over due to sudden action caused by the steam.

Always disconnect the blender from the base when it is not in use and before assembling, disassembling or cleaning it.

Turn off the appliance and disconnect it from the mains before changing any accessories or you have to touch parts which move during use.

This appliance should not be used by children. Keep the appliance and its cable out of the reach of children.

This appliance may be used by people with reduced physical, sensory and mental abilities or with a lack of experience, provided that they have been given supervision or suitable instructions regarding the use of a safe mode and are aware of the risks involved.

Children should not use it as a toy.

IMPORTANT WARNINGS

This appliance has been designed for domestic use and under no circumstances should it be used for commercial or industrial purposes. Any incorrect use or improper handling of the product will nullify and invalidate the guarantee.

Before connecting the product, check that the mains voltage is the same as that indicated on the product label.

The mains connection cable should not become entangled or be wrapped round the product while it is in use.

Do not use the appliance or connect it or disconnect it from the mains when your hands and/or feet are wet.

For an ideal mixing effect from the blade accessory, avoid using it without any food.

Do not pull on the connection cable to unplug it or to use it to carry the appliance.

Immediately disconnect the product from the mains in the event of detecting a failure or any damage and contact the authorised technical assistance service. Do not attempt to repair the appliance yourself, in order to prevent risks and hazards. Only qualified technical personnel from the brand's official technical assistance service may carry out repairs or other operations on the appliance.

Eurogama Sp. z o.o. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTRUCTIONS FOR USE

Make sure that all the product packaging has been removed.

Clean the parts which will come into contact with the food before using the product for the first time, as outlined in the cleaning section.

Prepare the appliance in accordance with the function you wish to use:

Use

Unwind the cable fully before plugging it in.

Connect the appliance to the mains.

Turn on the appliance using the on/off button.

Select the desired function of the appliance.

Select the desired speed.

Start mixing the food you wish to process.

Once you have finished using the appliance:

Stop the appliance by releasing the pressure on the on/off button.

Disconnect the appliance from the mains.

Put the cable back in the cable box.

Clean the appliance.

Accessories: Blender accessory attachment (Fig. 1)

This accessory can be used to make sauces, soups, mayonnaise, milk shakes, baby food, etc.

Connect the rod to the body of the motor and turn it in the direction indicated by the arrow (Fig. 1).

Place the food to be prepared in the recipient and turn on the appliance. We suggest cutting the food into cubes no more than 15 mm in size.

For additional cleaning, disconnect and extract the rod by turning it in the opposite direction indicated by the arrow (Fig. 1).

Do not use the appliance for more than one minute at a time. In the event of operating in cycles, allow the appliance to rest for a period of at least one minute between each cycle.

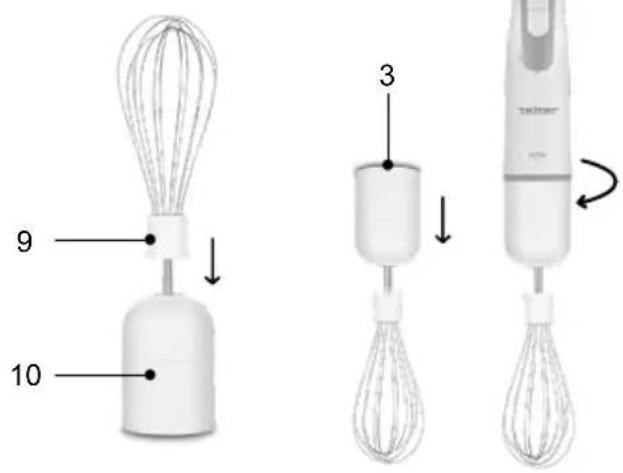

Whisk accessory (Fig. 3)

This accessory can be used for whisking cream, egg whites, etc.

Connect the whisk to the whisk mechanism unit of the motor by turning it in the direction indicated by the arrow (Fig. 3).

Place the food in a large recipient and turn on the appliance. To achieve the best results, turn the whisk to the right.

Remove the whisk accessory and release it from the mechanism connection (Fig. 3)

Note 2: Pull the whisk to release it from the mechanism's mount.

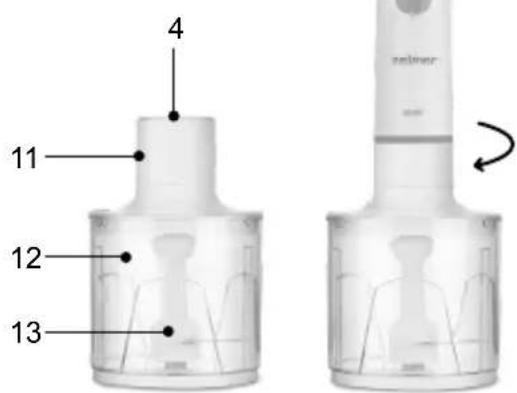

Chopping accessory (Fig. 4)

This accessory can be used to chop up vegetables, meat, etc.

Place the food to be prepared into the recipient for it to be cut with the blades inside and close the lid tight.

We suggest cutting the food into the appropriate forms and sizes. E.g. cut meat into 2 cm x 2 cm x 6 cm strips, cut onions into 4 to 6 discs, etc.

Place the adaptor into the motor unit by turning it in the direction indicated by the arrow.

Attach the unit to the cover and turn on the appliance (be careful: do not turn on the appliance if the whole unit has not been properly installed and connected).

Turn off the appliance when the food has reached the desired texture.

Remove the unit from the lid and release the adaptor.

MANITENANCE AND CLEANING

Unplug the power cable before cleaning.

Do not touch the blade.

Use a dry kitchen cloth to clean the product. It is strictly forbidden to rinse the main unit with water or immerse it in water.

Do not use metal or nylon brushes, abrasive household products, thinners or other similar cleaning products to clean the appliance as they can damage its surface structure.

Use a soft, dry cloth to remove any dirt from the power cable.

Cleaning requirements for each accessory

Cleaning accessories	Washing Rinsing		Cleaning by immersion	Dishwasher Observations
Mixing blade					Do not immerse in water
Glass
Components for whisking egg whites					Do not immerse in water
Rod *
Chopper lid					Do not immerse in water
Chopper
Chopper blade

Table of recipes

Contents Time Speed Accessory
Soaked carrots: 240gWater: 360g	10” MAXIMUM Mixing blade
Cubes of Meat: 150g 15” MAXIMUM Chopper
Egg whites: 4-5 eggs	90-120”	MAXIMUM Whisk

ELIMINATION OF THE PRODUCT

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

We hope that you will be satisfied with this product.

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

ELIMINAREA PRODUSULUI

EUROGAMA Sp. Z o.o. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by EUROGAMA Sp. Z o.o.. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a EUROGAMA Sp. Z o.o. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by EUROGAMA Sp. Z o.o., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
