Type	Bagless Canister Vacuum Cleaner
Model	RCC-230/3A
Brand	Daewoo
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W
Dust Capacity	2.0 L
Cord Length	5 m
Weight	5.5 kg
Dimensions (LxWxH)	400 x 300 x 300 mm
Filtration System	Washable foam filter
Suction Power	400 W
Noise Level	75 dB(A)
Cable Rewind	Yes, with button
Wind-force Adjuster	Yes
Light Indicator	Yes
Accessories Included	Dual-position carpet/floor brush, narrow nozzle, small brush
Safety Features	Thermal cut-out, overheat protection
Usage	Household dry vacuum cleaning only
Maintenance	Clean dust cup and foam filter regularly

Frequently Asked Questions - RCC-230/3A DAEWOO

How do I assemble the vacuum cleaner?

Attach the hose to the air intake duct, then connect the extension tubes and desired accessory. Refer to the assembly section in the manual.

Can I use this vacuum cleaner to pick up liquids?

No, do not use the appliance to vacuum liquids. It is designed for dry vacuuming only.

How do I clean the foam filter?

Remove the foam filter when dirty, clean it in water, and let it dry naturally before next use. Do not use solvents.

What is the dual-position brush for?

The brush has two positions: bristles extended for hard floors (position 1) and bristles retracted for carpets (position 2).

How do I rewind the power cord?

Press the cord rewind button with one hand while guiding the cord with the other to prevent whipping.

What should I do if the vacuum cleaner stops working?

Check if the dust cup is full or the filter is clogged. Ensure the appliance is not overheating. If the problem persists, contact an authorized service center.

Is it safe for children to use?

Children aged 8 years and above can use the appliance under supervision. Keep the appliance and cord out of reach of children under 8.

How do I dispose of the appliance?

Do not dispose with household waste. Recycle at appropriate facilities. Check with local authorities or retailer for recycling advice.

What accessories are included with the RCC-230/3A?

The vacuum comes with a dual-position carpet/floor brush, a narrow nozzle for crevices and corners, and a small brush for delicate surfaces.

How do I clean the dust cup?

Lift the top cover, remove the dust cup, and take out the foam filter. Empty the dust and clean the cup with water if needed. Dry before reassembling.

USER MANUAL RCC-230/3A DAEWOO

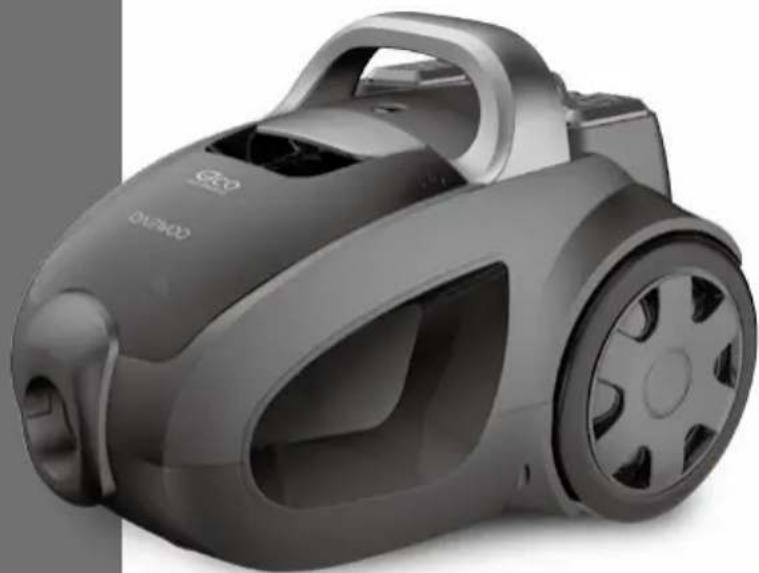

Exterior view of a modern vacuum cleaner (no visible text or symbols)

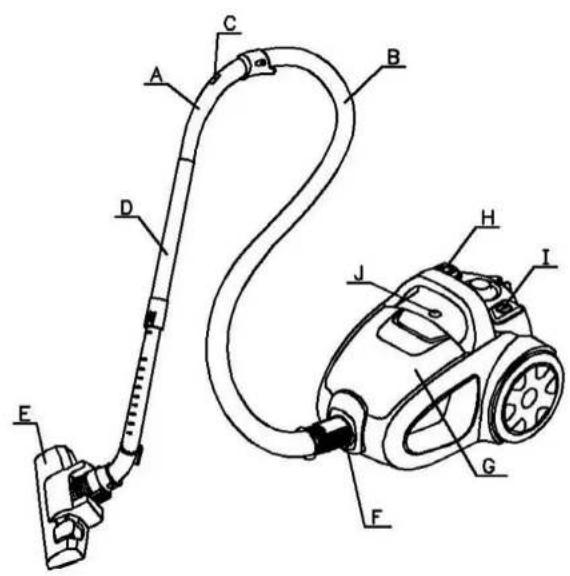

DESCRIPTIONIMPORTANT

A. Handle
F. Hose connector
B. Hose
G. Dustbin
C. Wind-force adjuster
H. Cord rewind button
D. Tube
1. Power switch
E. Floor bruch
J. Light indicator

D. The products could come with different tube which is not same as this IFU illustrates, the tube could be 2pcs of plastic or metal or telescopic.

1. Read this instruction booklet carefully.
2. Before using the appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.
3. The appliance should be connected to a correctly-earthed 10A power socket.
4. Always remove the plug from the power socket when the appliance is not in use and before cleaning or maintenance.
5. Always remove the plug from the power socket before opening the appliance.
6. Never use methylated spirits or other solvents to clean the appliance.
7. Do not use the appliance to vacuum liquids.
8. Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or the infirm.
9. This appliance is only for household. Use as described in this instruction booklet.
10. Do not switch the appliance on if it appears to be faulty in any way.
11. For repairs or accessories, contact your dealer or an authorized Service Center.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
14. Keep the appliance and its cord out of reach of children less than 8 years.
15. Do not remove the plug from the socket by pulling the cable or the appliance itself.
16. Do not use the appliance to vacuum lighted matches, cigarette ends and hot ash.

Do not remove the plug from by pulling the cable the or appliance itself.	Do not run the appliance over the power cable.	Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.
Do not use the appliance on wet surfaces.	Do not obstruct the air intake or outlet vent.	Do not use the appliance to to vacuum needles, drawing-pins or string.

ASSEMBLING THE VACUUM CLEANER

Line drawing of a hand inserting a plug into a vacuum cleaner (no text or symbols)

Removing the flexible tube:

Remove the plug from the power socket.

Torefease the flexible Tube, press the button on the end of the tube and pull the tube

Firmly from the air intake duct.

Fitting the extension tubes and accessories

Fitting the extension tubeThe handle.	Fitting the extension tubes.	Fitting the accessories tothe extension tube.

INSTRUCTION FOR USE

1. Before using the appliance, unwind length of cable and insert the plug into the power socket.

Do not extend the cable beyond the WHITE mark.

To rewind the power cable, press the rewind button with one hand, and guide the other hand to ensure that it does not whip causing damage

1. Press the ON/OFF button to switch the appliance on.

USING THE CLEANING ACCESSORIES

Dual-position carpet/floor brush.

Pos.1: bristles extended. for hard floors

Pos.2: bristles retracted for carpets

Narrow nozzle.

For cleaning radialors: corners, edges, drawers etc.

Small brush

For cleaning eurlains, shelves, books, inlaid furniture, lamps and other ceticate objects.

The product could come with different tube and brush

MAINTENANCE

Illustration of two different handwashing devices: a manual handwashing device and a handheld cleaning device (no text or symbols present)

Clean the dust

1. Lift the form cover and take out the dust cup.
2. Take out the foam form dust cup.
3. Clean off the dust inside the dust cup.

Clean the foam

1. Take out the foam when it's setting dirtys.
2. Clean it in the water. dry it naturally before next use.

Environmental Protection

Waste electrical production should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
