Introduction

TheOwner'sHandbook

This handbook describes all of the vehicles and standard equipments specification within the model range. Some of the information therefore, may not apply to your particular car.

Alwaysrememberthatifyouhaveanyqueriesconcerning theoperationorspecificationofyourcar,yourMG AuthorisedRepairerwillbegladtoadviseyou.

StatusatTimeofPrinting

MGoperatesapolicyofconstantproductimprovement andthereforereservestherighttochangespecifications withoutnoticeatanytime.Whilsteveryeffortis madetoensurecompleteaccuracyoftheinformation inthispublication,noliabilitiesforinaccuraciesorthe consequencesthereof,includinglossordamageto property,orinjurytopersons,canbeacceptedbythe manufacturerorMGAuthorisedRepairerwhosupplied thepublication,exceptinrespectofpersonalinjurycaused bythenegligenceofthemanufacturerorMGAuthorised Repairer.

SymbolsUsed

The following symbols used within the handbook can your attention to specific types of information.

Warning

This warningsymbolidentifies procedures that must be followed precisely, information that must be considered with great care, inordertoreducetherisk of personal injury or serious damage to the car.

Important

IMPORTANT

Thestatementsstatedheremustbefollowedstrictly, otherwiseyourcarcouldbedamaged.

Note

Note: This describes helpful information.

PREFACE

Thissymbolindicatesthatpartsdescribedmustbe disposedofbyauthorisedpersonsorbodiestoprotect theenvironment.

Asterisk

Anasterisk(*)appearingwithinthetext,identifiesfeatures oritemsofequipmentthatareeitheroptional,orareonly fittedtosomevehiclesinthemodelrange.

IllustrationInformation

Identifiescomponentsbeingexplained.

Identifies movement of components being explained.

AllillustrationsinthishandbookarebasedonaRHD vehicleexceptwhereLHDmodelisstated.

InanEmergency

IMPORTANT

Rememberthebreakdownsafetycode

Ifabreakdownoccurswhiletravelling:

- Whereverpossible,consistentwithroadsafetyand trafficconditions,thecarshouldbemovedoffthe mainthoroughfare,preferablyintoalay-by.lfa breakdownoccursonamotorway,pullwelloverto theinsideofthehardshoulder.

- Switchonhazardlights.

•Ifavailable,positionawarningtriangleoraflashing amberlight50to150metres(150to500ft)behind yourvehicletowarnapproachingtraffic.Noteitisa legalrequirementofsomecountriesthatawarning triangleiscarriedinthevehicle,ifindoubtconsult thelocalhighwaysagencyforfurtherinformation.

- Considerevacuatingpassengersthroughnearside doorsontothevergetoreduceriskofinjuryinthe eventofcollision.

VehicleIdentificationInformation

VehicleIdentification

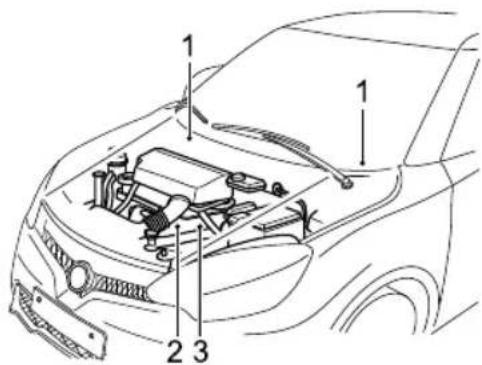

Technical diagram of a car engine bay with numbered components labeled 1, 2, and 3

IVehicleIdentificationNumber(VIN)
2EngineNumber
3TransmissionNumber

AlwaysquotetheVehicleIdentificationNumber(VIN) when communicating with your MGAuthorised Repairer.

VINLocation

• Stampedonaplatevisiblethroughthebottomlefthand cornerofthewindscreen.
  •Ontheidentificationplate.
• Ontherightsidepanelupperframeintheengine compartment.

EngineNumberLocation

Stampedontherearofthecylinderblock.(Viewfromthe frontoftheengine)

T ransmissionNumberLocation

Onalabelattachedtotheupperfaceofthetransmission housing.

PREFACE

VehicleIdentificationLabel

The vehicle identification label contains the following information.

•TypeApprovalNumber
•VehicleIdentificationNumber(VIN)
•GrossVehicleWeight
•GrossT rainWeight
•MaxFrontAxleWeight
•MaxRearAxleWeight
- PaintCode
- TrimCode

LocationofV ehicleIdentificationLabel

Line drawing of a car exterior and side view showing the door panel and dashboard (no text or symbols)

The VehicleIdentificationLabelislocatedonthebottom oftherightsidepillarB.

InstrumentsandControls

6InstrumentsandControlsOverview

7 InstrumentPack

9MessageCentre

20WarningLightsandIndicators

26LightsandSwitches

32 WipersandWashers

35SteeringColumn

36Horn

37 Mirrors

41 SunVisor

42 Windows

44InteriorLights

45 CentreConsolePowerSocket

46 StorageEquipment

48 CupHolder

INSTRUMENTSANDCONTROLS

InstrumentsandControlsOverview

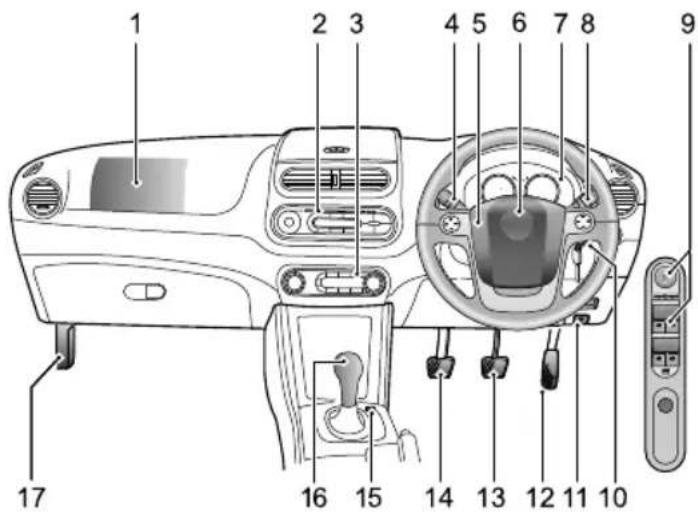

InstrumentsandControls ( ( RHD ) )

1 2 3 4 5 6 7 8 9 17 16 15 14 13 12 11 10

IFrontPassengerAirbag

2EntertainmentSystem

3HeatingandAirConditioningControlSwitch

4MainLightsSwitch/DirectionIndicators/Main BeamSwitch/RearFogLights

5Horn

6DriverAirbag

7InstrumentPack

8Wiper/WasherSwitch

9ElectricExteriorMirrorandWindowControls

10IgnitionSwitch

IIFuelFillerFlapReleaseHandle

12AcceleratorPedal

13BrakePedal

14ClutchPedal

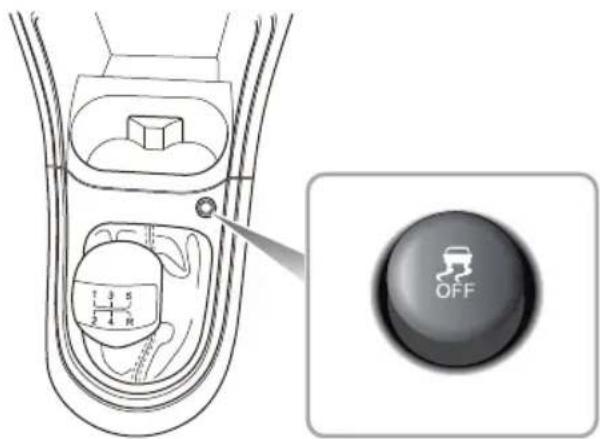

15SCSOFFSwitch

16GearShiftLever

17BonnetRelease

INSTRUMENTSANDCONTROLS

InstrumentPack

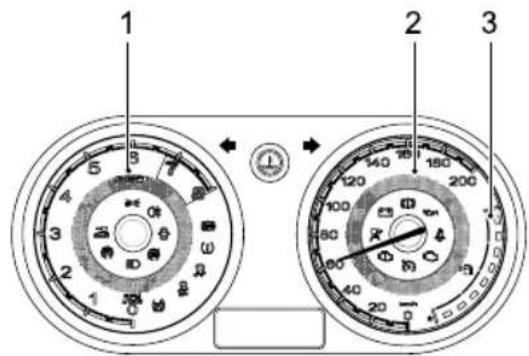

ImperialInstrumentPack *

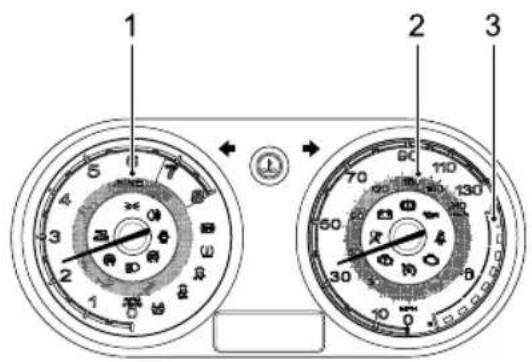

1 2 3

MetricInstrumentPack *

1 2 3

Note: Thespeedometer in the Imperial Instrument Pack is measured in both MP Hand km/h. Thespeedometer in the Metric Instrument Pack is measured in km/h.

INSTRUMENTSANDCONTROLS

T achometer

Indicate the enginespeed (figure 1) in revolutions per minute ( × 1000).

IMPORTANT

T oprotecttheenginefromdamage,neverallowthe pointertoremainintheredsectorofthegaugefor prolongedperiods.

Speedometer

Indicatetheroadspeed(figure2), Thespeedometer of the Imperial Instrument Pack is measured in MP Hand km/h. Thespeedometer of the Metric Instrument Pack is measured in km/h.

FuelGauge

The quantity offuelin the tank is indicated by the number of segments illuminated. There are eight segments total (figure 3). Whenthe fuel level is full, alleight segments are illuminated in white. Whenthe fuel level is slow, the lowest segment changest yellow from white, and a warning sound will be heard. If the fuel level continues to fall to acritical state, the lowest segment will flash and a audible warning will sound again.

IMPORTANT

Whenthefuellevelislow,refuelattheearliest opportunity.Neverallowthecartorunoutoffuel. Theresultantmisfirecoulddamagethecatalytic converter.

Thearrownexttothelowfuelwarninglightindicates that thefuelfillerislocatedontherighthandsideofthevehicle.

INSTRUMENTSANDCONTROLS

MessageCentre

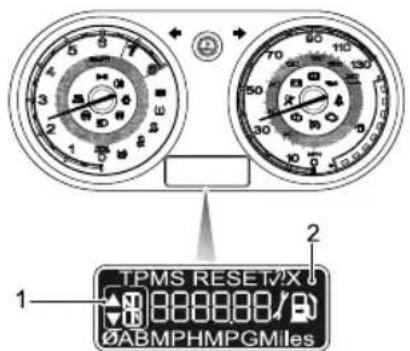

ImperialMessageCentre *

MetricMessageCentre *

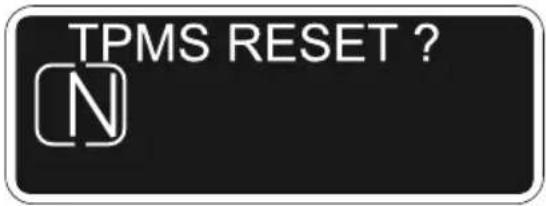

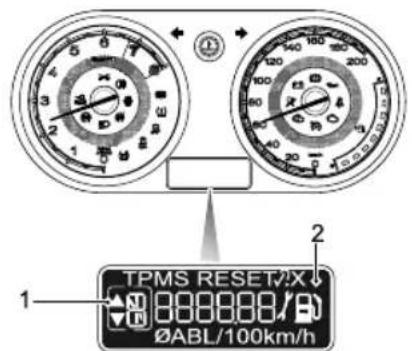

TPMS RESET/XP ABMPHMPGMIes

TPMS RESET: X 0ABL/100km/h

The message cent relocated the bottom of the instrument pack and provides following information:

GeaSelectionDisplay

VehicleInformationDisplay

Note: The imperia Message Centre measure imperial unit. The Metric Message Centre measure metric units.

INSTRUMENTSANDCONTROLS

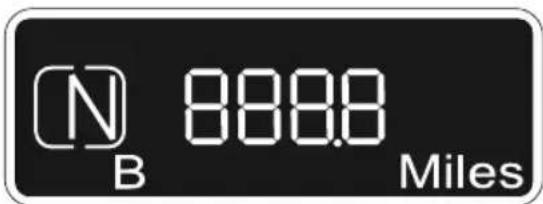

GearSelectionDisplay

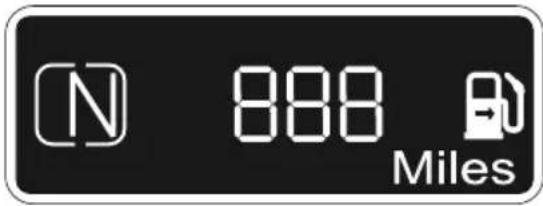

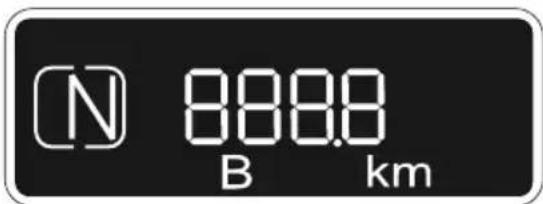

Thissegmentofthemessagecentreindicatesthecurrent gearleverposition.

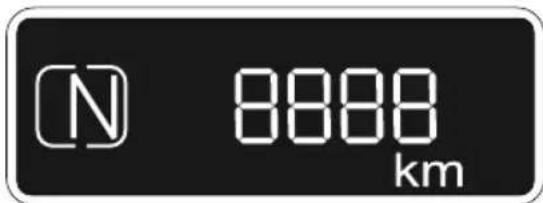

Whenthecarisstationaryandneutralpositionisselected, thedisplaywillindicateN.Whenreversegearisselected, thedisplaywillindicateR.

Whenthecarisinmotion, the display are a will indicate the current gear selected (e.g. N, R, I, 2, 3, 4, 5). An indicator will be displayed in this area when age change is advised. The upordownarrows flashestore mind the driver to upshift or downshift.

3

Note: If the clutch is pressed, the geard display is inhibited.

VehicleInformationDisplay

Mechanical component diagram showing a tool interacting with a curved mechanical part (no text or symbols visible)

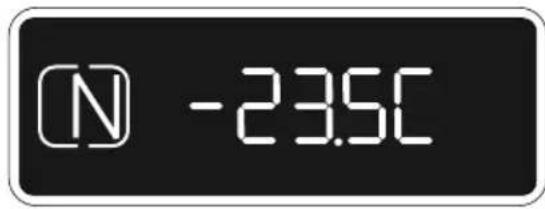

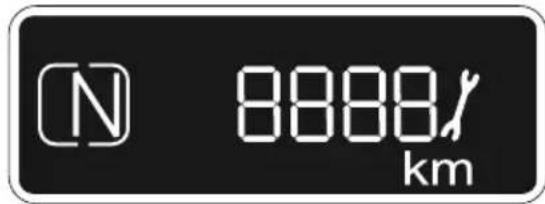

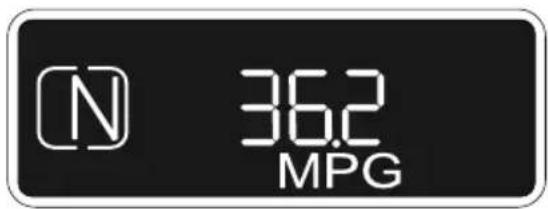

The vehicle information displays screen provides the following information:

•Odometer
- TripDistanceA
- TripDistanceB
•AmbientT emperatureDisplay
•FuelRangetoEmpty
• InstantaneousFuelConsumption

INSTRUMENTSANDCONTROLS

•AverageFuelConsumption
•AverageSpeed
- NextService
- TPMSReset

Repeatedlypressthebuttonontheendofthemainlight switch(indicatedbyarrowindiagram)forlessthan2 seconds,andthentheaboveinformationwillbedisplayed incycles.

Bypressingandholdingthebuttonontheendofthemain lampswitchforlongerthan2seconds,theselecteddisplay canbereset(includingtripdistanceA,tripdistanceB, averagefuelconsumptionoraveragespeed).

VehicleInformationInImperialMessage Centre\*

Odometer

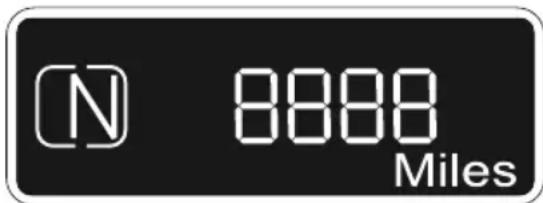

Showsthetotaldistancethatthecarhastravelled.

N 8888 Miles

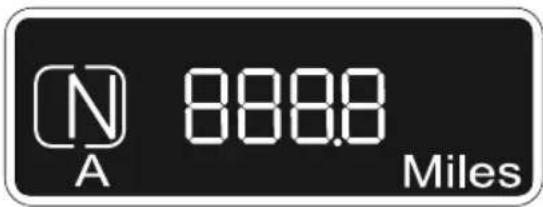

T ripDistanceAandT ripDistanceB

Thisdisplayshowsthedistancetravelledsincethetrip recordwaslastreset.

TripdistanceAandtripdistanceBareindependent distancerecords, Displayrangeof0-9999miles, If themileageislessthan 1000miles, itchangesin0. I mileincrements, morethan 1000miles, itchangesin I mileincrementstoamaximumof9999mileswhenitis

INSTRUMENTSANDCONTROLS

automaticallyreset,tripAandtripBcanberesetatany time,soastorecordvehiclemileage.

N A 888.8 Miles

N B 888.8 Miles

AmbientT emperatureDisplay

Displayindicate the ambient air temperature of the air outside the vehicle.

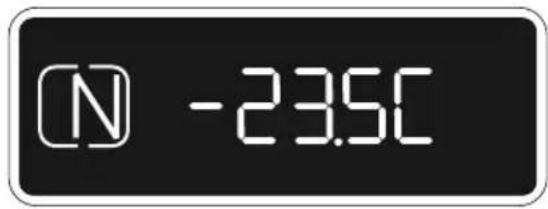

N -23.5C

FuelRangetoEmpty

Display the approximateremaining distance that can be travelled before the vehicle needs refuelling. The distance will changewhenthe vehicle is refuelled.

Fuelrangetoemptyiscalculatedaccordingtofuel remainingandtheaveragefuelconsumptionisbased onacombinationofcurrentdrivingstyleandthefuel consumptionrecordedbythecomputerduringthe previousfewminutes.

INSTRUMENTSANDCONTROLS

N 888 MPG Miles

InstantaneousFuelConsumption

This function is automatic and indicates the instantaneous fuel consumption. When the vehicle stops moving or stops using fuel, then the instantaneous fuel consumption display shows “—MPG”.

N 36.2 MPG

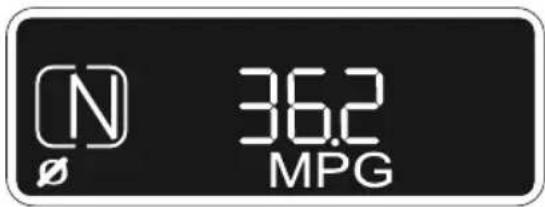

AverageFuelConsumption

This function is automatic and indicates the average fuel consumption sincethelasttimethetripcomputer was reset (average consumption is calculated by dividing the distancetravelled by the amount off fuel used). The consumption value can be reset at any time to begin calculating new consumption values for a particular journey or driving conditions.

Theaveragefuelconsumptionshallbecalculatedafterthe enginestartswhenthevehiclespeedexceeds3MPH.

N Ø 36.2 MPG

Note: Average consumption is related to driving habits, road condition, load, tyre pressure, the quality of oil, etc.

INSTRUMENTSANDCONTROLS

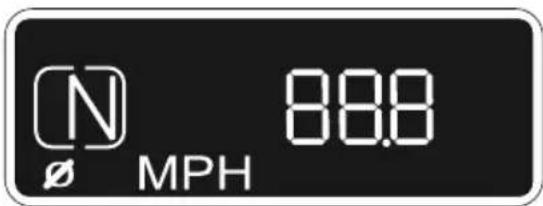

AverageSpeed

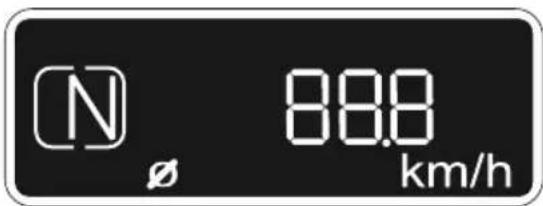

Thisfunctionisautomaticandindicatestheaveragespeed sincethelasttimeitwasreset.Theaveragespeeddisplay canberesetatanytimetobegincalculatinganewaverage speedvalueforaparticularjourneyordrivingcondition.

N ∅ MPH 88.8

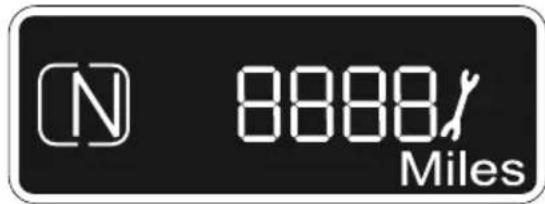

NextService

Showstheserviceintervalannouncementsymbol,the estimateddistanceofthenextserviceremainingbeforeit shouldbecarriedout.

N 8888% Miles

Note: The Service Interval Announcement information can only be reset by an MGA authorised Repairer.

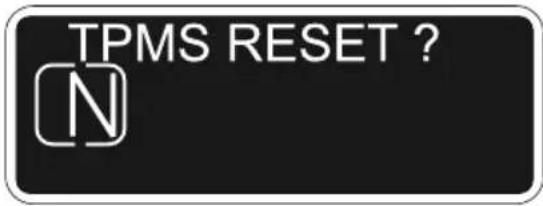

TPMSReset

Enter 'TPMSRESET?' displayinterface.Bypressingand holdingthebuttonforlongerthan2seconds.lfthetext 'TPMSRESET' isdisplayed.ltindicatesTPMSreset successful.lfthetext 'TPMSRESETX' isdisplayed.lt indicatesTPMSresetfail.consultyourMGAuthorised Repairer.

INSTRUMENTSANDCONTROLS

TPMS RESET ? N

Note: The TPMSresetmenuwillonlybemade availablewhenthecarisstationary, withthehand brakeappliedandignitiononpositionII.

VehicleInformationInMetricMessage Centre*

Odometer

Showsthetotaldistancethatthecarhastravelled.

N 8888 km

T ripDistanceAandTripDistanceB

Thdisplayhowshdistanceravelledincttrip recordwaslastresert.

TripdistanceAandtripdistanceBareindependent distancerecordDisplayang9991, thedistanceislessthan1000kritchangesin0.1 kimcrementsmorthan000kri changed kimcrementsmaximumof999Rn wheels

INSTRUMENTSANDCONTROLS

automaticallyreset,tripAandtripBcanberesetatany time,soastorecordvehiclemileage.

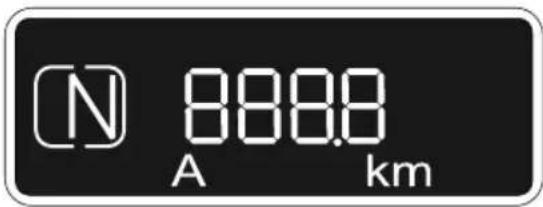

N 888.8 A km

N 888.8 B km

AmbientT emperatureDisplay

Displayindicate the ambient temperature of the air outside the vehicle.

N -23.5C

FuelRangetoEmpty

Display the approximateremaining distance that can be travelled before the vehicle needs refuelling. The distance will changewhenthe vehicle is refuelled.

Fuelrangetoemptyiscalculatedaccordingtofuel remainingandtheaveragefuelconsumptionisbased onacombinationofcurrentdrivingstyleandthefuel consumptionrecordedbythecomputerduringthe previousfewminutes.

INSTRUMENTSANDCONTROLS

N 888 km

InstantaneousFuelConsumption

This function is automatic and indicates the instantaneous fuel consumption. When the vehicle stops moving or stops using fuel, then the instantaneous fuel consumption display shows “—L/100km”.

N 7.8 L/100km

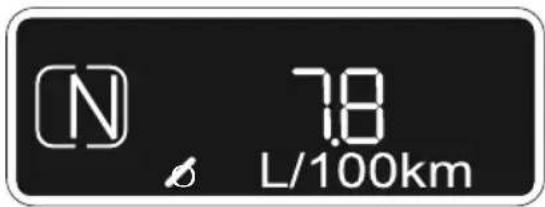

AverageFuelConsumption

This function is automatic and indicates the average fuel consumption sincethelasttimethetripcomputer was reset (average consumption is calculated by dividing the distancetravelled by the amount off fuel used). The consumption value can be reset at any time to begin calculating new consumption values for a particular journey or driving conditions.

Theaveragefuelconsumptionshallbecalculatedafterthe enginestartswhenthevehiclespeedexceeds5km/h.

7.8 L/100km

Note: Average consumption is related to driving habits, road condition, load, tyre pressure, the quality of oil, etc.

INSTRUMENTSANDCONTROLS

AverageSpeed

Thisfunctionisautomaticandindicatestheveragespeed sincethelasttimeitwasreset.Theaveragespeeddisplay canberesetatanytimetobegincalculatinganewaverage speedvalueforaparticularjourneyordrivingcondition.

N Ø 88.8 km/h

NextService

Showstheserviceintervalannouncementsymbol,the estimateddistanceofthenextserviceremainingbeforeit shouldbecarriedout.

N 8888km

Note: The Service Interval Announcement information can only be reset by an MGA authorised Repairer.

TPMSReset

Enter 'TPMSRESET?' displayinterface.Bypressingand holdingthebuttonforlongerthan2seconds.lfthetext 'TPMSRESET' is displayed. It indicates TPMSreset successful. If the text 'TPMSRESETX' is displayed. It indicates TPMSresetfail.consult your MGA authorised Repairer.

INSTRUMENTSANDCONTROLS

TPMS RESET ? N

Note: The TPMSresetmenuwillonlybemade availablewhenthecarisstationary, withthehand brakeappliedandignitiononpositionII.

INSTRUMENTSANDCONTROLS

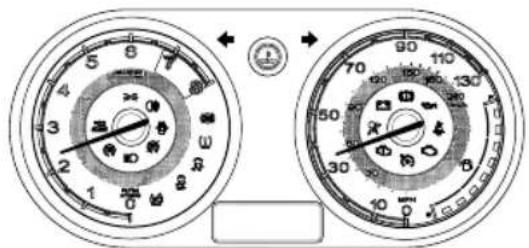

WarningLightsandIndicators

Diagram showing two analog gauges with numerical scales and directional arrows indicating movement or change.

MainBeam-Blue

mainbeam.

Illuminateswhentheheadlightsareswitchedto

SideLamps-Green

Illuminateswhenthesideorheadlightsare

switchedon.

DirectionIndicators-Green

Theleftandrightdirectionindicatorsare

representedbydirectionalarrowslocatedatthetopofthe instrumentdisplay. Thewarninglightsflashsynchronised withtheexteriorleftorrightdirectionindicatorlights whenevertheyareoperating.

If the hazard warning lights are operated, both warning lightswillflashtogether.

If either warning light flashes very rapidly, this means that one of the front or rear direction indicator lights is not operating.

Note: Failureofasiderepeaterlightwillhavenoeffect onthewarninglightflashfrequency.

INSTRUMENTSANDCONTROLS

RearFogLight-Y ellow

Illuminateswhentherearfoglightsareswitched

on.

Airbag-Red

Thewarninglightilluminatesasalampcheck

whentheignitionisswitchedon.Ifthelightilluminates atanyothertimeorfailstoextinguishafterstartup,an airbagrestraintsystemfaulthasbeendetected,thenan audiblewarningwillbegivenwhentheengineisstarted. Seekqualifiedassistanceurgently.

SeatBeltWarning-Red

Ifaseatbeltforanoccupiedfrontseatremains unfastened, the warning light willilluminate. Anaudible warning is heard to remind the riverto ensure that both seat belts are securely fastened. If these belt for an occupied seat remains unfastened on the vehicles speed

hasexceeded 15MPH(25km/h), the warninglamp will flash accompanied by a audible warning. The warning will continue until either these at belt is fastened correctly or 90 second shas expired.

LowOilPressure-Red

Thewarninglightilluminateswhentheignition isswitchedonandextinguisheswhentheengineisrunning. Ifthelightremainsonorilluminatescontinuouslywhen driving,seriousenginedamagecouldoccur;stopthe vehicleassoonassafetypermitsandSWITCHOFFTHE ENGINEIMMEDIATELY.Seekqualifiedassistancebefore driving.

BatteryCharging-Red

Thewarninglightilluminateswhentheignition isswitchedonandextinguishesassoonastheengineis running. Ifthelightremainsonorilluminateswhendriving, afaultwiththebatterychargingsystemisindicated. Seek qualifiedassistanceurgently.

INSTRUMENTSANDCONTROLS

ABS-Y ellow

Thewarninglightilluminatesasalampcheck whentheignitionisswitchedon,Ifthelightisilluminates, afaulthasoccurredwiththeABSsystemandyoushould seekqualifiedassistanceattheearliestopportunity.

IfanABSfaultoccurswhiledriving,ABSoperationwillbe suspended,butnormalbrakingwillstillbeavailable.Seek qualifiedassistanceattheearliestopportunity.

ParkingBrake/BrakeSystemLight-Red

Thewarninglightilluminatesasalampcheck whentheignitionisswitchedon, Subsequentillumination may indicateafaultwiththebrakingsystemsuchasparking brakeonorbrakefluidlevelisloworelectronicbrakeforce distributionfailure.

Thelightilluminateswhentheparkingbrakeisapplied and extinguisheswhenitisfullyreleased.Iftheparkingbrakeis inadvertentlyleftapplied,thelightwillflashandanaudible warningwillsoundwhenthevehiclespeedexceeds3MPH

(5km/h). If the warning light remains illuminated after the parking brake has been released, a fault with the braking system is indicated. Check the brake fluid level. If the light continues to illuminate, stop the car as soon as safety permits and seek qualified assistance urgently.

Whentheignitionswitchisoffandthedriver'sdooris open,iftheparkingbrakehasnotbeenapplied,theparking brakealarmwillbeactivated,andthewarninglightwillflash accompaniedbyanaudiblewarning.

EngineEmissionFault-Y ellow

This warning light which is used to indicate anemissionsrelatedfaultisdetectedbytheengine managementsystem. Thewarninglightilluminatesasa lampcheckwhentheignitionisswitchedon,Ifanengine operationproblemoccurswhilethevehicleisbeingdriven, theindicatorwillilluminate.Seekqualifiedassistance.

INSTRUMENTSANDCONTROLS

EngineCheck-Y ellow

This warning light is used to indicate an engineoperationfaultwhichisdetectedbytheengine managementsystem. Thewarninglightilluminatesas alampcheckwhentheignitionisswitchedon, Ifa non-emissionsrelatedfaultoccurswhilethevehicleis beingdriven, theindicatorwillilluminate. Seekqualified assistance.

EngineCoolantT emperatureWarningLight-Red/Blue

Thewarninglightisusedtoindicatethe temperatureofenginecoolant. Thewarninglight illuminatesasasystemcheckwhentheignitionisswitched on. If the warning light illuminates blue, it indicates that the coolant temperature is slow, and if the warning light illuminates red, it indicates that the coolant temperature is high, Whentetemperaturecontinuestorise, the

warninglightwilflashaccompanied byaudiblewarning. If the signals missing the warning light flashed blue.

If the engine is too hot, severed damage could result; stop the vehicle as soon as safety permits and seek qualified assistance at the earliest opportunity.

StabilityControSystem(SCS)Y ellow

The warning light indicates that the SCSystem isworkingorfault thewarninglightilluminatesasa lampcheckwhentheignitionisswitchedon,IftheSCS systemisworkingthewarninglightofftheSCSsystem hasafault,thiswarninglightwillstayostopthecar assoonassafetypermitsandcontactanMGAuthorised Repairer.WhentheSCSsystemhasaninterventionevent. thewarninglightwillflash.

StabilityControSystem(SCS)OffYellow

The warning light indicates that the SCSystem

isswitchedonoroff. Thewarninglightilluminatesasa

INSTRUMENTSANDCONTROLS

lampcheckwhentheignitionisswitchedon,Ifthefunction oftheSCSsystemisoff.thewarninglightwillilluminateall thetime.

T ractionControl(TC)WarningOff-Y ellow

Thewarninglightindicatesthatthetraction controlisswitchedonoroff. Thewarninglightilluminates asalampcheckwhentheignitionisswitchedon, If the TCfunctionismanuallyswitchedoff, the warninglightwill illuminateallthetime.

T yrePressureMonitoringSystem(TPMS)-

Y ellow

Thewarninglightilluminatesasalampand systemcheckwhentheignitionisswitchedon.lfalow tyrepressureisdetectedthewarninglightwillilluminate. Ifthelightflashesyellow,ltindicatesthesystemhasafault. Adjustyourtyrepressuresorseekqualifiedassistance.

EngineImmobilizer/KeyBatteryLow-Red

Thewarninglightdoesnotilluminatewhen theignitionisswitchedon.Iftheengineimmobilizer verificationfails,theenginecannotbestarted,andthe warninglightwillbeilluminated.Iftheremotekeyvoltage istoolow,thewarninglightwillflashaccompaniedbyan audiblewarning.

PanelOpeningWarning-Red

Thewarninglightindicatesthatthevehicle doors, bonnetortailgatearenotclosed. The warninglight does not illuminate when the ignition is switched on. If there is a door, bonnetortailgatenotclosed, the warning light willilluminate. If the panel remains open on the vehicles speed has exceeded 3 MPH (5 km/h), the warning light will flash accompanied by an audible warning. The warning will continue until all panels are closed correctly or 30 second has expired.

INSTRUMENTSANDCONTROLS

CruiseControl-Y ellow/Green\*

Thewarninglightdoesnotilluminatewhenthe ignitionisswitchedon.Itwillilluminateinyellowwhen cruisecontrolisactiveandgreenwhenthemasterswitch ispressedbutnocruisespeedisactive.lfafaultisdetected, thewarninglightwillflashyellow.

When cruise control isset, the targets speed is shown in LCD, the targets speed remains displayed until the actual speed is achieved, at which point the LCD revert to its previous display.

IntelligentStop-StartEnergy-SavingSystem

Status-Green

Iftheintelligentstop-startenergy-savingsystem isactivated, this lightilluminatestoindicatetothedriver that the engine is being controlled by the intelligent stop-start energy-savingsystem. When the Stop-Start function is inhibited, the lightwillextinguishafter flashing 3 times.

IntelligentStop-StartEnergy-SavingSystem

MalfunctionWarning-Y ellow

Ifthelightilluminatesduringdriving,thenthe

Stop-Startsystemhasdetectedafault.ContactanMG AuthorisedRepairerforadvice.

INSTRUMENTSANDCONTROLS

LightsandSwitches

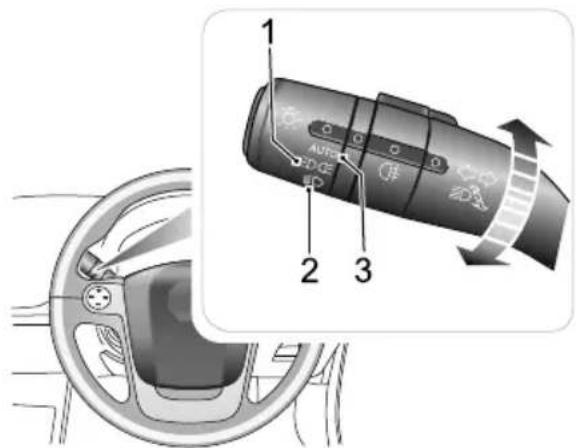

MainLightSwitch

1 AUTO EDGE 2 3

ISide/Tail/InstrumentPackLights

2Headlights

3AUTOLights

SideLights,T ailLights,InstrumentPackLight

Turnthemainlightswitchtoposition I to switch on the side, tailandinstrumentpacklights, the sidelight indicator will illuminate.

Ifthelightsarestillswitchedonwhenthdriver'sdooris openedandthekeyisremoved,anaudiblewarningwillbe given.

Headlights

Turnthelightingswitchtoposition2toswitchonthe headlights.

Theheadlightswillonlyilluminatewhentheignitionis switchedon.

AUTOLights \*

Withtheignitionisswitchedon,turnthelightingswitchto AUTOposition3.TheAUTOlightingsystemconstantly monitorstheambientlightlevelsandautomatically switchestheappropriatelightsonandoffasrequired.

INSTRUMENTSANDCONTROLS

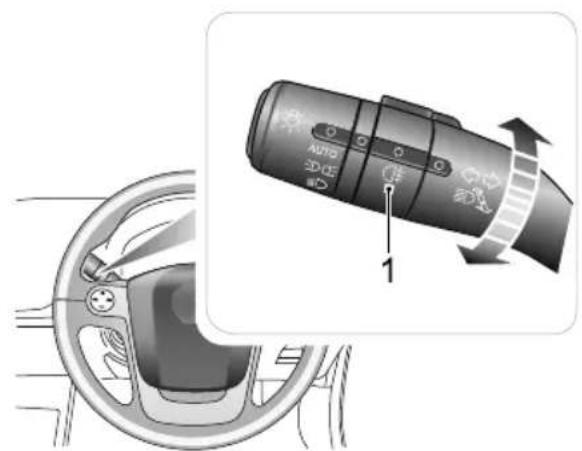

FogLightsSwitch

Foglightsshouldbeusedonlywhenvisibility isverypoor;otherroaduserscouldbe dazzledinclearconditions.

Diagram showing car steering wheel and camera mode dial with directional arrows and labeled components

I RearFogLights

RearFogLights

Whentheignitionswitchisatposition2andtheheadlights areswitchedon,switchtherearfoglights(figure1)tothe ONposition,andtherearfoglightswillilluminate.The warninglightintheinstrumentpackwillilluminatewhen thefoglightsareon.

INSTRUMENTSANDCONTROLS

DirectionIndicators/MainBeamLever

T akecarenottodazzleoncomingvehicles whendrivingusingmainbeamheadlights.

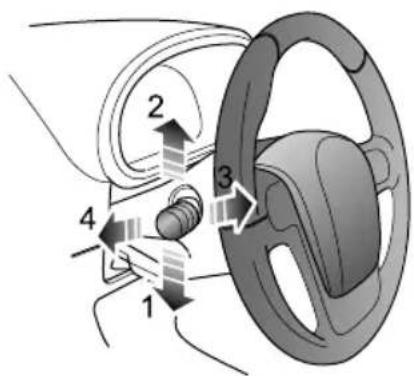

Diagram of car steering wheel with numbered parts indicating key components for driving or repair.

I Pressdownwardtoindicatealeftturn

2Pressupwardtoindicatearightturn

3Mainbeamflash

4Pushawayformainbeam

DirectionIndicators

MovetheleverdowntoindicateaLEFTturn(figure1),or uptoindicateaRIGHTturn(figure2).Theindicatorswill cancelautomaticallyonceaturnhasbeencompleted.

ThecorrespondingGREENwarninglightintheinstrument packwillflashintimewiththedirectionindicators.T o indicatealanechange,presstheleverbrieflyandrelease, theindicatorswillflashthreetimesandthencancel.

HeadlightMainandDippedBeam

Whentheignitionswitchisonandthemainbeamswitch isinposition2, pushtheleverfullytowardstheinstrument pack(figure4)toswitchonmainbeam(theBLUEwarning lightintheinstrumentpackilluminates). Fullypushthe leverswitchtowardstheinstrumentpack(figure4)toturn offmainbeamandreturntodippedbeamheadlights.

HeadlightsFlash

T obrieflyflashthemainbeamonandoff, pullthelever towardsthesteeringwheel(figure3) and then release.

INSTRUMENTSANDCONTROLS

FollowMeHome(HeadlightsDelayedOFF)

Afterthevehicleisstopped,turnofftheignitionand removekey.Momentarilypushorpulltheindicatorlever switchandreleasewithin l minutetoactivatethedipped beamheadlamps. Thelampswillremainilluminatedfor approximately30seconds.T oswitchoffthelampsduring thistimeperiod,pushorpulltheindictorleverswitchfor asecondtime.

DaytimeRunningLights

Thedaytimerunninglightsturnonautmaticallywhen theignitionswitchisinposition2.Whenthesideor headlightsareswitchedon,thedaytimerunninglightsare extinguished.

HazardWarningLights

Hazardwarningswitchlocationisdependentupontrim level.

Technical line drawing of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

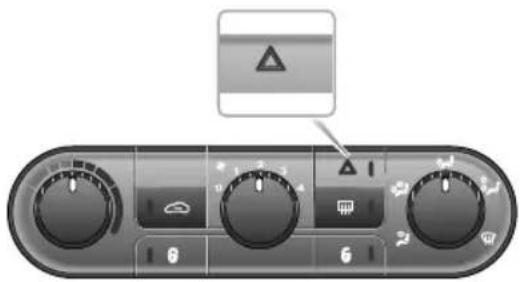

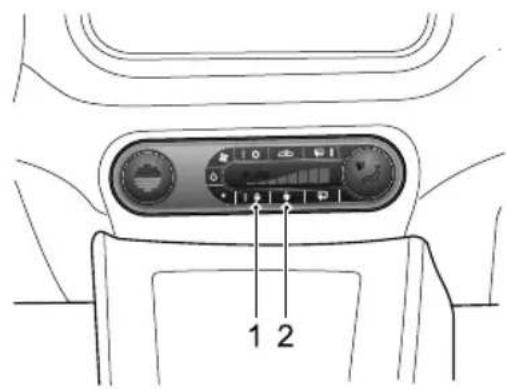

Vehiclesfittedwithelectronicairconditioningfeaturethe switchinthecentreconsoleadjacenttothepassenger airbagdisableswitch.

INSTRUMENTSANDCONTROLS

Control panel interface with indicator lights and a warning symbol labeled in Chinese

Vehiclesfittedwithastandardheaterfeaturetheswitchin theheatercontrolpanel(seepicture).

Pressthebuttontooperatethehazardwarninglights, all ofthedirectionindicatorswillflashtogether.Pressagain toswitchoff.

HeadlightLevelling-ManualAdjustment

1 0

The angle of the dipped beam is affected by the distribution of passenger and luggage weight within the car.

To ensure correct headlampaim, and not dazzleon-coming traffic, the headlamplevellingswitch positions should be adjusted according to the vehicle loading condition in accordance with the following table:

INSTRUMENTSANDCONTROLS

PositionLoad
0Driver,ordriver&frontpassenger
1	Alltheseatsoccupiedwithnoload
2	Alltheseatsoccupiedplusanevenly distributedloadintheboot,ordriver withfullload
3	Driveronly,plusanevenlydistributed loadintheboot

T ouringAbroad

If your journey takes out countries where cars are driven on the opposites side of the road to your country it will be necessary to fit the clamp beam deflectors.

ContactyourMGdealerforfurtherdetails.

INSTRUMENTSANDCONTROLS

WipersandWashers

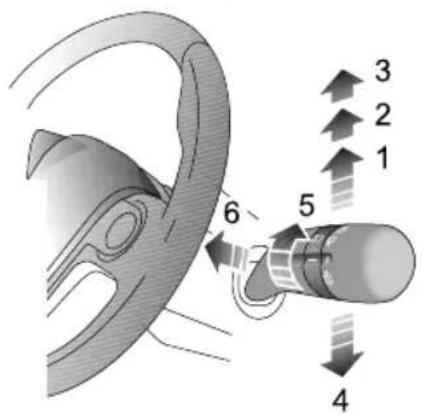

FrontWindscreenWiperControls

Diagram illustrating ear ear anatomy with numbered parts and directional arrows indicating movement or force

Thewipersandwasherswilloperatewiththeignitionin position I orposition2.

Pushtheleveruptoselectdifferentwiperspeeds:

• Intermittentwipe/automaticwipe(I)
  •Normalspeedwipe(2)
  •Fastspeedwipe(3)

IMPORTANT

• Avoidoperatingthewipersonadryscreen.
  • Infreezingorveryhotconditions, ensure that the blades are not frozen or stuck to the glass before being operated.
  • Inwinter, removesnoworicefromaroundthearms andblades, includingthewipedareaofthescreen.

SingleWipe

Pullthelever(4)downandrelease(iftheleverisheld down,thewiperswilloperateathighspeeduntilthelever isreleased).

VariableDelay-intermittentwipe

T oselectintermittentwipepushtheleveruptoposition(1), Rotatetheswitch(5)tovarytheintermittenttimeofwiper operation.

RainSensor \*

Somemodelsareequippedwitharainsensorfittedto theinsideofthewindscreenbehindtherearviewmirror.

INSTRUMENTSANDCONTROLS

Thesensorisabletodetectvaryingamountsofwateron theoutsideofthewindscreen.Withthewipercontrol settointermittent,thevariabledelaywillbeadjusted automaticallyaccordingtotheinformationsuppliedbythe rainsensor.

Note: If the sensor detects constant train, the wipers will operate continuously. The sensitivity of the sensor can be altered by means of the wiper variable delay.

FrontWindscreenWasher

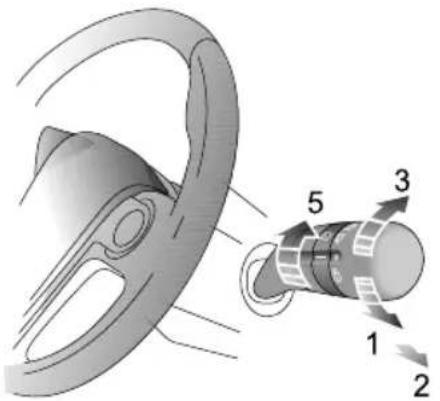

Pullthelever(6)towardsthesteeringwheel-thewashers operateimmediately.Afterashortdelay,thewiperswill commenceoperatinginconjunctionwiththewashers.

Note: Thewiperscontinueoperatingforafurther threewipesaftertheleverisreleased. Afterabout I second, therewillafurtherwipetoremoveanyfluid drainingdownthescreen.

RearWindscreenWiperControls

Diagram illustrating a car steering wheel and its internal components with numbered parts labeled 1, 2, 3, and 5.

INSTRUMENTSANDCONTROLS

Therearwasherandwiperwillworkwiththeignition switchedtoauxiliaryandignitiononposition.Itwill becomeisolatedduringcranking.Iftherearwiperswitch isturnedtointermittentwipe(1),therearwiperwill operate.Itwillcomplete3continuouswipesbefore changingtointermittentmode.Thetimeperiodbetween thewipescanbeincreased/decreasedviathewiperdelay switch *(5).Intermittentwiperspeedwillvaryaccording toroadspeed.

Iftherearwipeandwash(2)isselected,therearwiperand washerwilloperatetogether,andtherearwiperwillmove fast.Iftheswitchisreleasedtointermittentwipe(1),the rearwasherwillstopoperating.

Iftherearwipeandwash(3)isselected,therearwiper andwasherwilloperatetogether.Iftheswitchisreleased tooffposition,therearwiperandwasherstopoperating.

No Vehicle should feature univariable intermittentwiperfunctiondonotfeatureroadspeed adjustmentontherearwiper.

INSTRUMENTSANDCONTROLS

SteeringColumn

SteeringColumnAdjustment

DONOTattempttoadjusttheangleofthe steeringwheelwhilethecarisinmotion.This isextremelydangerous.

Interior view of a car showing steering wheel, dashboard, and steering wheel (no text or symbols)

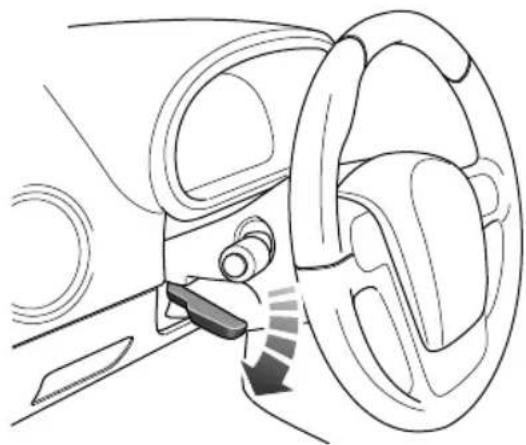

T oadjusttheangleofthesteeringcolumntosuityour drivingposition:

I Fullyreleasethelockinglever.

2Holdthesteeringwheelinbothhandsandtiltthe steeringcolumnupordowntomovethewheelinto themostcomfortableposition.

3Onceaccomfortabledrivingpositionhasbeenselected, pullthelockingleverfullyuptolockthesteering columnintoitsnewposition.

INSTRUMENTSANDCONTROLS

Horn

Interior view of a car steering wheel and dashboard (no text or symbols visible)

pleaseensurethatyoupressinthisareatoavoidany potentialconflictwiththeoperationoftheairbag.

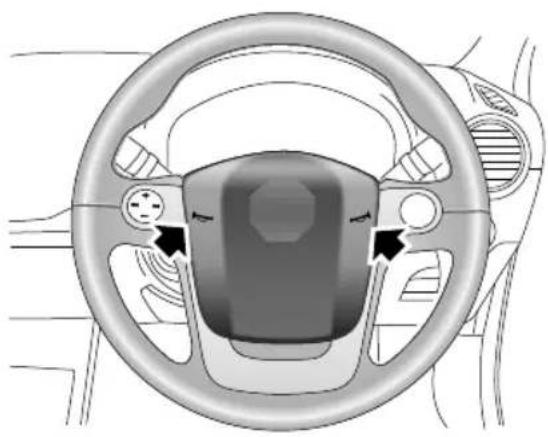

Pressthesteeringwheelpadwherearrowedtooperate thehorn.

Note: The vehicle horn switch and the driver's airbag are located in close proximity on the steering wheel. The illustrations show the position of the horn switch,

INSTRUMENTSANDCONTROLS

Mirrors

DoorMirrors

Note: Objectsviewedinexteriormirrorsmayappear furtherawaythantheyactuallyare.

MirrorGlassElectricAdjustment *

Diagram showing car door panel and control panel with labeled buttons (L, R) and numbered parts (1, 2)

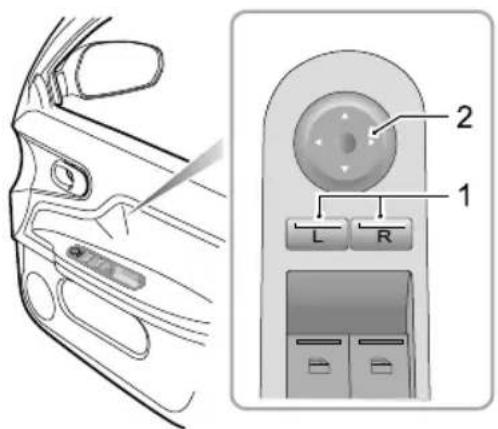

Withtheignitionswitchedon,pressleft(L)orright(R) switch(1)toselecttheleftorrightmirror.Theswitch illuminates.Then,pressoneofthe4arrowsontheround switch(2)toadjusttheangleofthedoormirror.

IMPORTANT

•Theexteriormirrorsareoperatedwiththeelectric switch,operatingthemirrordirectlybyhandmay resultinthefailureofrelatedequipments.
- Exteriormirrorsareoperatedwithmotors. Therefore,flushingwithhighpressurewaterjets directlyinthecarwashmayresultinthefailureof theelectricdevice.

INSTRUMENTSANDCONTROLS

MirrorGlassManualAdjustment \*

Technical line drawing of a car front panel showing handle, side mirror, and mounting bracket (no text or symbols)

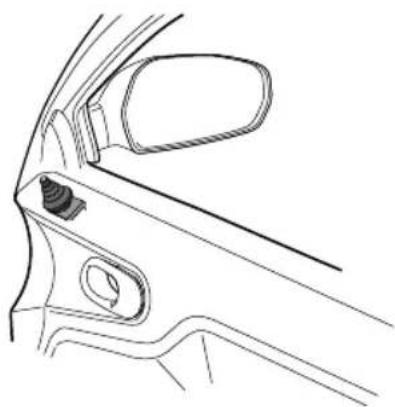

Usethejoysticktoadjustthemirrorglasstoachievethe requiredview.

HeatingElements \*

Thedoormirrorshaveintegralheating

elementswhichdisperseiceormistfromtheglass.The heatingelementsoperatewhiletheHeatedRearWindow isswitchedon.

Note: The heating elements will only work when the engine is running.

INSTRUMENTSANDCONTROLS

MirrorFolding

Diagram of a car's side mirror and intake manifold, showing airflow direction (no text or symbols)

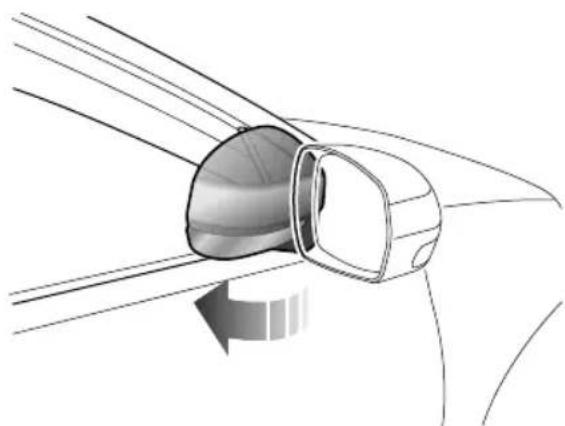

Themirrorscanbefoldedbackmanuallytowardsthe sidewindowsintoa'park'positiontoenablethecarto negotiatenarrowopenings.

InteriorRear-viewMirror

Beforedriving, adjustthebodyofthemirrorbyhandto achievethebestpossibleviewtotherear. Themanual dippingfunctionoftheinteriorrear-viewmirrorhelpsto reduceglarefromtheheadlightsoffollowingvehiclesat night.

ManualMirror

Side mirror with a black arrow pointing to the side, mounted on a curved line (no text or symbols)

Movetheleveratthebaseofthemirrorforwardto'dip' themirror.Normalvisibilityisrestoredbypullingthelever backagain.

INSTRUMENTSANDCONTROLS

Note: In some circumstances, the view reflected in

'dipped'manualmirrorcanconfusethedriverastothe

preciselocationoffollowingvehicles.

INSTRUMENTSANDCONTROLS

SunVisor

Thevanitymirrorforthedrivershouldonly beusedwhenthevehicleisstationary.

Diagram of a car interior showing a lid and handle, with numbered parts labeled 1 and 2 (no text or symbols beyond labels)

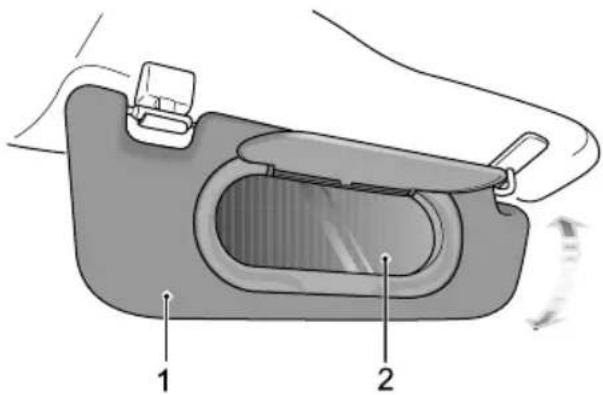

Pivotthesunvisor(Figure1)downwardtoaccessthe vanitymirror * (Figure2).Somemodelsrequirethecover tobeliftedtoaccessthemirror.

INSTRUMENTSANDCONTROLS

Windows

PowerOperatedWindowControls

Diagram of a device interior with numbered parts labeled 1 to 5

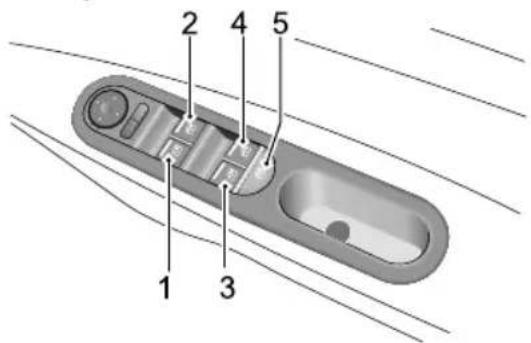

IFrontLeftWindowSwitch

2FrontRightWindowSwitch

3RearLeftWindowSwitch

4RearRightWindowSwitch

5RearWindowIsolationSwitch

WindowOperation

Ensurechildrenarekeptclearwhenraisingor loweringawindow.

Pushtheswitch(1-4)downtolower,andpulltheswitchup toraisethewindow.Thewindowwillstopmovingassoon astheswitchisreleased(unlessthe'One-T ouch'function isactive).

Note: The front and rear passenger windows can also be operated by individual window switches, mounted oneachdoor. Therear window switches will not operate if therear windowisolations switch has been activated.

Note: The electric windows can be operated with the ignition in position / or // (Forsafety: door should be closed).

RearWindowIsolationSwitch

Pressthebutton(5)toisolatetherearwindowcontrols (anindicatorlightinthebuttonilluminates),pressagainto restorecontrol.

INSTRUMENTSANDCONTROLS

Note:ItisrecommendedthatyouISOLATEtherear windowswitcheswhencarryingachild.

'One-T ouch'Down\*

Bybrieflypressingandthenreleasing(withinhalfasecond)awindowswitch,thewindowcanbefullyopened. Windowmovementcanbestoppedatanytimebypassing theswitchagain.

Note: DONOToperatetheswitchformorethan20 secondssoastoprotectthemotorfromoverheating, theswitchwillnotoperate. If this occurs, please wait until themotorcoolsdown.

INSTRUMENTSANDCONTROLS

InteriorLights

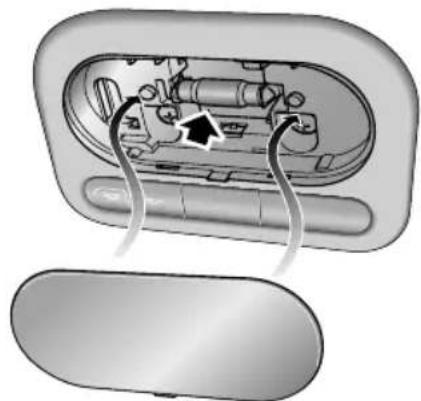

InteriorLamp

3D diagram of a device with labeled parts (1 and 2), no text or symbols present

Note: Manualoperationisactiveonlywhenthe ignitionswitchedisinposition I or2.

AutomaticOperation

Theinteriorlightilluminationoccursautomaticallywhen thedoorisopened. Theinteriorlightremainsilluminated forapproximately30secondsafterthedoorsareclosed.

ManualOperation

Pressthebutton1 toswitchtheinteriorlighton, pressthe button2 toswitchchofftheinteriorlight.

INSTRUMENTSANDCONTROLS

CentreConsolePowerSocket

Line drawing of a mechanical lever mechanism with a handle and pivot point (no text or symbols)

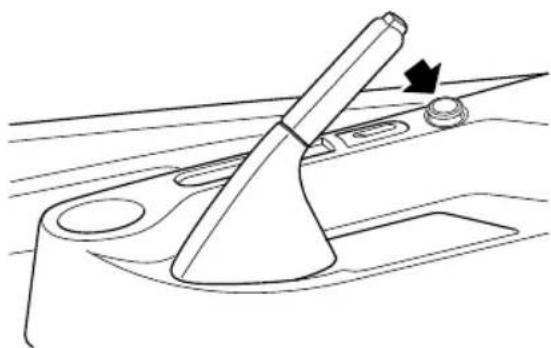

Thecentreconsolepowersocketislocatedonthecentre console(asshownabove),removetheplugtoexposethe centreconsolepowersocket.

Note: The centreconsolepowersocketvoltagesupply is 12V, and theratedpoweris 120w.

INSTRUMENTSANDCONTROLS

StorageEquipment

Instructions

• Pleasecloseallstorageboxeswhenthevehicleis running.Leavingthesestorageboxesopenmaycause personalinjuryintheemergencystart-off,hardbrake andcaraccident.
• Donotplaceinflammablesordisposablecigarette lightersinanystorageboxes. Thehightemperature insummermayignitetheinflammablesanddisposable cigarettelighters,resultinginfires.

Glovebox

Diagram of a car door handle with a curved arrow indicating clockwise motion (no text or symbols)

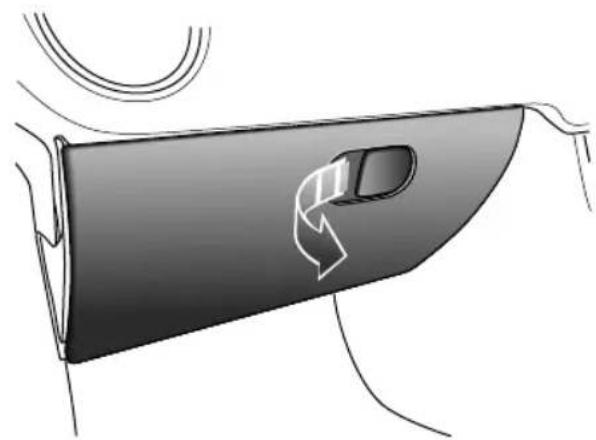

Pullthehandletoopentheglovebox.

T oclosetheglovebox,raisethelidandpushtoclose. Ensurethegloveboxisfullyclosedwhenthecarismoving.

INSTRUMENTSANDCONTROLS

StorageBox

InstrumentPanelStorageBox

DONOTputflammablesubstancesorliquids intheinstrumentpanelstoragebox.Ensure thestorageboxisfullyclosedwhenthecaris moving.

Top-down view of a car's front air vent showing airflow direction (no text or symbols)

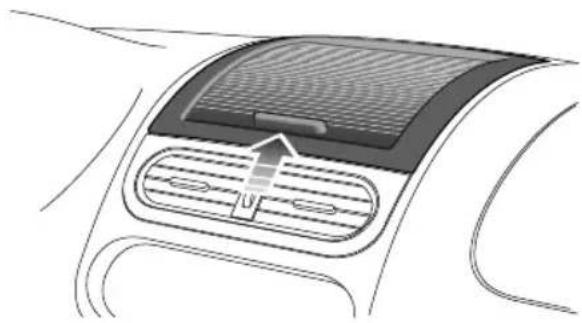

Pushtheinstrumentpanelstorageboxcoverupwardto open.

Pulltheinstrumentpanelstorageboxcoverdownwardto close.

FrontPassengerLowerStorageBox \*

Technical illustration of a mechanical assembly with a clamped component (no text or symbols)

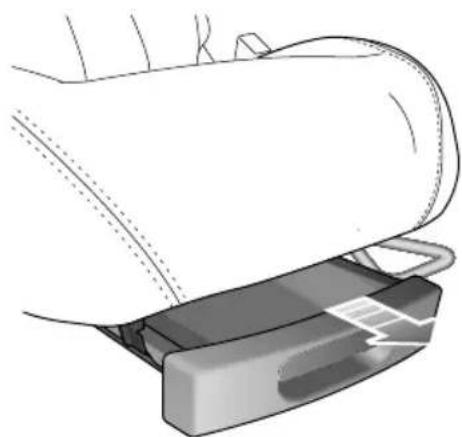

T oopen, gently lift the handle and pull forward.

T oclose, push the handle backward.

INSTRUMENTSANDCONTROLS

CupHolder

DONOTplaceopencupsinthecupholder.

Whenthecarisinmotion, the hot drinks may spill and cause injuries.

Diagram of a car gear shift lever with numbered slots (1-5) and a central hub (no text or symbols)

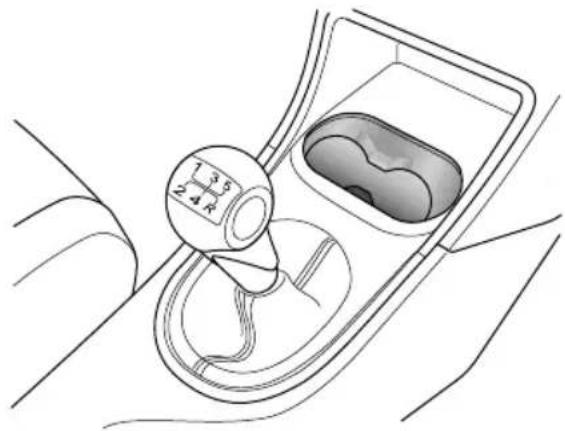

Locatedatthefrontofthegearleveristhecupholderfor user.

ClimateControl

50ClimateControl

CLIMATECONTROL

ClimateControl

Ventilation

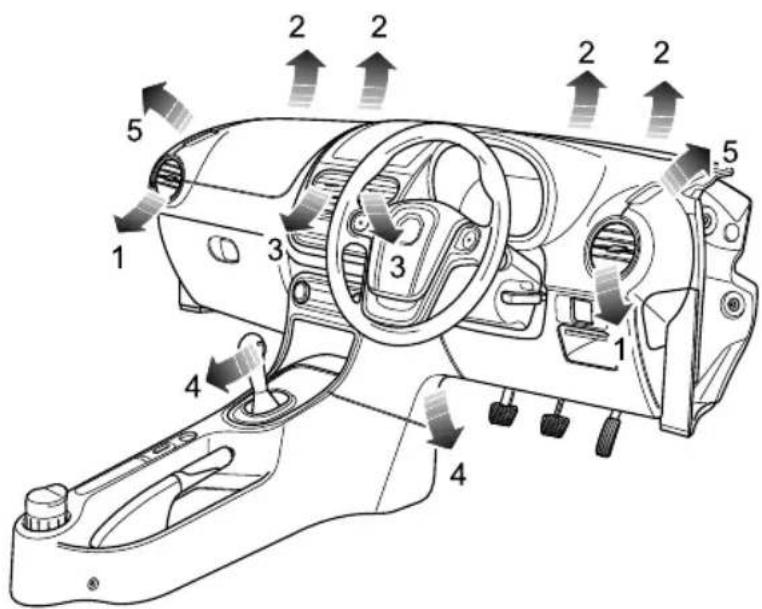

Technical diagram of a car interior with numbered components and directional arrows indicating motion or flow.

|Sidevents

2Windscreenvents

3Centrevents

4Frontseatfeetvents

5Frontsidewindowvents

Heating, ventilation and air conditioning system provides fresh or heated air to the interior of the car from the air intake grille in front of the windscreen.

Alwayskeeptheairintakegrilleclearof obstructionssuchasleaves,snoworice.

Airoutletsareprovidedtothe windscreen,faceandfeet-thelocation ofthoseventsisshownintheillustration.

Particle/PollenFilter

Theparticle/pollenfilterhelpstokeepthecarinteriorfree frompollenanddust. T oremainfullyeffective,thefilter shouldbereplacedattherecommendedserviceinterval.

Vents

CentreVents

Diagram of a vehicle with directional arrows indicating flow or movement (no text or symbols)

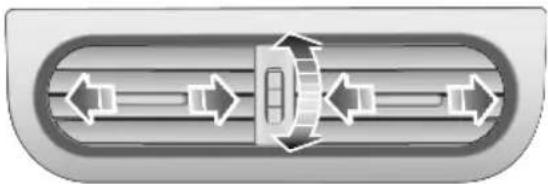

Rotatethethumb-wheeldowntocloseoruptoopenthe vents.Directtheairflowbymovingthecontrolinthe centreofthelouvres.

Note: Toincreaseoutputfromthecentrevents, shut thesidevents.

SideVents

Diagram of a car interior showing airflow or traffic direction (no text or symbols)

Rotatethethumb-wheellefttocloseortotherightto openthevents.

Directtheairflowbymovingthecontrolinthecentreof thelouvresupordown,orfromsidetoside.

Note: Toincreaseoutputfromthesidevents, closethe centrevents.

CLIMATECONTROL

HeaterControls \*

ControlPanel

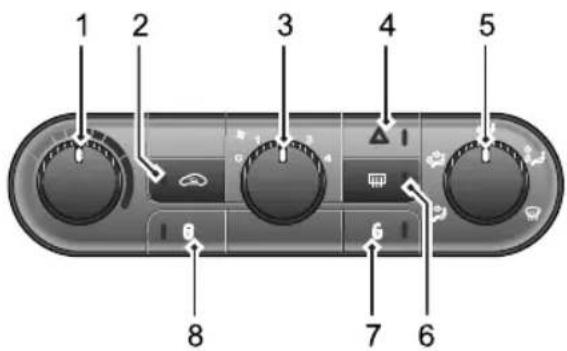

1 2 3 4 5 6 7 8

IT emperaturecontrol

2Airrecirculation

3Blower

4Hazardwarninglight

5Airdistribution

6Heatedrearscreen

7Interiorlockunlocking

8Interiorlocklocking

Blower

Rotatetheblowercontrolclockwisetoincreasethe blowerspeedorrotateanti-clockwisetodecreasethe blowerspeed. Theblowerisswitchedoffwhentheblower speed and blowerspeedincrease gradually from 1 to 4.

T emperatureControl

RotatetheTEMPcontrolclockwisetoincreasetheair temperatureinsidethecarorrotateanti-clockwiseto decrease.

AirDistribution

Rotatetheairdistribution,controltoselecttherequired airdistributionmode.

For'face'.Directsairtothesideandcentre

vents.

For'face+feet'.Directstheairtothefeet,sideents.

For'feet'.Directsairtothefeetvents.

Note: In this mode, asmall amount of fair will be directed to the beside and windscreenvents.

For'feet+windscreen'.Directsairtothe

windscreenandfeetvents.

Note: In this mode, asmall amount of fair will be directed to the beside events.

For'windscreen'.Directsairtothewindscreen

vents.

Note: In this mode, asmall amount of fair will be directed to the beside events.

HeatedRearScreen

Theheatingelementsontheinsideoftherear screenareeasilydamaged.DONOTscrape orscratchtheglass.DONOTsticklabels overtheheatingelements.

Presstöoperate;theLEDintheswitchwill

illuminateindicatingtheheatedrearscreenisswitched on.TheLEDextinguisheswhentheheatedrearscreen isurnedtheatedeascreewiswitchoff automaticallyafter 15minutes.

Note: The heatedrearscreenwillonlyfunctionwith theengineoperating.

CLIMATECONTROL

AirRecirculation

Presstöoperate, theLEDintheswitch

illuminates, the air insidethe caris recirculated and the air intake is closed, preventing the entry of traffic fumes.

Whentheengineisoff, theairrecirculationcontrolflap staysincurrentposition.

Note: Leaving the system in recirculation mode can cause the windscreentomist. If this happens, switch offrecirculation and turn the control maximum demisting.

CLIMATECONTROL

AirConditioningControls \*

ControlPanel

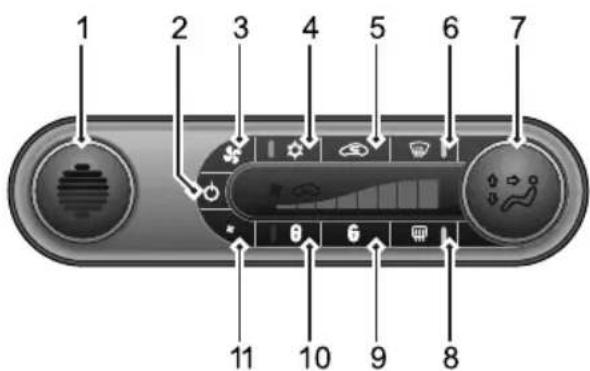

1 2 3 4 5 6 7 8 9 10 11

IT emperaturecontrol

2Poweron/off

3Increaseblowerspeed

4A/Con/off

5Airrecirculation

6Defrost/Demist

7Airdistribution

8Heatedrearscreen

9Interiorlockunlocking

10Interiorlocklocking

I I Decreaseblowerspeed

Blower

Pressthebuttonincreaseblowerspeed.

Whether systerswitched, pressing button operates the system.

Preshebuttonodecreaseblowerspeed.

Whether system switched, pressing button operates the system.

CLIMATECONTROL

T emperatureControl

Rotating the temperature control clockwis will increase the air temperature. The controldisplay will gradually changetored. Whent the temperature control is fully increased, the controldisplay will be totally red.

Rotating the temperature control anti-clockwise will decrease the air temperature. The controldisplay will gradually changet blue. Whent the temperature control is fully decreased, the controldisplay will betotally blue.

A/CButton

PresstheA/CButtontoswitchtheair

conditioningsystemon.Pressagaintoswitchoff.

Note:

I Theairconditioningsystemcanonlybeswitched onaftertheengineisstarted;

2When the air conditioningsystem is switched off, the system can still provide heating and ventilation function.

3WhentheAirconditioningisswitchedon,the compressorwillturnitself"on"and"off".

PowerOn/Off

PresthPoweon/offbuttonswitchhe

systemoffandpressagaintoswitchon.

Not Recirculation status will remain the setting selected.

AirDistribution

Rotatetheairdistribution,controltoselecttherequired airdistributionmode.

FolfaceDirectaircheidandentre

vents.

For'face+feet'.Directsairtothefeet,side

andcentrevents.

For'feet'.Directsairtothefeetvents.

Note: In this mode, asmall amount of fair will be directed to the beside and windscreenvents.

For'feet+windscreen'.Directsairtothe

windscreenandfeetvents.

Note: In this mode, asmall amount of fair will be directed to the beside events.

For'windscreen'.Directsairtothewindscreen

vents.

Note: In this mode, asmall amount of fair will be directed to the beside events.

Themodesare'face'-face+feet'-feet'-feet+windscreen'-windscreen'clockwiseinorder.T omake furtherselectionsturncounter-clockwise.

Defrost/Demist

With this buttonpressed, air conditioning

isswitchedon,theblowerissettomaximumspeed, airdistributionissettowindscreEnoswitchoff defrost/demist,pressthebuttonagain.

HeatedRearScreen

Theheatingelementsontheinsideoftherear screenareeasilydamaged.DONOTscrape orscratchtheglasDONOTsticklabels overtheheatingelements.

Presstöoperate;theLEDintheswitchwill

illuminateindicatingtheheatedrearscreenisswitched ofTheLEDextinguisheswhentheheatedrearscreen isturnedoftheheatedrearscreenwillswitchoff automaticallyafter 15minutes.

NoteThe heated ascreenwilbnlfunctionwith thengineoperating.

CLIMATECONTROL

AirRecirculation

Withthisbuttonpressed,theiconshowsin

thedisplay, theairinsidethecarisrecirculatedandtheair intakeisclosed, preventingtheentryoftrafficfumes. Press thebuttonagain, thesystementersexternalcirculation

Whentheengineispoweredoff, theairrecirculation controldoorstaysincurrentposition.

Note: Use this function to obtain maximum air conditioning performance and optimum fuel efficiency when A/Cisoperating.

AudioSystem

60CDPlayer * (LowLine)

70CDPlayer * (HighLine)

AUDIOSYSTEM

CDPlayer \* (LowLine)

UseInstructions

I Whencleaningthevehicle,ensurethatwaterdoesnot contacttheaudiosystem.
2Useasoftclothtocleanthedisplay.Usealcohol toremovestubborndirt.Donotusewater,solvent orabrasivecleaner,thesesubstanceswilldamagethe display.
3Donotattempttoplaynonstandarddiscs,orany shapewhichisnotround.Donotusedamageddiscs orplaceanyothermaterialintotheCDslot.
4Theaudiosystemisdesignedtooperatebetween the temperaturesof-20°Cand+70°C.
5Whentravellingonroughorunevenroads, disc reproductionmaybeimpaired.
6Distortion, interference and lack of signal clarity, are often attributed to a fault in the radio. Problem of this kind are usually caused by atmospheric conditions, signal strength, hilly terrain, tall buildings, bridges and even electrical interference from power lines.

7TheUSBinterfaceoftheplayerdoesnotsupporta portableharddrive.
8TheUSBinterfacecansupportsometypesofcard readers, but we are unable to guarantee that it supports all types of cardreaders.
9TheUSBinterfaceofthisplayerdoesnotsupporta USBconcentratorconnectionandextendedharness.
10TheUSBinterfaceofthisplayermaynotrecognize allUSBbrandsandtypes,andsomefilesmaynotbe playedcorrectly.Insuchcases,pleasecontactyour MGAuthorisedRepairer.

IMPORTANT

OnlyusetheCDplayerwhenroadconditionspermit.

CDPlayerControlPanel

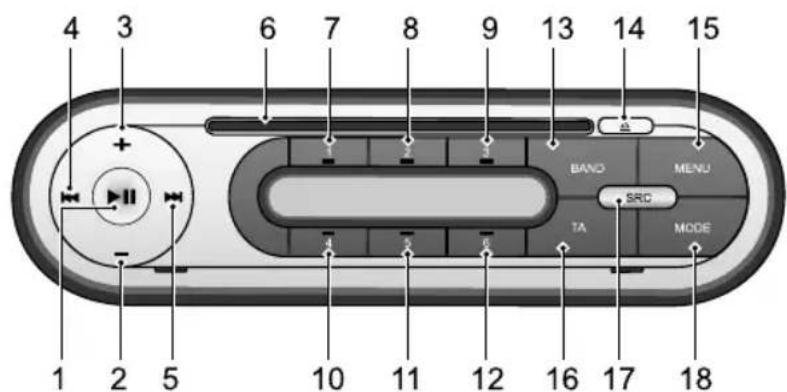

4 3 6 7 8 9 13 14 15 BAND MENU SRC TA MODE 1 2 5 10 11 12 16 17 18

On/OfbPause/Mute

VolumeDown

VolumeUp

(See Downward)

(Seek upward)

6DSlot

PreseButton

ReseButton2

PreseButton3

IReseButton4

IPreseButton5

IPreseButton6

IBAND(Frequency)

(CIEj▲Button)

IMENU

ГБА(TrafficAnnouncement)

ISRC(Source)

18ODE

AUDIOSYSTEM

BasicOperation

On/OffPower

PresstheOn/Offbuttontoswitchonradiosystem, and pressagaintoturnoffthesystem.

When the CD player is off, and a CD is loaded, the CD player will switch on.

30MinutesPlayFunction

Whentheignitionisswitchedoff, press the On/Offbutton to operate the audiounit for up to 30 minutes, after 30 minutesthe player will switch off. T o switch on again, press the On/Off button.

Mute/Pause

PresstheMUTEbuttontomutetheradio.Pressagainto resumeplay.

IfinCD/USBmode, presstheMutebuttontopause.

SelectMode

RepeatedlypresstheSRCbuttontochangetresource oftheoutput. The unit will cycle through the following options: TUNER, CD (if there is adiscin the CD player), USB (if USB is connected), and AUX.

Note: CDplaycanonlybeselectedwhenthereisa discintheCDplayer.

Note: USBcanonlybeselectedwhenaUSB/bluetooth sourceisconnected.

VolumeAdjustment

PressVolumeDownbutton, thevolumewilldecreaseby -1, ifpressandholdthebutton, thevolumewilldecrease quicklyto0.

PresstheVolumeUpbutton, thevolumewillincreaseby +1, ifpressandholdthebutton, thevolumewillincrease quickly to 30.

MenuOperation

ForeachpressofMENUbutton, themodewillcycle throughClock, BASS, TREBLE, BALANCE, FADER, EQ, LOUDNESS, AF, REG, CT, EON and TA Volume.

BASS

InBASSmode, pressbuttonorbuttontadjustthe basseffect(adjustmentrange:-7-+7).

TREBLE

In TREBLEmode, pressbuttonorbuttontadjust thetrebleeffect(adjustmentrange:-7-+7).

BALANCE

InBALANCEmode, press 🏠 buttobotto to adjust the left-right balance effect (adjustment range: L7-R7), '0' represents the left-right speaker balance.

FADER

InFADERmode, postadjust to adjust thefront-rearbalance effect (adjustment range: F7-R7), '0'represents thefront-rearspeaker balance.

EQ

InEQmode, piastototon, and select from CLASSIC, ROCK, POPULAR, and OFF.

LOUDNESS

InLOUDNESSmode, pressbook to stop/starttheloudnesscontrol.

AlternativeFrequenciesSetting

Press buttonorbctontoselectAFONorAFOFF. IftheradiostationselectedsupportsAFanditssignal becomesweak,thenthe Tunershouldbeswitchedtothe strongestavailablefrequency.

RegionSetting

PressButtonorbuttontoselectREGONorREG OFF.

Note: AFshowsthattheRDSistuningtothestrongest signalforthestationyouhaveselected.Itreturnstoa differentfrequencywhenyoumoveintoanotherarea.

AUDIOSYSTEM

ClockTimeSetting

PressbuttonorbuttontoselectCTONorCTOFF.

Note: CTsynchronisation(viaRDS) will be automatically deactivated if the user makes manual changestotheclockordate.

EnhancedOtherNetworksSetting

PressButtonorbuttontoselectEONLOorEON DX.

TrafficAnnouncementVolume

PressbuttonorbuttonebadjustTAvolume.

TimeSetting

PressMENUbuttonontoentertheclockdisplay,press andholdMENUbuttonontoentertheclocksettingmode, andthenpressMENUbuttonontoaccessthehour-clock, minute-clock,timedisplaymodes(12HRor24HR),and clockdisplayprotection(openorclose),pressbuttonor buttonomakeselection

PlayingMode

InCD/USBmode, pressMODEbutton to select the random or repeat playing modes.

Inrandommode, pressbuttonorbutton, and select to close or open random mode.

Notrepeatplayisnotrequired,pressMODE buttontwicetoconfirmtheselectedrandommode.

Inrepeatmode, pressor selects single track, folder or close.

Note: If the track has no corresponding information the information will not be displayed.

Note: If there is no folder in source, therandom folder cannot be used.

FolderMode

WheninCD/USB,pressandholdMODEbuttonontoenter thefolderselectionmode,andpressor buttontoselectthefolderforwardorbackward.

Note:4secondsafterthelastoperationhasbeen made,thesystemwillenterthecurrentplayingmode.

RadioFunction

ModeSelection

PressSRCbuttontoselectradioasthesource.

BandSelection

RepeatedlypresstheBANDbuttontoselectFMI,FM2, FMA,MW,MWAfrequencies.

Note: Iftheradioisinstereo, thebottomofthescreen will display 'ST'.

T une

Thereare3tuningmodes, which are these archtuning, manual tuning and pre-settuning.

SearchTuningMode

pressbuttonorbutton,theradioautomatically searchesthefrequencyrange,lookingforaradiostationof acceptablestrength.Onceastationisfound,thatstation willbeplayed.

AUDIOSYSTEM

Note: Ifnostationcanbefound, thenthesearchwill bestopped, and thescreenwilldisplay 'NOSTATION'.

ManualTuningMode

Pressandholdeitherofthe buttonandbutton,and thenenterthemanualtuningmode,andpressbuttonorbuttonagaintosearchstations.

Note: if noselectionism made after 5 seconds manual tuning will be cancelled.

Pre-setTuningMode

Upto30radiostationscanbestored(FM1,FM2,FMA, MW,MWA).PressnumberbuttonsI-6toselectastored frequency.

StoreStation

Therearemanualandautostoremodes.

ManualStore

• PressBANDbuttontoselectthedesiredwaveband.
• Usesearch,manualorpre-settuningmodestotuneto thedesiredstation.

- Pressanynumberbuttonformorethan2seconds. The frequencieswillbeautomaticallystored.

Note: Manualstoreoverwritesanystationswhich alreadystoredonthepre-setbuttons.

AutoStore

• PressBANDbuttontoselecttheFM/WMfrequency.
• PressandholdtheBANDbutton, Auto-storescans thewavebandtofindthesixstrongestFM/WMradio frequenciesandthenstorestheminFMAorMWA memoryinorderofthesignalstrength.
  Ifauto-storeisunabletofindsixstrongstations,the remainingpre-setsarenotused.

No automatistorageoverwritingations alreadystoredontheASTpre-setbuttons.

TA(TrafficAnnouncement)

Press TAbuttontoenable TAfunction,iftheradiois on,theplayerwillsearchautomatically.ifcurrentstation doesn'tsupportTA,presstheTAbuttonagaintodisable TA.WhenaTAisreceivedduringCD/USB playback,the MIXfunction(ifselected)iscancelled.

CDPlaying

TheCompactDisc(CD)playerfittedtoyour carwillonlyacceptonediscatatime.

LoadingaCD

Makesurethatthediscispositionedwiththelabel sideupwards,thengentlypushitintotheslotuntilthe mechanismdrawsthediscinfully.CDplaywillstart immediately.

T rackSearch

I Pressbutton noncetoskiptothebeginningofthe nexttrack.

2Ifthetrackelapsedtimeismorethan1 seconds,Press buttononcetoreturntothestartofthecurrent trackandpressagaintostarttheprevioustrack.If elapsedtimeislessthan3seconds,press button oncetoreturntotheprevioustrack.

FastForward/Rewind

1 Pressandholdbuttontofastrewind. 2 Pressandholdbuttontofastforward.

EjectingCD

PressEjectbutton, thediscwillbeejectedfromtheplayer andcanthenberemoved.

AUDIOSYSTEM

USB

USBConnection

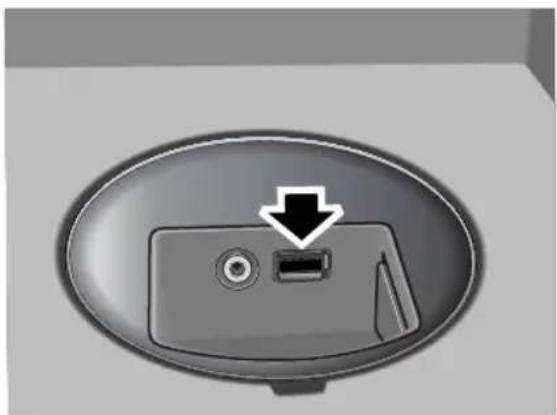

AUSBconnectionissituatedinsidethecentreupper stowagetraylocatedinthefascia.

InsertaUSBmemorystickviatheUSBconnection.

Top-down view of a car intake tray with a white arrow pointing to a small electronic component (no text or symbols)

USBPlaying

Pressbuttononcetochoosethenexttracktoplay.

Press buttononce,iftheplayingtimeexceeds l second, thetrackwillbeplayedfromthebeginning,pressthe buttonagaintoselecttoplaythepreviousrack;ifthe playingtimedoesnotexceed l second,press once,toplaythepreviousrack.

Note: This system can only play.mp3 and .wma format files.

USBRemoval

DonotforciblyremovetheUSBwhenUSBfilesare displayed, this may cause file damage.

AUX

AUXInputPlaying

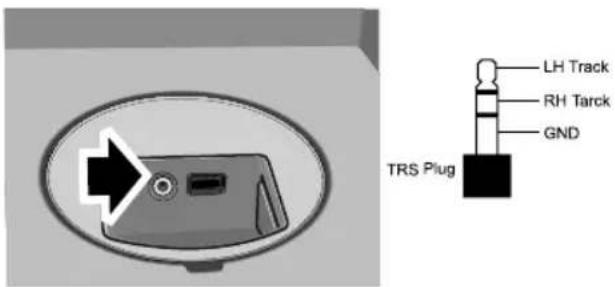

AnAUXdeviceconnection(3.5mmjacksocket)islocated insidethecentreupperstowagetraylocatedinthefascia.

Insertanauxiliarydeviceviatheauxiliarysocket,after auxiliaryisconnected.

LH Track RH Tarck GND TRS Plug

Note: Please use 3.5mm TRSplugsto connect auxiliary audio.

Antenna

Line drawing of a car's roof and side panel with a antenna (no text or symbols)

Theantennaislocatedattherearoftheroof.Avoid bendingtheantenna.Howeverwhenrequired,e.g.when usinganautomaticcarwashingfacility,pleaseensurethat theantennaisremoved.

T oremovetheantennaunscrewtheantennaanti clockwise.

AUDIOSYSTEM

CDPlayer \* (HighLine)

UseInstructions

I Whencleaningthevehicle,ensurethatwaterdoesnot contacttheaudiosystem.
2Useasoftclothtocleanthedisplay.Usealcohol toremovestubborndirt.Donotusewater,solvent orabrasivecleaner,thesesubstanceswilldamagethe display.
3Donotattempttoplaynonstandarddiscs,orany shapewhichisnotround.Donotusedamageddiscs orplaceanyothermaterialintotheCDslot.
4Theaudiosystemisdesignedtooperatebetween the temperaturesof-20°Cand+70°C.
5Whentravellingonroughorunevenroads, disc reproductionmaybeimpaired.
6Distortion, interference and lack of signal clarity, are often attributed to a fault in the radio. Problem of this kind are usually caused by atmospheric conditions, signal strength, hilly terrain, tall buildings, bridges and even electrical interference from power lines.

7TheUSBinterfaceoftheplayerdoesnotsupporta portableharddrive.
8TheUSBinterfacecansupportsometypesofcard readers,butweareunabletoguaranteethatit supportsalltypesofcardreaders.
9TheUSBinterfaceofthisplayerdoesnotsupporta USBconcentratorconnectionandextendedharness.
10TheUSBinterfaceofthisplayermaynotrecognize allUSBbrandsandtypes,andsomefilesmaynotbe playedcorrectly.Insuchcases,pleasecontactyour MGAuthorisedRepairer.

IMPORTANT

OnlyusetheCDplayerwhenroadconditionspermit.

CDPlayerControlPanel

1 18 17 16 15 14 13 12 MENL MUTE ESC TA AUDIO SRC MODE BAND 2 3 4 5 6 7 8 9 10 11 SE

IVolumeUp

2(SeekDownward)

3VolumeDown

SEL

5(SookUpward)

BSC

7NumberButton

8

9SRC(Source)orOn/Off

10BAND(Frequency)

IIMODE

12AUDIO

I3TA(TrafficAnnouncement)

14

15(①EjectButton)

16MUTE

17MENU

18CDSlot

AUDIOSYSTEM

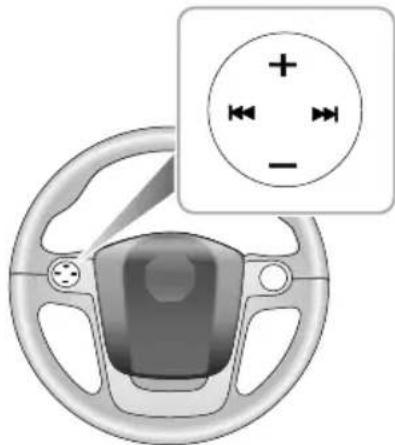

SteeringWheelControlButton

Diagram of a car steering wheel with a circular dial and directional arrows, no text or symbols present.

'+'button:volumeup
'-button:volumedown

		(SeekDownward)(SeekUpward)
Radio	Short Press	Previouspresetin currentBand	Nextpresetincurrent Band
	Long Press	Previousautomatically searchthefrequency range,lookingfor aradiostationof acceptablestrength. Onceastationis found,thatstationwill beplayed.	Nextautomatically searchthefrequency range,lookingfor aradiostationof acceptablestrength. Onceastationis found,thatstationwill beplayed.
CD/USB /Bluetooth /Audio/lpod /lphone	Short Press	PrevioustrackNexttrack
	Long Press	Fastrewind	Fastforward

BasicOperation

On/OffPower

PresstheOn/Offbuttontoswitchonradiosystem, and pressagaintoturnoffthesystem.

WhentheCDplayerisoff,andaCDisloaded,CDplayer willswitchon.

30MinutesPlayFunction

Whentheignitionisswitchedoff,presstheOn/Offbutton tooperatetheaudiunitforupto30minutes,after30 minutestheplayerwillswitchoff.T oswitchonagain,press theOn/Offbutton.

Mute/Pause

PresstheMUTEbuttontomutetheradio.Pressagainto resumeplay.

IfinCD/USB/bluetoothmode, press the Mutebutton to pause.

SelectMode

RepeatedlypresstheSRCbuttontochangethesourceoftheoutput. The unit will cycle through the following options: radio, CD (if there is adiscintheCD player), USB (if USB is connected), Bluetooth audio (if Bluetooth is connected), and AUX.

Note: CDplaycanonlybeselectedwhenthereisa discintheCDplayer.

Note: USB/bluetoothcanonlybeselectedwhena USB/bluetoothsourceisconnected.

VolumeAdjustment

PressVolumeDownbutton, thevolumewilldecreaseby -1, ifpressandholdthisbutton, thevolumewilldecrease quicklyto0.

PresstheVolumeUpbutton, thevolumewillincreaseby +1, ifpressandholdthisbutton, thevolumewillincrease quicklyto30.

AUDIOSYSTEM

AudioSoundSetting

Press the AUDIO button to adjust the sound setting, press button or button to access BASS, MIDDLE, TREBLE, BALANCE, FADER, EQ, and LOUDNESS. Press the SEL button to access and confirm selection.

BASS

InBASSmode, pressbuttonorbuttontoadjustthe basseffect(adjustmentrange:-7-+7).

MIDDLE

InMIDDLEmode, pressbuttonorbuttontadjust thebasseffect(adjustmentrange:-7-+7).

TREBLE

InTREBLEmode, press buttonorbitontoadjust thetrebleeffect(adjustmentrange:-7-+7).

BALANCE

InBALANCEmode, pressbuttonorbutton:adjust theleft-rightbalanceeffect(adjustmentrange:L7-R7), '0' represents theleft-rightspeakerbalance.

FADER

InFADERmode, pressbutonorbuttontoadjust thefront-rearbalanceeffect(adjustmentrange:F7-R7), '0'representsthefront-rearspeakerbalance.

EQ

InEQmode, pressbuttonorbuttontoselectfrom CLASSICAZZPOPROCKFLATVOCALandOFF.

LOUDNESS

InLOUDNESSmode, pressbook to stop/starttheloudnesscontrol.

Clock, TimeandDate

PressMENUbuttontoenter,selectClockandDate,pressSELbuttontoenterthedateandtimesettingmenu.Press the buttontoenterchosethesub-menu and pressSELtoaccess.

ClockorDateMode

PressSELbuttontoaccessclockmode, pressthe buttontoaccesshour-clock, minute-clock

andtimedisplaymodes(12HRor24HR).PressSELbutton toconfirm,pressSELbuttonagaintoreturntothemenu afterClockSettingshavebeenconfirmed

PressSELbuttontoaccessdatemode, pressthe button or buttontoaccesstheday, month, year. PresstheSEL buttontoselect, pressSELbuttonagaintoreturntothe menuinterface.

PlayingMode

WheninCD/USBmode, pressMODEbuttontoselect Random, or RepeatandDisplayInformation.

Wheninrandommode, pressbuttonorbuttontoselectRandomAll, RandomFolderorRandomOff.

Wheninrepeatmode, pressbuttonorbuttonto selectRepeatTrack, RepeatFolderorRepeatOff.

WheninDisplayInformationmode, pressbutton ▶ buttontosearchFolderNo, TrackNo&SongElapsed Time, ArtistName, AlbumName.

Note: If the track has no corresponding information, the information will not be displayed.

Note: If there is no folder in source, therandom folder selection is unavailable.

FolderMode

WheninCD/USBmode, pressandholdtheMODEbutton toenterthefoldermode, and printoblock to select folder, press theSELbuttontoconfirm, and start to play the first track within these selected folder.

Notdecondefterthlasoperationabeen made,thesystemwillenterthecurrentplayingmode.

AUDIOSYSTEM

MenuOperation

PresstheMENUbuttontoaccessthemenumode.Press buttonorb MontoselectRDSSettings,Bluetooth Settings,ContrastAdjustments,DABSetting.

RDSSettings

Inthemenumode, selectRDSSettings, ClockandDate, andpresstheSELbuttontoentertheRDSsettingsmenu. PbestbuttontoselectAP, REG, CT, EON, TAVolume.

AlternativeFrequenciesSetting

PressButtonorbuttonCloselectAFONorAFOFF, pressSELbuttonontoconfirm.

IftheradiostationcurrentlyselectedsupportsAFandits signalbecomesweak,thentheradioshouldswitchtothe strongestavailablefrequency.

RegionSetting

PressButtonorbuttonObselectREGONorREG OFF,pressSELbuttonontoconfirm.

WhenREGison,theradiocanchangethefrequencyinthe AFlistthestation.WhenREGisoff,theradiowilltuneto anotherstation.

ClockTimeSetting

PressbuttonorbuttontoselectCTONorCTOFF, pressSELbuttonontoconfirm.

If the current selected station carries CT information, the time of the support will synchronise automatically via RDS if CT ON.

EnhancedOtherNetworksSetting

PressbuttonorbuttontoselectEONLOorEON DX, pressSELbuttonontoconfirmtheEONmode.

TrafficAnnouncementVolume

Press buttonorbuttonadjustTAvolume,press SELbuttonontoconfirm.

BluetoothSettings

Inthemenumode, selectBluetoothSettings, and press the SELbutton to enter the Bluetooth Settings menu. Press button or button to select bluetooth function.

BluetoothActivation

Press buttonorbitontoselectBluetoothONor BluetoothOFF, pressSELbuttonontoconfirm.

BluetoothPairing

BluetoothdevicenameandBluetoothpairingpasswordcan beviewed.

PairedList

T oviewarecordofthelast5T elephonesPairedwiththe vehicle,Press buttonorbontomakeaselection fromtherecord.

PressSELbuttontoapairedphoneandenterthenext submenu.Press buttonorbuttontoManually connect,Syncphonebook,Deleterecords.

IncomingCallvolume

Setsthecallvolume.

ContrastAdjustment

Press buttonorbitontoadjustthecontrast, press SELbuttontoconfirm.

DABSetting

DABStationListOrder

PressButtonorbuttonselectList:Alphabetical oListEnsemble, presSELbuttonconfirm.

ServiceFollowing

PressButtonorbuttonCloselectServiceFollowingONServiceFollowingOFF, pressButtono confirm.

DABBackgroundScan

PressButtonorbuttonReselectBackgroundScan ONBackgroundScaOFF, pressButtono confirm.

AUDIOSYSTEM

FM/MW

ModeSelection

PressSRCbuttontoselectradio.

BandSelection

RepeatedlypressBANDbuttontoselectFMI, FM2, FMA, MW, MWADABI, DAB2, DAB3 bands.

Note: Iftheradiostationisinstereophonicsound, the screenwilldisplay'ST'.

T une

Thereare3tuningmodes, which are these archtuning, manual tuning and pre-settuning.

SearchT uningMode

Pressbuttonorbutton,theradioautomatically searchesthefrequencyrange,lookingforaradiostationof acceptablestrength.Onceastationisfound,thatstation willbeplayed.

Note: Ifnostationexistswithintheentireband, then thesearchwillbestoppedafterfinishingacycle, and thescreenwilldisplay'NOSTATION'.

ManualTuningMode

Pressandholdeitherof buttonorbiton,andthen enterthemanualtuningmode,andpressbuttonor buttonagaintosearchstations.

Note:5secondsafterthelastbuttonpress,thesystem willleavethemanualtuningmode.

Pre-setTuningMode

6stationscanbestoredineveryfrequency.Pressnumber buttons l-6toselectastoredfrequency.

StoreStation

Manualstoreandautostoremodes.

ManualStore

• PressBANDbuttontoselectthedesiredwaveband.
• Usesearch,manualorpre-settuningmodestoselect thedesiredstation.

- Pressanynumberedbuttonformorethan2seconds. Thecurrentradiofrequencywillbeautomaticallystored inthepre-setmemory.

Note: Manualstoreoverwritesanystationsalready storedonthepre-setbuttons.

AutoStore

• PressBANDbuttontoselecttheFM/WMfrequency.
• PressandholdtheBANDbutton, Auto-storescans thewavebandtofindthesixstrongestFM/WMradio frequenciesandthenstorestheminFMAorMWA memoryinorderofthesignalstrength.
  Ifauto-storeisunabletofindsixstrongstations,the remainingpre-setsarenotused.

Note: Automatic storage overwrites anystations already stored on the AST pre-set buttons.

RDSInfo.

Inradiomode, if the current selection is an RDS station it will display the station names (PSname) and frequency.

PressMODEbuttontoentertheRDSselectionscreen, pressthe buttonbuttonselectRDSTXTdisplay, pressSELtoconfirmandreturntotheFMdisplay.When theradiostationcarriesRDSTXTtheinformationwillbe displayedasrollingtextwithinthedisplay.

TA(T rafficAnnouncement)

PressAttopediatraffic Announcement)function,theradiowillsearchonceevery5secondsforinformation.PresstheTAbuttonagainto close.

AUDIOSYSTEM

DAB\*

PresstheBANDbuttonandselectDABmode,thereare 3DABbands(DABI,DAB2,DAB3).

StationSelect

DABhasthreemodes:EnsembleMode.Alphabetical Mode.Pre-setT uningMode

EnsembleMode

PressMENUbutton,selectandchooseEnsembleMode.

DABradiostationsarefoundwithinanensemble,thiswill containanumberofradiostationsdependentonsignal strength.

Presstheseekbutton

ortresearchforaradio

stationcontainedwithinanensemble,whenalltheavailable stationshavebeenaccessedtheaudiounitwillselectthe nextensemble.

AlphabeticalMode

PressMENUbutton,selectandchooseAlphabeticalMode.

InAlphabeticalModepresstheseekbuttonorto selectDABradiostationsAlphabetically.

Pre-setT uningMode

Sixradiostationscanbestoredwithintheaudiounit. selectbutton1-6toaccessastoredfrequency.

StoreStation

Thereismanualstoremode.

ManualStore

PresstheBANDbuttontoselectthedesiredwaveband.

Usesearch, EnsembleModel, AlphabeticalModeor Pre-set Tuning Modetotune into the desired station.

Pressanynumberbuttonformorethan2seconds. The frequencieswillbeautomaticallystored.

NotManualstoreoverwritesanystationsalready storedonthepre-setbuttons.

EnsembleandStationListView

WheninDABmodepresstheMODEbuttontodisplay alistofensembleBresstbeekto

cyclethroughtheavailableensembles,pressSELtoconfirm selection.Havingselectedanensemble,pressMODEto displayalistofstationsavailableontheselectedensemble. PressESCtoreturntothepreviouslyselectedstation.

YoucanviewthelistinEnsembleortheAlphabeticalMode.

CDPlaying

TheCompactDisc(CD)playerfittedtoyour carwillonlyacceptonediscatatime.

LoadingaCD

Makesurethatthediscispositionedwiththelabel sideupwards,thengentlypushitintotheslotuntilthe mechanismdrawsthediscinfully.CDplaywillstart immediately.

T rackSearch

I PbestonHcetoskiptothenexttrack.

2Ifthetrackelapsedtimeismorethan3seconds,Press buttononcetoreturntothestartofthecurrent trackandpressagaintostarttheprevioustrack. elapsedtimeislessthan3seconds,putton oncetoreturntotheprevioustrack.

AUDIOSYSTEM

FastForward/Rewind

I Pressandholdbuttontofastrewind, once the buttonisreleasedthetrackwillresumenormalplay.

2Pressandholdbuttontofastforward,oncethe buttonisreleasedthetrackwillresumenormalplay.

EjectingCD

PressEjectbutton,thediscwillbeejectedfromtheplayer andcanthenberemoved.

USB

USBConnection

AUSBconnectionissituatedinsidethecentreupper stowagetraylocatedinthefascia.

InsertaUSBdeviceintotheUSBconnection.

Top-down view of a device inside an oval frame with a black arrow pointing to a button (no text or symbols)

USBPlaying

Pressbuttononcetochoosethenexttracktoplay.

Pressbuttononce,iftheplayingtimeexceeds3 seconds,thetrackwillbeplayedfromthebeginning,and thenpressthisbuttonagaintoselecttoplaytheprevious track;iftheplayingtimedoesnotexceed3seconds,then press buttononce,todirectlyplaytheprevioustrack.

Pressandholdbuttonorbuttonofastrewindorfast forward,oncethebuttonisreleasedthetrackwillresume normalplay.

Note: This system can only play.mp3 and .wma format files.

USBRemoval

DonotforciblyremovetheUSBwhenUSBfilesare displayed, asthismaycausefiledamage.

iPod/iPhone®

iPod/iPhone® Connection

OncetheiPod/iPhone ^® isinsertedintotheUSBsocket, Track playback will start immediately.

thePod/iPhone ^® has already been connected and details are stored in the player, thenthelast known track and position will be played.

iPod/iPhone® PlayingMode

PresMODEButtonselectRandomRepeatand DisplayInformation.

Press 🏠️ butbontomtomakeanyfurther selection.

Note: Formoreinformation, refertothesection 'Basic Operation' in 'PlayingMode' chapter.

RemovalofiPod/iPhone®

IftheiPod/iPhone ^® has been removed, the CDplayer will displayontheradiointerface.

AUDIOSYSTEM

AUX

AUXInputPlaying

AnAUXdeviceconnection(3.5mmjacksocket)islocated insidethecentreupperstowagetraylocatedinthefascia.

Insertanauxiliarydeviceviatheauxiliarysocket,after auxiliaryisconnected,thenunitwillplaytheAudio.

LH Track RH Tarck GND TRS Plug

Note: Please use 3.5mm TRSplugsto connect auxiliary audio.

Bluetooth

Pairing

TheBluetoothsystemdeviceisnametagged"MG3 CARKIT -*****".

Useyourmobiletelephonetosearchforanavailable Bluetoothdevice.Whenyourtelephonefindsthe"MG3 CARKIT -*****",connect(pair)viathetelephone.

WhenyouarerequestedtoenteraPINcode, input "****" intoyourtelephone.

BluetoothConnection

Beforeusingthebluetoothfunction,pleaseensurethatthe bluetoothconnectionisenabledwithintheaudiounit(see BluetoothSetting,BasicOperation).Itwillbeusedtoa mobilephoneifyourBluetoothenabled.

To access the Bluetooth Function, pleasereferto the chapter, Bluetooth Settings can be accessed via the menu function.

Whenamobilephonehasbeensuccessfullypairedwith theaudiounit.Theaudiounitscreenwilldisplaythatthe phoneisconnected.

IfBluetoothisenabledonthephoneandradiounit(the phoneisinthetop2ofthepairedlist,andnootherdevice isalreadyconnectedtotheunit),thephonewillconnect automatically.

PhoneBookDownload

Onceyourtelephoneisconnected,thesynchronisation phonebookwindowwillbedisplayed,youcanchooseto synchroniseyourphonebookcontacts,(ifyoudon'twant tosynchroniseyourcontactsimmediately,youcanoperate thesynchronisationphonebookfunctioninthephone bookmenulater).

BluetoothMusic

PresstheSRCbuttonandselectBluetoothmusicplay mode,playthetrackonyourmobile.

You can fast-forward and rewind music selections, along with random and repeat play function (not all mobile phones will support this function).

Accept/RejectIncomingCall

Whenreceivingacall,currentaudiostatuswillbepaused, thecallersnumberandnamewillbedisplayed,pressthe buttontoaccessorpressbuttontorejectthecall.

BluetoothFunctionMenu

PressbutontoentertheBluetoothfunctionmenu, pbssdbarontoselectnomCallhistory, Phonebook,Dialnumber,Bluetoothsettings.

CallHistory

PressButtonoccessallHistoryenif, thephonebookhasnotbeensynchronised,youwillbe promptedtosynchronisencesynchronised,allcall recordscanbeviewed.PresstheSELbuttontoconfirm synchronizationandviewMissedcallIncomingcalls,Outgoingcalls.Pressthe buttonouttoNoselect andpresstheSELbuttontoenterthephonerecords.

AUDIOSYSTEM

Phonebook

PressSELbuttontoaccessthephonebookmenu,press theButtonorbuttontoselectfunctionsfulllistor phonebooksearch.

T osearchthephonebook,pressthebuttoner buttontosearchfornamesorselectthefirstletter,press SELbuttontoconfirm,toenablesearchname.

DialNumber

PresstheSELbuttontoenterthetelephonekeypad,press the buttonorbattontoselectnumbers,pressthe SELbuttontoconfirmselection,press buttonomake atelephonecall.Ifthewrongnumberisselected,select DELandpressSELbuttontodeleteselection.

BluetoothSetting

RefertothechapterofBluetoothSettingswhichisinthe MenuFunction.

Antenna

Line drawing of a car's roof and side panel with a antenna (no text or symbols)

Theantennaislocatedattherearoftheroof.Avoid bendingtheantenna.Howeverwhenrequired,e.g.when usinganautomaticcarwashingfacility,pleaseensurethat theantennaisremoved.

T oremovetheantennaunscrewtheantennaanti clockwise.

Seats&Restraints

88Seats

92SeatBelts

95 AirbagSupplementaryRestraint System(SRS)

103ChildRestraints

SEATS&RESTRAINTS

Seats

CorrectSeatingPosition

Toavoidtheriskoflossofcontroland personalinjury, DONOTadjusttheseats whilethecarismoving.

T akecarewhenadjustingtheheightofthe driver'sseat-thefeetoftherearpassenger couldbecometrappedwhentheseatis lowered.

DONOTallowfrontseatoccupantsto travelwiththeseatbacksreclinedsteeply rearwards. Optimumbenefitisobtained fromtheseatbeltwiththebackrestangle settoapproximately25°fromtheupright (vertical).

Thedriverandfrontpassengerseatsshouldbepositioned asfarrearwardaspractical.Aproperlyadjustedseat helpsreducetheriskofinjuryfromsittingtoocloseto aninflatingairbag.

Ideallytheseatshouldbepositionedsothatthesteering wheelcanbeheldwiththearmsslightlybentandtheseat backinanearlyuprightposition.Makesureyourdriving positioniscomfortableandenablesyoutomaintainfull controlofthevehicle.

SEATS&RESTRAINTS

HeadRestraints

Adjusttheheadrestraintsothatthetopof theheadrestraintisinlinewiththetopof theoccupant'sheadandthebackofthe occupant'sheadisascloseaspossibletothe headrestraint.

Illustration of a person adjusting a seatbelt with directional arrows indicating movement (no text or symbols)

Headrestraintsaredesignedtoppreventrearward movementoftheheadintheeventofacollisionor

heavybraking,therebyreducingtheriskofheadandneck injuries.

Pressthebutton(arrowed)andpushtheheadrestraint downwardstoloweritsposition,orlifttheheadrestraint toraiseitsposition.Theheadrestraintcanberemovedby liftingfullyupwards.

SEATS&RESTRAINTS

ManualFrontSeat

Technical diagram of a car seat assembly with labeled parts 1, 2, and 3

I Forward/rearwardadjustment

2Heightadjustment

3Backrestadjustment

Forward/RearwardAdjustment

Liftthelever(1), slidetheseatintopositionandrelease thelever. Makesuretheseatislockedinpositionbefore driving.

HeightAdjustment \*

Pullthelever(2)upwardswithapumpingactiontoraise theseatasrequired.Pressdownontheleverwitha pumpingactiontolowertheseat.

BackrestAdjustment

Liftthelever(3)andallowtheseattomove,tiltthe backresttothedesiredposition.

SEATS&RESTRAINTS

FoldingtheRearSeats

DONOTcarryobjectsontherearparcel shelf-theycouldbecomedangerous projectilesintheeventofanaccident.

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

DONOTcarryunsecuredequipment,toolsorluggage thatcouldmove,causingpersonalinjuryintheeventof

anaccident, oremergencymaneuver-wherepossible, use theseatbeltstosecureluggagecarriedonseats.

T oincreaseluggagespace,fullylowerallheadrestraints, pullupreleasecatchesandfoldtheseatbackrestforward.

RearSeatBackrests'LatchSecure'Indicators

Ensure that there are seat back rests are securely latched in the upright position when these is in use and when loads are carried in the load space.

When returning these at to the upright position, ensure that the catches are engaged and that the red strip is not visible - this confirm that the back rest is secure.

Note: When returning these at to the upright position, ensure that these at belts are not trapped.

SEATS&RESTRAINTS

SeatBelts

SeatBelts

Theairbagsupplementaryrestraintsystem (SRS)isdesignedtoaddtotheoverall effectivenessoftheseatbelts.Itdoesnot replacethem.SEATBEL TSMUSTALWAYS BEWORN!

Ensure that all seat belts are worn correctly -anim properly worn seat belt increase the risk of death or serious injury in the event of a collision.

Theseatbeltsfittedtoyourvehicleareintendedforuseby adultsizedpersons.Eachbeltisintendedforoneperson only.

IMPORTANT

• DOmakesureallpassengersaresecurelystrapped inatalltimes-evenfortheshortestjourneys.
• ALWAYSadjustseatbeltstoeliminateanyslackin thewebbing.T obefullyeffective,theseatbeltmust remaininfullcontactwiththebodyatalltimes.
  • ALWAYSfitthelapstrapaslowonthehipsas possible(neveracrosstheabdomen),andensure thatthediagonalbeltpassesacrosstheshoulder withoutslippingofforpressingontheneck.
  •DONOTwearseatbeltsoverhard,sharporfragile itemsinclothing,suchaspens,keys,spectaclesetc.
• During pregnancy, women should wear the lap belt across the hips below the baby.

FasteningtheBelt

DONOTattachanyadditionaldevicetothe seatbeltinanywaywhichmayimpedeits operation.

Diagram showing a belt buckle being inserted into a separate bracket, with an arrow indicating the process (no text or symbols present)

Pulltheseatbeltsteadilyovertheshoulderandacrossthe chestand,ensuringthewebbingisnottwisted,insertthe metaltongueplateintothebucklenearestthewearer.A 'click'indicatesthatthebeltissecurelylocked.

ReleasingtheBelt

Presstheredbuttonontheseatbeltbuckletoreleasethe belt.

CheckingSeatBelts

• Withtheseatbeltfastened,givethewebbingnearest thebuckleaquickpull-thebuckleshouldremain securelylocked.
• Unreelthewebbingtothelimitofitstravel. Check that webbingisfreefromsnagsandcutsandfurthercheck forvisualsignsofwearorfraying. Allowthewebbingto retract, checkingthatretractionissmooth, continuous andcomplete.
• Withthewebbinghalfunreeled, holdthetongueplate andgiveitaquickforwardpull-themechanismmust lockautomaticallyandpreventanyfurtherunreeling.
  Ifaseatbeltfailsanyofthesetests,contactyour MGAuthorisedrepairerforinspectionattheearliest opportunity.

SEATS&RESTRAINTS

ReplacingSeatBelts

Alwaysreplaceseatbeltassemblywhere thewebbingshowssignsoffraying.

Regularlyinspectthebeltwebbingforsignsoffraying,cuts andwear;alsopayparticularattentiontotheconditionof thefixingpointsandadjusters.

SeatBeltPre-tensioners

Theseatbeltpre-tensionerswillonly beactivatedonceandthenMUST BEREPLACED.Failuretoreplace the pre-tensionerswillreducetheefficiency of thecar'sfrontrestraintsystems.

Theseatbeltpre-tensionersactivateinconjunctionwith theairbagtoprovideadditionalprotectionintheeventof aseverefrontalimpact. Thepre-tensionersautomatically retracttheseatbelts. Thisreducestheforwardmovement ofthebeltwearerintheeventofaseverecollision.

Note: Theseatbeltpre-tensionerswillINOTbe activatedbyminorimpacts.

Theseatbeltpre-tensionersarelocatedinsidethefront seatbeltreels.

Theairbagwarninglightontheinstrumentpanelwillalert thedrivertoanymalfunctionoftheseatbeltpretensioners (see'AirbagWarningLight').

If the pre-tensioners have been activated, these at belts will still function as restraints, and must beworn in the event that the vehicler remains in a drivable condition.

IMPORTANT

The removal replacement pre-tensioner must be carried out by MGMotortrained, dealer technicians.

Year so this id a registration (installation data placement deelt pre-tensioner), some components will need to be replaced. The appropriate page of the Warranty and Maintenance Manual must be signed and stamped on eachework has been completed.

SEATS&RESTRAINTS

AirbagSupplementaryRestraint System(SRS)

Airbags

TheairbagSRSprovidesADDITIONAL protectioninasevereimpactonly.ltdoes notreplacetheneedtowearaseatbelt.

Interior view of a car dashboard and steering wheel (no text or symbols visible)

The SRSsystemincorporatesfrontandsideairbagsand sideheadimpactprotectionairbagsforboththedriverand frontseatpassenger.

Thefrontairbagsarelocatedinthecentrepadofthe steeringwheelandinthefasciapanelabovetheglovebox.

Sideairbagsarepositionedinthebackrestpaddingonthe outwardsideofbothfrontseats.

Sideheadimpactprotectionairbagsaresituatedbehindthe headliningabovethedoors.

Note: The frontairbags are not designed to operate as a result of rear collision, minor frontal or side impacts, or if the vehicle overturns; nor will it operate as a result of heavy braking.

Note: Inflation and deflation of the front air bag stakes place very quickly and will not protect against the effect of secondary impact that may occur.

Providedthefrontseatoccupantsarecorrectlyseated andwithseatbeltsproperlyworn,theairbagswillprovide additionalprotectiontothechestandfacialareasin theeventofthecarreceivingaseverefrontalimpact.

SEATS&RESTRAINTS

Sideairbagsandsideheadimpactprotectionairbagsare designedtoofferadditionalprotectiontothesideofthe bodyfacingtheimpact,ifaseveresidecollisionoccurs.

IMPORTANT

•Evenifthevehicleisequippedwithairbags,you shouldalwayswearseatbeltstoreducetheriskof severecasualtyintheeventofacollision.Wearing seatbeltshelpsreducethepossibilityofhittingor beingpushedawayfrom,anyobjectintheinterior ofthecar.Theairbagsaresupplementaryprotection toseatbelts.Theyareanaidto,NOTreplacement of,seatbelts.
•Theairbagstogetherwiththelapand3-pointseat beltsprovideoptimumprotectionforadults,butnot forchildren.Childrenshouldbeprotectedbychild restraints.

AirbagDeployment

Tominimisetheriskofaccidentalinjury frominflatingairbags,seatbeltsshouldbe worncorrectlyatalltimes.Inaddition,both driverandfrontseatpassengersshouldadjust theirseattoprovidesufficientdistancefrom thefrontairbags.Ifsideairbags/sidehead impactprotectionairbagsarefitted,both driverandfrontseatpassengersshouldbe seatedtomaintainsufficientdistancefrom theupperpartofthebodytothesides ofthevehiclehiswillensuremaximum protectionwhenthesideairbags/sidehead impactprotectionairbagsaredeployed.

SEATS&RESTRAINTS

Diagram of two identical mechanical components with no visible text or symbols

Intheeventofacollision, theairbagcontrolunitmonitors therateofdecelerationoraccelerationinducedbythe collision,todeterminewhethertheairbagsshouldbe deployed.

Operationoftheairbagisnotdependentonthespeed ofthecar,butonthetypeandsizeofobjecthit,angle ofimpactandtherateatwhichthecarchangesspeedas aresultofacollision.Deploymentoftheairbagisnot dependantontheamountofdamagetothevehicle.

Inthecaseofaseverefrontalcollision, bothfrontairbags will bedeployed. Inthecaseofaseveresidecollision, only thesideairbagandsideheadimpactprotectionairbagon theimpactsideofthevehiclewillinflate.

However,theremayalsobeimpactconditionswhereby onesetofsideandbothfrontairbagsdeployatthesame time,orwherefrontandsideairbagsrespondseparately asaresultofasecondaryimpactoccurringaftertheinitial collisionhastakenplace.

Airbaginflationisvirtuallyinstantaneousandoccurswith considerableforce,accompaniedbyaloudnoise.The inflatedbag,togetherwiththeseatbeltrestraintsystem, limitthemovementofafrontseatoccupant,thereby reducingtheriskofinjurytotheheadanduppertorso.

Note: When an airbag inflates, a fine powder is released. This is not an indication of malfunction, however, the powder may cause irritation to the skin and should be thoroughly flushed from the eyes and any cuts or abrasions of the skin after inflation, air bags deflate immediately. This provides a gradual cushioning effect for the occupant and also ensures that the driver's forward vision is not obscured.

SEATS&RESTRAINTS

IMPORTANT

• Obstructionsbetweenanairbagandtheoccupant mayaffectthecorrectdeploymentoftheairbag. Obstructionsmustnotinterferewiththeairbag inflationpassages.Accessoriesmustnotbeattached toorobscureanairbag.
• Frontseatpassengersshouldnotplacefeet,knees oranyotherpartofthebodyincontactwith,orin closeproximityto,afrontairbag.
  • Aninflatingairbagcancausefacialabrasions and otherinjuriesiftheoccupantistooclosetothe airbagatthetimeofitsdeployment.

FrontSeatSideAirbags

Ensuresufficientdistanceexistsbetween thedriverandfrontpassengers'torsosand thesideofthevehicletoensurecorrect deploymentofthefrontsideairbags.

Frontseatsideairbagsaredesignedtoprotecttheheadand chestandwillbedeployedintheeventofthecarreceiving aseveresideimpact.Itwillnotbedeployedintheevent ofafrontorrearimpact.

Intheeventofasevereimpactononesideofthevehicle, theseatsideairbagwillbedeployedfromthesideofthe seat,onthatsideofthevehicle,topprovideacushionofair toprotectthefrontseatoccupant.Theseatsideairbagon theothersideofthevehiclewillnotbedeployed.

Seatswithsideairbagscanbeidentifiedbyan'Airbag' markingonthesideoftheseatbackrest.

Note: The manufacture and material of these is important to ensure correct operation of these at side air bag. Donot fit seat covers unless they are

approvedbythemanufacturer.ContactyourMG AuthorisedRepairertorepairorreplacefrontseats.

SideHeadImpactProtectionAirbags

Ensuresufficientdistanceexistsbetween thedriverandfrontpassengers'torsos andthesideofthevehicletoensure correctdeploymentofthesideheadimpact protectionairbags.

Sideheadimpactprotectionairbagsaredesignedtoprotect theheadandneckandwillbedeployedintheeventofthe carreceivingaseveresideimpact.Itwillnotbedeployed intheeventofafrontorrrearimpact.

Intheeventofasevereimpactononesideofthevehicle, thesideheadimpactprotectionairbagswillbedeployed fromtheroof,onthatsideofthevehicle,topprovidea cushionofairtoprotectthefrontseatoccupant. Theside headimpactprotectionairbagsontheothersideofthe vehiclewillnotbedeployed.

AirbagWarningLight

DONOTservice,repair,replace,modifyor tamperwithanypartoftheairbag,orwiring inthevicinityofanairbagcomponent;this couldcausethesystemtoactivate,resulting inpersonalinjury.

Awarninglight, mountedontheinstrumentpack, will alertyoutoanymalfunctionoftheairbags/pretensioners. Thelightwillilluminateasasystemcheckwhenthe ignitionisswitchedtoposition2andwillextinguishafter approximately6seconds.

Ifanyofthefollowingsymptomsoccur, thesystemshould beinspectedbyyourMGAuthorisedRepairer.

The warning light fail to illuminate when the ignition switch in position 2.

Twrnligbingsinguivithin

approximately six seconds after the ignition switch is in position 2.

The warning light illuminates while the car is being driven.

SEATS&RESTRAINTS

DisablingthePassengerAirbag \*

The Passenger Airbag should only be disabled when are ar facing child seatisfitted to the front passenger seat.

Whenanadultisseatedinthefront passengerseat,ensurethattheairbagis switchedon.

Diagram showing car interior control panel with indicator lights and warning sign labeled 'ON 2' and '2'

Wherefittedtheairbagdisableswitchislocatedinthe centreconsole.Todisablethepassengerairbag,insertthe keybladeintotheswitch.

Whentheswitchisturnedtothisposition,it atthepassengerairbaghasbeendisabled.

Whentheswitchisturnedtothisposition,it atthepassengerairbagisenabled.

PassengerAirbagOffWarningLight \*

3D rendered image of a passenger airbag with a handle and lid (no text or symbols on the object itself)

The warninglightislocatedintheinteriorlightassembly. If the passenger airbaghasbeendisabled, the lightwill illuminate until the airbagisenabled, Oncethepassenger airbaghasbeenenabled, the lightwillextinguish.

SpecialNotice

DONOTfitormodifyanairbag.Any changestothevehiclestructureorairbag systemwiringharnessarestrictlyprohibited.

AlwayscontactyourMGAuthorisedRepairerif:

•anairbagwhichinflatesinanaccidentneedsrepairand maintenance.

•anypartofanairbagmodulecovershowsignsof deteriorationordamage,theremaybeapotential safetyhazard.

IMPORTANT

Theemovabreplacementofairbagnodule mustbecarriedoutbyanMGAuthorisedRepairer.

After Year from initial date of registration (or installation date of fareplacement air bag), some components will need to be replaced by an MG Authorised Repairer. The appropriate page of the Warranty and Maintenance Manual must be designed and stamped on each homework has been completed.

SEATS&RESTRAINTS

DisposingoftheVehicle

Whensellingyourvehicle,youmustmakesurethatthe newownerknowsthatthevehicleisequippedwithairbags, andthedateoftheairbagsystemreplacement.

Uninflatedairbagsarepotentiallyverydangerousandmust besafelydeployedinacontrolledenvironmentbyqualified personnel,beforevehicleisscrapped.

ChildRestraints

Childrenmustbesecuredinthevehicleina childrestraintsystemappropriateforweight andsize.

DONOTputthechildonthelaporinarms whensittinginanyseat.

TheISOFIXanchoragesintherearseatare designedforusewithISOFIXsystemsonly.

Wheninstallingandusinganychildrestraint system,alwaysfollowthemanufacturer's instructions.

NEVERusearearwardfacingchildrestraint onaseatprotectedbyanACTIVEAIRBAG infrontofit,DEA THorSERIOUSINJURYto theCHILDcanoccur.

Failuretofollowtheadadvicecouldresultin seriousinjuryorevendeathofthechild.

Illustration of a car seatbelt with adjustable seat and seatbelt (no text or symbols)

ChildRestraintInstructions

It is recommended that children below the age of 12 years old should be seated on there are seat of the vehicle, in a child restraint system appropriate to the children's weight and size.

It is recommended that a child restraint system that complies with UNECER44 standard are fitted in this vehicle. Checkmarkings on the child restraint system.

SEATS&RESTRAINTS

Childrenaremorevulnerablethanadultstoaninflating airbag.Itisrecommendedthatchildrenbelowtheageof 12yearsoldareseatedintherearseats.

Infantslessthan2yearsoldshouldberestrainedinaninfant childrestraintsystem.

Thereareanumberofchildrestraintsystemsavailableof differenttypeandspecification.Foroptimumprotection, itisrecommendedthatyouchooserestraintsystems appropriatetothechild'sageandweight.

It is important to comply with installation instructions supplied by the child restraint manufacturer and that child restraints system is properly secured to the vehicle. Failure to follow these instructions may cause death or serious injury to the child in an event of sudden stop or accident.

Note: Useanappropriatechildrestraintsystem until the child becomes large enough to be properly restrained by the vehicle's seat belts.

Note: DONOTinstallarearfacingchildrestraint systeminthefrontpassengerseat, unlessthefront passengerairbaghasbeendeactivatedorwhenan

airbagmanualdeactivationswitchisnotfittedtothe vehicle.

Note: Frontpassengerseatmustbepositionedfully rearwardsforinstallationofrearfacingchildrestraint systems.

Notre facirghidstrainsystem installationsintherearseatmayrequireforward adjustmentofthefrontseat.

Note: Seatheadrestraintsmayneedtobeadjustedor removedforinstallationofsomeforwardfacingchild restraintsystems.

Note: Rearparcelshelfmayneedtobetemporarily detachedtoenable Toptetheraccesstotheanchorage intherearoftheseatback.

IMPORTANT

• It is recommended that a child restraint system that complies with UNECER44 standard disfitted in this vehicle. Checkmarkings on the child restraint system.
• It is recommended that children should always be seated in therear of the vehicle in a child restraint system. If it is necessary for a child to travel in the front, it is essential that these are fully rearwards and upright seat back and the child dissecured in FORWARD FACING children restraint system.
• Rememberthatintheeventofacollisionorheavy brakingachildrestraintsystemthatisnotcorrectly fittedcouldmoveandinjureotheroccupants.Make surethatachildrestraintsystemisproperlysecured evenifnochildiscurrentlyusingit.

SEATS&RESTRAINTS

ApprovedChildRestraintPositions(forNon-ISOFIXChildRestraints)

If vehicle is not equipped with passenger air bag disables switch, rearward facing child restraints MUST NOT be installed on the front passenger seat.

WeightGroup	SeatingPositions
	FrontPassenger			RearOutboardRearCentre
	Without Passenger AirbagDisable Switch	WithPassenger AirbagDisable Switch
		Airbag ON	Airbag OFF
0(upto10kg)	XXUUX
0+(upto13kg)	XXUUX
I(9to18kg)	XXUUX
II(15to25kg)	UUUUX
III(22to36kg)	UUUUX
U=Suitablefor‘Universal’categoryrestraintsapprovedforuseinthismassgroup.X=Seatpositionnotsuitableforchildreninthismassgroup.

ApprovedChildRestraintPositions(forISOFIXChildrestraints)

WeightGroupSizeClass		Fixture	ISOFIXPositions
			RearOutboard
Carrycot	F	ISO/L1	X
	GISO/L2		X
0(upto 10kg)	E	ISO/RI	IL
0+(upto 13kg)	E	ISO/RI	IL
	D	ISO/R2	X
	CISO/R3		X
I(9to 18kg)	D	ISO/R2	X
	CISO/R3		X
	B	ISO/F2	IUF
	BI	ISO/F2X	IUF,IL
	AISO/F3		IUF
II(15to25kg)N/AN/A			X

SEATS&RESTRAINTS

WeightGroupSizeClass		Fixture	ISOFIXPositions
			RearOutboard
III(22to36kg)N/AN/A			X
IUF=SuitableforISOFIXforward-facingchildrestraintsystemsofuniversalcategoryapprovedforuseinthismass group.IL=SuitableforparticularISOFIXchildrestraintsystems(CRS)givenintheattachedlist.TheseISOFIXCRSare thoseofthe'specificvehicle', 'restricted'or'semi-universal'categories.X=NoISOFIXchildrestraintsystemapprovedinthisweightclass.ISOFIXsizeclassandseatdeviceA–ISO/F3=Forward-facingchildrestraintsystemB–ISO/F2=Forward-facingchildrestraintsystemBI–ISO/F2X=Forward-facingchildrestraintsystemC–ISO/R3=Rear-facingchildrestraintsystemD–ISO/R2=Rear-facingchildrestraintsystemE–ISO/RI =Rear-facingchildrestraintsystemF–ISO/LI =LeftLateralFacingpositionCRS(carry-cot).G–ISO/LI =RightLateralFacingpositionCRS(carry-cot).Note:ForChildRestraintsofClassR,thefrontseatmayrequireforwardadjustmentforsomerearwardfacing childrestraintsysteminstallation.

ListofApprovedChildRestraintsSystems

WeightGroupSizeclassCRSname		FixtureType		Category
0+(upto13kg)	E	BritaxBabySafePluswith supportseatframe	ISO/RI	RearFacing Semi-universal
I(9to18kg)	BI	BritaxDuoPluswith T opT ether	ISO/F2X	ForwardFacingUniversal

ISOFIXChildRestraintSystemsFastenvehicle-approvedISOFIXchildrestraintsystemsto

themountingbrackets.

Interior view of a car showing seat compartments and vehicle seats with directional arrows indicating movement (no text or symbols)

When using ISOFIX mounting brackets for seat mounting, universally approved child restraints systems for ISOFIX may be used.

T op-tetherChildRestraintSystems

Childrestraintanchoragesaredesigned withstandnlyhosloadimposedy correctfittedhildestrainundero circumstancesaretheytobeusedforadult seatbeltharnessesorfoattachingother itemsorequipmenttothevehicle.

SEATS&RESTRAINTS

Top-down view of a car trunk with two directional arrows pointing to the side panel (no text or symbols)

- FastentheT op-tetherofthechildrestraintsystem totheanchorattherearoftherearpassengerseat backrest.

Note: When using seat mounting, universally approved childrestraintsystems, Top-tethermustbeused.

Note: Pleaserefertothechildrestraintsystem manufacturer'sinstructionsfordetails.

Starting&Driving

112Key

115 Child-ProofLocks

116AlarmSystem

121 StartingandDriving

I 25EconomicalandEnvironmentalDriving

128 CatalyticConverter

130FuelSystem

133ManualTransmission

134 BrakeSystem

139 Stability Control System (SCS) and Traction Control (TC)

141 Stop/StartIntelligentFuelSaving System

145 CruiseControlSystem *

147ParkingAid-PDC(ParkingDistance Control) *

149 TyrePressureMonitoringSystem (TPMS)

151LoadCarrying

STARTING&DRIVING

Key

Introduction

Pleasekeepthesparekeyinasafeplace-notinthecar!

Itisrecommendedthatsparekeysarenot keptonthesamekeyring, sincethismay causeinterferenceandpreventcorrectkey recognitionandthereforepreventtheengine fromstarting.

Theremotekeycontainsdelicateelectronic componentsandmustbeprotectedfrom impactandwaterdamage,hightemperature andhumidity,directsunlightandtheeffects ofsolvents,waxesandabrasivecleaners.

Differentkeykitsareprovidedaccordingtocar configurations.Onekitincludesaremotekeyanda mechanicalkey;andtheotherkitincludestwomechanical keys.Theycanopenalllocks.

Thekeyssuppliedwithyourcarareprogrammedto yoursecuritysystem.lfakeyhasnotbeenprogrammed accordingtoyourcar, it cannot start the engine.

Theremotekeyonlyworkwithincertainrangeltswork scopeisometimesinfluencedbythekeybatterycondition, physicalandgeographicalfactors.Forsafetyconsideration, afteryoulockyourcarbytheremotekey,pleaserecheck ifthecarislocked.

1 2 3 4

Relmotekey

2 Lockbutton

3 Unlockbutton

4 Mechanicalkey

STARTING&DRIVING

Ifyourkeyislost/stolenorbroken,areplacementcan onlybeobtainedfromanMGAuthorisedRepairer.The lost/stolenkeycanbedeactivated.Ifthelostkeyisfound, MGAuthorisedRepairerscanreactivateit.

Note: ReplacementkeysareonlyavailableviaMG AuthorisedRepairer.

Note: Thenewkeycannotbeofferedtoyou immediatelybecauseitneedssometimetomatchthe newkeywiththevehiclebyMGAuthorisedRepairer.

RemoteKeyBatteryRemovingandRefitting

If the battery needs replacing, the engine immobilisation warning light in the instrument pack flashes whenever the remote key is operated (seewarning lights and indicators in Instruments and Controls chapter).

Illustration of two hand tools: a handheld tool and a wiredriver, both with no visible text or symbols.

I Unfoldtheremotekey.

2Useasmallflatscrewdrivertopriseoutthecapfrom thewholesithekegroove (A).

3Removewaterproofgasket.

4Pressthebatteryandslide,Insertasmallflat screwdrivertothegaptoremovethebattery.Pay attention@thepolarityofthebattery ( B ) .

STARTING&DRIVING

Note: Fingermarkswilladverselyaffectbattery life; if possible, avoid touchingtheflatsurfacesof thebatterywhenreplacingthenewone.

5Fitthenewbattery, ensuring that correct polarity is maintained. Meanwhile, align the waterproof gasket to themounting holes, makes sure that it is fitted correctly.

Note: It is recommended that you fit a CR2032 replacement battery.

6Refitcapinremotekey.

IMPORTANT

• Useofinappropriatebatterymaydamagethekey. Thenewreplacement'sratedvoltage, sizesand specificationsmustbethesamewiththeoldone.
  • Inappropriate fitting of the battery may damage the key.
• Disposaloftheusedbatterymustbestrictlyin accordancewithrelevantenvironmentalprotection acts.

STARTING&DRIVING

Child-ProofLocks

NEVERleavechildrenunsupervisedinthe car.

Diagram showing car safety instructions with labeled symbols for helmet, lock, and nozzles

With the child-proof locks engaged, there are doors cannot be opened from insidethe car, but can be opened from outside the car.

LockorUnlocktheChild-proofLocks

• Opentherelevantreardoor, insertasmallscrewdriver intothechildlockslot(A).
  •Turntheslottotherequiredposition(B). Note: Turnclockwiseforleftreardoor,andturn anti-clockwiseforrightreardoortoenable. Turnback totheverticalpositiontodisable.

STARTING&DRIVING

AlarmSystem

If the key is not recognised by the engine immobilisation system, the engine will be disabled.

LockingandUnlocking RemoteKey \*

Line drawing of a car being held by a handheld device (no text or symbols)

Theremotekeymustbewithinrangewhenthebuttons arepressed.

Theoperatingrangemayvarydependinguponremotekey batteryconditionandmaysometimesbelimitedbyphysical andgeographicalfactors.

STARTING&DRIVING

Locking

UsingtheRemoteKey

I Closethedoorsandtailgate.

2Pressthelocbuttononce. Thedirectionindicator lightsflashthreetimestoconfirmthatthecaris securelylockedandthelockstatusalarmindicator lightstartstoflash.

UsingtheMechanicalKey

I Insertthemechanicalkeyintothedriver'sdoorlock andturnclockwisetolockalldoors.

2 Thedirectionindicatorlightsflashthreetimesto confirmthatthecarissecurelylockedandthelock statusindicatorlightstartstoflash.

Mislock

Ifthedriver'sdoorisnotfullyclosedwhentheremotekey lockbuttonispressedorthemechanicalkeyisusedfor locking,noneofthedoorswillbelocked,andanaudible alarmwillsound.

Ifthedriver'sdoorisclosedbutapassengerdooror tailgateisnotfullyclosedwhentheremotekeylockbutton ispressedorthemechanicalkeyisusedforlocking,all closeddoorswillbelocked,theopendoorortailgate willnotbelocked,thelockstatusindicatorlightwillnot illuminate,andanaudiblealarmwillsound.

Oncetheopendoorortailgateisclosed,thesystemwill enterlockingstatus,andthelockstatusindicatorlightwill illuminate.

STARTING&DRIVING

LockStatusIndicator

Interior view of a car seat with a lock and directional icon (no text or symbols)

The indicator is used to indicate the lock status. When the remote key or mechanical key lock sthedoor, the indicator will flash quickly for 10 seconds and then slow. The indicator extinguishes after ther remote key or mechanical key unlock sthedoor. If a mislock occurs, the indicator will not illuminate. When the interior lock switch locks the door, the indicator willilluminate. If the driver's door

isclosedfullybutanyotherdoorortailgateisnotclosed whentheinteriorlockswitchlocksthedoor,theindicator willflash.

Unlocking

UsingtheRemoteKey

Presstheunlockbuttononcetounlockalldoors.The directionindicatorsflashonce.

UsingtheMechanicalKey

I Insertthemechanicalkeyintothedriver'sdoorlock andturncounterclockwiseoncetounlockalldoors.

2 Thedirectionindicatorsflashonce.

Note: If the vehicle is unlocked but a door is not opened within 30 seconds, the vehicle will automatically relock.

InteriorLockSwitch

Diagram of car air conditioning control panel with labeled buttons and dials

InteriorLockLockingSwitch

2InteriorLockUnlockingSwitch

Presstheinteriorlocklockingswitchtolockalldoors. Whendoorsarelockedhelockstatusindicatorwill illuminate.

STARTING&DRIVING

If the driver's door is not closed, the interior lockings switch will not function.

Ifanyotherdoorortailgateisnotclosedwhentheinterior lockingswitchispressed,thelockstatusindicatorwillflash, indicatingamislock.Theopendoorortailgatewillnotbe protectedwhentheopendoorortailgateisclosed,the systemwillentertheprotectedstatus.

Presstheinteriorlockunlockingswitchtounlockalldoors, andthelockstatusindicatorwillextinguish.

Note: If the doors are locked with theremote key, the interior lock switch will not function.

InteriorDoorHandles

If the door have been locked by the interior lock switch or Speed Related Locking.

Usethedoorhandlestoopenthedoor:

I Firstoperationofthedoorhandleunlocksthedoor.

2Secondoperationofthedoorhandleopensthedoor.

Note: If the car is locked using the key or remote key the doors will be 'super-locked'. Whilst in this locked condition the door handles a rerendered in operative.

SpeedRelatedLocking

Thisfeaturelocksallthedoorsautomaticallywhenthe roadspeedexceeds3MPH(5km/h).Automaticallyallthe doorsareunlockedaftertheremotekeyisremovedfrom theignition.

STARTING&DRIVING

StartingandDriving

DockingStation

DONOTremoveortouchthekeywhilethe carisinmotion.

0 1 2 3

Theignitionswitchislocatedontherightsideofthe steeringcolumn,andusesthefollowingsequencetoinitiate theignitionandstarttheengine.

Position0(LOCK)

•Thekeycanbeinsertedorremoved.

•T oachievetheeeringlock,whenkeyremoved.

Position / (ACC)

• Turnofftheignition, thekeycannotberemoved.
• Someelectricalequipment can be operated, such as wipers, electric windows, mirrors.

Position // (∅N)

- Allinstruments, warninglights and electrical circuits are operational.

Position /// (START)

• Starttheengine.
  -Releasethekeyimmediatelywhenenginestarts,the ignitionwillreturntopositionllautomatically.

Note: Whenthekeyisintheignition, if the driver's door is opened, an audible warningsound to indicate that the key is not removed.

Note: Before starting the engine ensure that the gear lever is in the neutral position and the clutch pedal is pressed.

Note: If the steering wheel is locked and the key can not be turned from position 0 to position /turn the

STARTING&DRIVING

steeringwheelleftandrightwhileturningthekeyto unlockthesteeringwheel.

StartingtheEngine

NEVERstartorleavetheengine running in anunventilated building-exhaust gases are poisonous and contain carbon monoxide, which can cause unconsciousness and may even be fatal.

CatalyticConvertercanbedamagedifthe wrongfuelisused,orifanenginemisfire occurs.Beforestartingtheengine,you shouldbeawareoftheprecautionsdetailed underthesection'CatalyticConverter'.

StartingtheEngine

I Switchoffallunnecessaryelectricalequipment (includingtheairconditioning);

2Applytheparkingbrake;

3 Ensure that the gear lever is in the neutral position then pressthe clutchpedaltothefloor;

4Insertthekeyandturntheignitionclockwiseto positionllltostarttheengine.Releasethekeyas

soonastheenginehasstarted,theignitionwillreturn topositionllautomatically.

Note:Continueduseofthestarterwillnotonly dischargethebattery,butmaydamagethestarter motor,starterringgearorcatalyticconverter.

Donotpresstheacceleratorpedalwhenstarting,donot operatethestarterformorethan 15secondsatatime. Iftheenginedoesnotstart,turnofftheignitionswitch andwaitatleast 10secondsbeforerepeatingthestart procedure.

If the key is not recognised by the engine immobilisation system when the key is inserted into the ignition, the engine will be disabled. A warning icon will be illuminated (see warning lights and indicators in Instruments and Controls chapter).

IMPORTANT

Dodeaveignitionswitchpositiondr positionllwhentheengineisnotrunning,otherwise itmayleadstobatterydischarge.

•Engineimmobilisationisavailableforthevehicle.

- Whentheengineisrunning, donotturntheignition switchtopositionIII, thisoperationmaydamagethe startermotor.

ColdClimates

Intemperaturesof-10°Candbelow,enginecrankingtimes willincrease.Itisessentialthatallunnecessaryelectrical equipmentisswitchedoffwhilecranking.

StoppingtheEngine

Afterbringingthecartostop, ALWAYSapplythe parkingbrake;

Apply the parking brake;

Bnsurethatthegearleverisintheneutralposition;

STARTING&DRIVING

4TurnthekeytoPosition0,removethekeyfromthe switch.

Note: After strenuoustowing or driving at high speed (particularly in hot weather), it suggested to allow the engine to die for a few minutes before switching off, which enable the cooling system to work continuously to lower the engine temperature.

EconomicalandEnvironmentalDriving

Running-in

Theengine, transmission, brakesandtyresneedtimeto 'bed-in' and adjust to the demand so every day motoring. During the first 900 miles (1,500 km), it is essential that you drivewith consideration for the running-in process and heed the following advice:

• Donotallowtheenginetoexceed3000rpmminanygear orthevehiclespeedtoexceed72MPH(120km/h).
• Donotoperateatfullthrottleorallowtheengineto labourinanygear.
• Donotdriveataconstantspeed(eitherhighspeedor lowspeed).
• Avoidheavybrakingwherepossible. After900miles(1,500km),enginespeedscanbegradually increased.

EnvironmentProtection

Yourcarhasbeendesignedwiththelatesttechnologyin ordertominimisetheenvironmentalimpactofexhaust emissions.

DrivingStyle

Thewayinwhichyoudriveyourcarhasasignificant bearingonenvironmentalpollution,aswellasaffectingthe amountoffuelyouuse.

Avoidfullthrottleacceleration

Steady, rather than rapid, acceleration uses considerably less fuel, reduces exhaust pollutants and minimises the weartomechanical components.

Avoiddrivingatmaximumspeed

Fuelconsumption, exhaustemissions and noise levels all increases significantly at high speeds.

Donotdriveinalowgearforlongerthan

necessary

Drivinginlowergearsusesmorefuelandcreatesmore noisChangeuptoahighergearassoonaspossible, provideditdoesNOTcausetheenginetolabour.

STARTING&DRIVING

Drivesmoothly

Anticipatingobstructionsandslowingdownwellin advance,avoidstheneedforunnecessaryaccelerationand harshbraking.Asmoothdrivingstylenotonlyreduces fuelconsumption,butcanreducetheemissionofnoxious gases.

Drivinginrain

Emergencybraking, accelerating and steering onslipperyroadswillreducethevehicle's handlingperformanceandgrip.

When raining the windows may fog, reducing visibility (Use the Air-conditioning demist function).

Gripwillbereduced, sopleasedrivecarefully.

Reducespeedwhenitrains.

Avoidaquaplaning(theeffectofafilmofwaterbetween thetyresandtheroad)affectingsteeringandbraking performance.

Avoiddrivingthroughfloodsafterheavyrain,whichmay leadtoseriousdamagetothevehicle.

Howtosavefuelandextendthelifeofthe vehicle

The following a resomes suggestions on saving fuel and extending the life of the vehicles.

- Maintainthecorrecttyrepressure;insufficientair pressurewillacceleratelyrewearandwastefuel.

Doctorunnecessaryeigheadvaps willincreasetheengineloadresultinginhigherfuel consumption.

Avoidengineidlingforextendedperiods.

- Maintainslowandsmoothaccelerationandavoidharsh accelerationchange/highergearassoompossible.

- Avoidlabouringtheengineoroverrunningchoose appropriategearsaccordingtotheroadconditions.

- Avoidcontinuousaccelerationdeceleration. stop-godrivingstylewillconsumemorefuel.

Avoidnecessarystoppingdrakingaintain steadyspeedandattempttoanticipatetrafficlights. Keepanappropriatedistancefromothervehiclesto avoidemergencebrakingandreducebrakepadwear.

Avoid traffic congestion area such as possible.

• Donotridethebrakepedal, this can cause premature wear, overheating and increased fuel consumption.
• Maintainanappropriatespeedonthehighway.Higher speedsusemorefuel.Appropriatespeedcansavefuel.
• Maintainthecorrectwheelalignment.Avoidcollision withthekerbandreducespeedonun-maderoads.Out ofspecificationwheelalignmentnotonlywillleadto excessivetyrewear,butalsoincreasestheengineload andfuelconsumption.
• Avoiddrivingonmudorbeaches. This will prevent corrosion of the vehicle underside.
• Maintain the vehicle in accordance with MG recommendations. Dirty air filters, oil etc., will reduce the engine's performance and raise fuel consumption. To extend the life of all components and reduce operating costs, regular MGA approved maintenance is needed.
• Donotstoptheenginestraightafterhighspeedorlong ascentsortowingatrailer.Allowtheenginetoidlefor 20to100secondsdependingupondrivingloadsand conditions.Avoidhardaccelerationonacoldengine.

Maintenance

Havethevehicleregularlyserviced

Regularly servicing will ensure optimum fuel consumption and minimise exhaust, pollutant effectively extending the service life of the car.

Checktyrepressuresregularly

Under-inflatedtyresincreasetherollingresistanceofthe carwhich,inturn,increasesfuelconsumption.Overor under-inflatedtyreswearoutmorerapidlyandalsohavea detrimentaleffectonthecar'shandlingcharacteristics.

Donotcarryunnecessaryloads

The additional weight of unnecessary load swastes fuel, especially top/sta condition whether frequently required to set off from stationary.

STARTING&DRIVING

CatalyticConverter

Exhausttemperaturescanbeextremelyhigh, DONOTparkongroundwherecombustible materialssuchasdrygrassorleavescould comeintocontactwiththeexhaustsystem -indryweatherafirecouldresult.

Technical line drawing of a car with an inset showing internal components (no text or symbols)

Theexhaustsystemincorporatesacatalyticconverter,this convertspoisonousexhaustemissionsfromtheengineinto lessharmfulgases.

Catalyticconvertersareeasilydamagedthroughimproper use,especiallyifthewrongfuelisused.

Pleaseobservethefollowingprecautionstominimisethe chanceofaccidentaldamage.

Fuel

•UseONLYfuelrecommendedforyourcar.
- Neverallowthecartorunoutoffuel-thiscouldcause amisfirewhichcoulddamagethecatalyst.

Starting

Whendriving,youshouldpayattentiontothefollowing points:

• Donotcontinuetooperatethestarterafterafewfailed attempts, seekMGAuthorisedRepairer.
• Donotoperatethestarterifanenginemisfireis suspectedanddonotattempttoclearamisfireby pressingtheacceleratorpedal.

- Donotattempttopushortowstartthecar.

Driving

Whendriving,youshouldpayattentiontothefollowing points:

• Donotoverloadorexcessively'rev'theengine.
• Donotstoptheenginewhenthecarisinmotionwith agearselected.
• SeekMGAuthorisedRepairerifyouthinkyourcaroil consumptionisabnormal.
  •lfamisfireissuspected,orthecarlackspowerwhile driving,providedtheenginehasreacheditsnormal operatingtemperature,itmaybedrivenSLOWLY(at riskofcatalystdamage)toanMGAuthorisedRepairer orsuitablyequippedservicinggarage.
• Donotdriveonterrainlikelytosubjecttheunderside ofthecartoheavyimpacts.

Note: Anyenginemisfire, lossofengineperformance orenginerun-on, could seriously damagethecatalytic converter. Regularmaintenancemustbecarried outinaccordance with the schedules specified in the 'Warranty and Maintenance Manual'.

STARTING&DRIVING

FuelSystem

FuelRequirements

Useonlytherecommendedfuelwhichmeets nationalstandard!Seriousdamagetothe catalyticconverterwilloccurifthewrong fuelisused.

Pleaseusethefuelwhichisrecommendedandcertified bythemanufacturer.See'MajorParametersofEngine'in 'TechnicalData'.

SafetyontheForecourt

Vehiclefuelgasesarehighlyflammable and,inconfinedspaces,arealsoextremely explosive.

Alwaystakecarewhenrefueling:

• Switchofftheengine.
  • Donotsmokeoruseanakedflame.
• Donotuseamobilephone.
• Avoidspillingfuel.
• Donotoverfillthetank.

STARTING&DRIVING

FuelFiller

Illustration of a computer monitor with a lock icon and a megaphone, connected by a diagonal line (no text or symbols)

FuelFillerFlap

Thefuelfillerflapislocatedontherearright-handwing. Pullthefuelfillerflapreleaseleverunderthedriverside instrumentpacktoopentheflap.

FuelFillerCap

Unscrewthefillercapanti-clockwiseandallowany pressureinsidethetanktoescape,beforeeremovingthe cap.

Afterrefuelling,tightenthefillercapclockwisetillhearing 3"click"sounds.

FuelFilling

DONOTfullyfillthetankifthevehicleisto beparkedindirectsunlight,orhighambient temperature-expansionofthefuelcould causespillage.

Asmallcoverflapisincorporatedintothefillerneck. Insertingthecorrectnozzleintothefillerneckwillfully openthecoverflap.

Afterrefueling,iftheengine runsunevenly,switchoff and seekanMGAuthorised Repairer before attempting to restart the engine.

FuelCut-offSwitch

ALWAYScheckforfuelleaksbeforeresetting thefuelcut-offswitch.

STARTING&DRIVING

Technical diagram of a mechanical component with an inset view showing a disassembled component (no text or labels present)

Intheeventofacollisionorsuddenimpact,thefuelcut-off inertiaswitchautomaticallyisolatesthefuelsupplytothe engine,unlocksthedoors,flashestehazardlightsand turnstheinteriorlightson.

Thefuelcut-offInertiaswitchislocatedontherighthand ofinnerwingintheenginecompartment.

Theswitchmustberesetbeforetheenginecanbestarted. Resettheswitchbypassingthetopoftheswitch(arrowed inillustration).

STARTING&DRIVING

ManualT transmission

GearLever

1 3 5 2 4 R

Themanualtransmissionisa5-speedtransmission, which includes6gears, ie. 1, 2, 3, 4, 5 and R (reversegear).

Synchronizersareprovidedonallforwardgears.

PrecautionsWhenDriving:

• Whenswitchingbetweentheforwardgearsandreverse gear,ensurethevehicleiscompletelystationary,wait foramomentandthenfullypresstheclutchpedalto completethegearshift.
• Donotrestyourhandonthegearleverwhiledriving-pressurefromyourhandmaycauseprematurewearto thegearselectormechanism.
• Donotrestyourfootontheclutchpedalwhendriving -excessiveweartotheclutchwillresult.
• Donotholdthecarstationaryonahillbyslippingthe clutch. Thiswillwearouttheclutch.

STARTING&DRIVING

BrakeSystem

FootBrake

Foradded safety, the hydraulic brakingsystem operates through dual circuits. If one circuit should fail, the other will continue to function, but greater pedal pressure will be needed, and increased brake pedal travel, and longer stopping distances will be experienced. In the event of abrake failure where only one circuit is operational, the car should be brought too a halt as soon as a traffic condition safely allow. DONOT continued driving-seek MGA authorised Repairer assistance.

ServoAssistance

Thebrakingsystemisservoassisted,alwaysbeawareof thefollowing:

• Neverallowthecartofreewheelwiththeengineturned off.
• Alwaystakeparticularcarewhenbeingtowedwiththe engineturnedoff.

If the engines should stop for any reason while driving, bring the cartoahaltas quickly a traffic condition safely allow,

anddonotpumpthebrakepedalasthebrakingsystemwill loseanyremainingservoassistance.

BrakePads

DONOTrestyourfootonthebrakepedal whiledriving;thismayoverheatthebrakes, reducetheirefficiencyandcauseexcessive wear.

Forthefirst900miles(1500km),youshouldavoid situationswhereheavybrakingisrequired.

Remember that regular servicing is vital to ensure that all the brake components are examined for wear at the correct intervals, and changed when required to ensure long terms safety and optimum performance.

WetConditions

Drivingthroughwaterorheavyrainmayadverselyaffect brakingefficiency. The SCS (StabilityControlSystem) includes a BrakeDiscWipingfunction which is activated whenthewindscreenwipersareused.

ElectronicBrakeForceDistribution(EBD)

YourcarisequippedwithElectronicBrakeForce Distribution(EBD),which,inordertomaintainbraking efficiency,distributesbrakingforcesbetweenfrontand rearwheels,underallloadconditions.EBDmonitoring systemislinkedtoparkingbrake/brakesystemlightonthe instrumentpack.

If this light illuminates, there is a fault with the braking system, and EBD may not be available. If this occurs, stop the car as soon as safety permits and seek MGA authorised Repairer assistance immediately. DONOT drivethe car with parking brake/brakesystem light illuminated.

ElectronicBrakeAssist(EBA)

YourcarisequippedwithElectronicBrakeAssist(EBA), which, reactstothespeedatwhichthebrakepedalis applied. If, inanemergencysituationthebrakesareapplied faster than the limits set within the system, then full ABS application is applied to bring the cartoastopin the shortest possible distance.

HillHoldControl

HillHoldControlisacomfortfunction.Itworkson inclineswhenthecardetectsithascometoa'standstill status'.Oncetheclutchpedalhasbeenpresseddown and thebrakepedalreleased,thevehiclewillmaintainpressure inthebrakingsystemfor 1–2seconds.Afterthis,theHill Holdwillrelease.

Anti-lockBrakes(ABS)

ABScannotovercomethephysical limitationsofstoppingthecarintooshort adistance,corneringattoohighaspeed,or thedangerofaquaplaning,i.e.wherealayer ofwaterpreventsadequatecontactbetween thetyresandtheroadsurface.

The fact that a car is fitted with ABS must never attempt the driver into taking risk that could affect this or her safety orthatof other road users. In all cases, it remains the driver's responsibility to drivewith innormalsafety margins, having due consideration for prevailing weather and traffic conditions.

The purpose of the anti-lockbrakingsystem (ABS) is to prevent the wheels from locking while braking, thereby enabling the drivertoretainsteering control of the car.

Undernormalbrakingconditions, ABSwillnotbe activated. However, shouldthebrakingforceexceedthe availableadhesionbetweenthetyresandtheroadsurface causingthewheelstolock, thenABSwillautomatically

comeintooperation. This will berecognizable by a rapid pulsation felt through the brake pedal.

BrakinginanEmergency

DONOTpumpthebrakepedalatanytime; thiswillinterruptoperationoftheABSand mayincreasebrakingdistance.

Ifanemergencysituationoccurs, the drivers should apply full braking effort to even when the roads surface is slippery. ABS will ensure that the wheels donotlock and that the car is brought to a halt in the shortest distance for the prevailing roads surface conditions.

Note: Onsoftsurfacesuchaspowderysnow, sandor gravel, the brakingdistancerequiredbytheanti-lock brakingsystemmaybegreaterthanfornon-ABS brakingventhoughimprovedsteeringwouldbe experience thisisbecausethenaturalactionof lockedwheelsonsoftsurfacesistobuildupawedge of surfacematerialinfrontwhichassiststhecarto stop.

STARTING&DRIVING

Nomatterhowhardyoubrake,youshouldbeableto continuesteeringthevehicleasnormal.

ABSWarningLight

Seethewarninglight'ABS'in'InstrumentsandControls'.

Note: Thenormal(non-ABS)brakingsystemremains fullyoperationalandisnotaffectedbypartialor fulllossoftheABS. However, brakingdistancesmay increase.

ParkingBrake

DONOT drivewith the parking brake applied, or apply the parking brakewhile the carisin motion. This could result in loss of control, prevent the ABS from functioning correctly, and may even caused damage to therear brakes.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

STARTING&DRIVING

Theparkingbrakeoperatesontherearwheelsonly.T o applytheparkingbrake,pulltheleverup.Alwaysapplythe parkingbrakefullywheneveryouparkthecar.

T orelease,pulltheleverupslightly,pressthebutton (arrowedinillustration)andfullylowerthelever.

Whenparkingonasteepslope, donotrelyontheparking brakealonetoholdthecar.

STARTING&DRIVING

StabilityControlSystem(SCS) and T ractionControl(TC)

StabilityControlSystem(SCS)

SCSisdesignedtoassistthedriverincontrolofdriving direction.

WhenSCSdetectsthatthevehicleisnotmovinginthe intendeddirection,itwillintervenebyapplyingbrakeforce toselectedwheelsorthroughtheenginemanagement systemtopreventslidingandassistinbringingthecarback totherightdirection.

T ractionControl(TC)

The purpose of electronic traction control is to aid traction, thereby helping the driver to maintain a control of the carinsituations where one or both of the driving wheels are spinning (fore example, if onewheel is on ice and the other on tarmac).

Thetractioncontrolsystemmonitorthedrivingspeedof eachwheelindividually.Ifspinisdetectedononewheel, thesystemautomaticallybrakesthatwheel,transferring torquetotheopposite,non-spinningwheel.Ifbothwheels

arespinning, thesystemwillreduceenginespeedinorder toregulatewheelrotationuntiltractionisregained.

Note: The individual wheel braking feature of the traction control system will operate at road speeds above 62 MPH (100 km/h). The engine torque reduction feature continues to function up to the car's maximum speed.

STARTING&DRIVING

SwitchingOnandOff

Diagram showing a mechanical switch mechanism with labeled parts and an OFF button indicator

• BrieflypresstheSCSswitch(lessthan2seconds).TC isdisabled, 'TractionControlOff' warninglightwill illuminate.
• Press the SCS switch (more than 2 seconds). TC and SCS are both disabled. 'T raction Control Off warning light and Stability Control System Off warning light will illuminate.

NoPressingEC/SCisablewitcfor morthandcondwillconsidereds mis-operationBothsystemswillremaindisabled untiltheswitchispressedforasecondtimeorthe keyisremoved.

Brieflypress the SCSwitch(les than seconds) again, SCSandTCwillresumeandthewarninglightwill extinguish.

NotDisablingSCSandTCwillnotaffecthe operationofABS.AlwaysdisableTCwhendriving withsnowchainsfitted.

SCS/TCWarningLight

Foinformation: warninglightoperationefero 'WarningghasIndicatorInstruments and Controls'.

STARTING&DRIVING

Stop/StartIntelligentFuelSaving System

Diagram of car dashboard and steering wheel with labeled parts including dial, speedometer, and control buttons

Instrumentindicator
2Switchindicator
3Mainswitch

EngineStop/Starthasbeenincorporatedintovehiclesin anefforttoreduceemissions.Asthenamesuggeststhe systemwillallowtheenginetobeswitchedoffwhenengine powerisnotrequiredandthenautomaticallyberestarted whenitis.Thissystemdefaults"on"atignitionon,the warninglightintheswitch(2)willilluminate,stopstartcan beturnedoffbypassingthemainswitch(3).Whenstop startisswitchedofftheindicatorintheswitchisoff.

Note: If driving through deep, or floodwater, disable the stop starts system by pressing these switch (3).

STARTING AND DRIVING

Automatic Shutdown of Engine

Although the engine will not be running when the vehicle stops and the stop start function cuts in, certain actions could render the vehicle dangerous:

I Driver exiting the vehicle whilst the seat belt is fastened

2 Leaving the ignition switched on when refuelling - ALWAYS remove the key.

Stop/Start Intelligent Fuel Saving will be initiated when the following conditions are met, at this time the indicator lamp in the IPK will illuminate:

• Manual transmission – neutral selected, clutch pedal released, and speed is below 3 mph. Note: Steering effort will increase until the conditions for engine restart occur.
• Vehicle speed prior to parking was in excess of 6 mph
  • (10km/h).
• Driver's door and bonnet are closed.
• Driver's seat belt is fastened.

Stop Start Intelligent Fuel Saving will be disabled under the following conditions:

• Engine temperature too low.
• Defrost selected in the AC system.
- Blower speed 3 or 4 selected on non A/C cars. Blower speed above 4 selected on A/C cars.
- Low battery power or battery not within the desired range.
• Insufficient brake vacuum.
- Starter motor operated more than 3 times a minute.
- Reverse gear selected or has been selected prior to stopping if the vehicle has not exceeded 6 mph (10km/h).
• High altitude areas.

Automatic Engine Start

The vehicle will automatically restart if the driver carries out the following, at this time the indicator light in the IPK will extinguish:

STARTING&DRIVING

- Manualtransmission-neutralselected, clutchor acceleratorpedalpressed.

Note: Insome individual casethe MIL may illuminate during automatic restart. This is caused by battery voltage reduction, not a fault. If the MIL stays on, seek advice from an MGA authorised Repairer.

Undercertainconditionsthevehiclemayautomatically restartwithoutdirectdriverinput(aslongasthestopstart operationcriteriaismet):

•Defrostofwindscreenisselected.

- Manualheaterblowerspeedselectionismovedabove speed3,ETCACblowerspeedselectionismoved abovespeed5.

- Batteryvoltagedropsbelowapredeterminedlimit. Vehiclemoves/rolls-vehiclespeedsignal.

•Vehiclemoves/rolls-vehiclespeedsignal.

- Brakevacuumdropsbelowapredeterminedlimit.

- Stop/Startmasterswitchispressed.

Note: When under automatic stopstart control, vehicles fitted with manual transmissions will require neutral to be selected to restart the engine.

If any of the following conditions occur after automatic stop start is initialised, the indicator lamp in the IPK extinguishes and the vehicle will require starting with the key.

• Driver'sseatbeltunfastened.
• Driver'sdoorisopened.
  •Bonnetisopened.

If the vehicle is stalled when underautomatic stop start control and none of the above are present, the vehicle can be restarted by selecting neutral and pressing the clutch pedal.

Noffeattenpoltage automatic restartingafterstallingmaybeinhibited.

Battery

Whenchargingthebattery, startingthecar withanexternalpowersourcesupplying powerfromthevehicle, thenegativecable mustbeconnectedtoasuitablepositionon thevehiclebody. Failuretodothiswillresult ininaccuratebatterypowercalculation which affectomatStop/Start control.

STARTING&DRIVING

DONOTdisconnectthebatterysensorunless absolutelynecessary.removalwillresultin inaccuratebatterypowercalculationwhich willeffectautomaticStop/Startcontrol.

Note: Failuretooperatewithinthefollowing guidelineswilleffectbatteryperformance and automaticStop/Startcontrol:

I Afterpowerinterruptions(batterydisconnection) theautomaticStop/Startfunctionwill be suspendeduntilthevehicleisleftinalockedstate foratleast4hourswhilstthesystemrelearnsthe stateofthebattery.

2Ifthevehicleisruncontinuallyformorethan100 hoursuninterrupted,theStop/Startfunctionwill besuspendeduntilthevehicleisleftinalocked stateforatleast4hourswhilstthesystemrelearns thestateofthebattery.

If the battery requires replacement, ALWAYSuse agenuine part to the manufacturer specification. Failure to adhere this can affect the automatic Stop/Start system.

Stop/StartIntelligenRtUGlavingSystem Failure

IntheeventofaStop/StartIntelligentFuelSavingSystem failure,contactanMGAuthorisedRepairer.

Thistop/StahtelligerFuSavingsystemare effectedbyfaultswithinothervehiclesystems-inthe eventoffailurecontactanAuthorisedMGRepairer.

SeriousBatteryCapacilyoStarter Inoperative

In case ferious battery powd os automatic Stop/Start and keystart may not be possible. In this case referto the Emergency Information chapter, Emergency Starting section for further details.

STARTING&DRIVING

CruiseControlSystem \*

CruiseControlSystem

1 2 3 SET RES SET 4

I Resetswitch

2Increasesetswitch

3Mainswitch

4Decreasesetswitch

Cruisecontrolenablethedrivertomaintainaconstant roadspeedwithoutusingtheacceleratorpedal. This isparticularlyusefulformotorwaycruising,orforany journeywhereaconstantspeedcanbemaintainedfora lengthhyperiod.

The following precautions must be observed when using cruise control:

•DONOTattempttousecruisecontrolwhenusing reversegear.
•DONOTusecruisecontrolonwindingorslipperyroad surfaces, intherain, orintrafficconditions wherea constantspeed cannot easily be maintained.
•ALWAYSswitchchoffthemasterswitchwhenyouno longerintendtousecruisecontrol.

CruiseControlSystemOperation

Thecruisecontrolsystemconsistsoffourswitches:the mainswitchresetwitchandwspeedincrease/decrease setwitchesAlswitchesaremountedtherightsidof thesteeringwheel.

Whether vehicle speed above 25 mph (40KM/h), pressdownthemasterswitch (3inthe

STARTING&DRIVING

figure), the indicator lamp in the instrument pack illuminates and the cruises system is activated.

2PressthespeedsetswitchSET+/SET-(2and4shown inthefigure),setthememomoryspeedofthecruise system,andthecruisesystemwilltakeeffect.Atthis time,thecruisecontrolsystemwillmaintaintheset speedwithoutdepressingtheacceleratorpedal.Cruise controlwillonlyoperatebetweenvehiclespeedsof25-125mph(40-200km/h).

Note: Thesetspeedheldinthecruisecontrolmemory will be cancelled when either the cruise control master switch is pressed or the ignition key removed.

Cruisecontrolwillbedisengagedwhenthebrakepedalis pressedoradifferentgearisselected.Toreturntoyour previoussetspeed,presstheRESswitch(figure 1).

Note: The cruise control system can only work when the gear lever is in 3rd gear or above.

ChangetheSetSpeed

Shortlypress(lessthan0.5seconds) theSET+/SET switch decrease/decrease vehicle speed

incrementmph/1km/the vehicle will accelerate/deceleratetothenewsetspeedpressand holdset/Switch vehicle keep accelerating/deceleratinguntiltheswitchisreleased. The selectedspeedissetaccordingly.

The vehicle can also be driven using the accelerator pedal with the cruise control activated. Once the accelerator pedal is released, the system will return to the sets speed.

When accelerating, presstheSET+switch, thesystemwill apply the higher vehicles speed asthenewsetspeed.

STARTING&DRIVING

ParkingAid-PDC(ParkingDistance Control) \*

ParkingAid(UltrasonicParkingRanging WarningDevices)

The purpose of the parking aid to assist the driver during reverting! Thesensors may not be able to detect certain types of obstruction, e.g. narrow posts or small objects nomore than a few inches wide, small objects close to the ground, objects above the level of the boot and some objects with nonreflective surfaces.

Keepthesensorsfreefromdirt,iceandsnow. Ifdepositsbuilduponthesurfaceofthe sensors,theirperformancemaybeimpaired. Whenwashingthecar,avoidaiminghigh pressurewaterjetsdirectlyatthesensors.

Itisimportanttorememberthatthesystem isnomorethananAIDtoparking.Itisnot foolproofinoperation,norisitasubstitute forobservationorpersonaljudgement.

Threeultrasonicsensors,situatedintherearbumper,scan anareabehindthecarsearchingforobstructions.Ifan obstructionisdetected,thesystemcalculatesitsdistance fromtherearofthecarandcommunicatesthisinformation tothedriverbysoundwarningchimes.

1.2m 30cm

STARTING&DRIVING

Parkingaidoperation:

ThePDCsystemisenabledautomaticallywhentheignition isinposition2andreversegearisselected.Itisswitched offassoonasthegearselectionleverismovedfrom reverse.Ashortbeepisgivenbythesounderinthe instrumentpackwithinl secondafterselectingreverse geartoindicatethatthesystemisoperatingnormally.

Whilereversing, the instrument packsoundergives an audible warning forthed distance between the vehicle and an object:

- Ifanobstructionislocatedwithin1.2mrangeofthe rearparkingaidsensors,thewarningcommences.As thecarmovesclosertotheobstruction,thebeepsare transmittedmorerapidly.

- Oncetheobstructioniswithin30cmrangeoftherear bumper, warningchimeswillmergeintoacontinuous warning. Iftheobstructionexistsinthe'blindarea'no warningchimeswillbeheard.

Note:ifalonger,higherpitchedsoundisemittedfor 3secondswhenreversegearisselectedthisindicates afaultinthesystem.Inthiscaseseekassistancefrom yourMGAuthorisedRepairer.

T yrePressureMonitoringSystem (TPMS)

The TPMSisnotasubstituteforchecking tyreconditionandpressures.

Note: The TPMSwarnswhenthetyrepressureislow; itdoesnotre-inflatethetyre.

SystemOperation

ThesystemiscontrolledbytheABSsystem, whichconstantlymonitorsthespeedofeachwheel.If, duringnormaldrivingconditionswiththebrakesnot applied,theABSdetectsthatonewheelisrotatingquicker thantheothers,itdeducesthatthepressureofthattyre hasfallenbelowthepredefinedlimitofthesystem.As aresult,thewarninglightontheinstrumentpackwill illuminate.

Checkyourtyresattheearliestopportunityandinflateto thecorrectpressure.Referto'T yrePressures(Cold)'in 'T echnicalData'.

SystemMalfunction

This system misself-monitoring, the TPMS warning lighton the instrument panel will flash if a fault is detected.

The following conditions will not manifest themselves as a fault:

•Anidenticalpressurechangein2ormoretyres simultaneously.
- Atyreblowout.
The following conditions may manifest themselves as fault:
- Drivingonsnoworaslippery surface.
• Excessiveslipratesonfronttyresorexcessive lateral acceleration.
•Tyrechainsarefitted.
•Non-specifiedtyreshavebeenfitted.
- ATPMSresethasnotbeenpreformedaftertyre replacement.

InitialisingTPMS

Ifthecarisfittedwithareplacementtyre/tyres,oraspare tyreorsimplyreinflatingatyreduetolowpressure,itwill benecessarytoinitialisetheTPMSsystem.

STARTING&DRIVING

Stopthevehicle, ensurehandbrakeisapplied,switchon thegnition, repeatedly press ( less than seconds )the buttonlocatedontheendoftheindicatorstalktoget to 'TPMSRESET?'.Pressandhold 'TPMSRESET?'.This willinitializethesystem.Ifsuccessful,'TPMSRESET'will appear.Ifunsuccessful,'TPMSRESET×'willappear,consult yourMGAuthorisedRepairer.

Note: BeforecarryingoutaTPMSresetinspectthe tyresforsignsofdamageandensurethetyresare inflatedtotherecommendedpressures.

Note: ATPMSresetwillbecompletedafterthevehicle hastravelledtotalof1hourormoreataroadspeed greaterthan6mph (10km/h).

STARTING&DRIVING

LoadCarrying

DONOTexceedthegrossvehicleweight orthepermittedfrontandrearaxleloads. Failuremayresultinvehicledamageor seriousinjury.

LoadSpace

Ensure that there are seat back rests are securely latched in the upright position when loads are carried in the load space behind theseats.

If the tail gate cannot be closed due to the type of cargoloaded, besure to close all windows during driving, select the face distribution mode of the air condition, and set the blowert maximum speed, so as to decrease exhaust fumesentering the vehicle.

When luggage is carried in the loadspace, always ensure heavy items are placed slowly and forward possible,

soastoavoidthecargoshiftintheeventofanaccidentor suddenstop.

Drive carefully and avoid emergency braking maneuvers.

Drivingwiththetailgateopenisverydangerous.Ifthe loadbeingcarriedrequiresthetailgatetobeopen,please ensurethecargoissuitablysecuredandeverymeasureis takentopreventexhaustfumesenteringthevehicle.

IMPORTANT

Trafficregulationsmustbeobservedwhenloading cargo,ifthecargoextrudestheloadspaceappropriate warningmeasuresmustbetakentowarnotherroad users.

InternalLoading

DONOTcarryunsecuredequipment,tools orluggagethatcouldmove,causingpersonal injuryintheeventofanaccident , or emergencybrakesorhardacceleration.

STARTING&DRIVING

Foldingtherearseatscanincreaseluggagespace,referto 'RearSeat'describedinthe'SeatsandRestraints'chapter.

Whencargoisloadedinthevehicle,placeitataposition aslowaspossibleandensurethatitistightlysecured,so astoavoidpersonalinjurycausedbycargomovement.

EmergencyInformation

154HazardWarningDevices
155EmergencyStarting
157 VehicleRecovery
160TyreRepair&WheelReplacement
168FuseReplacement
174 BulbReplacement

EMERGENCYINFORMATION

HazardWarningDevices

HazardWarningLights

TheHazardWarningswitchiseitherlocatedinthecentre consoleorheatercontrolpanel,dependantupontrim level,forinformationabouttheHazardWarningLights referstothe"LightsandSwitches"ofthe"Instruments andControls"chapter.

Note: Before you stop a slow the carinan emergency, always press the hazard warnings switch. All the direction indicators will flash together when road users when your car is causing an obstruction or in an hazardous situation.

WarningT riangle

3D rendering of a triangular mechanical component with internal cutouts and a curved end (no text or symbols)

Thewarningtrianglesuppliedwithyourcarisstowedin theloadspace.

If you havetostopy your carontheroadinan emergency, you must place awarning triangle about between 50 and 100 metres behind the cartowarnotherroad users of your position.

EMERGENCYINFORMATION

EmergencyStarting

UsingBoosterCables

NEVERstarttheenginebypushingortowing.

MakesurethatBOTHbatteriesareofthe samevoltage(12volts),andthatthebooster cablesareapprovedforusewith12voltcar batteries.

Ensuresparksandnakedlightsarekeptwell awayfromtheenginecompartment.

Usingboostercables(jumpleads)fromadonorbattery, orabatteryfittedtoadonorvehicle,istheonlyapproved methodofstartingacarwithaflatbattery.

If the battery from donor vehicle isist be used, the vehicle should be parked with their battery locations adjacent to one another. Ensure that the two vehicles do not touch.

StartingtheVehicle

Ensure that each boostercable connection is securely made. Theremust benorisk of the clips accidentally slipping from the battery terminals (as a result of engine vibration, for example), this could cause sparking, which could lead to fire ore explosion.

A B

EMERGENCYINFORMATION

RemovetheignitionkeyandswitchoffALLelectrical equipmentofBOTHvehicles,thenfollowtheinstructions below:

ConnecttheREDboostercablebetweenthepositive (+) terminalsofbothbatteries.Connectthe BLACKboostercablefromthenegative (-) terminabthedonobattery(A)tagoodearth point(anenginemountingorotherunpaintedsurface,forexample),atleast0.5mfromthebatteryandwell awayfromfuelandbrakelinesonthedisabledvehicle (B).

IMPORTANT

DONOTconnectaboostercabletothenegative (-)terminalofthedischargedbattery! This may result in damage the electrical components.

2Check that the cables are clear of moving part so both engines, then start the engine of the donor vehicle and allow it to die for a few minutes.

3Nowstarttheengineofthevehiclewiththe dischargebatter(DONO Tranthenginfor morethan 10 seconds).

Once botengine areunningnormally allow them toidlefortwominutesbeforeswitchingofftheengine ofdonovehiclandisconnectinghebooster cableBONOTswitchonanyelectricalcircuits onthepreviouslydisabledvehicleuntilAFTERthe boostercableshavebeenremoved.

Disconnecting boostecable musbeexact reversals for procedures connected, i.e. disconnect the BLACK cable from the earthpoint on the disabled vehicle FIRST.

IMPORTANT

NEVERurnonanyelectricalequipmentthe startedvehiclebeforeremovingtheboostercables.

EMERGENCYINFORMATION

VehicleRecovery

T owingEye

DONOTuseatowropethatistwisted-anyunwindingforcecouldunscrewthefronttowingeye.

Front view line drawing of a compact car (no text or symbols)

Front view line drawing of a car viewed from the side, showing no text or symbols

Yourcarisequippedwitharemovabletowingeyeatthe front,andwithafixedtowingeyeattherear. Thetowing eyeisstoredinthetoolkitbeneaththeluggageareafloor whennotinuse.

T ofitthetowingeye,removethesmallcoversetintothe bumper,thenscrewthetowingeyeintothethreadedhole inthebumperbeam(seeillustration).Ensurethetowing eyeisfullytightened!

EMERGENCYINFORMATION

Note: Thetowingeyecovermaybesecuredtothe bumperbyaplasticcord.

Bothtowingpointsareintendedforusebyqualified recoveryspecialiststoassistintherecoveryofyourcar shouldabreakdownoraccidentoccur.Theyarenot designedfortowingothervehicles.

T owingforRecovery

If your car need stobetowed, most qualified recovery specialists will use wheel lift equipment to suspend the front wheels, while therear wheels remain on the ground. However, if it is necessary for the cart but owed with all four wheels on the ground, abide by the following procedure:

BeforeBeingT owed:

DONOTremovetheignitionkeywhilethe carisbeingtowedonfourwheels—asthiswill preventthesteeringwheelfrombeingturned.

I Switchtheignitionontoposition2toenablethebrake lights, wipersanddirectionindicatorstobeoperatedif necessary. If, duetoanelectricalfault, it is considered unsafetoswitchtheignitionon, thecarwillneedto berecoveredonatrailer.

2Placethegearleverinneutral.

3Releasethehandbrake.

EMERGENCYINFORMATION

WhileBeingT owed:

Thetowingdistancesshouldnotexceed30 miles(48km). Whiletowingforrecovery, the towingvehicleshouldneverexceed30mph (48km/h)

Withouttheengine running, greater effort will be required to operate the brake pedaland turn the steering wheel. Longer stopping distances will also be experienced.

T ransporterorT railerwithRope

DONOTuseatowropetotowyourcar behindanothervehicle.

If your caristobetransported on the back of a traileror transporter, it must be secured as illustrated.

Positionthecaronthetrailer,applythehandbrakeand placethegearleverinNeutral.Fitwheelchocks(1)as shown,thenpositiontheantisliprubberblocks(2)around thecircumferenceofthetyre.

Fitthelashingstraps(3)aroundthewheelsandsecureto thetrailer.Tightenthestrapsuntilthecarissecurelyheld.

Diagram showing car parking lift with three labeled parts and corresponding wheel diagrams for wheel assembly or maintenance.

EMERGENCYINFORMATION

T yreRepair&WheelReplacement

T oolldentification\*

Technical diagram of a mechanical device with numbered components for identification

4 Tyrerepairsealant

5Lockingwheelboltadapter

I Electricaircompressor

2 Wheelnutcoverremovaltool
3 T owinghook

EMERGENCYINFORMATION

T yreRepair\*

I RemovethestickerontheT yreSealantBottleand attachittothesteeringwheeltoremindthedriver nottoexceed50MPH(80km/h).(Figure 1)

Max80km/h Max50mp/h -80- -50-

2Connecttheairhoseoftheelectriccompressorto thetyresealantbottle, fittheT yreSealantbottle (Upright)intotheslotonthecompressor.Remove thevalvedustcapfromtheflattyreandconnectthe fillerhosefromthetyresealantbottletothetyre

valve.EnsurethatthepowerswitchoftheElectric aircompressorisswitchedoff(i.e.,press“O”),then inserttheplugfromthecompressorintothecentre consolepowersocket.

12V START

Neteobittedjscharge,

recommendedtokeeptheengineerunning.

Switchorthepowerswitchofthelectricompressor (i.e press-")startumpingalarintthe tyre. Thetyresealantbottlewillbecomeemptyafter

EMERGENCYINFORMATION

approximate30seconds. Thetyreshouldreach the specifiedinflationpressureof2.2bar(34psi)within 5or10minutes.

Note: The pressure gaugemaybrieflyreach6 bar(87psi), thenthepressurebeginstodropto normal.

4Whentherequiredpressureisreached,switchoffthe powerswitchoftheelectriccompressor(i.e.,press "O").

Note: If therequired pressure cannot be reached within 10 minutes, pleased disconnect the compressor, drivethe vehicle 10 metres (33 feet) approx forwardor backward to allow these sealant to spread with in the theyre. If therequired pressure can still not bereached, they reisseverely damaged and you should seek assistance from the MGA authorised Repairer.

No consecutive operation of Electric air compressor for more than 10 minutes may result in damaggetothecompressor.

Nadernocircumstance should you continue your journey with a deflated tyre. Driving vehicle with a deflated tyre is extremely dangerous.

5Removethetyresealantbottlefromtheslotinthe compressor, disconnect the hose from the they re valve, removethe compressor plug from the centre console powersocket, return the yrerepair kit to its stowage tray.

6Aftersuccessfullyaddingsealanttothetyre,drive immediatelyforashorttime(aroundoneminute)this willallowthesealanttodistributeevenlyinsidethe tyre.Continuedrivinganddonotexceed50MPH (80km/h).Afterafurther 10minutes,findasafeplace tostopandrecheckthetyrepressure.

If they pressurhas droppeddesthar0.8bar (11.6psi), donotcontinuedriving, seekassistance instead.

If the pressure is greater than 0.8 bar (11.6 psi) after a 10 minutes drive, correct the property of the tyrepressur label and continue Check again after another 0 minute drive of 1.8 bar (26. lpsi) cannot

EMERGENCYINFORMATION

bereached, donotcontinuedrive, seekassistance instead. Donotexceed50MPH(80km/h).

12V START

- If the pressure has not dropped after these second 10 minutes drive, continue. If 1.8 bar (26.1 psi) cannot bereached, donot continued drive, seek assistance instead. Donot exceed 50 MPH (80 km/h).

Note: DONOTremoveforeignobjects(eg. screws, nails) from the theyre. Thetyrerepairsystem must only be used when the foreign object is in the

treadpattern(A), DONOTattemptarepairwhen thedamageisinthesidewallofthetyre(B).

A B B

Attheearliestopportunitygetthetyrereplacedbyan AuthorisedMGRepairerortyrespecialistandreplacethe usedtyresealantbottlewithanMGapprovedsealant.

EMERGENCYINFORMATION

AccessingtheSpareWheelandT ools *

Technical diagram showing car interior components with labeled parts A, B, and C, including a knob and mechanical component.

T oaccessthesparewheelandtools:
I Usetheliftingstraptoraisetheluggagecarpet.(A)
2Removethetooltray.(B)
3Unscrewthesparewheelclampandliftthewheelfrom theboot.(C)

T oolldentification*

Technical diagram of a mechanical component with numbered parts labeled 1, 2, 3, and 4.

I Wheelnutwrench.
2Jack
3Fronttowingeye.
4Trimremovaltool

EMERGENCYINFORMATION

ChangingaWheel

If possible, choose as a safe placet to stop away from them in thoroughfare. Always ask your passenger to get out of the car and wait in a safe area away from other traffic.

Switchonhazardlights.lfavailable,positionawarning triangleoraflashingamberlight50to150metres(150 to500ft)behindyourvehicletowarnapproachingtraffic.

Beforechangingawheel,ensurethefrontwheelsareinthe straightaheadposition,applytheparkingbrakeandselect firstgear.

Observethefollowingprecautions:

- Ensurethejackispositionedonfirm,levelground; NEVERonsoftground,orovermetalgratingsor manholecovers.DONOTplaceadditionalmaterial betweenthejackandtheground,thismayjeopardise thesafetyofthejackingoperation.

•lfjackingonaslopeisessential,placechocksatthefront andrearofthewheeldiagonallyoppositetheonetobe removed.

- NEVERjackthecarwithpassengersinsideorwitha caravanortrailerconnected!

PositioningtheJack

NEVERworkbeneaththecarwiththejack astheonlymeansofsupport. Thejackis designedforwheelchangingonly!

NEVERjackthecarusinganyjackingpoints othethathdesignatepointshown. Seriousdamagetothecarcouldresult.

Side view line drawing of a car with two upward arrows indicating motion or movement (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with an inset showing a close-up view of the component (no text or symbols present)

EMERGENCYINFORMATION

Avoidaccidentalcontactwithanyunderbody parts,especiallyhotexhaustsystem components.

Positionthejackonfirmlevelgroundunderthejacking pointnearestthewheeltoberemoved. Notethatthejack headmustfitintothecorrespondingrecessinthesillplate (seeinsetinillustration).

Turningthejackscrewbyhand,adjustthejackuntilthejack headfitssnuglyontothesillinthecorrectarea.Ensurethat thebaseofthejackisinfullcontactwiththelevelground.

ChangingtheWheel

Checksparetyrepressureregularly.Always checktyrepressuresafterchangingawheel.

Ensure that wheel nuts are tightened to correct torque of 105-115Nm.

I Before raising the car, use the wheel wrench to slacken each of the wheel nut half at turnanti-clockwise.

Note: Depending on the style of wheels fitted may be necessary to remove wheel nut covers, centrecapor wheel tripset the special tool located within the tool kittoremov there relevant trim type.

Notæ:helockingwheelnutsonvehiclesfitted withthem(onelockingwheelnutperwheel)can onlybeloosenedortightenedbyusingtheadapter provided.*

2Turnthejackscrewclockwisetoraisethecaruntilthe tyreisclearoftheground.

3Removethewheelnutsandplacetheminthetooltray topreventthemfrombeinglost.

4Removetheroadwheel.

NotAvoidingHEELsacdownthe ground-thesurfacemaybescratched.

5Fitthesparewheelandtightenthewheelnutsuntilthe wheelisseatedfirmlyagainsttthehub.

EMERGENCYINFORMATION

6Lowerthecarandremovethejack, thenFULLYtighten thewheelnutsinadiagonalsequence.

7Finally, return the tool to the tool tray and the wheel (facedown) to the well in the load space floor

Note: Recheck the wheel nuttorque after initial tightening.

Note: Consult your MGA authorised Repairerortyre specialist for areplacement tyre, as soon as possible.

EMERGENCYINFORMATION

FuseReplacement

Fuse

Fusesaresimplecircuitbreakerswhichprotectthevehicle electricalequipmentbypreventingtheelectricalcircuits frombeingoverloaded.Ablownfuseindicatesthatthe itemofelectricalequipmentitprotectsstopsworking.

Thelocationandcapacityofeachfusearelabeledonthe fuseboxlids.

Checkasuspectfusebyremovingitfromthefuseboxand lookingforabreakinthewireinsidethefuse.

Wesuggestthattakesomesparefusesforreplacement. SparefusesareavailablefromMGAuthorisedRepairers.

HealthyandBlownFuses

IMPORTANT

• NEVERattempttorepairablownfuse.ALWAYS replaceafusewithoneofthesamerating.
• Ifareplacedfusefailsimmediately,pleasecontactan MGAuthorisedRepairerassoonaspossible.

EMERGENCYINFORMATION

FuseBox

Therearetwofuseboxesinthevehicle:

• PassengerCompartmentFuseBox (belowtheglove boxatthefrontpassengerside).
  -EngineCompartmentFuseBox (attheleftsideofthe EngineCompartment).

Technical line drawing of a car with numbered parts labeled 1 and 2

IPassengerCompartmentFuseBox

2EngineCompartmentFuseBox

PassengerCompartmentFuseBox

I Switchofftheignitionswitchandallelectrical equipment, disconnectthebatterynegativecable.

2Remove the closing panel below the glovebox to gain access to the refuse box.

Presthusextractiotootnthfushead andpulltoremovethefusAblownfusecanbe recognisedbyabreakinthewire.

EMERGENCYINFORMATION

4Replacetheblownfusewithasamerating.

FuseSpecification

Fuse	Rating	Function
F1	20A	RearWiperRelay,RearWasher Relay(LHD)
F215A	CentreConsolePowerSocket
F35AD	DiagnosticSocket
A F4		ABS,IPK,DC/DC,ECM,BCM,SAS,YawRateSensor
F5	10ARearWasherRelay(RHD)
A F6		AirCondition,BlowerRelay,CentreConsolePowerSocketRelay,HeatedRearWindowRelay,HeadlampLevellingSwitch ,PassengerSideAirbagDisabled Indicator
F7	15ASuperLockRelay
F810A	SRSDCU

Fuse	Rating	Function
F910A	InertiaSwitch
F105A		LeftPositionLamp,SwitchIllumination,LeftTailLamp
F11	5AFront	Interior/MapLamp
F125A		RearLicensePlateLamp,RightTailLamp,SwitchIllumination,RightPositionLamp
F1320A		BrakePedalSwitch,ReverseLampSwitch
F1415A		CDLMotor(Lock),TailgateMotor(Lock)
F15	10A	ReserveFuse
F1615A		CDLMotor(Unlock),TailgateMotor(Unlock)
F17	10A	Horn
F1810A		BCM,RearWasherRelay,DriverDoorCombinationSwitch,IPK , InCarEntertainment
F195A		LeftBrakeLamp,HighMountedBrakeLamp

EMERGENCYINFORMATION

Fuse	Rating	Function
F2020A	LeftRear	WindowLiftSwitch
F215A		RightBrakeLamp
F2220A	RightRear	WindowLiftSwitch
F235A	ECM,BCM
F2425A	Passenger	WindowLiftSwitch
F2520A	RearScreenHeating
F2625A	DriverDoorCombinationSwitch
F2710A		ExteriorRearViewMirrorHeating
F2815A	InCarEntertainment
F29	-	-
F3010A	AirCondition
F31	-	-
F3210A		IPK

Fuse	Rating	Function
F33	- -
F345A	DAB
F355A		ReserveFuse
F3610A		ReserveFuse
F3715A		ReserveFuse
F3820A		ReserveFuse

EMERGENCYINFORMATION

EngineCompartmentFuseBox

Diagram of an automotive fuse box with labeled buttons and a grid of alphanumeric codes on the right panel.

CheckorReplaceaFuse

I Switchofftheignitionswitchandallelectrical equipment, disconnectthebatterynegativecable.

2Pressthebuckletoremovethefuseboxlid.

3Pressthefuseextractiontoolontothefusehead andpulltoremovethefuse.Ablownfusecanbe recognisedbyabreakinthewire.

4Replacethefusewithasamerating.

FuseSpecification

FuseRatingFunction
F1	10A	RightFrontLowBeamLamp
5A F2		Post-OxygenSensor,InletCamSolenoid,ExhaustCamSolenoid
F3 L0A FrontLow BeamLamp
F4 A0A Condition CompressorClutch
F5	E0M
5A F6		CoolingFanRelay,PurgeControlValve,AirConditionCompressorClutchRelay,FuelPumpRelay,StopStartSwitch
F7	30A	FrontWiperEnableRelay,FrontWiperSpeedControlRelay
F85A OxygenSensor
F915A		DayTimeRunningamp,IPKIllumination

EMERGENCYINFORMATION

FuseRatingFunction
FI010A		RightFrontHighBeamLamp,IPK Illumination
FII	10ALeftFrontHighBeamLamp
FI230A	IgnitionCoils,Injectors,ECM
FI330A		-
FLI	2000A	Alternator,Passenger CompartmentFuseBoxFuse F4、FLII
FL250A	ASCSECU(Pump)
FL340A	CoolingFan
FL460A		PassengerCompartmentFuseBox FusF20、F22、F24、F26
FL5	80A	PassengerCompartmentFuseBox FusF1、F3、F4、F5、F7、F9、F25、F27,RearScreenHeating Relay
FL625A	ASCSECU(Valve)

FL7	50AlgnitionSwitch
FL825A	Common	UnlockandLockRelays
FL930	ADC/DCC	Converter
FL1025A		HornRelay,WasherPumpRelay
FL11	30ABlowerMotor,AirConditioning
FL1225A		DippedBeamRelay
FL1330	AStarterRelay
FL1425	ABCMIndicators&RearFogLamp
FL15	30A	PositionLampRelay,DayTime RunningLampRelay,Engine CompartmentFuseBoxFuseF9、F10、F11,PassengerCompartment FuseBoxFuseF10、F12
FL16	- -

EMERGENCYINFORMATION

BulbReplacement

BulbSpecification

LampBulb	Specifications
HeadlampHigh/LowBeamH460/55W
SideLight	W5W5W
FrontDirectionIndicators	PY21W21W
SideRepeater(InMirror)	WY5W5W
ReverseLamps	H21W21W
RearFogLamps	W21W21W
Stop/TailLampsPR21/5W21/5W

LampBulb	Specifications
LicensePlateLampsW5W5W
InteriorLamp	C10W10W
RearDirectionIndicators	P21W21W
LoadSpaceLampR10W10W
HighMountedStopLamp	W5W5W
DaytimeRunningLamp	LED(non-serviceable)

EMERGENCYINFORMATION

BulbReplacement

Beforereplacinganybulb,turnoffthelightingswitchto avoidanypossibilityofashortcircuit.

Note: Only replace bulb with the sametype and specification.

TakecareNOTtotouchtheglasswithyourfingers;always useaclothtohandlethebulb.lfnecessary,cleantheglass withmethylatedspiritstoremovefingerprints.

Ifindoubt,whenreplacingbulbs,contactaspecialist workshop.

Thebulbremovalprocedureisasfollows(Theinstallation procedureisinreverseorder,soitwillnotbedescribed here),forotherbulbsnotlistedandtobereplaced,askan MGAuthorisedRepairerforhelp.

LoadSpaceLamp

Line drawing showing two methods of using a device: one with a cable and the other with a plug inserted into a box (no text or symbols)

Insertasmallflat-bladedscrewdriverintotheindenton oneofthenarrowsidesofthelensandcarefullyremove theunitfromitslocation.

EMERGENCYINFORMATION

LicencePlateLights

Technical line drawing of a mechanical component with attached cable (no text or symbols)

l Insertasmallflat-bladedscrewdriverintothenarrow gapatonesideofthelicenseplatelight,pryslightly andremovethelens.

2Removethebulbfromthebulbholder.

InteriorLamp

Diagram of an open electronic device showing internal components and wiring, with no visible text or symbols.

I Useaflat-bladescrewdrivertopythefrontendof thelens, andremovethelens.

2Removethebulbfromthebulbholder.

Maintenance

178Maintenance
182Bonnet
183 EngineCompartment
185Engine
187CoolingSystem
189 Brakes
191PowerSteering
193Battery
197Washers
199 Wiper
202Tyres
207CleaningandVehicleCare

MAINTENANCE

Maintenance

RoutineServicing

Thesafety, reliability and performance of your car will depend partly on how well it is maintained.

You must ensure that maintenance is carried out when required and according to the information contained in the 'Warranty and Maintenance Manual'.

Servicing

Themessagecentreshowsthedistanceremainingbefore thenextservice.

Thedistancedisplaycommencesatthemaximumservice intervaldistanceforyourmarket,andprogressively reducesinincrementsof25miles(50km)asthecaris driven,untilzeroisreached.Therelevantserviceshould becarriedassoonasthedistancedisplayshowszero.

After the completion of each service, the distance display will be reset to the maximum service interval distance for your market.

Note: Because the service interval display reduces in increment of 25 miles (50 km), it is possible to undertake short journey without triggering any movement from the display.

Note: If a service is not carried out (orthedisplay is not reset), the distance indicator, having reached zero, will remain at zero until it is reset.

ServiceHistory

Refertothe 'Warranty and Maintenance Manual' for details. Ensure your MGA authorised Repairersigns and stamp the Service History after each service.

BrakeFluidReplacement

Thebrakefluidrequiresreplacementeverytwoyears, irrespectiveofthedistancethecarhastravelleyour MGAuthorisedRepairerwillreplacethebrakefluidatthe servicenearestttotheconclusionofeachtwoyearperiod.

CoolantReplacement

Theenginecoolant(anti-freezeandwatersolution)needs tobereplacedeveryfouryearsregardlessofthedistance thecarhastravelled.YourMGAuthorisedRepairerwill replacethecoolantattheservicenearesttototheconclusion ofeachfouryearperiod.

EmissionControl

Yourcarisfittedwithemissionandevaporativecontrol equipmentdesignedtomeetspecificterritorialandlegal requirements.Incorrectenginesettingsmayadversely affectexhaustemissions,engineperformanceandfuel consumption,aswellascausinghightemperatures,which couldresultindamagetothecatalyticconverters,and engine.

IMPORTANT

Youshouldbeawarethatunauthorisedreplacement, modificationortamperingwiththisequipmentbyan ownerormotorvehiclerepairercouldresultinthe manufacturer'swarrantybeingdeemedasinvalid.In addition,enginesettingsmustnotbetamperedwith.

OwnerMaintenance

Anysignificantorsuddendropinfluidlevels, oruneventyrewear,shouldbereported withoutdelay.Forfurtherinformation,refer toanMGAuthorisedRepairer.

Inadditiontotheroutineservicesreferredtoppreviously, anumberofsimplechecksmustbecarriedoutmore frequently. Youcancarryoutthesechecksyourselfand adviceisgivenonthepagesthatfollow.

DailyChecks

•Operationoflights,horn,directionindicators,wipers, washersandwarninglights.
•Operationofseatbeltsandbrakes.
- Lookforfluiddepositsunderneaththecarthatmight indicatealeak.

WeeklyChecks

•Engineoillevel

MAINTENANCE

Note: The engine oil level should be checked more frequently if the car is driven for prolonged periods at high speeds.

•Coolantlevel.
- Brakefluidlevel.
•Powersteeringfluidlevel.
•Screenwasherfluidlevel.
•Tyrepressuresandcondition.
- Operateairconditioning.

SpecialOperatingConditions

Ifthecarisfrequentlyusedindustyconditionsoroperated inextremeclimateswheresubzeroorveryhighambient temperaturesarenormal, more frequent attention may needtobepaidtoservicingrequirements.

If you need to carry out special maintenance operations, refer to Parts and Warranty Statement on the MG Distributors website or contact your MG authorised repairer.

SafetyintheGarage

Coolingfansmaycommenceoperatingafter theengineisswitchedoff,andcontinue operatingforanumberofminutes.Keep clearofallfanswhileworkingintheengine compartment.

If you need to carry out maintenance, observ the followingsafety precautions at all times:

• Keepyourhandsandclothingawayfromdrivebeltsand pulleys.
• Ifthecarhasbeendrivenrecently, DONOTTOUCH exhaustandcoolingsystemcomponentsuntiltheengine hascooled.
  • DONOTT OUCHelectricalleadsorcomponents while the engine is running, or with the key in the ignition.
• NEVERleavetheengine runninginanunventilated area -exhaustgasesarepoisonousandextremelydangerous.
  •DONOTworkunderneaththecarwithawheel changingjackastheonlymeansofsupport.

MAINTENANCE

• Ensuresparksandnakedlightsarekeptawayfromthe enginecompartment.
• Wearprotectiveclothing, including, wherepracticable, glovesmadefromanimperviousmaterial.
• Removemetalwristbandsandjewellerybeforeworking intheenginecompartment.
  •DONOTallowtoolsormetalpartsofthecartomake contactwiththebatteryleadsorterminals.

PoisonousFluids

Fluidsusedinmotorvehiclesarepoisonousandshouldnot beconsumedorbroughtintocontactwithopenwounds. Theseinclude:batteryacid,antifreeze,brakeandpower steeringfluid,petrol,diesel,engineoilandwindscreen washeradditives.

Foryouwnsafety, ALWAYSreadandobeyall instructionsprintedonlabelsandcontainers.

UsedEngineOil

Prolongedcontactwithengineoilmaycauseseriousskin disorders,includingdermatitisandcanceroftheskin. Washthoroughlyaftercontact.

Usedengineoilshouldbedisposedofcorrectly.Incorrect disposalcancauseathreattotheenvironment.

MAINTENANCE

Bonnet

OpeningtheBonnet

DONOTdrivewhenthebonnetisretained onlybythesafetycatch.

Diagram showing car engine compartment with labeled parts A and B, including a handle mechanism and internal component.

I From the inside of the car, pull the bonnet release handle(A).

2Pushthesafetycatchleverlefttoreleasethesafety catch(B).

3Raisethebonnetandthenfitthesupportstayintothe cutoutintheundersideofthebonnetfirmly.

ClosingtheBonnet

Replacethesupportstayinitsretainingclipthenlowerthe bonnet,allowingittodropforthelast20-30cmtoits closedposition.

Byattemptingtoliftthefrontedgeofthebonnet,checkif thelockisfullyengagedafterclosingthebonnet.Ifitisnot fullyengaged,youmustrepeattheoperation.

WarningWhentheBonnetisOpen

Ifthebonnetcatchisnotfullyengaged,thewarninglight thatindicatesthevehiclepanelsarenotclosedwillbe illuminatedwhentheignitionisinpositionII(seewarning lightsandindicatorsinInstrumentsandControlschapter)

EngineCompartment

EngineCompartment(LHD)

While working in the engine compartment, always observethes safety precautions listed under "Safety in the Garage", referto "Maintenance" in "Service and Maintenance" section.

Technical diagram of a car engine bay with numbered components for identification

IPowersteeringreservoir(black cap)
2Engineoilfiller(yellowcap)
3Engineoidipstick(yellow)
4Brakereservoir(yellowcap)
5Coolingsystemexpansiontank (whitecap)
6Coolingsystempressurecap (silverywhite)
7Washerreservoir(bluecap)

MAINTENANCE

EngineCompartment(RHD)

While working in the engine compartment, always observethes safety precautions listed under "Safety in the Garage", referto "Maintenance" in "Service and Maintenance" section.

1 2 3 4 7 6 5

IPowersteeringreservoir(black cap)

2Brakereservoir(yellowcap)

3Engineoilfiller(yellowcap)

4Engineoildipstick(yellow)

5Coolingsystemexpansiontank (whitecap)

6Coolingsystempressurecap (silverywhite)

7Washerreservoir(bluecap)

MAINTENANCE

Engine

EngineOil

ACEASpecification

UseengineoilmeetingACEAspecificationAI/BI, to ensure optimum protection for your engine, alternatively seek advice from the manufacturer.

Note:Mixingoiladditiveswiththeengineoilisnot recommendedandcoulddamagetheengine.

EngineOilLevelCheckandT opUp

Drivingthecarwiththeengineoillevel ABOVEtheuppermark,orBELOWthelower markonthedipstick,willdamagetheengine.

T akecaretoavoidspillingengineoilontoa hotengine-afiremayresult!

MAX MIN

MAINTENANCE

Checktheoillevelweeklyandtopupwithoilifnecessary. Ideallytheoillevelshouldbecheckedwiththeenginecold andthecarrestingonlevelground.However,ifthecaris inuseandtheengineisalreadywarm,waitforatleastfive minutesafterswitchingoffbeforecheckingthelevel.

I Withdrawthedipstickandwipethebladeclean.

2Slowlyinsertthedipstickandwithdrawagaintocheck thelevel,whichshouldNEVERbeallowedtofallbelow the'MIN'markonthedipstick.

3T otopup, removeofftheoilfillercapandaddoilto maintainalevelbetweenthe'MAX' and 'MIN'marks onthedipstick.

4Waitforfiveminutesandthenrecheckthelevel, addingmoreoilifnecessary–DONOTOVERFILL!

5Finally, ensurethedipstickandfillercaparereplaced.

Forengineoiltypeandcapacityrefertothe'T echnicalData' Chapter.

IMPORTANT

Check the engine oil more frequently if the car is driven at high speeds for prolonged periods.

MAINTENANCE

CoolingSystem

CoolantCheckandT opUp

DONOTremovethereservoircapwhenthe coolingsystemishot-escapingsteamor watercouldcauseseriousinjury.

3D rendered mechanical part with no visible text or symbols

Thecoolantlevelshouldbecheckedweeklywhenthe coolingsystemiscoldandwiththecarrestingonlevel ground.Ifthelevelislowerthan'MIN'mark,openthe

expansiontankandtopupthecoolant. The level should not be higher than 'MAX' mark.

Note: Preventcoolantcomingintocontactwiththe vehiclebodywork, coolantwilldamagepaint.

If the coolant level falls appreciably during a short period, and aleakissuspected, arrange for MGA authorised Repair to examinethecar.

CoolantSpecification

Pleaseusethecoolant(mixofwaterandantifreeze)which isrecommendedandcertifiedbythemanufacturer.Please refer to 'RecommendedFluidsandCapacities'.

Note: In an emergency to pup the cooling system with clean water, but be aware of the resultant reduction infrost protection performance. DONOT topup or refill with other anti-freeze formulations.

Note: DONOT topuporrefillwithrustinhibitor or othercoolantadditives.

MAINTENANCE

Antifreeze

Antifreezeispoisonousandcanbefatal ifswallowed-keepcontainerssealed and outofthereachofchildren. Ifaccidental consumptionissuspected, seekmedical attentionimmediately.

Preventantifreezecomingintocontact withtheskinoreyes.Ifthisoccurs,rinse immediatelywithplentyofwater.

Brakes

BrakeFluid

Brakefluidishighlytoxic-keepcontainers sealedandoutofthereachofchildren. Ifaccidentalconsumptionofbrakefluidis suspected,seekmedicalattentionimmediately.

Diagram illustrating car wheel rim adjustment with MAX-MIN labels and directional arrows indicating motion

Brakefluidreservoir(RHD)

Preventbrakefluidcomingintocontactwiththe skinoreyes.Ifthisoccurs,rinseimmediately withplentyofwater.

Technical diagram showing mechanical component assembly with labeled parts and directional arrows indicating motion or movement.

Brakefluidreservoir(LHD)

MAINTENANCE

Thebrakefluidlevelshouldbecheckedweeklywhenthe systemiscoldandwiththecaronlevelground.

Thefluidlevelcanbeseenthroughthereservoirneck andshouldbemaintainedasclosetothe'MAX'markas possible.Donotallowtheleveltodropbelowthe'MIN' mark.

Note: Brakefluidwilldamagepaintedsurfaces. Soak upanyspillagewithanabsorbentclothimmediately andwashtheareawithamixtureofcarshampooand water.

BrakeFluidSpecification

Usethebrakefluidwhichisrecommendedandcertified bythemanufacturer.Referto'RecommendedFluidsand Capacities'in'T echnicalData'.

IMPORTANT

Thebrakefluidmustbereplacedeverytwoyears.

PowerSteering

PowerSteeringFluidCheckandT opUp

Powersteeringfluidishighlytoxic.Keep containerssealedandoutofthereach ofchildren.Ifaccidentalconsumptionof fluidissuspected,seekmedicalattention immediately.

Ifpowersteeringfluidshouldcomeinto contactwiththeskinoreyes,rinse immediatelywithplentyofwater.

Thefluidlevelshouldbecheckedeveryservice. This shouldbedonebeforetheengineisstartedwhenthe systemiscoldandwiththefrontwheelspointingstraight ahead.

Wipethillecapleanprevendinfromentering theeservoRemovehillecapnd,singlean lint-freecloth,wipethedipstickclean.Refitthecapfully andemovagaincheckthuilevefecessary, topupwithafluidmeetingspecificationuntilthelevelis

between the upper and lower marks on the dipstick (see illustration).

No Powersteeringfluidwilldamagepainted surfacesSoakupanspillagewithabsorbentcloth immediatelyandwashtheareawithamixtureofcar shampooandwater.

Mechanical component diagram showing a turning tool interacting with a threaded cylindrical component (no text or symbols)

MAINTENANCE

IMPORTANT

Takecarenottospillpowersteeringfluidontoahot engine-afiremayresult.

PowerSteeringFluidSpecification

Usethepowersteeringfluidwhichisrecommended andcertifiedbythemanufacturer.Pleasereferto 'RecommendedFluidsandCapacities'in'T echnicalData' chapter.

Battery

3D rendering of a rectangular battery housing with two terminals and mounting holes (no text or symbols visible)

T oaccessthebattery,raisethebonnet,releasethefixings andmovethetopofthebatterycoveraside.

BatterySafety

Batteriescontainsulphuricacid,whichiscorrosive.Wear suitableprotectiveequipmentwhenhandlingbatteriesto protectyoureyes,skinandclothing.

Ifaspillageoccurs:

• Onclothingortheskin-removeanycontaminated clothingimmediately,flushtheskinwithlargeamounts ofwater,andseekmedicalattentionurgently.
  • Intheeyes-flushwithcleanwaterimmediatelyforat least 15minutes.Seekmedicalattentionurgently.
• SwallowingbatteryacidcanbefatalunlessIMMEDIATE actionistaken-seekmedicalattentionurgently.

BatteryDisconnectionandReplacement

Note: NEVERruntheenginewiththebattery disconnected, or disconnectthebatterywhilethe engineisrunning.

IfabatteryrequiresreplacementcontactanMG AuthorisedRepairer.Onlyfitareplacementbatteryofthe sametypeandspecificationastheoriginaltomaintainthe correctvehiclefunctionality.

Before disconnecting or removing the battery, ensure that the starters switch and electrical equipment turned off.

Disconnect the negative (-) cable first and then the positive (+) cable (when reconnecting, connect the positive cable first and then the negative cable).

MAINTENANCE

When lifting the battery from the car, keep the battery upright at all times.

Makesureboththebatteryclampingplateandretaining straparefittedsecurely,thiswillpreventthebatteryfrom movingintheeventofanaccidentorsuddenstop.

Note: On vehicles fitted with Stop/Start, after battery disconnection it will be necessary to leave the vehicle in locked condition for 4 hours in order to assess the battery condition. Failure to this will result in the loss of the Stop/Start function.

The battery must be disposed of using an approved, used batteries can be harmful to the environment. There are recycled by a professional company. Please use an MGA authorised repair or more details.

BatteryCharging

Note: DONOTchargethebatteryifitissuspectedof beingfrozen.

Asthebatteryages, it may not retain its charge as effectively as when it was new. Car that are used infrequently, or are used excessively for short journey motoring, or operation in cold climates, may need the battery to be charged regularly.

PreChargingBatteryAppearanceCheck : : :

If the outercasing is broken or there is a leak, DO NOT charge the battery and replace it after finding the reason.

If the terminal is broken, DONOT charge the battery and replace it after finding there reason.

DONOTattempttochargea'bulging'or'distorted' battery.

Pri: charging unterminal sefeom corrosion, applypetroleum jelly to terminal to help prevent corrosion.

ChargingNotes:

• Alwayswearsafetyglasseswhenconnectingor disconnectingabatterycharger.
  •Alwaysensuretheretheareaiswellventilated.Ensure thechargingbatteryhasadequatespaceanddoesnot 'over-heat'.
  •DONOTsmokeinthevicinityofachargingbattery, andensuresparksandnakedlightsarekeptwellaway fromtheenginecompartment.
• Beforecharging,connectthepositivecableatfirst. Aftercharging,disconnectthenegativecableatfirst.

BatteryChargingOperation:

Note: When charging oemergency starting always ensure then negative lead has good connection to a body earth away from the battery (refer to these section 'Emergency Starting' in the 'Emergency Information' Chapter).

• Ifchargingthebatterywhilstonthevehicle,please connectthebatterychargernegativeleadtothevehicle bodyensuringagoodconnection.

• Ensure all terminals are free from corrosion.

• Only suitable battery chargers can be used - please consult an MGA authorised Repairer for details.

• During the charging process the battery temperature MUST NOT exceed 40°C.
  • DONOTattempttochargeabatteryattemperatures below0°C.

BatteryMaintenance

DONOTleaveelectriccomponentsswitched onwhentheengineisnotrunning,the batterymaybecomeflatandyouwillnotbe abletostarttheengine.

Thatter designed maintenance so topping-up is unnecessary.

Note: If the vehicle is stored from more than 1 month, removal the earth lead from the battery. Makes sure that the ignition switch has been turned off before connecting disconnecting heart on vehicles fitted with Stop/Start, when connecting the earth lead again, the vehicle must be left in a locked state for 4 hour store-calibrate the battery condition.

MAINTENANCE

FailuretoadheretowthiswillinhibittheStop/Start functionality.

Washers

WindscreenWasherCheckandT opUp

Somescreenwashproductsareflammable. DONOTallowscreenwashtocomeinto contactwithnakedflamesorsourcesof ignition.

Whenfillingthewasherreservoirdonotallow thefluidtocontactanypaintedsurfaces.If anycontactismade,washimmediatelywith shampooandwater.

Illustration of a hand pouring liquid into a container with a lid, showing a curved arrow (no text or symbols)

Checkthereservoirleveleveryweek.

Note: DONOTuseananti-freezeorvinegar/water solutioninthewasherreservoir—anti-freezewill damagepaintworkwhilevinegarwilldamagethe windscreenwasherpump.

IMPORTANT

• Only usethewasher fluid recommended by the manufacturer. Misuse of washer fluid in winter may caused damage to the washer motorduetofreezing.
• Using the washerswitch when there is now a washer fluid in the reservoir may cause damage to the washer motor.
- Operatingthewiperswhenthewindscreenaredry maycausedamagetothewindscreenandwipers. Pleasespraythewasherfluidbeforestartingthe wipers

MAINTENANCE

WasherNozzles

Operatethewasherperiodically to check if the windshield washernozzles are clean and they are in the correct direction.

The windshieldwashernozzlesareconfigured during the production, sogenerally there is noneed for adjustments. But, if necessary, you may insert an needle into the nozzle hole, and locate them nozzle by prying it gently, enable the washing fluids spraying directly in the center of the windshield.

If thenozzleisobstructed, insertaneedleorthinmetal wire into the holetoremovetheobstruction.

WashingFluidSpecification

Usethewasherfluidrecommendedandcertifiedby themanufacturer.Referto"RecommendedFluidsand Capacities"inthe"TechnicalData"section.

Wiper

WiperBlade

IMPORTANT

•Grease,siliconandpetrolbasedproductsimpairtheblade'swipingcapability.Wasthewiperbladesinwarmsoapy waterandperiodicallychecktheircondition.

•Cleanthewindscreenfrequently,donotusewiperstoremovestubbornoringraineddirt,itwillreducetheireffect andtheirlifespan.

•Ifsignsofhardnessorcrackingintherubberarefound,orifthewipersleavestreaksorunwipedareasonthescreen, thenthewiperbladesshouldbereplaced.

•Cleanthewindscreenregularlywithanapprovedglasscleanerandensurethescreenisthoroughlycleanedbefore fittingreplacementwiperblades.

•Onlyfitreplacementwiperbladesthatareidenticaltotheoriginalspecification.

•Cleaniceandsnowfromaroundwipersandensuretheyarenotfrozenorotherwisestickingtothewindscreen beforeattemptingtooperatethem.

MAINTENANCE

ReplacingFrontWiperBlades

Diagram of a rope being inserted into a vertical structure with arrows indicating direction (no text or symbols present)

I Liftthewiperarmawayfromthewindscreen.
2Squeezethelocatingtagstobothsidesasarrowedand pivotthebladeawayfromthewiperarm.
3Unhookthebladefromthewiperarmanddiscard.
4Locatethetipofthenewwiperbladeintheslotinthe wiperarm.
5Pivotthewiperbladetowardsthearmuntilthe locatingtagsengage.

6Checkthatthebladeisfittedcorrectlytothearm beforepositioningonthewindscreen.

ReplacingRearWiperBlades

Illustration of a hand holding a tool with arrows indicating motion or force (no text or symbols)

I Liftthewiperarmawayfromthetailgate.
2Pivotthebladeawayfromthewiperarmasarrowed.
3Unhookthebladefromthewiperarmanddiscard.

MAINTENANCE

4Locatethetipofthenewwiperbladeintheslotinthe wiperarm.
5Pivotthewiperbladetowardsthearmuntilthe locatingtagsengage.
6Checkthatthebladeisfittedcorrectlytothearm beforepositioningonthetailgate.

MAINTENANCE

T yres

Overview

•Takeextracarewhenusingnewtyresforthefirst300 miles(500km).
- Avoidexcessivecorneringatspeed.
- Regularlychecktyresfordamageandforeignobjects-removeanyforeignobjectsfromthetread.
- Avoidtyrecontactwithoils,greaseandfuel.
- Ensurevalvecapsarealwaysfitted.
- Ifthetyreistoberemovedalwaysmarkthetyre/wheel orientationtoensurecorrectrefitment.

NewT yres

Newtyresmaynothavethesameadhesionpropertiesof theoldtyres,pleasetakeextracarefor500km.This actioncouldbenefittyrelife.Tyreorrimdamagecan happenunnoticed.Ifabnormalvibrationsorhandlingis experienced,oryouthinktyreorrimdamagehasoccurred pleasecontactanMGAutorisedRepairer.

DirectionalT yres

Directionaltyresaremarkedwith'directionofrotation'(DOR).T omaintainhandlingcharacteristics,tyre performance,lowroadnoiseandextendtyrelife, tyres/wheelsmustalwaysbefittedwithindicationarrow showingthecorrect'DOR'.

T yreLife

Correcttyrepressuresandmoderatedrivingstylecan extendtyrelife.Recommendations:

• If the vehicle is restored for a lengthy time, please move at least one time in two weeks to 'rotatethetyres'
• Tyrepressures should be checked regularly when the tyres are cold.
• Avoidcorneringatexcessivespeeds.
• Regularlychecktyresforabnormalwearpatterns.
  The following factors affect theetyrelife.

T yrePressures

Incorrecttyrepressurescanresultinpoordriving characteristicsandashortenedtyrelife.T yrepressures

shouldbecheckedatleastonceamonth, and onceprior to each long-distance journey.

DrivingStyle

Excessivelyharshaccelerationandbrakingwhilstcornering willreducetyrelife.

WheelBalance

Shakingorvibrationofthevehicleorsteeringmechanism canindicateoutofbalancewheels.Itisimportanttorectify thisquicklyastopreventwearonsteeringandsuspension componentsandshortentyrelife.

WheelAlignment

Incorrectwheelalignmentcancauseexcessivetyrewear and affect vehicles safety. If the tyresshowsignsofabnormal wearseek advice from MGA authorised repairer.

CaringforY ourT yres

DEFECTIVETYRESAREDANGEROUS! DONOTdriveifanytyreisdamaged,is excessivelyworn,orisinflatedtoanincorrect pressure.

Always drivewith consideration for the condition of the tyres, and regularly inspect the thread and sidewalls for any sign of distortion (bulges), cuts or wear.

Note: If possible, protecttyres from contamination by oil, grease and fuel.

T yrePressures

Beforealongdistancejourney,thetyre pressuremustbechecked.

Checkthepressures(includingthesparewheel)atleast everymonth,whenthetyresarecold.

Ifitisnecessarytocheckthetyreswhentheyarewarm, youshouldexpectthepressurestohaveincreasedby0.3 to0.4bar(4.35to5.8psi).Inthiscircumstance,NEVERlet

MAINTENANCE

airoutofthetyresinordertomatchtherecommended pressures(cold).

Valves

Keepthevalvecapsscreweddownfirmly-thypreventdirt fromenteringthevalve.Checkthevalveforleaks(listen foratell-talehissing)whenyoucheckthetyrepressure.

PuncturedT yres

Yourvehicleisfittedwithtyreswhichmaynotleakif penetratedbyasharpobject,providedtheobjectremains inthetyre.Ifyouareawareofthisoccurring,reducespeed immediatelyanddrivewithcautionuntilthesparewheel canbefitted,orrepairsundertaken.

Note: If the sidewallothetyreisdamagedor distorted, replacethetyreimmediately, donot attemptarepair.

T yreWearIndicators

Tyresfittedasoriginalequipmenthavewearindicators mouldedintothetreadpatternatseveralpointsaround thecircumference.

Diagram showing a tire with an arrow pointing to a textured surface, and a magnified inset illustrating the machining process (no text or symbols present)

Whenthetreadhasworndownto 1.6mm, the indicators willcometothesurfaceofthetreadpattern, producing theeffectofacontinuousbandofrubberacrossthewidth ofthetyre.

IMPORTANT

AtyreMUSTbereplacedassoonasawearindicator becomesvisible.

ReplacementT yres

DONOTreplacethewheelswithwheels ofanyothertype.Alternativewheels,ofa differentspecification,mayadverselyaffect thecar'sdrivingcharacteristics.

Alwayshavereplacementwheelsandtyresbalancedbefore use.

WheelFitmentRotation

Inordertobalancetyrewear, it may benefit from rotating tyreposition. Wheels can be swapped front to ear in ordertoevenspread tyrewear across all tyres.

DirectionaltyresCANNOTbeswappedfromsidetoside.

SnowChains

Unsuitablesnowchainscoulddamagethetyres, wheels, suspension, brakesorbodyworkofyourcar.

Inuse, always observethe following precautions:

• Fitsnowchainstothefrontwheelsonly.

- Thethicknessofsnowchainsshouldn'texceed20mm.

MAINTENANCE

•Alwaysadheretothesnowchainfittingandretensioning instructionsandthespeedlimitationsforvaryingroad conditions.
•DONOTexceedspeedsof50km/h.
- Avoidtyredamageandexcessivechainwearby removingsnowchainswhendrivingonsnowfreeroads.

Note: If you drive on the snowy and icy roads, it is recommended to use wintertyres. Consultant MG

AuthorisedRepairerfordetails.

CleaningandVehicleCare

Observeallsafetyprecautionsoncleaning products;donotdrinkfluidsandkeepthem awayfromtheeyes.

WashingY ourCar

Somehighpressurecleaningsystemswill penetratedoor, windowseals, and damage lockmechanisms. DONOTaimwaterjets directly at componentsthatmightbeeasily damaged.

Inordertopreservethepaintfinishonyourcar, please observethefollowingcarepoints:

•DONOTusehotwatertowashthecar.
•DONOTusedetergentsorwashingupliquid.
• Inhotweather, DONOTwashthecarindirectsunlight.
- Whenusingahose, DONOTaimthewaterdirectlyat window, doorseals, orthroughwheelaperturesonto thebrakecomponents.

Ifthecarisparticularlydirty,useahosetoflushgrime and gritfromthebodywork,priortowashing.Then,washthe carusingcoldorlukewarmwatercontainingagoodquality washandwaxshampoo.Alwaysuseplentyofwaterto ensurethatgritisflushedfromthesurfaceandnotground intothepaintworAfterwashing,rinsethebodywork withcleanwateranddryoffwithachamoisleather.

CleaningtheUnderside

DONOTuseahighpressurehosetoclean theenginecompartment-damagetothe car'selectronicsystemsmayoccur.

Fromtimetotime, but particularly during winter months when salthas been used on theroads, use ahosetowash the underside of the car. Flush away accumulation of mud and thoroughly clean those areas where debriscane easily collect (wheel arches and panelseams, forexample).

RemovingT arSpots

Usewhitespirittoremovetarspotsandstubborngrease stainsfromthepaintwork. Thenwashtheareaimmediately withsoapywatertoremovealltracesofthespirit.

MAINTENANCE

BodyProtection

Afterwashing,examinethepaintworkfordamage.Ifthe damagehasrevealedbaremetal,useacolouredprimer first,thenapplythecorrectcolourbasecoatandfinish offwithalacquerpencil,ifappropriate.Carryoutthis treatmentafterwashingbutbeforepolishingorwaxing.

Moreextensivedamagetopaintorbodyworkmust berepairedinaccordancewiththemanufacturer's recommendations.Failuretodothiswillinvalidatethe Anti-CorrosionWarranty.Ifindoubt,askyourMG AuthorisedRepairer.

PolishingthePaintwork

DONOTusecarpolishcontainingcoarse abrasives—thesewillremovethepaintfilm anddamagetheglossfinish.

Occasionally treat the paints surface with an approve polish containing the following properties:

Verymildabrasivestoremovesurfacecontamination withoutremovingordamagingthepaint.

Fillingcompoundsthatwillfillscratchesandreduce theirvisibility.

Waxtoprovideaprotectivecoatingbetweenthepaint andtheelements.

Notfpossible, avoidapplyingpolishorwax productstowindowglassandrubberseals.

WiperBlades

Washinwarmsoapywater.DONOTusespiritorpetrol basedcleaners.

WindowsandMirrors

Regularlycleanallwindows,insideandout,usingan approvedglasscleaner.

Windscreen: In particular, clean the outside of the screen with glass clean after washing the car with wash and wax products, and before fitting new wiper blades.

Reascreenclearthensidewith soft cloth usingside tosidemotion to avoid damaging the heating elements.

Note: DONOTscrapeoruseabrasivecleanersonthe insideoftherearscreen—thiswilldamagetheheating elements.

Mirrors: Washwithsoapywater. Useaplasticscraperto removeice. DONOTuseabrasivecleaning compounds ormetalscraper.

VehicleGraphicsCare

WashRegularly

Washwheneverthevehicleappearsdirty.Contaminants allowedtoremainonthevehiclegraphicsmaybemore difficulttoremoveduringcleaning.Rinseoffasmuchdirt andgritaspossiblewithalowpressuresprayofwater.

Useawet, non-abrasivedetergents such as 3M™ CarWash Soap 39000 or Meguia's NXT Generation® CarWash, or Deep Crystal® CarWash and as soft, clean cloth or sponge.

Rinsethoroughlywithcleanwater.T oreducewater spotting,immediatelyuseasiliconesqueegeetoremove water(takingcarearoundtheedgesofthegraphics)to removewaterandfinishwithacleanmicrofibercloth.

AutomatedCarWash

Brush-typecarwashesarenotrecommendedastheycan abradethegraphicsandcausetheedgestoliftorchip,as wellasdullingthegraphic'sappearance.

MAINTENANCE

PressureWashing

Theuseofapressurewasherisnotrecommendedasthis maydamagethevehiclegraphic.

DifficultContaminants

Softendifficultcontaminantssuchasbugsplatter,bird droppings,treesapandsimilarcontaminantsbysoaking themforseveralminuteswithhotsoapywater.Rinse thoroughlyanddry.Iffurthercleaningisneeded,testone oftheseproductsinaninconspicuousareatoensureno damagethegraphics:Meguiar'sGoldClass™ Bug&Tar Removeror3M™ CitrusBaseCleaner.Spotcleanthe contaminants.Donotuseroughscrubbingorabrasive tools,whichwillscratchhegraphics.Washandrinseoff allresidueimmediately.

FuelSpills

Wipeoffimmediately to avoid degrading the graphics and adhesive. Then wash, rinse and dry as soon as possible.

CleaningtheInterior

PlasticMaterials

Cleanplastic-faced materials with diluted upholstery cleaner, then wipewith adamp cloth.

Note: DONOTpolishdashboardcomponents—these shouldremainnon-reflective.

CarpetandFabrics

Cleanwithdilutedupholsterycleaner-testaconcealed areafirst.

Leather

Cleanleathertrimwithwarmwaterandanon-detergent soap.Dryandpolishtheleatherwithadry,clean,lint-free cloth.

Note: DONOTuspetrodetergents, furniture creamsorpolishesascleaningagents.

MAINTENANCE

InstrumentPack, Clock, AudioSystemand

NavigationDisplay

Cleanwithadryclothonly.DONOTusecleaningfluids orsprays.

AirbagModuleCovers

DONOTallowtheseareastobefloodedwith liquidandDONOTusepetrol,detergent, furniturecreamorpolishes.

T oprotectdamagetotheairbagSRS, the following areasshouldbecleanedsparinglywithadampclothand upholsterycleanerONLY:

•Steeringwheelcentrepad.
• Areaofdashboardcontainingthepassengerairbag.
- Areaofroofliningandfrontpillarfinisherswhich enclosethesideheadimpactprotectionmodules.

SeatBelts

DONOTusebleaches, dyesorcleaning solventsonseatbelts.

Extendthebelts,thenusewarmwaterandanon-detergent soaptocleanAllowthebeltstodrynaturally;DONOT retractthemorusethecarunittheyarecompletelydry.

TechnicalData

214 TechnicalDataDimensions
215Weights
216 MajorParametersofEngine
217RecommendedFluidsand Capacities
218WheelAlignment(Unladen Condition)
218 WheelsandTyres
218TyrePressures(Cold)

TECHNICALDATA

T echnicalDataDimensions

Front view of a car with labeled dimensions B and C (no text or symbols beyond labels)

E D A F

Item,units	Parameter
OveralllengthA,mm4018
OverallwidthB,mm(includingexterior-viewmirror)	1728(1887)
OverallheightC(unladen),mm1507
WheelbaseD,mm	2520
FrontOverhangE,mm	859
RearOverhangF,mm	639

Item,units	Parameter
Frontwheeltrack,mm	15051513(7J×16)
Rearwheeltrack,mm	14931501(7J×16)
Minimumturningcirclediameter,kerb-to-kerb	10.4
Fueltankcapacity,l	45
Luggagecapacity,l	256

Weights

Item,unitsParameter
Personincab,person5
Unladenvehicleweight(kerb),kg|126to|165
Grossvehicleweight,kg|665to|685
ExtraGrosstrainweight,kg|865to|885

Note: PleaserefertothevehicleidentificationlabelfortheexactGTW(grosstrainweight)foryourvehicle.

T owingWeights

Item,unitsParameter
T owinglimitun-braked,kg	200
T owinglimitbraked,kg	200

TECHNICALDATA

MajorParametersofEngine

Item,unitsParameter
Bore×Stroke,mm×mm75×84.8
Capacity,11.498
Compressionratio10.5:1
Maximumpower,kw	78
Enginespeedtodevelopmaximumpower,rev/min6000
Maximumtorque,Nm	137
Enginespeedtodevelopmaximumtorque,rev/min4700
Noloadidlespeed,rev/min670±50
CFueltype,RON/CN

oEN228SPEC

RecommendedFluidsandCapacities

NameFluidtype		Capacity
Engineoil,l	A1/B15W-204.5
Enginecoolant,l	Glycol(OAT)4.9(0.7forexpansiontank)
Manualtransmissionfluid,IMTF941.8
Brakefluid,IDOT4(LowViscosity)0.73
Powersteeringfluid,l	DexronIII	0.92
Washerfluid,IQx35
Aircondi234jngrefrigerant,g

TECHNICALDATA

WheelAlignment(UnladenCondition)

Item		Parameter
Front	Camberangle	-0°36'±45'
	Kingpincasterangle	3°33'±45'
	T oein(oneside)	0°8'±15'
	Kingpininclination (nonadjustable)	12°22'±45'
Rear	Camberangle	-1°16'±45'
	T oein(T otal)	0°29'±20'

T yrePressures(Cold)

TyreUnladen
FrontWheel	210kPa/2.1bar/31psi
RearWheel	210kPa/2.1bar/31psi

WheelsandT yres

WheelSize5.5J×146.5J×167	0J×16
TyreSize185/70	195/55	195/55
R14	R16	R16

A

ABS (Anti Lock Braking System) 136

ABS Warning Light 22,137

Accessory Power Socket 45

Aerial (Antenna) 69, 86

Air Conditioning (Climate Control) 50

A/C Air Distribution 50, 51

A/C Air Distribution Control 55–57

A/C Air Recirculation 58

Air Vents 50–51

Airbag SRS 95–102

Airbag SRS Warning Light 21, 99

Airbag, Driver And Passenger 95

Airbag – Side/Head/Curtain 99

Ambient Temperature 12, 16

Anti Freeze 188

Audio Equipment 59–86

Audio Sound Settings 63, 74

Automatic Function – Courtesy Lights 44

Auto Lights 26

Aux Devices – Audio 69, 84

Average Fuel Consumption 13, 17

Average Speed 14, 18

B

Band Button - Audio Controls 65, 78

Battery - Handset 113

Battery Charging 21, 194

Battery Disconnection And Removal 193-195

Battery Maintenance 193-195

Blower (Heater) 52

Blower (A/C)* 55

Bluetooth Settings 77

Bonnet Opening 182

Booster Cables 155

BDW (Brake Disc Wiping) 134

Brake Fluid 178, 189

Brake Fluid Specification 190

Brake Lights 174

Brake Warning Light 22

Brakes 134

Braking in an Emergency 136

Bulb Replacement 175

Bulb Specification 174

C

Capacities 217

Catalytic Converter 128

CD Player 60, 70

INDEX

CD Playing 67

Changing a Wheel and Tyre 165 - 167

Child Proof Locks 115

Child Restraints and Seats 103 - 110

Cleaning - Car Interior 210 - 211

Cleaning - Paintwork 207 - 209

Climate Control 50

Clock and Time 74, 76

Cold Climates 123

Coolant Check, Top-Up And Replacement 178, 187

Coolant Specification 187 - 188

Cooling System 187

Cruise Control* 25, 145, 146

Cup Holders 48

D

Daily Checks 179

Data - Technical 214 - 218

Daytime Running Lights 29

Dimensions 214

Dipped Beam Headlights 26, 28, 172

Dipstick 185

Direction Indicator Bulb - Front 172

Direction Indicator Bulb - Rear 172

Direction Indicator Lights 20, 28

Disabling Passenger Air-Bag 100

Door Open Indicator 24

E

Ejecting A CD 67, 82

Ejecting USB Device Safely 68, 83

EBA (Electronic Brake Assist) 135

EBD (Electronic Brake Force Distribution) 135

Emission Control 179

Engine Fault Light 22, 23

Engine Immobilisation 24, 116

Engine Number 3

Engine Coolant Temperature 23

Engine Oil 185-186

Environmental Driving 125

F

Fast Forward – Audio Controls 67, 82

Fog Light Bulb - Rear 174

Fog Lights - Rear 21, 27

Follow-Me-Home Lights (Lights Off Delay) 29

Foot Brake 134

Front Passenger Lower Cubby Box 47

Front Wiper Operation 32

Front Wiper Blade Replacement 199

Fuel Consumption 13, 17

Fuel Cut-Off Switch 131

Fuel Filler 131

INDEX

E

Fuel Filling 131

Fuel Gauge 8

Fuel Specification 216

Fuel System 130

Fuses, Replacement And Colour 168

Fuse Specifications 170-172

Fuse Box (Passenger Compartment) 169-171

Fuse Boxes (Engine Compartment) 172-173

G

Gear Change Display 10

Gear Change Warning Indicator 10

Glovebox 47

H

Handbrake 137

Hazard Warning Lights 29, 30

Hazard Warning Triangle 154

Head Restraints 89

Headlight Bulb 174

Headlight Flash 28

H

Headlight Levelling 30, 31

Heated Mirrors 37

Heated Rear Screen 53, 57

Heavy Loads 151

Hill Hold Function 135

Horn 36

↓

Identification Numbers 3

Ignition Switch 121

Indicators 28

Instrument Pack 7

Instrument Panel Storage 47

Intelligent Stop Start, Automatic Shutdown 142

Intelligent Stop Start, Automatic Start 142

Intelligent Stop Start, Failure 144

Intelligent Stop Start, Isolation control 141

Intelligent Stop Start, Operation 141

Intelligent Stop Start, Status Lamp 25

Intelligent Stop Start, Warning Lamp 25

Interior Door Handles 120

Interior Lights 44, 176

INDEX

Jacking and Jack Positioning 165 - 167 Jump Leads 155- 156 Jump Starting 155- 156

↓

Key 112

K

Lighting Switch 26

Load Carrying |51-152

Loadspace Light Bulb 175

Locking 112, 116, 117

Locking - Speed Related 120

Locking Wheel Nuts 160, 166

Low Oil Pressure 21

L

M

Main Beam Headlights 20, 28, 174

Maintenance 127, 177-211

Manual Transmission 133

Message Centre 9-19

Mirrors - Door 37- 38

Mirrors - Interior 39

Mirrors Cleaning 208-209

Mirrors - Folding 39

Mislock 117

N

Next Service 14, 18

Number Plate Lamps 174, 176

O

Odometer 11, 15

Oil Level Check – Engine 185

Oil Top-Up 185

"One-Touch" Windows 43

Owner Maintenance 179-180

P

Parking Aid 147-148

Particle/Pollen Filter 51

Passenger Air-Bag Disabling 100, 101

Phone Connection Via Bluetooth® 84

Poisonous Fluids/Gases 181

Power Steering Fluid Check And Top-Up 191-192

R

Rain Sensor* 32

Rear Fog Guard Lights 21

Rear Light Bulbs 174

Rear Seats - Folding 91

Rear Wiper Operation 33

Rear Wiper Blade Replacement 200

Rear Window Isolation Switch 42

Recirculation 54 58

Recommended Fluids 217

Recovery 157

Remote Handset 116 - 119

Reverse Light Bulbs 174

Routine Servicing 178

Running-In 125

S

Safety In The Garage 180

Search Tuning – Audio Controls 65, 78

Seat Belt Care 93

Seat Belt Pre-Tensioners 94

Seat Belts 92 - 94

Seat Belt Warning 21

Seat Cushion Height (Driver Only) 90 - 94

Seats 88 - 90

Steering Column Adjustment 35

Steering Lock 121-122

Sun Visor 41

T

TA - Traffic Announcement Button – Audio Controls, 66, 79

Tachometer 8

Telephones 85-86

Thirty-Minute Play Function - Audio Controls 62, 73

Tool Kit Identification 160

Top Tether Restraint 109

Towing Eyes 157

Towing Weights 215

Towing For Recovery Precautions 157-159

Track Search - Audio Controls 67, 81

Traction Control (TC) 24, 139, 140

Transporter or Trailer Lashing 159

Transmission Number 3

Trip Computer 10-19

Trip Recorder 11, 15

Tyre Pressures 202, 203, 218

Tyre Repair 161-163

TPMS - (Tyre Pressure Monitoring System) 14, 18, 24, 149

Tyre Wear Indicators 204

Tyres 202–206, 218

INDEX

U

Unlocking 112, 116, 117, 119

USB Socket 68, 82

Used Engine Oil 181

V

Vanity Mirrors 41

Variable Delay - Wipers 32

Vehicle Identification Number 3, 4

Vehicle Information Display 10, 11, 15

Vehicle Recovery 157-159

Ventilation 50, 51

VIN Plate 3, 4

W

Warning Lights 20-25

Warning Triangle 154

Washer Jets, Fluid and Top-Up 197 - 198

Washing the Car 207

Weekly Checks 179

Weights 215

Wheel Changing 165

Wheels 218

Wheel Nut Torque 165

Wheel Alignment 218

Windows 42 - 43

Window Lift Switch 42

Windscreen Wipers 199

Wiper Blade Replacement 200-201

Wiper Controls 32-34
