MONACO85

MD-FS851

FOLDABLE ELECTRIC KICKSCOOTER

USER MANUAL - ORIGINAL INSTRUCTIONS

WARNING FOR BALANCE SCOOTER

This appliance can be used by children aged from 12 years old and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Keep the battery out of the reach of small children.

Cleaning and user maintenance shall not be made by children without supervision.

The battery must be moved from the appliance before it is scrapped.

The appliance must be disconnected from the supply mains when removing the battery.

The battery is to be disposed of safely.

Do not recharge non-rechargeable batteries.

WARNING FOR BATTERY CHARGER

This appliance is not a toy.

Children shall not play with the appliance.

Adult supervision is required for minors.

This appliance can be used by children aged from 12 years old and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children without supervision.

Do not recharge non-rechargeable batteries.

INTRODUCTION

Please carefully read this user manual before using the electric kickscooter. Keep this user manual for future references.

For your safety, please read all instructions carefully.

The user is responsible of all consequences from the incorrect use of the electric kickscooter.

The Retailer and the Distributor are not responsible of damages to objects and/or people caused by the incorrect use of the electric kickscooter.

This kickscooter is for personal entertainment only. It is prohibited to use it as public transportation.

This kickscooter can be used by one user at one time only.

Please check whether the tires are damaged. If anything abnormal, please provide for maintenance. Please use the product if in good condition only.

If you lose control during driving, you may cause damage to you or to other people.

For private use only. Forbid to use the electric kickscooter on vehicle roads.

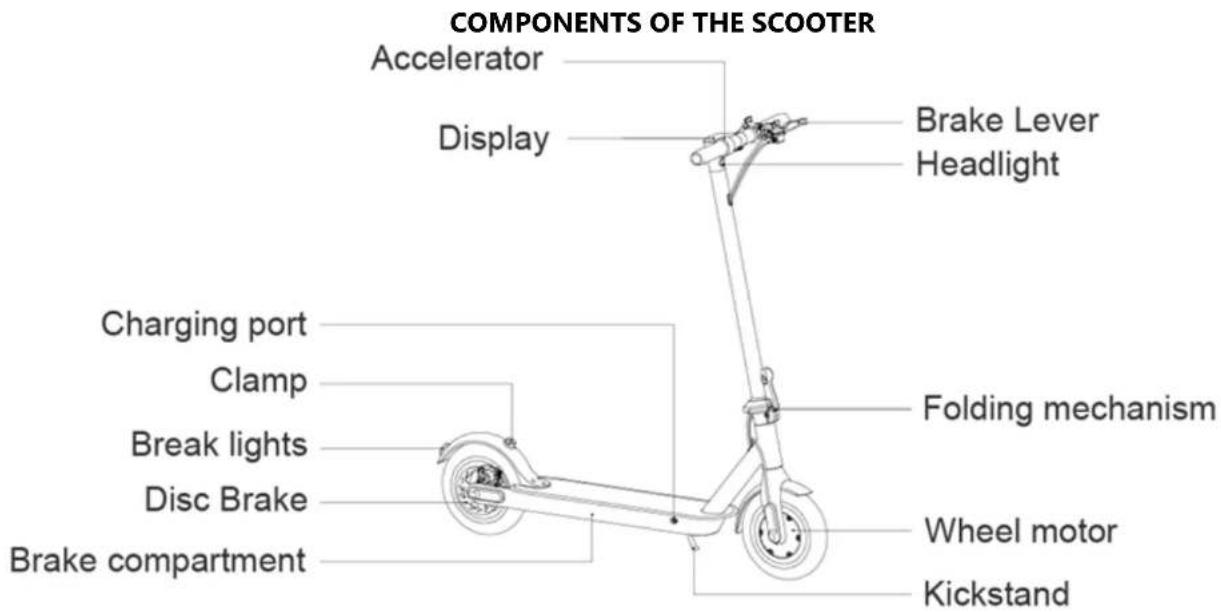

COMPONENTS OF THE SCOOTER Accelerator Display Brake Lever Headlight Charging port Clamp Break lights Disc Brake Brake compartment Folding mechanism Wheel motor Kickstand

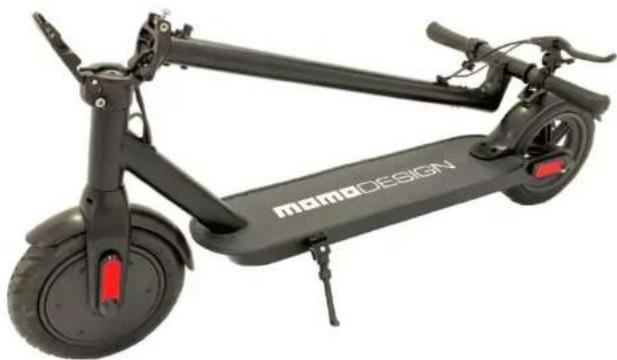

HOW TO UNFOLD THE ELECTRIC KICKSCOOTER

The kickscooter is folded.

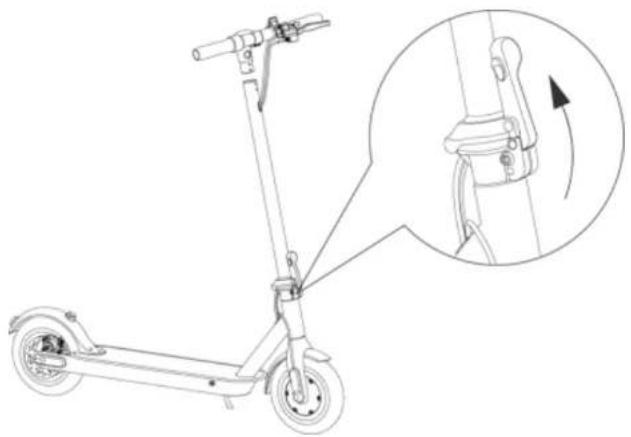

Hand pull the handlebar from the rear wheel.

Black electric scooter with 'MOMO DESIGN' branding on front, no visible text or symbols on body

Upward the handlebar.

Close the lever of the handlebar.

Line drawing of a scooter with a close-up inset showing the wheel assembly (no text or symbols)

For the very first use, please assemble the vertical handlebar:

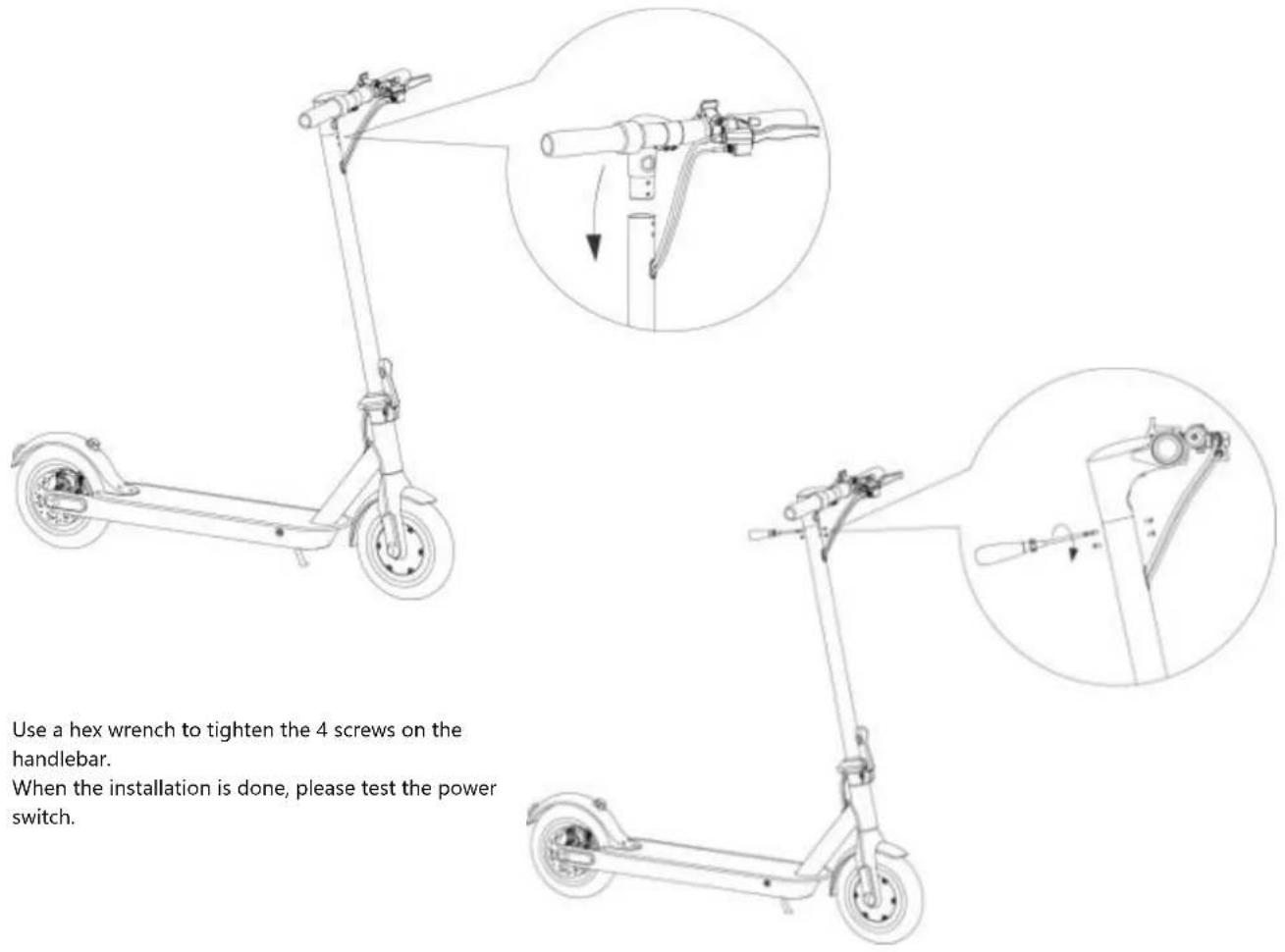

Use a hex wrench to tighten the 4 screws on the handlebar. When the installation is done, please test the power switch.

HOW TO FOLD THE ELECTRIC KICKSCOOTER

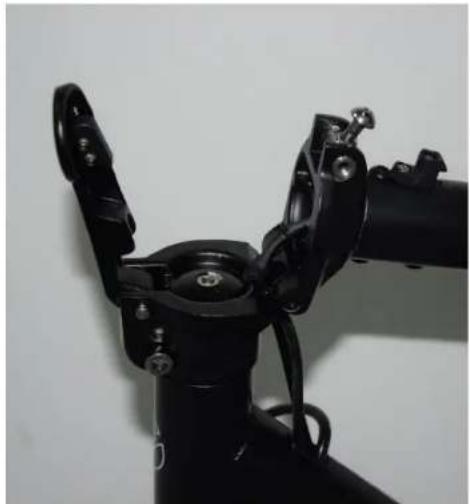

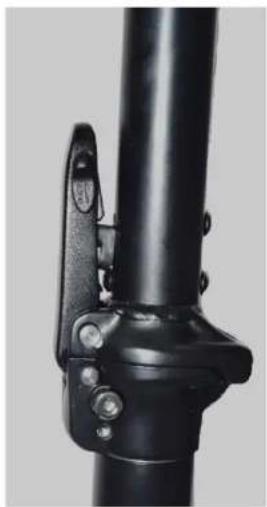

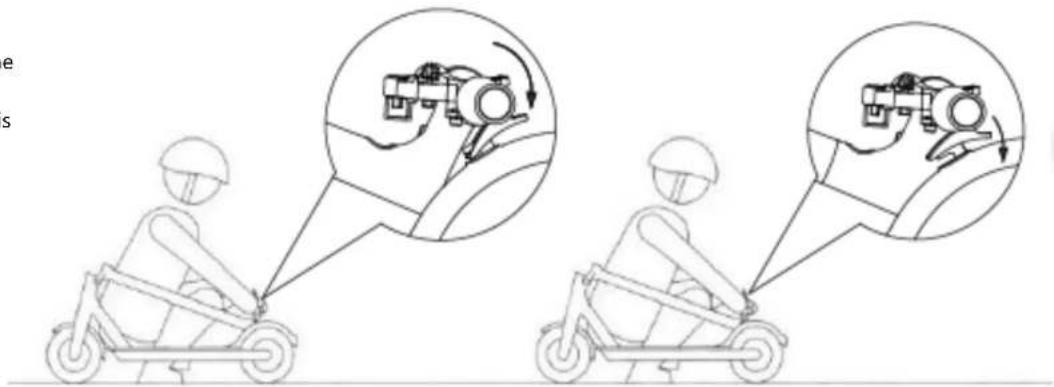

Open the clamp of the handlebar.

Close-up of a black mechanical lever handle assembly (no text or symbols visible)

Close-up of a black mechanical linkage component with mounting brackets and joints (no visible text or symbols)

Fold the handlebar.

Hook the handlebar to the rear wheel.

The folding procedure is now completed.

Diagram illustrating scooter motion with labeled components and directional arrows, showing two scenarios of driving a motor.

DESCRIPTION

Before riding the kickscooter for the first time, the battery must be fully charged. Follow the instructions on this user manual to avoid technical problems.

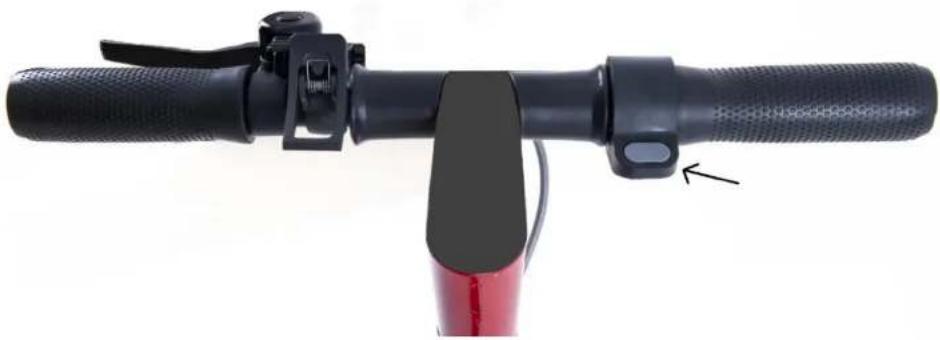

The handlebar has a display in the middle, an acceleration lever on the right handle and the brake on the left handle.

Close-up of a red electric scooter handle with black grip and black lever mechanism (no text or symbols visible)

TURN ON AND TURN OFF

Put the kickscooter on a flat surface.

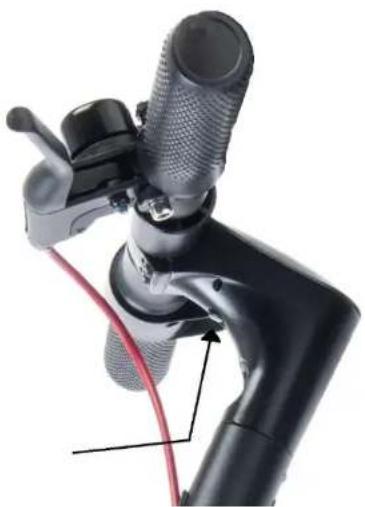

Press the ON/OFF button below the handlebar for 3 seconds, to turn-on the kickscooter.

When the kickscooter is powered, the display will be powered too.

Press the button again to turn on the front and rear lights.

Press the same button again to turn-off the kickscooter.

The unit will automatically turn off when not in use for approximately 10 minutes.

Close-up of a black handheld microphone with attached cable and adjustment knob (no text or symbols visible)

DISPLAY

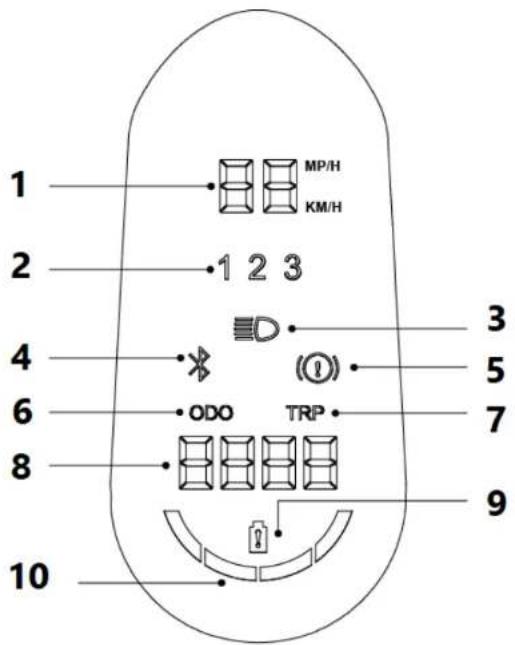

The display on the handlebar will turn-on after powering the kickscooter. The display shows:

• the speed during use of the electric kickscooter; speed is showed in Km/h by default, but it can be switched to M/h (1);
• the gear: maximum speed with gear 1 is of 10Km/h, maximum speed with gear 2 is of 15Km/h and maximum speed with gear 3 is of 20Km/h. Gears can be switched pressing the power-button. For safety reason, the change of gear can be done when the kickscooter is stopped only (2);
• the icon for lights: front and rear lights must always be tuned-on during the use of the kickscooter (3);
• Bluetooth icon: not valid for this model (4);
• brake icon: it turns on when the brake lever is used (the light of the rear light will be brighter when the brake is activated) (5);
• ODO info that indicates the total mileage (this information will be kept after switching off the device) (6);
• TRP info that indicates the single driving distance after switching on (the distance info will be cleared after switching off the device) (7);
  • ODO or TRP details (8);
• alarm icon for low battery (9): when all four led lights in the bottom are fully turned-off, this icon turns-on; it is suggested to stop, turn-off the electric kickscooter, and provide for a new battery charge;
• led lights that shows the battery level of charge (10): during use of the kickscooter, the 4 LED lights are lit. During consumption of the battery the

1 MP/H KM/H 2 1 2 3 4 (①) 6 ODO TRP 7 8 9 10

indicators turn-off, one by one. If 4 LED lights are lit, mean full power. If 3 LED lights are lit, mean 85-70% power. When only 1 LED light is lit, there is a charge of around 10-20%. Slow-down, stop and provide for a new battery charge.

Line drawing of a person riding a scooter (no text or symbols)

After turning-on the electric kickscooter, verify the level of the battery power on the display, and put one foot on the pedal.

Stand on pedal with one leg only (picture nr.1).

Picture nr. 1

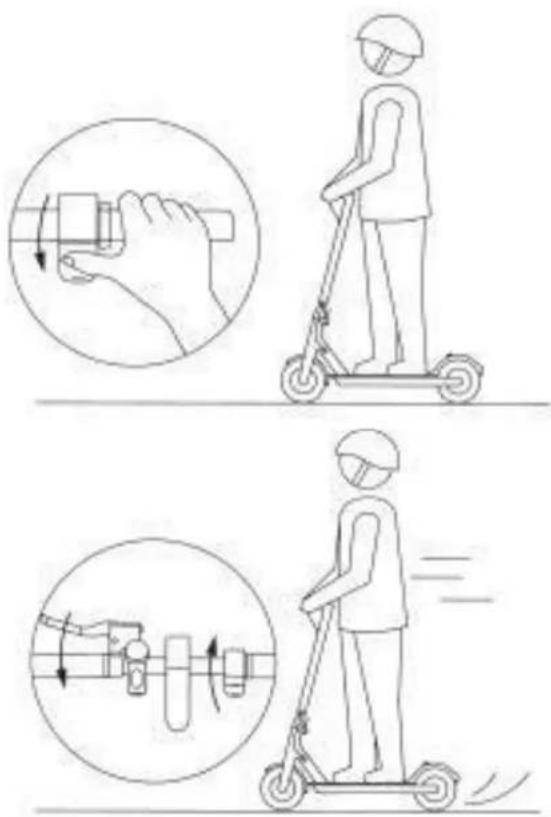

Press the speed button on the right handle to accelerate (picture nr.2). Step on with the other foot whilst the kickscooter is moving.

Picture nr. 2

Diagram illustrating scooter safety instructions with hand gestures and motion arrows, showing step-by-step actions.

Release the button to slow-down.

Pull the brake lever for a faster brake (picture nr.3).

Stop the kickscooter and remove the feet, one by one.

Picture nr.3

DISTANCE

The maximum range of the scooter is 25 km approx.

This maximum range is affected by the road type (flat and smooth ground will increase the distance, otherwise the distance will be reduced), ambient temperature, maintenance (tyres, battery).

LOADING

Driver's maximum weight should be of 120 Kg and minimum weight should be 30 Kg.

These limits ensure the driver's safety and reduce damages to the scooter.

BATTERY

The battery charge (and therefore the maximum distance) is affected by some factors like:

1. Ground (when ground is not flat, the discharge is increased).
2. Weight of the user.
3. Ambient temperature.
4. Drive style and speed will affect the life of the battery charge: a constant and moderate speed, positively affect the charge of the battery; a high and inconsistent speed, will reduce the life of the battery charge.
5. Maintenance (battery must be kept in good condition by the user and must be charged in the correct way).

BATTERY CHARGING

Always check the battery level positioned on the display. There are four LED lights.

In case there is only one LED light, we suggest to stop using the scooter and charge battery.

Do not charge the battery if the temperature is lower than 0°C.

WARNING/ATTENTION

The battery contains dangerous substances.

Do not attempt to open the battery and do not insert objects inside it.

Do not charge overnight or when you are not able to observe the kickscooter.

Charge and store in an open dry area, away from combustibles (meaning items that can catch fire).

Do not charge directly after riding. Let the device cool for an hour before charging.

If giving to someone for the holidays, leave it in its partially charged state. Don't take it out of the package to bring it to a full charge and then wrap it back up. Often, the product comes partially charged. Leave it in that state until it is ready to be used.

Do not ride near vehicular traffic.

It is important to wear safety gear when using this device - a skateboard helmet, and knee and elbow pads for protection from falls.

Correctly dispose and recycle the batteries according to local recycling and environmental regulation. Never treat the batteries as common domestic waste, to prevent explosion and pollution. Never throw the batteries into fire.

The battery must be removed from the kickscooter before it is scrapped.

The kickscooter must be disconnected from the supply mains when removing the battery.

Only the original charger must be used. Please refer to your retailer in case replacement is required.

CAUTIONS

Do not use the kickscooter if the battery is low.

Do not use the kickscooter in case of burning smell.

Do not use the kickscooter if anything leaks out from the battery.

Do not touch anything leaking out from the battery.

Do not let children or animals touch the battery.

Unplug the charger before riding the kickscooter.

Only use the supplied battery and the supplied charger.

Only professionals can disassemble and maintain the battery. Please refer to your Retailer.

Before using the kickscooter for the first time, fully charge the battery.

Charging should be in a safe, dry and clean environment.

The kickscooter must be powered-off before proceeding with chaging.

Do not use the kickscooter when charging the battery.

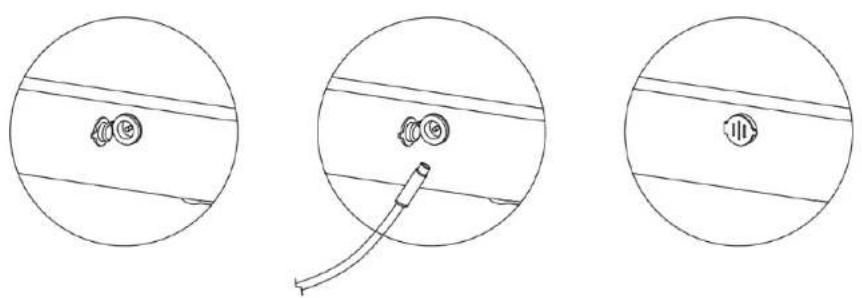

1. Open the protective cover on the kickscooter.

Ensure the charging port is dry and insert the battery-charger into the kickscooter charging port. The other end of the charger must be connected to the mains to activate the charger. The indicator light on the charger will be red: this grants that the charge is proceeding.

1. When the indicator light is turned to green color, the battery is fully charged.

Please stop charging or the battery life will be reduced.

Charging time is around 3-4 hours. Too long charging time will affect the battery life.

1. Remove the cable of the battery charger.

Put the cover back to position.

Three circular diagrams showing different cable or connector configurations, no text or symbols present.

Keep the product and the battery at the recommended temperature to keep the highest efficiency of the scooter and of the battery. If used in an extreme cold or hot environment, the charging time sill be lengthened too.

Working temperature: -10°C \~40°C.

Please check the temperature of the battery during the charging process.

Charging temperature must be: 0°C \~40°C. Humidity level during charge must be: 5% \~95%.

If the temperature is higher than 40°C, the scooter functioning might be damaged and battery life might be reduced.

TRANSPORTING THE BATTERY

Lithium batteries are considered dangerous goods. Please check the local law about transportation.

SPEED LIMIT

The maximum speed is 20 Km/h.

When the driver reaches the maximum speed, the kickscooter will keep the speed even if the driver accelerates.

DRIVING SKILLS

1. Wear comfortable flat shoes.
2. Wear suitable sport clothing, helmet, knee protections and elbow protections.
3. Do not drive after drinking or taking drugs.
4. Please always verify that the use of the electric kickscooter is allowed.
5. Do not use it on streets, in traffic and by night.
6. This product is not suitable for children under the age of 12.
7. Adult supervision is required for minors of 18.

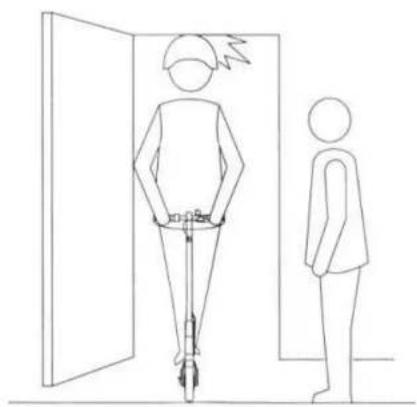

1. Keep safe distance with the others to avoid any collision.
2. Always check the level of the battery. If too low, the kickscooter might suddenly stop and cause the fall of the driver.

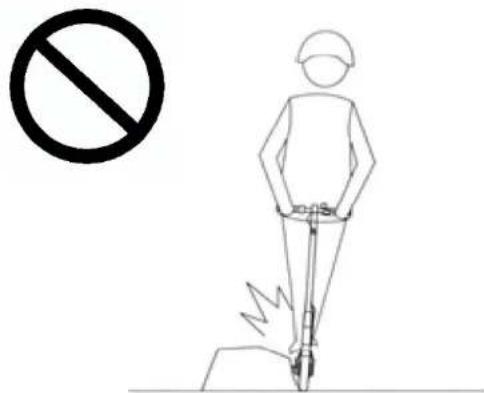

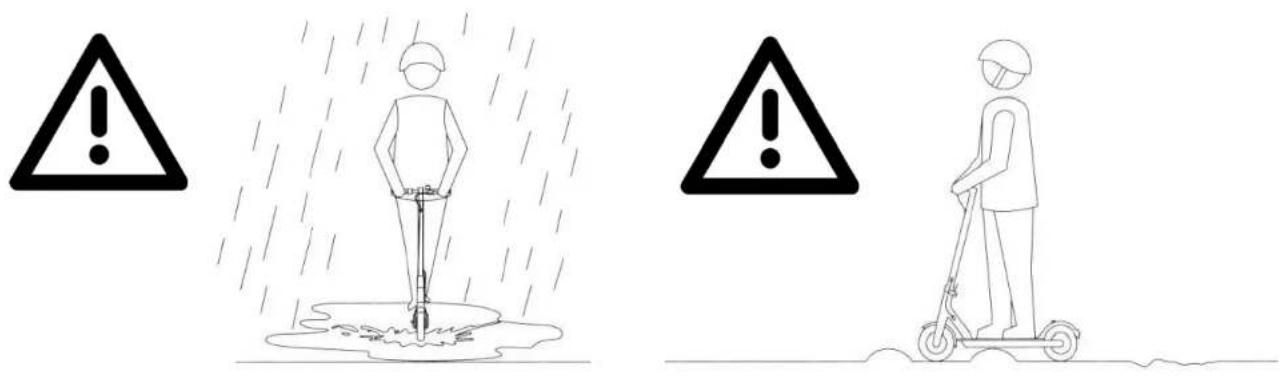

3. Pay attention to the ground. The kickscooter is made for smooth and flat grounds.
4. Do not use the electric kickscooter with puddles, snow, mud, ice.
5. Do not modify or replace the parts of the kickscooter by yourself. Any action must be followed by the Retailer or the authorized Service Centre.

Turn on the kickscooter.

Check the battery power level on the display.

Check the gear on the display.

Put one foot on the pedal.

Push the accelerator on the right handle.

Use the brake lever to brake and/or stop.

Step-on the other foot whilst the kisckcooter is moving.

Stop the kickscooter and remove the feet, one by one.

The kickscooter is developed for flat grounds. Take care of uneven and bumpy grounds.

Do not use the kickscooter with puddles, snow, mud, ice.

Safety warning illustration showing three scenarios: warning, water spray, and scooter usage.

SAFETY DRIVE

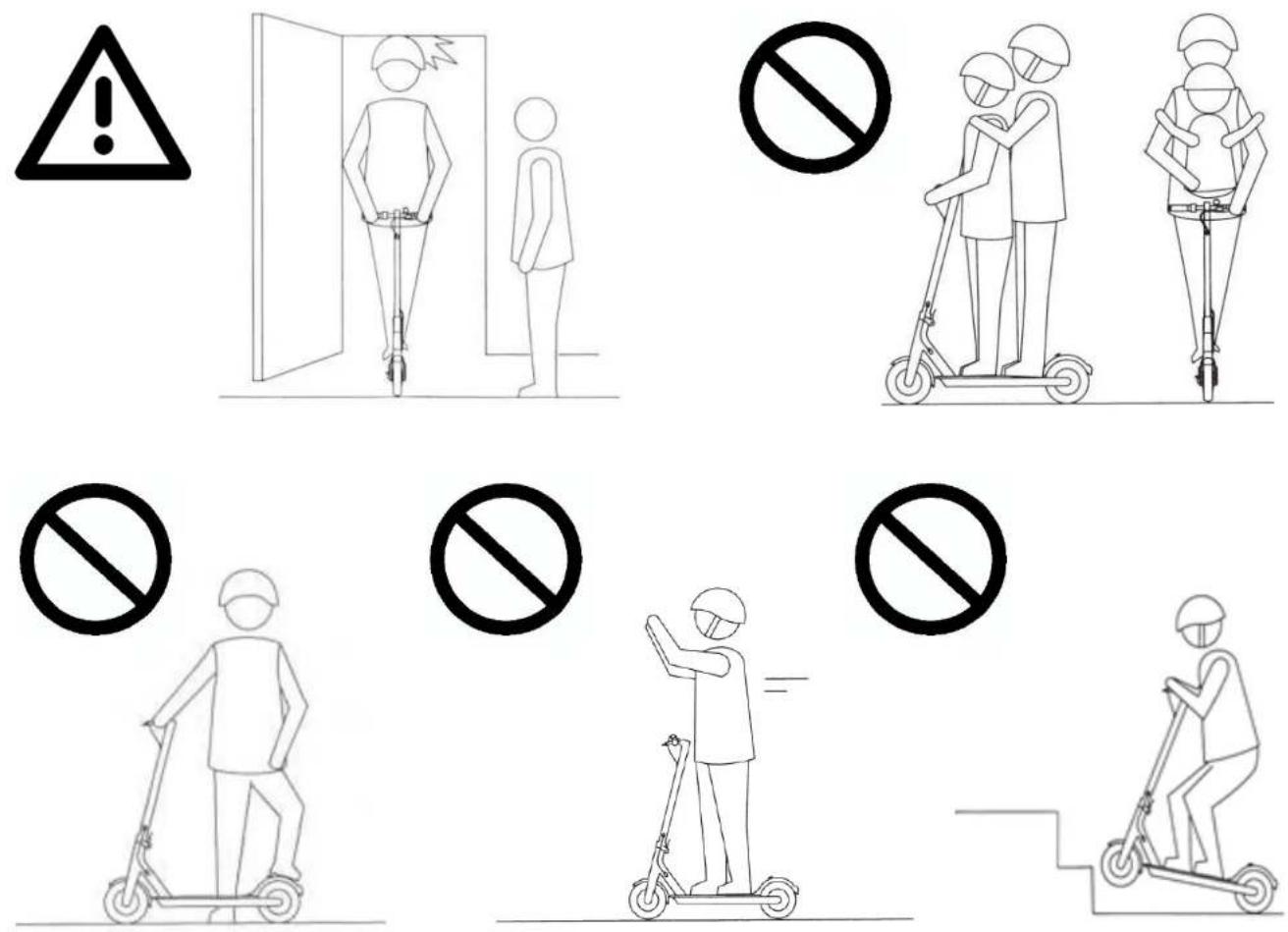

1. Please carefully read this user manual before first use.

2. Please always wear helmet, knee protections, elbow pads.

3. The kickscooter is for personal entertainment only. It is prohibited to use it as public transportation.

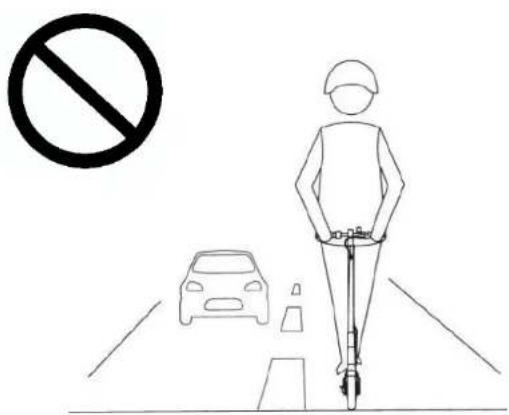

4. It is forbidden to use the kickscooter on vehicle roads.

5. It is forbidden to carry goods whilst driving the kickscooter.

6. Pay attention to objects and people around.

7. Do not start or stop driving suddenly. Sudden movements will make the kickscooter out of control.

8. Do not drive in dark places.

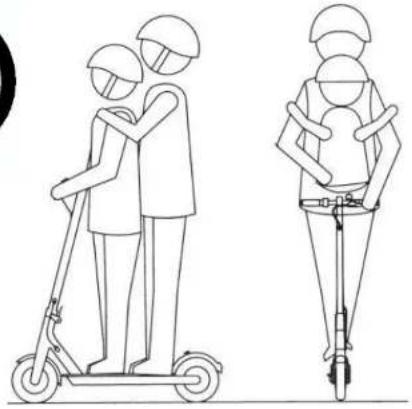

9. The kickscooter can be used by one person at one time only, even if the maximum weight is not reach.

10. Overweight is prohibited. Functions of the kickscooter might be damaged.

11. Underweight is prohibited. The kickscooter might not be under control anymore.

12. The speed of the kickscooter is affected by the road type, the ambient temperature, the maintenance of the battery.

13. Always keep safety distance between you and other vehicles, people, obstacles.

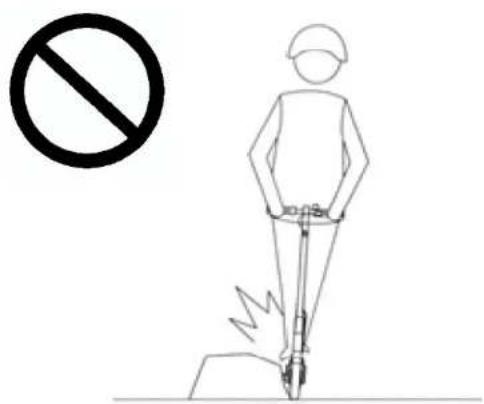

14. Do not drive when raining. Avoid wet floors and puddles. The control of the kickscooter will be reduced. The user might fall. The electrical system of the kickscooter might be damaged.

15. Avoid driving the kickscooter on grounds with snow or ice. The scooter would not be under control.

16. Do not use the electric kickscooter in unsafe circumstances or dangerous places. Keep away from fire.

Diagram showing a person riding a scooter on a road with a car and a no-smoking symbol above

Safety warning symbol showing a person using a device with a 'No' circle and lightning bolt, indicating no hazard or no injury.

Line drawing of a person standing in front of a door with a scooter, next to a human figure (no text or symbols)

Line drawings of two people riding scooters, one standing and one seated, both wearing helmets (no text or symbols)

Line drawing of a person riding a scooter with a no-smoking symbol (no text or labels)

Line drawing of a person riding an electric scooter with a helmet, no text or symbols present

Line drawing of a person riding a scooter with stairs and no text or symbols

MAINTENANCE OF THE ELECTRIC KICKSCOOTER

The kickscooter requires routine cleaning and maintenance.

First, make sure the charging cable is not connected.

Second, the kickscooter must be power off.

Now you can wipe the case of the kickscooter with a soft damp cloth. The kickscooter is dustproof and splash proof (waterproof rating is IPX4).

CAUTION

Avoid water or other liquids seep into the kickscooter. The internal electronics would be permanently damaged.

STORAGE OF THE ELECTRIC KICKSCOOTER

Please make sure your kickscooter is fully charged before storing it.

If the kickscooter is stored for long time, ensure a full charge every 2 months.

Do not store the kickscooter at less than 0^ C. Keep the kickscooter inside its own packaging or cover it to prevent dust. Keep the kickscooter in a dry indoor place.

WARNING

Do not open the kickscooter for any reason. The user is responsible of any after-effect.

PARAMETERS

Model name MD-FS851

Maximum loading 120kg

Minimum loading 30kg

Maximum speed 20 km/h

Motor power 350W

Endurance mileage 25km (depending on ground, inclination, speed, driving style)

Climbing gradient 15 degree

Power supply AC 110-240V, 50/60Hz

Battery 7500mAh Lithium rechargeable battery

Battery power 216Wh

Battery voltage 36V

Battery capacity 7.5Ah

Charging temperature 0°C \~40°C

Storage relative Humidity 5% \~95%

Charging time 3-4 hours

Ground distance 15 cm approx

Body dimensions 105 x 44 x 115H cm

Folded body dimensions 105 x 44 x 52H cm

Net weight 13.80 kg approx

Wheel diameter 8.5 inches

AFTER-SALE SERVICE

Please contact your Retailer for any technical problem.

WARRANTY

Carefully read all instructions before using the electric kickscooter.

Do not use the electric kickscooter if use is forbidden. Do not use the kickscooter if this might cause danger for the user and people/things around.

This product is warranted to be free from defects in materials, workmanship and functionality (aesthetic parts are excluded) for a period of 2 years starting from the date of purchase in case of receipt, for a period of 1 year starting from the date of purchase in case of invoice.

This warranty shall not apply to any products that have been subjected to misuse, negligence, accidental or abnormal conditions of operation, and does not covers the natural capacity fadeout.

Please refer to qualified and authorized people for the repair of the electric kickscooter. A non-professional repair may cause malfunction and risks and void your warranty rights.

Warranty for the battery: 6 months.

CORRECT DISPOSAL OF THE PRODUCT

According to the European Directive 2006/66/CE

This marking on battery indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. The battery can not be removed by the end-user. When needed, please ask your local free battery return system to remove the battery from the case.

According to the Directive 2012/19/UE

This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment of human health from uncontrolled waste disposal, please separated these items from other types of waste and recycle them responsibly to

promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

EC DECLARATION OF CONFORMITY

We declare that the product described is in conformity with the EMC 2014/30/EU directive; LVD directive; MD directive; RoHS directive.

Images inside this user manual are for illustrative purposes only.

Our Company is not responsible for improper use of the product. Our Company reserves the right to modify the product and the content of this manual without prior notice.

MADE IN CHINA

Imported and Distributed by:

Consumer Electronics Spa

Piazza G.F.Ferré 10 - 20025 Legnano (MI)

www.consumerspa.it
