| Product Type | PC Case (Mini Tower) |
| Brand | Cooler Master |
| Model | N200 |
| Color | Midnight Black |
| Materials | Plastic bezel with mesh, steel case body |
| Dimensions (W x H x D) | 202 x 378 x 445 mm (7.95 x 14.9 x 17.52 in) |
| Net Weight | 4.3 kg (9.5 lbs) |
| Motherboard Support | Micro-ATX, Mini-ITX |
| 5.25" Drive Bays | 1 (max device length 170 mm / 6.7 in) |
| 3.5" Drive Bays | 3 |
| 2.5" Drive Bays | 4 |
| I/O Panel | USB 3.0 x 1, USB 2.0 x 2, Audio in/out |
| Expansion Slots | 4 |
| Cooling System (Pre-installed) | Front: 120mm fan x 2 (1 included); Rear: 120mm fan x 1 |
| Cooling System (Optional) | Side: 120mm fan x 1; Top: 120mm x 15mm fan x 1 |
| Power Supply Type | ATX PS2 (max length 180 mm / 7.1 in) |
| Maximum GPU Length | 355 mm (14 in) |
| Maximum CPU Cooler Height | Without side fan: 160 mm (6.3 in); With side fan: 140 mm (5.5 in) |
| Liquid Cooling Support | Front: up to 240mm radiator; Rear: 120mm radiator |
| Dust Filter | Removable dust filter under PSU |
| Warranty | 2 years |
| EAN Code | 4719512042687 |
| UPC Code | 884102021862 |
Frequently Asked Questions - N200 COOLER MASTER
What type of motherboard does the Cooler Master N200 support?
The N200 supports Micro-ATX and Mini-ITX motherboards. It does not support standard ATX boards due to its compact size.
What is the maximum graphics card length that fits in the N200?
The case can accommodate graphics cards up to 355 mm (14 inches) in length, making it compatible with most high-end GPUs.
How many storage drives can I install in the N200?
You can install up to three 3.5" HDDs and four 2.5" SSDs, providing ample storage flexibility.
Does the N200 come with pre-installed fans?
Yes, it includes one 120mm fan in the front and one 120mm fan in the rear. Additional fans can be added on the side and top.
Can I install a liquid cooling radiator in the N200?
Yes, the front supports a 240mm radiator and the rear supports a 120mm radiator. This allows for efficient liquid cooling setups.
What is the maximum CPU cooler height supported?
Without a side fan, the maximum height is 160 mm (6.3 in). With a 120mm side fan installed, the clearance reduces to 140 mm (5.5 in).
How does the N200 handle cable management?
The case features an enlarged space between the side panel and motherboard tray for easier cable routing, helping to keep the build clean and improve airflow.
Is there a dust filter in the N200?
Yes, there is a removable dust filter under the power supply for easy cleaning and maintenance.
What type of power supply does the N200 use?
It accepts a standard ATX PS2 power supply with a maximum length of 180 mm (7.1 in).
Does the N200 support USB 3.0?
Yes, the front I/O panel includes one USB 3.0 port for high-speed data transfer, along with two USB 2.0 ports and audio jacks.
User questions about N200 COOLER MASTER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your PC Case in PDF format for free! Find your manual N200 - COOLER MASTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. N200 by COOLER MASTER.
USER MANUAL N200 COOLER MASTER


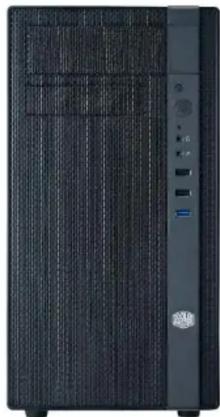

Black desktop computer tower case with ventilation grille and drive buttons (no visible text or symbols)
Specifications
| Available Color | Midnight Black |
| Materials | Plastic bezel with mesh, steel case body |
| Dimensions(W x H x D) | 202 x 378 x 445mm / 7.95 x 14.9 x 17.52 inch |
| Net Weight | 4.3 kg / 9.5 lbs |
| M/ B Type | microATX, Mini -ITX |
| 5.25" Drive Bays | 1 (Max. length of 5.25" device: 170mm / 6.7 inch) |
| 3.5" Drive Bays 3 | |
| 2.5" Drive Bays 4 | |
| I/ O Panel | USB 3.0 x 1, USB 2.0 x 2, Audio in and out |
| Expansion Slots 4 | |
| Cooling System | Front: 120mm black fan x 2 (1 is pre-installed)Rear:120mm black fan x 1 (pre-installed)Side: 120mm fan x 1 (optional)Top: 120mm x 15mm fan x 1 (optional) |
| Power Supply Type | ATX PS2 (Max. length: 180mm / 7.1 inch) |
| Maximum Compatibility | CPU cooler height:w/o 120mm x 25mm side fan: 160mm / 6.3inchwith 120mm x 25mm side fan: 140mm / 5.5inch* Side panel with stampingGraphics card length: 355mm / 14 inch |
Features
- Edgy asymmetrical design with full mesh on the front panel
- Mini tower with great expandability that supports up to three 3.5" HDD and four 2.5" SSD
● Supports a 240mm liquid cooling radiator in the front
● Supports high-end graphics cards with a length of up to 355mm / 14in
● Supports air CPU cooler heights up to 160mm/6.3in
● Supports SuperSpeed USB 3.0
● Removable dust filter under the PSU for easy maintenance
Package Information
| EAN Code 4719512042687 | |||
| UPC Code 884102021862 | |||
| Carton Size | 435 x 260 x 520mm(17.1 x 10.2 x 20.5 inch) | ||
| Pallet Size | 1300 x 950 x 120mm(51.2 x 37.4 x 4.7 inch) | ||
| Container | w/ pallet | carton/ pallet | w/o pallet |
| 20' | 400 | 40 | 530 |
| 40' | 840 | 40 | 1106 |
| 40' HQ | 924 | 44 | 1214 |
| 45' HQ | 1056 | 44 | 1394 |
Warranty
2 years
* Photos may slightly differ from the final product


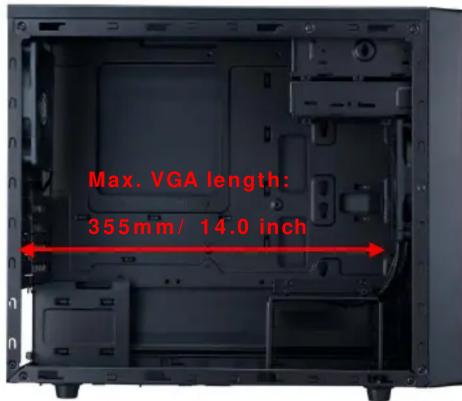

Supports graphics cards up to 355mm/14" in length


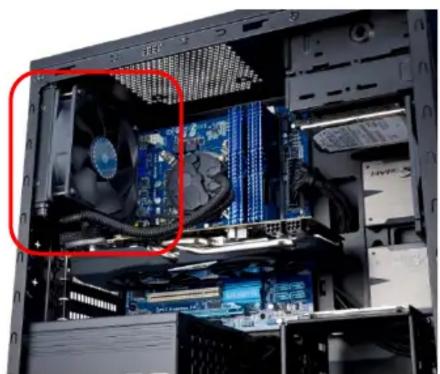

Interior view of a computer tower showing CPU socket, motherboard, and fan (no visible text or labels)Supports a 120mm water cooling in the back


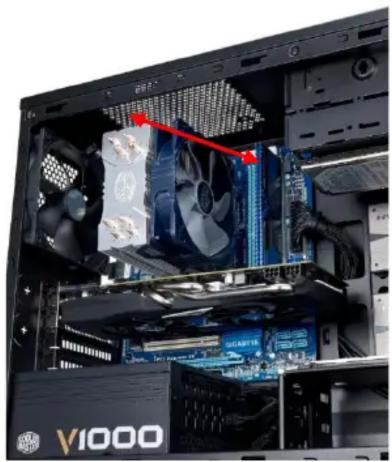

Interior view of a computer tower showing CPU socket, motherboard, and drive bays (no visible text or symbols)Supports air cooling, height up to 160mm

