Brand	Cooler Master
Model	MasterBox TD500 Mesh V2
Product Type	PC Case

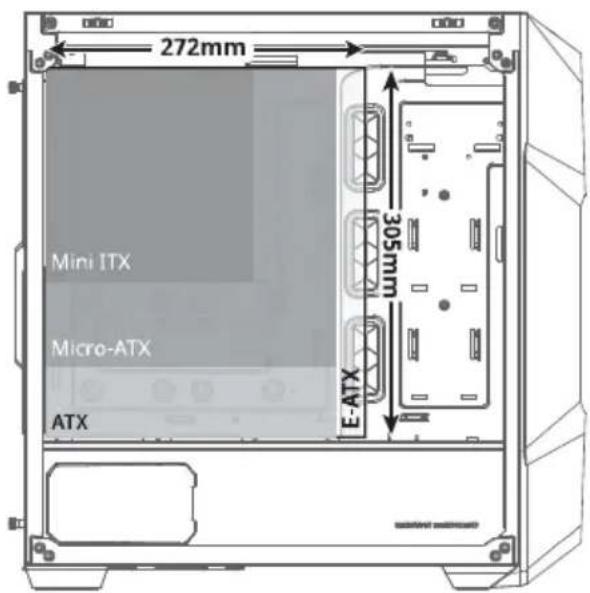

Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm width)
Dimensions (D x W x H)	Approximately 520 x 232 x 496 mm
Weight	Approximately 7.5 kg
Front Panel	Mesh with dust filter
Side Panel	Tempered glass (left side)
Cooling Support (Front)	120/140/240/280/360mm radiator or up to 3x 120mm or 2x 140mm fans
Cooling Support (Top)	120/140/240/280/360mm radiator or up to 3x 120mm or 2x 140mm fans
Cooling Support (Rear)	120/140mm fan or radiator
Drive Bays	2x 3.5" or 2x 2.5" (internal), plus 2x 2.5" (additional)
Expansion Slots	7
I/O Ports	USB 3.0 x2, USB 3.1 Type-C x1, Audio x1, Reset button
PSU Support	ATX, length up to 200mm (non-modular) or 160mm (modular)
GPU Clearance	Up to 410mm
CPU Cooler Height	Up to 166mm
Included Accessories	Screws, cable ties, ARGB hub, fan controller
Warranty	2 years limited (hardware only)
Cleaning	Wipe with dry cloth; clean dust filters regularly
Safety	Handle glass panels with care; ensure proper grounding
Repairability	Spare parts available through official distributor

Frequently Asked Questions - MasterBox TD500 COOLER MASTER

What motherboards are compatible with the MasterBox TD500 Mesh V2?

The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305mm wide) motherboards.

What is the maximum GPU length supported?

The maximum graphics card length is 410mm, allowing for most high-end GPUs.

Can I install a 360mm radiator in the front?

Yes, the front supports radiators up to 360mm (120/140/240/280/360mm).

How many fans are included?

The case comes with three ARGB fans pre-installed (two 140mm or three 120mm depending on variant).

Is the side panel tempered glass?

Yes, the left side panel is tempered glass for showcasing components.

What is the maximum CPU cooler height?

The maximum CPU cooler height is 166mm.

Does the case have a power supply shroud?

Yes, it features a PSU shroud for clean cable management.

How many drive slots are available?

It has 2x 3.5" or 2x 2.5" internal drive bays, plus additional 2.5" mounts.

How do I clean the dust filters?

The front and top dust filters are removable and can be rinsed with water or vacuumed.

What is the warranty period?

Cooler Master offers a 2-year limited warranty for the case (electronic parts only).

USER MANUAL MasterBox TD500 COOLER MASTER

Make It Yours.

MASTERBOX TD500 MESH V2

A

x13

B

x12

C

x12

D

x1

E

x4

F

x10

512005770-GP V1.0 2022-11

EN	Package Content	HU	A csomag tartalma
AR	низمة المحتوى	ID	Isi Paket
BG	Съдържание на пакета	IT	Contenuto della scatola
CHS	零件包	JP	パッケージ内容物
CHT	零件包	KR	구성품
CS	Obsah balení	NL	Verpakkingsinhoud

DE	Verpackungsinhalt
EL	Περιεχόμενα Συσκευασίας
ES	Contenido Paquete
FR	Contenu de l'emballage
FA	محتويات

PL	Zawartość opakowania
PT	Conteúdo da embalagem
RU	Комплектация
SR	Saržaj pakovanja
TR	Paket içeriği

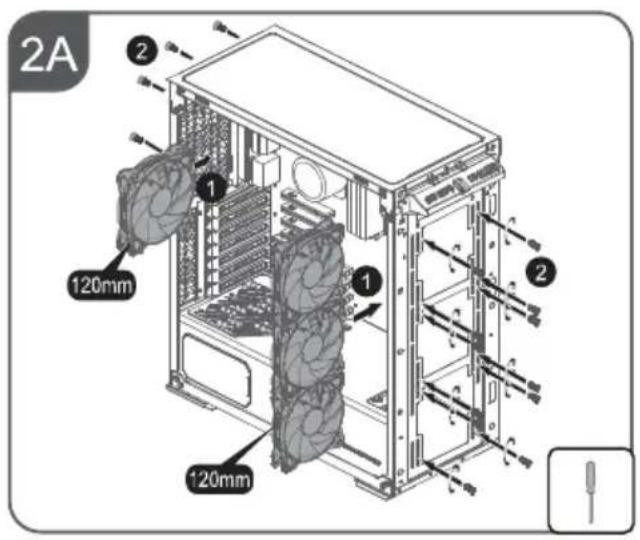

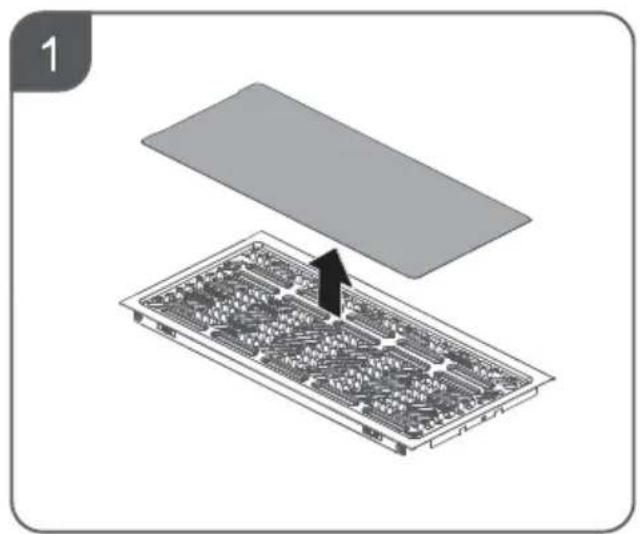

Line drawing of a computer tower case with mesh insulation and ventilation grilles (no text or symbols)

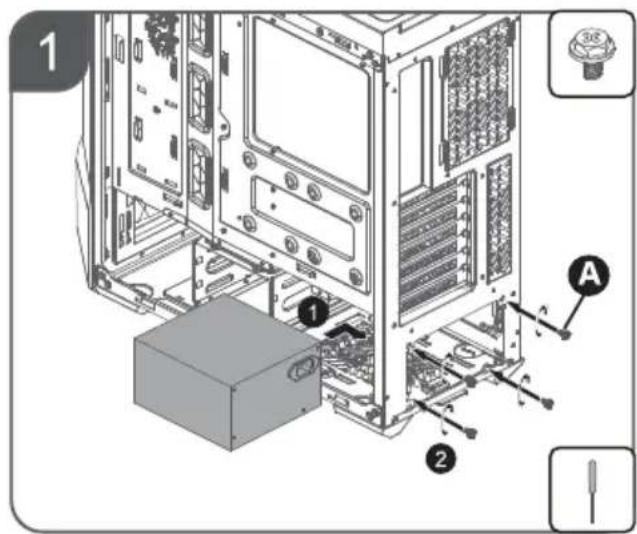

Technical line drawing of a rectangular device with diamond grid pattern and central circular hole (no text or symbols)

1

2

3

4

1

1

5

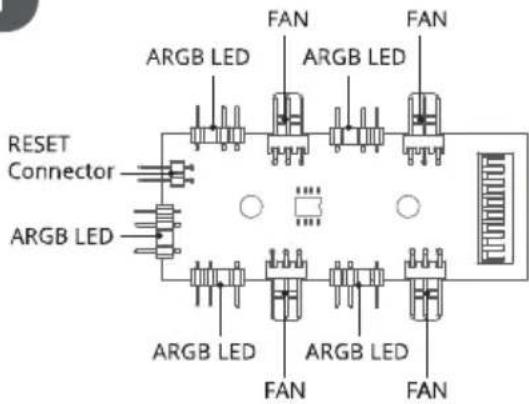

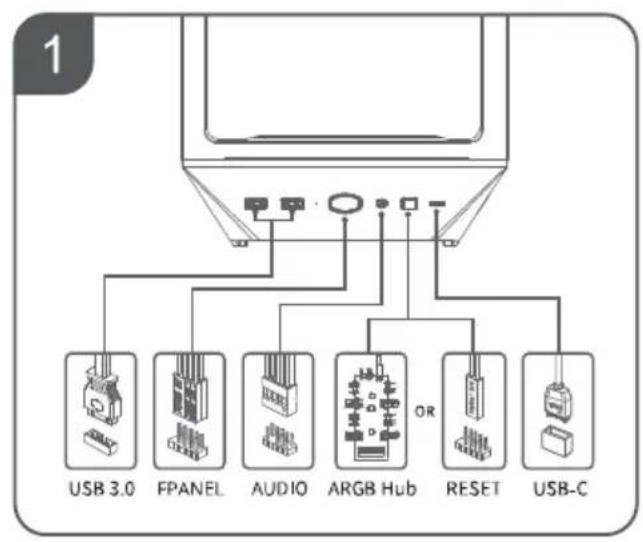

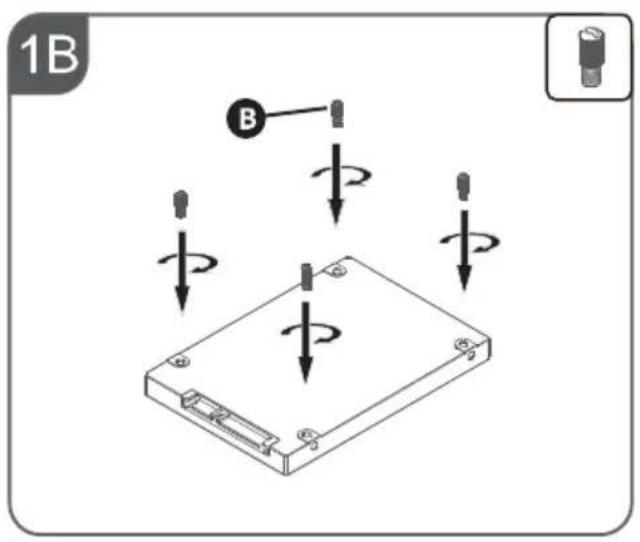

2.5"

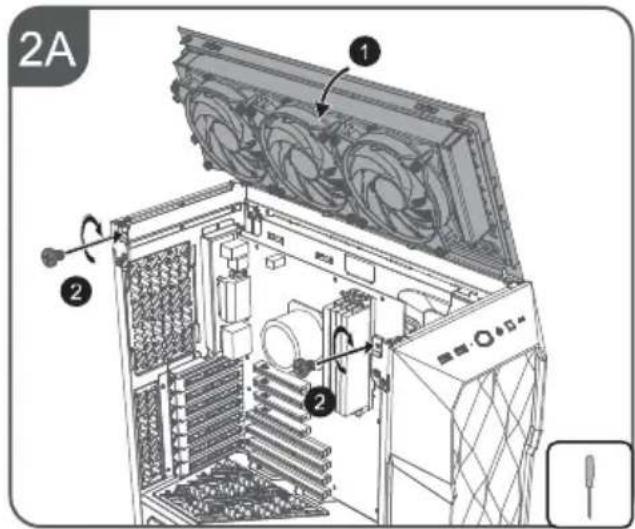

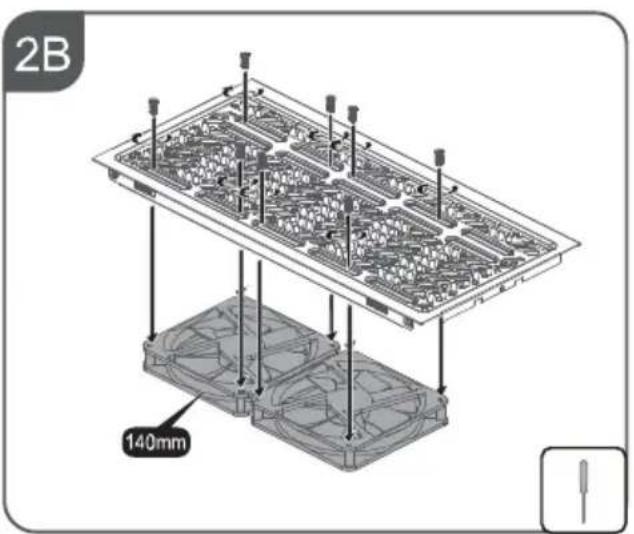

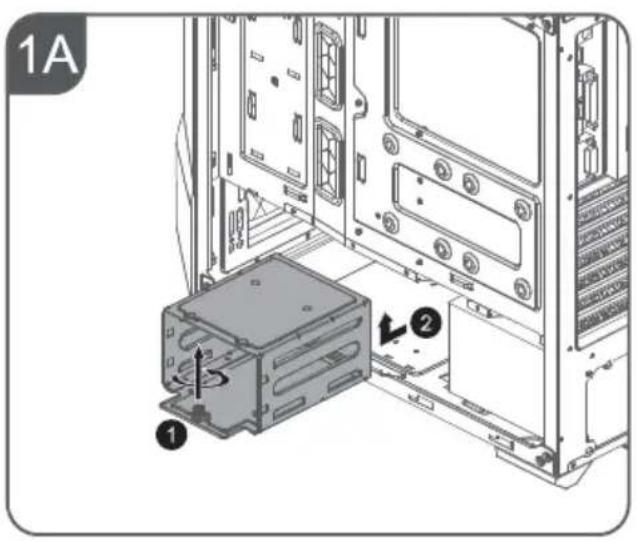

Technical line drawing of a dual-chamber computer tower with visible internal components and mounting holes (no text or symbols)

OR

7

3.5"

OR

OR

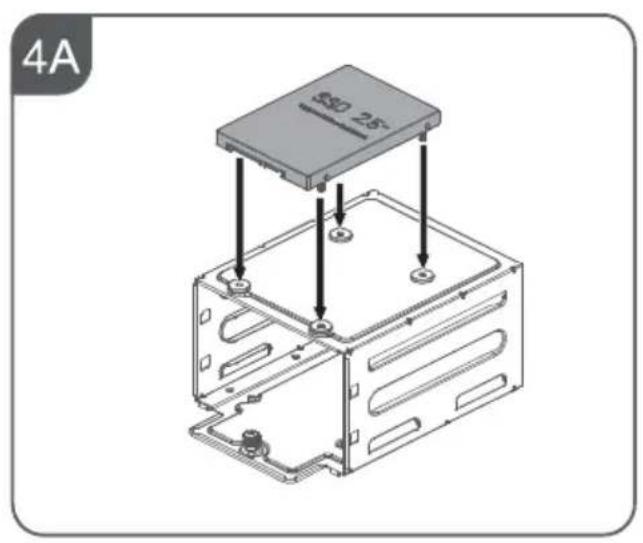

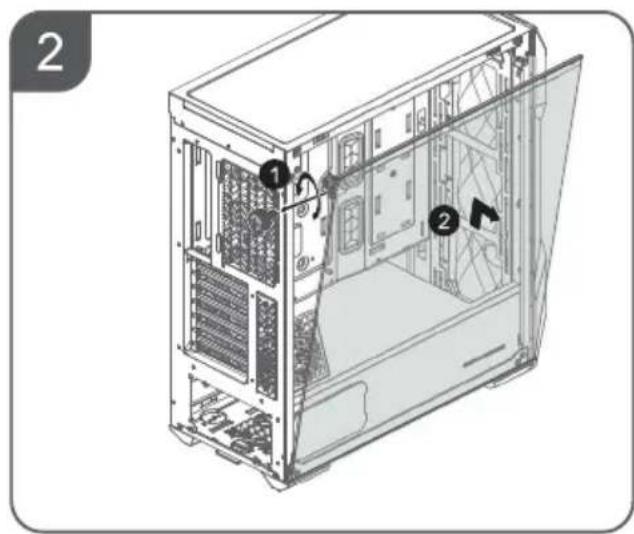

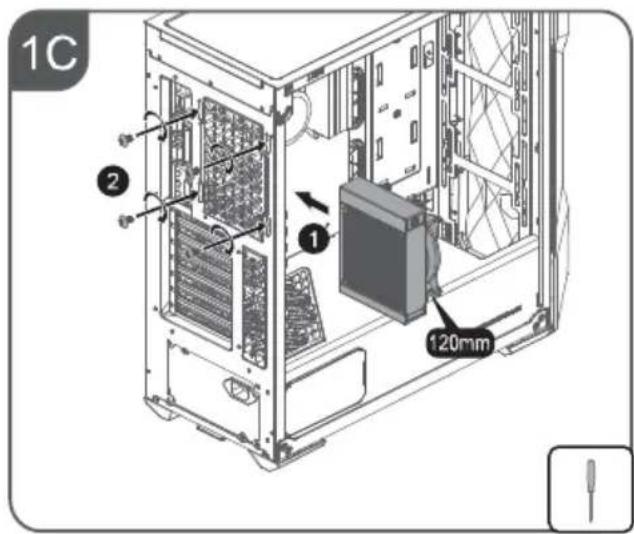

Diagram of a device with an open panel and internal grid structure, no text or symbols present

OR

OR

OR

1

2


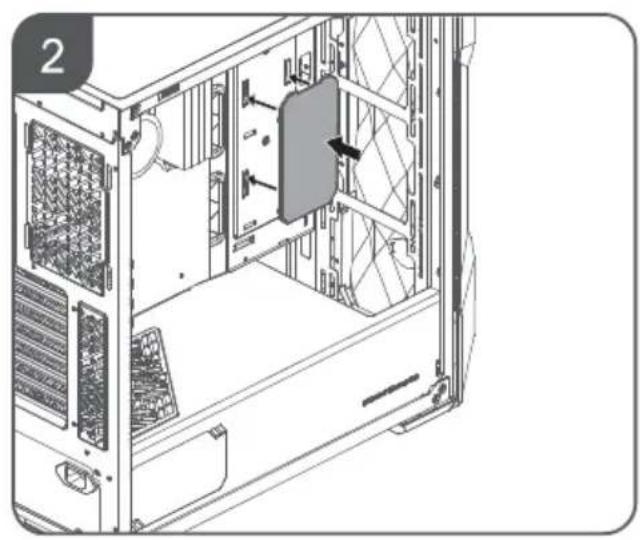

Technical line drawing of a server rack with internal components and a highlighted panel (no text or symbols)

Technical line drawing of a server rack with internal components and a highlighted panel (no text or symbols)

Warranty information

English (EN)

Cooler Master guarantees that this device is free of defect in material and workmanship, and provides a two-year limited hardware warranty for the device commencing from the date of purchase. Please keep your receipt for proof of purchase. This product is designed for computer usage only. Using this device in any other capacity voids the warranty. If you are not familiar with computer hardware installation, please ask for professional assistance.

The warranty offered covers normal use. Defect or damage that result from improper operation, storage, misuse or abuse, accident or neglect, which are not the fault of Cooler Master, are exclude from warranty coverage.

Note: the warranty is voided by removal or alternation of product or parts identification labels.

*All OEM/bulk packaging product come with one year limited warranty

*In case of conflict between the warranty provided by the country of point of sale and this manual, the warranty of the actual country of point of sale shall be the prevailing document.

*In case of malfunction of electronic components or need of accessories purchase during the warranty period, please return to the original store of purchase.

简体中文(ZHS)

Note: The form is only applied to China law.

North America · Cooler Master NA

1 N Indian Hill Blvd Suite D200 Claremont, CA 91711 USA

Tel:[phone]

South America

E-mail: [e-mail]

Türkçe (TR)

Room 112, Building 9, No. 327, Songjin Road, Jinshanwei

Town, Jinshan Dist., Shanghai City, China

Tel:[phone]

Europe - Cooler Master Europe B.V.

Cooler Master Products: Limited Warranty

This document describes the warranty terms for all Cooler Master product sold in Australia

For Australia only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Telephone: [phone] (standard international call charges apply.)

Who the Warranty Protects: This Warranty is valid to the original purchaser only.

What the warranty protects:

This warranty is valid only for the Cooler Master Products distributed by authorized dealer(s) in Australia. Please contact Cooler Master for warranty information and services:

• Cooler Master Support: account.coolermaster.com

What Is and Is Not Covered

It is important to note that our warranty is not an unconditional guarantee for the duration of the Program. Any replaced parts become the property of Cooler Master. The Program does not apply to the software component of a product or a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The Program does not cover any events such as below:

• Any damages unrelated to manufacturing defects.

• Any unsuitable environment or use of the product in Cooler Master Opinion.

• Any product which has been modified without official permission from Cooler Master, or on which the serial number or warranty sticker has been

defaced, modified, or removed.

Damage, deterioration or malfunction resulting from:

- Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modification

or failure to follow instructions included with the product.

- Third party products using Cooler Master Components will not be covered by warranty. See your vendor or the manufacturer for information about servicing.

• Repair or attempted repair by anyone not authorized by Cooler Master, Inc.

• Any shipment damages (claims must be made with the carrier).

• Unauthorized repairs to a Cooler Master product will void the warranty offered by the Program. Cooler Master reserves the right to refuse to

service any product which has been altered, modified or repaired by non- Cooler Master Service personnel.

- Cooler Master does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose.

• Removal or installation charges.
• You are responsible for the cost of shipping the product to Cooler Master. Cooler Master pays the cost of returning a product to you.
  • Cooler Master reserves the right to replace the product with a service product at their sole discretion at any time.
• Product malfunction or damage resulting from liquids or moisture.
• All accessories that malfunction due to physical damage such as: USB cables, extension cables, adapter cables, adapters, power cords, screws, retention brackets, ear cups, and all other similar accessories.

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages

COOLER MASTER'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. COOLER MASTER SHALL NOT BE LIABLE FOR:

• DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

• ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE

• ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY

Warranty Information:

If the goods is found with reasonable defect within the period of (refer to Table A.,) starting on the first day of purchase (with proof of invoice), this is what you must do, to claim the warranty from the above address.

Procedures:

1. Consumers should return to the shop where he/she has bought the goods, After confirming with the shop with a valid invoice, they may approach the distributor for RMA claim.

2. After confirmed by the distributor that the goods was damaged due to natural causes, replacement and repair will be done by distributor (including brand new or refurbished goods)

3. All faulty goods must return to the distributor, expenses for returning the faulty goods will be covered by the consumer, and distributor will cover the cost involved in the transporting of parts or repaired goods to the consumer.

Regarding all the expenses incurred in making the claim, and this is how you would claim:

1. Within the valid warranty date, starting from the first day of issuing invoice, Retail shops will assist in confirmation with distributor for the consumer for the following.

A. If the damage was caused by the consumer, then the consumer should cover all expenses in fixing the product, if the product still can't be fixed, we would suggest consumer in buying a brand new product.

B. Product defect caused under natural use, expenses will be covered by the distributor.

1. Faulty products with expired warranty dates, we would suggest consumer to purchase a brand new products, without undergoing for repairs.

Table A:

Cooler Master Products

Please check your user manual for the exact warranty period terms for products that are not shown below.

For more warranty information, please visit our official website: http://www.coolermaster.com/service/warranty.html

Chassis

Product Name	Warranty Term
All Chassis Series (Only Electronic Parts)	2 year
C+P ( Chassis + PSU )	1 year

(EN) Limited warranty period: http://www.coolermaster.com/service/warranty.html
