Product Type	Laminator
Brand	Fellowes
Model	Ion A3
Maximum Document Size	A3 (297 x 420 mm)
Laminating Speed	300 mm/min
Warm-Up Time	3 minutes
Number of Rollers	2
Temperature Settings	Adjustable, 80-160°C
Pouch Thickness	Up to 250 microns
Jam Release Lever	Yes
Auto Shut-Off	After 30 minutes idle
Dimensions (W x D x H)	500 x 150 x 100 mm
Weight	2.5 kg
Power Requirements	120-240V, 50/60Hz, 600W
Functions	Hot laminating, cold laminating
Maintenance	Clean rollers with mild soap and damp cloth; avoid abrasives
Safety Features	Overheat protection
Spare Parts Availability	Replacement rollers and cleaning kit available
Intended Use	Home and office

Frequently Asked Questions - Ion A3 FELLOWES

What is the maximum document size the Fellowes Ion A3 can laminate?

The Fellowes Ion A3 can laminate documents up to A3 size (297 x 420 mm).

How long does it take to warm up?

The warm-up time is approximately 3 minutes.

Can I use it for cold laminating?

Yes, the Ion A3 supports both hot and cold laminating modes.

What should I do if the laminator jams?

Use the jam release lever to gently remove the pouch. Always unplug the device before clearing a jam.

How do I clean the rollers?

Clean the rollers with a mild soap solution and a damp cloth. Do not use abrasive cleaners.

Does it have an auto shut-off feature?

Yes, the laminator automatically shuts off after 30 minutes of inactivity.

What thickness of laminating pouches can I use?

You can use pouches up to 250 microns thick.

Why is the laminator not heating up?

Check that the power cord is firmly connected and the power switch is on. If the problem persists, contact Fellowes support.

Can I laminate multiple documents consecutively?

Yes, but allow 15-30 seconds between pouches to avoid overheating.

Where can I find replacement parts?

Replacement rollers and cleaning kits are available through Fellowes or authorized retailers.

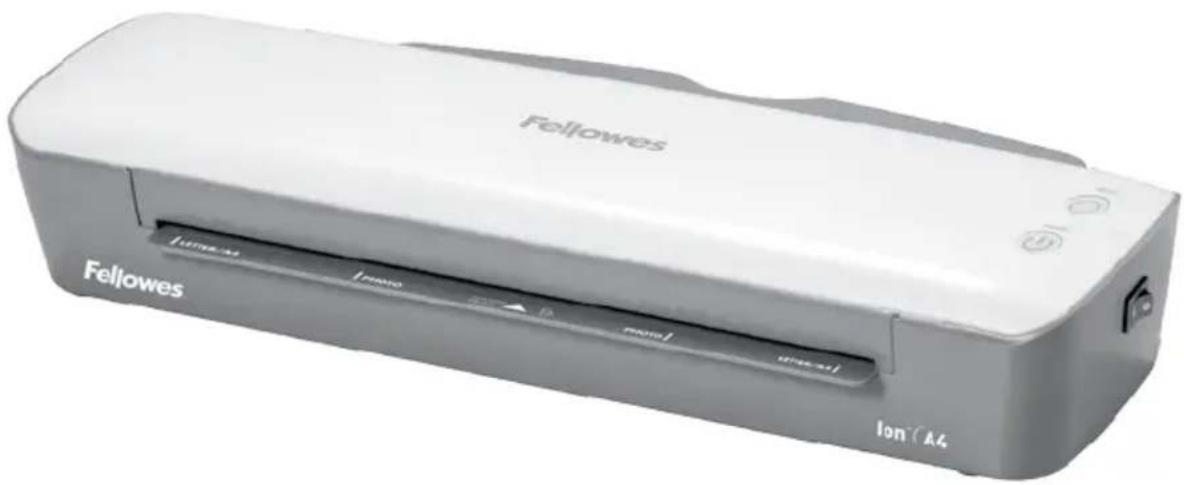

USER MANUAL Ion A3 FELLOWES

Personal LaminatorPersor

lon™(A4) lon™(A3)

White and gray Feliowes printer with visible branding and control buttons (no readable text beyond branding)

GB Please read these instructions before use.
FR Lire ces instructions avant utilisation.
ES Lea estas instrucciones antes de usar la máquina.
DE Diese Anleitungen vor Gebrauch genau durchlesen.
IT Primo dell'uso, si raccomanda di leggere questo manuale di istruzioni.
NL Lees deze instructies zorgvuldig door voordat u de machine in gebruik neemt.
SE Läs dessa anvisningar innan du använder apparaten.
DK Læs venligst denne vejledning for anvendelse.
FI Lue nämä ohjeet ennen käyttöä.
NO Vennligst les nøye igjennom denne bruksanvisningen for bruk.
PL Przed użyciem proszę zapoznać się z niniejszą instrukcją.
RU Перед эксплуатацией устройства ознакомьтесь с содержанием данной инструкции.

GR Διαβάστε τις παρακάτω οδηγίες πριν από τη χρήση.
TR Kullanmadan önce lutfen bu talimatlari okuyen.
CZ Pred použitím si pročtěte tyto pokyny.
SK Pred použitím si prečítajte tieto pokyny.
HU Kérjük, hogy használat elött olvassa el az utasításokat.
PT Leia estas instruções antes da utilização.
BG Моля, прочетете инструкциите преди употреба.
RO Vă rugăm să citiți instrucțiunile înainte de utilizare.
HR Pažljivo pročitajte ove upute prije korištenja.
SI Pred uporabo izdelka preberite ta navodila za uporabo.
SR Pročitajte ova uputstva pre upotrebe.
AR يرجى الاطلاع على الإرشادات قبل الاستعمال.
HB. מַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי הַרְׁעֹת אָרִי .

CONTENTS

LOCATION OF CONTROLS 3
ENGLISH	4-6
FRANCAIS	7-9
ESPAÑOL	10-12
DEUTSCH	13-15
ITALIANO	16-18
NEDERLANDS	19-21
SVENSKA	22-24
DANSK	25-27
SUOMI	28-30
NORSK	31-33
POLSKI	34-36
РУССКИЙ 37-39

ΕΛΛΗΝΙΚΑ	40-42
TÜRKÇE	43-45
ČESKY 46-48
SLOVENSKY	49-51
MAGYAR	52-54
PORTUGUÊS	55-57
ΒЪЛГАРСКИ	58-60
ROMÂNÃ	61-63
HRVATSKI	64-66
SLOVENČINA	67-69
SRPSKI	70-72
العربية
النوع	76-78

LAMINATOR CONTROLS

QUICK START GUIDE

Illustration of a white electronic device mounted on a wooden table with a wall-mounted power outlet (no text or symbols)

Diagram showing a device connected to an electrical outlet with a cable (no text or symbols present)

Diagram of a folded paper or sheet with arrows indicating direction, no text or symbols present

Illustration of a printer being placed on top of a screen with a feather print (no text or symbols visible)

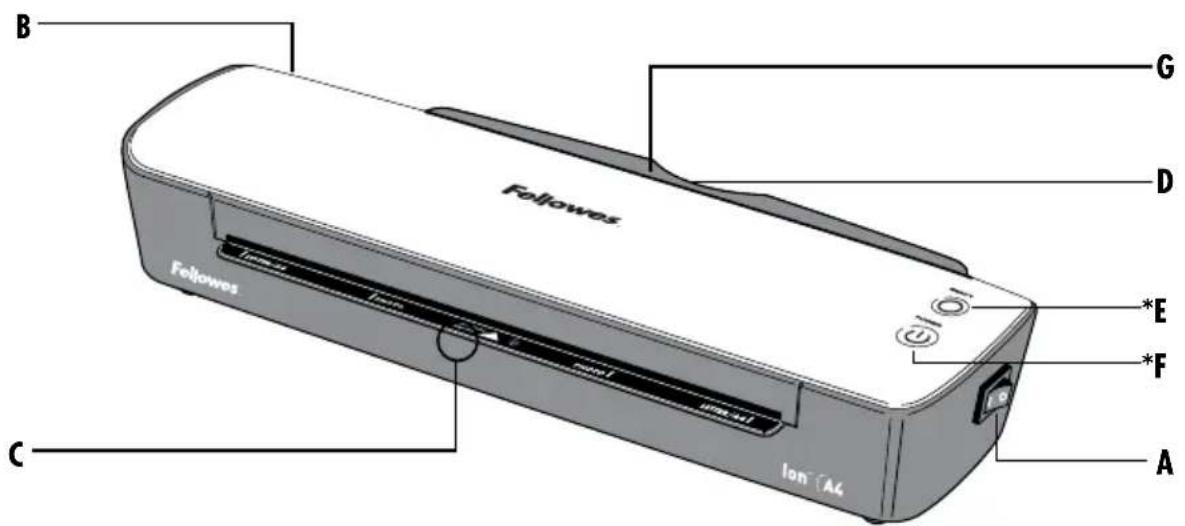

LAMINATOR CONTROLS

A	On / off switch	*E	Ready LED (Green)
B	Release lever ( [IMAGE] )	*F	Power on LED (Red)
C	Pouch / document entry slot	G	Exit tray
D	Pouch / document exit

*Not push buttons; indicator lights only.

CAPABILITIES

Performance	Technical Data
Entry width A4 = 240mmA3 = 318mm	Voltage / Frequency / 220-240V AC, 50/60Hz, Current(Amps) 1.5A
Pouch thickness (min) 80 microns	Wattage 300 Watts
Pouch thickness (max) 125 microns	Dimensions (HxWxD):
Warm up time (estimate) 4 minutes	A4 62mm x 359mm x 113mm
Lamination speed approx. 30cm/min (+/- 5%) (fixed speed)	A3 62mm x 459mm x 113mm
Number of rollers 2	Net weight:A4 1,0 KgA3 1,2 Kg
Ready indication Light (Green)	Max document thickness(laminating capacity) 0.02" / 0.4mm
Release lever Yes
Auto Shut Off Yes

Maximum recommended usage: Light Use, 30 laminations per week. Heavier paper materials may have an effect on quoted usage.

IMPORTANT SAFETY INSTRUCTIONS - KEEP FOR FUTURE USE

• The machine is for indoor use only. Plug the machine into an easily accessible socket.
• To prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket.

DO ensure the machine is on a stable surface.

DO test laminate scrap sheets and set the machine before final laminations.

DO remove staples and other metal articles prior to laminating.

DO keep the machine away from heat and water sources.

DO turn off the machine after each use.

DO unplug the machine when not in use for an extended period.

DO use pouches designed for use at the appropriate settings.

DO keep away from pets, while in use.

DO NOT leave the power cord in contact with hot surfaces.

DO NOT leave power cord hanging from cupboards or shelves.

DO NOT use appliance if the power cord is damaged.

DO NOT attempt to open or otherwise repair the machine.

DO NOT exceed the machines quoted performance.

DO NOT allow children to use this machine without adult supervision.

DO NOT laminate sharp or metal objects (eg: staples, paper clips).

DO NOT laminate heat-sensitive documents (eg: tickets, ultrasounds etc) on hot settings.

DO NOT laminate with self-adhesive pouches on hot settings.

DO NOT laminate an empty pouch.

FEATURES & TIPS

'Release' function

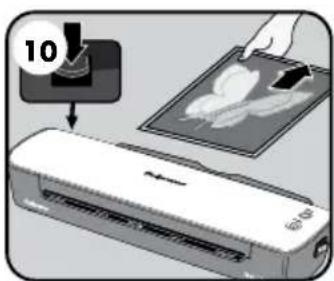

To remove or re-align a pouch during lamination, activate the release lever located on the back of the machine. The pouch can only be removed from the entry slot when the lever is activated.

Auto Shut Off

After 30 minutes, the machine will automatically go in to Auto Shut Off mode. The Power LED will flash red for 5 minutes and then turn off. The ready LED will turn off. To continue using the machine press the ON/OFF switch. The machine will reset itself.

• For best results, use Fellowes ^® brand pouches: 80 - 125 micron.
• This machine does not need a carrier to laminate. It is a carrier-free mechanism.
• Always put the item to be laminated into the appropriate sized pouch.
• Always test laminate with a similar size and thickness before final process.
• Prepare pouch and item for lamination. Place item within pouch centred and touching the leading sealed edge. Ensure the pouch is not too large for the item.
• If required, trim excess material from around the item after lamination and cooling.

SETTING UP THE LAMINATOR

1. Ensure the machine is on a stable surface.

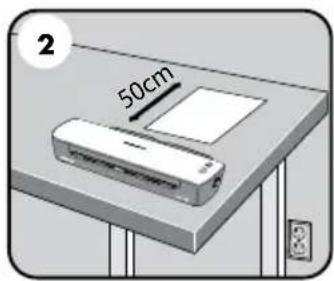

2. Check there is enough clear space (min 50cm) behind the machine to allow items to pass through freely.

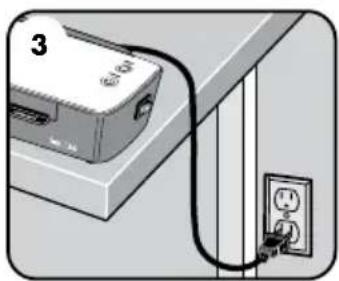

3. Plug the machine into an easily accessible mains socket.

HOW TO LAMINATE

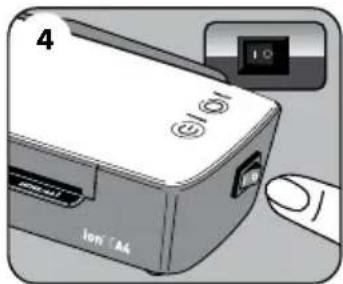

1. Switch the power on (located at the side of the machine).

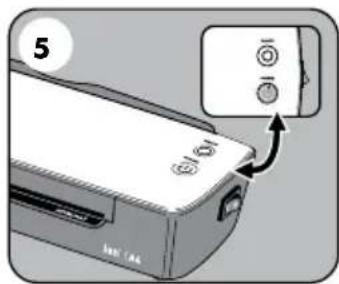

2. The red 'Power on' lamp will light up. The machine is now heating up.

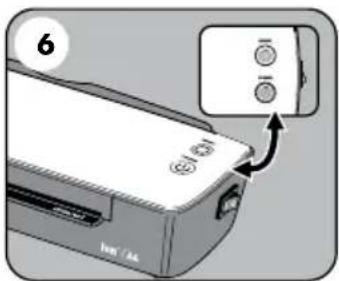

3. When the machine is ready, the green 'Ready' lamp will remain on.

4. Place the document into the open pouch. Ensure the document is centred against the sealed edge. Use the appropriate pouch size for the document.

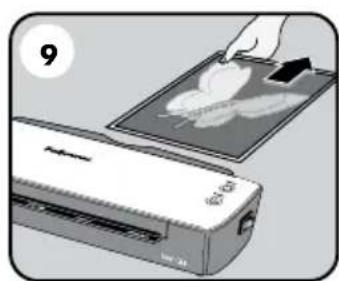

5. Ensure the pouch enters the machine sealed edge first. Keep the pouch straight and central within the slot, not on an angle. Use the entry markings as a guide.

6. Upon exit, the laminated pouch may be hot and soft. To prevent jamming remove the pouch immediately. Place pouch on to a flat surface to cool. Take care when handling a hot pouch.

NEED HELP?

Let our experts help you with a solution.

Customer Service... www.fellowes.com

Always call Fellowes before contacting your place of purchase, see the rear cover for contact details.

TROUBLESHOOTING

Problem Possible cause Solution
No ‘power on’ lamp (red LED) Machine not switched on		Switch on machine at the side and at the wall socket
No ‘ready’ lamp after a long period (green LED)	Machine is in a hot or humid area Move the machine to a cooler and dry area
The Power LED is flashing red and the Ready LED (green) has turned off	The laminator has gone in to Auto Shut Off mode	Press the ON/OFF switch. The machine will reset itself
The ready lamp (green) and the Power LED (red) have turned off	The laminator is in Auto Shut Off mode	Press the ON/OFF switch. The machine will reset itself
Pouch is lost in the machine Pouch is jammed		Press release lever and pull out the item by hand
Jamming	Pouch was used ‘open end’ first
	Pouch was not centred on entry
	Pouch was not straight upon entry
	Empty pouch was used

STORAGE & CLEANING

Switch off the machine at the wall. Allow the machine to cool. The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine. Cleaning sheets can be purchased for use with the machine. When the machine is warm — run the sheets through the machine to clean any residue off the rollers. For optimum performance, it is recommended that cleaning sheets are used with the machine regularly. (Cleaning sheet order code #5320604).

PRODUCT REGISTRATION / WORLDWIDE WARRANTY

Thank you for purchasing a Fellowes product. Please visit www.fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine. Fellowes warrants all parts of the laminator to be free of defects in material and workmanship for 1 year from the date of purchase by the original consumer. If any part is found to be defective during warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorised repair. Any implied warranty, including that of merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer.

Australia Residents Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits under Fellowes' Warranty are in addition to other rights and remedies under a law in relation to the machine.

COMMANDES DE LA PLASTIFIEUSE

A Interruptor On/off

B Palanca de liberación (

C Ranura de entrada de bolsa / documento

D Salida de bolsa / documento

C Invoeropening lamineerhoes/document

D Uitvoeropening lamineerhoes/document

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY – USCHOVAJTE NA POUŽITIE V BUDÚCNOSTI

POTREBNA VAM JE POMOĆ?

www.fellowes.com ... Lionish.

UK Declaration of Conformity

Fellowes Ltd.

Unit 2 Ontario Drive, New Rossington, Doncaster, DN11 0BF, England declares that the product model(s) lon A4 and lon A3 conforms to the requirements of:

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Electromagnetic Compatibility Regulations 2016

The Waste Electrical and Electronic Equipment Regulations 2013

Electrical Equipment (Safety) Regulations 2016

Safety: BS EN 62368-1: 2014/A11:2017

EMC: BS EN 55014-1: 2017

BS EN 55014-2: 2015

BS EN 61000-3-2: 2014

BS EN 61000-3-3: 2013

Year Affixed: 2021

Itasca, Illinois, USA

January 1, 2021

John Fellowes

President & CEO

Declaration of Conformity

Fellowes Benelux B.V.

Gesworenhoekseweg 3a, 5047 TM Tilburg, The Netherlands declares that the product model(s) lon A4 and lon A3 conforms to the requirements of:

[2011/65/EU+2015/863/EU] Restriction of Hazardous Substances Directive

[2014/30/EU] Electromagnetic Compatibility Directive

[2012/19/EU] Waste on Electrical and Electronic Equipment (WEEE) Directive

[2014/35/EU] Low Voltage Directive

Safety: EN 62368-1: 2014/A11:2017

EMC: EN 55014-1: 2017

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

Year Affixed: 2021

Itasca, Illinois, USA

January 1, 2021

John Fellowes

President & CEO
