MultiLift 572 - Roof rack THULE - Free user manual and instructions

Product Type	Roof Rack Hoist
Brand	Thule
Model	MultiLift 572

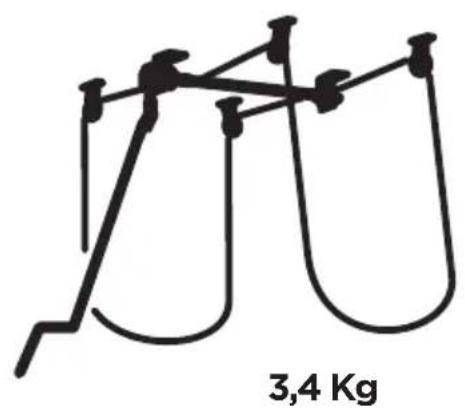

Weight	3.4 kg (7.5 lbs)
Maximum Load Capacity	100 kg (220 lbs)
Maximum Bar Length	100 cm (39.4 in)
Rope Length	10 m (32.8 ft)
Rope Diameter	5 mm
Material	Steel and aluminum
Installation Type	Ceiling-mounted
Professional Installation Required	Yes

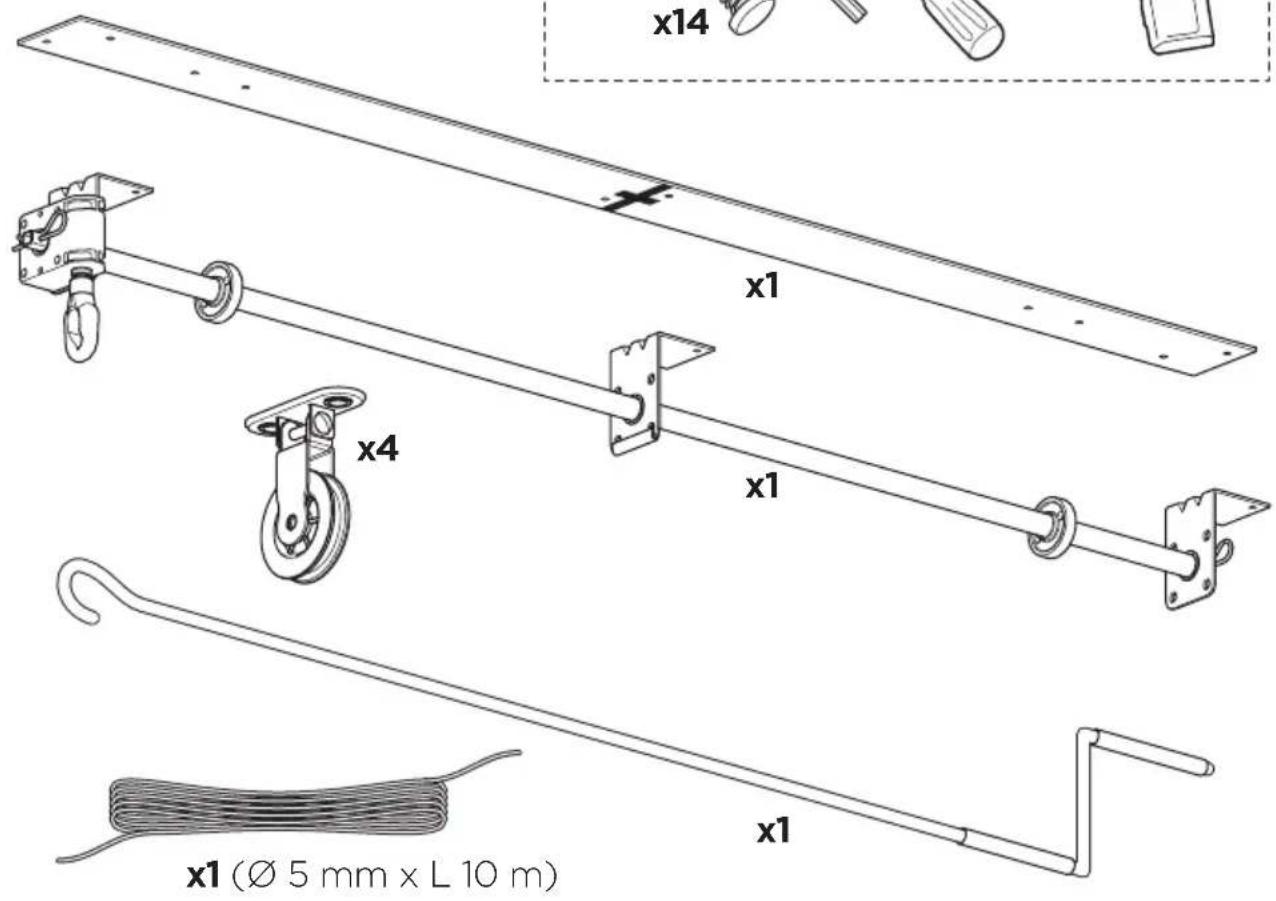

Included Components	Rope, mounting hardware, hoist mechanism
Compatibility	Universal for most roof racks
Safety Inspection Interval	Regularly inspect for wear
Cleaning Method	Mild soap and water
Storage Condition	Dry indoor area
Warranty	Limited lifetime
Tools Required	Screwdriver, drill
Ceiling Strength Requirement	Must be suitable for load
Lift Mechanism	Manual pulley system

Frequently Asked Questions - MultiLift 572 THULE

How much weight can the Thule MultiLift 572 lift?

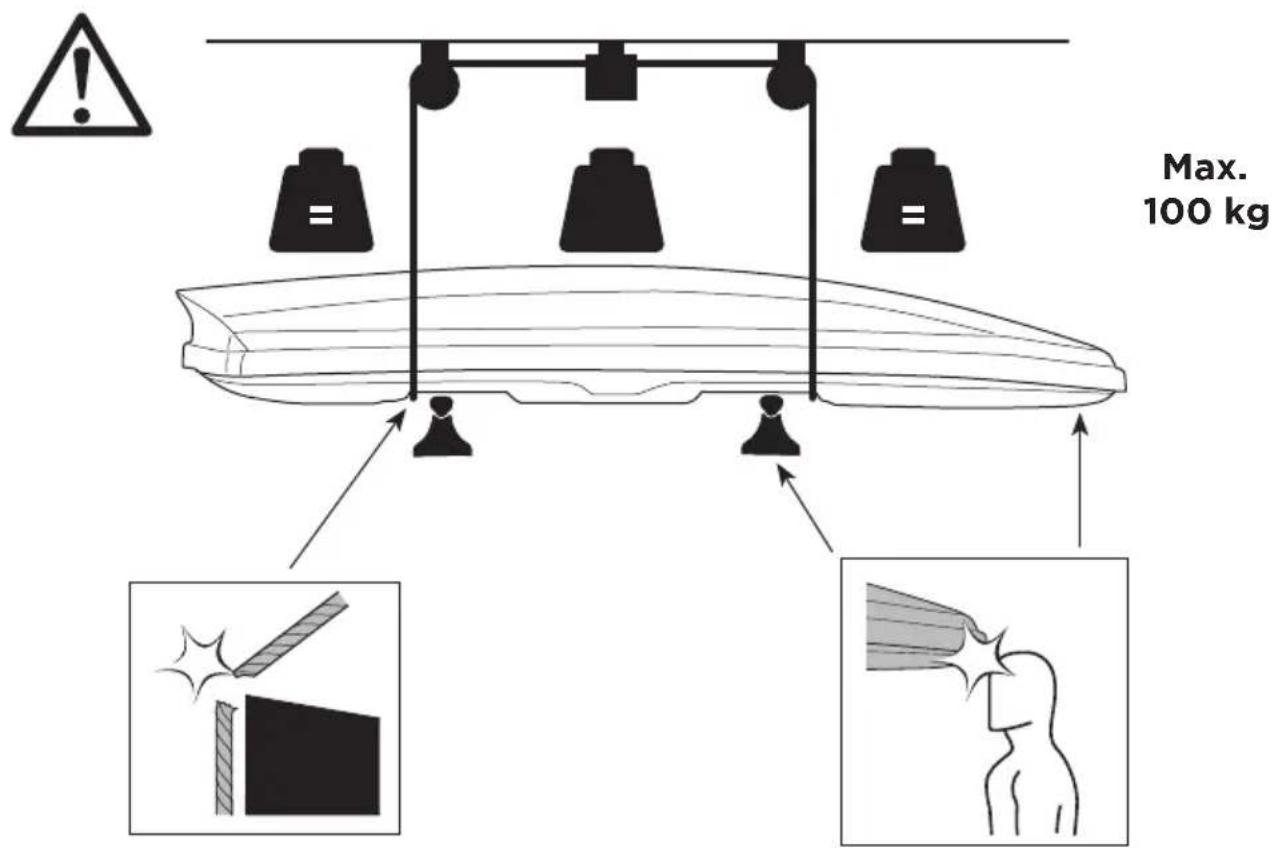

The MultiLift 572 can lift up to 100 kg (220 lbs), including the roof rack and cargo.

Can I install the MultiLift 572 myself?

Professional installation is required for ceiling mounting. The ceiling material must be checked for strength.

What type of roof rack is compatible?

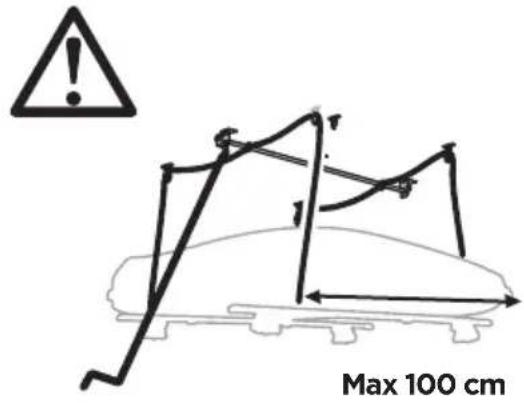

The hoist works with most Thule roof racks and similar systems, provided the bar length does not exceed 100 cm.

What tools are needed for installation?

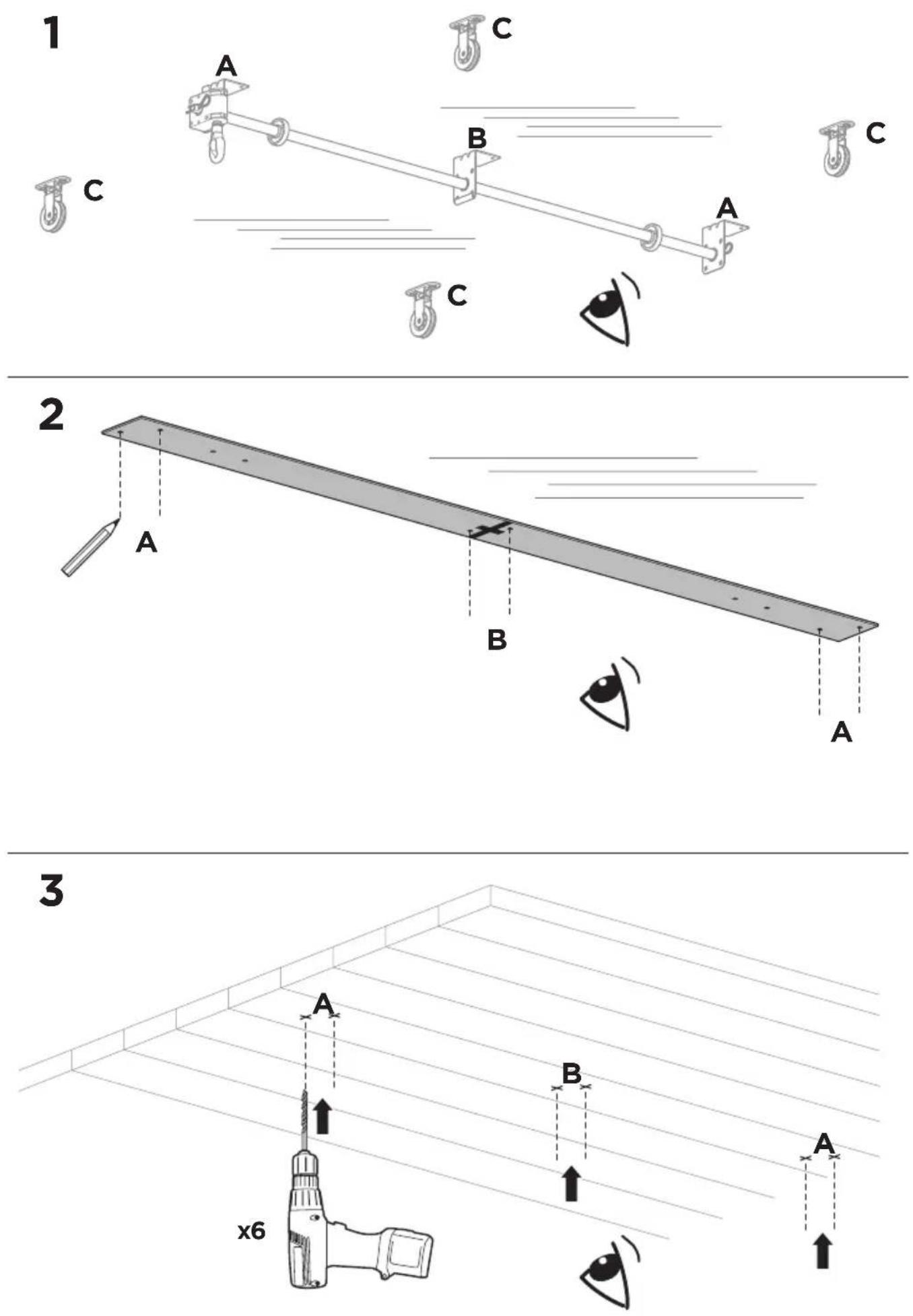

You will need a screwdriver and a drill (as shown in the manual illustrations). Other tools may be required based on your ceiling type.

How long is the rope on the MultiLift 572?

The included rope is 10 meters (32.8 feet) long with a diameter of 5 mm.

Is the MultiLift 572 weatherproof?

It is designed for indoor storage when not in use. Exposure to weather may cause damage; store in a dry place.

How do I maintain the hoist?

Regularly inspect for signs of wear or damage. Clean with mild soap and water. Do not use if any part is broken.

Can I use it to lift a kayak or cargo box?

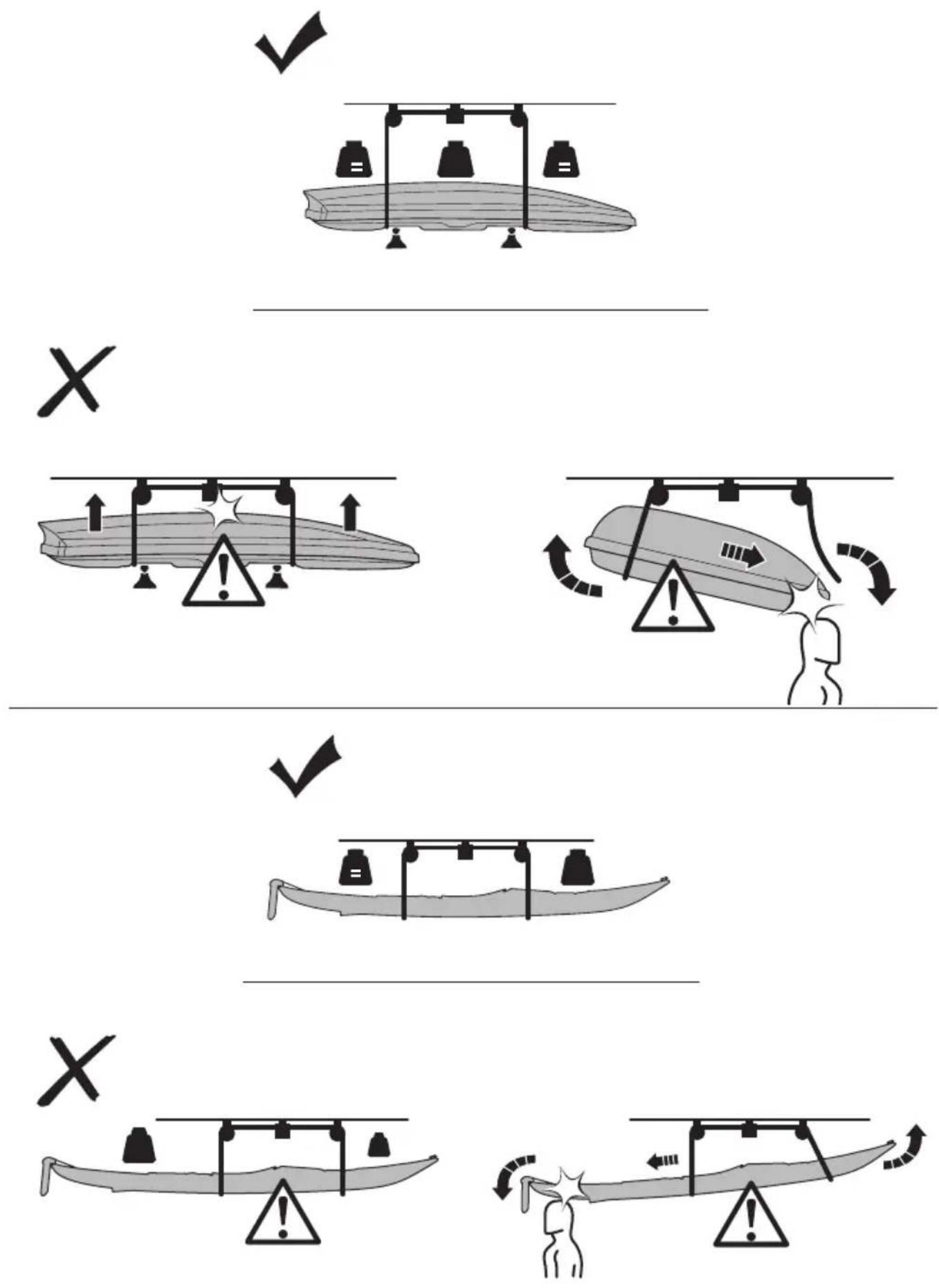

Yes, as long as the total weight does not exceed 100 kg and the roof rack bar length is within 100 cm.

What is the weight of the hoist itself?

The MultiLift 572 weighs 3.4 kg (7.5 lbs).

Does the MultiLift 572 come with a warranty?

Thule offers a limited lifetime warranty on the MultiLift 572. Check the manual for terms.

USER MANUAL MultiLift 572 THULE

Abstract line drawing with intersecting curves and nodes, no text or symbols present

WARNING

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• The hoist must only be fitted to the ceiling by a professional.
- Before the hoist is fitted, the ceiling material must be checked to ensure that it is suitable and strong enough to support the hoist.
- Regularly inspect the product for damage and signs of wear. Do not use the product if any part is broken.

DE

WARNING

Illustration of four different types of electrical tools: screwdriver, screwdriver with handle, and electric drill (no text or symbols)

Diagram showing a roof structure with an open door and brick wall, no text or symbols present

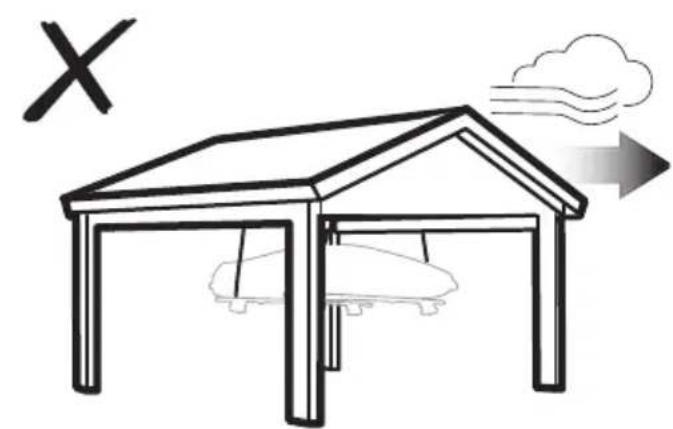

Simple line drawing of a roof structure with exhaust smoke and a cross symbol (no text or labels)

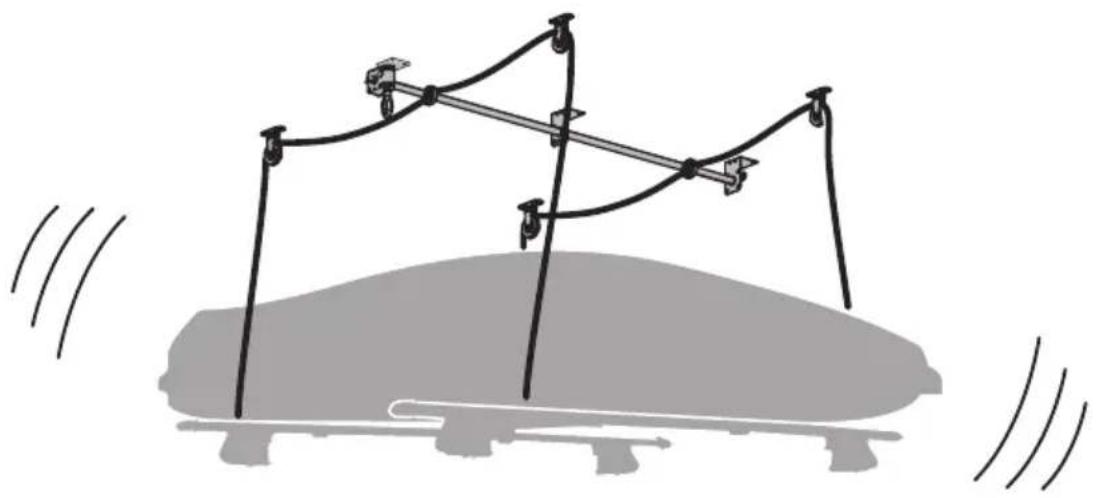

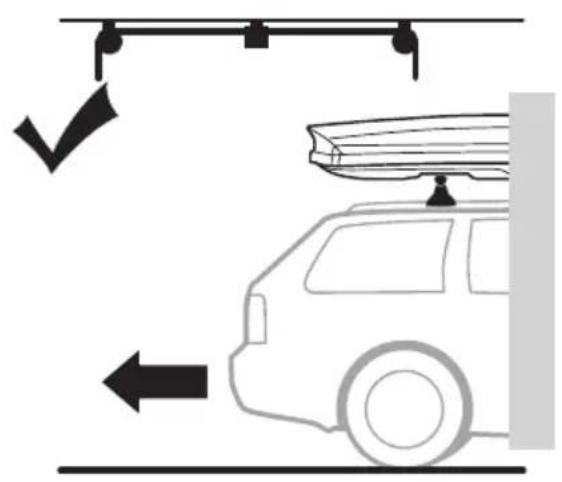

Diagram of a car under load with a roof-mounted device and directional arrows indicating motion (no text or symbols)

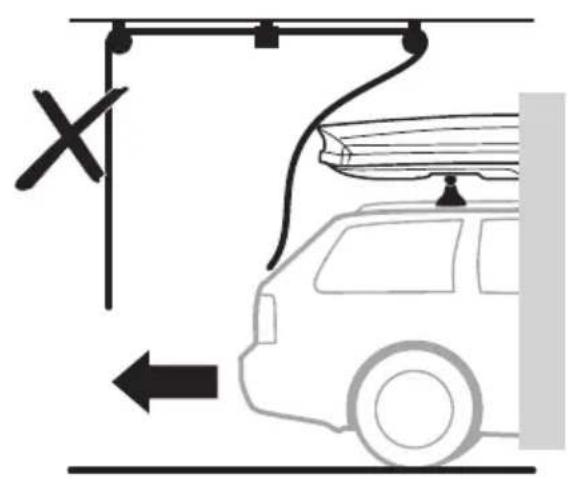

Diagram of a car under load with overhead crane and directional arrows, no text or symbols present

6

7

Technical line drawing of a mechanical lifting device with hook and lever (no text or symbols)

Illustration of a screwdriver and a pen tool (no text or symbols)

Line drawing of a handheld electric drill bit (no text or symbols)

8

Illustration of a coiled wire or filament with labeled point 'x1' (no other text or symbols)

123

Diagram of a rope knot with arrows indicating direction (no text or symbols)

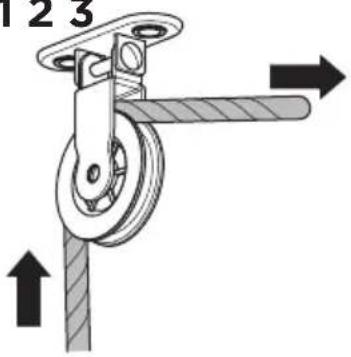

Mechanical diagram showing a pulley system with directional arrows indicating motion (no text or symbols)

4

Diagram of a knot with labeled point A and directional arrows indicating rope or knot structure (no text or symbols beyond label)

Simple line drawing of a knot tied at point B, no text or symbols present

9

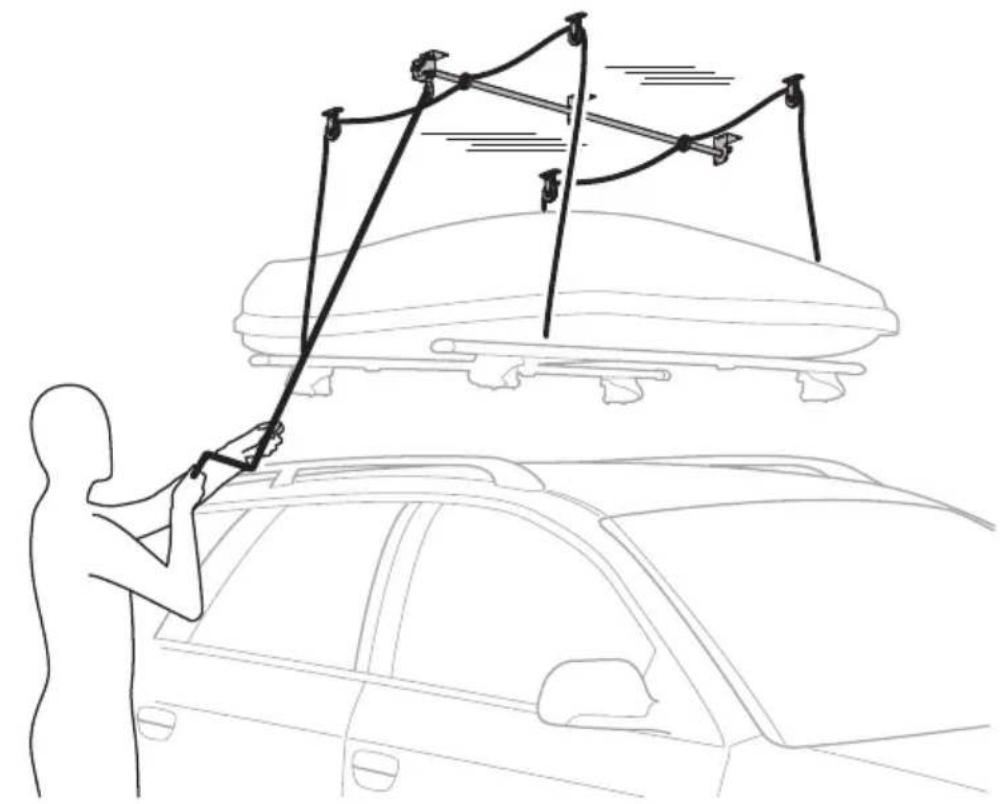

Line drawing of a person using a lift rack to lift a car, with no text or symbols present.

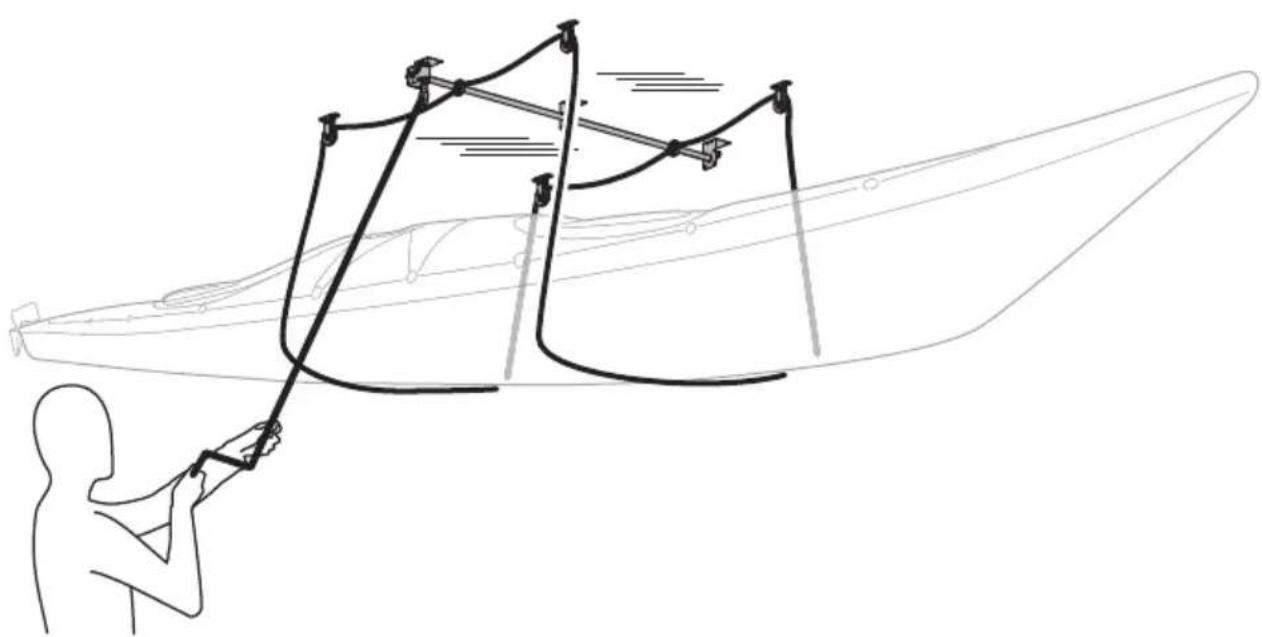

Line drawing of a person using a mechanical linkage system to interact with a boat (no text or symbols)

Simple line drawing of a basketball court with two stands and a flag, no text or symbols present
