Sailboard Rack - Roof rack THULE - Free user manual and instructions

Product Type	Roof Rack for Sailboards
Brand	Thule
Model	Sailboard Rack (533)
Compatible With	Thule roof racks with square or aerodynamic bars
Load Capacity	Up to 75 kg (165 lbs)
Maximum Number of Boards	2 sailboards
Dimensions (Assembled)	64 x 15 x 10 cm (25.2 x 5.9 x 3.9 in)
Weight	6.5 kg (14.3 lbs)
Material	Powder-coated steel and reinforced plastic
Color	Black and silver
Security	Integrated lock with key
Installation Type	Clamp-on with rubber pads to protect bars
Maintenance	Clean with mild soap and water; lubricate lock annually
Spare Parts Available	Replacement straps, pads, and lock cylinders
Repairability	User-replaceable parts with Thule accessories
Warranty	Limited lifetime warranty
Certification	TÜV tested

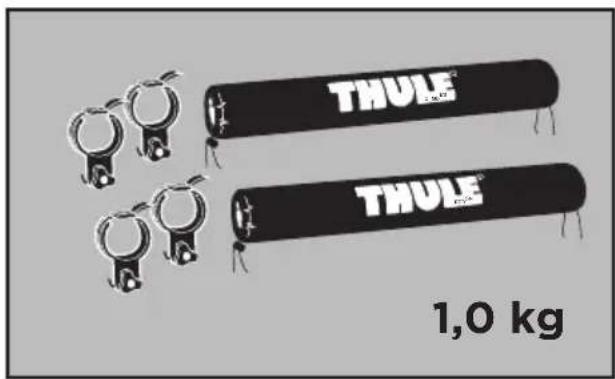

Included Components	Rack, straps, pads, locks, keys, installation instructions
Intended Use	Transporting sailboards on vehicle roof

Frequently Asked Questions - Sailboard Rack THULE

How do I install the Thule Sailboard Rack on my roof bars?

Place the rack on the roof bars, aligning the clamps with the bar width. Tighten the knobs evenly until secure. Use the integrated lock to prevent theft. Refer to the manual for torque specifications.

Is this rack compatible with all Thule roof bars?

Yes, the Sailboard Rack fits square, aerodynamic, and most factory bars. For non-Thule bars, check the bar width and shape; the rack includes adaptable rubber pads to fit various profiles.

What is the maximum weight capacity for sailboards?

The rack can carry up to 75 kg (165 lbs) total. Distribute the load evenly across the two board positions and secure them with the provided straps.

How do I maintain the lock and straps?

Use a graphite lubricant on the lock cylinder annually to prevent sticking. Clean the straps with mild soap and water; replace them if frayed or damaged.

Can I carry one board or must I use both positions?

You can carry one board in either position. The rack is designed for up to two sailboards. If carrying one, center it to balance the load.

What do I do if the rack rattles while driving?

Rattling usually indicates loose mounting. Check that the clamps are tight and the rubber pads are properly seated. Adding a Thule Load Stop or repositioning the board may help.

Are replacement parts available?

Yes, Thule sells spare straps, lock cylinders, and pads. Contact Thule customer service or visit their website to order parts for the Sailboard Rack 533.

Does the rack come with a warranty?

Thule offers a limited lifetime warranty against defects in materials and workmanship. Register your product online to activate the warranty.

How do I clean the rack?

Use a mild automotive cleaner or soapy water with a soft cloth. Avoid abrasive cleaners that could scratch the powder-coated surface. Rinse thoroughly and dry.

What is the maximum speed when carrying boards?

Thule recommends not exceeding 130 km/h (80 mph) with the rack loaded. Always check local speed limits and secure boards tightly.

USER MANUAL Sailboard Rack THULE

Thule Surf carrier 533

> Instructions

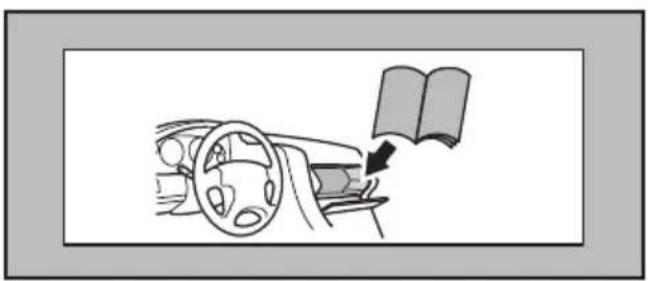

Diagram of a car interior showing steering wheel, dashboard, and open book (no text or symbols)
