Rapid System Kit 1710 - Roof bars THULE - Free user manual and instructions

Brand	Thule
Model	Rapid System Kit 1710
Product Type	Roof Bars
Compatibility	Volkswagen Golf VII (3-door/5-door), e-Golf, GTI VII (2013-2015, North America)
Dimensions (X)	1041 mm (41 in)
Dimensions (Y)	961 mm (37 7/8 in)
Dimensions (W)	230 mm (9 in)
Dimensions (Z)	710 mm (28 in)

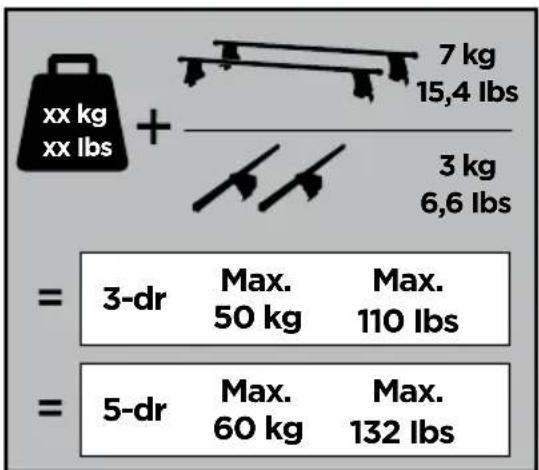

Max Load (3-door)	50 kg (110 lbs)
Max Load (5-door)	60 kg (132 lbs)

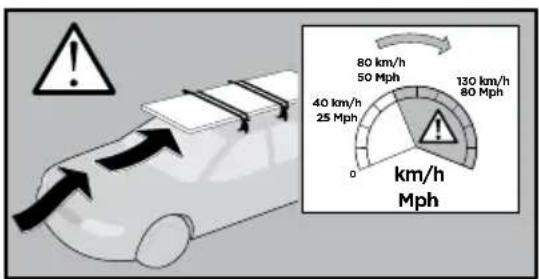

Max Speed with Load	130 km/h (80 mph); reduce to 80 km/h (50 mph) in certain conditions
Installation	Requires following step-by-step instructions; includes mounting hardware
Material	Aluminum (typical)
Maintenance	Clean with mild soap and water; check bolts regularly
Safety Standards	ISO 11154-E
Included Components	Rapid System Kit 1710 with various brackets and hardware

Frequently Asked Questions - Rapid System Kit 1710 THULE

What vehicles is the Thule Rapid System Kit 1710 compatible with?

The kit is designed for Volkswagen Golf VII (3-door and 5-door), e-Golf, and GTI VII models from 2013-2015 (including North American versions). Always verify fitment before purchase.

What is the maximum weight capacity of these roof bars?

For 3-door models, the maximum load is 50 kg (110 lbs). For 5-door models, it is 60 kg (132 lbs). This includes the weight of the load carrier itself.

What are the dimensions of the Thule Rapid System Kit 1710?

The bars have a length (X) of 1041 mm (41 in) and a width (Y) of 961 mm (37 7/8 in). The measurements W and Z are 230 mm (9 in) and 710 mm (28 in) respectively.

Is it safe to drive at highway speeds with the roof bars installed?

Yes, but the maximum recommended speed with a load is 130 km/h (80 mph). When carrying cargo, reduce speed to 80 km/h (50 mph) under certain conditions, such as crosswinds or rough roads.

How do I install the Thule Rapid System Kit 1710?

Installation requires following the included manual. General steps: attach the brackets to the vehicle's roof mounting points, position the bars, and tighten all bolts to the specified torque. Always double-check security.

What tools are needed for installation?

The required tools are not explicitly listed but typically include a torque wrench, Allen keys, and possibly a screwdriver. Refer to the manual for exact specifications.

How do I maintain the roof bars?

Clean the bars regularly with mild soap and water. Avoid abrasive cleaners. Inspect all bolts and connections for tightness before each use, especially after long trips.

Are spare parts available for the Thule Rapid System Kit 1710?

Thule offers a range of spare parts and accessories for the Rapid System. Contact Thule customer service or visit their website for specific parts like replacement rubber pads or hardware.

What is the warranty on the Thule Rapid System Kit 1710?

Thule typically offers a limited lifetime warranty against manufacturing defects. Check the warranty card included in the package for details.

Can I use these roof bars for carrying bikes, skis, or cargo boxes?

Yes, the bars are compatible with various Thule load carriers such as bike racks, ski holders, and cargo boxes. Ensure the load does not exceed the maximum weight limit of the bars.

USER MANUAL Rapid System Kit 1710 THULE

Thule Rapid System Kit 1710

> Instructions

VOLKSWAGEN e-Golf, 5-dr Hatchback, 15-

VOLKSWAGEN Golf VII, 3-dr Hatchback, 13- / *15-

VOLKSWAGEN Golf VII, 5-dr Hatchback, 13- / *15-

VOLKSWAGEN GTI VII, 3-dr Hatchback, *15-

VOLKSWAGEN GTI VII, 5-dr Hatchback, *15-

*North America

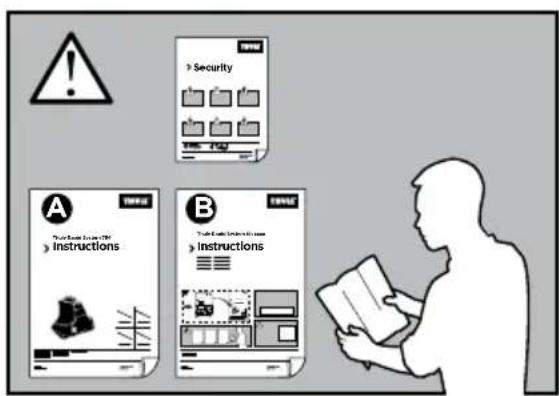

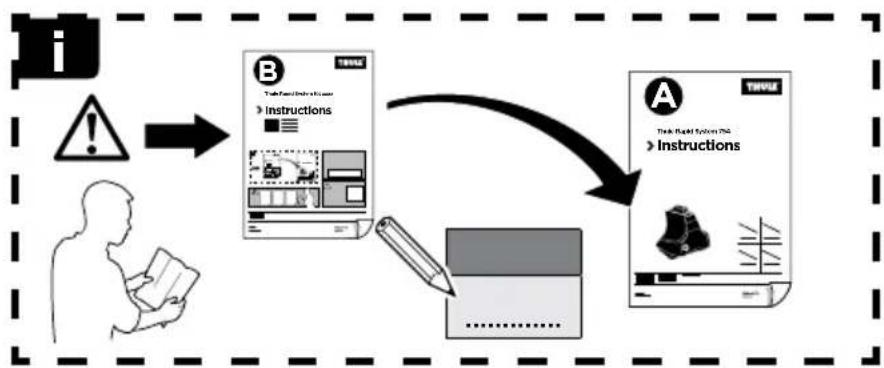

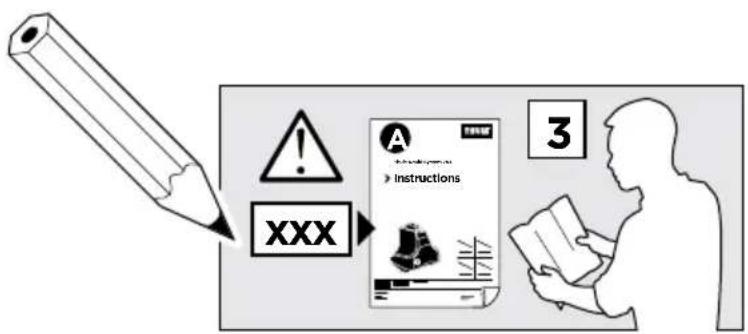


ISO 11154-E

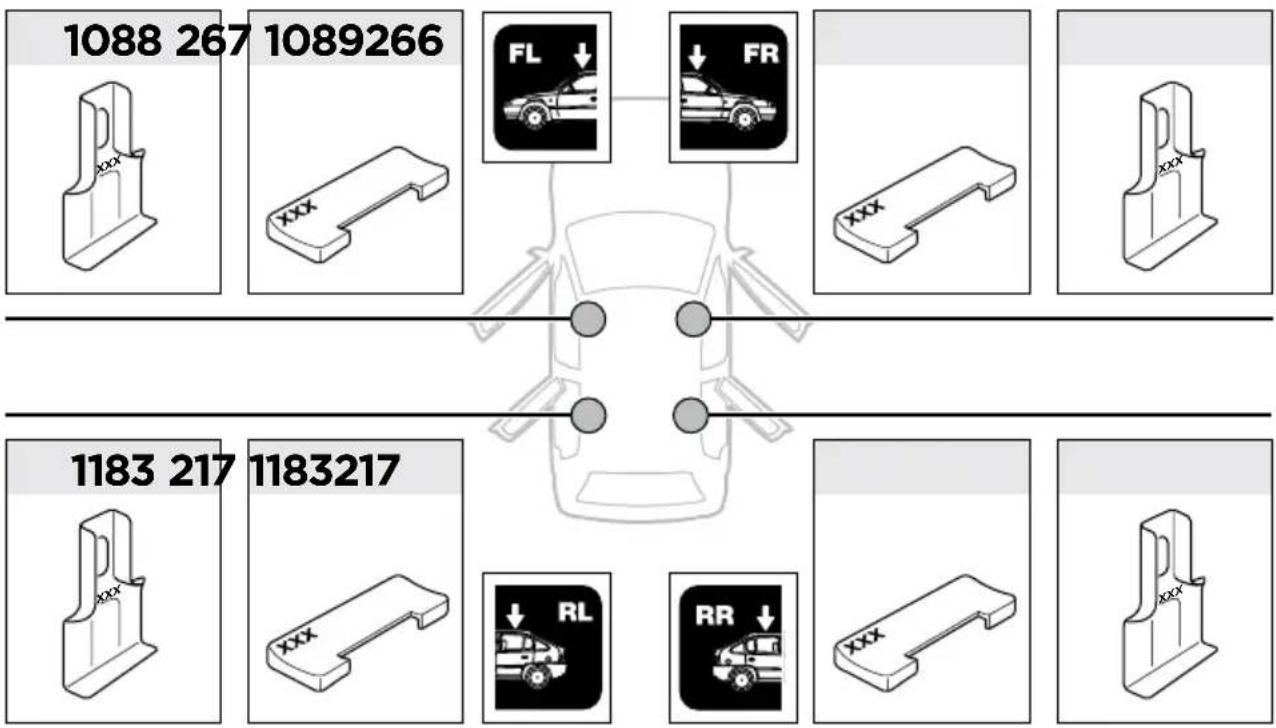

50993 50480

x1x2x2

217 x2

266 x1

267 x1

1088 x1

1089 x1

1183 x2

x1

1

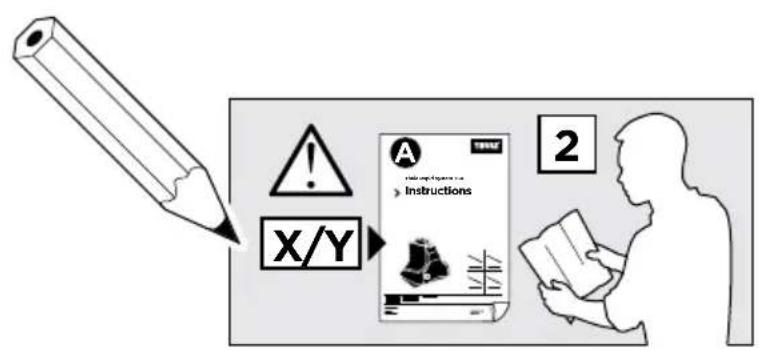

	X (scale) X (mm) X (inch)
VOLKSWAGEN e-Golf, 5-dr Hatchback, 15-	39	1041	41
VOLKSWAGEN Golf VII, 3-dr Hatchback, 13- / *15-	39	1041	41
VOLKSWAGEN Golf VII, 5-dr Hatchback, 13- / *15-	39	1041	41
VOLKSWAGEN GTI VII, 3-dr Hatchback, *15-	39	1041	41
VOLKSWAGEN GTI VII, 5-dr Hatchback, *15-	39	1041	41

	Y (scale)	Y (mm)	Y (inch)
VOLKSWAGEN e-Golf, 5-dr Hatchback, 15-	31	961	37^7/_8
VOLKSWAGEN Golf VII, 3-dr Hatchback, 13- / *15-	31	961	37^7/_8
VOLKSWAGEN Golf VII, 5-dr Hatchback, 13- / *15-	31	961	37^7/_8
VOLKSWAGEN GTI VII, 3-dr Hatchback, *15-	31	961	37^7/_8
VOLKSWAGEN GTI VII, 5-dr Hatchback, *15-	31	961	37^7/_8

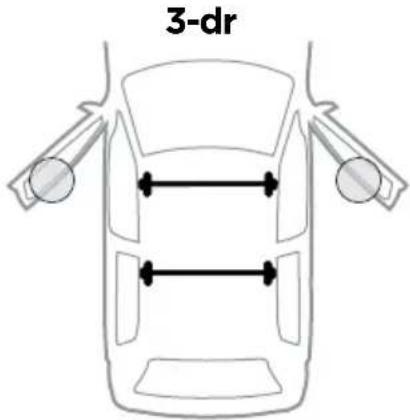

VOLKSWAGEN Golf VII, 3-dr Hatchback, 13- / *15- VOLKSWAGEN GTI VII, 3-dr Hatchback, *15-

SRA

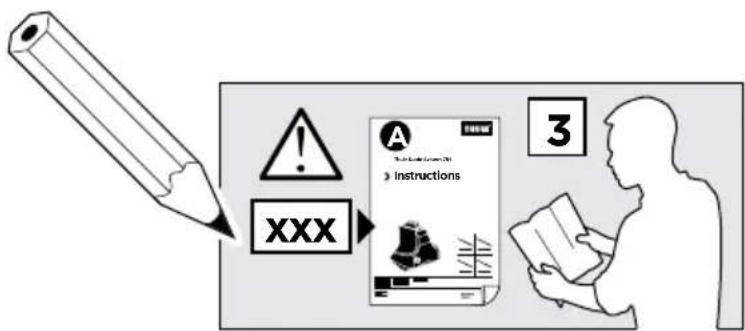

2

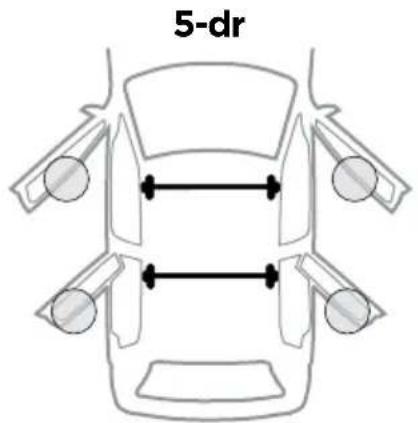

VOLKSWAGEN e-Golf, 5-dr Hatchback, 15-

VOLKSWAGEN Golf VII, 5-dr Hatchback, 13- / *15-

VOLKSWAGEN GTI VII, 5-dr Hatchback, *15-

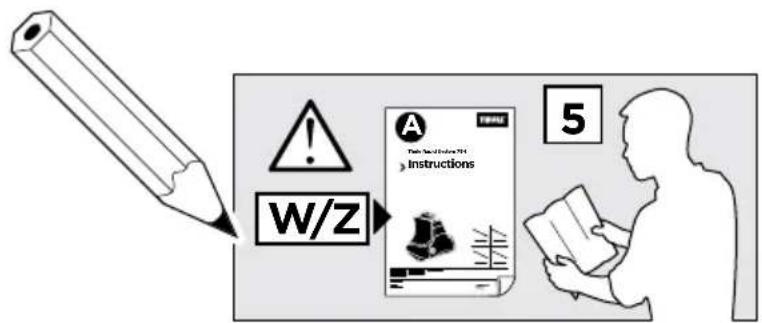

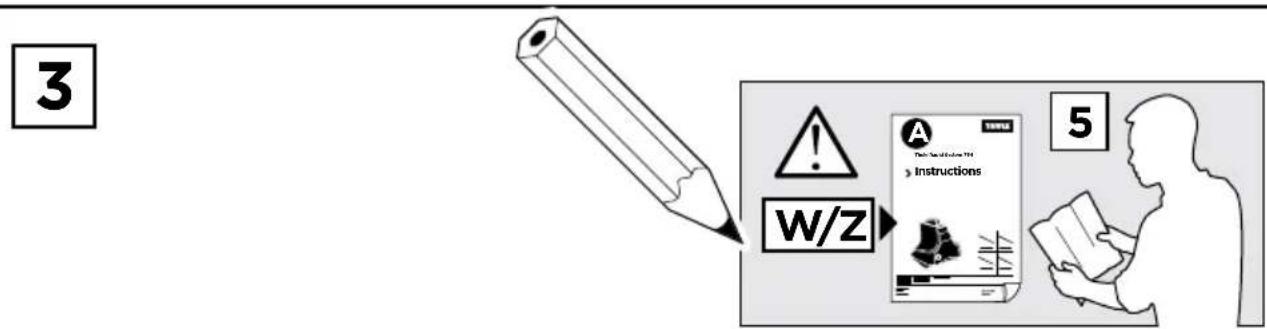

3

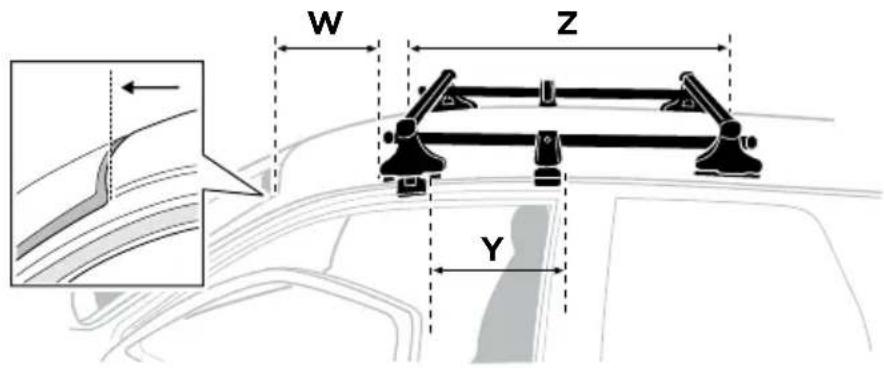

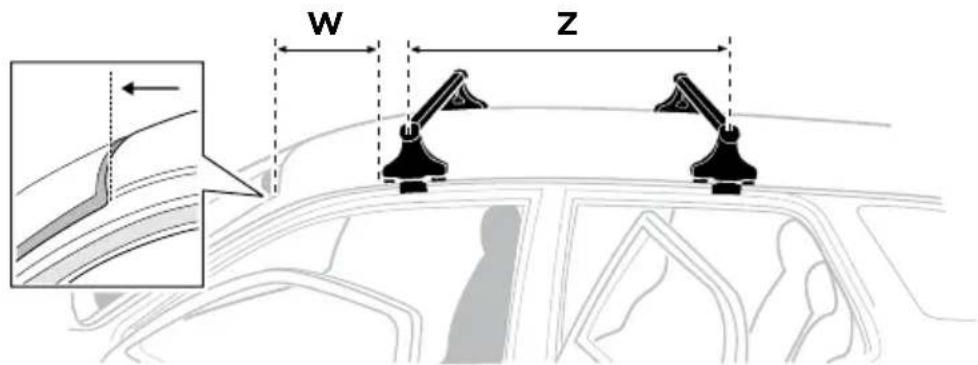

	W (mm) Z	(mm) Y (mm)	W (inch)	Z (inch) Y (inch)
VW Golf VII, 3-dr Hatchback, 13- / *15-	230	710	460	9	28	18^1/_8
VW GTI VII, 3-dr Hatchback, *15-	230	710	460	9	28	18^1/_8

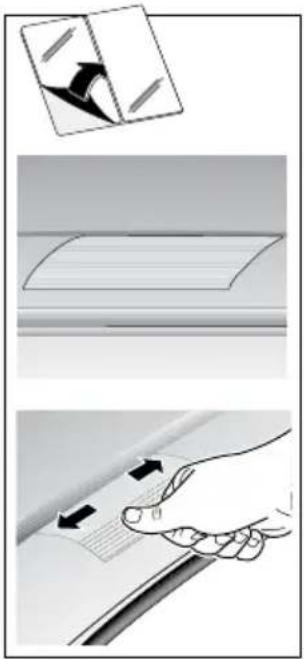

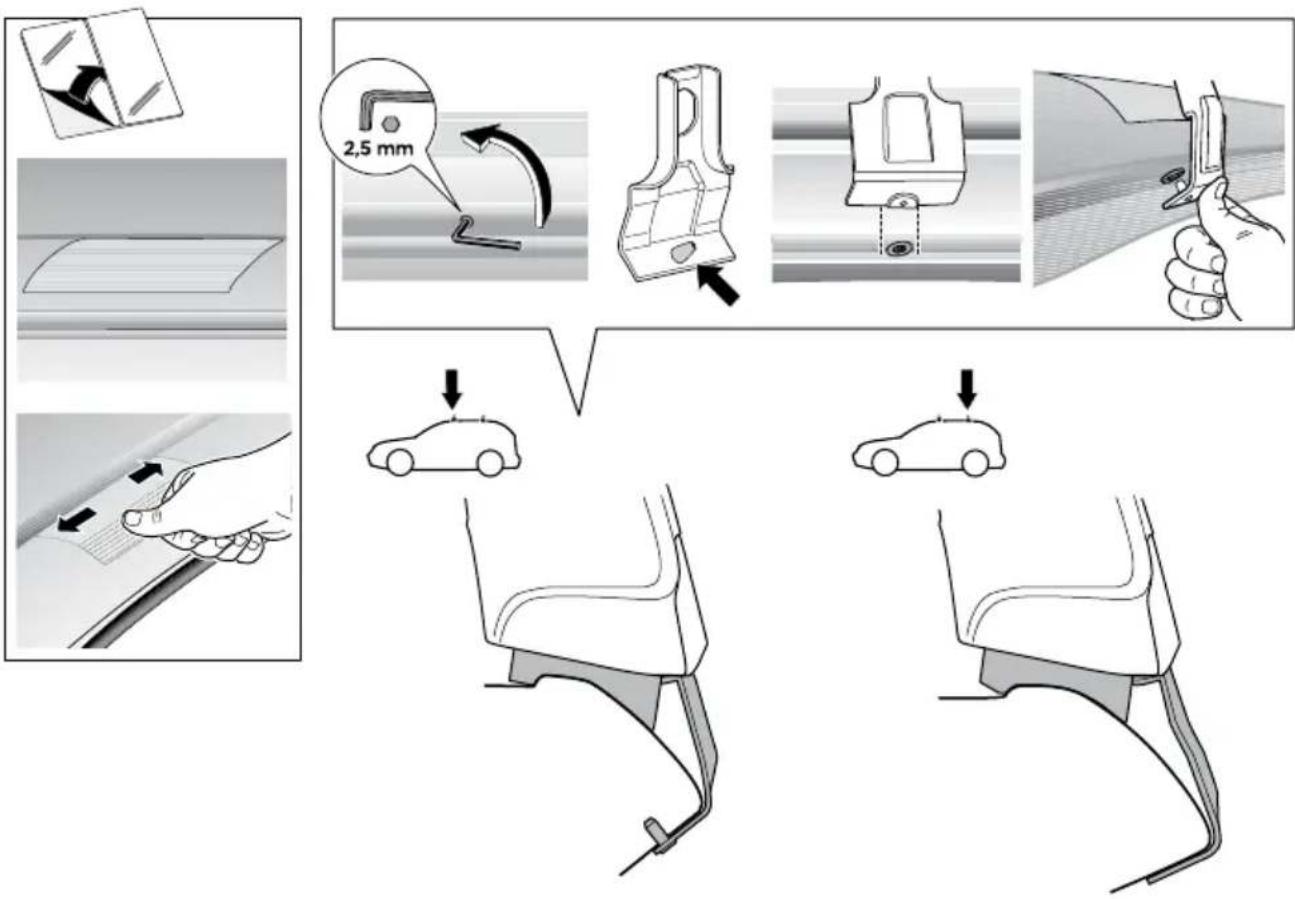

Three-step diagram showing a hand pressing down on a surface, with arrows indicating motion or force direction (no text or symbols)

	W (mm)	Z (mm)	W (inch)	Z (inch)
VOLKSWAGEN e-Golf, 5-dr Hatchback, 15-	230	710	9	28
VOLKSWAGEN Golf VII, 5-dr Hatchback, 13- / *15-	230	710	9	28
VOLKSWAGEN GTI VII, 5-dr Hatchback, *15-	230	710	9	28

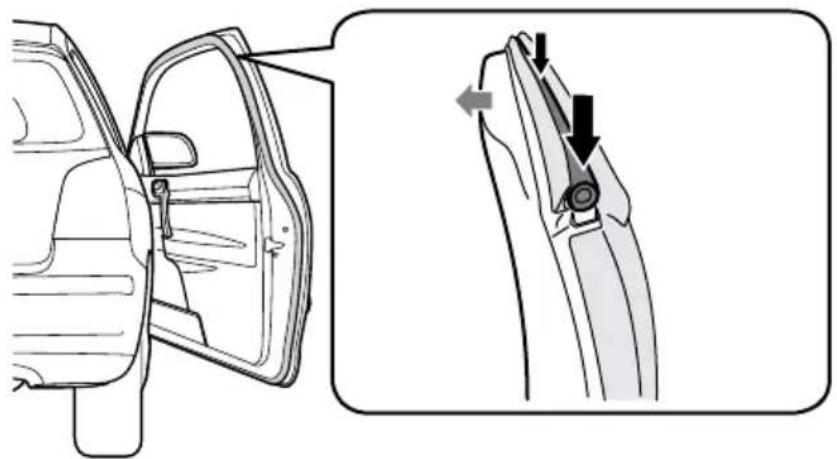

Diagram showing a car interior and side view of the door, with arrows indicating movement or force (no text or symbols present)
