6341T - Roof bars THULE - Free user manual and instructions

Product Type	Roof Bars
Brand	Thule
Model	6341T
Material	Aluminum
Load Capacity	75 kg (165 lbs)
Length	135 cm (53.1 inches)
Width	8 cm (3.1 inches)
Height	4 cm (1.6 inches)
Weight	4.5 kg (9.9 lbs)
Installation Type	Vehicle-specific mounting kit required
Aerodynamic Design	Yes, reduced wind noise
Lockable	Yes, integrated lock core
T-Track Compatibility	Yes, fits Thule accessories
Test Standard	City Crash Test approved
Warranty	5 years limited
Maintenance	Clean with mild soap and water; lubricate locks annually
Safety Notes	Do not exceed load capacity; secure loads properly; check tightness regularly
Spare Parts Availability	Replacement rubber pads, end caps, and locks available via Thule
Repairability	Modular design, parts replaceable
Country of Origin	Sweden

Frequently Asked Questions - 6341T THULE

How do I install Thule 6341T roof bars?

Installation requires a vehicle-specific fitting kit. Mount the bars onto the roof rails or fixed points using the included instructions. Torque bolts to specification (typically 5-6 Nm). Ensure locks are engaged.

What is the maximum weight capacity?

The maximum load capacity is 75 kg (165 lbs), evenly distributed. Always check your vehicle's roof load limit as well.

Are the bars compatible with my car?

Thule 6341T is designed for vehicles with raised roof rails. Use Thule's online fit guide to verify compatibility for your specific make and model.

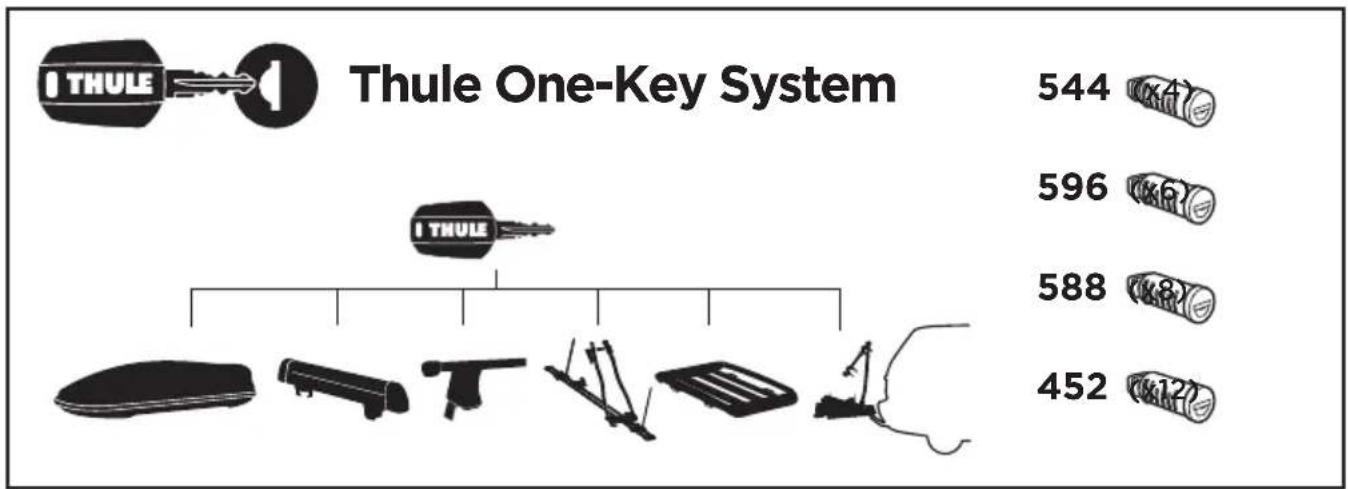

How do I lock the roof bars?

Use the included Thule lock core. Insert the key, turn to lock position, and remove key. The lock secures the bar to the mounting system.

Can I use other Thule accessories with these bars?

Yes, the bars feature a T-track compatible with Thule's range of bike carriers, cargo boxes, kayak carriers, and more.

How do I clean and maintain the roof bars?

Clean with mild soap and water. Avoid abrasive cleaners. Lubricate the lock core annually with graphite powder. Store bars indoors when not in use.

Do the bars cause wind noise?

The aerodynamic design minimizes wind noise. For best performance, ensure the bars are correctly aligned and rubber pads are in good condition.

What if I lose the keys?

Thule offers replacement keys. You can order by providing the key code stamped on the lock cylinder. Contact Thule customer support.

Can I cut the bars to length?

No, the bars are pre-cut to specific lengths. Cutting will compromise structural integrity and void the warranty. Order the correct length for your vehicle.

Are the bars rust-proof?

The bars are made of aluminum, which naturally resists corrosion. However, protect from hard impacts to avoid damage to the surface coating.

USER MANUAL 6341T THULE

Black silhouette of a snowman (no text or symbols)

Technical diagram showing a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

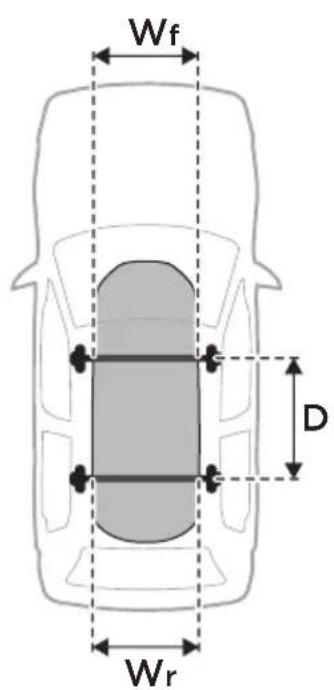

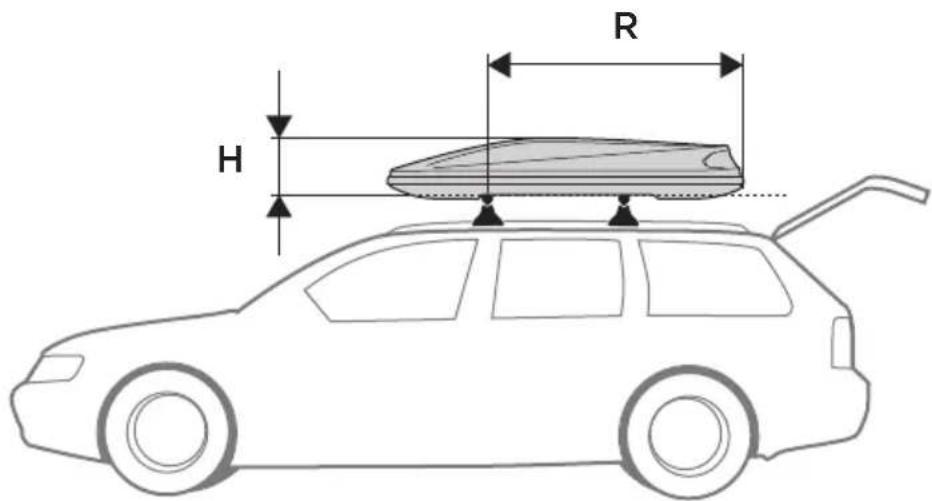

	D Min*	D Max*	Wf* Wr*	H* R Min*
Touring 100/S	515	925	763	740	406	937
Touring 200/M	545 9	55 702 6	97 413 11	49
Touring 600/Sport	545	955	525	528	359	1184
Touring 700/Alpine	545	955	587	583	382	1431
Touring 780/L	545	955	673	673	400	1250

1

2

x4

Diagram of a car door handle with three arrows indicating internal structure (no text or symbols)

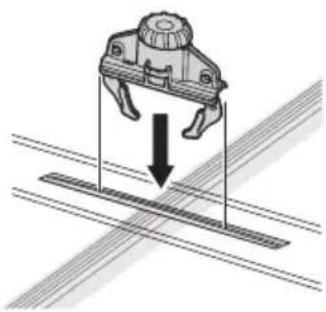

Mechanical assembly diagram showing a clamp or bracket with downward force arrow, mounted on two parallel plates (no text or symbols)

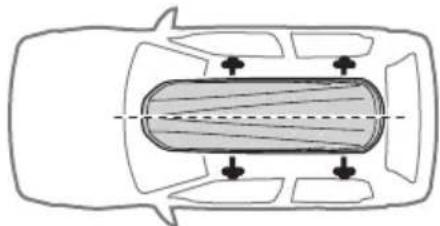

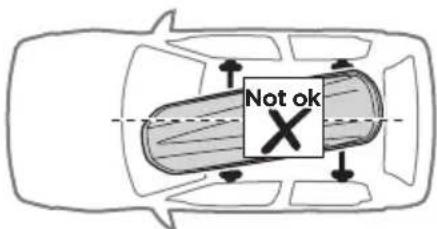

Top-down schematic of a vehicle showing internal components with arrows indicating movement or flow (no text or labels)

Side view line drawing of a car with a roof-mounted sensor array (no text or symbols)

3

5

6

Side profile illustration of a car (no text or symbols)

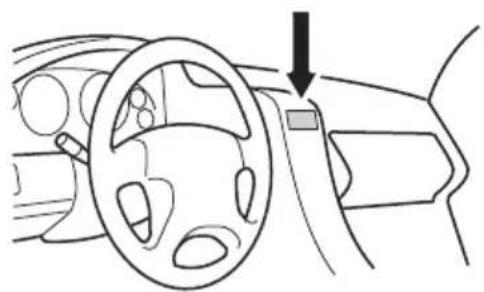

Diagram of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

i

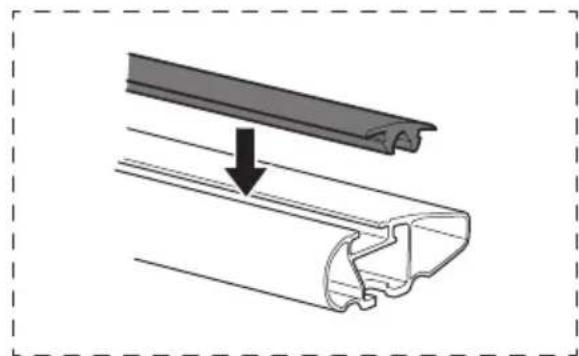

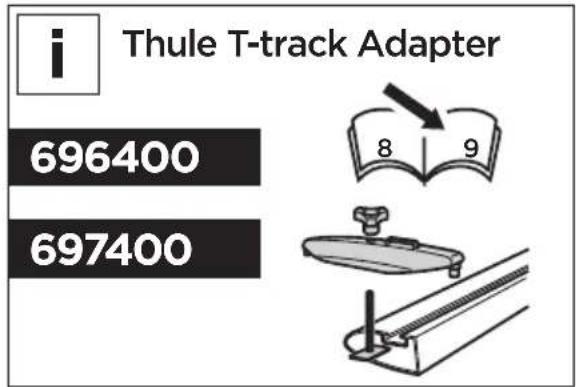

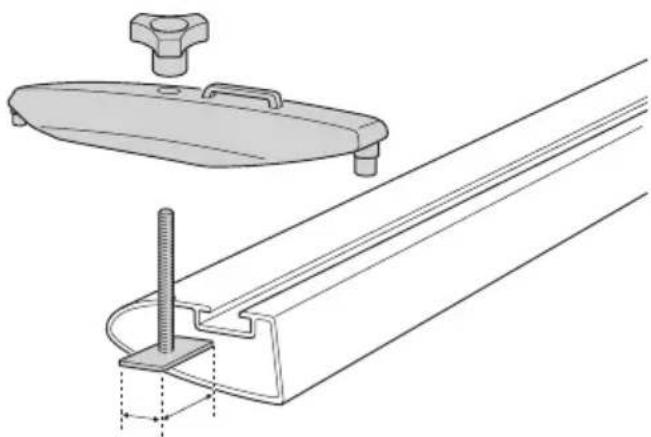

Thule T-track Adapter

696400

→ 24x30 mm

697400

→ 20x27 mm

Technical line drawing of a mechanical bracket assembly with mounting base and side plate (no text or symbols)

i

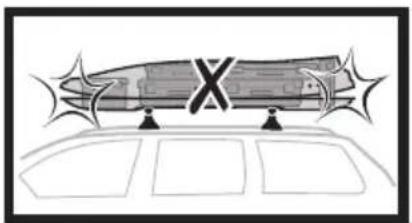

Illustration of a stylized object with a 'X' mark above it, surrounded by decorative sparkles and no visible text or symbols.

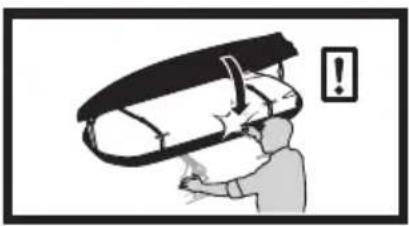

Illustration of a person using a large tool to lift a cylindrical object, with an exclamation mark above (no text or symbols on the object itself)

Simple line drawing of a car parked near a brick wall and a roof, with no text or symbols present.

Diagram showing a car being charged at a parking station with a cable, no text or symbols present

Diagram showing a fire safety symbol with a cross, smoke, and sun rays near a building (no text or labels)

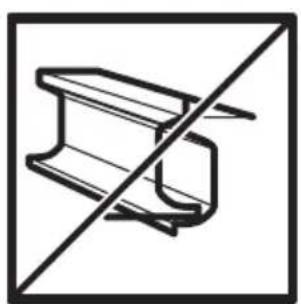

Pure technical diagram of a mechanical component with diagonal line crossing (no text or symbols)

Symbolic warning sign showing a bottle and explosion hazard (no text or numbers present)

Simple geometric diagram of a square with a diagonal line (no text or symbols)

Cross-sectional diagram showing a road with a mountain and a tree, no text or symbols present

Pure electrical circuit lines without any symbols

Crossed hammer and wrench symbol (no text or labels)

Symbolic illustration of a test tube falling into a hand holding a droplet, enclosed in a diagonal line (no text or labels)
