| Product Type | Roof bar kit |
| Brand | Thule |
| Model | Rapid System Kit 1730 |
| Category | Roof bars |
| Material | Aluminum |
| Crossbar Length | 135 cm (adjustable) |
| Weight | 4.5 kg |
| Maximum Load Capacity | 75 kg |
| Mounting System | Rapid System (foot pack included) |
| Compatibility | Vehicles with raised rails or fixpoints |
| Lockable | Yes (with Thule One-Key lock, sold separately) |
| Color | Silver/Black |
| Included Components | 2 crossbars, 4 feet, 4 load stops, instruction manual |
| Warranty | Limited lifetime |
| Certification | TÜV approved |
| Aerodynamic Design | Yes |
| Easy Installation | Yes (tool-free mounting) |
| Integrated Spring | Yes (for secure fit) |
| Maintenance | Clean with mild soap and water; avoid abrasive cleaners |
Frequently Asked Questions - Rapid System Kit 1730 THULE
How do I install the Thule Rapid System Kit 1730?
Place the feet on the roof rails or fixpoints, adjust the crossbar length, and tighten the knobs. Refer to the instruction manual for vehicle-specific details.
What is the maximum weight capacity of these roof bars?
The maximum load capacity is 75 kg evenly distributed. Always check your vehicle's roof load limit.
Can I install these roof bars on any vehicle?
No, they are designed for vehicles with raised rails or fixpoints. Check Thule's fit guide for compatibility.
Do the roof bars come with locks?
The bars have lock cylinders, but the Thule One-Key lock key is sold separately. You can purchase a lock kit.
How do I clean and maintain the roof bars?
Clean with mild soap and water. Do not use abrasive cleaners. Lubricate moving parts occasionally.
Are these roof bars aerodynamic?
Yes, the design reduces wind noise and drag compared to traditional bars.
Can I use a cargo box with these bars?
Yes, as long as the box fits the bar width and the total load does not exceed 75 kg.
How do I adjust the crossbar length?
Loosen the end caps, slide the bar to the desired length (up to 135 cm), and tighten. Ensure equal extension on both sides.
What tools are needed for installation?
No tools are required; the system uses tool-free knobs for tightening.
Is there a warranty on these roof bars?
Thule offers a limited lifetime warranty against manufacturing defects.
User questions about Rapid System Kit 1730 THULE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Roof bars in PDF format for free! Find your manual Rapid System Kit 1730 - THULE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Rapid System Kit 1730 by THULE.
USER MANUAL Rapid System Kit 1730 THULE
Thule Rapid System Kit 1730
> Instructions
TOYOTA RAV4, 5-dr SUV, 13-15, 16-18 (Without railing)

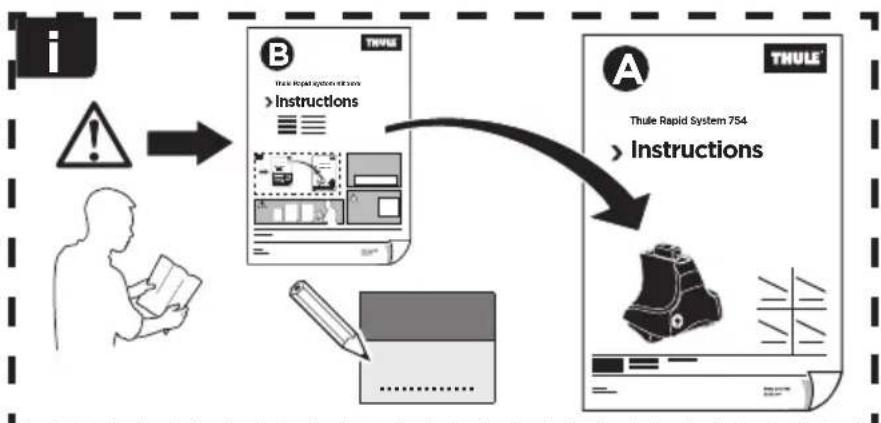

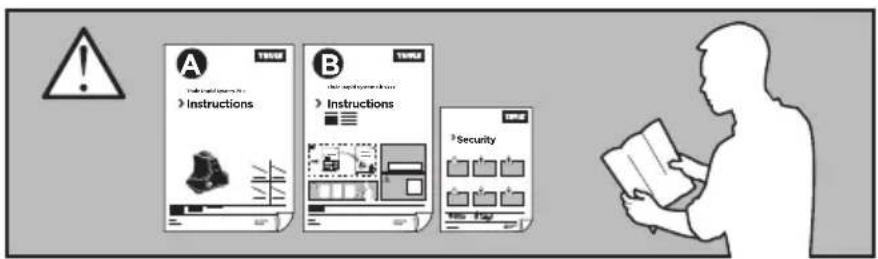

ISO 11154-E

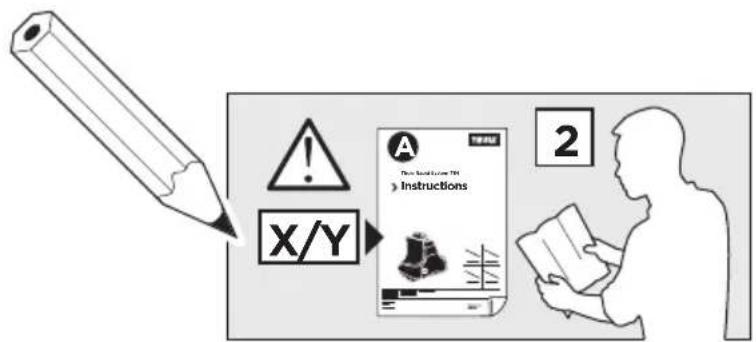

| X (scale) X (mm) X (inch) | |||
| TOYOTA RAV4, 5-dr SUV, 13-15, 16-18 (Without railing) | 43,5 | 1086 | 42^3/_4 |
| Y (scale) | Y (mm) | Y (inch) | |
| TOYOTA RAV4, 5-dr SUV, 13-15, 16-18 (Without railing) | 36 | 1011 | 39^7/_8 |
TOYOTA RAV4, 5-dr SUV, 13-15, 16-18 (Without railing)

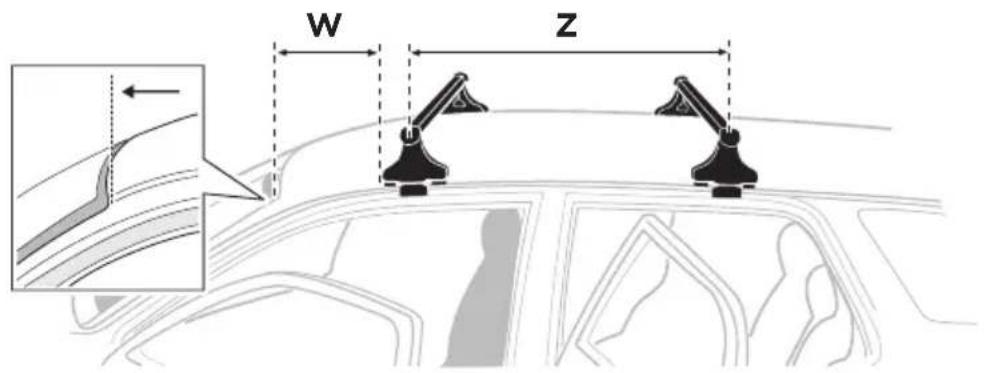

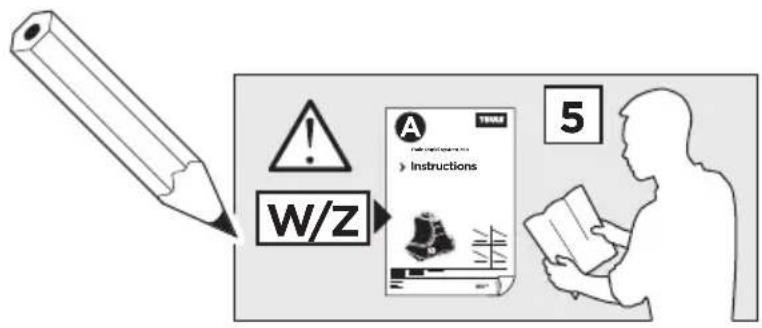

| W (mm) | Z (mm) | W (inch) | Z (inch) | |
| TOYOTA RAV4, 5-dr SUV, 13-15, 16-18 (W/o railing) | 350 | 700 | 13^3/_4 | 27^1/_2 |

