Product Type	Roof bars fitting kit
Brand	Thule
Model	Rapid System Kit 1463
Compatibility	Renault Laguna III (2007-2015) 5-door hatchback
Type	Vehicle specific fitting kit for Thule Rapid System 754 foot pack
Material	High-strength steel and plastic
Max Load Capacity	75 kg (165 lbs)
Weight (kit)	Approximately 0.5 kg (1.1 lbs)
Dimensions (fitting kit)	242 mm (W) x 758 mm (Z)
Attachment System	Clamps onto vehicle's door frames or mounting points
Security	Anti-theft locks included; conforms to ISO 11154-E
Speed Limits with Load	Max 130 km/h (80 mph); reduce to 80 km/h (50 mph) if load exceeds 40 kg
Installation	Requires Thule Rapid System 754 foot pack and load bars (sold separately)
Maintenance	Check bolts periodically; clean with mild soap and water
Repairability	Spare parts available from Thule; contact customer service

Frequently Asked Questions - Rapid System Kit 1463 THULE

Which vehicles is the Thule Rapid System Kit 1463 compatible with?

The kit is designed for the Renault Laguna III (2007-2015) 5-door hatchback. Always verify with Thule's fit guide.

Does the kit include roof bars?

No, this kit is a fitting kit only. You need to purchase the Thule Rapid System 754 foot pack and load bars separately.

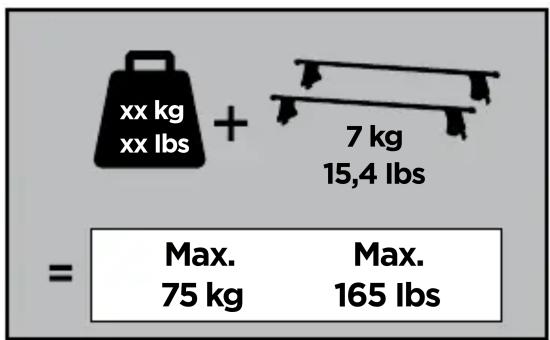

What is the maximum load capacity?

The maximum load capacity is 75 kg (165 lbs). Ensure the load is evenly distributed and does not exceed the vehicle's roof load limit.

Are tools required for installation?

Installation typically requires a torque wrench and metric hex keys. Follow the included instructions for proper tightening.

Can I use this kit with Thule square bars or aero bars?

This kit is designed for use with the Thule Rapid System 754 foot pack. Most Thule load bars compatible with that foot pack will work.

Is the kit lockable for security?

Yes, the kit includes anti-theft locks to secure the foot pack to the vehicle. Locks are keyed alike or can be rekeyed.

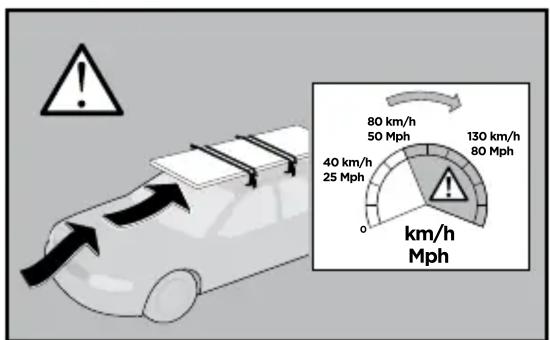

What is the recommended speed with a load?

Max speed is 130 km/h (80 mph). If the load exceeds 40 kg, reduce to 80 km/h (50 mph). Always adjust for road conditions.

How do I clean and maintain the fitting kit?

Clean with mild soap and water. Avoid harsh chemicals. Regularly check the bolts and clamps for tightness and wear.

Can I replace individual parts if damaged?

Yes, Thule offers spare parts for their fitting kits. Contact Thule customer service or visit their website for replacements.

Does this kit work with a roof box or bike carrier?

Yes, once installed with bars, it can carry roof boxes, bike carriers, and other accessories up to the maximum load limit.

USER MANUAL Rapid System Kit 1463 THULE

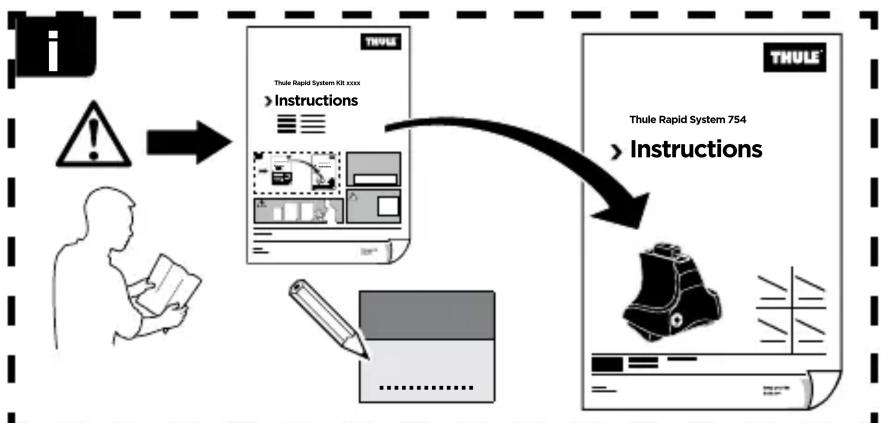

Thule Rapid System Kit 1463

> Instructions

RENAULT Laguna (III), 5-dr Hatchback, 07-15

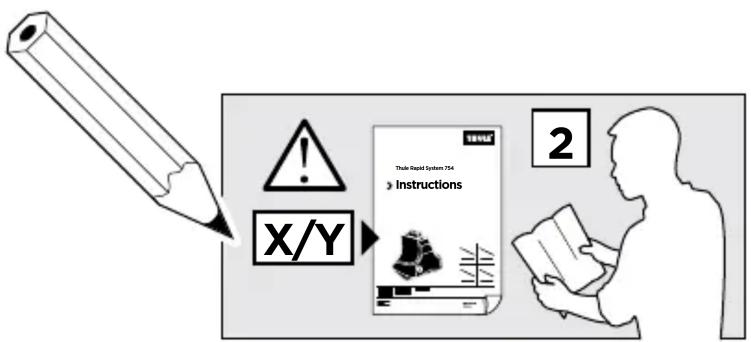

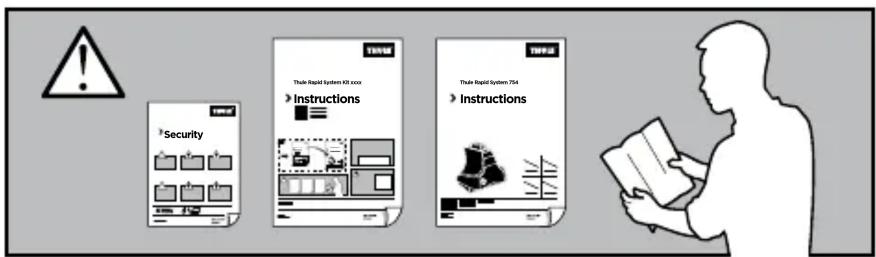

    A["Warning"] --> B["Instructions"]
    B --> C["Thule Rapid System 754"]
    C --> D["Product Packaging"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333

ISO 11154-E

1

	X (scale)	X (mm)	X (inch)
RENAULT Laguna (III), 5-dr Hatchback, 07-15	37	1021	40^1/_4

Y (scale) Y (mm) Y (inch)

RENAULT Laguna (III), 5-dr Hatchback, 07-15 36,5 1016 40

RENAULT Laguna (III), 5-dr Hatchback, 07-15

3

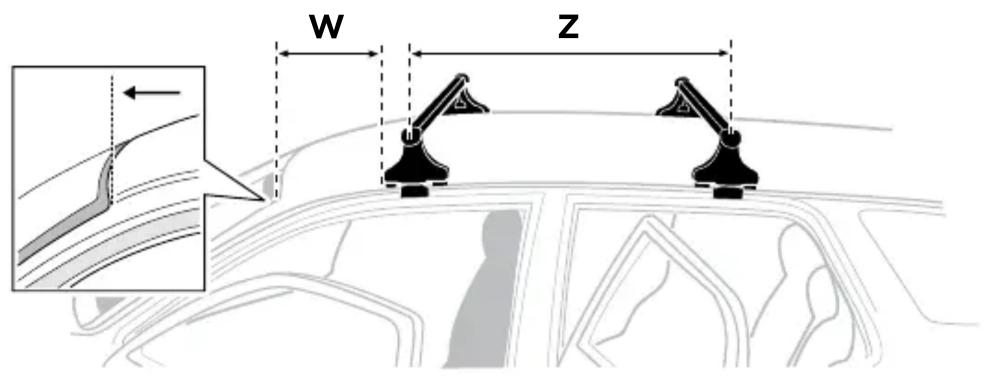

	W (mm)	Z (mm)	W (inch)	Z (inch)
RENAULT Laguna (III), 5-dr Hatchback, 07-15	242	758	9^1/_2	29^7/_8

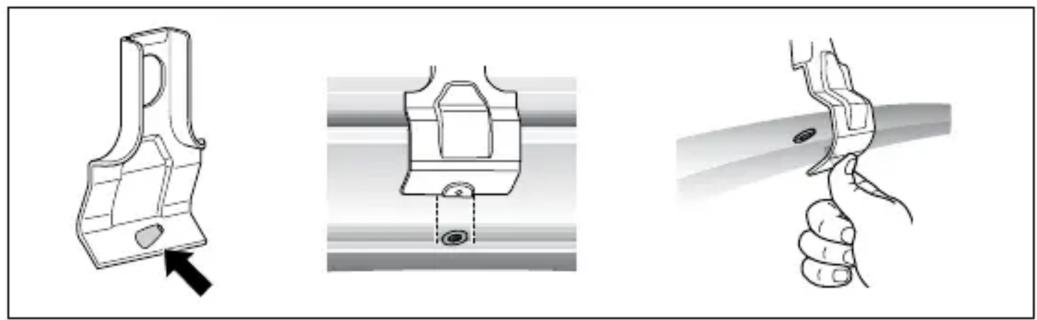

Three technical diagrams showing mechanical components with no visible text or symbols
