Welcome

And thank you for purchasing the All-U Karaoke Mic from VocoPro, your ultimate choice in Karaoke entertainment! With years of experience in the music entertainment business, VocoPro is a leading manufacturer of Karaoke equipment, and has been providing patrons of bars, churches, schools, clubs and individual consumers the opportunity to sound like a star with full-scale club models, in-home systems and mobile units. All our products offer solid performance and sound reliability, and to reinforce our commitment to customer satisfaction, we have customer service and technical support professionals ready to assist you with your needs. We have provided some contact information for you below.

VocoPro

1728 Curtiss Court

La Verne, CA 91750

Toll Free: 800-678-5348

Tel: [phone]

7

Listening for A Lifetime

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to a higher volume of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

- Start your volume control at a low setting.

- Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

- Pay attention to the different levels in various recordings.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

9

Table of Contents

Safety Instructions 3

FCC Information 5

Welcome. 7

Listening for a Lifetime 9

Before Getting Started 11

Descriptions and Functions 13

Getting Connected 17

Commonly Asked Questions/Specifications....24

The iPhone, IOS, and Android trademarks are property of their respective owners.

VocoPro is not affiliated with either company.

1. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

7 A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause an overturn.

1. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation slots.
2. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
3. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

4. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.

5. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

6. Cleaning - Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning
7. Power lines - An outdoor antenna should be located away from power lines.
8. Nonuse Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
9. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
10. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    A. The power supply cord or plug has been damaged; or B. Objects have fallen into the appliance; or
    C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
    E. The appliance has been dropped, or the enclosure damaged.

If these corrective measures do not produce satisfactory results, please contact your local retailer authorized to distribute Vocopro products. If you can not locate the appropriate retailer, please contact Vocopro, 1728 Curtiss Court, La Verne, CA 91750.

CAUTION

The apparatus is not disconnected from the AC power source so long as it is connected to the wall outlet, even if the apparatus itself is turned off. To fully ensure that the apparatus is indeed fully void of residual power leave unit disconnected from the AC outlet for at least fifteen seconds.

CALIFORNIA PROP 65 WARNING WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. (California law requires this warning to be given to customers in the State of California.) For more information: www.vocopro.com/prop65

Voltage Selector (General Model Only) Be sure to position the voltage selector to match the voltage of your local power lines before installing the unit.

CAUTION:

READ THIS BEFORE OPERATING YOUR UNIT

1. To ensure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2. Install your unit in a cool, dry, clean place - away from windows, heat sources, and too much vibration, dust, moisture or cold. Avoid sources of hum (transformers, electric motors). To prevent fire or electrical shock, do not expose to rain and water.
3. Do not operate the unit upside-down.
4. Never open the cabinet. If a foreign object drops into the set, contact your dealer.
5. Place the unit in a location with adequate air circulation. Do not interfere with its proper ventilation; this will cause the internal temperature to rise and may result in a failure.
6. Do not use force on switches, knobs or cords. When moving the unit, first turn the unit off. Then gently disconnect the power plug and the cords connecting to other equipment. Never pull the cord itself.

6

Customer Service & General Information:

[e-mail]

Tech Support:

[e-mail]

Remember Our Website

Be sure to visit the VocoPro website www.vocopro.com for the latest information on new products, packages and promos. And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ service directory!

We look forward to hearing you sound like a PRO, with VocoPro, the singer's ultimate choice.

FOR YOUR RECORDS

Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. Space is also provided for other relevant information

Model Number

Serial Number

Date of Purchase

Place of Purchase

8

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Some common decibel ranges:

Level Example

30 Quiet library, Soft whispers
40 Living room, Refrigerator, Bedroom away from traffic
50 Light traffic, Normal Conversation
60 Air Conditioner at 20 ft., Sewing machine
70 Vacuum cleaner, Hair dryer, Noisy Restaurant
80 Average city traffic, Garbage disposals, Alarm clock at 2 ft.

The following noises can be dangerous under constant exposure:

Level Example

90 Subway, Motorcycle, Truck traffic, Lawn Mower 100 Garbage truck, Chainsaw, Pneumatics drill 120 Rock band concert in front of speakers 140 Gunshot blast, Jet plane 180 Rocket launching pad

-Information courtesy of the Dealness Research Foundation

10

Before Getting Started

FEATURES:

• High Quality Condenser Microphone Element
- Compact Form Factor for Ultimate Portability
- Microphone Tone and Echo Effect Adjustments at Your Fingertips
- Long Lasting Internal Rechargeable Battery
- Attractive Metal Finish
- Includes 1/8"-to-USB Input Cables for both Android™ and iPhone®.

INTRODUCTION:

The All-U Karaoke Microphone is a personal karaoke machine. All you need is a smartphone (iPhone® or Android™) loaded with a karaoke app to play music and record your performance.

11

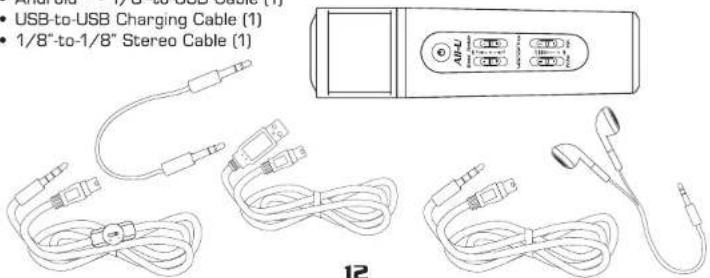

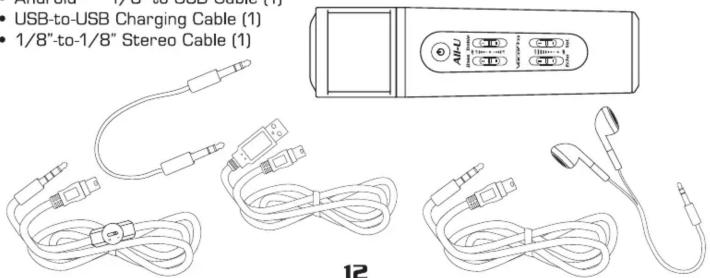

WHAT'S IN THE BOX:

The All-U Karaoke Microphone comes packaged with all the cables required to connect to an iPhone® or Android™ smartphone or computer.

• Headphones (1)
- iPhone® - 1/8"-to-USB Cable (1)
- Android™ - 1/8" to USB Cable (1)
• USB-to-USB Charging Cable (1)
• 1/8"-to-1/8" Stereo Cable (1)

• USB-to-USB Charging Cable (1) • 1/8"-to-1/8" Stereo Cable (1)

Descriptions and Functions

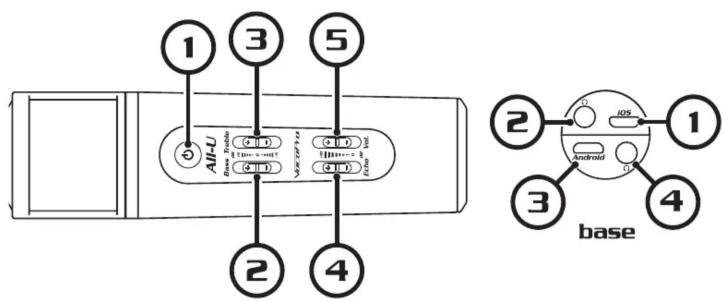

MICROPHONE BODY:

1. Power - This button powers the Microphone ON/OFF.
   a. Press and hold button for 3 seconds to toggle power.
2. Bass - This slider adjusts the amount of Bass (low frequencies) present in the mic audio. Adjust to suit your vocals when performing.
   a. Slide UP for additional Bass response.
   b. Slide DOWN for less Bass response.
   c. Middle position has no alteration to the mic audio.
3. Treble - This slider adjusts the amount of Treble (midrange frequencies) present in the mic audio. Adjust to suit your vocals when performing.
   a. Slide UP for additional Treble response.
   b. Slide DOWN for less Treble response
   c. Middle position has no alteration to the mic audio.

13

1. Echo - This slide adjusts the amount of Echo effect present in the mic audio. a. Raise the slider position—Increase the Echo effect. b. Lower the slider position—Reduce the Echo effect.
2. Volume - his adjusts the microphone volume. a. Higher the slider position—Higher the volume.

The iPhone, IOS, and Android trademarks are property of their respective owners. VocoPro is not affiliated with either company.

14

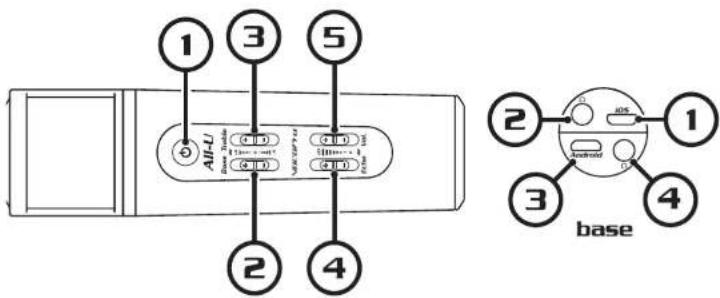

MICROPHONE BASE:

1. 5V DC Charging Input Jack/iPhone® Audio Input - This USB Jack has 2 Functions:
   a. 5V DC Charging Input - Use the included USB-to-USB cable to charge the All-U Karaoke Mic from a computer USB jack; or from a 5V adapter (not included).
   b. iPhone® Audio Input - When the Microphone is charged, this input is used to interface with an iPhone® running a karaoke app.
2. iPhone® Headphone Out - This 3.5mm (1/8") jack is used for headphones to hear the iPhone® audio mix.
3. Android™ Audio Input - This input is used to interface with an Android™ smartphone running a karaoke app.
4. Android™ Headphone Out - This 3.5mm (1/8") jack is used for headphones to hear the Android™ audio mix.

1 3 5 AI-I-U IIPS 2 4 IIPS 2 3 4 base

15

16

Getting Connected

CHARGING THE MICROPHONE:

1. To charge the battery, plug one end of the included USB-to-USB cable into the 5V DC Charging Input and the other end into a computer USB jack; or a 5V DC charger such, as a cell phone adapter (not included).
2. When charging, the Power Button LED will glow RED.
3. When charging is completed, the Power Button LED will go out. Note: Typical charge time is about 3-4 hours. The recommended initial charge is 5 hours.

Diagram showing connection between a laptop and an Ethernet cable, with labeled ports and note indicating 'not included'

17

USING A SMARTPHONE:

IPHONE®:

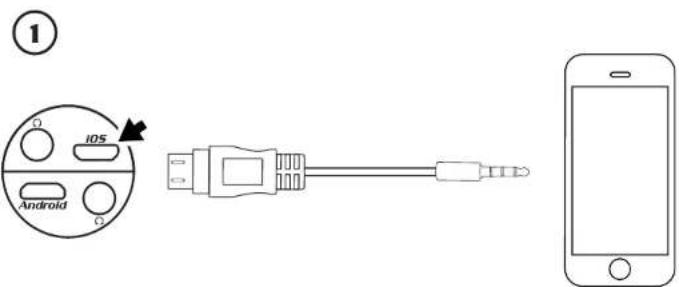

1. Plug the included 1/8"-to-USB cable labeled "iPhone® Recording Cable" into the All-U Karaoke iPhone Audio Input Jack and also the headphone output on your iPhone®.
2. Plug in a set of headphones (included) into the iPhone® Headphone Output to hear your voice.
3. Adjust any microphone audio settings to suit your musical tastes.
4. Load your preferred karaoke app on your iPhone® to play tracks and to record your performance.

18

① iOS Android

19

② iOS Android

20

ANDROID™:

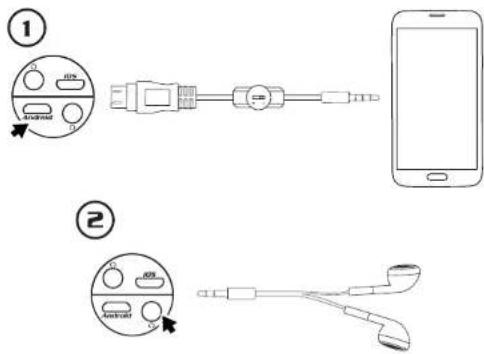

1. Plug the included 1/8"-to-USB cable labeled "Android™ Mobile Recording Cable" into the All-U Karaoke Android™ Audio Input Jack and also the headphone output on the Android™ smartphone.
