WhiteShark Mix - Scooter Sublue - Free user manual and instructions

Product Type	Underwater Scooter
Brand	Sublue
Model	WhiteShark Mix
Dimensions	462.3 x 228.4 x 149.6 mm
Weight (with battery)	2850 g
Power	520 W (dual 260 W thrusters)
Maximum Speed	3 mph (1.5 m/s)
Maximum Depth	40 m
Battery Duration	40 minutes (normal use)
Battery Capacity	11000 mAh / 121 Wh
Charging Time	≤3 hours
Single Thruster Force	4 kgf
Propeller Design	Dual spiral propellers with safety nets
Controls	Magnetic start buttons on left and right handles
Mounting Support	Universal port for GoPro camera (camera not included)
Buoyancy	Zero buoyancy in freshwater; will not sink if released
Indicator Lights	Battery level (5 LEDs) and logo status
Package Contents	1 scooter, 1 battery, 1 charger, 1 adapter, 1 anti-lost rope, 1 bag, 1 buoyancy capsule, manual, certificate
Maintenance	Rinse with fresh water after use; wipe dry; remove debris from propeller; store in cool ventilated place
Safety Features	Propeller safety nets, safety lock, anti-lost rope, automatic stop on release
Warranty	6 months

Frequently Asked Questions - WhiteShark Mix Sublue

How do I charge the battery?

Use the supplied special charger. The battery is fully charged when all five indicator lights turn on. Charging time is ≤3 hours. Only use the included power adapter.

What is the maximum operating depth?

The maximum depth is 40 meters. Do not exceed this limit to avoid damage.

How long does the battery last on a single charge?

Under normal use, the battery lasts approximately 40 minutes. Actual duration may vary based on speed, user weight, and water conditions.

Can I use the WhiteShark Mix in saltwater?

Yes, it can be used in shallow seas. However, after each use in saltwater, rinse the device thoroughly with fresh water and dry it to prevent corrosion.

Is it safe for beginners or non-swimmers?

Non-swimmers must use the scooter in shallow water with life-saving equipment and a lifeguard present. Children under 14 years are not allowed to use it. Persons aged 14–18 must be accompanied by an adult.

How do I install the battery?

Slide the battery into the compartment until you hear a click from the snap joint. Ensure it is firmly locked. Only install in a dry environment with dry hands.

What should I do if the propeller gets blocked?

First, cut off power. Remove the upper cover of the thruster and inspect the propeller for debris or entanglement. Clean any foreign objects. If the problem persists, contact after-sales service.

Can I attach a GoPro to the WhiteShark Mix?

Yes, the scooter has a universal port for mounting a GoPro camera. The camera is not included and must be purchased separately.

Will the scooter sink if I let go underwater?

No, the WhiteShark Mix is designed with zero buoyancy in freshwater. It will remain neutrally buoyant and will not sink to the bottom even if released.

How should I clean and store the scooter after use?

After each use, rinse the scooter (without battery) with fresh water and wipe dry. Remove any debris from the propeller blades and shaft. Store in a cool, ventilated place. For long-term storage, remove the battery.

USER MANUAL WhiteShark Mix Sublue

Line drawing of a three-wheeled vehicle with wheels and a handle (no text or symbols)

WHITE SHARK™ MIX «

UNDERWATER SCOOTER

用户手册

User Manual

V1.0

Diagram of three open book pages with blue arrows indicating rotation or movement (no text or symbols)

[4] [3] [2] [1] [5] [6] [12] [13] [14] [9] [8] [7] [10] [11] [3] [6] [1] [2] [15] [9] [11] [7] [8] [16]

简体中文 01

English 17

Simple blue right-pointing arrow shape on white background (no text or symbols)

目录

Simple blue right-pointing arrow shape on white background (no text or symbols)

目录……1

概述……2

产品技术参数……4

白鲨 MIX 部件介绍……6

使用操作说明……7

一般故障与排除方法……8

安全注意事项……9

声明……12

保养说明……14

物品清单……15

公司介绍 …… 16

保修卡

概述

Table of Contents......17

Overview....18

Product Technical Parameters 20

WHITE SHARK™ MIX component introduction……22

Operation preparation before use....23

General failure and troubleshooting 25

Safety Matters 26

Announcement....30

Maintenance Instruction 32

Item Checklist....33

Company introduction......34

Warranty Policy

Overview

WHITE SHARK™ MIX is an underwater assistance product carrying double propeller and compact design, firstly launched by SUBLUE in the world. In the compact body is embedded excellent performance equipped with the company's independently developed double propelling system on the right and left. The propelling force of the single spiral propeller reaches 4kgf, presenting a perfect integration of compact body and high propelling power and make you comparable to a swimming professional in the water. Even if you are a beginner in swimming, WHITE SHARK™ MIX can help you become a star in the water to enjoy the honor of shining in the swimming competition area.

Main Features of WHITE SHARK™ MIX

1. One minute hands-on with extreme humanly simplicity design.

To make sure that new user of WHITE SHARK™ MIX can also enjoy it relaxing, we have considered each and every detailed feeling of the users during use. The extremely simple balanced design of only the magnetic switches at the hand places both right and left are designed which takes no studying trouble. You can easily take it and enjoy the pleasure of swimming freely in the water.

2. Not only help you move faster.

On the extremely simple and cool MIX body full of future sense, we have specially designed a general port for hanging GoPpro Camera* to help you record everything in the water from the first angle of view while you are freely swimming.

*The Gopro Camera needs to be purchased by yourself.

3. Pursuit of fun and easy operation as well as safety.

The balanced design of the double-spiral propeller on the right and the left ensures steadiness and easy operation in application besides harmony and elegance to view. Safety nets are designed for the spiral propellers to avoid any wound to the fingers. We also have fully simulated various scenarios in the water and by creative and smart structure designs we make MIX be able to stay in a zero-buoyancy status* in fresh water. Even if you let go of your hands in the water, MIX will not sink to the bottom.

Product Technical Parameters

DEVICE SPECIFICATION
Size	Length 462.3mm x width228.4mm x heightl49.6mm
Weight	2850g (Battery included)
Power	520W
Speed	3 miles/hour(1.5m/s)*
Working Depth	40m (maximum depth)*
Battery Duration	40 minutes (normal use)*
Indicator Light	Meets the working status and battery charge indication need
External Hanging Support	Gopro* and buoyancy capsule

MOTOR SYSTEM
Single Thruster Force	4kgf
Single Thruster Maximum Power	260W

*Note:
1. The speed may vary with different people and environment.

POWER ADAPTE
Voltage	11.1V
Rated Power	100W
BATTERY
Capacity	11000mAh
Voltage	11.1V
Energy	121WH
Changing Environment Temperature	0~40°C
Maximum Charging Power	100W
Charging Period	≤3 hours
Weight	820g

2.40 minutes is the laboratory value and a mean under the normal conditions of normal people using the product under water.
3. It is recommended that you prepare two or more spare special batteries for longer battery duration.
4. Gopro should be purchased by yourself.

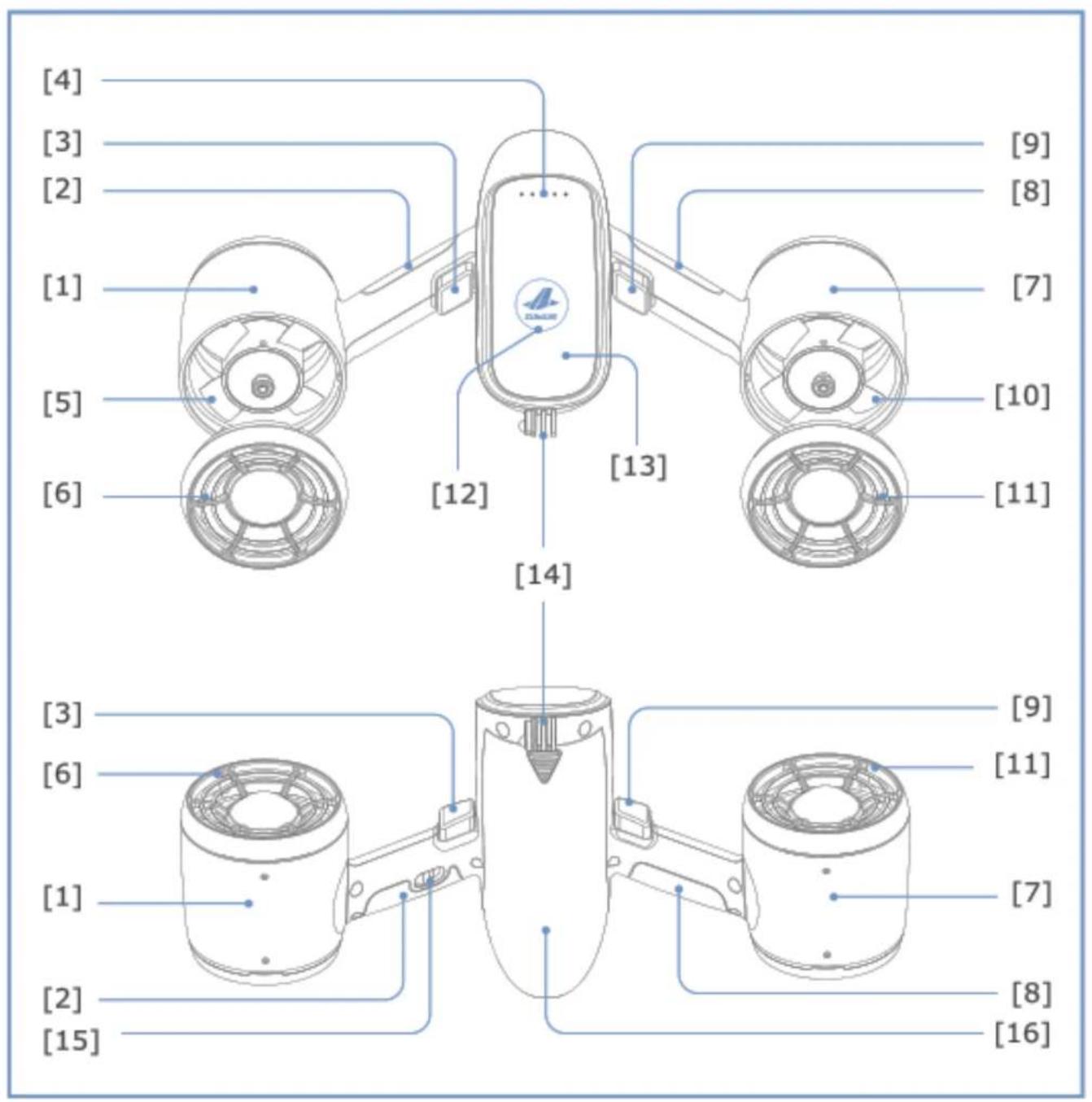

WHITE SHARK™ MIX component introduction

WHITE SHARK™ MIX component names

(Please refer to the WHITE SHARK™ MIX component diagram on Page 3.)

[1] Propeller 1
[2] Handle 1
[3] Start Button 1
[4] Battery Indicator
[5] Propeller Blade 1
[6] Protection Net 1
[7] Propeller 2
[8] Handle2
[9] Start Button 2
[10] Propeller Blade2
[11] Protection Net2
[12] Logo Indicator
[13] Control Capsule
[14] Buoyancy Capsule / Gopro (purchase by yourself) Hanger
[15] Safety Lock
[16] Rear cover

Operation preparation before use

Preparation before use

1. Before using this product, charge the battery till full with the special charger. When the five power indicating lights all turn on, the battery is fully charged.

2. You will hear the clicking of the snap joint when you correctly install and fasten the batteries. Please make sure the battery is firmly installed.

(As shown in the picture below)

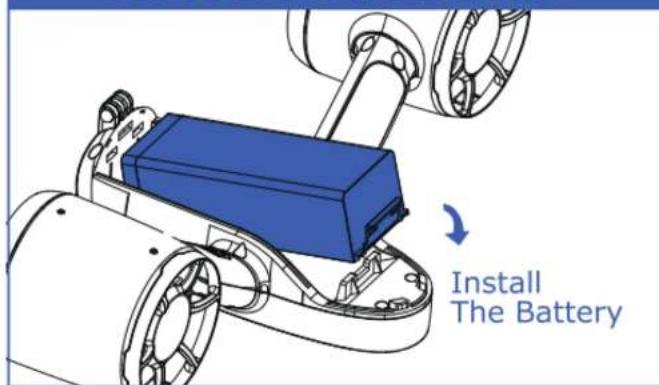

BEFORE INSTALLATION

Install The Battery

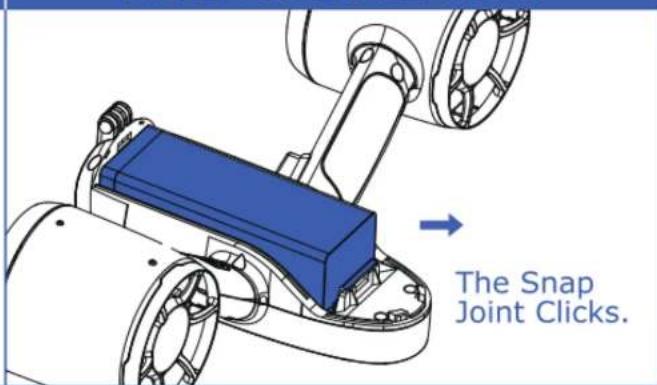

AFTER INSTALLATION

The Snap Joint Clicks.

1. Check if there is any damage to the exterior shell. If yes, then do not use it underwater.

2. Push down the two start buttons in the air and test-run the product (for no more than 1 minute) to see if the thruster is operating normally and there is no blocking or noise. Check the power indicating light and LOGO indicating light are on normally.

3. To prevent the product from missing, you can use anti lost ropes when diving deep. Pay attention to the surrounding environment to avoid rope entanglement.

4. Use after the above items are all checked. If there is any problems, please don't use the product.

General failure and troubleshooting

1. If the spiral propeller is blocked or others, please remove the upper cover of the thruster after cutting off the power, and pull out the propeller to check if there is any blockage or entanglement in the upper and lower axle bearings and the propeller blades. Remove the adhering foreign matters and continue to use if there is no abnormalities. If it still does not work, then please contact our after sales service.
2. If the battery is damaged or has swollen, or its temperature is abnormally high out of accidental occasions, please do not use any more and purchase a new special battery to replace the old one.

Signs Description

Waring! (Indicating that this may affect personal safety and normal use Of the product).

Note. Detailed explanation and instruction.

Safety Guarantee Tips

The following tips are extremely important. PLEASE OBEY THE TIPS!

Before using this product, please fully understand the waters you are to enter. The user shall ensure the swimming and diving activities are conducted in appropriate waters, and the waters management permits use of the product in the area.

Users who cannot swim shall use this product in shallow water and make sure that they are equipped with life-saving equipment, or that a swimming/lifeguard instructor is present.

Users without a diving license shall use this product under the permit and ensure that the trainer is present.

This product is a recreational device and cannot be used as a life-saving device.

This product should not be used by minors under fourteen years of age.

A person who is over fourteen years of age and under eighteen years of age should use this product accompanied by his guardian.

To avoid possible risks, this product should not be used by the elderly, pregnant women and those unfit for swimming/snorkeling.
Do not drink or take medicine before or during using this product.
During use of this product, the user shall put on a swimming cap, and should pay special attention to anyone with long hair nearby to avoid any human hair or clothing being entangled into the propeller.
Do not put your finger or other parts of the human body into the propeller at any time, nor shall any foreign object be inserted into the propeller.
Try to use this product in an open space. Please pay attention and don't let the clothes, algae, ropes, shark nets, shells, sand or other sundries into the propeller so as to avoid danger.
When using this product, please do not turn your eyes and face right to the rear of the propeller.
Please stand firm when entering the water, and then use this product to prevent falling.
You should hold the product handle tightly in the water to avoid danger.
When using this product in the water, you should always pay attention to the surrounding environment to avoid collisions.

Please check the battery power before use. When using this product in the water, please pay attention to the power at any time and make sure you return to land before (the battery runs out).
The product contains battery, so please gently take or put it. AVOID any strong vibration, bumping, and striking.
Use the equipped adapter of the product to charge, and any other type of adapter is forbidden to charge the product.
Non factory after-sales service personnel are not allowed to repair without authorization because incorrect repair will lead to product leakage, damage, fire or electric shock.
Do not change batteries in the water. Be sure to change them in a dry environment and make sure the device and your hands are dry.
Do not put in or plug the battery with wet hands, or there will be a danger of leakage.
Before using this product, fully check the product to make sure the battery is not damaged and the power is sufficient, and ensure of the double propeller and thruster operation are normal.
In order to protect the motor life, do not continuously start the product for more than one minute in a non-water environment. If there is an abnormal condition (such as burning smell etc.), immediately release the button to stop the machine operation, and immediately disconnect the power supply.

Do not try this product directly on the beach to prevent sand, shellfish, or other debris from being brought into the propeller.
The product surface cannot contact volatile substances or acid substances such as gasoline, banana oil, etc., or any sharp objects.
Do not place any heavy objects on the product.
Do not put the battery into fire.

Announcement

Thank you

For choosing WHITE SHARK™ MIX, an underwater assistance product, specifically designed and manufactured for you by SUBLUE UNDERWATER AI CO,LTD.

WHITE SHARK™ MIX series adopts the patent propeller of SUBLUE for the motor parts and has many advantages such as being small and flexible, with powerful drive, light weight, and low underwater noise.

WHITE SHARK™ MIX is a whole new portable diving assistance product featuring compact design, easy operation, elegant appearance, powerful engine and so on. t is applicable for environments* including swimming pools, lakes, shallow seas, etc. and meets the actual application requirements of customers for snorkeling, diving and others.

* Before using this product in swimming pools, lakes, shallow seas and other environments, please make sure that you are in the allowed waters for swimming and snorkel-ing, and that the managing party permits use of this product.

May we remind you that

1. Please read this user manual carefully before using the product because it will help you to master the operation methods and performance features of this high-tech product.
2. To master all the functions of this product as fully as possible, we suggest that you fully read this manual before operation. Please store this manual properly for review any time.

Maintenance Instruction

1. Completely clean the product every time after use. Rinse the product surface clean (do not take the battery) and wipe it dry. Remove the adhering foreign matters on the propeller blades and motor axle and place the product in a cool ventilated place.
2. Take out the battery if you intend to not use the product for a long time and place the product in a cool ventilated place.
3. Before re-using the product after a long time, you need to make sure that the battery power is full (please refer to "Operation Instruction" for the detail of battery charging and confirmation method) and then use it.

Item Checklist

SUBLUE provides users of WHITE SHARK™ MIX with the following standard configuration.

One WHITE SHARK™ MIX
◆ One piece of battery
◆ One special charger
◆ One power adapter
◆ One anti lost rope
◆ One portable bag
◆ One user manual (including a warranty)
◆ One qualification certificate
◆ One buoyancy capsule

SUBLUE UNDERWATER AI CO.LTD

Sublue Underwater AI Co. Ltd is a high-tech company specializing in the research and development of underwater monitoring robot. Surrounding two major themes of ocean resource detection and environment monitoring, the Company provides the society with related technical solutions and products to autonomous underwater vehicle (AUV), underwater glider, remotely operated vehicle (ROV) and other underwater motion carriers. We have a powerful R&D team, and already made some breakthroughs in many key technical directions of the field. We also mastered the core technological intellectual property rights and related patents of underwater robot. We research, develop and sell software and hardware products related to robot motion system, control system, communication system, navigation system, measurement system, and so on.

Our company is dedicated to becoming the leading enterprise in underwater robot industry in China to provide core equipment guarantee capability for our national ocean resources exploration and national safety.

We will stick to the company's concepts of integrity, dream, quality, and persistence to provide professional and highly efficient services for you wholeheartedly.

Tel: [phone]

Email: [e-mail]

Company Address: Building No. 7, Jinbin Development Industrial Park,

www.deepinfar.com

No. 45, Muning Road, Binhai New District, Tianjin City.

Warranty Policy 保修卡

产品保修说明

Product Warranty Instruction

If any failure happens during the use of our company" s product, please contact our after sales service as soon as possible so as not to postpone your use

and warranty period.

◆ This product offers a whole device follow-up service since the purchase.

The warranty period is half a year during which the failures which occur due to the device quality itself will be repaired by the company for free.

◆ Repair is chargeable if it happens after the warranty period ^* .

*The repair fee may include the fees for repair and components.

to leave a message online.

Tele: 400-0022-917 Website: www.deepinfar.com

You are welcome to give your precious feedback on our product and

after sales service.

SUBLUE

Warranty Policy

This warranty policy is only applicable for the SUBLUE products legal channels in mainland China. You can enjoy half a year warranty service since the purchase at the designated repair sites of SUBLUE with this warranty policy and valid invoice.

User Name:	Contact Number:
Purchase Date:	Postal Code:
Communication:
