USER MANUAL CM-1 Klark Teknik

Dynamic Microphone Booster with High-Quality Preamp

23Quick Start GuideMC BOOSTER CT 1 / CM-1 / CM-2

EN

EN Safety Instruction

1. Please read and follow all

instructions.

1. Keep the apparatus away from

water, except for outdoor products.

1. Clean only with a dry cloth

2. Do not block any ventilation

3. DO NOT BLOCK ANY VENTILATION openings. Install in accordance with the

openings. Install in accorda

manufacturer's instructions

1. Do not install near any heat

sources such as radiators, heat

registers, stoves or other apparatus

(including amplifiers) that

produce heat.

1. Use only attachments/accessories

specified by the manufacturer.

DE

1. Use only

specified carts,

stands, tripods.

brackets, or tables

Use caution to

Osc caution to prevent tin, over

prevent up-0

when moving the cart/apparatus

IT

1. Avoid installing in confined spaces

like bookcases.

1. Do not place naked flame sources.

such as lighted candl

1. Operating temperature range 5°

to 45°C (41° to 113°F).

[14] Thank you for purchasing a Klark Teknik Mic Booster! These compact units add significant gain boost to your passive microphone signal to ensure strong, clear delivery to a mixing board, preamplifier or interface.

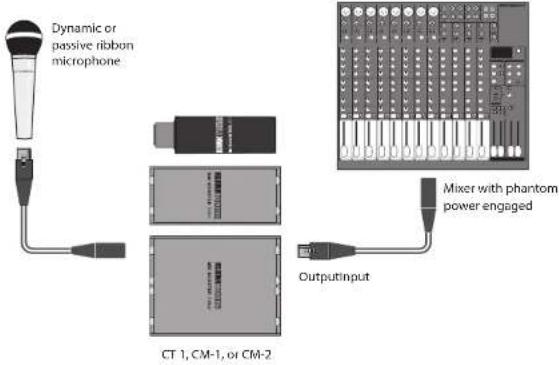

Dynamic or passive ribbon microphone CT 1, CM-1, or CM-2 Outputinput Mixer with phantom power engaged

*note – the CT 1 can also be connected directly to most microphones

Setup Procedure

Warning - either mute the mixer channel, lower the volume all the way, or turn off the speaker system before making connections.

1. Connect a fairly short balanced XLR cable (<30 feet) from the microphone to the input of your Mic Booster. Note that phantom power cannot be passed to condenser mics, and therefore they shouldn't be used along with a mic booster unit.
2. Connect the output of the Mic Booster to a mixer, preamp, or interface via balanced XLR cable. Long cable runs can be used for this connection if necessary, but high quality XLR cables with low capacitance are recommended to avoid high frequency degradation.
3. Engage phantom power on the mixer or other receiving equipment.
4. Check the gain setting on the receiving channel of your mixer or interface since the signal will be much greater than typical mic levels.

*note – the CT 1 can also be connected directly to most microphones

Input
Connector 1 x XLR, balanced 1 x XLR	balanced	2 x XLR, balanced
Impedance	7 kΩ
Maximum input level	-15 dBu
Output
Connector 1 x XLR, balanced 1 x XLR	balanced	2 x XLR, balanced
Impedance	2 kΩ
Maximum gain	+25 dB, 10 kΩ load
Maximum output level	+10 dBu, 10 kΩ load
System
Frequency response	10 Hz to 20 kHz (± 1 dB)
THD + N	<0.02% @ 1 kHz, 0 dBu
EIN noise @ +25 dB gain	>120 dB, 22 Hz-22 kHz, unweighted
Power requirements	48 V phantom power
Physical
Dimensions	24 x 25 x 78 mm(0.9 x 1.0 x 3.1")	38 x 39 x 85 mm(1.5 x 1.5 x 3.3")	65 x 39 x 85 mm(2.6 x 1.5 x 3.3")
Weight	0.1 kg (0.22 lbs)	0.17 kg (0.40 lbs)	0.25 kg (0.55 lbs)

Quick Start Guide

技术参数

CT1CM-1CM-2

输入
连接器	1xXLR,平衡	1xXLR,平衡	2xXLR,平衡
阻抗	7kΩ
最大输入电平	-15 dBu
输出
连接器	1xXLR,平衡	1xXLR,平衡	2xXLR,平衡
阻抗	2kΩ
最大增益	+25d,10kΩ负载
最大输出水平	+10 dBu,10kΩ负载
系统
频率响应	10 Hz至20 kHz(±1 dB)
总谐波失真+N	<0.02%@1 kHz,0 dBu
EIN噪声@+25 dB增益	>120 dB,22 Hz-22 kHz,未加权
电源要求	48V幻像电源
身体的
方面	24×25×78 mm0.9×1.0×3.1°)	38×39×85 mm1.5×1.5×3.3°)	65×39×85 mm2.6×1.5×3.3°)
重量	0.1kg(0.22lbs)	0.17kg(0.40lbs)	0.25kg(0.55lbs)

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2024 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/support.

NEGACIÓN LEGAL

BESCHRÄNKTE GARANTIE

Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.

Full text of EU DoC is available at https://community.musictribe.com/

EU Representative: Music Tribe Brands DK A/S Address: Gammel Strand 44, DK-1202 København K, Denmark

UK Representative: Music Tribe Brands UK Ltd. Address: 8th Floor, 20 Farringdon Street London EC4A 4AB, United Kingdom
