USER MANUAL CM-2 Klark Teknik
Thank you for purchasing a Klark Teknik Mic Booster! These compact units add significant gain boost to your passive microphone signal to ensure strong, clear delivery to a mixing board, preamplifier or interface.


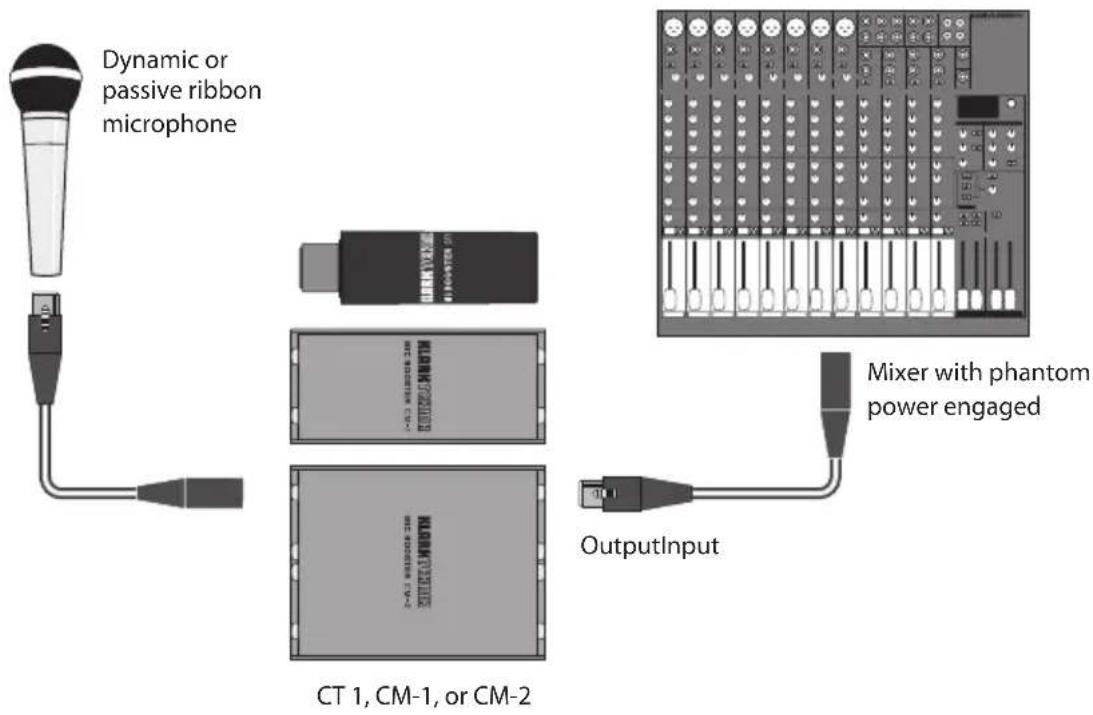

Dynamic or passive ribbon microphone Mixer with phantom power engaged OutputInput CT 1, CM-1, or CM-2*note – the CT 1 can also be connected directly to most microphones
Setup Procedure
Warning – either mute the mixer channel, lower the volume all the way, or turn off the speaker system before making connections.
- Connect a fairly short balanced XLR cable (<30 feet) from the microphone to the input of your Mic Booster. Note that phantom power cannot be passed to condenser mics, and therefore they shouldn't be used along with a mic booster unit.
- Connect the output of the Mic Booster to a mixer, preamp, or interface via balanced XLR cable. Long cable runs can be used for this connection if necessary, but high quality XLR cables with low capacitance are recommended to avoid high frequency degradation.
- Engage phantom power on the mixer or other receiving equipment.
- Check the gain setting on the receiving channel of your mixer or interface since the signal will be much greater than typical mic levels.
CT 1 CM-1 CM-2
| Input | |||
| Connector 1 x XLR, balanced 1 x XLR, balanced | balanced 2 x XLR, balanced | ||
| Impedance 7 kΩ | |||
| Maximum input level -15 dBu | |||
| Output | |||
| Connector 1 x XLR, balanced 1 x XLR, balanced | balanced 2 x XLR, balanced | ||
| Impedance 2 kΩ | |||
| Maximum gain +25 dB, 10 kΩ load | |||
| Maximum output level +10 dBu, 10 kΩ load | |||
| System | |||
| Frequency response 10 Hz to 20 kHz (±1 dB) | |||
| THD + N <0.02% @ 1 kHz, 0 dBu | |||
| EIN noise @ +25 dB gain >120 dB, 22 Hz-22 kHz, unweighted | |||
| Power requirements 48 V phantom power | |||
| Physical | |||
| Dimensions | 24 x 25 x 78 mm(0.9 x 1.0 x 3.1") | 38 x 39 x 85 mm(1.5 x 1.5 x 3.3") | 65 x 39 x 85 mm(2.6 x 1.5 x 3.3") |
| Weight | 0.1 kg (0.22 lbs) | 0.25 kg (0.55 lbs) | 0.37 kg (0.81 lbs) |
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at musictribe.com/warranty.
