USER MANUAL Contemporary DJ00002W Orient Star

MECHANICAL WATCH AUTOMATIC & HAND WINDING MECHANISM

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a golf club to pick (no text or symbols)

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About this product and accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of children. If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is “☐DJ02002B☐”, the caliber number is “DJ”.

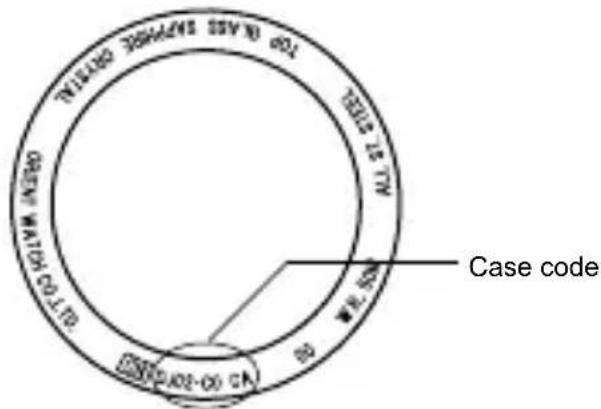

2. Searching by the case code

See the case code on the case back of your watch.

The first two digits indicate the caliber number.

SWISS 100.00 ASSE SPINER CO. GREEN WATER CO., LTD. CA 00-200 CN Case code

Example:

When the case code is "DJ02-C0", the caliber number is "DJ".

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the functions and operation procedures are the same.

◆ FEATURES

(1) This model is an automatic winding mechanical watch (with a hand winding mechanism).
(2) It comes with a second hand halt mechanism.
(3) Shock-proof bearings to protect the balance with hairspring from shocks.
(4) The time for other cities can be shown using the 24-hour hand. (Dual time function) *DJ (40P) only
(5) The day of the week is shown using retrograde display. *DE (40A) only

◆ SPECIFICATIONS

Caliber		Number of jewels	Power reserve	Date indicator	Day of the week	24-hour hand	World time	Remark1*
DA	40R 22		○	- - - - -
DE	40A 22		○	Hand indicating type	Hand indicating type	-- 10:00 p.m.~4:00 a.m.
DJ	40P 22		○	○	-	○	-9:00 p.m.~2:00 a.m.
DK	40S 24		○	- - - - -
DV	407 22	-		○	--- 10:00 p.m.~2:00 a.m.
EL	40N 22		○	○	--- 10:00 p.m.~2:00 a.m.
JC	40H 24		○	Hand indicating type	-	○	○	8:00 p.m.~2:00 a.m.

(1) Vibrations: 21,600 vibrations/hour
(2) Daily accuracy : 25 sec. to -15 sec.
(3) Drive system : Mainspring Winding
(4) Running time: More than 40 hours

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
- Due to the characteristics of the automatic winding watch, the time may deviate from the stated “daily accuracy” depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

* Avoid setting the date during the time periods listed in “Remark1” above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

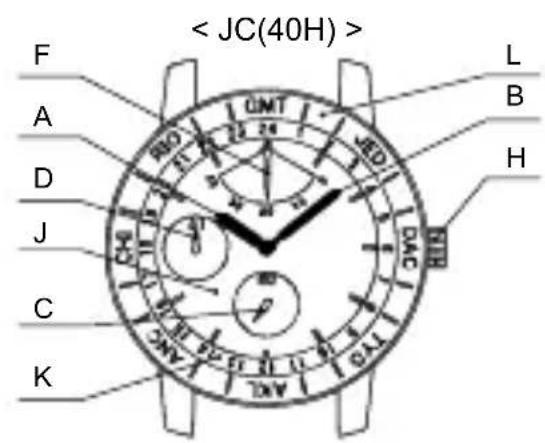

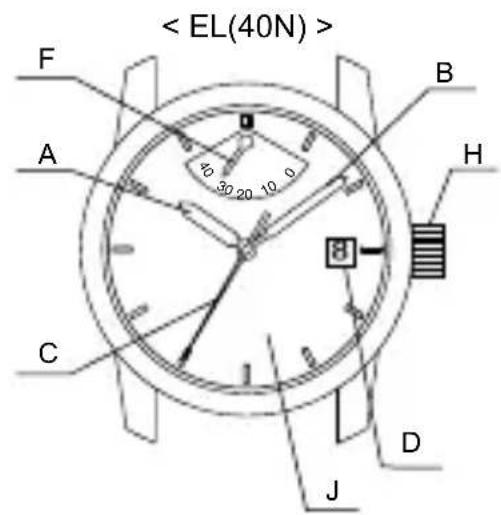

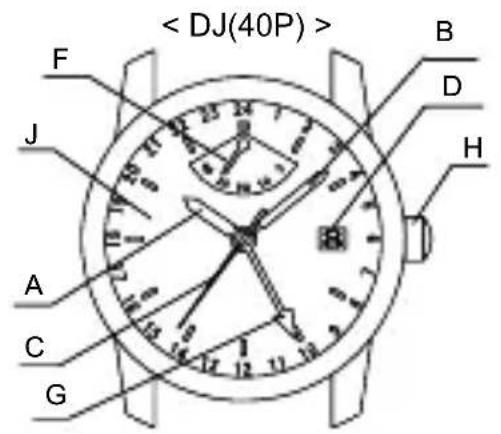

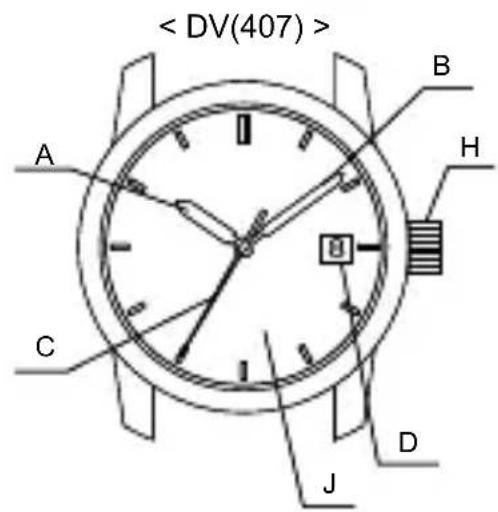

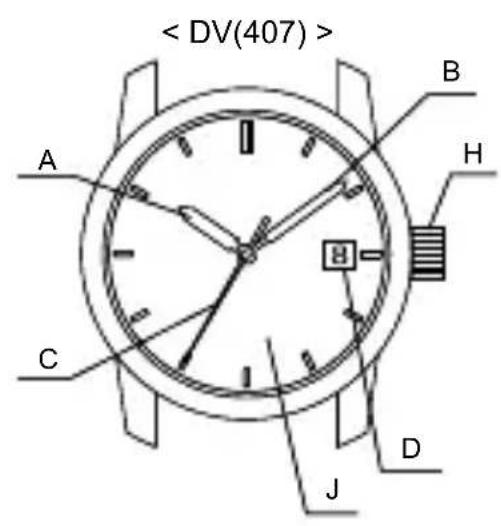

◆ NAMES OF INDIVIDUAL COMPONENT PARTS

A: Hour hand G: 24 hours hand
B: Minute hand H: Crown
C: Second hand I: Click Button
D: Date hand / Date indicator J: Dial
E: Day of week indicator K: Rotating indicator ring
F: Power reserve hand L: Bezel (or outer indicator ring)

F A D J C K L B H RIO 22 26 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10 15 10

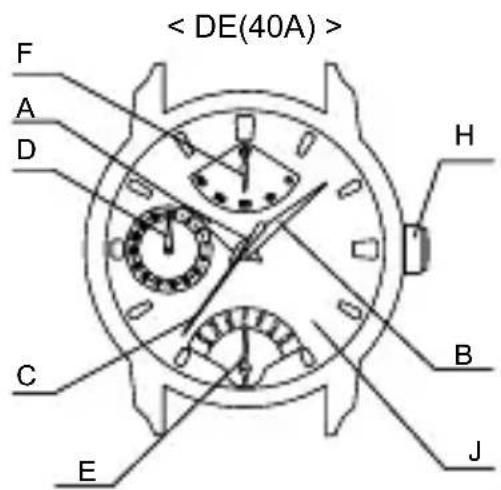

< DE(40A) > F A D H B C E J

F J A C G B D H

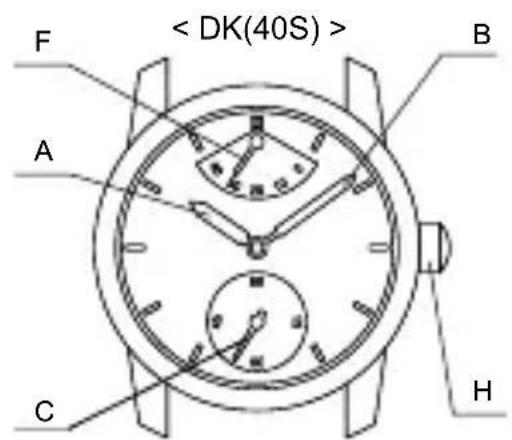

< DK(40S) > A B C H

< EL(40N) > F A B H C J D

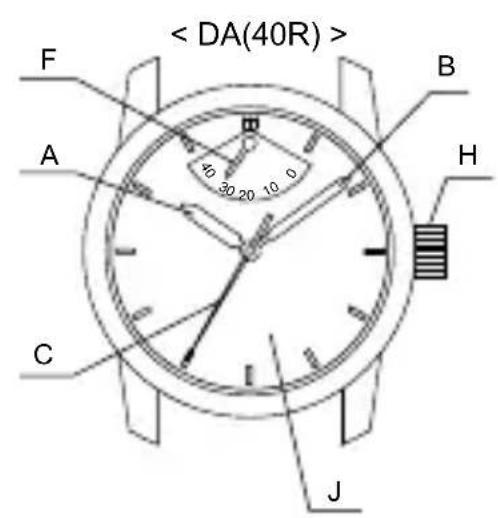

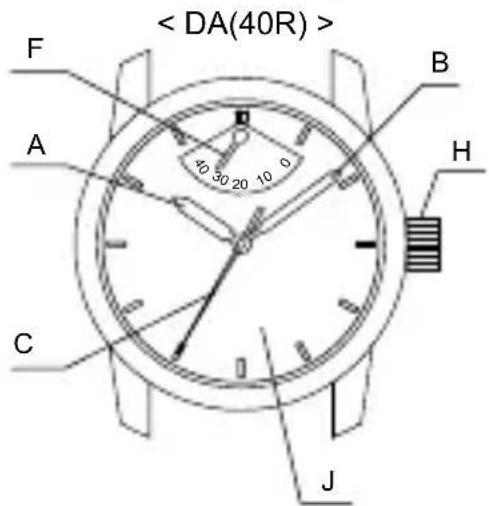

< DA(40R) > F A B H C J

A B H C J D

* Positions of the crown, date indicator/day of week indicator, second hand, power reserve hand, and other component parts may vary by model.

* The day of the week first displayed may vary. *DE (40A) only

◆ AUTOMATIC WINDING AND HAND WINDING MECHANISM

(1) This is an automatic winding (hand winding) mechanical watch.
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.

It is also wound by rotating the crown.

(3) If your watch stops, winding the mainspring by rotating the crown or swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.
(4) To wind the mainspring, ensure that the crown is in its normal position and slowly turn it to the right (clockwise).

Turning the crown to the left (counterclockwise) will have no effect.

When the watch is in a stopped state, the mainspring can be wound sufficiently by rotating the crown approximately 20 times. In order to the crown will still rotate even when the mainspring is fully wound. (This is not a fault). Avoid winding the watch more than necessary.

Since the crown will rotate even when winding is complete, wind the watch using the scale on the power reserve indicator as a guide.

(5) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time (dual time), first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time (dual time), turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

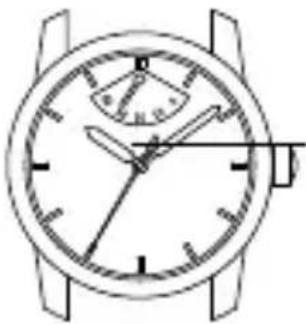

◆ POWER RESERVE INDICATOR

The power reserve indicator shows how much the watch is wound, allowing you to see how much longer the watch will run at a glance. The time pointed to by the power reserve hand is the remaining time.

*The remaining time shown is only an approximation. The time shown may be different from actual remaining time.

Line drawing of a wristwatch with analog dial and frame (no text or symbols)

Power reserve hand

This model has an automatic-winding system which comes with a power reserve indicator function. The mainspring will be automatically wound by your natural arm movements while you wear it on your wrist. The power reserve hand is pointing to the fully-wound position (40H). The amount the watch is wound will change with the frequency of your arm movements and the length of time you wear the watch, so the hand will not always point to the fully wound position. If you remove the watch from your arm and do not wind manually, the power reserve hand will move toward zero as time passes.

This model is equipped with a hand-winding mechanism. The power reserve indicator moves toward the fully wound position (40H) when the mainspring is wound using the crown.

◆ HOW TO SET THE TIME [ DE(40A), DJ(40P), DV(407), EL(40N), JC(40H)]

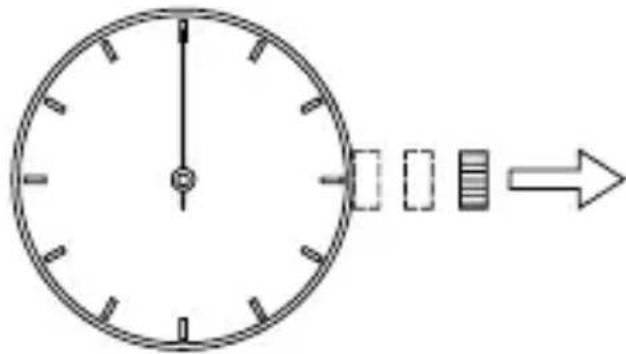

(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position. (The second hand stops.)

Simple analog clock face with hour and minute hands, showing time as the next minute (no text or symbols)

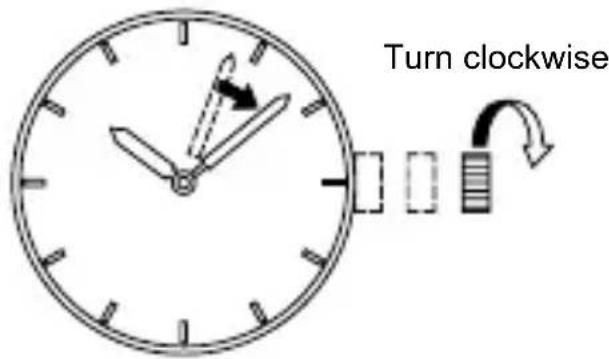

(2) Turn the crown clockwise and set the current time.

* When setting the time, first bring the hand back slightly later the actual time and then move it forward to the actual time.

* For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].

Turn clockwise

(3) Press the crown in to the normal position.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

◆ HOW TO SET THE TIME [ DA(40R), DK(40S)]

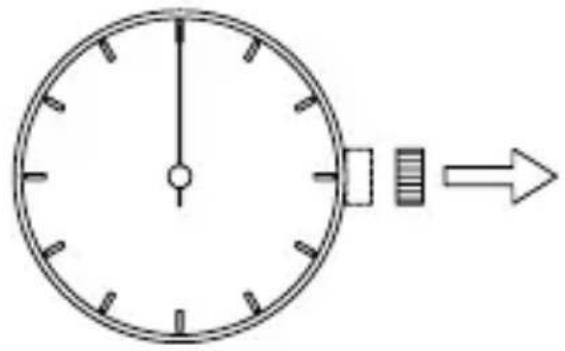

(1) Pull the crown out when the second hand reaches the 12 o'clock position. (The second hand stops.)

Simple analog clock face with hour and minute hands, showing time as approximately 2:30 (no text or symbols beyond clock face markings)

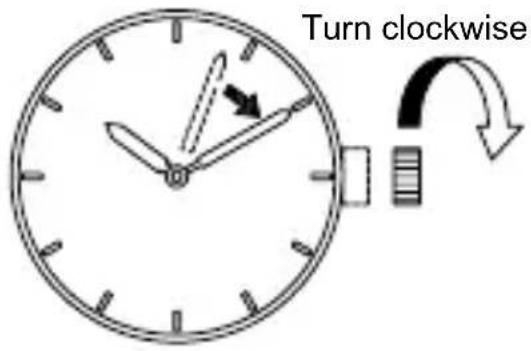

(2) Turn the crown clockwise and set the current time.

* When setting the time, first bring the hand back slightly later the actual time and then move it forward to the actual time.

* For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].

Turn clockwise

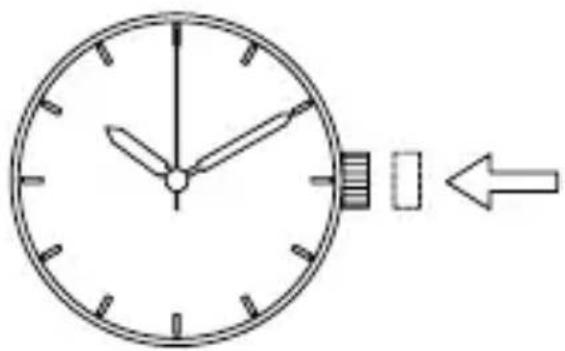

(3) Press the crown in to the normal position.

Simple line drawing of an analog clock face with hour and minute hands (no numbers or text)

* The position of the second hand may vary by model.

◆ HOW TO SET THE DATE [ DV(407), EL(40N)]

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

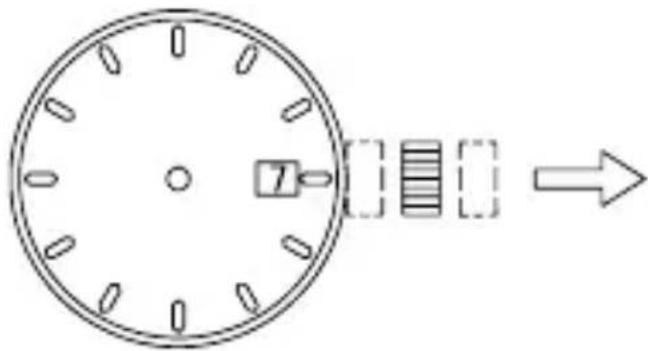

Diagram showing a circular dial with a numbered component and directional arrow, likely illustrating a measurement or process flow.

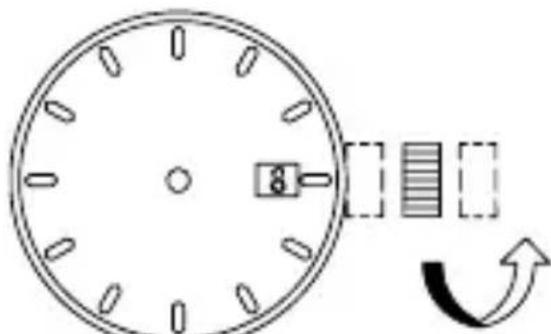

(2) Turn the crown counterclockwise, and set the date to that for the current day.

Diagram of a circular dial with a central indicator and directional arrow, no text or symbols present.

Turn counter-clockwise

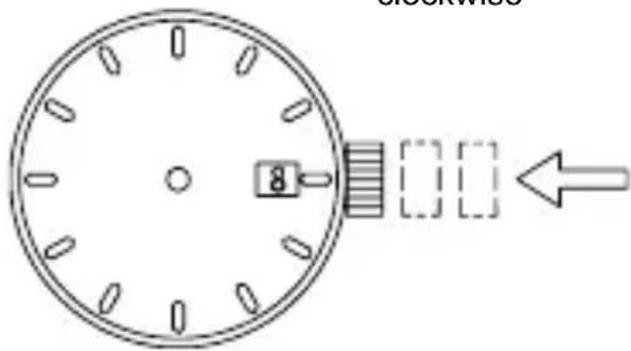

(3) Push the crown in to return it to its normal position (no clicks).

Diagram of a circular dial with a numbered pointer and directional arrow, likely illustrating a measurement or calibration process.

** Correcting the date at the end of the month The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].

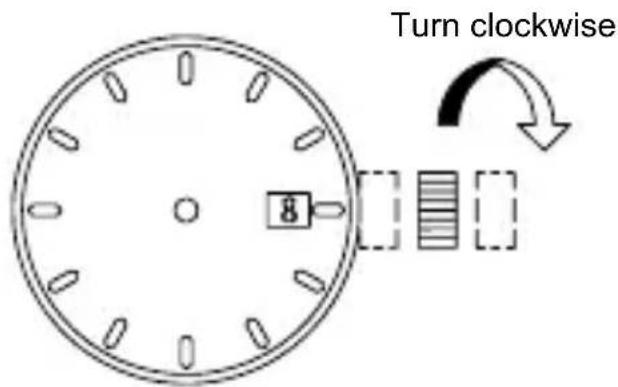

◆ HOW TO SET THE DATE [ DJ(40P)]

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

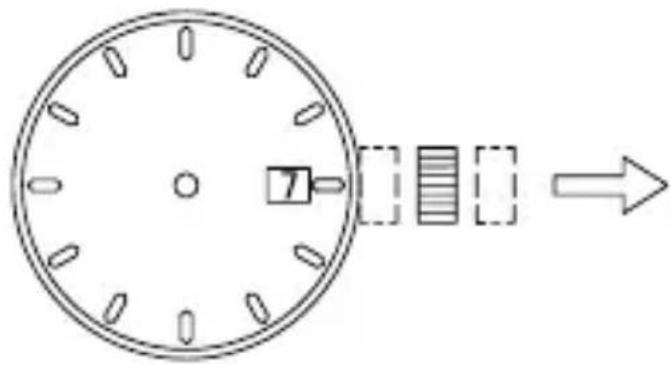

Diagram showing a circular dial with numbered slots and directional arrow, likely illustrating a measurement or process flow.

(2) Turn the crown clockwise, and set the date to that for the current day.

Turn clockwise

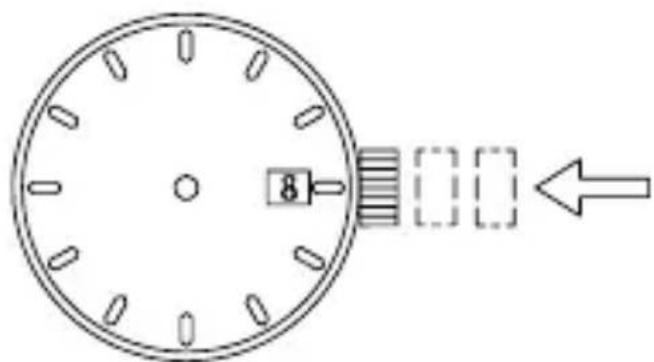

(3) Push the crown in to return it to its normal position (no clicks).

Diagram of a circular dial with a scale and arrow, no text or symbols present

** Correcting the date at the end of the month

The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].

◆ HOW TO SET THE DATE [ DE(40A), JC(40H)]

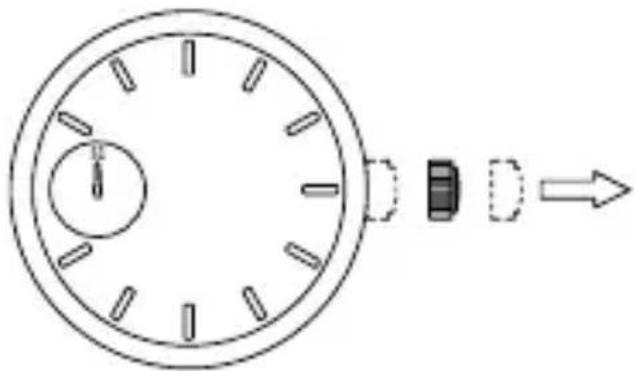

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

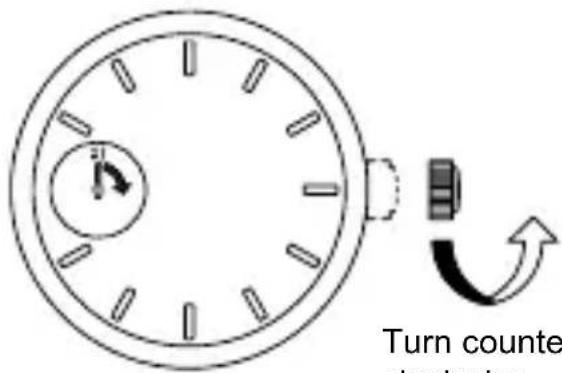

Diagram of a circular dial with internal components and an arrow indicating direction (no text or symbols)

(2) Turn the crown counterclockwise, and set the date to that for the current day.

Turn count

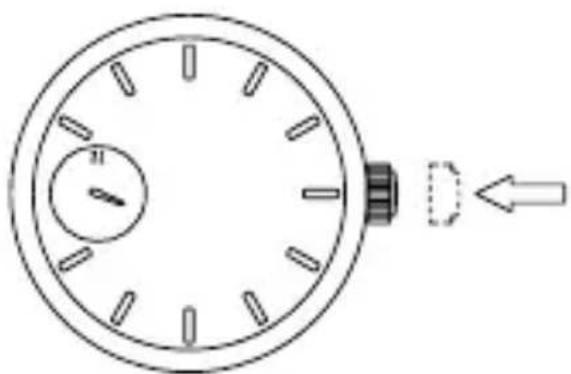

(3) Push the crown in to return it to its normal position (no clicks).

* If next setting the day of the week, first set the date without pushing in the crown.

For procedures on how to do this, refer to “◆ HOW TO SET THE DAY OF THE WEEK [DE (40A)].” *DE (40A) only

Diagram of a dial indicator with an arrow pointing to the right side (no text or symbols present)

** Correcting the date at the end of the month

The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].

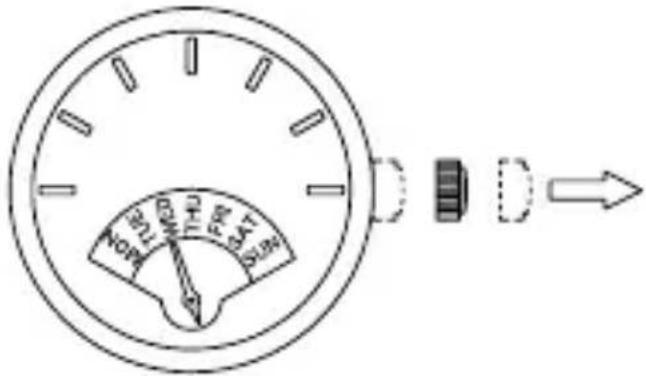

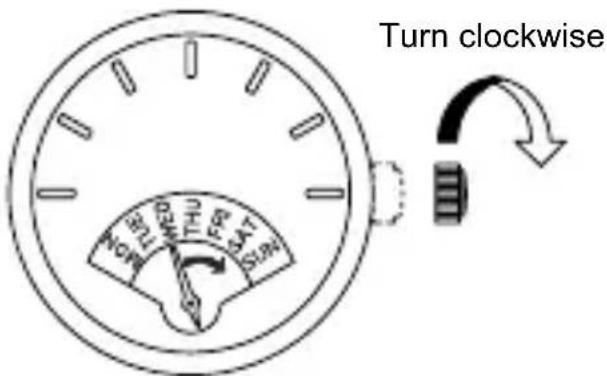

◆ HOW TO SET THE DAY OF THE WEEK [ DE(40A)]

* Movement of the day of the week hand

A feature of the retrograde display is that the hand moves instantaneously when returning to the first day of the week in the display from the last day.

When setting the day of the week, slowly turn the crown to set it to the day of the week.

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

(2) Turn the crown to the right, and set the day of the week to that for the current day.

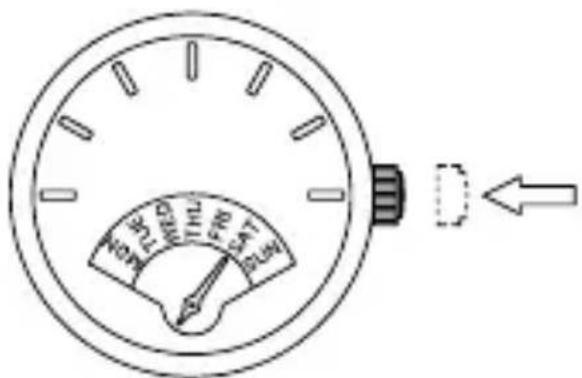

(3) Push the crown in to return it to its normal position (no clicks).

T12 WOM D4 FR T4 M0 N0 S0 T5 W0 S5 T6 W6 T7 W7 T8 W8 T9 W9 T10 W10 T11 W11 T12 W12 T13 W13 T14 W14 T15 W15 T16 W16 T17 W17 T18 W18 T19 W19 T20 W20 T21 W21 T22 W22 T23 W23 T24 W24 T25 W25 T26 W26 T27 W27 T28 W28 T29 W29 T30 W30 T31 W31 T32 W32 T33 W33 T34 W34 T35 W35 T36 W36 T37 W37 T38 W38 T39 W39 T40 W40 T41 W41 T42 W42 T43 W43 T44 W44 T45 W45 T46 W46 T47 W47 T48 W48 T49 W49 T50 W50

Turn clockwise WOR RUST THU FR SAT SUN

TOL LDF RWD TH12 FRS SAT BUN

* The positions of the day of the week display and crown may differ depending on the model.

In addition, the day of the week first displayed may differ from that shown.

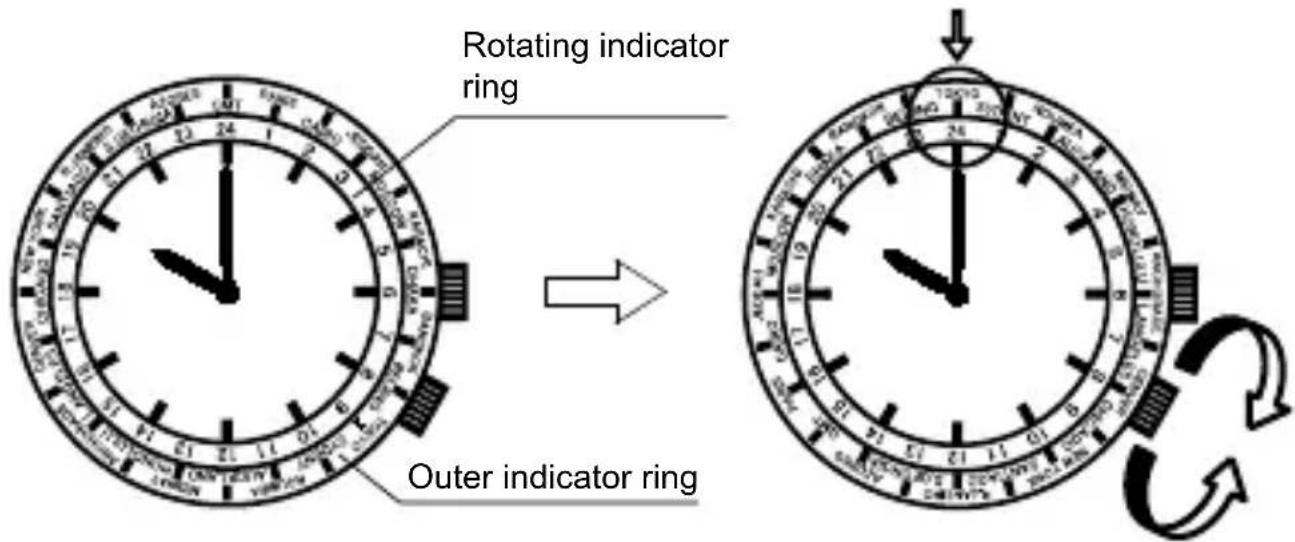

◆ USING THE DUAL-TIME FUNCTION [ DJ(40P)]

* The Dual-Time Function is a function that allows two different times to be displayed simultaneously.

Two different times can be displayed simultaneously with this model using time display with the hour and second hands and using a 24-hour hand that can be set separately. Only cities with time differences set in increments of whole hours can be selected for the Dual-Time Function.

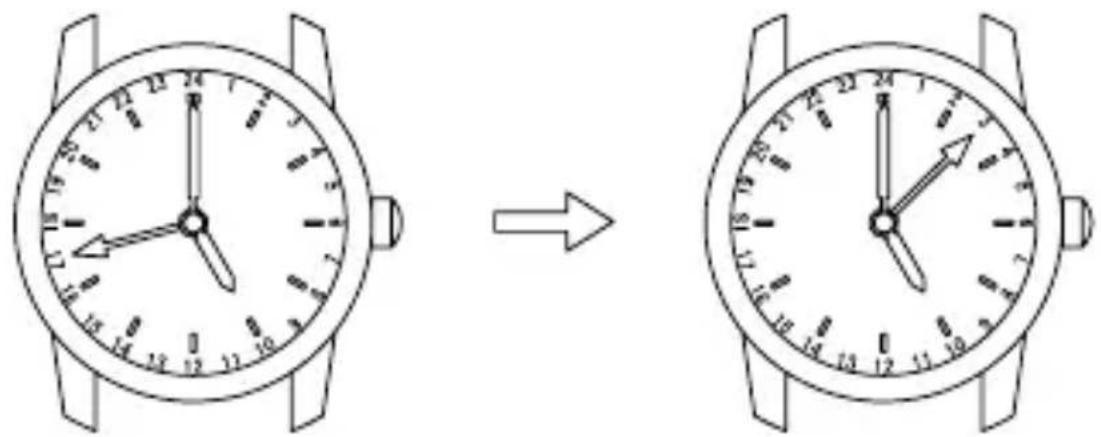

◆ HOW TO SET THE 24-HOUR HAND

Before setting the 24-hour hand, first make sure that the time displayed is set to the current time.

The hour/minute hands and 24-hour hand move in conjunction with each other. Set the time before setting the 24-hour hand. (Refer to “♦ HOW TO SET THE TIME [DJ(40P)].”)

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

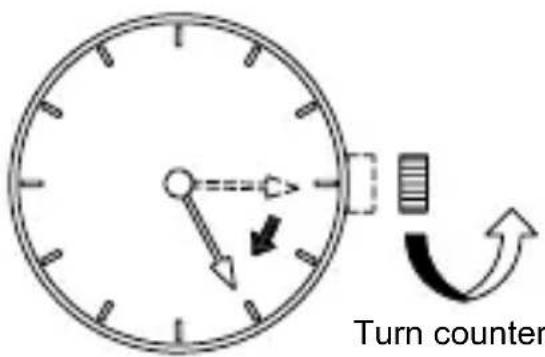

(2) Slowly turn the crown counterclockwise, and set the 24-hour hand to a given time.

* The 24-hour hand will turn in the clockwise direction in increments of whole hours.

* Slowly turn the crown while checking the movement of the 24-hour hand in increments of whole hours.

* While the 24-hour hand is being set, other hands may also move slightly. This is not a malfunction.

Simple line drawing of a circular clock face with an arrow pointing right (no text or symbols)

Turn counter

Turn counter-clockwise

(3) Push in the crown.

* The position of the crown may differ depending on the model.

* Examples of uses of the Dual-Time Function

Displaying the time for New York in Dual-Time when the time in Japan is 5:00 p.m.

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

There is a difference of -14 hours between Japan and New York (Refer to ◆ COMPARISON TABLE OF STANDARD TIMES), so the 24-hour hand should be set to 3:00 a.m.

(Refer to ◆ HOW TO SET THE 24-HOUR HAND)

Refer to the COMPARISON TABLE OF STANDARD TIMES for time zone differences.

Diagram showing the right-hand rule for viewing a wristwatch, illustrating the change from analog clock to digital clock.

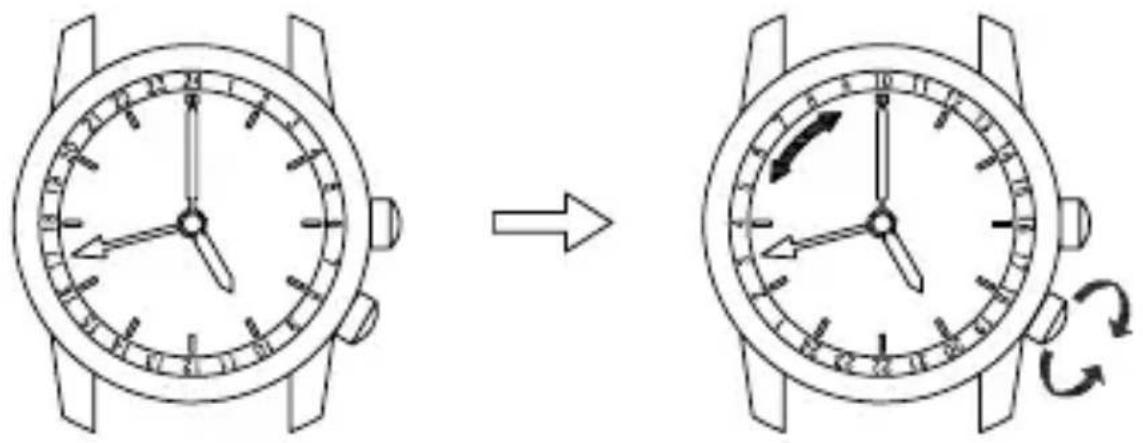

◆ HOW TO USE THE 24-HOUR INDICATOR RING (ROTATING BEZEL OR INTERNAL ROTATING RING)

Some models come with a 24-hour indicator ring (rotating bezel or internal rotating ring). First, confirm that the watch you purchased comes with such function, and make sure to use it correctly if it does.

Use the 24-hour indicator ring by reading the marking on the 24-hour indicator ring at which the 24-hour hand is pointing.

The 24-hour hand was set in ◆ HOW TO SET THE 24-HOUR HAND. However, it can also be set in the same way by rotation of the 24-hour indicator ring (rotating bezel or internal rotating ring).

Ex.) Displaying the time for New York in Dual time when the time in Japan is 5:00 p.m.

There is a difference of -14 hours between Japan and New York (Refer to ◆ COMPARISON TABLE OF STANDARD TIMES), so the 24-hour hand should be set to 3:00 a.m.

Diagram showing the right-hand rule for moving a watch face with rotation arrows indicating clockwise motion.

◆ HOW TO USE THE ROTATING INDICATOR RING (WORLD TIME FUNCTION) [JC(40H)]

When you turn the rotating indicator ring and align the city names with the times, you can read the respective times of the cities right away.

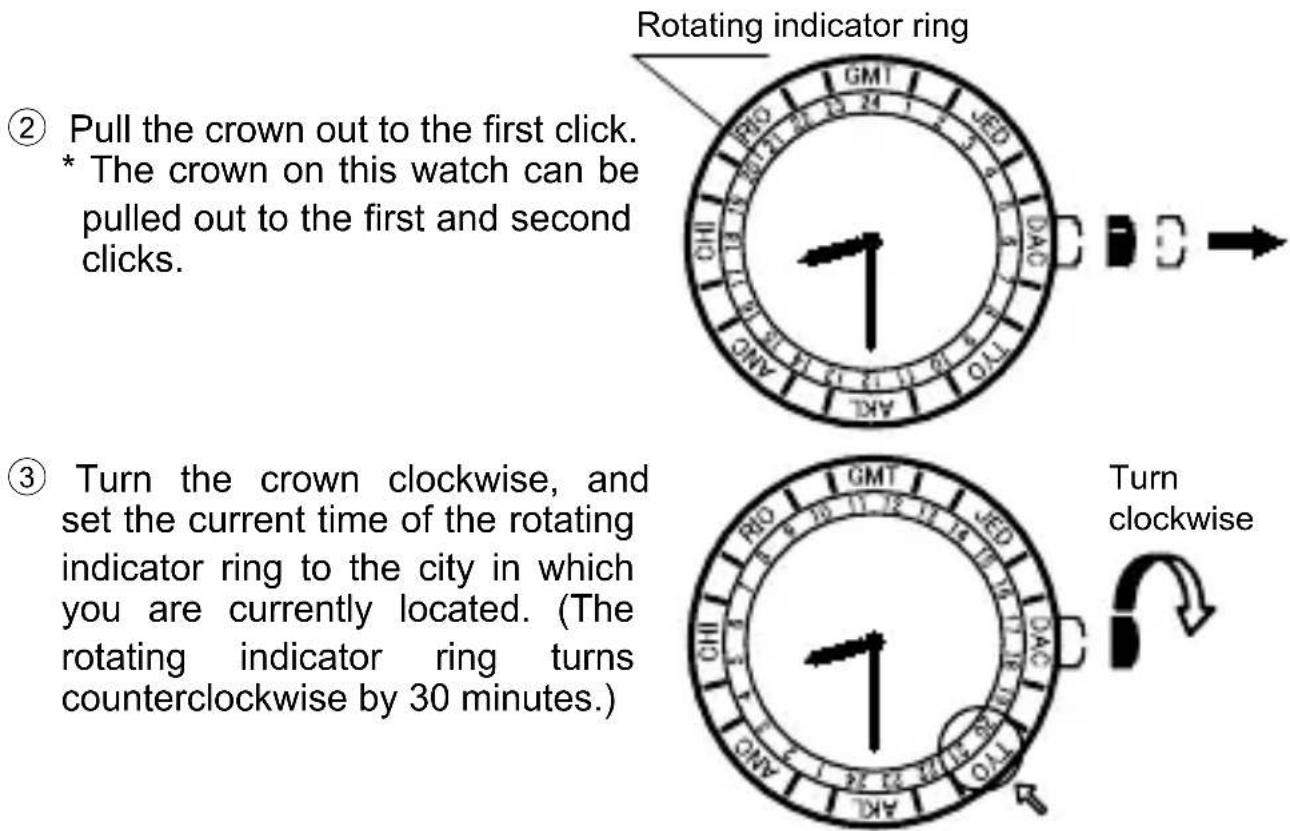

(1) Models on which times are indicated on the rotating indicator ring

① Be sure that the watch shows the correct time.

Rotating indicator ring ② Pull the crown out to the first click. * The crown on this watch can be pulled out to the first and second clicks. ③ Turn the crown clockwise, and set the current time of the rotating indicator ring to the city in which you are currently located. (The rotating indicator ring turns counterclockwise by 30 minutes.) Turn clockwise

④ Press the crown in.

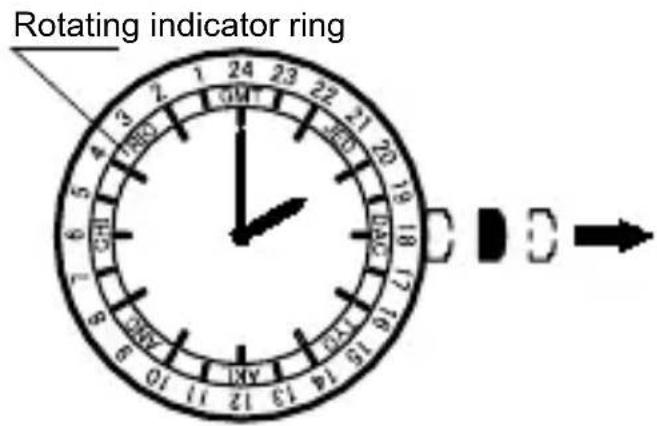

Example: When using in Japan

Set TOKYO (TYO) on the rotating indicator ring to the current time.

In case of 8:30 p.m. in Japan, set TOKYO (TYO) on the rotating indicator ring between 20:00 and 21:00.

(2) Models on which city names are indicated on the rotating indicator ring

① Be sure that the watch shows the correct time.

② Pull the crown out to the first click.

* The crown on this watch can be pulled out to the first and second clicks.

Rotating indicator ring

③ Turn the crown clockwise, and set the name of the city where you are currently located on the rotating indicator ring to the current time. (The rotating indicator ring turns counterclockwise by 30 minutes.)

Turn clockwise

④ Press the crown in.

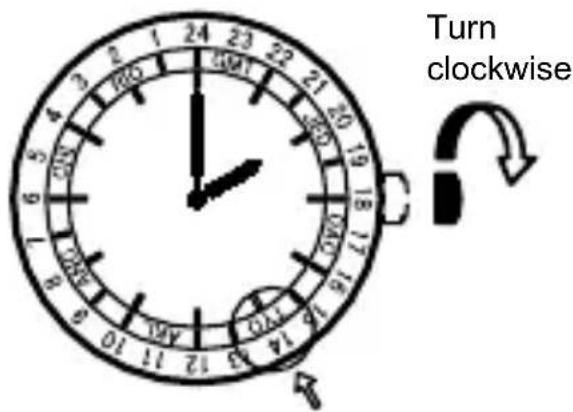

Example: When using in Japan

Set TOKYO (TYO) on the rotating indicator ring to the current time.

In case of 2:00 p.m. in Japan, set TOKYO (TYO) of the rotating bezel to 14:00 hrs.

◆ HOW TO USE MODELS WITH A ROTATING CITY NAME INDICATOR (OUTER INDICATOR RING OR BEZEL)

Some models come with a rotating outer indicator ring (displaying the city names) or a rotating bezel around the outer circumference of the case (displaying the city names) in addition to the rotating indicator ring.

Double check to confirm which type of model you have and then read and follow the particular instructions for your type given below.

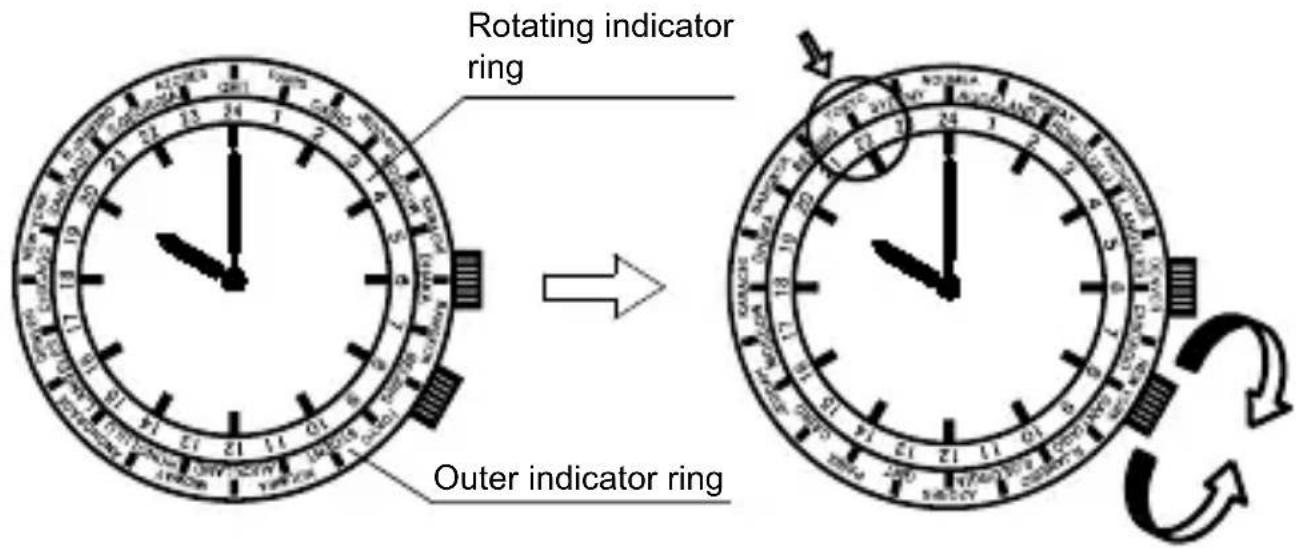

HOW TO USE THE FUNCTION

The examples for how to use the dual time function given below are based on usage in Japan. The model shown in the example diagram is a rotating outer indicator ring model with a crown located near 4 o'clock on the dial.

In this example, line up the TOKYO (TYO) on the outer indicator ring (or bezel) with the current time in order to set the time for Tokyo.

For a time of 10:00 p.m. in Japan, line up the TOKYO (TYO) on the outer indicator ring (or bezel) with the number 22 on the rotating indicator ring.

Rotating indicator ring Outer indicator ring

In this case, move TOKYO (TYO) to a more visible and prominent location at the 12 o'clock position and then rotate the rotating indicator ring to line up the time with TOKYO (TYO).

(1) Rotate TOKYO (TYO) on the outer indicator ring (or bezel) to the 12 o'clock position.

Rotating indicator ring Outer indicator ring

(2) For a time of 10:00 p.m. in Japan, line up TOKYO (TYO) with the number 22 on the rotating indicator ring.

(Refer to ◆ HOW TO USE THE ROTATING INDICATOR RING (WORLD TIME FUNCTION) for details.)

Move the city name for the city most frequently used to a more visible and prominent position (to the 12 o'clock position). (The city used is NEW YORK in the example shown.)

(1) Turn NEW YORK (NYC) on the outer indicator ring (or bezel) to the 12 o'clock position.

(2) For a time of 10:00 p.m. in Japan, line up the number 22 on the rotating indicator ring with TOKYO (TYO).

◆ COMPARISON TABLE OF STANDARD TIMES

City indication Typical city Time differences with GMT
GMT GMT ±0
PAR PARIS +1
CAI CAIRO +2
JED JEDDAH +3
MOW MOSCOW +4
KHI KARACHI +5
DAC DHAKA +6
BKK BANGKOK	+7
BJS	BEIJING	+8
TYO TOKYO +9
SYD SYDNEY	+10
NOU	NOUMEA	+11
AKL AUCKLAND	+12
MDY	MIDWAY	-11
HNL HONOLULU	-10
ANC ANCHORAGE	-9
LAX LOS ANGELES	-8
DEN DENVER	-7
CHI CHICAGO	-6
NYC NEW YORK	-5
SCL SANTIAGO	-4
RIO	RIO DE JANEIRO	-3
SGS S.GEORGIA	-2
PDL AZORES -1

* Some countries use daylight savings time. There may be cases where the time difference and daylight savings time change to suit the country's convenience.
* The city names listed are major cities in various countries of the world. Please note in advance that some product specifications are subject to change for product improvement purposes.
* If planning to use the watch in a place not listed in the table above, select a city in the same time zone as the city for which you want to indicate time.

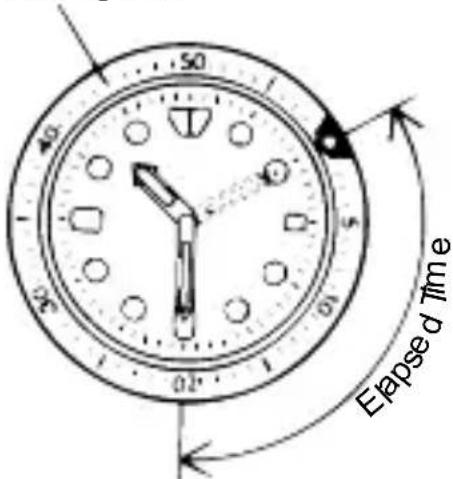

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating bezel

40 50 5 02 Elapsed Time

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator bezel does not apply to some models.

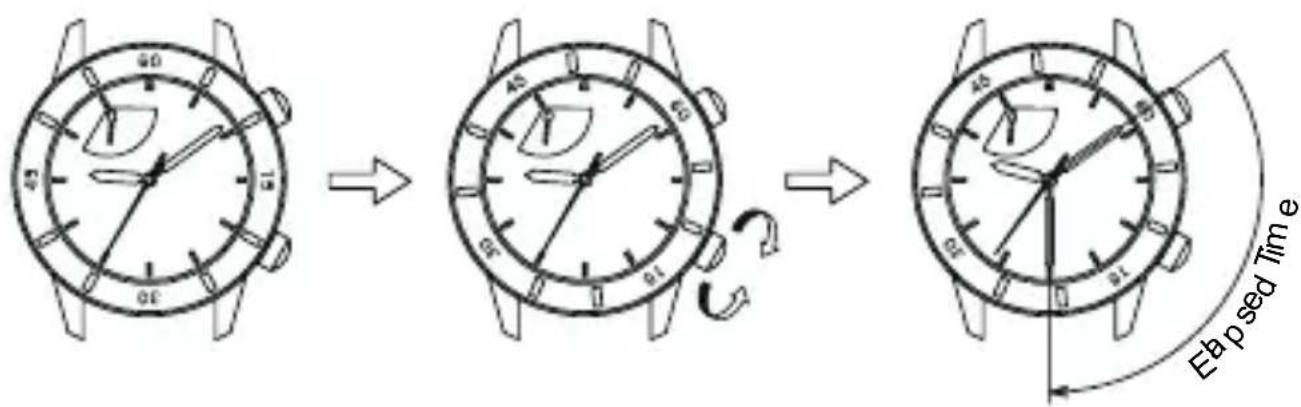

◆ HOW TO USE THE INTERNAL ROTATING INDICATOR RING

Turn the crown for the internal rotating indicator ring to set the 60-mark to the position of the minute hand.

The position of the internal rotating indicator ring to which the minute hand is pointing after some time has elapsed indicates the elapsed time.

Setting the mark to the desired time also allows you to know the remaining time.

EBapsed Time

* The positions of the crown and the appearance of the internal rotating indicator ring may differ depending on the model.

中文

自动 / 手动上弦机械表

使用说明书

Simple line drawing of a person using a golf club to walk (no text or symbols)

(3) 磁化

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) 温度

< EL(40N) > F A B H C J D

< DA(40R) > F A B H C I J

A B H C B D J

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ 螺丝锁紧型把头的手表款式

Diagram showing a clock with hour and minute hands, followed by an arrow pointing to a black rectangular box labeled '中' (mid) in the corner.

Simple analog clock face with hour and minute hands, showing time as the next minute (no text or symbols)

(2) 顺时针转动把头，设置当前时间。

Simple line drawing of an analog clock face with hour and minute hands (no numbers or text)

* 秒针的位置可能会因型号而异。

Diagram showing a circular dial with a numbered component and directional arrow, likely illustrating a measurement or process flow.

(2) 逆时针转动把头，调整到今期。

Diagram of a circular dial with internal segments and an arrow indicating direction (no text or symbols)

(2) 逆时针转动把头，

调整到今天期。

的日 逆时针转动

WEDD WEDD THU FTR SALT MAY

Diagram showing the right-hand rule for time conversion of a analog clock face to a digital clock face, with time and duration annotations.

中支

Diagram showing the right-hand rule for moving a watch face with directional arrows and a circular motion indicator.

< EL(40N) > F A B H C J D

< DA(40R) > F A B H C J

A B H C J D

Illustration of a hand holding a wristwatch with motion arrows indicating rotation (no text or symbols)

Line drawing of a wristwatch with dual dials and hand pointer (no text or symbols)

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

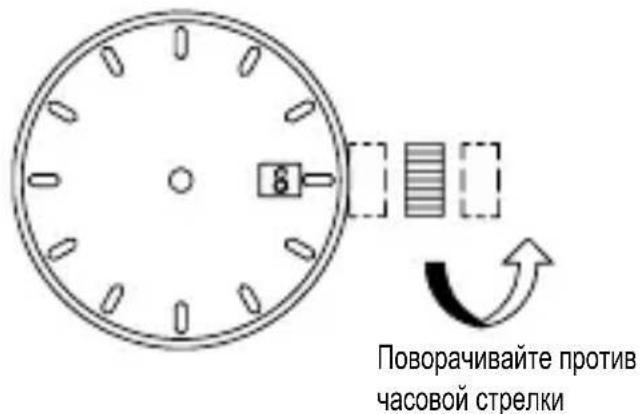

◆ УСТАНОВКА ВРЕМЕНИ [DA(40R), DK(40S)]

Simple analog clock face with hour and minute hands, showing time as approximately 2:30 (no text or symbols beyond clock face markings)

Simple line drawing of an analog clock face with hour and minute hands (no numbers or text)

Diagram showing a circular dial with a numbered square and directional arrow, likely illustrating a measurement or process flow.

Diagram showing a circular dial with a numbered square and directional arrow, likely illustrating a measurement or process flow.

Simple line drawing of a stopwatch with an arrow indicating clockwise rotation (no text or symbols)

Diagram of a dial indicator with an arrow pointing to the right side (no text or symbols present)

Simple line drawing of a circular clock face with an arrow pointing right (no text or symbols)

Diagram showing the right-hand rule for time conversion of a analog watch with 12 o'clock clock, illustrating the change from 12 o'clock to 0 o'clock.

Diagram showing a circular watch with directional arrows indicating rotation (no text or symbols present)
