USER MANUAL CKM-7500-CS Connect IT

USER MANUAL BENUTZERHANDBUCH PODREÇZNIK UŻYTKOWNIKA UŻIVATELSKÝ MANUÁI UŻÍVATELŠKÝ MANUÁI

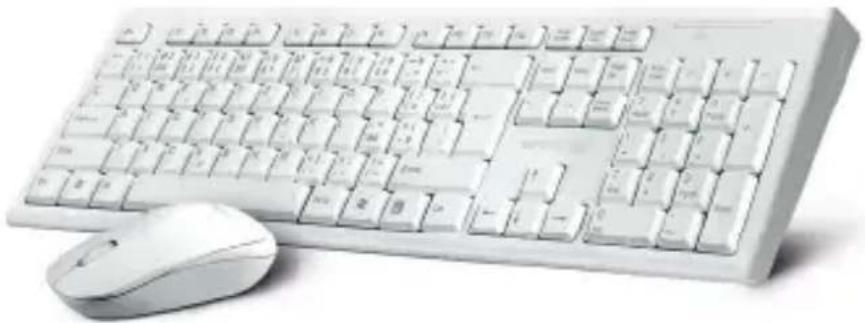

White computer keyboard and mouse with standard keys (no visible text or labels)

WIRELESS KEYBOARD AND MOUSE SET KABELLOSES SET TASTATUR & MAUS BEZPRZEWODOWY ZESTAW KLAWIATURY I MYSZ BEZDRÁTOVÝ SET KLÁVESNICE A MYŠ BEZDRÔTOVÝ SET KLÁVESNICE A MYŠ

CI-1118 . CKM-7500-CS . CKM-7510-CS

Before putting this product into operation, please read carefully all the instructions, even if you are already familiar with using similar products. Use the product only as described in this manual. Keep this manual in case you need it for future reference

The electronic version of this user manual can be downloaded on the website www.connectit-europe.com

We recommend keeping the original packaging of the product, invoice and warranty certificate at least for the time the warranty is valid. When shipping the product, we recommend using the original packaging that the product was delivered in that will provide the best protection for it from being damaged during transport

1 Specification

Technical specifications of keyboard

■ 2.4 GHz wireless technology
■ Height-adjustable
■ Standard keyboard layout
■ Operating range of nano receiver up to 10 m
■ Power: 1 × AAA battery (included)
■ Interface: USB 1.1 and higher
■ Easy Plug & Play installation

Technical Specifications Mouse

■ 2.4 GHz wireless technology
■ Operating range of nano receiver up to 10 m
■ Resolution: 1000 DPI
■ Dimensions: 62 × 104 × 34 mm
■ Power: 1 × AA battery (included)
■ Interface: USB 1.1 and higher
■ Easy Plug & Play installation

Compatibility:

■ Operating system: Microsoft Windows XP/Vista/7/8/10 and Mac OS

This product is compatible with Mac OS although some features unsupported by Mac OS may not work properly

2 Installation

Installation of batteries:

Mouse:

1. Remove the battery cover on the bottom side of the mouse

2 Insert 1x AA battery into the mouse and be sure that you are inserting the battery in correct direction according to their polarity. Close the battery cover

Keyboard

1. Remove the battery cover on the bottom side of the keyboard
   2 Insert 1x AAA battery into the keyboard and be sure that you are inserting the battery in correct direction according to their polarity. Close the battery cover

Installation of USB receiver to the computer

Insert the USB receiver to the available USB port and wait for automatic installation of drivers.

3 Overview

1. Left button

2 Right button

3 Scroll wheel

4 Troubleshooting

■ We recommend connecting this device straight to a USB port on your computer
If this device is plugged in to a USB hub, make sure that the USB hub and the USB port to which it is connected can provide this device and other devices connected to the same USB hub with enough power.
■ Alternatively, we recommend using an external power source with the USB hub (if the USB hub supports such functionality)

Diagram of a computer mouse with numbered labels pointing to key surfaces

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Dispose of packaging material at a public waste disposal site

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection center for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller

This product meets all the basic EU regulation requirements that relate to it. EU declaration of conformity is available on www.connectit-europe.com

connect IT*

Diagram of a computer mouse with numbered parts labeled 1, 2, and 3 pointing to different surfaces.

DE

Image of a white computer mouse with numbered annotations pointing to key surfaces.

PL

Diagram of a white computer mouse with numbered labels pointing to key points.

SK

Two stylized animal figures, one in teal and one in black, walking side by side (no text or symbols)

connect IT®

MANUFACTUREF

HFRSTFII FE

VÝROBCE

VÝRNRCA

IT TRADE, a.s

Poděbradská 786/65a
