Product Type	Stick Vacuum Cleaner
Model	VCH602BL
Brand	Blaupunkt
Color	Black/Blue
Motor Power	600 W
Suction Power	20 kPa
Dust Capacity	0.5 L
Filtration System	HEPA washable filter
Power Source	Mains corded, 5 m cord length
Voltage	220-240 V, 50/60 Hz
Weight	2.8 kg
Dimensions (LxWxH)	25 x 15 x 115 cm
Noise Level	78 dB(A)
Bag Type	Bagless
Accessories Included	Crevice tool, brush tool, floor nozzle
Usage	Hard floors, carpets, upholstery
Maintenance	Empty dust cup after each use; wash filter monthly
Safety Features	Thermal overload protection
Spare Parts	Replacement filter (HEPA) available
Repairability Index	6.5/10

Frequently Asked Questions - VCH602BL BLAUPUNKT

How to empty the dust cup on the Blaupunkt VCH602BL?

Press the release button on the dust cup and pull it out. Hold over a trash bin, open the bottom lid, and tap to empty. Rinse the filter if needed and let dry completely before reinserting.

Is the filter washable?

Yes, the HEPA filter is washable. Rinse under running water without detergent, squeeze gently, and air dry for 24 hours before reuse.

What is the cord length?

The power cord is 5 meters long, allowing a cleaning radius of about 8 meters from the outlet.

Can it pick up pet hair?

Yes, the powerful suction and brush tool are effective for removing pet hair from carpets and upholstery.

How to maintain the floor nozzle?

Check for blockages regularly. Remove hair and debris from the brush roll using scissors or the built-in cleaning tool.

Is the vacuum suitable for hard floors?

Yes, it has a dedicated hard floor setting that prevents scratches and provides optimal pick-up.

What does the thermal overload protection do?

If the motor overheats, the vacuum automatically shuts off to prevent damage. Unplug and let it cool for 30 minutes before restarting.

Where can I buy spare filters?

Replacement HEPA filters (part number BPVCH602BL-1) are available from Blaupunkt's official website or authorized retailers.

What is the noise level?

The noise level is approximately 78 dB(A), which is comparable to a typical vacuum cleaner.

How to store the vacuum?

The vacuum can be stored upright using the parking hook on the back. Wall-mounting accessories are not included but can be purchased separately.

USER MANUAL VCH602BL BLAUPUNKT

Black and blue handheld vacuum cleaner with blue handle (no text or symbols visible)

Enjoy it.

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as

accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.
- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.
- Unplug the AC adapter from the electrical outlet when not in use.
- Do not connect or disconnect the adaptor from the power source with wet hands.

Do not vacuum without first ensuring that filters are installed correctly.

• You cannot vacuum very fine dust such as flour, cement, gypsum powder, toners, or dirt that may be hot, such as ash, cigarette butts, and matches.
• You should use the vacuum cleaner to clean dry surfaces only. Do not use the vacuum cleaner on damp and wet cleaned carpets and flooring.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

DEVICE SPECIFICATIONS

Power Supply: DC 26V, 0.5A

Filter Set: Blaupunkt ACC041

POWER-SUPPLY SPECIFICATIONS

Supply Voltage: 100-240V\~50/60Hz

Maximum Supply Current: 0,5A

Output Voltage: DC 26V, 0.5A

1. Suction Nozzles
   a) General Purpose Suction Brush with Power Brush
   b) Crevice Nozzle with Pull-Out Bristles
   c) Crevice tool
2. Power Cable with Power Adapter
3. Handle
4. Lithium Battery Cassette
5. Power Socket
6. Battery Release Button

7. Power Button

8. Suction Adjustment Button

9. Power Brush Suction Power/Lock Indicator
10. Main unit attachment
11. Hose attachment
12. Dust Container
    a) Container
    b) Container Latch with Release Button
    c) HEPA Filter
    d) Dense Prefilter
13. Filter

BEFORE STARTING THE VACCUUM CLEANER

To charge the vacuum cleaner's battery, plug the power cord into the vacuum cleaner's power socket, and the power adapter into an electrical outlet. Charging takes up to 5 hours.

Make sure that the vacuum cleaner's dust chamber is empty and the filters are correctly inserted. Attach the hose and the general-purpose nozzle brush with the power brush or the crevice nozzle.

To switch on the vacuum cleaner, press the power button. To adjust the suction power, press the suction-adjustment button. A fully charged battery provides approximately 20 minutes of operation with maximum suction power, or 30 minutes with less suction power.

When the vacuum cleaner's power brush becomes locked while vacuuming is in progress, the lock indicator starts flashing. Switch off the device and clean the power brush. The device can be restarted.

AFTER VACUUMING

Remove the nozzle. Clean the accessories. Empty the container.

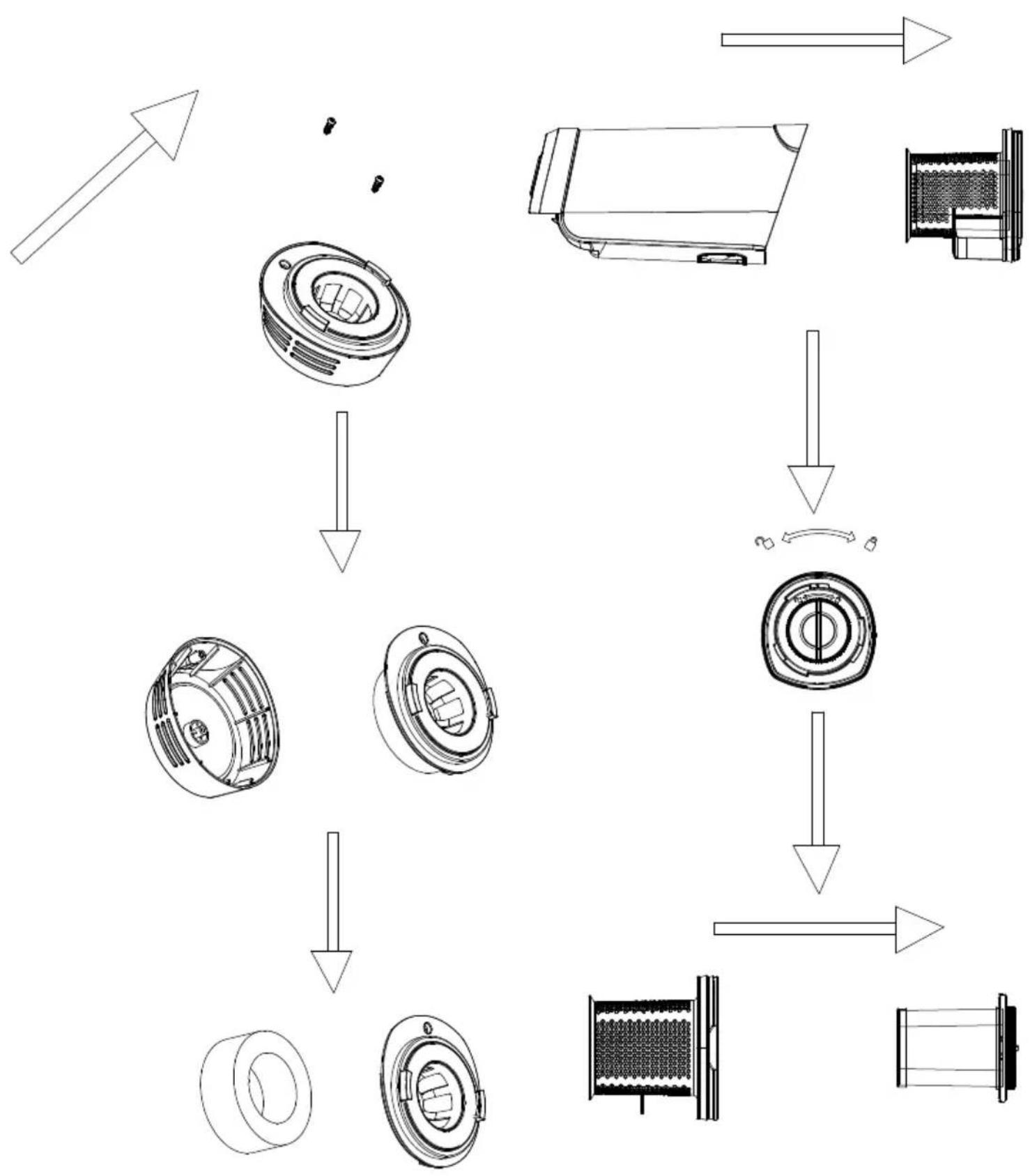

EMPTYING THE CONTAINER

To remove the container, press the container-latch-release button and remove it. Remove the filters fitted in the container. Empty the container. Clean the filters.

To replace the container, follow the steps above in reverse order.

CLEANING AND MAINTENANCE

Clean the nozzles and container and remove the dust on a regular basis.

The main unit can be wiped with a damp cloth and then immediately wiped dry.

Clean the filters each time you empty the dust container. It is recommended to clean the filters thoroughly under running water. After cleaning the filters, replace them only when they are completely dry.

It is recommended to replace the HEPA filter every 4 months, depending on the frequency of use. Replace the filters according to the instructions provided in the section on emptying the container.

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
