USER MANUAL WQP8-7710D Hanseatic

Line drawing of a hanseatic kitchen appliance with control panel and buttons (no text or symbols on the device itself)

Gebrauchsanleitung

Geschirrspüler

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

Three simple line drawings: a funnel, a rolled sheet, and a paper roll, all without any text or symbols.

Two technical diagrams labeled (e) and (f) showing mechanical parts with no visible text or symbols.

Illustration of a hand inserting a component into a device with a diagonal line, labeled (21), showing no text or symbols beyond the label.

Diagram of a device with a slide and screen, showing a right-hand rule for rotation (no text or symbols present)

1 2 3 4 5 6 7 8 9 Options for Replishment

Optimale Beladung

Diagram of a refrigerator interior with a magnified inset showing internal components (no text or symbols)

3D rendering of a kitchen pan with multiple circular pots and a lid (no text or symbols)

Diagram of a wire mesh container being lifted by a crane hook, with no text or symbols present.

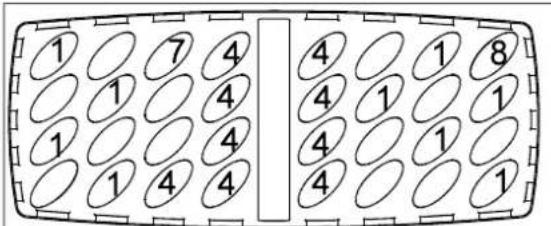

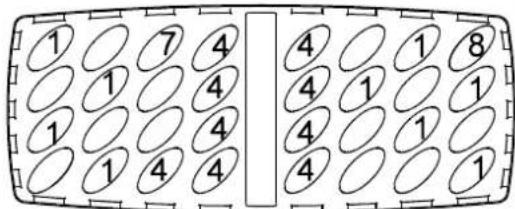

1 7 4 4 1 8 1 4 4 1 1 1 4 4 4 1 1 4 4 4 1

Optimale Beladung

Technical diagram of a mechanical assembly with a central component and a directional arrow (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a valve mechanism (no text or labels)

Simple line drawing of a vertical support structure with two upward arrows and label (c), no text or symbols present.

puls- (e) Aaroseatic

Technical diagram of an automatic washing machine with labeled parts and control panel

Technical line drawing of a wooden beam with labeled section (h), no text or symbols present

Diagram of a layered structure with label (h), no readable text or symbols present

Aanseatic 869 (h) (h)

Line drawing of a washing machine with control panel and door (no text or symbols)

Diagram of a vehicle chassis with two wheels and directional arrows indicating motion (no text or symbols)

Line drawing of a hanseatic kitchen appliance with control panel and buttons (no text or symbols on the device itself)

User manual

Semi integrated dishwasher

Table of contents

Delivery....EN-3

Controls and appliance parts ..... EN-4

Safety ...... EN-6

Intended use ...... EN-6

Explanation of terms ..... EN-6

Safety notices ..... EN-7

Dishwasher detergents, rinse

aids and dishwasher salts ..... EN-11

Multitabs EN-11

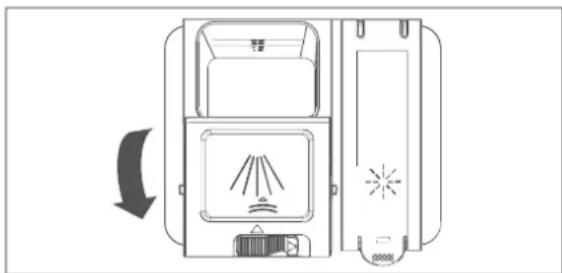

Add dishwasher detergent ..... EN-11

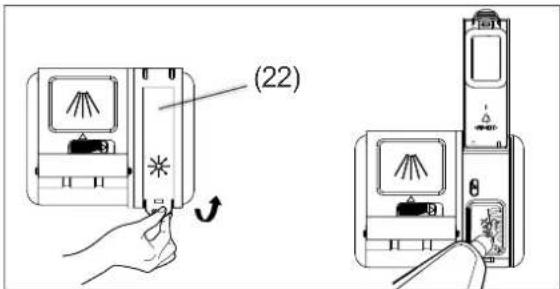

Adding rinse aid ..... EN-12

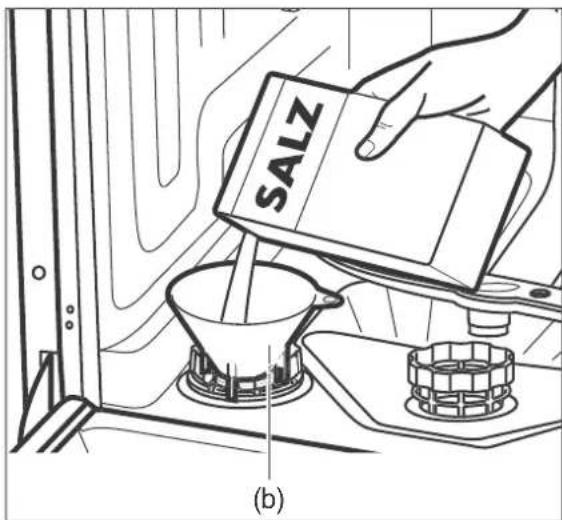

Adding dishwasher salt ..... EN-13

Loading the dishwasher.....EN-14

Unsuitable dishes ..... EN-14

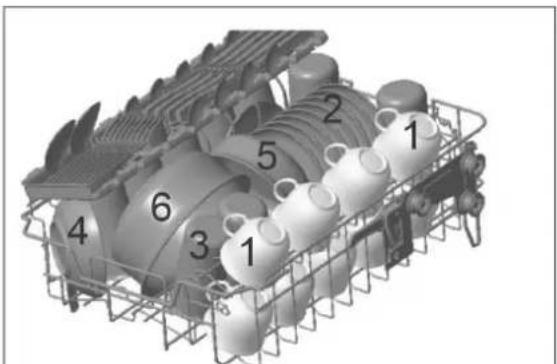

Upper dish rack ..... EN-14

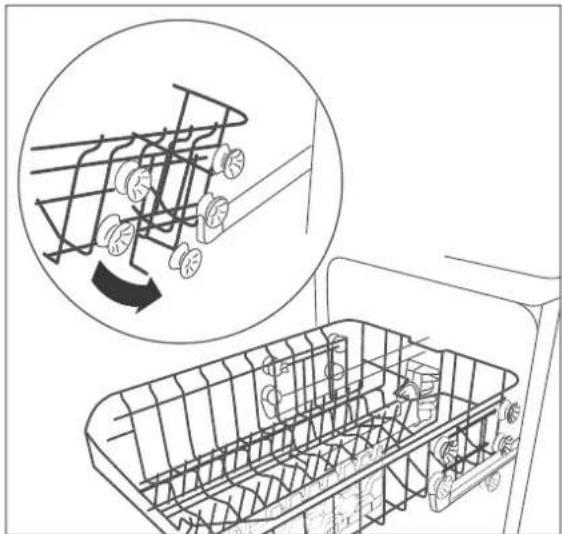

Changing the height of the

upper dish rack ..... EN-15

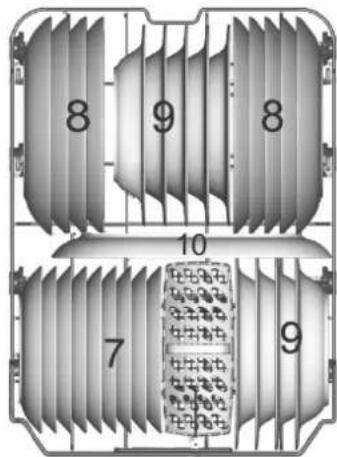

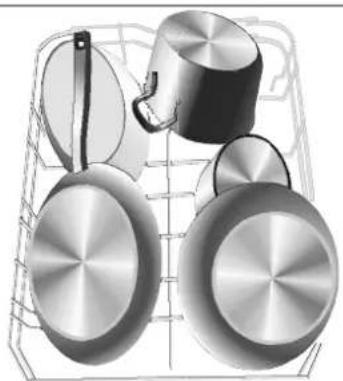

Lower dish rack ..... EN-15

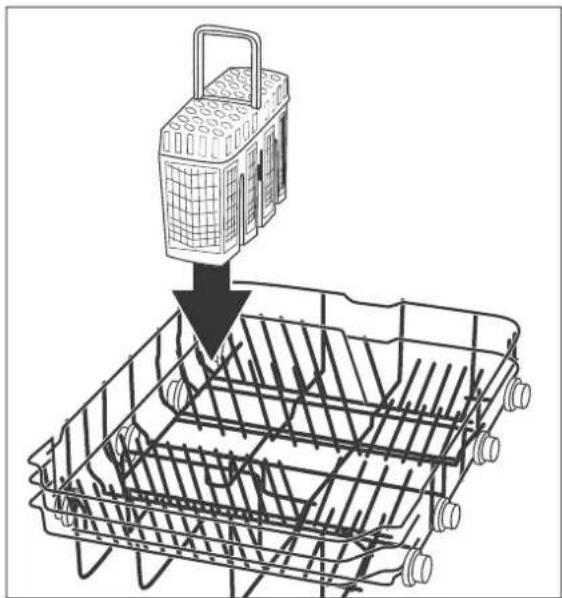

Cutlery basket....EN-16

Dishwasher programme table ..... EN-17

Dishwasher operation ..... EN-18

Preparation....EN-18

Select the dishwasher

programme and start ..... EN-18

Additional options ..... EN-18

Changing the dishwasher

programme ..... EN-19

Adding dishes....EN-19

Cycle end....EN-20

Care and maintenance ..... EN-21

Cleaning the front of the

appliance and the door seal ..... EN-21

Cleaning the filter ..... EN-21

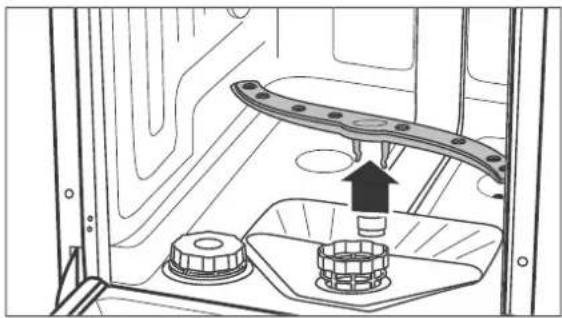

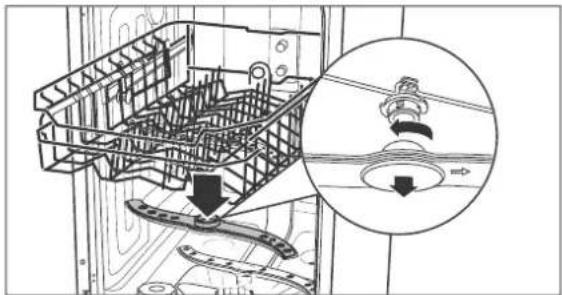

Cleaning the spraying arm ..... EN-22

Complete cleaning ..... EN-22

Protection against frost damage . . EN-22

Installation, fitting, connection ..... EN-23

Choose a suitable location ..... EN-23

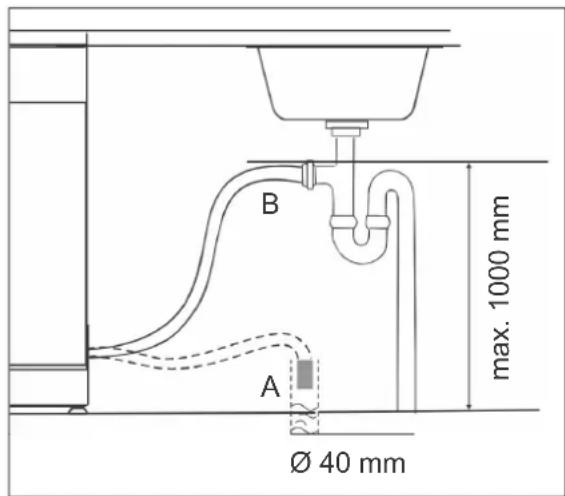

Connecting the outlet hose ..... EN-23

Connect the inlet hose ..... EN-24

Electrical connections ..... EN-24

Type of fitting ..... EN-25

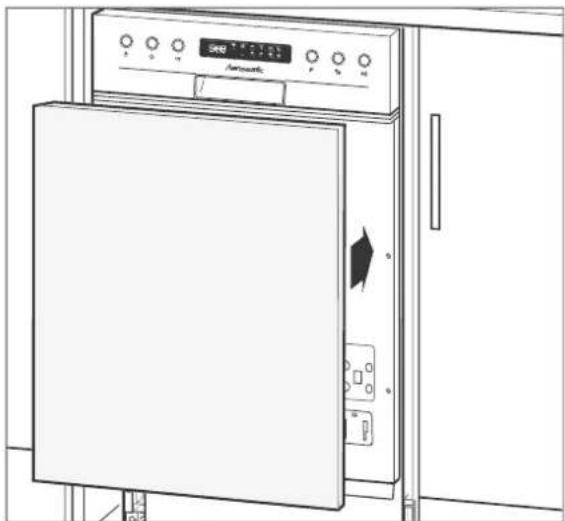

Mounting the front panel ..... EN-27

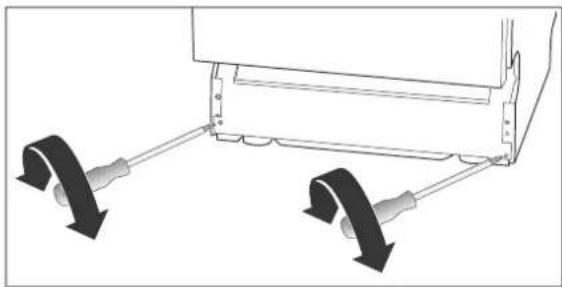

Adjusting the accessibility of the dishwasher door ..... EN-28

Using for the first time ..... EN-29

Adjusting the water hardness . . . . EN-29

Test run.... EN-29

Troubleshooting table ..... EN-30

Problems with operation ..... EN-30

The dishwashing results are not satisfactory....EN-32

Service.....EN-33

Advice, order and complaint ..... EN-33

Repairs and spare parts ..... EN-33

Environmental protection ..... EN-34

Disposing of old electrical devices in an environmentally friendly

manner EN-34

Packaging ..... EN-34

Technical specifications ..... EN-35

Product fiche concerning

Regulation (EU) No 1060/20109 . . . EN-36

You will find information on installation, fi tting and connec-tion from page EN-23.

Before using the appliance, please first read through the safety instructions and user man-

ual carefully. This is the only way you can use all the functions reliably and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

Three simple line drawings: a funnel, a rolled sheet, and a paper roll, all without any text or symbols.

Two technical diagrams labeled (e) and (f) showing mechanical parts with no visible text or symbols.

Position	Quantity	Designation	Substructure	Integrable

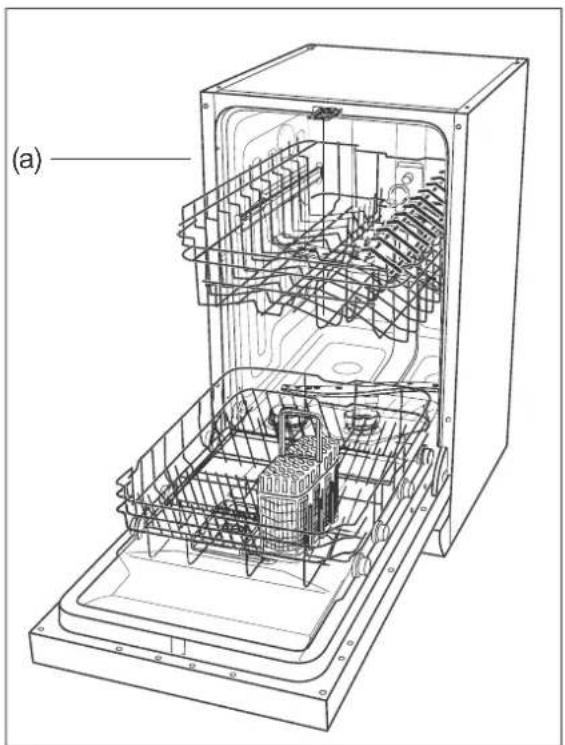

(a)	1× Dishwasher		√	√
(b)	1× Funnel for dishwasher salt		√	√
(c)	1× Film to protect the worktop from condensation		√	√

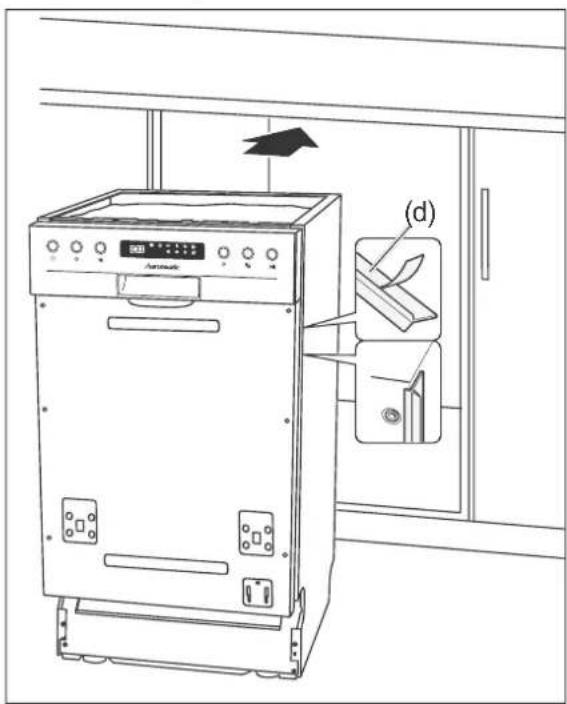

(d)	2× Lateral end profiles		√	√

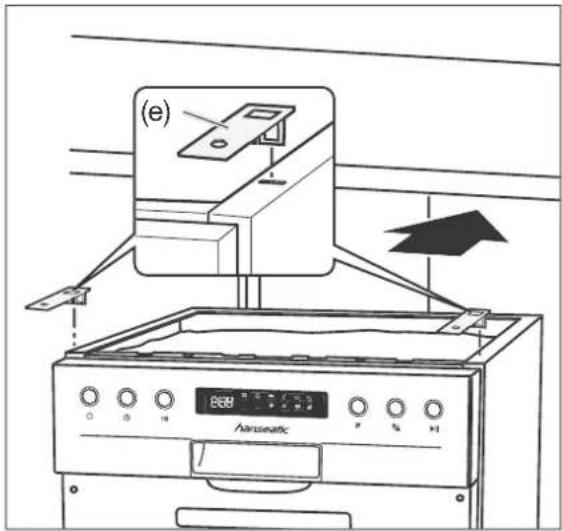

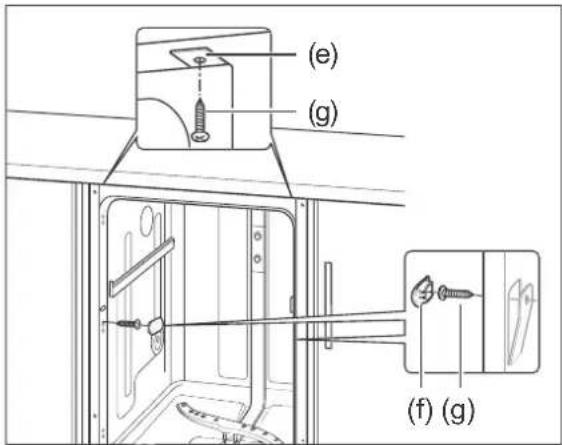

(e)	2× Mounting bracket for fixing the dishwasher to the work-top		√	√
(f)	2× Cover caps for drill holes		√	√
(g)	asstd.	Screws for fixing the dish-washer to the kitchen units	√	√
(h)	5× Moulding for adapting to the front panel		-	√

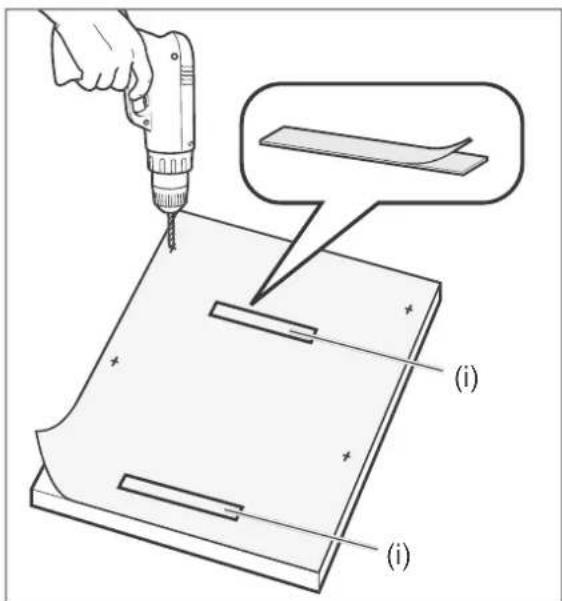

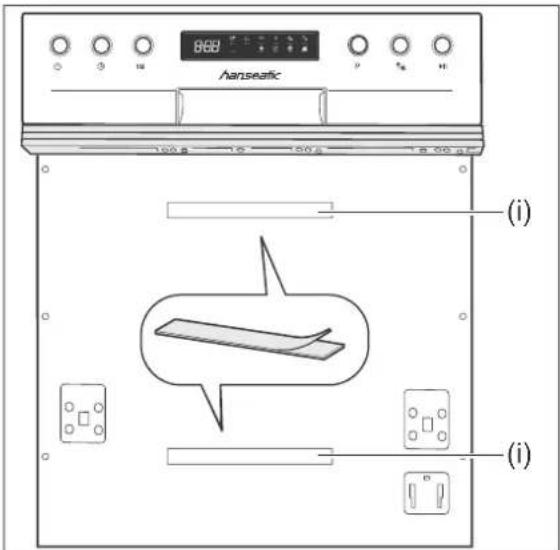

(i)	2× Ve	cro straps to install a front panel	-	√

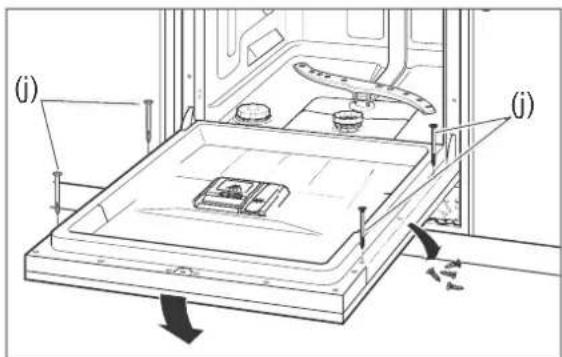

(j)	4× Countersunk head screws to install a front panel		-	√
	1× Short manual		√	√
	1× Drilling template -			√

Checking package contents

1. Unpack the appliance with care.
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see page EN-33).

WARNING!

Never use a damaged appliance.

Controls and appliance parts

(1)(2)(3)(4) (5) (6) hanseatic 8:88 12 P % II (7) (8) (9) (10) 8:88 AUTO ECO 90° (11)(12)(13)(14)(15) 1/2

(1) Switching the appliance on and off
(2) 🔒 Delayed start
(3) 12 Half load
(4) P Selecting the programme
(5) % Extra drying / Intensive wash«
(6) ▶ II Start/Pause
(7) Door handle
(8) Display
(9) Display for programme duration and delayed start

(10) Display of programme icons
(11) Intensive cleaning
(12) ☺ Extra drying
(13) ≅ Adding dishwasher salt
(14) ✱ Adding rinse aid
(15) 12 Half load

(17)(16) (19) (18)

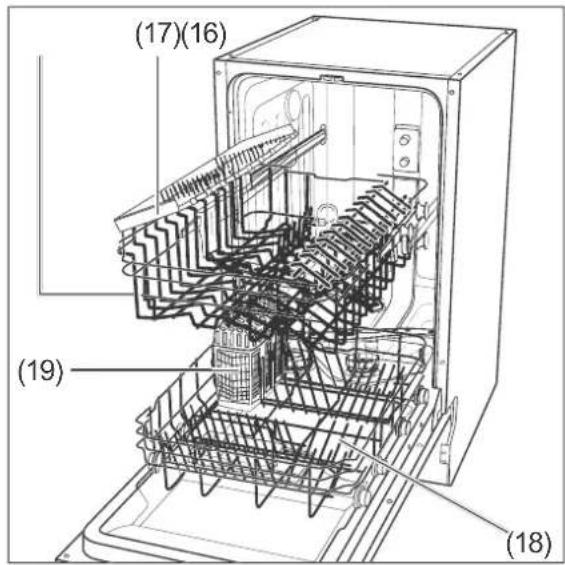

(16) Upper dish rack with the upper spraying arm beneath

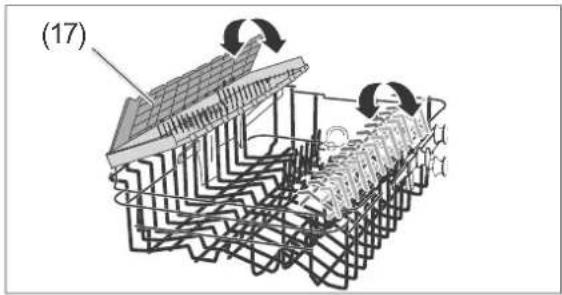

(17) Additional cup tray (included separately with delivery)
(18) Lower dish rack
(19) Cutlery basket

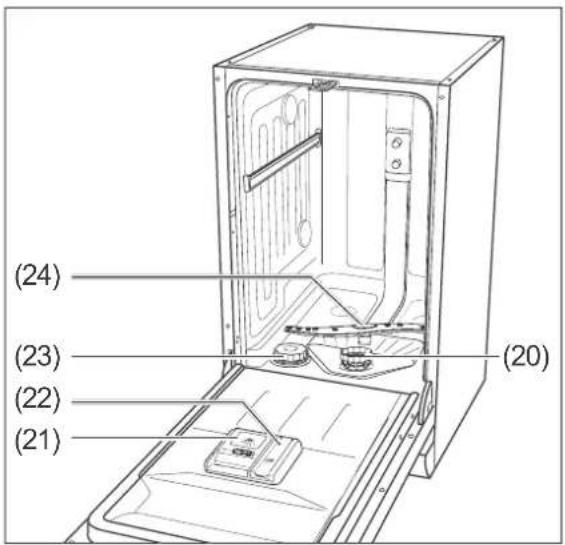

(24) (23) (22) (21) (20)

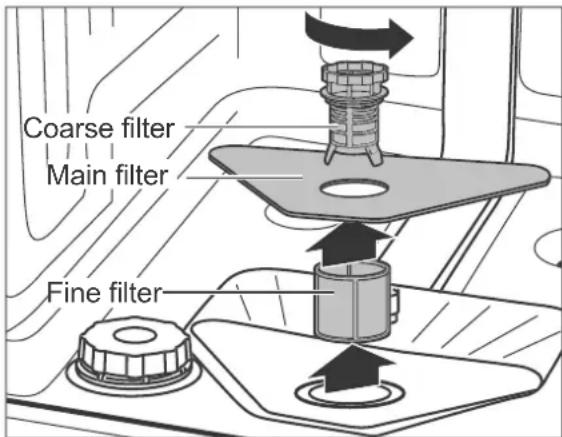

(20) Filter

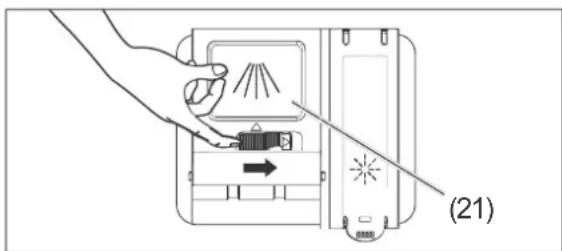

(21) Compartment for dishwasher detergent/multitabs
(22) Compartment for rinse aid

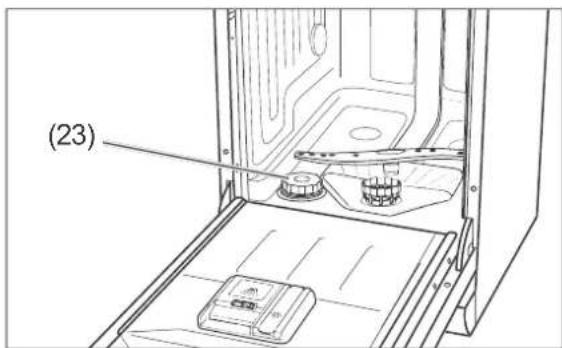

(23) Compartment for dishwasher salt
(24) Lower spraying arm

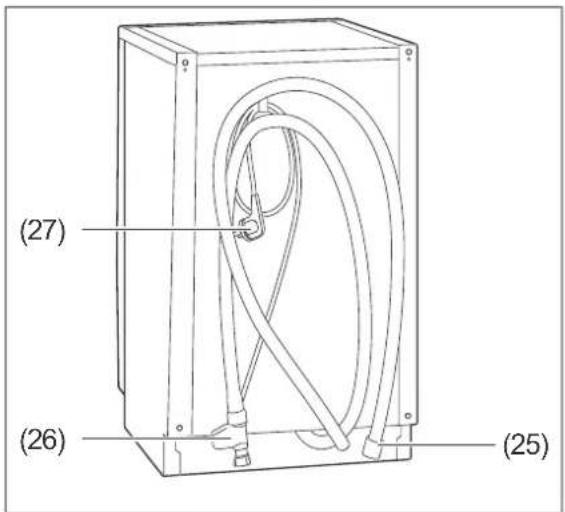

(27) (26) (25)

(25) Outlet hose
(26) Inlet hose
(27) Mains cord with mains plug

Safety

Intended use

The dishwasher is exclusively intended for washing dishes in ordinary quantities for private households and is not suitable for commercial use or multiple use (e.g.: use by several parties in a residential apartment block).

Prior to use, the appliance must be properly installed in a kitchen unit.

Only use the dishwasher as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING!

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION!

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety notices

In this chapter you will find general safety instructions which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance, if
■ it shows visible signs of damage, e.g. the power cord is defective.
■ it starts smoking or there is a smell of burning.

- it makes unfamiliar noises.

In this case, you should pull the mains cord out of the socket or switch off/unscrew the fuse and have the appliance repaired (see „Service“ on page EN-33).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. Ensure that the voltage is correct when connecting it. You can find more detailed information about this on the nameplate.

■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected into the house wiring with

a contact gap of at least 3 mm; this includes fuses, circuit breakers and covers.

■ We recommend using a pulse-sensitive residual-current device (RCD).
■ Do not operate the appliance with an external timer or a separate remote control system.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.
■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ Never pull the mains plug out of the socket by the mains cord, always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or mains plug in water or any other liquids.
■ In the event of a fault, as well as before cleaning or maintenance, pull out the mains plug/switch off or unscrew the fuse.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our service department (see page EN-33). Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never

try to repair a defective or suspected defective appliance yourself.

■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.
■ Never clean the appliance with a high-pressure cleaner or steam cleaner.
■ Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

Risks to children

Risk of suffocation!

■ Do not allow children to play with the packaging fi Im. Children could become caught in it and suffocate.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory or mental abilities, or who lack experience and/or knowledge, if they are supervised or have been instructed in the safe use and understand the dangers associated with its use.
■ Children must not be allowed to play with the appliance.
■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Risks when dealing with dishwashers

Danger of explosion!

Solvents can create an explosive mixture.

■ Never put solvents into the appliance.

Risk of poisoning!

Dishwasher detergents, rinse aid and dishwasher salt can be damaging to the health.

• Keep these products out of the reach of children and pets.
  ■ Never use the water inside the appliance as drinking water.

Risk of injury!

Knives and other pointed or sharp-edged objects can cause injuries.

■ Always place pointed and sharp-edged objects with the pointed or sharp edge pointing downwards in the cutlery basket.
■ Ensure that children do not load such objects which may cause injury into the appliance.
- Load the appliance in such a way that no objects which may cause injury fall out of the dish racks when the appliance is next opened and the dish racks are removed.

Risk of scalding!

If you open the dishwasher door during operation, there is a risk that hot water will spray out of it.

■ When opening the dishwasher door, always use just the handle. Maintain a safe distance from the appliance in order to avoid water/steam which may escape.

The hot dishwater will cause the dishes and the inside of the appliance to heat up. Touching them can therefore cause scalding.

■ Do not touch the dishes, cutlery or the inside of the appliance immediately after the dishwashing programme has finished.

Trip hazard!

An open dishwasher door can easily become a trip hazard.

■ Close the dishwasher door after every use.
■ Only leave the dishwasher door slightly open to cool down.

Damage to property

Improper handling of the appliance may result in damage.

■ Never leave the appliance unsupervised for an extended period when the tap is on.
■ During storms or when going on holiday, always withdraw the mains plug from the socket and close the water tap.
■ If there is a risk of frost, loosen the inlet hose and allow the water to run off.
■ Only use regenerating salt which is suitable for dishwashers.
- Only add dishwasher salt immediately before the next main dishwashing cycle, as dishwasher salt which has overfl owed can damage the seals and filters of the appliance.
- Immediately remove any spilt dishwasher salt with a damp towel, as otherwise the stainless steel surfaces can be affected.
■ Ensure that the dishwashing detergent and rinse aid are suitable for the appliance.

■ Wipe away rinse aid which has over-flowed immediately as otherwise it can lead to excessive foaming which can compromise the results delivered by the dishwasher.
■ Do not overload the appliance.
■ Position the upper dish rack at the highest setting if very tall dishes are in the lower dish rack, as otherwise the upper spray arm will be blocked.
■ Do not use the open dishwasher door as a step, seat or for support. Make sure that children and pets do not stand or sit on the open dishwasher door.

The seals of the door are sensitive to oil and grease.

■ Do not apply grease to the door seals.
■ Wipe away grease and oil which has dripped onto the edge of the open dishwasher door.

The door seals can be damaged by unsuitable cleaning agents.

■ Do not use harsh, aggressive, solvent-based or abrasive cleaners.

The device is designed for a water pressure of 0.4 to 10 bar (0.04 to 1.00 MPa, 40 to 100 N/cm ^2 ).

■ If the water pressure is higher than this, install a pressure reducer. If in doubt, enquire about the water pressure with the water supply company.
■ Never connect the appliance to the water tap or the mixing arm of a water heater (continuous flow heater, pressure-free boiler etc.).

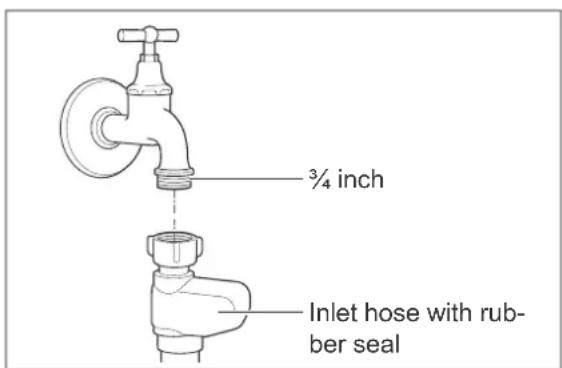

■ Ensure that the inlet hose is not kinked and is carefully connected.
■ Do not cut through the inlet hose. It contains electrical components. If the inlet hose is damaged, have it repaired by a specialist.
■ Do not use old or previously installed inlet or outlet hoses.
■ The outlet hose must be of a minimum diameter of 40 mm so that the water can be pumped away unhindered.
■ Do not attach the outlet hose yourself, have it installed by a specialist plumber. Have the outlet hose checked regularly for damage or kinks.

Dishwasher detergents, rinse aids and dishwasher salts

WARNING!

Risk of poisoning!

Consumption of dishwasher detergent, rinse aid, multitabs or dishwasher salt is damaging to the health – risk of poisoning!

• Keep these products out of the reach of children and pets.
  ■ Do not use the water out of the dishwasher for drinking water.

Multitabs

AUTO 1/2 ECO 90° (14) (13)

Many multitabs already contain dishwasher detergent, dishwasher salt and rinse aid, meaning that you do not need to use these three products separately. In this case, you can ignore notifications that dishwasher salt (13) and rinse aid (14) need to be topped up.

If your water is in the

• “soft” to “medium” hardness range, multi-tabs will deliver good results.
• “hard” range, we would recommend that you do not use multitabs and instead use dishwasher detergent, dishwasher salt and rinse aid individually.

Determine water hardness and adjust (see „Adjusting the water hardness“ on EN-29).

Add dishwasher detergent

Only use dishwasher detergent which is exclusively intended for dishwash-

Illustration of a hand inserting a device into a device with a tool, showing internal components and a pointer (no text or symbols)

1. Push the closure of the dishwasher detergent compartment (21) to the right. The cover will open and give access to the compartment.

Diagram of a device with a slide and screen, showing a right-hand rule for rotation (no text or symbols present)

1. Place a multitab in the compartment or add dishwasher detergent in powder format (you will find details of quantities in the table on page EN-17).
2. Push the cover of the compartment closed so that the closure clicks into place once again.

Adding rinse aid

! WARNING

Risk of damage!

Using an excessive amount of rinse aid can lead to increased foaming and can compromise the rinsing results.

■ Wipe away rinse aid which has overflowed immediately.
■ Take note of the markings for the maximum fi ll quantities ("max") in the rinse aid chamber.

Using unsuitable substances can cause damage to the dishwasher.

■ Only put rinse aids which are suitable for dishwashers into the rinse aid chamber.

AUTO 1/2 ECO 90° (14)

- Fill in rinse aid before first use and when LED (14) lights up. Exception: Use multi-tabs that already contain rinse aid. As rinse aid is automatically dispensed during operation, it ensures that the dishes are spot-free and accelerates the drying process.

(22)

1. Open the cover to the rinse aid compartment (22).
2. Fill the water tank to the "max" mark in the opening.
3. Wipe away any rinse aid which has spilt immediately so that you don't compromise the rinsing results and to avoid increased foaming.
4. We would recommend that you do not change the dosage set by the factory (D3) initially. Only correct the dosage if you are not satisfied with the rinsing results (see below).
5. Close the compartment again.

Amend the rinse aid dosage

If the dishes are matt and spotted after cleaning, increase the dosage. If the dishes are sticky and streaked, reduce the dosage.

The subsequent steps must be carried out quickly one after the other, otherwise the adjustment process will be interrupted.

1. Switch the appliance on. The LED for the ECO programme soon lights up.
2. Keep the ▶II button (6) held in until the water hardness appears in the display (e.g. H∃).
3. Press the ☐ button (2). The currently set rinse aid dosage is displayed(e.g. d4).
4. Push the ▶II button (6) as many times as required until the desired setting is visible in the display (D1=lowest dosage). Around 5 seconds after you last press the button, the standard display will once again appear. This means the setting is saved.

Adding dishwasher salt

NOTICE

Risk of damage!

You may damage the dishwasher and its stainless steel surface by using dishwasher salt in an improper manner.

■ Only use regenerating salt which is specifically intended for dishwashers.
■ Always wipe away split dishwasher salt immediately with a damp cloth.
■ Immediately after adding the dishwasher salt, launch a dishwashing programme.

You don't need to add dishwashing salt to the dishwashing salt compartment if

• you are exclusively using multitabs which already contain dishwasher salt,
• the water hardness in your area is in the 0 - 5^ dH range.

Add dishwasher salt:

– prior to using the dishwasher for the first time,
- if the button (13) lights up.

(23)

1. Remove the lower dish rack.
2. Turn the cover of the dishwasher salt compartment (23) in an anti-clockwise direction and remove it.
3. Upon first use: Add 1.5 l water to the dishwasher salt compartment so that the dishwasher salt doesn't clump.

SALZ (b)

1. Place the supplied filling funnel (b) on the compartment opening.
2. Add dishwasher salt up to the edge of the compartment.
3. Stir the dishwasher salt using the end of a spoon or similar.
4. Turn the cover of the dishwasher salt compartment in a clockwise direction up to the stop point.
5. Replace the lower dish rack.
6. Launch a dishwashing programme straight away or carry out a test run immediately upon first use (see page EN-29).

Loading the dishwasher

NOTICE

Risk of damage!

Long objects which protrude from the dish racks may block the spraying arms or damage the seals. The dishes are not sufficiently cleaned.

■ Ensure that long objects are positioned only horizontally in the dish racks.
■ Place dishes in the dish racks in such a way that none of the objects can slip out of the dishwasher when it is next opened or slip out of the dish racks during operation.
■ Use the height adjustment function for the upper dish rack.

• Remove large and stuck-on scraps of food from the dishes so that the sieve and filter do not become blocked.
• Soak dishes with dried-on or burnt-on foods in water before placing them in the dishwasher.
• Position the dishes with the opening to the bottom so that the water can run off (e.g. for glasses).

Unsuitable dishes

The following dishes and crockery are unsuitable for cleaning using a dishwasher as this will damage them.

• Delicate glasses:
  may become matt and opaque
• Decorations on dishes/glasses/cutlery: may fade.
  – Silver: may tarnish.

• Anodised aluminium: may discolour.
  – Tin: may turn matt.
  – Wood: may warp and tear
  – Horn/heat-sensitive plastic: may become deformed.

• Glued items of cutlery: may come apart.

• Handmade items: may be damaged.
  – Electrical components of kitchen appliances such as mixers:
  may cause an electric shock

- Observe the instructions in user manuals and data sheets.

Upper dish rack

1 2 3 4 5 6 7 8 9 10 Dustened Invertions

Optimal loading

1: Cups, 2: Saucers, 3: Glasses,
4: Small serving dish, 5: Mid-sized serving dish, 6: Large serving dish

The upper dish rack is intended for small and medium-sized dishes such as glasses, coffee and tea cups, sauce jugs, saucers and dessert plates.

(17)

The dish rack provides additional storage space thanks to the fold-out and usable cup tray (17).

Changing the height of the upper dish rack

If there are larger dishes in the lower dish rack, this can impede the upper spraying arm. Position the upper dish rack at the top in order to prevent this.

Diagram showing a mechanical assembly with a magnified inset of a gear mechanism (no text or symbols)

1. Pull the empty upper dish rack out as far as it will go.
2. Raise the dish rack up at the front and pull it off the telescopic rails.
3. Place the dish rack with the side rollers back onto the telescopic rails:

- Use the lower row of rollers to position the dish rack even higher.

- Use the upper row of rollers to position the dish rack lower.

Lower dish rack

8 9 8 10 7 9

Optimal loading

7: Dessert plates, 8: Flat plates,
9: Soup dishes, 10: Serving platter

The lower dish rack is intended for larger dishes such as plates, saucepans and frying pans.

Illustration of kitchen utensils including a pot, lid, and panes arranged in a grid (no text or symbols)

If you wish to put saucepans and frying pans in the dish rack instead of plates you can fold down the spikes at the back.

Cutlery basket

CAUTION!

Risk of injury!

Knives and other pointed or sharp-edged objects can cause injuries.

■ Always place pointed and sharp-edged objects with the pointed or sharp edge pointing downwards in the cutlery basket.
■ Ensure that children do not load such objects which may cause injury into the appliance.
- Load the appliance in such a way that no objects which may cause injury fall out of the dish racks when the appliance is next opened and the dish racks are removed.

Diagram of a wire mesh container being lifted by a crane hook, showing structural deformation (no text or symbols)

1 7 4 4 1 8 1 4 4 1 1 1 4 4 1 1 4

Optimal loading

1: Soup spoons, 7: Serving fork,
4: Teaspoons, 8: Sauce spoons

You will achieve optimal cleaning results if you place the cutlery with the handle facing downwards in the cutlery basket. Always place sharp objects with the handle facing upwards in the cutlery basket.

NOTICE

When loading the cutlery, ensure that it does not go through the bottom of the cutlery basket. Otherwise, the lower spraying arm will be blocked.

Dishwasher programme table

Select the desired dishwasher programme using this table.

Programme overview Programme sequence						Quantity of dishwasher de-tergent in [g] (pre/main)	Duration in [minutes]	Consump-tion 1)
Programme symbol	Application	Pre-wash	Main wash	Rinse	Dry			Current [kWh]	Water [l]
	Automatic programme: For slightly to heavily soiled dish-es with or without dried-on food scraps	45 °C	45 °C to 55 °C	cold + 45 °C	yes 5/22 150			0.9 to 1.3	9.5 to 13
[c4ZZ]	Intensive: For heavily soiled dishes and saucepans, as well as frying pans that are soiled to a normal extent.	50 °C	60 °C	2× cold + 70 °C	yes 5/22 165	1.4 16.5
ECO 2)	Standard programme ECO: For dishes which are soiled to a normal extent through day-to-day use.	cold 45 °C	62 °C	yes 5/22 20	5 0.692	9
[cxx]	Glass: For lightly soiled dish-es and glasses.	cold 40 °C		cold + 60 °C	yes 5/22 125	0.75 13.5
[w34]	90-minute programme: For dishes which are soiled to a normal extent and which should be washed quickly.	no 65 °C		cold + 65 °C	yes 27	90 1.15	11.5
	Short programme: For slightly soiled glasses and cups as well as dishes without dried-on food scraps - Note: As the dishwashing pro-gramme does not have a drying cycle, the dishes will remain damp.	no 45 °C		50 °C to 55 °C	no	20	30 0.70 10

1) The values apply to laboratory conditions; they may vary in day-to-day use.
2) ECO = standard programme in accordance with DIN EN 50242 with rinse setting: D5, hardness setting: H4

Dishwasher operation

Preparation

Requirements:

• You have read the chapter "Safety" from page EN-6 and understand all the safety instructions.
• The appliance is set up and connected as described in chapter „Installation, fitting, connection“ starting on page EN-23.

Select the dishwasher programme and start

1. Open the valve completely.
2. Add dishwasher detergent/multi-action tablets, rinse aid and dishwasher salt as required.
3. Close the dishwasher door.
4. Push the ☐ button (1) to switch on the dishwasher.
   You will hear a signal tone and all LEDs will illuminate briefly.
   The "ECO" programme LED soon lights up.
5. Select the appropriate dishwashing programme using the dishwasher programme table on page EN-17. Push the P button (4) as many time as required until the LED under the desires programme icon lights up.
6. Press the ▶1 button (6) to start the dish-washing programme.

325 AUTO 1/2 ECO S (9)

The programme will start after a few seconds. The time display (9) shows the time remaining; the dots between hour and minute numbers flash.

Additional options

The following additional options can be added prior to the programme starting.

Intensive washing / extra drying

Except with the AUTO dishwashing programme 📋 and the short programme 🌐 you can select the additional options “Intensive washing” or “Extra drying”.

- To do so, repeatedly press the % button (5) if needed.

The corresponding LED lights up:

= Intensive cleaning

© = Extra drying

Delayed start

The washing cycle will normally begin as soon as the ▶I button (6) has been pressed. However, you can delay the start of the programme by up to 24 hours.

1. Before the programme begins, push the Ⓤ button (2) as many times as required until the desired delay time is displayed (H0 1—H24).

2. Then press the ▶1 button (6) The colon between the "H" and the number of hours flashes.

The programme will start as usual after the delay period has finished.

Half load

Select the option "Half load" if you only need to wash up to a maximum of 6 place settings. The water and power consumption is reduced through this setting.

- Push the 1/2 button (3). The LED (15) will light up.

The “Half load” option cannot be selected with the AUTO dishwashing programme and the short programme . Yo

Changing the dishwasher programme

You can interrupt an active dishwasher programme at any point and start a new one. However, do not forget to add extra dishwasher detergent if the programme has already been running for a longer period and the cover of the dishwasher detergent compartment is already open.

1. Press the ▶ button (6) to interrupt the current dishwashing programme. The colon in the programme duration indicator (9) stops flashing.
2. If required, add extra dishwasher detergent.
3. Hold the P button (4) in until the programme duration indicator shows: -:- - .
4. Then select the new programme using the P button and additional extra options as previously described.
5. Press the ▶ button (6). The newly selected dishwashing programme will start.

Adding dishes

You can add more dishes even if the dishwasher programme is already running. In this case, the current dishwashing programme should only have been running for a short time, as only then can the additional dishes be cleaned.

CAUTION!

Risk of scalding!

If you open the dishwasher door during operation, there is a risk that hot water will spray out of it.

■ Maintain a safe distance from the appliance in order to avoid water/steam which may escape.
- Keep children and pets away from the appliance.

1. Open the dishwasher door just a crack initially and wait until the spraying arm has come to a stop and the steam has dispersed.
   Then open the dishwasher door completely. When you open the dishwasher door, the dishwasher programme is interrupted.
2. Add the dishes.
3. Close the dishwasher door.
   The programme will automatically continue to run again.

A signal tone will sound while the dishwasher programme is paused.

Cycle end

After the programme has ended, an acoustic signal will sound lasting 8 seconds.

CAUTION!

Risk of scalding!

If you open the dishwasher door, hot steam will come out.

- When opening the dishwasher door, always use just the handle. Maintain a safe distance from the appliance in order to avoid water/steam which may escape.

- Keep children and pets away from the appliance when opening the dishwasher door.

Trip hazard!

An open dishwasher door can easily become a trip hazard.

■ Only leave the dishwasher door slightly open after unloading.

1. Switch the dishwasher off using the ⏻ -button (1). Turn the tap off.
2. Wait a little while before unloading the dishwasher.
3. When unloading the dishwasher, start with the lower rack and then unload the upper rack. This will prevent water dripping onto the lower layer of dishes from the top layer of dishes.
4. Leave the dishwasher door open slightly so that the inside of the dishwasher can cool off and dry.

Care and maintenance

Cleaning the front of the appliance and the door seal

WARNING!

Risk of electric shock!

Improper use of this appliance may lead to electric shocks.

■ Prior to cleaning, switch off the appliance, pull out the mains plug and switch off the fuse.
■ Never spray the device with a water jet (high-pressure cleaner).

NOTICE

Risk of damage!

The seals of the door are sensitive to oil and grease. The door seals can be damaged by unsuitable cleaning agents.

■ Do not use harsh, aggressive, solvent-based or abrasive cleaners.
■ Do not grease the door seals.

If water gets into the lock, the lock and the electric components in the dishwasher door may become damaged.

■ Use a damp cloth to clean the inner edges of the door.
■ Do not use any cleaning sprays.

1. Wipe the front of the appliance with a damp cloth and some all-purpose cleaning product and wipe it off with a dry towel.
   Take note of the manufacturer's care instructions when cleaning the front panel of the dishwasher.
2. Clean the inside of the door and the seals regularly using a damp cloth.

Cleaning the filter

NOTICE

Risk of damage!

Using the appliance without the fi l- ters or with improperly fi tted fi Iters can cause the dishwashing performance to be impeded or may damage the device.

■ Prior to launching a dishwashing programme, always ensure that the filters have been correctly installed in the appliance.
■ Clean the filters at least once a week.
■ Clean the fi Iters with care; do not bend them.
■ If you replace the filters, always use genuine replacement parts.

Coarse filter Main filter Fine filter

Remove any food scraps out of the coarse filter, the main filter and the fine filter.

1. In order to do this, empty the lower dish rack and remove it.
2. Turn the coarse filter in an anti-clockwise direction and remove the filters in an upward direction.
3. Clean the filters carefully under running water.
4. Replace the filters and turn the coarse filter in a clockwise direction up to the stop point.

Cleaning the spraying arm

The nozzles in the spraying arm may calcify or become dirty due to food scraps. Check the nozzles regularly and clean them if required.

1. Empty both racks and remove the lower rack.

Technical diagram of a mechanical assembly with a bracket and base plate (no text or symbols)

1. Pull the lower spraying arm up and off.

Technical diagram of a mechanical assembly with an inset showing a valve mechanism (no text or symbols present)

1. The upper spraying arm is affixed using a bayonet closure. In order to remove the spraying arm, hold both of the toothed bayonet holders still and turn the spraying arm in a clockwise direction.

2. Clean the nozzles under running water.

3. Affix the spraying arm again after cleaning.

The spraying arm must be firmly affixed and must be able to rotate freely.

Complete cleaning

In well-stocked supermarkets and drugstores, you will find special dishwasher cleaning products. Cleaning the appliance using these products takes place when the dishwasher is empty and is very intensive. You should clean the dishwasher in this way from time to time. When doing so, please note the manufacturer instructions on the packaging.

Protection against frost damage

Position the dishwasher in a room which is protected from frost, if possible. If this is not possible, protect the dishwasher against frost as follows. You will need a shallow dish or a pan, and a sponge.

1. Disconnect the mains plug from the socket or switch off the fuse.

2. Turn the tap off and unscrew the inlet hose.

3. Let the water from the inlet hose flow completely into the dish.

4. Remove the filters (20).

5. Remove the water from the sump floor with the help of a sponge.

Installation, fitting, connection

Choose a suitable location

CAUTION!

Electric shock / fi re hazard!

Faulty electrical installation may lead to electric shocks and/or fire.

■ Do not use a multi-socket extension cable, multi-socket plug, travel adapter or similar.
■ We recommend using a pulse-sensitive residual current device (RCD).

The planned location must fulfil the following prerequisites:

– The location must be a dry and frost-safe room with a firm ground.
- The dishwasher must be positioned beneath a full work surface which is joined together with the cupboards adjacent to the dishwasher.
– In order to install the connection pipes, the dishwasher must be positioned near to a washing/dishwashing basin.

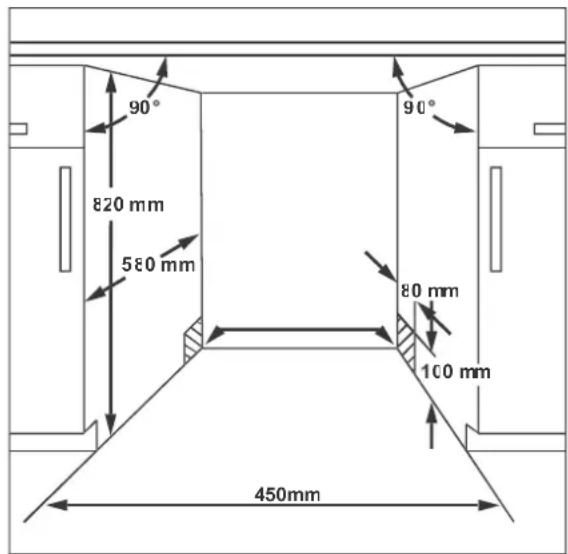

– The measurements of the recess must at least correspond to the details in the following diagram.

90° 820 mm 580 mm 450mm 90° 80 mm 100 mm

Connecting the outlet hose

NOTICE

Potential malfunction!

Waste water must be able to run away freely at all times.

■ Ensure that the waste pipe has a diameter of 40 mm.
■ Ensure that there are no kinks or damage to the outlet hose.
■ Make sure that the end of the hose is not submerged in the pumped water.
■ Do not extend the outlet hose or replace with another drainage pipe.

B A Ø 40 mm max. 1000 mm

The outlet hose (25) can be fixed in two ways:

- Variant "A":

Connection to a floor drain.

- Variant "B":

Direct connection to the odour seal (siphon) of your washing/dishwashing basin. The outlet hose must be a maximum of 1000 mm above the floor. Technical measures must be taken for connection. For this reason, only plumbing experts or members of our service team may connect the outlet hose (see page EN-33).

In an unused outlet manifold, there is a washer so that no water can run out.

This washer must be replaced by a seal ring before connecting the outlet hose.

Connect the inlet hose

Risk of electric shock!

The inlet hose is equipped with an aqua stop system which has an AC voltage of 230 V.

- Do not cut through the inlet hose under any circumstances if the mains plug of the dishwasher is in the socket.

If the inlet hose is damaged, contact our service team (see page EN-33).

NOTICE

Risk of damage!

The dishwasher is set up for a water pressure of 0.4 bar to 10 bar (0.04 MPa to 1.0 MPa). Water must always be able to run freely into the dishwasher, otherwise this can damage the appliance.

■ For water pressure of less than 10 bar, install a pressure reducer (in case of doubt, seek information from the water supply company).
■ Never connect the appliance to the water tap or the mixing arm of a water heater (e.g. continuous flow heater, pressure-free boiler etc.).
■ Ensure that the inlet hose is correctly connected and is not kinked or damaged.

¾ inch Inlet hose with rub- ber seal

For water supply, you need a water tap with a 34 inch screw connector.

1. Screw the union nut of the inlet hose to the water tap until it is tight.

2. Check that the connection to the water tap is sealed. Turn on the water tap slowly and ensure that no water is escaping.

3. Then close the valve again.

Electrical connections

ARNING!

Electric shock / fi re hazard!

■ Prior to connecting the dishwasher, ensure that you have page EN-6 taken note of all the safety instructions and adhered to them.

Depending on the recess into which the dishwasher will be fitted, the dishwasher should be connected before or after fitting.

• For the electrical connection of the dishwasher, a professional must install an earthed power socket with its own fuse of a sufficient size (see „Technical specifications“ on page EN-35).
• The plug must be installed in such a way that the recess into which the dishwasher will be fitted is deep enough even when the plug is plugged in.
• Do not use a multi-socket extension cable, multi-socket plug, travel adapter, extension cable or similar.
• We recommend using a pulse-sensitive residual current device (RCD).

- Connect the mains plug to the socket.

Type of fitting

NOTICE

Risk of damage!

By selecting incorrect screws, you may damage adjacent kitchen units.

■ Use the screws which are supplied in the delivery or screws of an appropriate length.

1. Disconnect the power supply at the fuse box.
2. Remove cardboard, polystyrene and adhesive strips from the inside of the dishwasher, if you have not already done so.

Simple line drawing of a suspended platform or support structure with two upward arrows and label (c), no text or symbols present.

1. Affix the enclosed condensation-protective film (c) to the bottom of the work surface. In this way, you will avoid damage to the work surface as a result of hot steam which may be emitted from the dishwasher if the dishwasher door is left open.

(e) Aariseatic

1. Insert both mounting brackets (e) in the front slots on the top of the dishwasher so that you can later screw the dishwasher to the worktop.

Diagram of an automatic washing machine with labeled parts and airflow direction arrow

1. Remove the protective films from the lateral end profiles (d).
2. Affix the end profiles to the left and right edges of the dishwasher. This will prevent a crack being visible between the dishwasher and the adjacent kitchen cupboards.

7. Push the dishwasher into the recess.

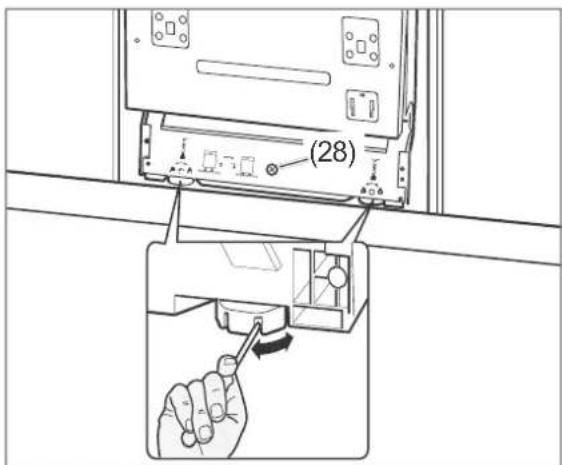

(28)

1. To enable the dishwasher to be positioned levelly, both front and back appliance feet can be adjusted by up to 5 cm.

- Both front feet are equipped with slots. Insert a screwdriver into one of the slots and use it to turn the appliance feet to the desired height.

- With the help of the middle adjustment screw (28) you can adjust the height of the rear appliance foot. Use a Phillips-tip screwdriver for this.

1. Check the alignment with a spirit level.

2. Make sure the top edge of the dishwasher is up to the bottom edge of the worktop to prevent it from tipping forward when you open the dishwasher door.

(e) (g) (f) (g)

1. Screw the dishwasher to the kitchen unit.

a) If you have granite worktops, remove the inner lateral cover caps (f) and screw the dishwasher to the adjacent kitchen cupboards.

Re-cover the screws (g) with the cover caps.

b) For all other worktops, screw the mounting bracket (e) to the work surface until it is fixed.

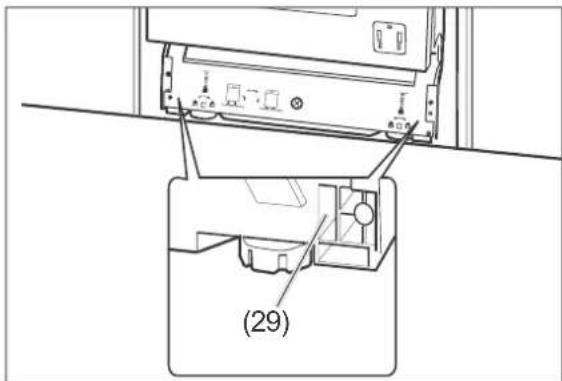

(29)

1. If the plinth on your kitchen units is not continuous, you can affix a plinth with the help of the plinth holder (k).

Plinth holders are screwed to the plinth and inserted into the guides (29). To limit the depth, bend out the appropriate slat of the plinth holder to the outside.

Mounting the front panel

(Not required for substructure model)

You can mount a front panel on the dishwasher door which matches your kitchen. The front panel must not exceed a weight of 5 kg.

1. Hold the front panel against the dishwasher door such that the lower side of the front panel is flush with the adjoining kitchen cupboards.
2. Measure the distance between the front panel and the control panel.

Technical line drawing of a mechanical component with labeled section (h), no readable text or symbols present.

1. A distance of 5 mm to 25 mm can be compensated by the 5 supplied mouldings (h). Remove the required number of moulding from the block. To do so, move the moulding vigorously but without using tools.
2. Clamp the moulding under the control panel.

Diagram of a layered structure with a labeled point (i), showing no text or symbols beyond the label.

1. Pull the two velcro straps (h) apart.
2. Remove the protective film from the same type of velcro strap.

Aanseatic (i) (i)

1. With the protective film removed, stick the velcro straps (i) onto the middle of the recessed areas on the dishwasher door.
2. Cut the positions of the velcro straps out of the drilling template.
3. Cut the number of mouldings used off the drilling template.

Diagram illustrating a hand using a power tool to cut a sheet of paper, with labeled parts (i) and (ii) indicating different states or states.

1. Lay the supplied drilling template on the reverse side of the front panel in such a way that the drilling template and the front panel are flush at the top.

2. Transfer the drill holes from the drill template to the front panel.

3. Drill the drill holes in the indicated positions using a ( 2 mm) drill bit.

4. Remove the protective films from the other velcro straps and stick the velcro straps to the front panel using the drilling template.

Line drawing of an open kitchen oven with control panel and door (no text or symbols)

1. Using the velcro straps (i), fix the front panel on the door of the dishwasher, hold it in place and open the dishwasher door carefully.

(j) (j)

1. Remove the 4 screws from the inside of the dishwasher door. Screw the front panel to these positions with the help of the attached 4 screws (j).

The front panel has been successfully mounted.

Adjusting the accessibility of the dishwasher door

You can adjust how easy or difficult it is to open the dishwasher door. This setting is often required after the front panel has been mounted. By turning both lower screws you can change the spring force of the dishwasher door.

Diagram of a mechanical assembly with two curved components and directional arrows indicating motion (no text or symbols)

In order to adjust the dishwasher door

• so that it is easier to access, turn the screws in an anti-clockwise direction.
• so that it is more difficult to access, turn the screws in a clockwise direction.

Using for the first time

Adjusting the water hardness

Hard water will cause calcification within the dishwasher. Also, more dishwasher detergent will be required to clean the dishes. Soft water increases foaming. For this reason, the degree of hardness of the water has to be determined and adjusted even before the first use. You can determine the water hardness from your water bill or enquire about the degree of hardness at the water supply company. The appliance is factory-set to the H3 hardness level.

Water hardness
°dH Display
0-5	H1
6-11	H2
12-17	H3
18-22	H4
23-34	H5
35-55	H6

(1)(6) 888 hanseatic AUTO ECO 90° (13)(14)

The subsequent steps must be carried out quickly one after the other, otherwise the adjustment process will be interrupted.

1. Switch the appliance on. The LED for the ECO programme soon lights up.

2. Keep the ▶II button (6) held in until the water hardness appears in the display (e.g. H3).

3. Push the ▶ button as many times as required to display the required hardness level.

Around 5 seconds after you last press the button, the standard display will once again appear. This means the setting is saved.

Test run

It is recommended that you carry out a test run before the first dishwasher cycle in order to remove residues from the manufacturing process and in order to ensure that the device functions perfectly.

If no water escapes during the test run and if there are no unusual noises, the appliance is ready to use.

Carry out this test run when the dishwasher is empty and without any dishwasher detergent.

See chapter „Dishwasher operation“ starting on page EN-18 for the procedure.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING!

Risk of electric shock in case of improper repair!

Conducting improper repairs to the dishwasher puts the person carrying out the repairs and the user in danger.

■ Only authorised specialists may repair the dishwasher. If in doubt, contact our service team for this (see page EN-33).
■ Only carry out the actions which are described in this user manual.
- Never repair defective dishwashers – or dishwashers which you presume to be defective – yourself. You can endanger yourself and subsequent users.

NOTICE

Risk of damage!

Improper handling of the dishwasher can lead to property damage and to damage to the dishwasher.

■ If water overflows, close the water supply immediately and do this before contacting the service team (see page EN-33).
■ If the water has overflowed, remove any water standing in the dishwasher before relaunching a dishwasher programme.

Problems with operation

Problem Possible cause Solution
The dishwasher cannot be switched on.	The mains plug has not been inserted into a socket.	Connect the mains plug to the socket.
	There is no voltage being supplied through the socket.	Check the fuse. Check the socket by connecting another device.
The selected dishwasher programme will not start or it stops.	The dishwasher door is not properly closed.	Close the dishwasher door.
	The water tap is not properly on.	Turn the water tap on completely.
	The inlet hose is defective. Contact our service team (see page EN-33).
	There is a risk of overflowing. The aqua stop system has been activated.
The LED (13) is illuminated although dishwasher salt has been added.	The dishwasher salt is clumpy.	Stir the dishwasher salt using the end of a spoon or similar.
Problem Possible cause S	Solution
A peep tone will sound every minute.	The water tap is turned off when the programme is started.	Turn the water tap on completely.
	The dishwasher door is not closed and the programme has been launched.	Close the dishwasher door.
	Programme pauses.	Press the ▶I button (6).
The water is not running or it is running only very slowly.	There is a kink in the inlet hose.	Lay out the inlet hose in such a manner that it is not kinked.
	The water tap is not properly on.	Turn the water tap on completely.
The water is not running off or only very slowly.	The filters are blocked. Clean	the filters (see page EN-21).
	The outlet hose is kinked, has been extended or is hanging too high up/too low.	Lay out the outlet hose in the proper manner (see page EN-23).
	The washer is still in the exhaust manifold.	Replace the washer with a sealing ring.
The dishwasher is not watertight.	The door seal is defective. Have the door seal replaced (see page EN-33).
	The outlet hose or the inlet hose is defective.	Have the defective hose replaced (see page EN-33).
The dishwasher can be switched on/off, but not cannot be operated.	The dishwasher can only be operated when the dishwasher door is closed.	Close the dishwasher door.

Error code Solution
E 1: It takes too long for the water to fill up.	Turn the water tap on completely.
	Lay out the inlet hose in such a manner that it is not kinked (see „Connect the inlet hose“ on page EN-24).
	Ensure that the water pressure is correct (see „Technical specifications“ on page EN-35).
E4: Water overflow.	Switch off the tap. Find the gap in the seal (or have someone find it) and repair the leak (or have it repaired). If water has collected in the collection tray at the bottom of the appliance, empty this before restarting the appli-ance.
E8: Internal valve error.	Contact our service team for this (see page EN-33).

The dishwashing results are not satisfactory

Problem Possible cause Solution
There are residues or streaks on the dishes.	The rinse aid is incorrectly dosed. Adjust the dosage (see page EN-12).
	There is no dishwasher salt. Add dish washer salt (see page EN-13).
	The dishwasher salt is clumpy. Stir the dishwasher salt using the end of a spoon or similar.
The dishes are not completely clean.	There are food scraps which are encrusted onto the dishes.	Soak dirty dishes prior to washing the dishes.
	The dishes have not been stacked optimally.	Stack the dishes in such a way that all parts can be reached by the water jets (see page EN-14).
	You have selected the incorrect dish-washing programme.	Select the correct dishwashing programme (see page EN-17).
	The dishwashing detergent is incorrectly dosed.	Use the correct dosage of dishwasher detergent (see „Dishwasher programme table“ on page EN-17).
	The water pressure is too low. Turn the water tap on completely.
	The spraying arm can not rotate unhindered.	Ensure that no dishes are impeding the motion of the spraying arm.
	The nozzles on the spraying arm are blocked/calcified.	Clean the spraying arms (see page EN-22).

Service

In order for us to help you quickly, please tell us:

Name of appliance Type Article number
hanseatic Semi integrated dishwasher WQP8-7710D	build under 79239	007
	semi integrated 1	9739912

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service:
Telephone [phone]
(landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally friendly manner

Electrical devices contain harmful substances and valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Packaging

Our packaging is manufactured using environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
Please dispose of packaging in an environmentally friendly manner.

Technical specifications

Item number	19739912
Name of appliance	Semi integrated dishwasher
Model	WQP8-7710D
Supply voltage / frequency / fuse	230 V, 50 Hz, 10 A
Rated power 1	930 W
Device measurements (Height × Width × Depth with connections)	81,5 cm × 44,8 cm × 55,0 cm
Unloaded weight	30 kg
Depth of flow	max. 100 cm
Water pressure	0,4 - 10 bar

Item number	79239007
Name of appliance	Build under dishwasher
Model	WQP8-7710D
Supply voltage / frequency / fuse	230 V, 50 Hz, 10 A
Rated power 1	930 W
Device measurements (Height × Width × Depth with connections)	81,5 cm × 44,8 cm × 55,0 cm
Unloaded weight	30 kg
Depth of flow	max. 100 cm
Water pressure	0,4 - 10 bar

Product fiche concerning Regulation (EU) No 1060/20109

Trade mark	hanseatic
Model identifier 19739912	/ WQP8-7710D
Rated capacity, in standard place settings for the standard cleaning cycle	9
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 197 kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard cleaning cycle	0,691 kWh
Power consumption in off-mode	0,45 W
Power consumption in left-on mode	0,49 W
Water consumption 2520 l per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
Dry ing efficiency class on a scale from G (least efficient) to A (most efficient)	A
The standard programme (ECO) is the standard cleaning cycle to which the information in the label and the fiche relates, that this programme is suitable to clean normally soiled tableware and that it is the most efficient programme in terms of combined energy and water consumption.
Programme time for the standard cleaning cycle	205 min
Duration of the left-on mode	30 min
Airborne acoustical noise emissions	47 dB(A) re 1 pW
Built-in appliance	yes

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 50242.

Trade mark	hanseatic
Model identifier 79239007 / W	QP8-7710D
Rated capacity, in standard place settings for the standard cleaning cycle	9
Energy efficiency class on a scale from A+++ (most efficient) to D(least efficient)	A++
Energy consumption 197 kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard cleaning cycle	0,691 kWh
Power consumption in off-mode	0,45 W
Power consumption in left-on mode	0,49 W
Water consumption 2520 l per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
Drying efficiency class on a scale from G( least efficient) to A (most efficient)	A
The standard programme (ECO) is the standard cleaning cycle to which the information in the label and the fiche relates, that this programme is suitable to clean normally soiled tableware and that it is the most efficient programme in terms of combined energy and water consumption.
Programme time for the standard cleaning cycle	205 min
Duration of the left-on mode	30 min
Airborne acoustical noise emissions	47 dB(A) re 1 pW
Built-in appliance	yes

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 50242.
