CMO-2705-DD - Mouse Connect IT - Free user manual and instructions

Product Type	Ergonomic Optical Mouse
Brand	Connect IT
Model	CMO-2705-DD
Connectivity Technology	2.4 GHz Wireless
Operating Range	Up to 10 m
Number of Buttons	6 (including scroll wheel)
Scroll Wheel	Yes
DPI Resolution	800 / 1200 / 1600 DPI (adjustable)
Dimensions (L x W x H)	110 x 76 x 72 mm
Weight	Approx. 100 g (with battery)
Power Source	1 x AA battery (included)
Battery Life	Up to 12 months (typical)
Interface	USB 1.1 and higher
Plug & Play Installation	Yes
Compatible Operating Systems	Microsoft Windows XP/Vista/7/8/10, Mac OS
Color	Black
Receiver Type	USB Nano Receiver
What's in the Box	Mouse, USB receiver, 1x AA battery, user manual
Manufacturer	II TRADE, a.s.
Cleaning Instructions	Use a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Do not disassemble, expose to moisture, or use damaged batteries.

Frequently Asked Questions - CMO-2705-DD Connect IT

How do I install the mouse?

Insert the AA battery into the mouse (ensure correct polarity), then slide the power switch to ON. Next, plug the USB receiver into an available USB port on your computer. The mouse will automatically install drivers via Plug & Play.

How do I change the DPI resolution?

The mouse supports 800/1200/1600 DPI. To switch between them, press the DPI button located on the top of the mouse (usually behind the scroll wheel). Each press cycles to the next resolution.

How do I replace the battery?

Turn the mouse over, slide the battery cover off, remove the old battery, and insert a new AA battery observing polarity. Replace the cover and ensure the power switch is ON.

Is this mouse compatible with Mac OS?

Yes, it is compatible with Mac OS, but some features (e.g., additional buttons) may not work properly due to Mac OS limitations. Basic navigation and scrolling work fine.

What should I do if the cursor does not move?

Check that the mouse is turned on (power switch to ON), the USB receiver is fully inserted, and the battery is fresh. If using a USB hub, connect directly to a computer USB port. Try a different USB port.

What is the wireless range?

The mouse operates up to 10 meters from the receiver under normal conditions. Walls or obstacles may reduce range.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. Do not use liquids, abrasive cleaners, or immerse the mouse in water.

What does the scroll wheel do?

The scroll wheel allows vertical scrolling in documents and web pages. It also functions as a middle button when pressed.

How many buttons does the mouse have?

It has 6 buttons: left button, right button, scroll wheel (clickable), DPI switch button, and two side buttons (forward/backward, depending on software support).

Does the mouse work with Windows 10?

Yes, it is compatible with Windows 10, as well as Windows XP, Vista, 7, and 8. No extra drivers are needed.

USER MANUAL CMO-2705-DD Connect IT

USER MANUAL BENUTZERHANDBUCH PODREÇZNIK UŽYTKOWNIKA UŽIVATELSKÝ MANUÁL UŽÍVATELŠKÝ MANUÁL

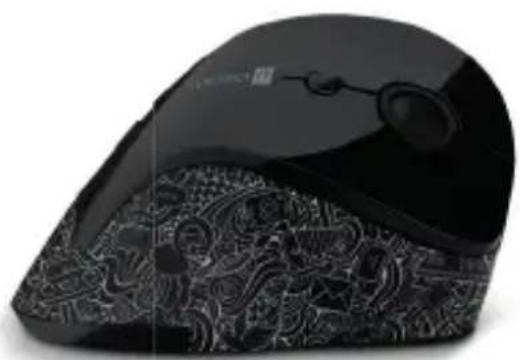

Close-up of a black computer mouse with decorative patterned design (no visible text or symbols)

ERGONOMIC OPTICAL MOUSE ERGONOMISCHE OPTISCHE MAUS ERGONOMICZCNA MYSZ OPTYCZNA ERGONOMICKÁ OPTICKÁ MYŠ ERGONOMICKÁ OPTICKÁ MYŠ

CMO-2705-DD

connect IT

Before putting this product into operation, please read carefully all the instructions, even if you are already familiar with using similar products. Use the product only as described in this manual. Keep this manual in case you need it for future reference.

The electronic version of this user manual can be downloaded on the website www.connectit-europe.com.

We recommend keeping the original packaging of the product, invoice and warranty certificate at least for the time the warranty is valid. When shipping the product, we recommend using the original packaging that the product was delivered in that will provide the best protection for it from being damaged during transport.

1 Specification

■ 2.4 GHz wireless technology
■ Operating range: up to 10 m
■ Six buttons including scroll wheel
■ Resolution: 800/1200/1600 DPI
■ Dimensions: 110 x 76 x 72 mm
■ Interface: USB 1.1 and higher
■ Easy Plug & Play installation
■ Power: 1× AA battery (included)

Compatibility:

■ Operating system: Microsoft Windows XP/Vista/7/8/10 and Mac OS

This product is compatible with Mac OS although some features unsupported by Mac OS may not work properly.

2 Installation

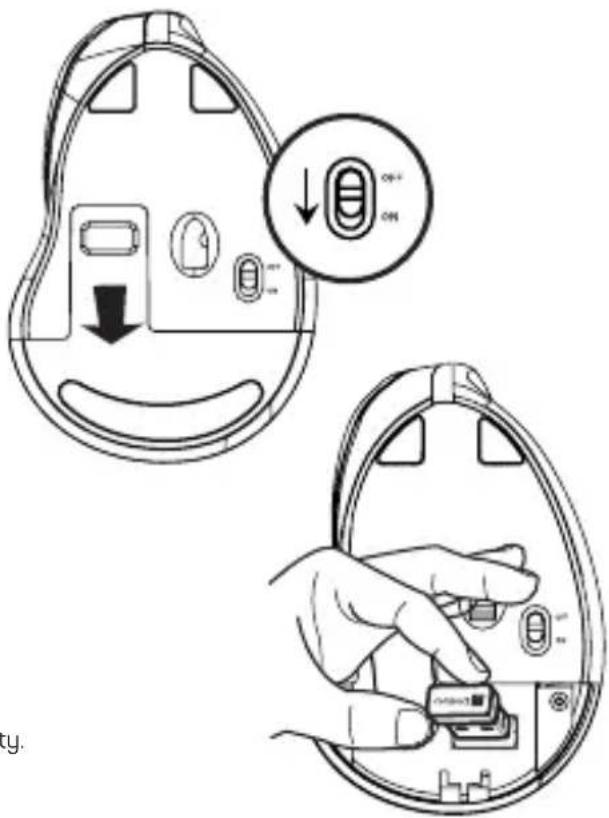

Installation of batteries:

1. Remove the battery cover on the bottom side of the mouse.
2. Insert 1x AA battery into the mouse and be sure that you are inserting the battery in correct direction according to their polarity.
3. Close the battery cover.
4. Shift the switch on the bottom side of the mouse to ON position.

Diagram showing two steps of a device control panel with ON/OFF indicators and a hand interacting with the interior panel.

Installation of USB receiver to the computer:

Insert the USB receiver to the available USB port and wait for automatic installation of drivers.

3 Troubleshooting

■ We recommend connecting this device straight to a USB port on your computer.
If this device is plugged in to a USB hub, make sure that the USB hub and the USB port to which it is connected can provide this device and other devices connected to the same USB hub with enough power.
■ Alternatively, we recommend using an external power source with the USB hub (if the USB hub supports such functionality).

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection center for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it. EU declaration of conformity is available on www.connectit-europe.com.

ON ON US.

Diagram showing two steps of a device control panel with ON/OFF labels and directional arrows indicating action

Diagram showing two steps of a device control panel with ON/OFF indicators and directional arrows indicating action.

Diagram showing two steps of a device control panel with ON/OFF labels and directional arrows indicating action

Instalace USB prijímača:

Two stylized animal figures, one in teal and one in black, walking side by side (no text or symbols)

connect

MANUFACTUREF

HERSTELLEK

PRODUCENT

VÝROBCE

VÝROBCA

II TRADE, a.s

Podebradska 65a

198 00 Praha 9

Czech Republic

tel.: [phone]

[e-mail]

www.connectit-europe.com
