Brand	Matsui
Model	MUL48W18E
Product Type	Fridge (no freezer compartment)
Fridge Storage Volume	89 L
Energy Efficiency Class	A+
Annual Energy Consumption	112 kWh
Rated Voltage	220-240V~, 50 Hz
Rated Current	0.5 A
Rated Power	80 W
Overall Dimensions (H x W x D)	850 x 480 x 445 mm
Climate Class	N, ST (16°C to 38°C)
Noise Level	41 dB(A)
Number of Shelves	2 adjustable glass shelves + salad bin cover shelf
Salad Bin	1 salad bin
Door Shelves	2 full, 2 half
Reversible Door	Yes (left or right opening)
Internal Light	Yes, 10W SES bulb (replaceable)
Thermostat Control	7 settings (0 off, 7 coldest); recommended 4
Defrosting	Manual (no automatic defrost)
Safety Lock	Yes (key lock to prevent child entrapment)
Installation Clearance	25 mm sides, 50 mm rear, 25 mm top
Leveling Feet	2 adjustable front feet
Refrigerant	Environmentally friendly but combustible

Frequently Asked Questions - MUL48W18E MATSUI

How do I set the temperature on my Matsui MUL48W18E fridge?

The internal temperature is controlled by a thermostat dial. There are 7 settings: 0 turns the unit off, 1 is warmest, 7 is coldest. The recommended setting for normal room temperature (16°C to 38°C) is position 4. For colder environments (winter), use settings 1-4; for hotter environments, use 5-6. Adjust according to your environment. Wait 24 hours after first turning on before filling with food to allow the fridge to reach the correct temperature.

Can I reverse the door opening direction?

Yes, the door swing can be reversed from right to left. Tools required: Phillips screwdriver, flat bladed screwdriver, hexagonal spanner. Ensure the unit is unplugged and empty. Tilt the unit backwards and rest on a solid support. Follow the step-by-step instructions in the manual: remove top hinge cover, unscrew hinge, move core cover, lift door off, remove bottom hinge, reverse bracket, refit, and reassemble. We recommend 2 people for this task. If unsure, contact a qualified technician.

How do I clean the fridge interior and exterior?

For interior cleaning, remove all shelves and drawers. Wipe inside with a weak solution of bicarbonate soda (baking soda) and water, then rinse with warm water using a wrung-out sponge or cloth. Dry completely before replacing shelves. For exterior, use a damp cloth and then apply standard furniture polish, avoiding the magnetic door seal and interior. The condenser grille at the back can be vacuumed with a soft brush attachment.

Why is my fridge making unusual noises?

Most noises are normal. The circulation of refrigerant liquid in the cooling system can cause sounds like gurgling or hissing, which have become more common with CFC-free gases. The compressor motor also makes a humming or pulsing sound as it pumps refrigerant. These are not faults and do not affect performance. If you hear loud banging or clicking that persists, contact a qualified technician.

How do I change the internal light bulb?

First, set the thermostat to position 0 and disconnect the mains supply. Use a flat bladed screwdriver to gently prise off the light bulb cover. Unscrew the old bulb anticlockwise and replace with a new 10W SES (Small Edison Screw) bulb. Refit the cover, reconnect the mains, and switch on by adjusting the thermostat to the desired setting.

What should I do during a power failure?

Keep the door closed as much as possible to maintain cold temperature. The fridge can typically keep food cold for several hours if unopened. Do not refreeze thawed food. If the power is off for an extended period, check food for spoilage. The unit will automatically resume normal operation when power returns.

How should I store food in the fridge for best results?

Store cooked meats/fish above raw meats to avoid bacterial transfer. Keep raw meats in a covered container on the lowest shelf. Leave space around food for air circulation. Pack or cover food separately to prevent flavour transfer and drying. Fruit and vegetables need not be wrapped. Always let pre-cooked food cool before placing in the fridge. Limit door openings to maintain temperature.

What safety precautions should I follow?

Keep ventilation openings clear. Do not use mechanical devices to defrost. Do not use electrical appliances inside compartments unless recommended. Do not damage the refrigerant circuit (gas is combustible). Keep the key away from children if the unit has a lock. Do not store explosive substances or glass bottles in the freezer (if applicable). Ensure children are supervised. Only authorised personnel should carry out repairs.

How do I dispose of my old fridge?

Old units contain refrigerant and insulation materials that require special disposal. Do not damage pipes on the back. Contact your local council for up-to-date disposal options. Before disposal, break off any locks or latches and remove doors as a safety precaution to prevent child entrapment. The product must not be disposed of with household waste; take it to a WEEE recycling collection point.

What clearance do I need around the fridge for installation?

Leave 25 mm of free space on both sides, 50 mm at the rear, and 25 mm at the top of the unit. Ensure the floor is flat and firm. The room should be well-ventilated with an average temperature between 16°C and 38°C. Avoid placing near heat sources or in direct sunlight. The door needs more than twice the unit's width and depth to fully open. If placing under a worktop, install a ventilation grille of at least 200 cm² above the rear.

USER MANUAL MUL48W18E MATSUI

White refrigerator with closed lid and side legs, no visible text or symbols

Safety Warnings....7

Unpacking 13

Installation....14

Location....14

Levelling the Unit....14

Free Space Requirements 14

Reversing the Door Swing 15

Cleaning Before Use 18

Before Using Your Unit 18

Product Overview....19

Operation 20

Switching On Your Unit....20

Adjusting the Temperature....20

Noises Inside the Unit! 20

Tips for Keeping Food in the Unit....21

Cleaning 21

Cleaning the Interior and the Exterior of the Unit....21

Maintenance 22

Changing the Internal Light 22

Care When Handling 22

Servicing....22

Switching Off for Long Periods of Time....22

Condensation 22

Disposal 22

Specifications.... 23

Product Fiche 23

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.

• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  — bed and breakfast type environments;
  – catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

- bed and breakfast type miljøer;

Thank you for purchasing your new Matsui Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

The Main Unit

Adjustable Glass Shelf x2

Salad Bin Cover Shelf

Salad Bin

Full Door Shelf x2

Half Door Shelf x2

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

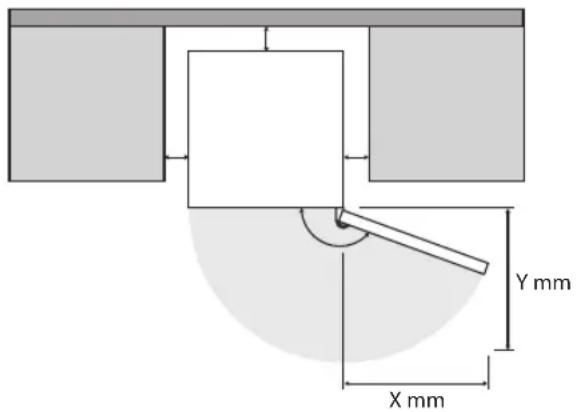

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

INSTALLATION

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption
• Improved cooling performance
• Reduce running costs
• Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

1. Remove the top right hinge cover.

Diagram of a screwdriver being adjusted to a tool, with an arrow indicating the process (no text or symbols present)

INSTALLATION

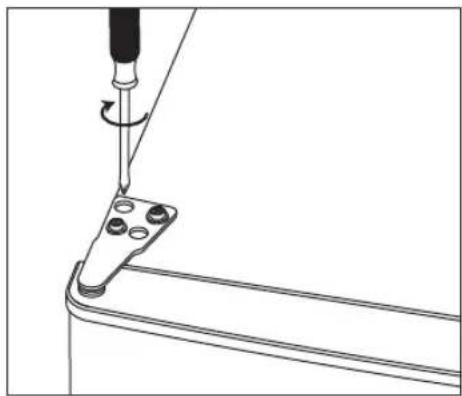

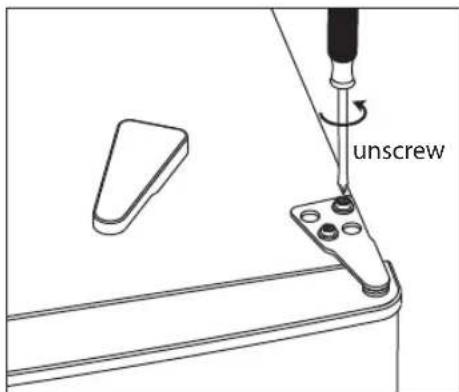

1. Undo the screws. Then remove the hinge bracket.

1. Remove the top left screw cover.

Diagram of a tool being adjusted with a screwdriver, showing a handle and lever (no text or symbols)

1. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a mechanical component with no text or symbols

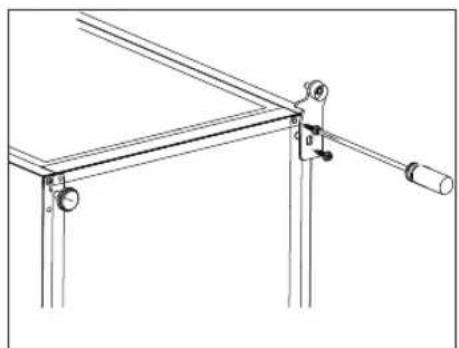

1. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

INSTALLATION

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-up views (no text or symbols)

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

INSTALLATION

1. Put the hinge cover and the screw cover back.

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Cleaning

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

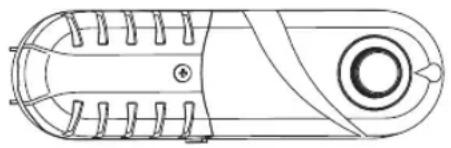

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently prise off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Technical line drawing of a mechanical component with no visible text or symbols

Care When Handling

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Specifications

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.5 A
Rated Power 80 W
Overall Dimension (H x W x D) 850 x 480 x 445 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Matsui
Model MUL48W18E
Household Appliance Category 1
Energy Efficiency Class A+
Energy consumption 112 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 89 L
Freezer Storage Volume	-
Temperature Rise Time	N/A
Freezing Capacity	N/A
Climate Class	N, STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C to achieve the claimed Energy Consumption and Grading.
Airborne Acoustical Noise 41 dB(A) re 1	pW

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Hovedenheten

Justerbar glasshylle x2

Hylle over salatskuff

Salatskuff

Hel dørhylle x2

Halv dørhylle x2

Instruksjonsmanual

Plassering

Plassbehov

INSTALLASJON

Diagram of a screwdriver tool interacting with a mechanical component, showing a downward arrow (no text or symbols present)

INSTALLASJON

1. Løsne skruene. Fjern deretter hengselbraketten.

Diagram of a tool being adjusted with a screwdriver, showing a downward force (no text or symbols present)

Pure technical line drawing of a mechanical part with dashed curved line and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with rods and a measuring rod (no text or symbols)

INSTALLASJON

Technical line drawing of a mechanical linkage system with two circular insets showing detailed components (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

INSTALLASJON

1. Sett hengseldekslet og skruedekslet tilbake.

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

Rengjøring før bruk

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Huvudenhet

Technical line drawing of a rectangular mechanical housing or enclosure (no text or symbols)

INSTALLATION

Diagram of a tool being adjusted to a bracket, with a screwdriver and arrow indicating direction (no text or symbols)

INSTALLATION

Diagram of a tool being adjusted with a screwdriver, showing a handle and angle (no text or symbols)

Pure technical line drawing of a mechanical bracket with dashed curved line and angle symbol (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

SE

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Laite

Technical line drawing of a rectangular mechanical housing or enclosure (no text or symbols)

Oven puolihylly x2

Käyttöopas

Paikka

ASENNUS

Diagram of a screwdriver being adjusted to a mechanical component, with an arrow indicating downward motion (no text or symbols present)

ASENNUS

1. Irrota ruuvit. Poista sitten saranansuojus.

Diagram of a tool being adjusted with a screwdriver, showing a downward force (no text or symbols present)

Pure technical line drawing of a mechanical component with dashed curved line and mounting holes (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ASENNUS

Technical line drawing of a mechanical linkage system with two circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

ASENNUS

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a rectangular refrigerator with lid and frontrest (no text or symbols)

Hovedenheden

Justerbar glashylde x2

Technical line drawing of a rectangular mechanical housing or enclosure (no text or symbols)

Halv lågehylde x2

Brugervejledning

Placering

Krav til fri plads

INSTALLATION

Diagram of a tool being adjusted to a bracket, with a screwdriver and arrow indicating direction (no text or symbols)

INSTALLATION

Diagram of a tool being adjusted with a screwdriver, showing a handle and lever (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical linkage system with two circular insets showing detailed joint detail (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

INSTALLATION

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

Rengøring før brug

Technical line drawing of a mechanical component with no visible text or symbols

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
