Product Type	Built-under Dishwasher
Brand	Matsui
Model	MID60B12N
Dimensions (W x D x H)	595 mm x 540 mm x 820 mm
Place Settings	12
Energy Efficiency Class	A+
Annual Energy Consumption	291 kWh
Annual Water Consumption	3360 litres
Noise Level	52 dB(A)
Power Consumption	1930 W
Voltage / Frequency	230 V ~ 50 Hz
Water Pressure	0.04 - 1.00 MPa
Number of Programmes	6 (Intensive, Normal, Eco, 1 hour, Glass, Rapid)
Delay Start	Up to 12 hours (3h increments)
Half Load Function	Yes
3 in 1 Function	Yes (for Intensive, Normal, Eco)
Drying System	Condensation drying
Adjustable Upper Basket	Yes (lift mechanism)
Salt Refill Indicator	Yes
Rinse Aid Indicator	Yes
Filter System	Multiple filters (coarse, fine, cylinder)
Child Safety	Door lock inoperative when discarded; supervised use recommended
Installation Type	Under counter / Built-in

Frequently Asked Questions - MID60B12N MATSUI

How do I start a wash cycle on the Matsui MID60B12N dishwasher?

Ensure the dishwasher is connected to power and water supply. Open the door, load dishes, add detergent, press the On/Off button, select a programme using the P button, then close the door securely until it clicks. The cycle will start shortly.

What should I do if the dishwasher does not start?

Check that the door is properly closed and latched. Ensure the unit is plugged in and the On/Off button is pressed. Also verify the water tap is open and the water pressure is within 0.04-1.00 MPa. If the Rapid programme LED blinks, it indicates a water intake issue.

How do I adjust the rinse aid dosage?

Open the rinse aid reservoir cap. The dial inside has settings 1 to 6, with factory setting at 4. Turn to a higher number if dishes are spotted, or lower if there is residue. Close the cap after adjustment.

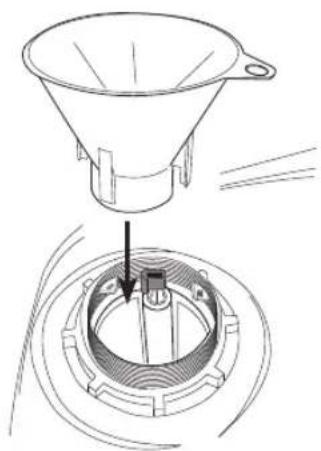

How do I add salt to the dishwasher?

Remove the lower basket, unscrew the salt reservoir cap, place the supplied funnel, pour approximately 1.2 kg of dishwasher salt, fill the reservoir with water until it overflows (first use only), clean any salt residue, and screw the cap back on. Run the Rapid programme immediately without dishes.

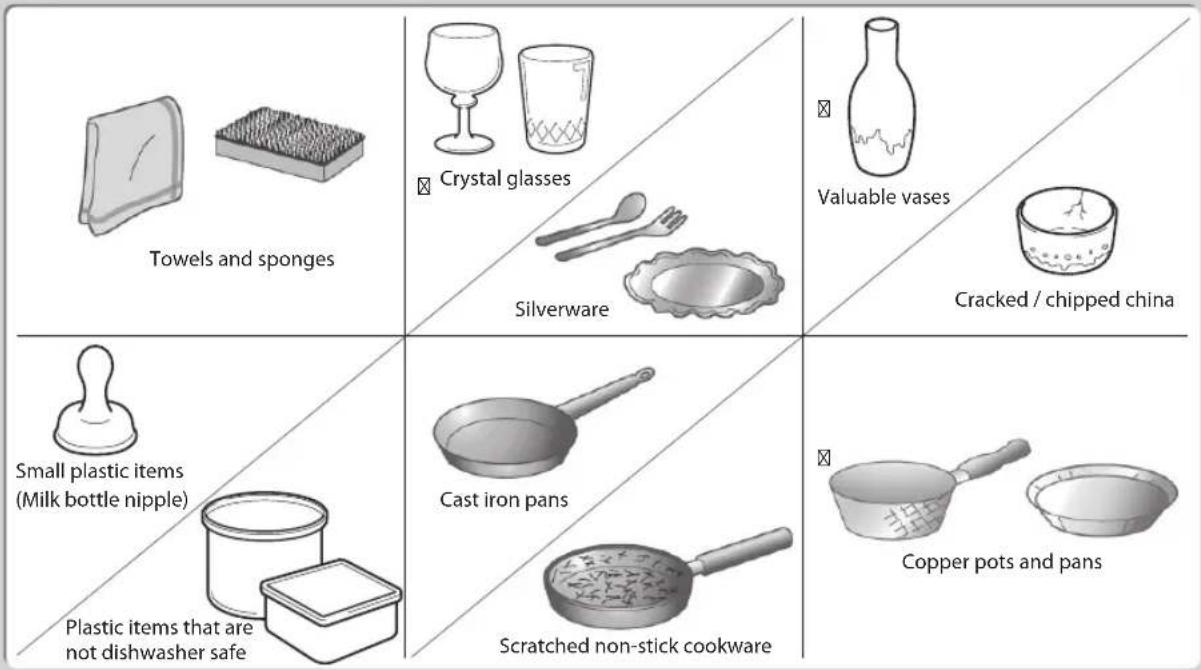

Which items should not be washed in the dishwasher?

Do not wash items such as crystal glasses, silverware, valuable vases, cracked china, wooden items, plastic items not labelled dishwasher safe, cast iron pans, or items soiled with ash, sand, wax, or paint. Always check manufacturer recommendations.

How do I clean the filters?

Switch off the dishwasher. Turn the coarse filter anticlockwise and lift out. Gently lift out the fine filter. Rinse all filters (including the filter cylinder) under running water. Reassemble in reverse order, ensuring the coarse filter clicks into place when tightened clockwise.

How do I use the delay start function?

After selecting a programme, press the Delay button repeatedly to choose a delay time from 3, 6, 9, or 12 hours. The indicator lights will show the selected time. Close the door; the dishwasher will start automatically after the delay.

When should I use the half load function?

Use the half load option when you have fewer dishes to save water and electricity. Press the 1/2 button after selecting a programme. The corresponding indicator will light up. This function works with most programmes.

Why are my dishes not drying properly?

Ensure the rinse aid reservoir is full and the dosage is set high enough (try a higher number). Avoid unloading dishes immediately; wait until the programme finishes and the beep sounds. Use a programme with drying (e.g., Intensive, Normal, Eco). Some programmes like Rapid do not include drying.

Do I need to install the condensation strip?

Yes, the condensation strip must be attached to the underside of the worktop above the dishwasher to protect it from steam damage. Clean the surface, remove the backing paper, and stick the strip in place before installing the dishwasher.

USER MANUAL MID60B12N MATSUI

INSTALLATION/INSTRUCTION MANUAL MID60B12N

DISHWASHER

INSTALLATION/INSTRUCTION MANUAL

GB

OPPVASKMASKIN

INSTALLASJONS-/BRUKERVEILEDNING

NO

DISKMASKIN

INSTALLATION-/BRUKSANVISNING

SE

ASTIANPESUKONE

ASENNUS- JA KÄYTTÖOPAS

FI

OPVASKEMASKINE

INSTALLATIONS- OG BRUGERVEJLEDNING

DK

MYČKA NÁDOBÍ

NÁVOD NA INSTALACI/POUŽÍVÁNÍ

CZ

UMÝVAČKA RIADU

NÁVOD NA INŠTALÁCIU/OBSLUHU

SK

Contents

GB

Safety Warnings....6

Unpacking....20

Installation....21

Location 21

Product Overview....28

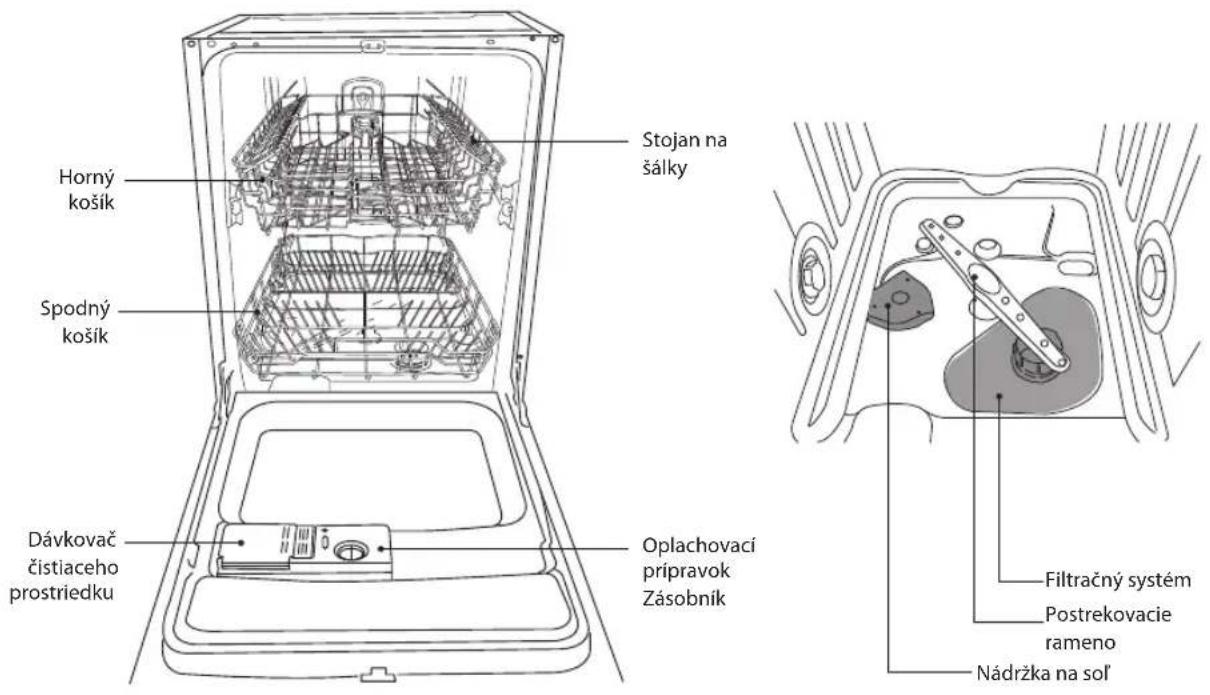

Internal View....28

Rear View 28

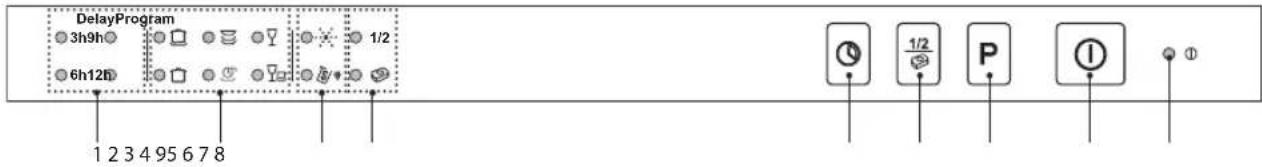

Control Panel....29

Before Operating....30

To Open the Door....30

To Close the Door....30

Items Not Suitable for Use in the Dishwasher....30

Adding Detergent Power or Tablet....31

Adding Rinse Aid....32

Adjusting the Rinse Aid Reservoir....32

Adding Salt 33

Adjusting Salt Consumption....34

Loading the Dishwasher....35

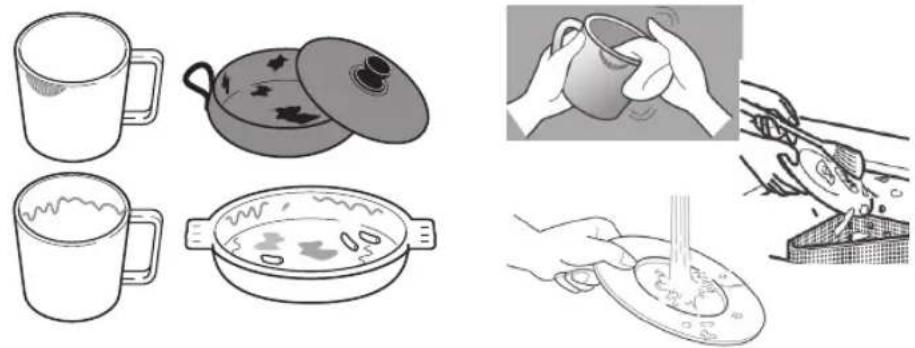

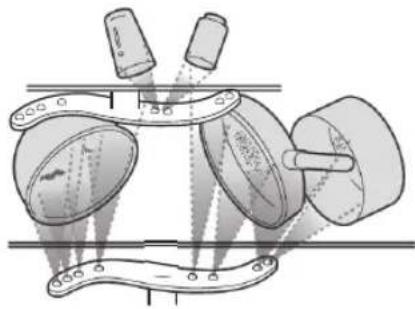

Before Loading the Dishwasher....35

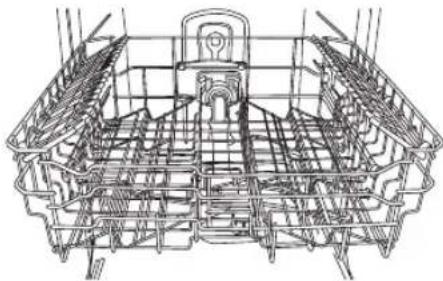

Upper Basket......36

- Adjusting the Upper Basket ....36

— Hinged Cup Rack....36

- Loading the Upper Basket for 12 Place Settings......37

Lower Basket......37

— Hinged Spikes ....37

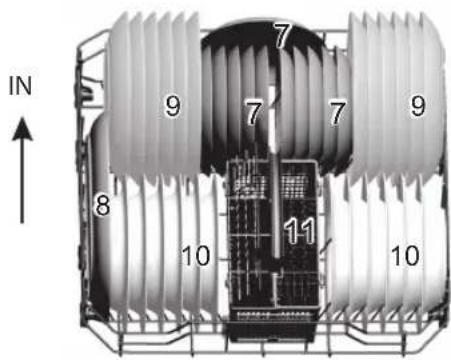

- Loading the Lower Basket for 12 Place Settings......38

Cutlery Basket 38

Wash Cycle Table 39

Starting a Wash Cycle 40

Changing a Programme 40

At the End of a Programme 40

Switching Off the Unit....41

Unloading the Dishwasher....41

Delay Start 41

Half Load....41

Cleaning After Use....42

External Care 42

— The Door and the Door Seal....42

— The Control Panel....42

Internal Care....42

- Filtering System....42

— Spray Arms....43

Frost Precaution 43

Moving the Dishwasher 43

Maintenance After a Prolonged Period of Non-Operation ....43

Hints and Tips....44

Technical Problems....44

Disposal of the Dishwasher 46

Disposal of Packing Material 46

Specifications....47

Innhold

NO

Sikkerhetsadvarsler....8

Pakke opp 48

Installasjon 49

Plassering....49

Produktoversikt....56

Forsinket start....69

Halv oppvask....69

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the dishwasher and keep them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of obstructions.
• Choose a location for your dishwasher away from heat sources such as radiators or fires.
  • Children should be supervised to ensure that they do not play with the dishwasher.
• Keep mains cable out of reach from children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep children away from detergents and rinse aids. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.

• Switch off and disconnect from the mains supply before fitting or removing tools/attachments, after use and before cleaning.

• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged machine.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Keep the mains cable and plug away from water.
  • Never exceed the maximum capacities.
  • 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
• This appliance is intended to be used in households and similar places such as:
  • Staff kitchen areas in shops, offices and other work places.
• By clients in motels, hotels and Bed & Breakfast establishments.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

• Do not sit or stand on the door or dish rack.

• Do not move your dishwasher by holding the door or its edges. Hold the dishwasher around its sides or base when moving it.

• Do not touch the heating element during or immediately after use.

• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully when there is a programme running, as there is a risk of hot water spraying out of the appliance.
• Do not place any heavy objects on the open door. The appliance could tip.
• When loading items to be washed:
• Locate sharp items so that they will not damage the door seal;
• Warning: Knives and other utensils with sharp points must be loaded in the basket with the points downwards or placed horizontally.
• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or equivalent.
• Use only detergent and rinse aids designed for an automatic dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.
• The door should not be left in the open position since this could present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use.

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

• During installation, the power supply cord must not be excessively or dangerously bent or flattened.
  • Do not tamper with controls.

• The appliance is to be connected to the water mains using new hose sets.
• The maximum number of place settings to be washed is 12.
• The maximum permissible inlet water pressure is 1Mpa, and the minimum permissible inlet water pressure is 0.04Mpa.

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.

• Improper connection of the equipment-earthing conductor could result in a risk of electric shock.
  • The wires in the cord are coloured as follows:
  • Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed or the plug does not fit correctly.
• Never modify the plug provided with the appliance.

Thank you for purchasing the new Matsui Dishwasher.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

GB

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a front-loading washing machine (no text or symbols)

The Main Unit

Cutlery Basket

Detergent Measuring Spoon 1 full spoon = 20g (approx.)

Measuring Cup 60ml (approx.)

Salt Funnel

Safety Supply Hose

Condensation Strip

Lower Hook X 2

ST4*18 screw X 2

Hop Hook X 2

ST4*14 screw X 10

ST3.5*25 screw X 2U-Shape Hose Holder

ST4*20 screw X 2

ST3.9*13 screw (black) x 2 OR
ST3.9x13 screw (white) X 2

Instruction ManualDoor Template

This product has been wet tested to ensure correct operation. As a result some water may remain inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.

Location

When selecting a position for your dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, e.g. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This dishwasher is not designed for use in a garage or outdoor installation.

Do not drape the dishwasher with any covering. When installing, ensure that free space is left at the sides.

All parts removed must be saved to do the reinstallation in the future. Ensure the dishwasher is unplugged and empty. We recommend that 2 people handle the dishwasher during installation.

1. Please ensure the dishwasher is installed by a qualified technician. Refer to the tools required.

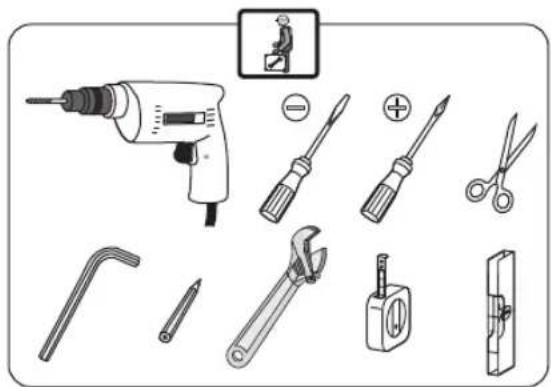

The supplied door template also contains installation steps which will assist installation.

1. Ensure there is clearance each side of the unit to allow slight sideways movement for servicing when required. The height of the unit is 820 mm. The figure outlines the minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units.

Illustration of an open box with stacked items including a box, rings, and boxes (no text or symbols)

INSTALLATION

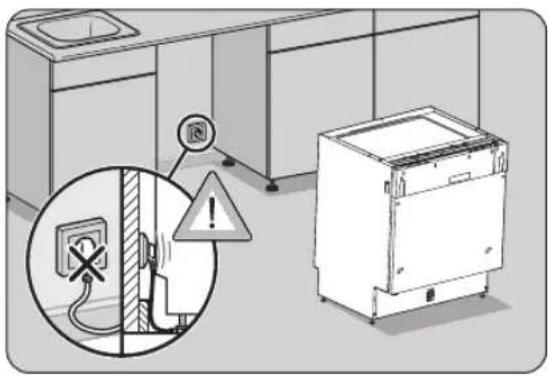

1. Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit.

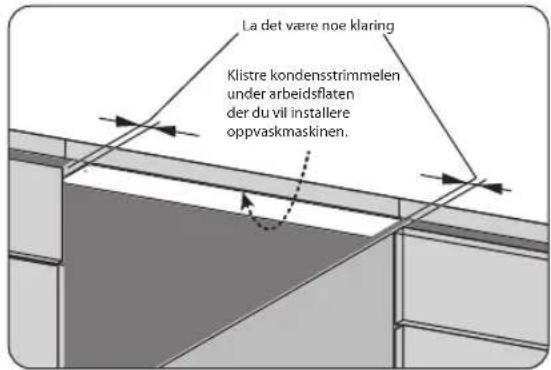

1. The condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture. Its purpose is to protect your worktop's underside from steam rising from the dishwasher.

Remove the backing paper from the condensation strip.

Simple line drawing of a rectangular object with an arrow indicating direction, no text or symbols present

1. Stick the condensation strip to the underside of the worktop.

Ensure the surface is clean prior to sticking the condensation strip to the underside of the worktop.

Failure to attach the condensation strip could result in damage to the underside of your worktop!

* images are for indication only; please refer to your individual model for actual details.

INSTALLATION

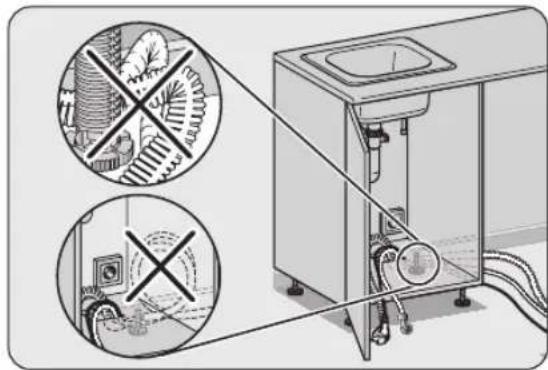

1. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable.

GB

Diagram of a roof structure with diagonal bracing and directional arrows indicating light or force (no text or symbols)

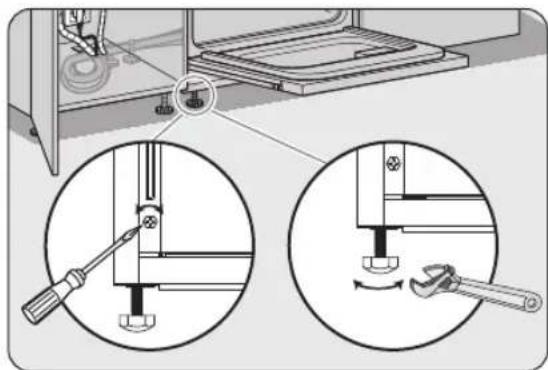

1. Good levelling is essential for correct closure and sealing of the door. When the unit is correctly levelled, the door should not catch the inner liner on either side of the cabinet. Adjust the adjustable feet to obtain the optimum levelling of the unit.

Technical diagram showing mechanical assembly with tool and wrench, no text or symbols present

1. Unscrew the two screws and adjust the distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm.

INSTALLATION

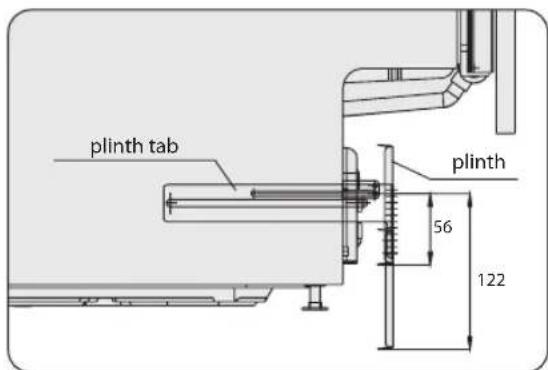

1. Fix the plinth on the plinth tab. According to your need to adjust the plinth height, the adjustable range is from 56mm to 122mm.

1. Tape the supplied Door Template to the dishwasher door. Ensure the aesthetic door weight is a minimum of 3kg and a maximum of 6.5kg. Make sure the top of the template is at the top of the door. Drill the required holes following the depth and diameter shown on the Door Template.

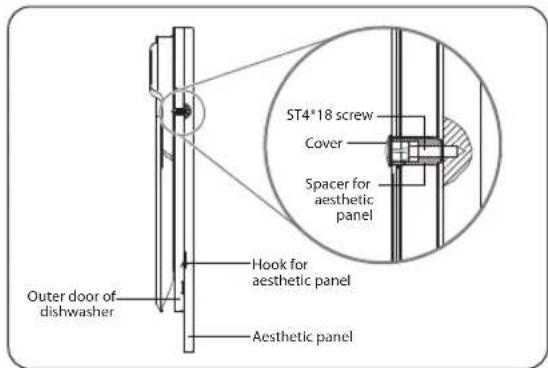

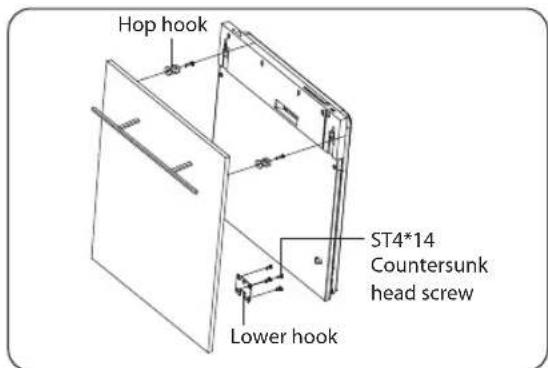

1. Install the Aesthetic Panel onto the dishwasher door. After the aesthetic panel is installed, the tension of the dishwasher door spring can be adjusted by rotating the adjusting bolt. If the tension is right, the door will remain horizontal in the fully open position.

* images are for indication only; please refer to your individual model for actual details.

INSTALLATION

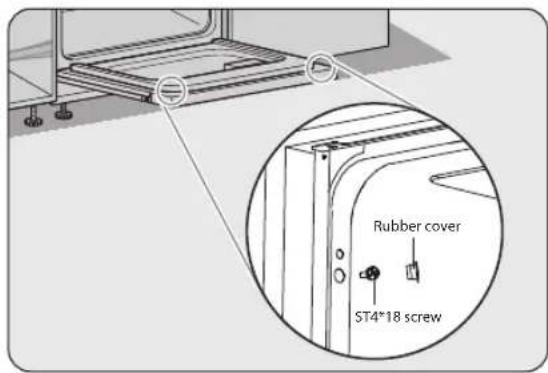

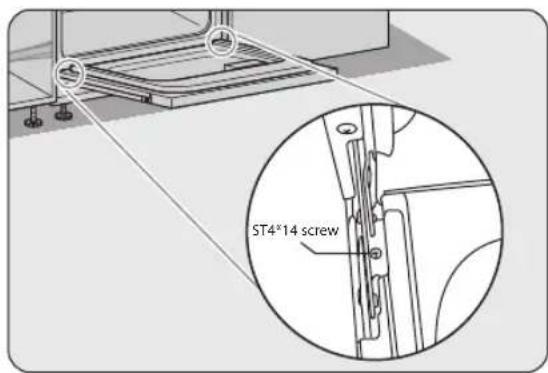

1. Ensure to tighten the screws on both sides of the dishwasher door and to secure the Aesthetic Panel.

GB

1. Adjust the bolt to loosen or tighten the tension of the dishwasher door.

1. Adjust the adjustable feet again to obtain the optimum levelling of the unit.

Technical diagram showing mechanical assembly with two views of a device and tool (no text or symbols present)

* images are for indication only; please refer to your individual model for actual details.

INSTALLATION

1. To secure the dishwasher under the table top, tighten the screws through the top sides of the unit onto the table top.

Technical diagram of a washing machine with labeled parts, showing internal components and mounting base (no text or symbols present)

1. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact a qualified plumber. This unit MUST BE connected to COLD WATER MAINS using the new water inlet hose. OLD HOSE SETS MUST NOT BE RE-USED. The water pressure from the water mains needs to be at a minimum of 0.04 MPa and a maximum of 1.00MPa.

2. Connect one end of the safety water supply hose to your dishwasher, and then connect the other end of the hose to your water mains. Please ensure the black rubber seal is in place.
   • After connecting the hose, turn on your water mains and check for leaks.

3. Connect the dishwasher to the mains socket.

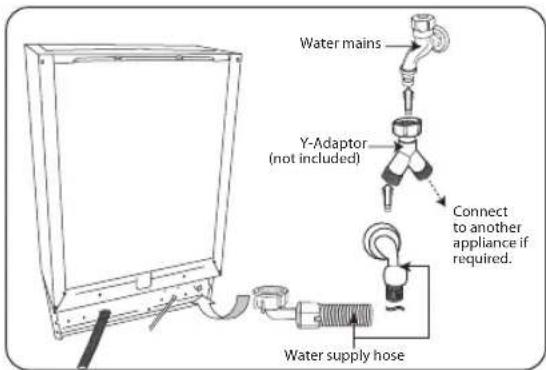

You may use a Y-Adaptor (not included) for an additional water feed for another appliance, for example a washing machine. This is only applicable for cold water mains. A Y-Adaptor is available from most DIY stores.

• Do not bend your drain hose.

About the Safety Supply Hose

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

Cross-sectional diagram of mechanical gear and shaft assembly (no text or labels)

INSTALLATION

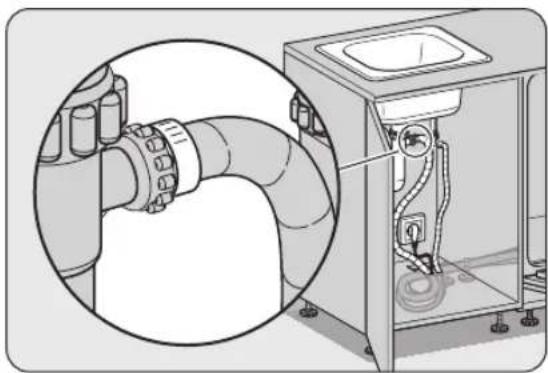

- You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it.

- Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.

• The waste pipe must only be connected to the foul drains and not the surface water drainage system.
• The water drain hose should be placed between 40 cm and 100 cm from the floor level and must not be extended, otherwise the unit may not be able to expel the waste water properly.
• Please close the hydrant after using.

Diagram of a pipe drainage system inside a kitchen sink, showing pipe connection and water flow (no text or labels)

Internal View

Rear View

* images are for indication only; please refer to your individual model for actual details.

Control Panel

1. Delayed Start Indicator Lights

Illuminates when different delay start time is selected, for examples 3 hours, 6 hours, 9 hours or 12 hours only.

2. Program Indicator Lights

Show the washing program.

3. ✿ Rinse Aid Refill Warning Light

Illuminates when the rinse aid dispenser needs refilling.

Salt Refill Warning Light

Illuminates when the salt reservoir needs refilling.

4. 1/2 Half Load Indicator Light

Illuminates when the half load function is selected.

3 in 1 Indicator Light

Illuminates when the 3 in 1 function is selected.

5. 🔒 Delayed Start Button

Press to preset the wash timer and delay the starting time by up to 12 hours.

6. 1/29 Half Load and 3in1 Function Button

Press to select the Half Load and 3 in 1 function in washing cycle.

7. P Program Button

Press to select your required washing programme.

8. On/Off Button

To turn the dishwasher on and off.

9. Power On Light

Illuminates when On/Off button is pressed.

To Open the Door

• First open the door slightly to avoid water spillage.
• Pull the door handle.

If the door is opened during operation all functions are automatically interrupted.

To Close the Door

• After loading the dishes, push the baskets fully into the dishwasher.
- Lift the door upwards and push until it clicks into position.
• Do not slam the dishwasher door.

Items Not Suitable for Use in the Dishwasher

When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are not suitable for dishwashers.

The Following Items Are Not Suitable

• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.
  • Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or loose shape due to the high temperature in the dishwasher.
  • Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher. Wash delicate glassware by hand instead.
  • Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues from silver immediately after use.

Adding Detergent Power or Tablet

Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. See the detergent manufacturers instructions for the correct amount to use. If using tablets read the manufacturers recommendations on the tablet packaging in order to determine where the tablet should be placed (e.g. cutlery basket, detergent compartment etc.)

Irritant

Bleach and Countertop detergent

• WARNING! Keep out of the reach of children.
- Irritating to eyes.
- Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
• If swallowed, seek medical advice immediately.

Please follow the steps below to fill the detergent dispenser.

1. Push the button on the lid of the detergent dispenser in the direction of the arrow until the flap springs open.
2. Fill the detergent dispenser with detergent powder to both main wash detergent chamber and pre-wash detergent chamber, or insert the detergent tablet to the main detergent chamber. The marking indicates the filling level.

All programmes with pre-wash need an additional detergent dosage that must be placed in the pre-wash detergent chamber. If using tablets please check the detergent manufacturers instructions. Please refer to the wash cycle table. This detergent will take effect during the pre-wash phase.

1. Close the lid firmly so that it clicks into place.

GB

Adding Rinse Aid

Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only.

Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically.

1. Turn the cap and open as indicated.
2. When the cap open marking is aligned, you may lift the cap up.
3. Pour the rinse aid until the rinse aid indicator turns completely black in colour and close the cap.
4. Be careful not to overfill the reservoir. Wipe up any spills.

• If the water hardness in your area is soft, you may not need rinse aid as it may cause white film to develop on your dishes.
• If you decide to use a detergent tablet, you do not need to add rinse aid into the rinse aid reservoir.
• Rinse aid refill warning indicator will illuminate when the reservoir is running out of rinse aid and requires refilling.
• Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator next to the reservoirs cap when the indicator is black, it means it is full. When it is clear, it means it is almost empty.

Adjusting the Rinse Aid Reservoir

The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is "4". If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

If there are some rinse aid residue left in the washing compartment or your dishes, please turn the rinse aid dispenser dial to 1.

Adding Salt

If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water.

Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area.

1. Remove the lower basket and unscrew the reservoir cap.

GB

1. Place the funnel provided over the salt reservoir. Pour in approximately 1.2kg of dishwasher salt depending on the brand used.

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

1. Fill the reservoir with water until it overflows (first use only).

2. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.

3. Run the "Rapid" wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt from the compartment.

• The salt refill warning indicator on the control panel will illuminate when the reservoir is running out of salt and requires refilling.
• The salt refill warning indicator will cease to illuminate within a few days, depending on how quickly the salt dissolves.
• If you decide to use a detergent tablet, you may not need to add salt, this depends upon the water hardness in your area and the type of tablet being used. Check with your water supplier and the detergent tablet manufacturers instructions.

Adjusting Salt Consumption

Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don't know how hard the water in your home is, please ask the company that supplies water in your area.

It is recommended that adjustments should be made in accordance with the following chart.

Water Hardness				Selector Position	Salt Consumption (gram/cycle)	Number of cycle / 1.2 kgs
German °dh	French °fh	British °Clarke	mmol/l
0-8 0-14	0-10 0-1.4	/ 0 /
8-22 14-	39 10-28 1.4	-3.9 - 20 60
22-45 39-	80 28-56 3.9	-8 Mid 40 30
>45 >80	>56 >8	+		60 20

1^ dh (German degree) = 0.18 mmol/l

1°fh (French degree) = 0.1 mmol/l

1°Clark (British degree) = 0.142 mmol/l

• Do not use everyday table salt or cooking salt as they contain insoluble substances which could damage the dishwasher.
• Do not pour detergent into the salt container. This will damage the dishwasher.

To optimise and customise the level of salt consumption, please follow the steps below.

1. Remove the lower basket and unscrew the reservoir cap.
2. There is an arrow-shaped indicator in the reservoir, which you can turn. You may turn it to the "-" or "+" settings based on the water hardness in your area.

Before Loading the Dishwasher

In general, please observe the following notes before loading your cutlery and crockery in the basket.

- Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary.

Illustration showing various food preparation steps: cup, pot, steamer, bowl, and dish (no text or symbols)

• Dishes and cutlery must not lay inside one another, or cover each other.

- Load your cutlery and crockery so that water can access all surfaces.

Diagram of mechanical components with no visible text or symbols

- Ensure all items are securely positioned.

- Hollow items such as cups, glasses, pans, etc. must be placed upside down in the basket.

- Wide based items should be placed at an angle so that water can run off them freely.

- The spray arms must not be blocked by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.

- Ensure that small items cannot fall through the holders in the baskets.

- For safety reasons, do not operate the dishwasher without the dishwasher basket in place.

- Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher. These items can damage the dishwasher. Ash does not dissolve and will be distributed in the dishwasher.

Upper Basket

We recommend using the upper basket for small and lightweight items such as cups saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the dishwasher basket.

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Line drawing of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket.

Adjusting the Upper Basket

More space can be created for large items on the upper or lower baskets by adjusting the height of the upper basket. There is a lift mechanism for the upper basket (Lift the basket to raise, lift again to lower). Ensure that basket is stable after adjusting the height.

Hinged Cup Rack

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Loading the Upper Basket for 12 Place Settings

For optimum placement of crockery in the upper basket, please refer to the follow list and the accompanying image.

Number Item
1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Small dish
7 Dessert dishes

GB

To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Lower Basket

We recommend that large and the most difficult to clean items are placed in the lower basket, such as plates, serving platters, saucepans, serving bowls, pots, pans, lids etc. We recommend placing serving dishes and lids at the side of the basket to avoid blocking the rotation of the spray arms.

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

Hinged Spikes

The spikes are used for holding plates and a platter. They can be lowered to make more room for large items. Please refer below for the steps to lower the spikes.

Loading the Lower Basket for 12 Place Settings

For optimum placement of crockery in the lower basket, please refer to the following list and image.

Number Item

7 Dessert dishes

8 Oval platter

9 Dinner plates

10 Soup plates

11 Cutlery basket

Cutlery Basket

To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. Please refer to the list and image for optimum placement.

Number Item
1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Gravy ladle
8 Serving fork

• Do not let any items extend through the bottom of baskets.
• To avoid the risk of injury, please load your knives and forks with handles upwards. Do not hold them by their sharp edges.
• The cutlery basket comes with covers, and they are designed for you to load the cutlery into the appropriate slots. If you use the basket without the cover, it may reduce the washing results of your cutlery.
• Please ensure the cover is securely locked to the basket before operation.
• To comply with Standards of Performance, i.e. EN50242, all cutlery must be loaded according to the instructions in this manual.

Circular icon with crossed X and lightning symbols, no readable text or numbers

Illustration showing two hand positions: one with a cross symbol, the other with a checkmark (no text or symbols present)

Programme Cycle Selection information Process			Detergent Amount	Running Time (min.)	Energy Consumption (Kwh)	Water Consumption (L)	Rinse Aid
Intensive	For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.	Pre-wash (50°C)Wash (65°C)RinseRinseRinse (55°C)Drying	Pre-wash (5g)Main wash (25g)OR3 in 1	125 1.36	19.5		√
Normal	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.	Pre-wash (50°C)Wash (55°C)RinseRinse (65°C)Drying	Pre-wash (5g)Main wash (25g)OR3 in 1	160 1.30	16.0		√
Eco* (EN50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-washWash (50°C)Rinse (65°C)Drying	Pre-wash (5g)Main wash (25g)OR3 in 1	165 1.02	12.0		√
1 hour	For lightly soiled loads that do not need excellent drying efficiency.	Wash (40°C)RinseRinse (50°C)Drying	Main wash (30g)	60 0.95	12.0		√
Glass • —	For lightly soiled crockery and glass.	Pre-washWash (40°C)RinseRinse (60°C)Drying	Main wash (20g)	95 0.90	16.0		√
Rapid —	A shorter wash for lightly soiled loads that do not need drying.	Wash (40°C)RinseRinse (45°C)	Main wash (20g)	30 0.50	11.0		×

* To comply with Standards of Performance, i.e. EN50242, please ensure to use economy washing cycle for the test.

3 in 1 function is available only for intensive, normal, or economy washing cycle.

If you choose to use detergent tablet in these washing cycles, please do not add rinse aid.

Condensing dry technology

• Energy is saved by drying the dishes using the remaining heat after the last rinse cycle.
- Wash cycle times are extended due to this drying method.
- Some wash programmes do not have a drying function, please refer to the Wash Cycle Table for more details.

Starting a Wash Cycle

1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa).
2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket.
3. Pour in the detergent or place the detergent tablet in the detergent compartment and close firmly afterwards.
4. Press the On/Off button, the power indicator light will illuminate.
5. Select the wash cycle programme based on the loading and soil requirements. Please refer to the section Wash Cycle Table.
6. The indicator light of the selected programme will illuminate.
7. Close the dishwasher door. A click sound should be heard when the door is closed correctly. Do not slam the door.
8. The washing cycle will begin shortly.

If you open the dishwasher's door during the washing cycle and then close it, the dishwasher will continue the current washing programme after 10 seconds. However, if the door is not closed correctly after 1 minute, the dishwasher will beep at 1 minute intervals.

Changing a Programme

To change the programme if the washing cycle has already started, follow the steps below.

1. Open the door slightly to avoid water spillage before opening the door fully. Check if the unit has dispensed the detergent or detergent tablet. This will depend on how long the washing cycle was running for.
2. If the detergent dispenser lid is opened, we suggest you to allow the wash cycle to complete.
3. If the detergent dispenser lid is still closed, press and hold down the P program button for 3 seconds to cancel the programme. You can then select the required new programme button and close the dishwasher door. The unit will start the new washing cycle shortly.

At the End of a Programme

At the end of the programme, the dishwasher will beep.

The condensation strip helps prevent the risk of steam damage to the worktop edging above the dishwasher. It is advisable to leave the door closed until you are ready to unload the crockery. Do not leave the door only partially open. Do not leave the appliance unattended with the door fully open as this could present a trip hazard.

Switching Off the Unit

To save energy, remember to switch the dishwasher off using the On/Off button. The dishwasher will continue to use electricity until it is switched off with the On/Off button.

If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply.

GB

Unloading the Dishwasher

Allowing dishes to cool down before unloading is important as dishes tend to break and chip more easily when they are hot. Therefore, if you open the dishwasher door fully after switching off, it will allow the dishes to cool down much faster.

Unload the lower basket first, followed by the cutlery basket and then the upper basket. This will prevent water drops from the upper basket from falling on to the dishes in the lower basket.

Delay Start

The starting time of a washing programme can be delayed and adjusted. Please follow the steps below.

1. Open the dishwasher door and load your soiled dishes and crockery.
2. Press the On/Off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the Ⓤ button repeatedly to select your desired delay period (range up to 12 hours).

Each press of this button increases the delay start time by 3 hours increments.

1. Close the door and the unit will start the programme at the assigned time automatically.

Half Load

In case you do not have enough dishes for a full load, the half load option can be selected for washing. This will save hot water and electricity usage. Please follow the steps below.

1. Press the ON/OFF button to turn on the dishwasher.
2. Select your preferred programme.
3. Press the 1/2⑨ button.

4. Close the door and the unit will start the programme.

5. Open the dishwasher door and load your soiled dishes and crockery.

External Care

The Door and the Door Seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The Control Panel

If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering System

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.

Follow the steps below to clean the filters in the wash cabinet.

1. Ensure the dishwasher is switched off.
2. Turn the coarse filter anti-clockwise and gently lift it out.
3. Gently lift the fine filter with care.
4. Rinse all the filters under running water, including the filter cylinder, and then refit all filters in the reverse order.
5. Gently refit the main filter back with care.
6. Gently rescrew the coarse filter in clockwise direction. There will be a slight click when located correctly.

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray Arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly.

Ensure the dishwasher is switched off. Use a pointed object, e.g. a cocktail stick, to loosen food particles in the spray arms' jets.

Technical line drawing of a mechanical lever or support structure with mounting base (no text or symbols)

Do not attempt to remove the spray arms.

GB

Frost Precaution

Avoid placing the dishwasher in a location where the temperature can get below 0^ C. If your appliance is left in an unheated place over the winter, you are advised to:

1. Disconnect the unit from the water inlet.
2. Turn on the unit. Select any washing cycle and let it run for 1 minute only. This drains out all the excessive water that remains in the unit.
3. Disconnect from the mains socket.
4. Empty the dishwasher.
5. Close the dishwasher's door.
6. Disconnect the unit from the water drain. Use a suitable receptacle to catch any residual water in the pipes.

Should you encounter any difficulties with the above steps, please ask a service technician for assistance.

Moving the Dishwasher

If you have to move the unit, for instance due to moving house, you are advised to:

1. Disconnect the dishwasher from the mains socket.
2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes.
3. Remove the dishwasher from the current location with the hoses discharged.
4. Pull the unit out together with the hoses.

• Avoid over tilting the unit during transportation.
  • We recommend that 2 people handle the dishwasher during installation.

Maintenance After a Prolonged Period of Non-Operation

If you are not going to use the unit for a prolonged period of time, you are advised to:

1. Disconnect the dishwasher from the mains socket.
2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes.
3. Slightly open the door to prevent unpleasant smells building up in the compartment.
4. Ensure the washing compartment of the dishwasher is clean.

Hints and Tips

GB

• Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit.
• Before calling for service, please refer to the section Hints and Tips to solve some general problems by yourself.

Technical Problems

Technical Problems
Problem Possible Causes Remedy
The dishwasher does not start.	The door is not properly closed.	Close the door firmly.
	The unit is not connected to the mains socket.	Connect the mains plug to the mains socket.
	The unit is not switched on. Press the On/Off button and select a programme.
Rapid Programme LED blinks. Unit is taking too long to fill to required water level, water tap is shut off, or water intake is restricted, or water pressure is too low.		Check tap is fully opened, check water pressure, and check water hose is not kinked.
Normal Programme LED blinks. Unit is overfilling with water. Shut off the water tap, disconnect from the mains and contact a qualified service agent.
The drain pump is not working properly.	The anti-flooding system has operated.	Disconnect from the mains socket.Disconnect the water inlet.Call a qualified technician.

General Problems
Problem Possible Causes Remedy
Detergent residue is left in the dispenser at the end of the programme.	The detergent dispenser was still damp when detergent was added.	Make sure the dispenser is dry before adding detergent.
The detergent dispenser lid cannot be closed properly.	Clogged detergent residue is blocking the catch.	Clean the catch.
Knocking noise in the wash cabinet.	A spray arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm. See the section Loading the Dishwasher.
Smearing appears on glassware and cutlery.	The rinse aid dosage is set too high.	Adjust the dial of the rinse aid dispenser to a lower setting.
Dishes, cutlery and glasses are not dry.	The amount of rinse aid may be insufficient, or the rinse aid reservoir is almost empty.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	Crockery was taken out of the dishwasher too soon.	Leave the crockery in the dishwasher until you hear an audible sound.
White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.	Not enough rinse aid was used.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	There is not enough salt in the salt reservoir.	Fill the salt reservoir.
	The salt reservoir cap has not been screwed on correctly.	Ensure that it is screwed back on correctly.
	Unsuitable detergent has been used.	Change your detergent. Use a dishwasher standard powder detergent.
	The salt consumption setting is too low.	Select a higher salt consumption setting.
Glassware is dull and discoloured; film cannot be wiped off.	The glassware is not dishwasher proof. The surfaces are affected.	Wash the non-dishwasher proof glassware by hand.
Tea or lipstick stains have not been completely removed.	The wash temperature of the selected programme was too low.	Select a programme with a higher wash temperature.
	The bleaching effect of the detergent used is too low.	Change your detergent.
	Forgot to pre-rinse or remove the stains with a napkin prior to washing.	Pre-rinse or remove the stains with a napkin prior to washing.

Disposal of the Dishwasher

• When disposing of your old dishwasher, first make it unusable. Disconnect from the electricity and water supplies, cut off the cable and the plug from the mains cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher.
• At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a local authority waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from an inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
• Please ensure that it presents no danger to children while being stored for disposal.

Disposal of Packing Material

Please dispose of the plastic wrappings and bags safely and keep out of the reach of babies and young children.

Model MID60B12N
Dimensions 595mm(W) x 540mm(D) x 820mm(H)
Capacity 12 Place Settings
Water Pressure Required 0.04 - 1.00MPa
Power Consumption 1930W
Rated Voltage 230V~50Hz
Off Mode Power Consumption 0W
Left-on Mode Power Consumption 0.4W
Energy Efficiency Class 1	A+
Annual Energy Consumption 2	291 kWh
Energy Consumption of the Standard Cleaning Cycle 1.02 kWh
Annual Water Consumption 2	3360 litres
Drying Efficiency Class 3	A
Standard Cleaning Cycle 4	ECO 50°C
Program Duration of the Standard Cleaning Cycle 165 min
Noise Level 52 dB(A) re 1 pW
Mounting Build Under
Could be built-in Yes

Features and specifications are subject to change without prior notice.

Note:

① A + + + (highest efficiency) to D (lowest efficiency)
② Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
③ A (most efficient) to G (least efficient)

4 This is the program used for the Energy label information and is suitable for cleaning soiled normally soiled tableware. It is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

• The device meets the European standards and the directives in the current version at delivery:

- LVD 2006/95/EC

- EMC 2004/108/EC

- ERP 2009/125/EC

- The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

Line drawing of a front-loading washing machine (no text or symbols)

Hovedenheten

Bestikkurv

Illustration of a gift box with accessories and a cardboard box (no text or symbols)

INSTALLASJON

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

1. Klistre kondensstrimmelen til undersiden av arbeidsflaten.

Sørg for at overflaten er ren før du klistrer kondensstrimmelen til undersiden av arbeidsflaten.

Hvis du ikke fester kondensstrimmelen, kan det oppstå skade på undersiden av arbeidsflaten!

Diagram showing light rays interacting with a structural panel (no text or symbols)

Technical diagram showing mechanical assembly with tool and wrench, no text or symbols present

Technical diagram showing mechanical assembly with tool and wrench, including two circular insets illustrating the process (no text or symbols present)

Technical diagram of a mechanical device with labeled parts, showing internal components and a magnified circular view (no text or symbols present)

Cross-sectional diagram of mechanical gears and gears crossed by a diagonal line (no text or symbols)

Diagram of a pipe connection system inside a kitchen sink, showing pipe routing and water flow (no text or labels)

Sett fra innsiden

Sett bakfra

1. Forsinket start-indikatorlamper

5. Ⓤ Forsinket start-knapp

Technical line drawing of a funnel and circular component with internal structure (no text or symbols)

Illustration showing various cooking and cleaning steps: cup, pot, bowl, lid, and dish (no text or symbols)

Diagram of a mechanical assembly with rollers and linkages, no visible text or symbols

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Line drawings of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Technical line drawing of a car interior frame with structural components (no text or labels)

Symbolic image of a crossed-out pen and ruler inside a circle (no text or labels)

Technical line drawing of a long, oval-shaped mechanical component with bolt holes and a base (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Huvudenhet

Bestickkorg

Mätsked diskmedel 1 full sked = ca 20 g

Mätkopp ca 60 ml

Salttratt

BruksanvisningLuckmall

Illustration of a gift box with scattered items including a box, rings, and boxes (no text or symbols)

INSTALLATION

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram showing light rays interacting with a structural panel, no text or symbols present

Technical diagram showing mechanical assembly with tool and wrench, no text or symbols present

Technical illustration showing mechanical assembly with two views of a tool and a wrench, no text or symbols present.

Technical diagram of a mechanical device with labeled parts, showing internal components and a magnified circular view (no text or symbols present)

Cross-sectional diagram of mechanical gears and gears with no text or symbols

Diagram of a pipe drainage system inside a kitchen sink, showing pipe connection and water flow (no text or labels)

Insidan

Sköljmedel

Diagram of a device casing with ventilation slots and a circular component (no text or symbols)

SE

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

Illustration showing various cooking and cleaning steps: cup, pot, lid, bowl, tray, and hand washing (no text or symbols)

Diagram of mechanical components with no visible text or symbols

Line drawings of a kitchen utensil and kitchenware including a ladle, spatula, and knife (no text or symbols)

Technical line drawing of a car interior showing internal components and structural layout (no text or labels)

Nedfällbara piggar

Circular icon with a cross symbol over a grid pattern, no text or symbols present.

Illustration showing two hand positions: one with a cross mark and the other with a checkmark (no text or symbols)

Technical line drawing of a mechanical support with bolt holes and a base mount (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Laite

Ruokailuvälinekori

Illustration of a gift box with accessories and a cardboard box (no text or symbols)

ASENNUS

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram showing light refraction through a layered structure with directional arrows (no text or symbols)

Technical illustration showing mechanical assembly steps with tool and wrench (no text or symbols)

Technical illustration showing mechanical assembly with two views of a tool and a wrench, no text or symbols present.

Technical diagram of a kitchen appliance with a magnified inset showing internal components (no text or symbols)

Cross-sectional diagram of mechanical gears and gears crossed by a diagonal line (no text or symbols)

ASENNUS

Diagram of a pipe connection inside a kitchen sink, showing internal components and piping (no text or labels)

Näkymä sisältä

Diagram of a device with ventilation slots and a circular component (no text or symbols)

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

Illustration showing various cooking and cooking steps: cup, pot, bowl, spoon, and dish (no text or symbols)

Diagram of mechanical components with no visible text or symbols

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Line drawing of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

FI

Yläkorin säätö

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

Kaatuvat pidikkeet

Technical line drawing of a mechanical support with evenly spaced holes and a central base (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Hovedenheden

Bestikkurv

Målekop 1 fuld ske = 20 g (ca.)

Målekop 60 ml (ca.)

Salttragt

Sikkerhedsslange

Kondensunderlag

Nedre krog x 2

ST4*18 skrue X 2

Låsekrog X 2

ST4*14 skrue X 10

ST3.5*25 skrue X 2U-formet slangehold

ST4*20 skrue X 2

ST3.9*13 skrue (sort) x 2 ELLER
ST3.9x13 skrue (hvid) X 2

Illustration of an open box with scattered items including a cardboard box, rings, and accessories (no text or symbols)

Illustration of various electrical tools including a drill, screwdriver, wrench, and switch (no text or labels present)

INSTALLATION

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram of a roof structure with diagonal bracing and directional arrows indicating light or force (no text or symbols)

Technical diagram showing mechanical assembly with tool and wrench, no text or symbols present

Technical diagram showing mechanical assembly with tool and wrench, including two circular insets illustrating the process (no text or symbols present)

Technical diagram of a mechanical device with labeled parts, showing internal components and a magnified circular view (no text or symbols present)

Cross-sectional diagram of mechanical gears and gears crossed by a diagonal line (no text or symbols)

Diagram of a pipe drainage system inside a kitchen sink, showing pipe connection and water flow (no text or labels)

Indeni

!

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

Illustration showing various cooking and cleaning steps: cup, pot, bowl, lid, and dish (no text or symbols)

Diagram of a mechanical assembly with rollers and linkages, no visible text or symbols

Line drawings of a kitchen utensil and kitchen tools (no text or symbols)

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

DK

Hængslede spyd

Circular icon with a cross symbol crossed over a grid pattern, no text or symbols present.

Skema over vaskecyklus

Technical line drawing of a mechanical lever or support structure with mounting base (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Hlavní jednotka

Košík na příbory

Illustration of a gift box with accessories and a cardboard box (no text or symbols)

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram showing light rays interacting with a structural panel (no text or symbols)

Technical illustration showing mechanical assembly steps with tool and wrench (no text or symbols)

Technical illustration showing mechanical assembly with tool and wrench, no text or symbols present

Technical diagram of a washing machine with labeled parts, showing internal components and mounting base (no text or symbols present)

Cross-sectional diagram of mechanical gears and gears crossed by a diagonal line (no text or symbols)

Diagram showing a pipe connection inside a water purifier with a sink and piping (no text or symbols)

Pohled zevnitř

CZ

Technical line drawing of a funnel and circular component with internal structure (no text or symbols)

Illustration showing cooking steps: serving a steamer, pouring liquid from a pot, boiling pan, and using a tool on a tray (no text or symbols)

Diagram of optical or mechanical components with beams and lenses, no visible text or symbols

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Line drawing of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

CZ

Závěsné hroty

Circular icon with a cross symbol over a grid pattern, no text or symbols present.

Illustration showing two hands holding a plant with a cross and a checkmark (no text or symbols)

Tabulka délek cyklu

Technical line drawing of a mechanical support with bolt holes and a base (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Hlavné zariadenie

Košík na príbory

Lyžica na meranie čistiaceho prostriedku 1 plná lyžica = 20 g (približne)

Odmerka 60 ml (približne)

Lievik na sol

Skrutka ST4*18, 2 ks

Skrutka ST3.9*13, (čierna), 2 ks ALEBO

pre dverový záves

Illustration of a cardboard box with accessories and a gift box (no text or symbols)

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram showing light rays reflecting off a building facade with diagonal shading (no text or symbols)

Technical diagram showing mechanical assembly steps with tool and wrench (no text or labels)

Technical diagram showing mechanical assembly with two views of a device and tool (no text or symbols present)

Technical diagram of a mechanical device with labeled parts, showing internal components and a magnified circular view (no text or symbols present)

Cross-sectional diagram of mechanical gears and gears with no text or symbols

Diagram of a pipe connection inside a kitchen sink with a hand valve, showing internal components and wiring (no text or labels)

Pohl'ad zvnútra

Diagram of a funnel pouring into a circular mechanical component with internal channels (no text or symbols)

Diagram of optical or mechanical components with beams and lenses, no visible text or symbols

Line drawings of a kitchen utensil and kitchen tools (no text or symbols)

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

SK

Tíne so závesmi

Circular icon with a cross symbol crossed over a grid of black lines, no text or symbols present.

Illustration of two hands holding a plant with a cross and a checkmark, no text or symbols present

Technical line drawing of a mechanical support with bolt holes and a base (no text or symbols)

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
