Product Type	Exercise bike
Brand	York Fitness
Model	Cardiofit 3200
Dimensions (L x W x H)	Approx. 100 x 50 x 120 cm
Weight	Approx. 30 kg
Maximum User Weight	120 kg
Resistance System	Magnetic, adjustable
Resistance Levels	8 levels
Display	LCD showing time, speed, distance, calories, pulse
Heart Rate Monitor	Hand grip pulse sensors
Pedals	Adjustable with straps
Seat	Adjustable vertically and horizontally
Handlebar	Adjustable, multi-grip
Transport Wheels	Yes, for easy moving
Power Supply	Battery (2x AAA, not included)
Maintenance	Wipe with damp cloth; lubricate moving parts periodically
Safety Features	Stable frame, non-slip pedals, emergency stop
Spare Parts Availability	Contact York Fitness or authorized dealers
Warranty	2 years (frame), 1 year (parts)

Frequently Asked Questions - Cardiofit 3200 York Fitness

How do I assemble the Cardiofit 3200 exercise bike?

How do I adjust the resistance?

What does the display show?

How do I use the heart rate monitor?

How do I clean and maintain the bike?

What is the maximum user weight?

Why does the display not turn on?

Can I move the bike easily?

How do I adjust the seat?

What should I do if I hear squeaking noises?

USER MANUAL Cardiofit 3200 York Fitness

Please read and follow the following safety guidelines:

Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination.

Read this owner's manual and follow the instructions.

■ Assemble and operate the YORK CARDIOFIT 3200 bike on a solid, level surface.
■ Always use your YORK CARDIOFIT 3200 in adequate space e.g., at least 2 ft. (60 cm) clearance on each side.
■ Never allow children on or near the YORK CARDIOFIT 3200.
■ Always check the YORK CARDIOFIT 3200 before using it, in particular make sure all parts are assembled, and nuts and bolts are tightened.
■ Do not use the YORK CARDIOFIT 3200 if the unit is disassembled in any way.

WARNING: Injuries could occur particularly to young children if the guards are removed and not correctly reinstated.

WE DO NOT RECOMMEND THE REMOVAL OF THE GUARDS.

Always check the guards to ensure they are secured before use.

If guards are not secured tighten the screws of the guards.

• Keep hands away from moving parts.
  ■ The weight limit for this bike is 19 stone 8 lbs (275 lbs / 125 kgs).
  ■ Wear proper workout clothing: Do not wear loose clothing.
  ■ Do not wear shoes with leather soles or high heels. Tie all long hair back.
  ■ Don't rock the unit from side to side.
  ■ Care should be taken when mounting and dismounting the unit.
  ■ Do not place any liquids on any part of the bike.
  ■ Do not use any accessories that aren't specifically recommended by the manufacturer, these might cause injuries or cause the unit to fail.
  ■ Work within your recommended exercise level, do NOT work to exhaustion.
  ■ If you feel any pain or abnormal systems, STOP YOUR WORKOUT IMMEDIATELY.
  ■ Consult your physician immediately.

The YORK MAGNAFORCE is designed for the use and enjoyment of the serious trainer as well as the dedicated user. By following the above precautions and using good judgement and common sense, you will have safe and pleasurable exercise regimen with the YORK CARDIOFIT 3200.

CARE AND MAINTENANCE

Use a warm damp cloth with mild detergent to keep your YORK CARDIOFIT 3200 clean.

TOOLS REQUIRED

The tools enclosed in the carton are two multi-purpose spanners (which one has a screwdriver function).

SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING THIS PRODUCT PLEASE CONTACT YORK DIRECTLY.

HELPLINE

(8:30am-5:00pm)

YORK BARBELL (U.K.) LTD.

CHURCHILL WAY,

DAVENTRY,

NORTHANTS, NN11 4YB

TEL: [phone]

FAX: [phone]

EMAIL:[e-mail]

HELPLINE

(8:30am-5:00pm)

YORK BARBELL (AUST) LTD.

UNIT 1, LOT 2, SWAFFHAM ROAD,

MINTO, N.S.W. 2566

AUSTRALIA

TEL: [phone]

FAX: [phone]

EMAIL:[e-mail]

GENERAL

REMOVE ALL THE PARTS OF YOUR YORK CARDIOFIT 3200 CYCLE FROM THE CARTON AND PLACE THEM ON THE FLOOR CAREFULLY. ASSEMBLING YOUR YORK CARDIOFIT 3200 IS SIMPLE.

FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT SHOULD TAKE YOU AROUND 15-20 MINUTES.

ASSEMBLY INSTRUCTION

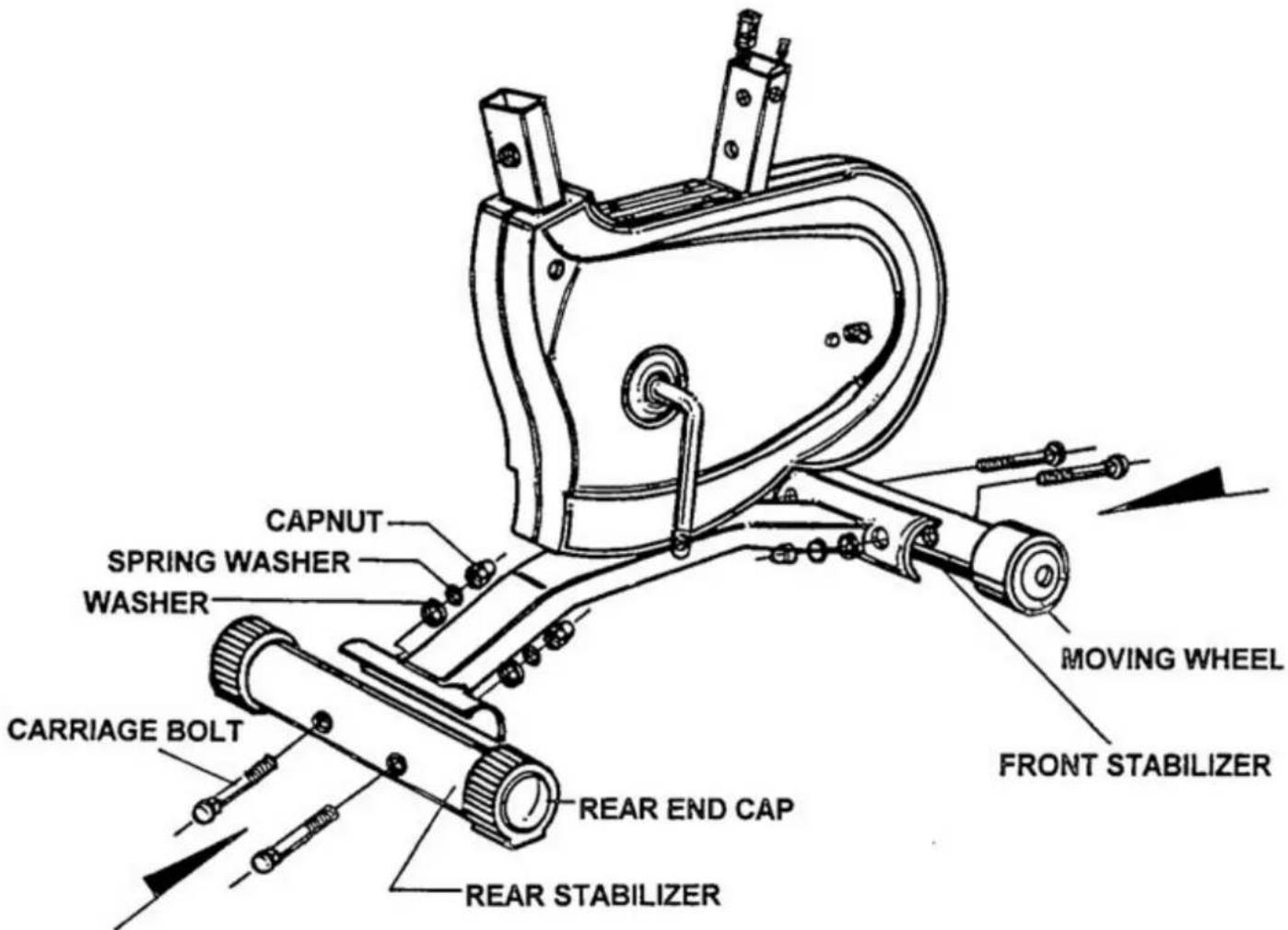

1. ATTACH THE STABILIZERS

■ Fit the front stabilizer ( It has moving wheels at each end).
■ Fit the rear stabilizer (It has end caps that can vary height to level cycle on floor).

■ To fit use:

CARRIAGE BOLT

WASHER

SPRING

CAPNUT
WASHER
NOTE: Make sure you fasten the bolts securely to avoid shaking and discomfort when cycling.

CAPNUT SPRING WASHER WASHER CARRIAGE BOLT REAR END CAP REAR STABILIZER MOVING WHEEL FRONT STABILIZER

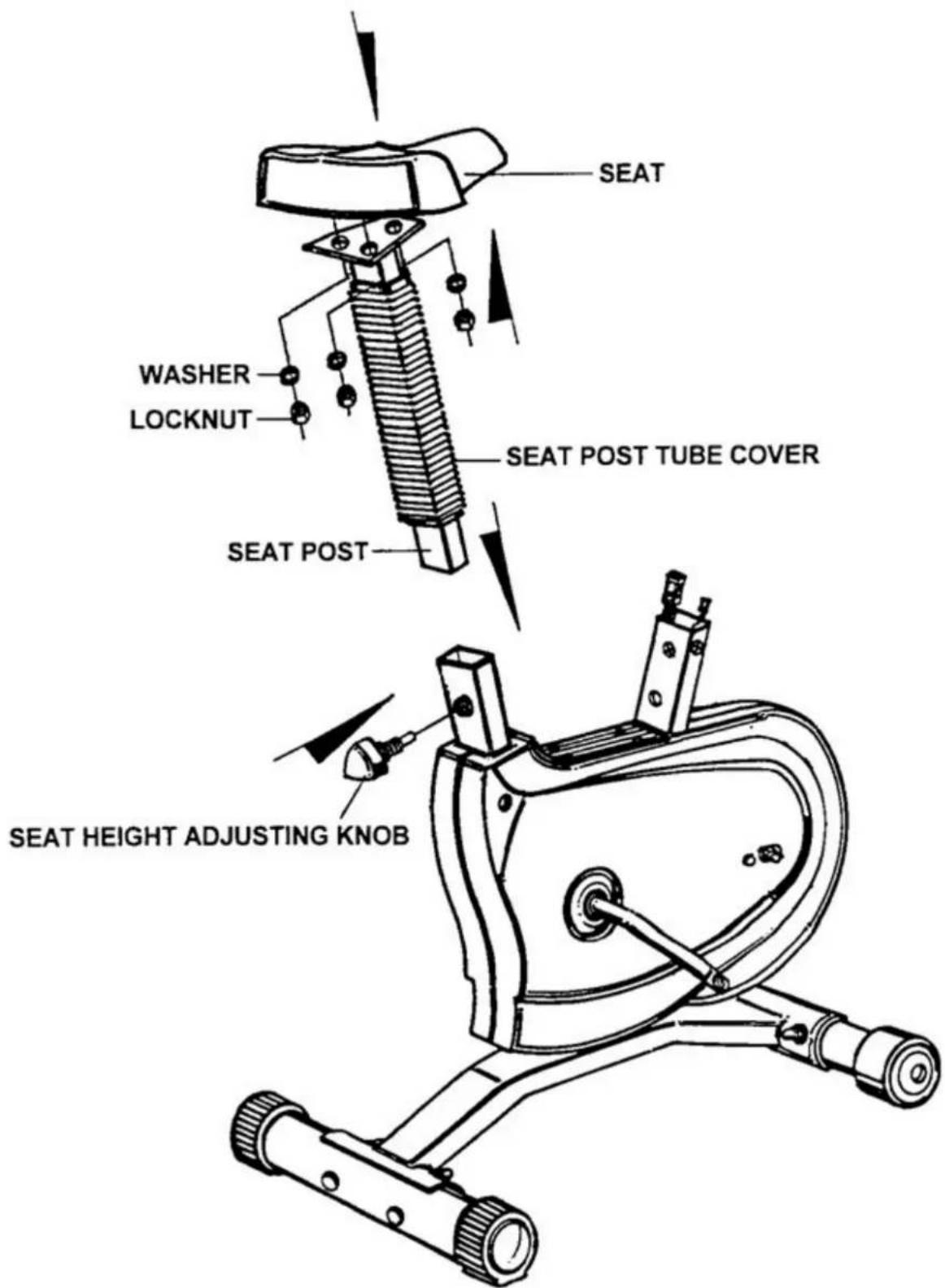

2. ATTACH THE SEAT AND SEAT POST

■ Attach the seat to the seat post. Use:
x 3 and
x 3.
■ Slide the seat post tube cover onto the seat post.
■ Fit the seat post into the seat post mounting tube and secure in position with the seat height adjusting knob.

SEAT WASHER LOCKNUT SEAT POST TUBE COVER SEAT POST SEAT HEIGHT ADJUSTING KNOB

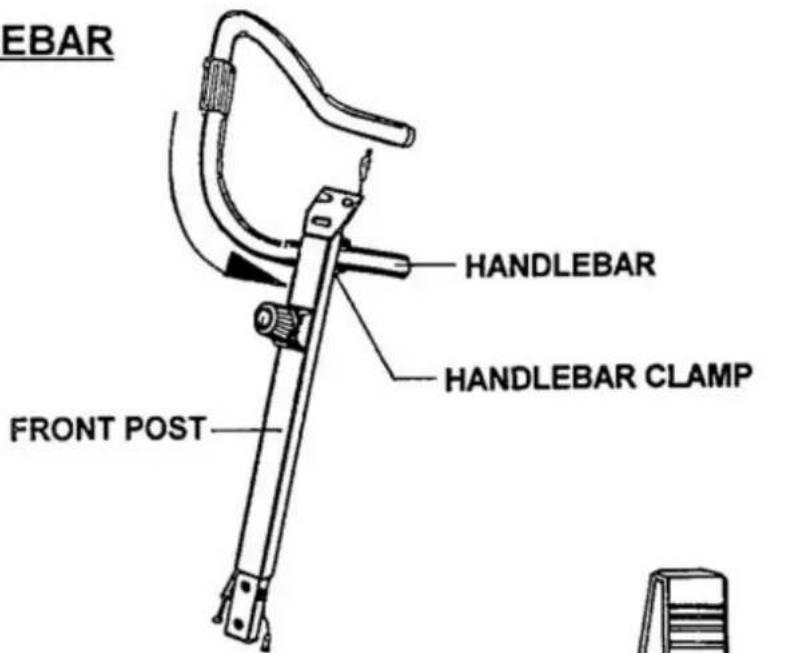

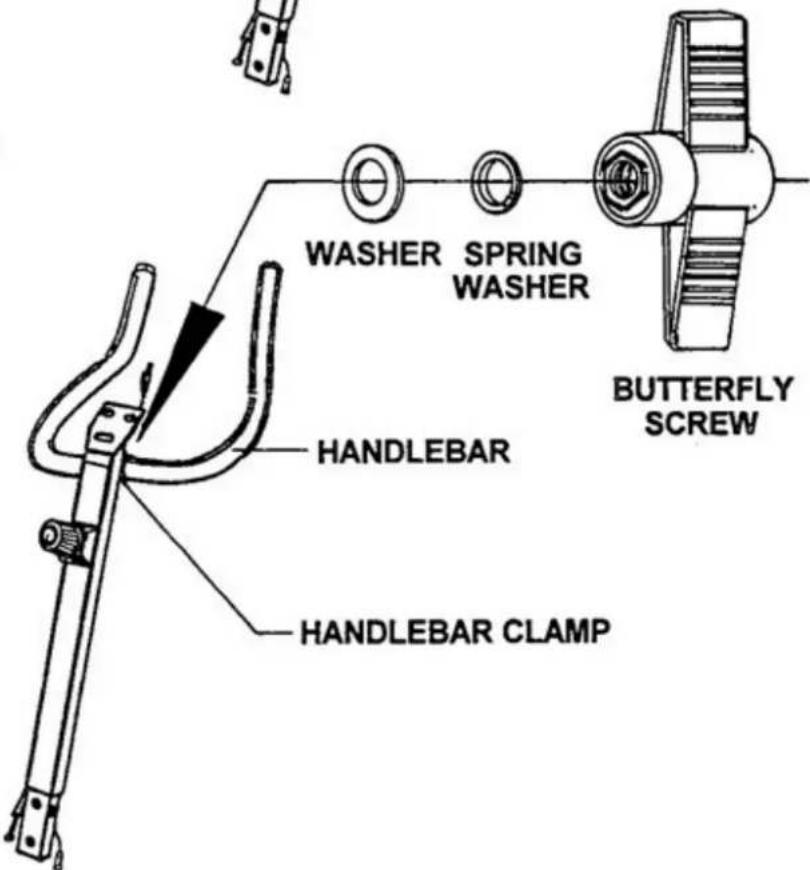

3. ATTACH THE HANDLEBAR

■ Thread the handlebar through the handlebar clamp.

EBAR HANDLEBAR HANDLEBAR CLAMP FRONT POST

■ When the handlebar is in position secure, using washer, spring washer and butterfly screw.

WASHER SPRING WASHER HANDLEBAR HANDLEBAR CLAMP BUTTERFLY SCREW

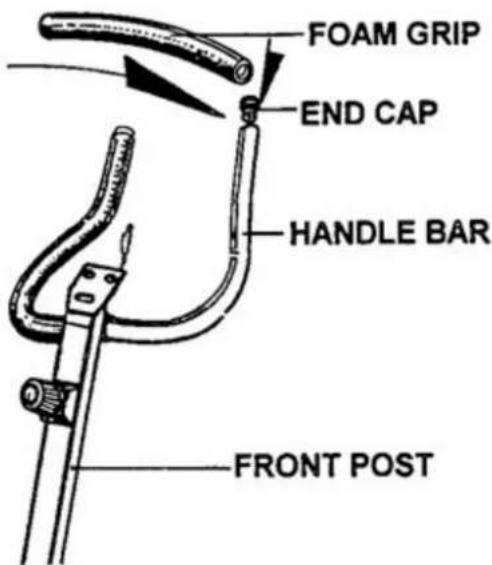

■ Moisten the inside of the foam grips with a little water or household furniture polish then slide the foam grips onto both ends of the handle bar.

■ Attach the end caps to the ends of the handle bar.

FOAM GRIP END CAP HANDLE BAR FRONT POST

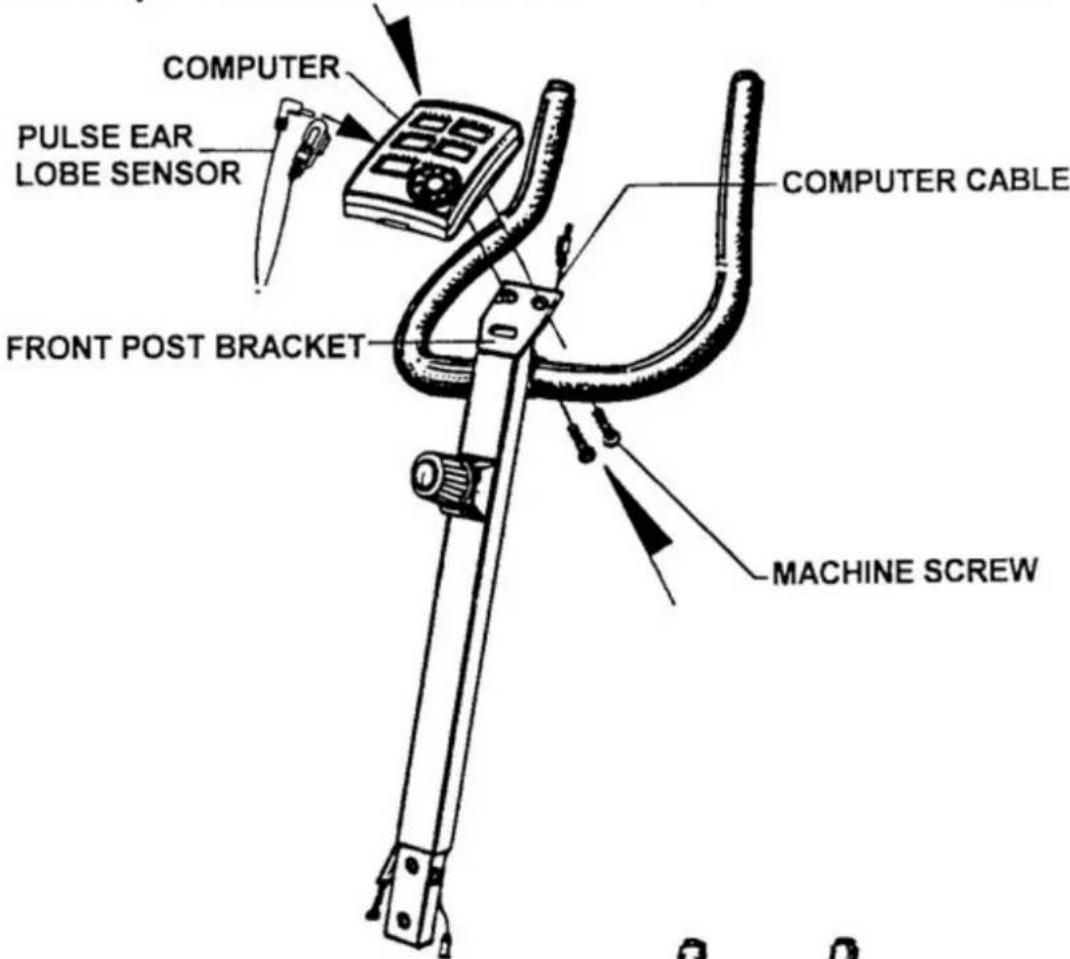

4. ATTACH THE COMPUTER

■ Attach the computer to the front post bracket with

x 2.

MACHINE SCREW

■ Connect the computer cable into the rear socket of computer.
■ Connect the pulse ear lobe sensor to socket on the side of computer.

COMPUTER PULSE EAR LOBE SENSOR FRONT POST BRACKET COMPUTER CABLE MACHINE SCREW

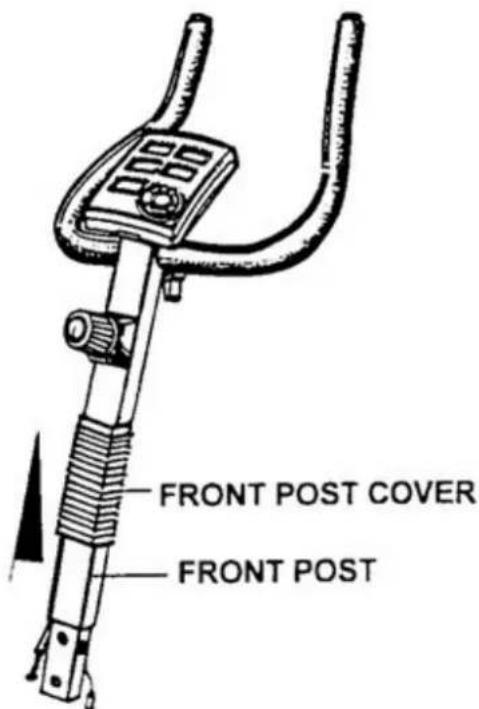

■ Slide the front post cover onto the front post.

FRONT POST COVER FRONT POST

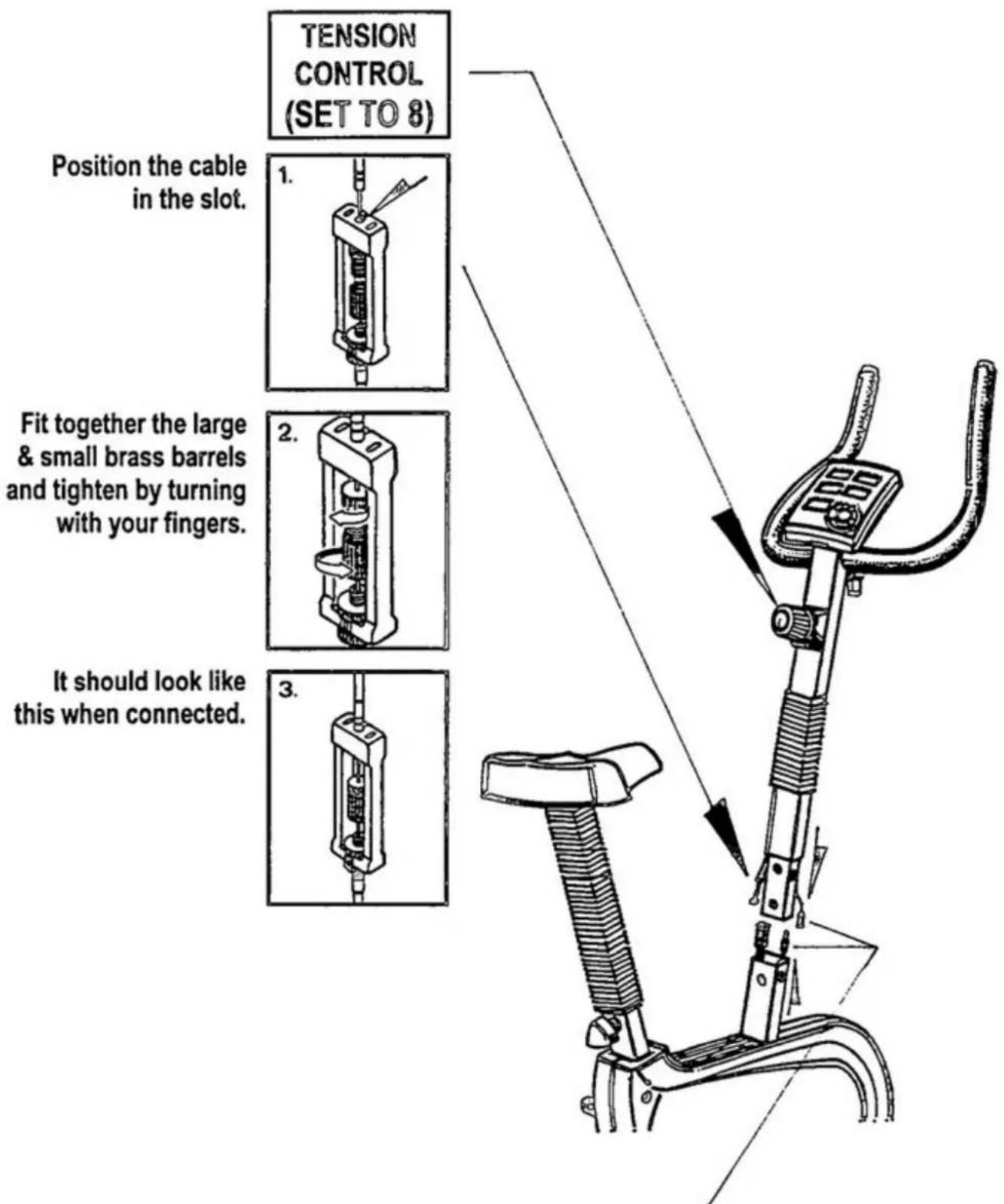

5. CONNECT THE TENSION CABLE

A. CONNECT THE TENSION CABLE

TENSION CONTROL (SET TO 8) Position the cable in the slot. 1. Fit together the large & small brass barrels and tighten by turning with your fingers. 2. It should look like this when connected. 3.

B. CONNECT THE COMPUTER CABLE

□ Connect the computer cable socket to the plug of the sensor wire.

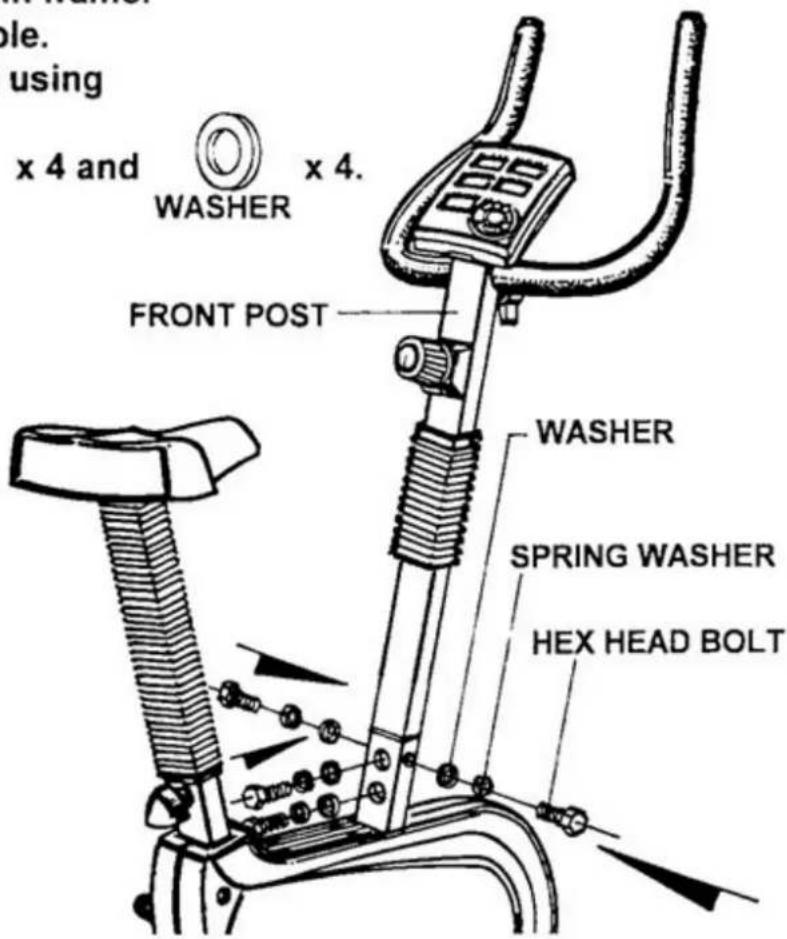

6. ATTACH THE FRONT POST

■ Fit the front post into the main frame.
■ Take care not to trap any cable.
■ Fix the front post in position using

HEX HEAD BOLT

x 4,

SPRING WASHER

x 4 and

x 4.

ole. using x 4 and WASHER x 4. FRONT POST WASHER SPRING WASHER HEX HEAD BOLT

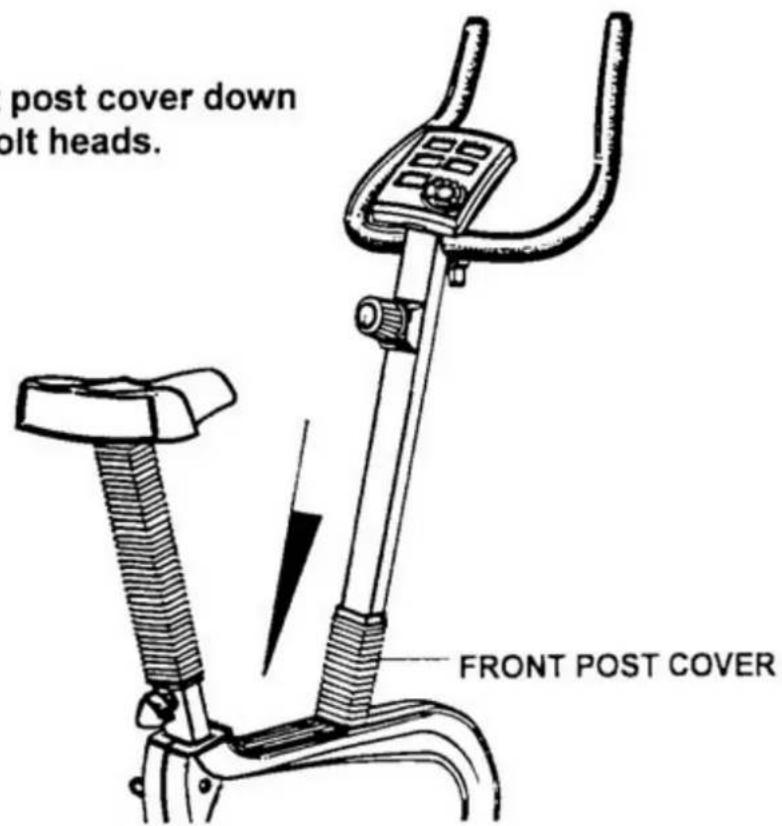

■ Slide the front post cover down to cover the bolt heads.

post cover down bolt heads. FRONT POST COVER

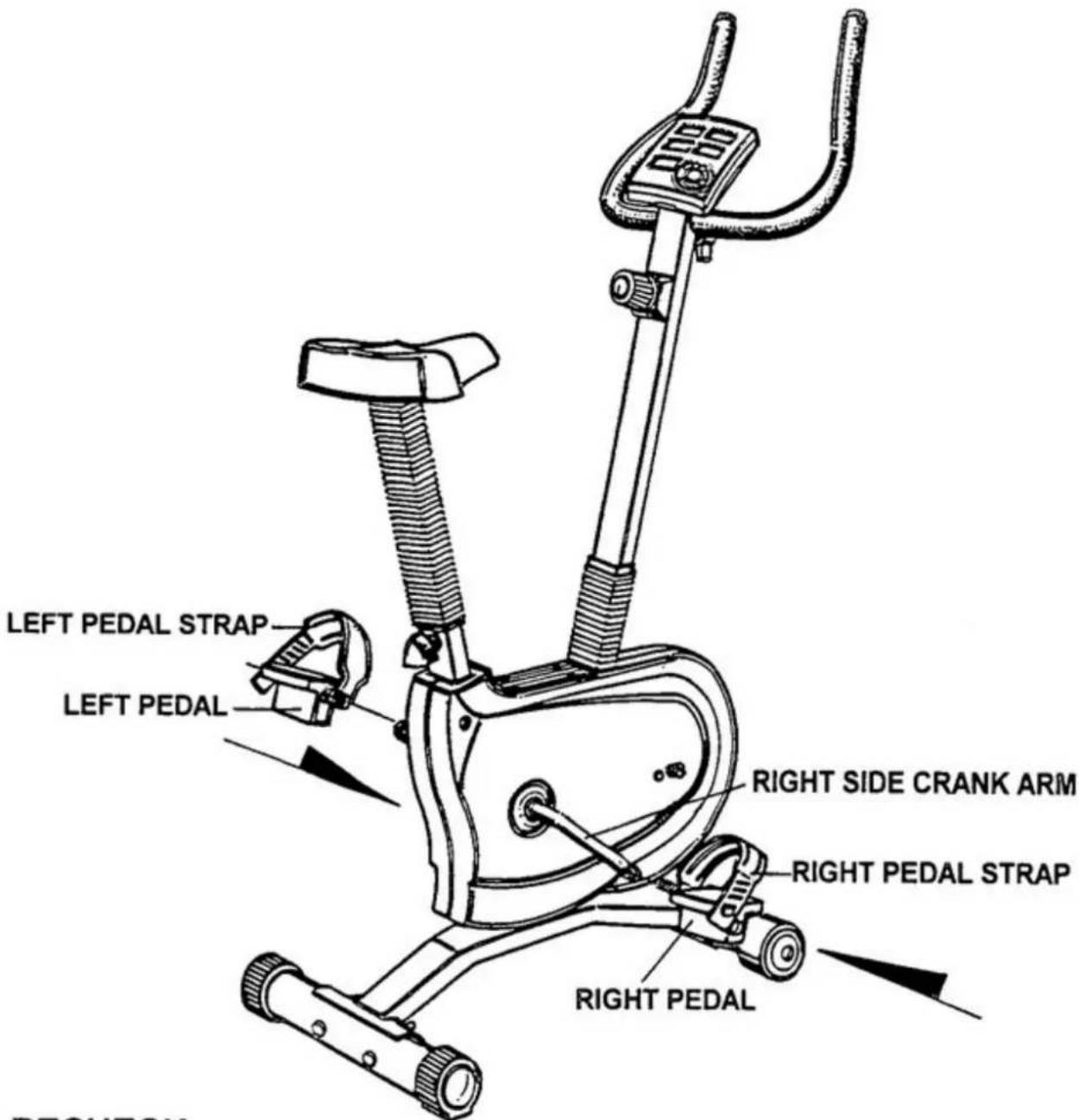

7. ATTACH THE PEDALS

■ Fix the pedal straps to the pedals.

NOTE: The straps are marked "R" and "L" (Right and Left) fix each strap to the matching pedal.

The five adjustable holes on the straps must be set outwards.

■ The pedals and crank arms are marked "R" and "L" (Right and Left) connect each pedal to the matching crank arm.

NOTE: The right pedal (R) should be threaded on clockwise.

The left pedal (L) should be threaded on anti-clockwise.

LEFT PEDAL STRAP LEFT PEDAL RIGHT SIDE CRANK ARM RIGHT PEDAL STRAP RIGHT PEDAL

8. RECHECK

RECHECK THAT ALL THE BOLTS ARE TIGHTENED SECURELY FOR YOUR SAFETY AND COMFORT.

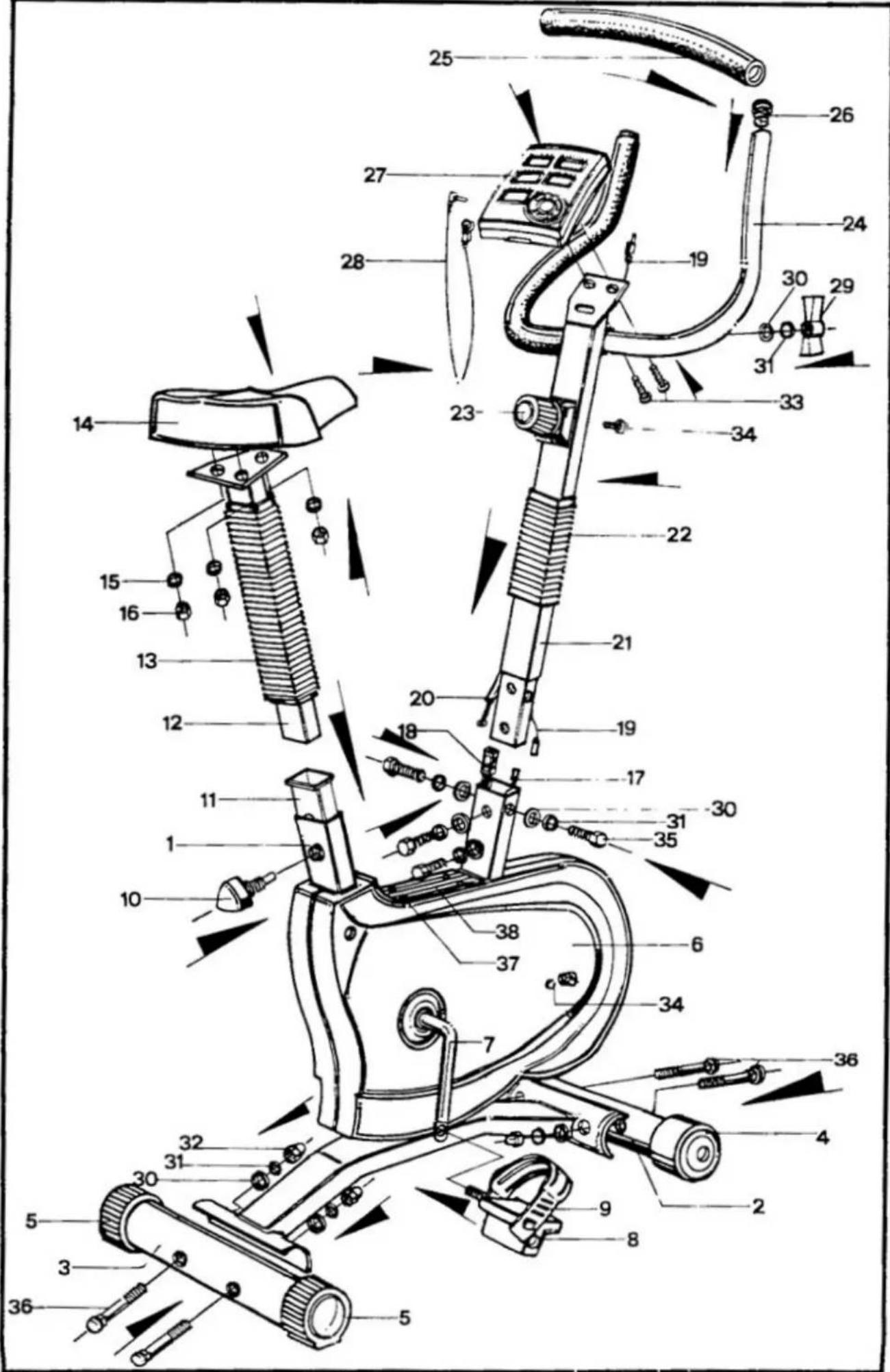

Technical diagram of a stationary exercise machine with numbered components for identification

PARTS LIST

KEY NO.	PART NO.	Q'TY(PCS)	DESCRIPTION
1	5110-01	1	MAIN FRAME
2	5110-02	1	FRONT STABILIZER
3	5110-03	1	REAR STABILIZER
4	5110-04	2	MOVING WHEEL
5	5110-05	2	REAR END CAP
6	5110-06	PAIR	CHAIN COVER (L&R)
7	5110-07	PAIR	CRANK ASSEMBLY (L&R)
8	5110-08	PAIR	PEDAL (L&R)
9	5110-09	PAIR	PEDAL STRAP (L&R)
10	5110-10	1	SEAT HEIGHT ADJUSTING KNOB
11	5110-11	1	SEAT POST INSERT
12	5110-12	1	SEAT POST
13	5110-13	1	SEAT POST TUBE COVER
14	5110-14	1	SEAT
15	5110-15	3	WASHER
16	5110-16	3	M8 LOCKNUT
17	5110-17	1	SENSOR WIRE
18	5110-18	1	LOWER TENSION CABLE
19	5110-19	1	COMPUTER CABLE
20	5110-20	1	TENSION CABLE
21	5110-21	1	FRONT POST
22	5110-22	1	FRONT POST COVER
23	5110-23	1	TENSION CONTROL
24	5110-24	1	HANDLE BAR
25	5110-25	2	FOAM GRIP
26	5110-26	2	HANDLE BAR END CAP
27	5110-27	1	COMPUTER
28	5110-28	1	PULSE EAR LOBE SENSOR
29	5110-29	1	BUTTERFLY SCREW
30	5110-30	9	16mmx 8mmx 1.5mm WASHER
31	5110-31	9	SPRING WASHER
32	5110-32	4	M8 CAPNUT
33	5110-33	2	5mmx 10mm MACHINE SCREW
34	5110-34	7	5mmx 12mm MACHINE SCREW
35	5110-35	4	8mmx 12mm HEX HEAD BOLT
36	5110-36	4	8mmx 75mm CARRIAGE BOLT
37	5110-37	4	5mmx 17mm MACHINE SCREW
38	5110-38	1	FOOT PLATE

1. 5mmx 17mm MACHINE SCREW

1. 16mmx 8mm WASHER

1. SPRING WASHER

1. M8 CAPNUT

1. 8mmx 75mm CARRIAGE BOLT

1. 5mmx 12mm MACHINE SCREW

1. 8mmx 12mm HEX HEAD BOLT

CARE AND MAINTENANCE

Use a warm, damp cloth to keep your YORK CARDIOFIT 3200 clean.

SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING WORN, MISSING OR DEFECTIVE PARTS CONTACT US DIRECTLY.

YORK BARBELL (U.K.) LTD. CHURCHILL WAY, DAVENTRY, NORTHANTS, NN114YB ENGLAND HELP LINE (8:30am- 5:00pm) TEL: [phone] FAX: [phone] E-MAIL: [e-mail]

YORK BARBELL (AUST.) LTD. UNIT 1, LOT 2, SWAFFHAM ROAD, MINTO, N.S.W. 2566 AUSTRALIA HELP LINE (8:30am- 5:00pm) TEL: [phone] FAX: [phone] E-MAIL: [e-mail]

YORK BARBELL (S.A.) (PTY) LTD. P.O. BOX 14012, WADEVILLE 1422 SOUTH AFRICA TEL: [phone] HELP LINE (8:30am- 5:00pm) FAX: [phone] E-MAIL: [e-mail]

TOOLS REQUIRED

The tools are enclosed in the carton, these include 2 spanners.

(One has a screwdriver function.)

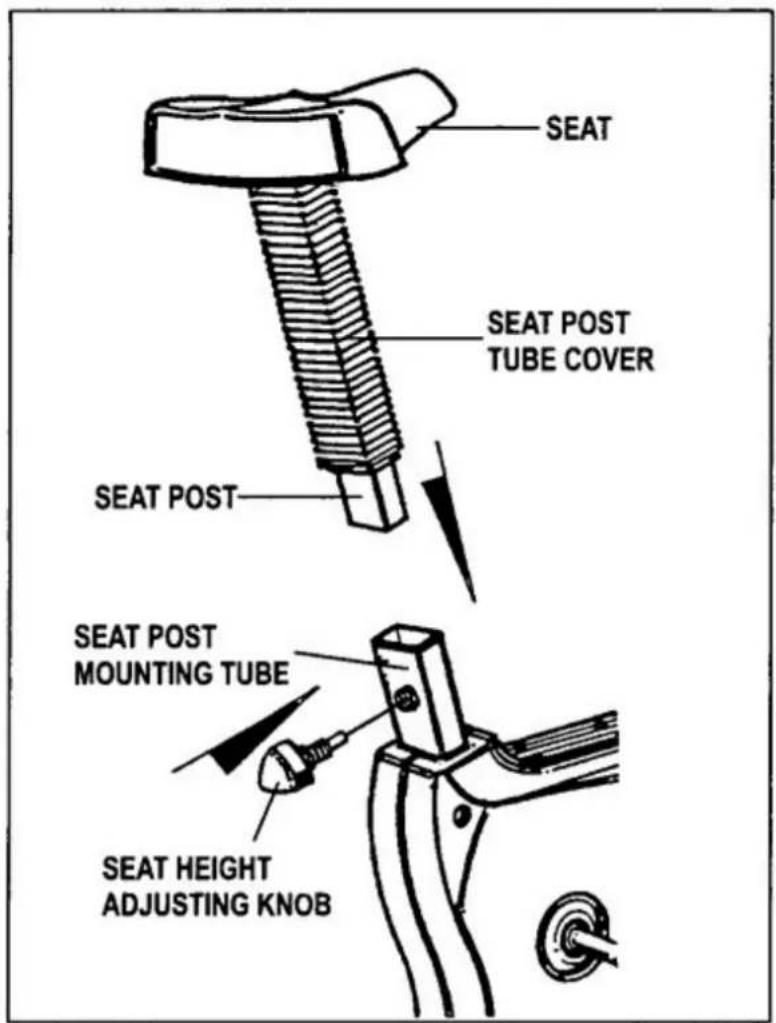

ADDITIONAL INSTRUCTION FOR USE ADJUSTING SEAT HEIGHT

SEAT SEAT POST TUBE COVER SEAT POST SEAT POST MOUNTING TUBE SEAT HEIGHT ADJUSTING KNOB

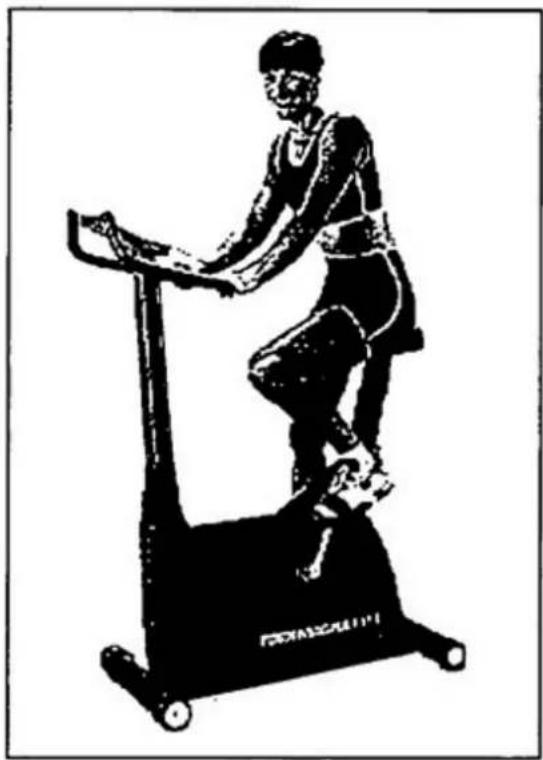

Silhouette of a person exercising on an exercise bike (no text or symbols visible)

(THIS PICTURE SHOWS THE MAGNAFORCE 4000)
THIS IS HOW YOU WOULD SIT ON YOUR CYCLE. WHEN ADJUSTING THE SEAT HEIGHT MAKE SURE YOUR KNEES ARE NOT ABOVE THE HORIZONTAL WHEN PEDALLING.

THIS CYCLE IS NOT SUITABLE FOR THERAPEUTIC PURPOSES.

* SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING THIS PRODUCT PLEASE CONTACT YORK DIRECTLY. *

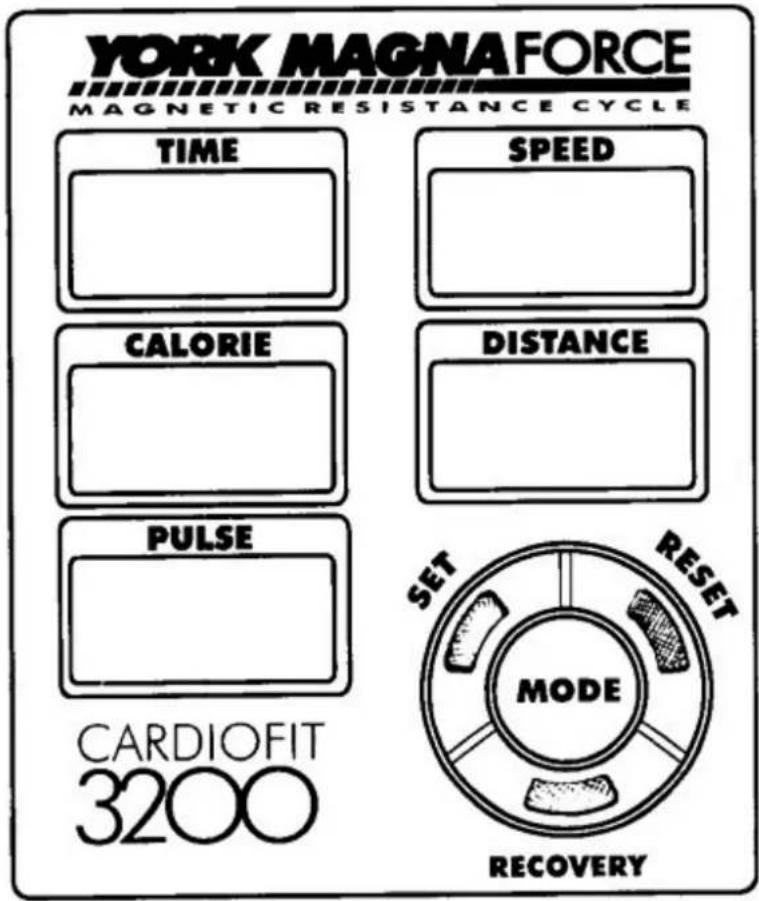

YORK CARDIOFIT 3200 COMPUTER INSTRUCTION

A. FUNCTION BUTTONS

MODE

: Guides you through each display function.

SET

: Allows you to set the target values on TIME, DISTANCE, CALORIE and PULSE.

RESET

: Reset functions individually by pressing reset on selected function or hold for 4 seconds to reset all functions.

YORK MAGNAFORCE MAGNETIC RESISTANCE CYCLE TIME SPEED CALORIE DISTANCE PULSE CARDIOFIT 3200 SET RESET MODE RECOVERY

B. SPECIAL FUNCTIONS

RECOVERY

: To make improvements on previous heart rate recovery times, the computer is equipped with "RECOVERY" to monitor you heart rate recovery status. This is done by exercising for a period of time eg: Half an hour while wearing the ear clip during this time, press recovery, the computer will then stop all other functions except time which will count down from 00.59 to 00.00. When it's got to 00.00 the bottom screen will give a heart rate status grade from F1 to F6 (F1 being good and F6 bad) this can be used on a daily basis to improve your heart rate recovery.

Press the recovery button to return to main functions.

C. FUNCTIONS

1. SPEED: Displays the current speed in KM.
2. TIME: Accumulates the total amount of working time, max. time is 99.59 before working, the user can press set to preset target time, it will then count down to zero, you will be reminded by a beeping sound.
3. DISTANCE: Accumulates the total amount of distance, max. value up to 99.9 km. Before working, the user can press set to preset target distance it will then count down to zero, you will be reminded by a beeping sound.
4. CALORIES: Accumulates calorie consumption during exercise from zero to max. value 999 cal, or from your selected preset value to zero. (This data is a rough guide for comparison of different exercise sessions which can not be used in medical treatment.)
5. PULSE: Displays the user's current heart rate. The user may also need to consult a doctor before using this equipment, the user can set a heart rate target with this information. When the value has reached the target you will be signaled by beeping.
6. Without any signal for 5 minutes, the LCD display will shut off automatically, with all values reserved. Press any key or start cycling to reactivate.
7. The computer is equipped with an auto start/stop devise. It will activate when you start to pedal and switch off some time after you stop pedalling.
8. The mode function will only work when all activity has stopped.
9. If the display becomes faint, replace the batteries.
10. Battery spec: 2 AA size.

NOTE:

PULSE RATE SENSOR

FOR THE BEST RESULTS FOLLOW THESE INSTRUCTIONS:

1.) Remove any earrings etc.
2.) Rub your earlobe around 15 times to increase circulation.
3.) Make sure your ear is dry and keep your hair behind your ear so it dose not interfere.
4.) Clip the sensor to your earlobe as in (Diag. 2)
5.) Use the small clip to attach the wire to your shirt collar or other suitable place.
Allow enough wire spare to move freely without pulling the sensor off your ear. (Diag.3)

CHECK

• Don't clip the sensor near holes pierced in your ear.
  ■ Try to avoid excessive vibration of the sensor or the sensor wire as this can lead to inaccurate results.

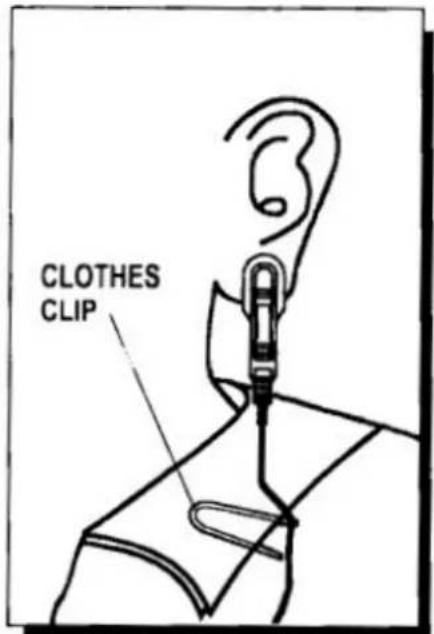

  If you are wearing a shirt with a collar attach the clothes clip to your collar. This will help reduce excessive vibration.

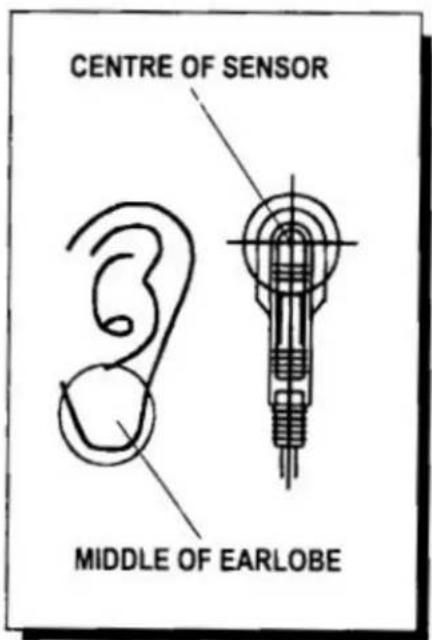

CENTRE OF SENSOR MIDDLE OF EARLOBE

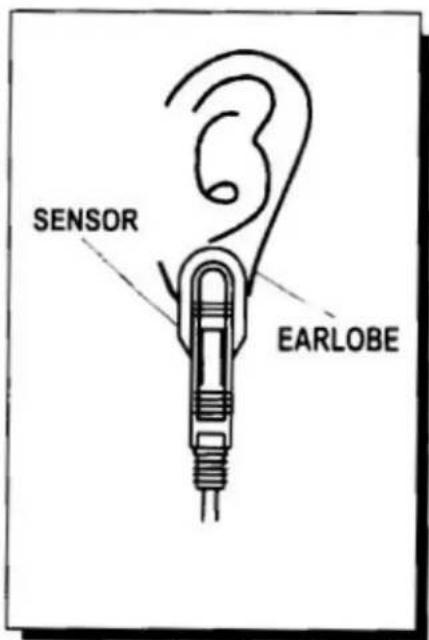

SENSOR EARLOBE

CLOTHES CLIP

■ Clip the centre of the sensor to the middle of the earlobe.
■ Clip the clothes clip to your collar (If you are wearing a shirt with a collar).

C. FUNCTIONS

1. SPEED

: Displays the current speed in KM or MPH.

2. TIME

: Accumulates the total amount of working time, max. time is 99.59 before working, the user can press set to preset target time, it will then count down to zero, you will be reminded by a beeping sound.

3. DISTANCE

: Accumulates the total amount of distance, max. value up to 99.99 km/miles. Before working, the user can press set to preset target distance it will then count down to zero, you will be reminded by a beeping sound.

4. CALORIES

: Accumulates calorie consumption during exercise from zero to max. value 999 cal, or from your selected preset value to zero. (This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment.)

5. PULSE

: Displays the user's current heart rate. The user may also need to consult a doctor before using this equipment, the user can set a heart rate target with this information. When the value has reached the target you will be signaled by beeping.

NOTE

1. Without any signal for 5 minutes, the LCD display will shut off automatically, with all values reserved. Press any key or return to exercise to reactivate.
2. The computer is equipped with an auto start/stop devise that will activate with a pedalling signal.
3. The mode function will only work when all activity has stopped.
4. If the display becomes faint, replace the batteries.
5. Battery spec: 2 AA size

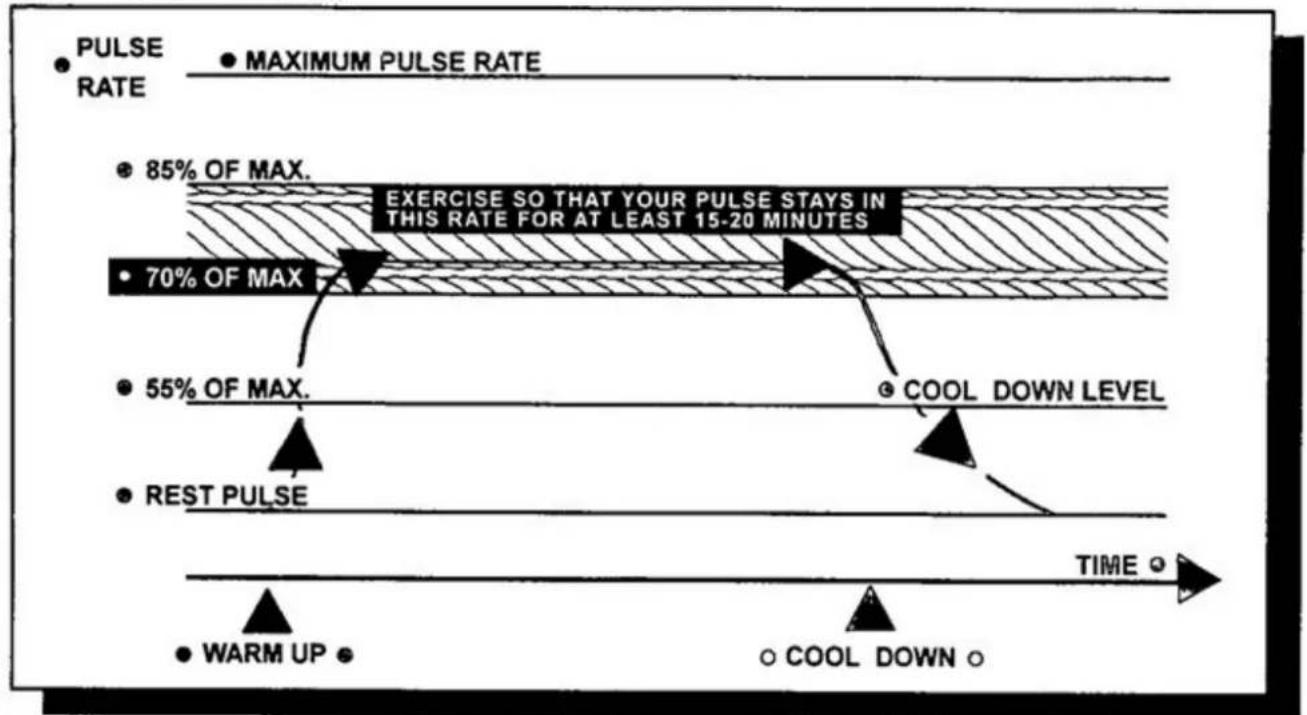

EXERCISE GUIDE

FITNESS

Many things contribute to fitness and well being but the most important factor is the condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles.

Your muscles use this oxygen to provide enough energy for daily activity.

This is called aerobic activity (with oxygen).

When you are fit your heart and lungs work well and efficiently.

This means your heart will not have to work so hard. It will pump a lot fewer times per minute so reducing the wear and tear on your heart.

This in turn reduces the chances of your suffering heart disease.

Fitness also helps you control your weight and reduces the effects of aging and stress.

You come across the need for fitness continually in everyday life.

When you are fit you can walk briskly up hills and stairs without being too out of breath once at the top you recover quickly.

As you can see there are great advantages in being fit.

HOW TO IMPROVE YOUR FITNESS

Like any muscle in your body your heart can be strengthened by systematic physical exercise which requires an increased blood flow and heart rate.

You can measure your heart rate by taking a pulse reading.

Your heart of pulse rate corresponds directly to your exertion level and exercise efficiency.

To improve your fitness in a safe and effective way you need to exercise at a high enough level to improve your aerobic fitness.

The area between these 2 levels is called the target zone.

It is important to exercise at the right intensity to stay within this zone.

For the best results you should exercise within the target zone and gradually increase the duration. Ideally you should aim to exercise (within zone) for at least 15-20 minutes continuously, 3-4 times per week.

CAUTION

DO NOT TRY TO DO TOO MUCH TO QUICKLY START GRADUALLY AND BUILD UP. IF YOU BECOME ILL, IF YOU ARE UNDER DOCTOR CARE, OR OVER 35-40 AND NOT CURRENTLY TAKING REGULAR EXERCISE THEN WE WOULD ADVISE YOU NOT TO START TO EXERCISE WITHOUT CONSULTING YOUR DOCTOR.

* SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING THIS PRODUCT PLEASE CONTACT YORK DIRECTLY. *

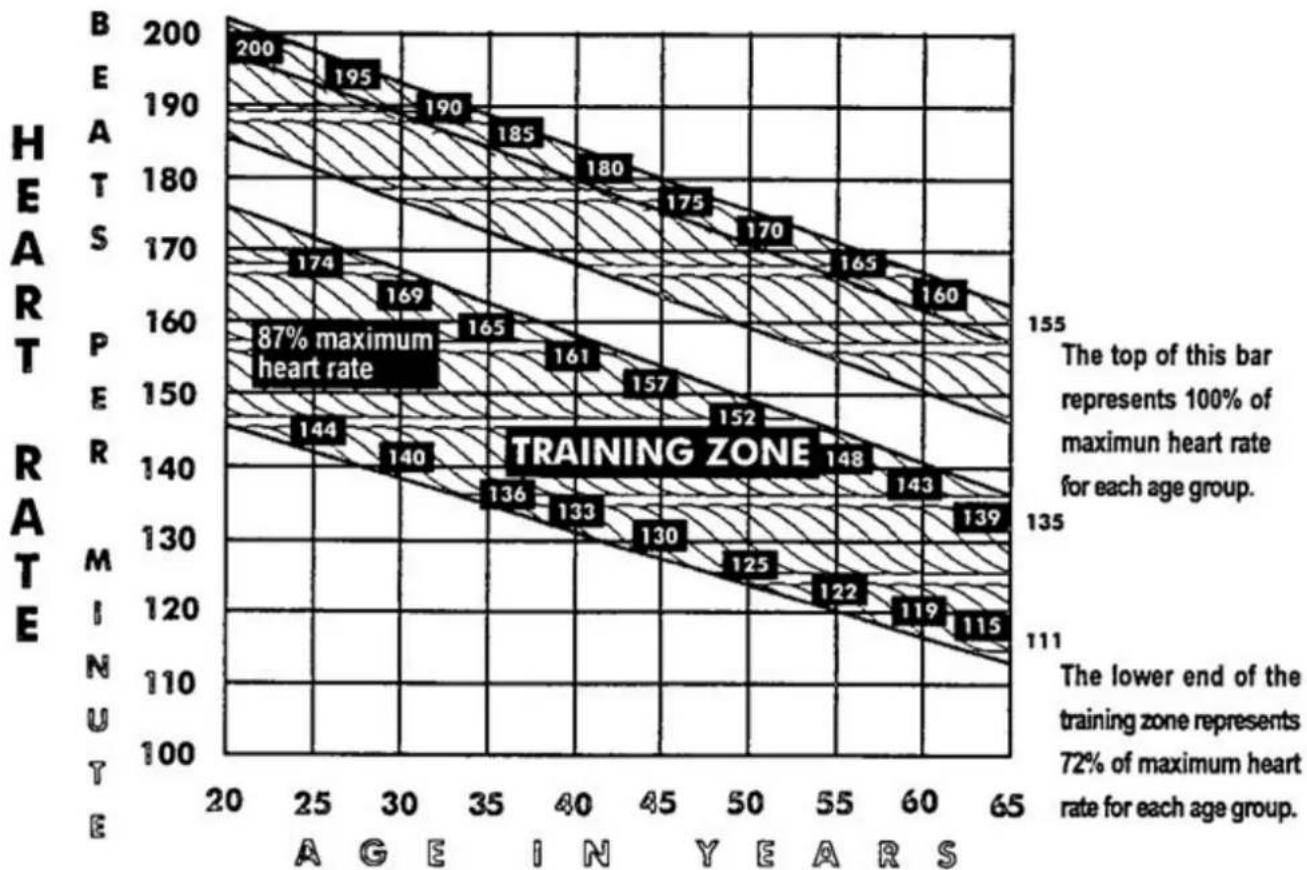

TARGET ZONE

THIS IS HOW YOUR PULSE SHOULD BE HAVE DURING GENERAL FITNESS EXERCISE. REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES.

FIND YOUR OWN EXERCISE PULSE RATE RANTGE BY MOVING UP THE VERTICAL LINE FOR YOUR AGE.
Example: Age 40, the vertical line meets the 70% level at about 128 and the 85% level at about 154. pulse rate should remain between these values. Use this graph to determine your personal target zone.

HOW TO MONITOR YOUR HEART RATE DURING EXERCISE

Now that you know where your training zone is, you'll I have to monitor yourself to be sure you'e in it. Here's a simple rule, if you can't hold a conversation without Gasping for breath you'e probably above your training zone.

To know precisely where you'e working - making sure you'e getting all the benefits - We recommend you check your heart rate periodically throughout your workout. You can use the electronic pulse monitor which will count and display your heart rate for you.

CONTROL YOUR PULSE RATE TO KEEP WITHIN ZONE

How hard you exercise affects your pulse rate, it is determined by two things:

1. Rate: How fast you exercise. e.g. Speed you cycle, run or step.

2.Load: The resistance against which you exercise. e.g. Tension you apply on cycle, step or run up hill.

THE PULSE RATE RULES

If your pulse rate is too low exercise faster or increase load. If your pulse rate is too high exercise slower or decrease load. If your pulse rate goes up towards the end of your exercise, you are trying to exercise for too long, shorten the time. If your pulse rate does not quickly return to normal after exercise (5-10 minutes) You are not giving your body chance to recover, reduce how often you exercise.

REMEMBER-GENERAL FITNESS IS BEST IMPROVED BY INCREASING HOW LONG YOU EXERCISE RATHER THAN BY HOW HARD.

HOW LONG TO EXERCISE?

To qualify as a true aerobic exercise with all the benefits we'e mentioned, you must maintain your heart rate within your training zone for at least 12 uninterrupted minutes.

If you exercise longer than 60 minutes the benefits are reduced and the risk of injury is increased.

If you'e just starting out on a new exercise program we're recommend you stay at the 12 minute minimum for at least a week. When you feel you'e ready to go longer, increase your time no more than 10% a week. Don't push yourself too hard. You should never feel exhausted during or following exercise.

TEST YOUR FITNESS LEVEL AND CHECK YOUR PROGRESS

You can use your computer to control your exercise intensity and to monitor your progress.

The time it takes for your pulse to return to normal, after exercise, is an indicator of Your fitness level.

During the first minute of your cool-down phase you will experience a drop in your pulse rate. The bigger the drop in that minute-the fitter you are.

TO CHECK YOUR PROGRESS:

1. Monitor your pulse rate the moment you end the aerobic phase of your workout and note your pulse rate.

2. Begin slowing down for the cool down phase.

3. After 60 seconds note the rate again.

The bigger the drop in that minute-the fitter you are.

To check your progress repeat this test every few weeks using the same Duration and exercise intensity each time.

Keep a record of the results to help you monitor your progress.

LIMITED WARRANTY

WARRANTY

YORK BARBELL LTD. warrants this product to be free from defects in workmanship and material, under normal use and conditions, for a period of one year on all steel parts, thirty days on all vinyl and upholstery, and ninty days on all other parts. This warranty extends to the original purchaser only. It is recommended that the original receipt be kept with the manual.

YORK BARBELL LTD. will provide a replacement part free of charge when a defect is found during the warranty period. If a repair is necessary, please contact our Customer Service Department.

Under no circumstances will YORK BARBELL LTD. be responsible for damages or failures that occur as a result of improper assembly, or failure to operate the product correctly.

This warranty does not cover misuse, abuse, freight damage and/or alterations or repairs not made by YORK BARBELL LTD. or a recommended service center.

In the event a return is necessary, call our Customer Service Department for further instructions. Under no circumstances will returns be allowed without the Return

Authorization by our Customer Service Department. Returns must be sent pre-paid, with the original packaging or equivalent.

This warranty does not apply when the product is used for rental or commercial use.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

REPLACEMENT PARTS

ORDERING

To order replacement parts, simply call our Customer Service Department.

Monday through Friday, 8:00am until 5:00pm (excluding holidays).

To help us assist you, please have the following information ready:

1) Model name or number from the cover of the manual.
2) Serial number located on the frame of the unit.
3) The part description and order number.

REGISTRATION

CONSUMER RESPONSIBILITY

In order to activate your warranty, you must mail in the supplied registration form found on the following page. Failure to send in the registration form will void your warranty.

Fill in the form and send it to:

CUSTOMER SERVICE DEPARTMENT:

HELPLINE

(8:30am-5:00pm)

YORK BARBELL (U.K.) LTD.

CHURCHILL WAY,

DAVENTRY,

NORTHANTS, NN11 4YB

TEL: [phone]

FAX: [phone]

EMAIL:[e-mail]

HELPLINE

(8:30am-5:00pm)

YORK BARBELL (AUST) LTD.

UNIT 1, LOT 2, SWAFFHAM ROAD,

MINTO, N.S.W. 2566

AUSTRALIA

TEL: [phone]

FAX: [phone]

EMAIL:[e-mail]
