Product Type	LED Television
Brand	Finlux
Model	32FLSZR905LH
Screen Size	32 inches
Display Technology	LED
Resolution	HD Ready (1366 x 768)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Connectivity	2 x HDMI, 1 x USB 2.0, AV input, RF input, CI+ slot
Audio Output	2 x 5W speakers
Power Consumption (Operating)	50 W (typical)
Power Consumption (Standby)	< 0.5 W
Dimensions Without Stand (W x H x D)	73.0 x 43.0 x 8.5 cm
Dimensions With Stand (W x H x D)	73.0 x 48.0 x 18.0 cm
Weight Without Stand	4.2 kg
Weight With Stand	4.5 kg
Wall Mount Pattern	VESA 200 x 200 mm
Energy Efficiency Class	A+
Accessories Included	Remote control, batteries, power cord, user manual
Recommended Cleaning	Use a soft, dry cloth. Avoid abrasive cleaners.
Safety Features	Automatic standby, child lock, overheating protection
Repairability	Replaceable stand, connectivity boards accessible

Frequently Asked Questions - 32FLSZR905LH Finlux

How do I connect my Finlux 32FLSZR905LH to Wi-Fi?

This model is not equipped with built-in Wi-Fi. You can connect external streaming devices via HDMI.

What is the recommended viewing distance for a 32-inch TV?

For HD content, a distance of about 1.2 to 1.8 meters is ideal.

How can I perform a factory reset on my Finlux TV?

Go to Settings > System > Reset and follow the on-screen instructions. A PIN may be required (default 0000).

Does the 32FLSZR905LH support USB playback?

Yes, it has a USB port that supports playback of video, photo, and music files in common formats.

How do I clean the TV screen safely?

Turn off the TV and wipe gently with a microfiber cloth. Do not use water or cleaning solutions directly.

Can I use my Finlux TV as a computer monitor?

Yes, connect your PC via HDMI and select the correct input source.

What should I do if there is no sound from the speakers?

Check the volume level and mute setting. Also ensure the audio output is set to 'TV speaker' in the menu.

How do I update the software on my Finlux TV?

This model does not support over-the-air updates. Contact Finlux support or check the website for USB update files.

What VESA mount size is compatible?

The TV uses a VESA 200 x 200 mm pattern. Ensure the mount supports this size.

Why does the TV turn off by itself?

It may be due to the automatic standby feature after inactivity, or overheating. Check the sleep timer and ventilation.

USER MANUAL 32FLSZR905LH Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

Positioning the TV....1

Power cord and plug....2

Moisture and Water 2

Environmental Information 2

TV - Features 3

Viewing the TV 3

TV Control buttons & Operation 3

Operation with the Buttons on the TV....3

Operation with the Remote Control 3

Viewing remote control 4

Accessories included....4

Installing the Batteries to the Remote.... 6

Connect Power & Antenna/Cable/Satellite ...... 6

Switching On/Off....6

To Switch the TV On....6

To Switch the TV Off....6

First Time Installation....6

Aerial Installation 7

Cable Installation 7

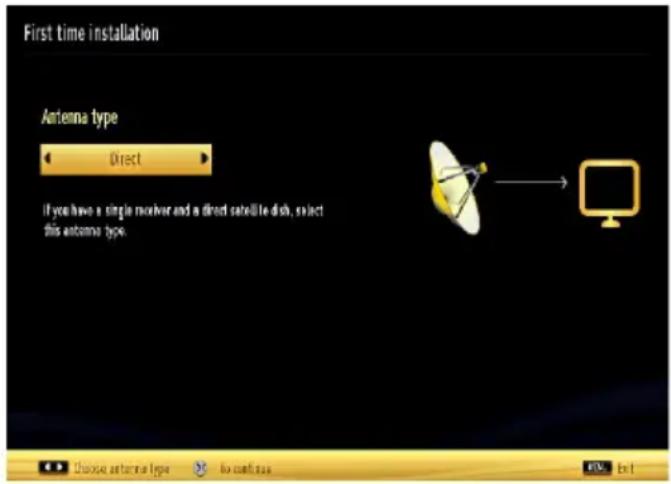

Satellite Installation....8

Media Playback via USB Input 8

Media Browser Menu....8

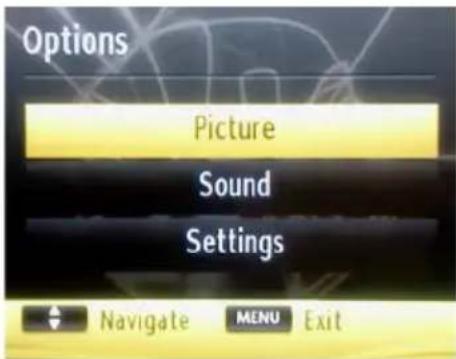

Using MENU button in Media Browser Mode ..... 8

Using the Channel List 9

Sorting Channel List 9

Menu Features and Functions....10

Menu Features and Functions....11

Menu Features and Functions....12

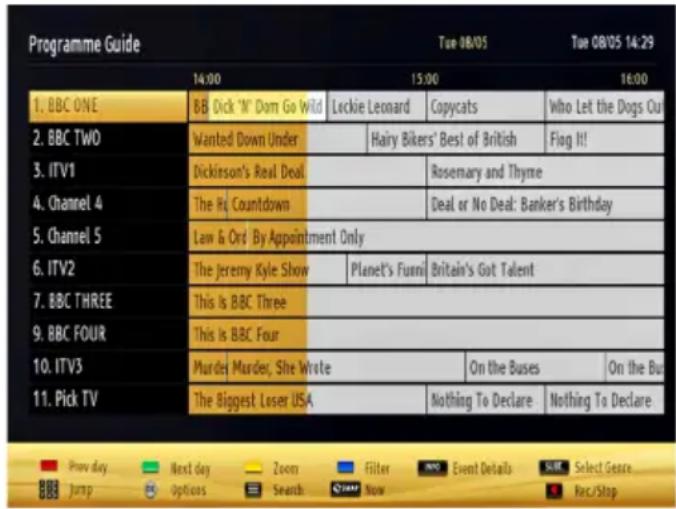

Electronic Programme Guide (EPG) 13

Programme Options.... 13

Recording a Programme 13

Timeshift Recording 14

Instant Recording 14

Watching Recorded Programmes 14

Recordings Library.... 14

Recording Configuration....14

USB Is too Slow 17

Appendix B: AV and HDMI Signal Compatibility .... 18

Appendix C: Supported File Formats for USB Media

Browser 19

Appendix D: Supported DVI Resolutions ...... 20

Specifications 21

Licence Notifications.... 21

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5^ C up to 45^ C, 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

WARNING: Never let people (including children) with physical, sensory or mentalities or lack of experience and/or knowledge supervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

- The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or rating mode when you leave your house.

Positioning the TV

- For ventilation, please leave a clear space of at least 10cm all around the TV.

- Do not block the ventilation openings.

- Do not place the TV on sloping or unstable surfaces, the TV may tip over.

- To prevent damage to the TV, do not place any objects on top of the TV.

- Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.
• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).
• Do not expose this TV to rain or water, as this may be dangerous.
• Do not place objects filled with liquids, such as flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.

- Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Headphone Volume

• Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

- To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
  • Take care not to scratch the screen with fingernails or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

TV - Features

• Remote controlled colour LED TV.
• Fully integrated digital/cable/satellite TV (DVB-T/C/S-S2).
• HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
• USB input.
  • 10000 programmes.
• OSD menu system.
• Scart socket for external devices (such as video, video games, audio set, etc.).
• Stereo sound system.
• Teletext, fastext, TOP text.
  • Headphone connection.
  • Automatic programming system.
• Forward or backward manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
  • Game Mode (optional).
  • Picture off function.
  • 100 Hz

Viewing the TV

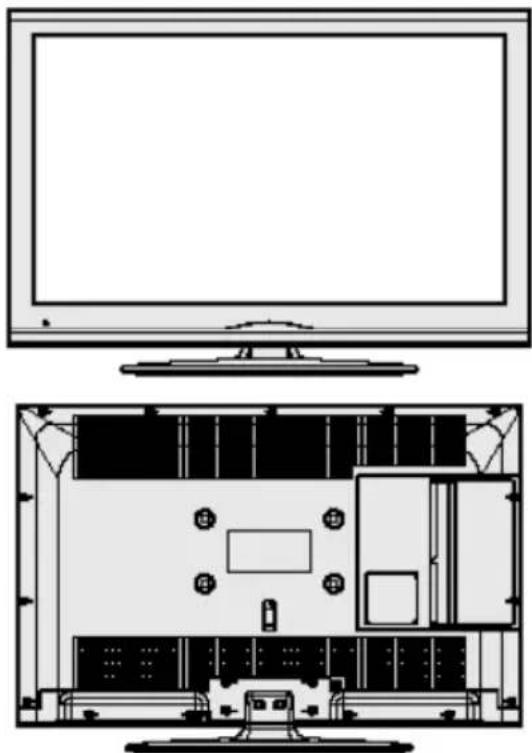

Technical line drawing of a computer monitor and its internal layout showing internal components (no text or symbols)

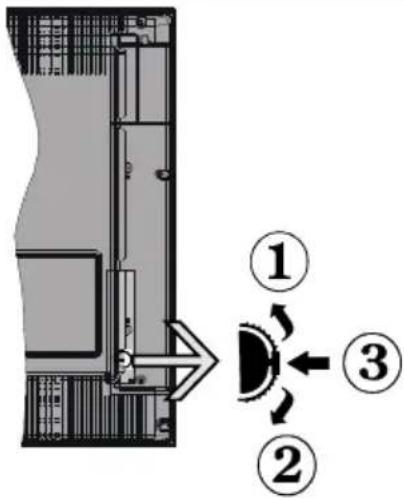

TV Control buttons & Operation

Diagram showing a device interior with labeled components and directional arrows indicating motion or flow directions.

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch

You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press RETURN/BACK or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the V+/- and P+/- buttons on the remote.

Viewing remote control

1. Standby / On
2. Channel list
3. Volume up-down
4. Menu on/off
5. OK / Channel list / Confirm
6. Return / Back
7. No Function
8. My button 1 (*)

9. My button 2 (**)

10. Coloured buttons (Red, Green, Yellow, Blue)

11. Mono-Stereo Dual I-II / Current language

12. Fast rewind (in media browser mode)

13. Pause (in media browser mode)

14. Record programme

15. Play (in media browser mode)

16. Stop (in media browser mode)

17. Fast forward (in media browser mode)

18. Subtitle on-off / Subtitle (in media browser mode)

19. Image size

20. Teletext - Mix

21. Media Browser

22. Electronic programme guide

23. Exit

24. Navigation buttons

25. Quick menu

26. Info / Reveal (in TXT mode)

27. Programme up/down

28. Mute

29. Previous programme / Now (in EPG mode)

30. Numeric buttons

31. AV / Source

Using My button 1 (*)

Press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

Using My Button 2 (**)

This button's main function is to switch between DVB-T, DVB-C and DVB-S broadcasts. However, if you press MY BUTTON 2 for five seconds, you can set a function to it as described in My Button 1.

Note that if you perform first time installation, MY BUTTON 2 will return to its default function, switching between DVB-T, DVB-C and DVB-S broadcasts.

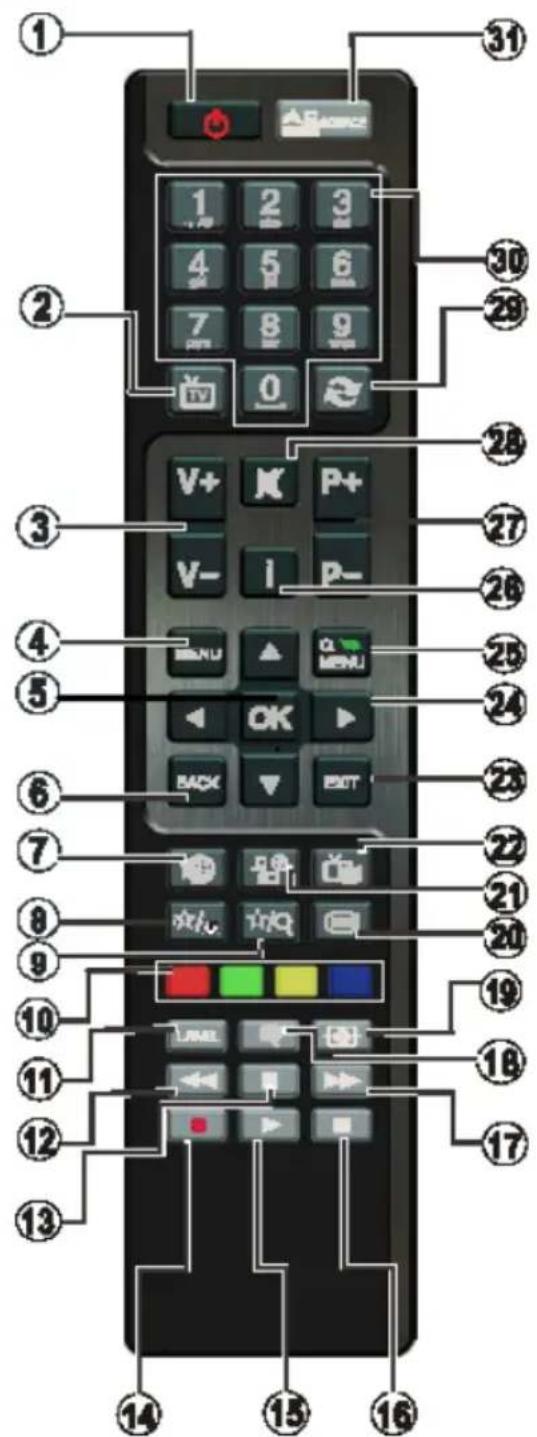

Diagram of a remote control device with numbered labels pointing to various function keys and buttons.

NOTE: The Remote Control range is approximately 7m t.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Side AV Connection Cable

Connector	Type	Cables	Device
	Seart Connection (back)
	VGA Connection (back)
	PCYPbPr Audio Connection (back)
	HDMI Connection (back & side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. To enable PC audio, you will need to use PC/YPBPR AUDIO CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV. The module should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV.

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.

3. Replace the cover.

Close-up of a black plastic door handle with a white arrow pointing to a small inset image (no text or symbols visible)

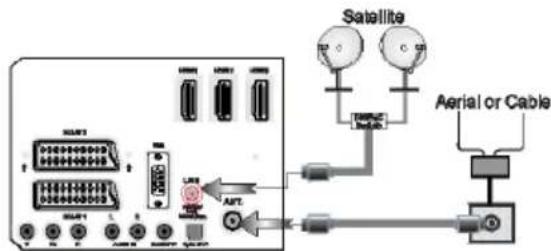

Connect Power & Antenna/Cable/Satellite

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Satellite Aerial or Cable

Switching On/Off

To Switch the TV On

With power cord plug connected to the mains power socket, the TV is in 'Standby' mode.

To switch the TV on from standby mode:

Press the "D" button and the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the "button, P+ / P- or a numeric button on the remote control.

b. Press the middle of the "button" on the TV. By either method the TV will switch on.

Switching the TV Off

Press the “button” on the remote control or press the standby “button, so the TV will switch to standby mode.

To turn off the TV completely, remove the power cord plug from the mains power socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

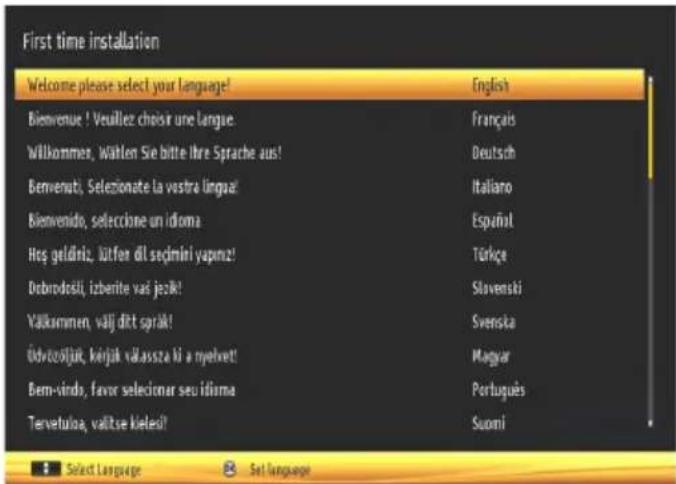

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

First time installation Welcome please select your language! Biemvenue ! Veuillez choisir une langue Wälkommer, Wåhlen Sie bitte ihre Sprache aus! Bemvenuti, Selecionate la vostra lingua! Biemvenido, seleccione un idioma Hog geldiniz, lütfor dîl seçmini yapmz! Dobrodošli, izberite vai jezik! Välkammen, välj dikt språk! Üdvötzöljük, kärjük välassza ki a myelvet! Bern-vindo, favor selecionar seu idiama Tervetuloa, valitse kielesi! English Français Deutsch Italiano Español Türkçe Slovenski Svenska Magyar Português Suomi Select Language Set language

Press the “” or “” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “◀” or “▶” button to set the required country, and press “▼” button to select Search Type. Use “◀” or “▶” to set the desired search type. Available search types are Digital and analog, digital only and analog only. When set, press “▼” to select Teletext Language. Use “” or “▶” button to set the “Teletext Language” and select “Scan Encrypted” using “▲” or “” button. You can set Scan Encrypted as Yes if you want to scan coded stations.

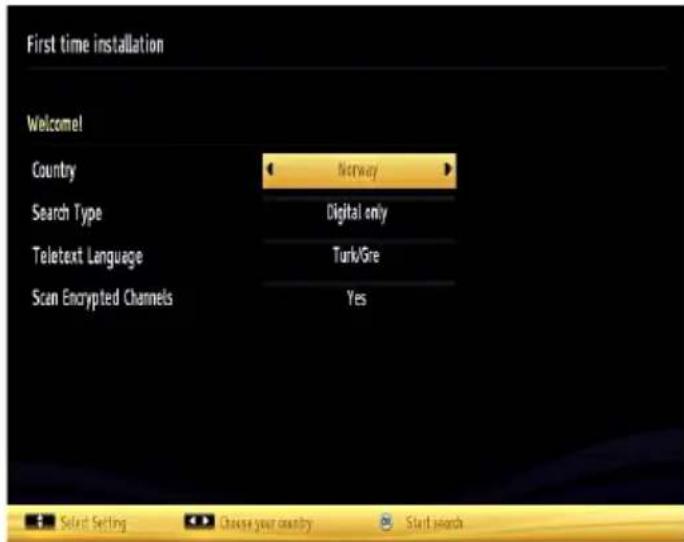

First time installation Welcome! Country Norway Search Type Digital only Teletext Language Turk/Gre Scan Encrypted Channels Yes Select Setting Change your country Start search

Press OK button on the remote control to continue and the following message will be displayed on the screen.

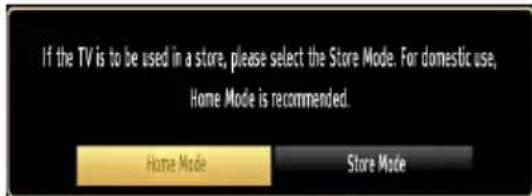

If the TV is to be used in a store, please select the Store Mode. For domestic use, Home Mode is recommended.

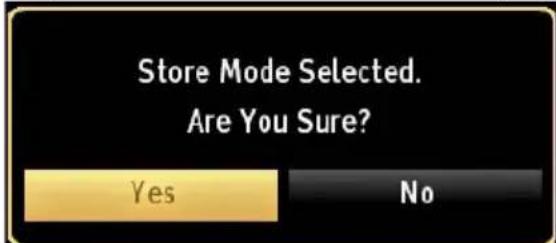

You can activate Store mode option by using "◀ or "▶" button. If Store Mode is selected, Store mode option will be available in other settings menu and your TV's settings will be optimized for best display quality. A confirmation screen will be displayed after selecting the Store Mode. Select YES to proceed.

Store Mode Selected. Are You Sure? Yes No

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen.

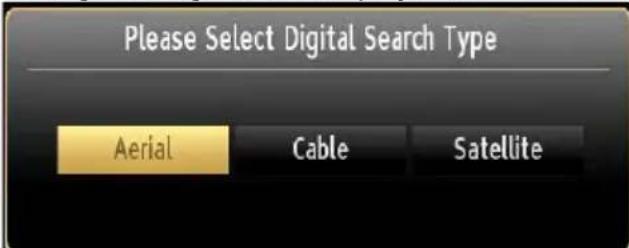

Please Select Digital Search Type Aerial Cable Satellite

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Automatic channel scan (Return) Please wait. This will take a few minutes. Scanning digital channels: UIT 50

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

Channel list Satellite/Analogue 1. ANS GROUP 2. KANALTURK 3. BUGUN 4. BK INTERAKTIF 5. 6. D-SMART PROMO 7. FX 8. YEŞİLÇAM SMART 9. SMART ÇOCUK 10. Watch Digital Aerial/Analogue Filter Digital Cable/Analogue Exit Jump Satellite/Analogue

Press OK button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

Do you want to start network search? Yes No

To continue please select YES and press OK. To cancel operation, select NO and press OK.

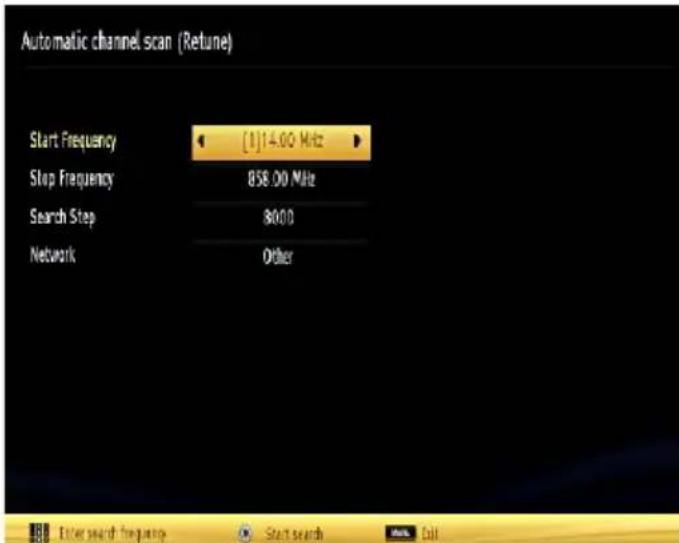

Automatic channel scan (Resume) Start Frequency 14.00 MHz Stop Frequency 858.00 MHz Search Step 8000 Network Other Enter search frequency Start search Call

You can select frequency ranges from this screen. For highlighting lines you see, use "or" button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

(*) Network option will not be available for UK.

Satellite Installation

If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels.

There are three types of antenna selection. You can select Antenna type as Direct, Unicable or DiSEqC switch by using “◀” or “▶” buttons.

First time installation Antenna type Direct If you have a single receiver and a direct satellite dish, select this antenna type.

Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and a unicable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using “” or “

▼ " button and press OK.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Using MENU button in Media Browser Mode

Pressing MENU button in Media Browser mode displays the following menu screen:

Options Picture Sound Settings Navigate MENU Exit

You can access Picture, Sound and Settings menu options using this screen. Press MENU again to exit from this screen.

Using the Channel List

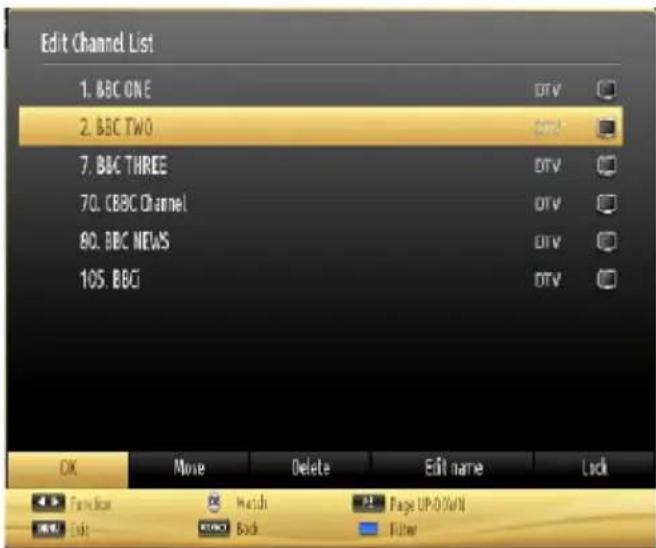

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 105. BBC OK Move Delete Edit name Lock Watch FPage UP/DW/N Edit Break Filter

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “” or “▼” button. Press OK button to continue. You can select a network type option from the list by using “◀” or “▶” and OK buttons.

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Sport, Dynamic and Natural.
Contrast	Sets the lightness and darkness values of the screen.
Brightness	Sets the brightness value for the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, "Environmental Information" in this manual for further information on Power Save Mode. If Picture Off is selected, "Screen will be off in 15 seconds" message will be displayed on the screen. Select PROCEED and press OK to continue. The screen will be off in 15 seconds. If you disable Power Save Mode, Picture mode will be automatically set to Dynamic.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp	Sets the desired colour tone.
Picture Zoom	Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
Movie Sense	Movie Sense: Press Use "Left" / "Right" to set Movie Sense Low, Med, High or Off. While Movie Sense is active, it will optimize the TV's video settings for motional images to acquire a better quality and readability.When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen.
HDMI True Black	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Adjust the desired skin tone.
Colour Shift	Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset	Resets the picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Contents
Volume Adjusts volume level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets	headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Headphone/ Lineout (optional)	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.Satellite: Searches and stores satellite channels.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.
Clear Service List	(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.

Menu Features and Functions

Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	Configures language settings.
Parental	Configures parental settings. Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725,0000 or 1234.
Timers	Sets timers for selected programmes.
Recording Configuration	Displays recording configuration menu.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options.
Satellite Settings	Displays satellite settings.
Other Settings: Displays other setting options of the TV set
Menu Timeout Changes	timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.
Store Mode	If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set.
Power Up Mode	This setting configures the power up mode preference. Always On: The TV always switches on when main on/off button is pressed. / Standby: The TV always powers up in Standby mode. / Last State: The TV always switches on with the last selected channel/source.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Virtual Remote (optional)	Enables or disables the virtual remote feature.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Programme Guide Tue 08/05 Tue 08/05 14:29 14:00 15:00 16:00 1. BBC ONE BB Dick 'M' Dom Go Wild | Luckie Leonard | Copycats | Who Let the Dogs Out 2. BBC TWO Wanted Down Under | Hairy Bikers' Best of British | Flag It! 3. ITV1 Dickinson's Real Deal | Rosemary and Thyme 4. Channel 4 The Ri Countdown | Deal or No Deal: Banker's Birthday 5. Channel 5 Law & Ord By Appointment Only 6. ITV2 The Jeremy Kyle Show | Planet's Funnl | Britain's Got Talent 7. BBC THREE This Is BBC Three 9. BBC FOUR This Is BBC Four 10. ITV3 Murder Murder, She Wrote | On the Buses | On the Bu 11. Pick TV The Biggest Loser USA | Nothing To Declare | Nothing To Declare ■ Prev day ■ Next day ■ Zoom ■ Filter ■ Event Details ■ Select Gear ■ Jump ■ Options ■ Search ■ Now ■ Rec/Shop

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detail information on programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: displays filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Note: Switching to a different broadcast or source is not available during the recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is not supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feaute may not be available.

Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD.

Multipartiton support is available. Maximum two different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to watch the paused programme from the stopped moment. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press (STOP) button to cancel instant recording. Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use “◀” or “▶” buttons to select Media Browser. Highlight Recordings Library item by using “◀” or “▶” button and press OK button to enter. Recordings Library will then be displayed. Select a recorded item from the list (if previously recorded) by using “◀” button. Press OK button to view Play Options. Select an option by using “◀” or OK buttons.

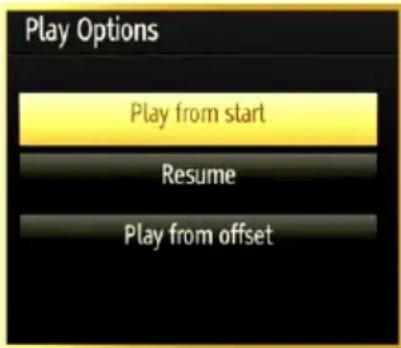

Play Options Play from start Resume Play from offset

Available playback options:

• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Specifies a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press ■(STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press ▪(PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use ▶button to slow forward. Pressing ▶button consecutively will change slow forwarding speed.

Recordings Library

To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

▶ (Resume): Recommences the recordings.

RED button (Delete) : Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

INFO (Details): Displays the short extended programmes in detail.

Recording Configuration

Select Recording Configuration item in the Settings menu to configure recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Teletext

“TXT” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼or” commands will request the next or previous page respectively.

Digital Teletext (for UK only)

- Press the "button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "button is pressed again, the TV returns to television broadcasting.

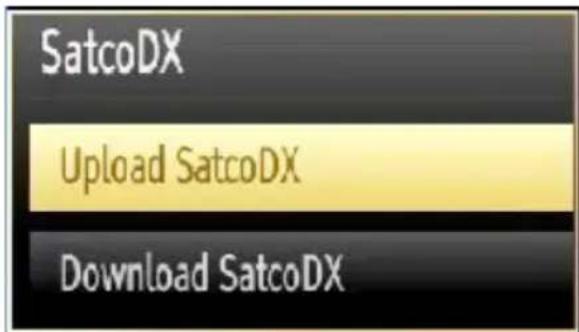

Using SatcoDX Feature

You can perform SatcoDX operations using the Satellite Settings. On SatcoDX menu, there are two options regarding to satcodx feature as in the following:

SatcoDX Upload SatcoDX Download SatcoDX

You can download or upload satcoDX data. In order to perform these functions supported for satcodx feature, a USB device must be connected to the TV in the first place.

You will be able to upload current services and related satellites & transponders in TV, to a USB device.

In addition to the uploading feature you will be able to download one of the satcodx files stored in USB device, to the TV.

When you select one of these satcodx files, all services and related satellites and transponders in the selected file will be stored in TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed.

Afterwards, check your antenna settings and make changes if necessary. An error message stating "No Signal" may be displayed if antenna settings are not configured properly.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow

If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Appendix A: PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1200.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x350	85Hz
3	640x400	85Hz
4	640x480	60Hz
5	640x480	66Hz
6	640x480	72Hz
7	640x480	75Hz
8	640x480	85Hz
9	800x600	56Hz
10	800x600	60Hz
11	800x600	70Hz
12	800x600	72Hz
13	800x600	75Hz
14	800x600	85Hz
15	832x624	75Hz
16	1024x768	60Hz
17	1024x768	66Hz
18	1024x768	70Hz
19	1024x768	72Hz
20	1024x768	75Hz
21	1024x768	85Hz
22	1152x864	60Hz
23	1152x864	70Hz
24	1152x864	75Hz
25	1152x864	85Hz
26	1152x870	75Hz
27	1280x768	60Hz
28	1360x768	60Hz
29	1280x768	75Hz
30	1280x768	85Hz
31	1280x960	60Hz
32	1280x960	75Hz
33	1280x960	85Hz
34	1280x1024	60Hz
35	1280x1024	75Hz
36	1280x1024	85Hz
37	1400x1050	60Hz
38	1400x1050	75Hz
39	1400x1050	85Hz
40	1440x900	60Hz
41	1440x900	75Hz
42	1600x1200	60Hz
43	1680x1050	60Hz
44	1920x1080	60Hz
45	1920x1200	60Hz

Appendix B: AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT-1(SCART1)	PAL O
	NTSC 60 O
	RGB 50/60 O
	SECAM O
EXT-1(SCART2)	PAL O
	NTSC 60 O
	SECAM O
Side AV	PAL 50/60 O
	NTSC 60 O
	SECAM O
YPbPr	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50Hz O
	1080I 60Hz O
HDMI1HDMI2HDMI3HDMI4	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50 Hz O
	1080I 60Hz O
	1080P	24Hz25Hz30Hz50Hz60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported File Formats for USB Media Browser

Media Extension Format Notes
Movie	, .mpg,.mpeg	Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM		1080P@ 30fps 50Mbit/sec
	.dat, .mpg,.mpeg	MPEG2 ,H.264, VC1, AVS,MVC	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM	H.264:1080Px2@25fps1080P@ 50fps MVC:1080P@ 24fps Other:1080P@ 30fps" 50Mbit/sec
	.vob MPEG2	MPEG1/2 Layer 1/2/3, AC3,	PCM 1080P@ 30fps 50Mbit/sec
	.mkv MPEG	1,2,4, XviD,H.264,VC1,WMV3,Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM	H.264:1080Px2@25fps1080P@ 50fpsOther:1080P@ 30fps 50Mbit/sec
	.mp4, .mov	MPEG1/2 Layer 3, AAC/HEAAC,	AC3/EAC3, LPCM/ADPCM	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps 50Mbit/sec
	.avi MPEG1	2,4XvidH.264,VC1,WMV3,Sorenson H.263Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM, WMA	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps" 50Mbit/sec
	.flv H.264,	Sorenson H.263	MPEG1/2 Layer 3, AAC/HEAAC,LPCM/ADPCM	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps" 50Mbit/sec
	.3gp, .3g2 M	PEG4, H.264		1920x1080 @ 30P20Mbit/sec
	.asf, .wmv	MPEG2,4, XviD, H.264,VC1,WMV3	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM, WMA	1080P@ 30fps 50Mbit/sec
Music	3	-	MPEG1 Layer 1/2/3 (MP3)
	.wav		LPCM
	WMA/ASF		WMA, WMA Pro
	.m4a/, .aac
Photo	.jpg, .jpeg	Baseline JPEG		max WxH =14592x12288Up to 8 MegaByte
	.png	Progressive JPEG
	.bmp	non-interlace
	.png	interlace
Subtitle	.sub -	-
	.srt	-	-

Appendix D: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	56Hz 60Hz	66Hz 70Hz	72Hz	75Hz
640x400					☑
640x480			☑ ☑	☑ ☑
800x600	☑ ☑	☑ ☑ ☑
832x624							☑
1024x768			☑ ☑	☑ ☑ ☑
1152x864			☑ ☑	☑
1152x870							☑
1280x768			☑
1360x768			☑				☑
1280x960			☑				☑
1280x1024			☑				☑
1400x1050			☑				☑
1440x900			☑				☑
1600x1200			☑
1680x1050			☑
1920x1080			☑
1920x1200			☑

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (for UK only)

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W _RMS. ) (10% THD)

2×6

POWER CONSUMPTION (W)

100 W (max)

PANEL

16:9

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Licence Notifications

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY. DIGITAL PLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Obsah

Příprava 22

Technical line drawing of a computer monitor and its internal layout showing internal components (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a remote control device with numbered keys and function buttons for navigation or system testing.

Close-up of a black remote control case with an arrow indicating direction, showing internal battery and cable assembly (no text or symbols)

First time installation Antenna type Direct If you have a single receiver and a direct satellite dish, select this antenna type. Choose antenna type for use here BNT bnt

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITÁLNÍ PŘÍJEM

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (pouze pro UK)

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

PŘIJÍMACÍ KANÁLY

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

PŘEDVOLENÉ KANÁLY

10000

INDIKÁTOR KANÁLU

German + Nicam Stereo

AUDIO VÝSTUP (W _RMS. ) (10% THD)

2×6

SPOTŘEBA (W)

100 W (max)

PANEL

16:9

A	Product Fiche
B	Comercial Brand: FINLUX
C	Product No. 10085224
D	Model No. 32FLSZR905LH
E	Energy efficiency class A
F	Visible screen size (diagonal, approx.) (inch/cm)	32 inches 81 cm
G	On mode average power consumption (Watt)	41
H	Annual energy consumption (kWh/annum)	59
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px) 1920 x 1080
