Product Type	Hand Blender (Stick Blender)
Brand	Concept
Model	TM-4610
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	400 W
Noise Level (Stick)	66 dB(A)
Maximum Continuous Operation	1 minute
Cooling Down Time	At least 10 minutes
Speed Settings	Single speed (on/off) with Turbo boost
Turbo Function	Yes, momentary maximum speed
Accessories Included	Stick extension
Material	Plastic body, stainless steel blending shaft
Suitable For	Sauces, soups, mayonnaise, baby food, milkshakes, mixed drinks
Maximum Ingredient Temperature	80 °C
Safety Features	Automatic stop? (not specified); requires manual shut-off
Cleaning	Wipe body with damp cloth; rinse stick extension under running water (do not immerse)
Dishwasher Safe	Not for stick extension; other parts? (not specified)
Intended Use	Household only
Warranty	Invalid if instructions not followed

Frequently Asked Questions - TM-4610 Concept

What is the maximum continuous operating time for the TM-4610?

The blender should not be used for more than 1 minute at a time. Allow it to cool down for at least 10 minutes before next use.

Can I chop hard ingredients like coffee beans or nutmeg?

No, the blender is not designed for extremely hard ingredients such as coffee beans, nutmeg, or cereals. These can damage the blades.

How do I clean the stick extension?

Rinse the stick extension under running lukewarm water immediately after use. Do not immerse it in water. Ensure water does not enter the driving shaft area; if it does, dry and add a few drops of vegetable oil.

What is the noise level of the blender?

With the stick attached, the noise level is approximately 66 dB(A).

Can I use the blender for hot ingredients?

Yes, but the maximum temperature of the processed ingredients is 80 °C. Do not use for very hot food.

How do I make mayonnaise with the TM-4610?

Put 200–250 ml oil, 1 whole egg, 1 tsp lemon juice or vinegar, salt, and pepper in a mixing bowl. Insert the stick to the bottom, switch on, and hold until emulsion forms. Then move up and down slowly until desired density.

Does the TM-4610 have a turbo function?

Yes, press the Turbo button to momentarily increase the motor speed to maximum.

What should I do if water gets inside the stick extension?

Leave the stick extension to dry completely, then apply a few drops of vegetable oil to the driving shaft area to lubricate the bearings.

Can I wash the blender body in water?

No. Clean the unit body only with a damp cloth. Do not immerse it in water or any liquid.

What accessories are included with the TM-4610?

The TM-4610 includes the unit body and the stick extension for blending. It does not include the chopper or whisk attachments (those are for the TM-4620 series).

USER MANUAL TM-4610 Concept

Two concept electric toothbrushes with metallic tips, displayed against a plain background (no text or symbols on the devices themselves)

CZ EN DESK PL LV

PODĚKOVÁNÍ

Close-up of a black and silver kitchen brush head with a circular dial (no text or symbols visible)

Obr. 1

otáček motoru na maximum.

Close-up of a black handheld device with a circular top and handle, shown with directional arrows pointing to the base (no text or symbols visible)

Obr. 2

Close-up of a black and white plastic blender with a handle and glass base (no visible text or symbols)

Close-up of a black and silver kitchen brush with a whisk, no visible text or symbols

Close-up of a black and silver electric shaver with a circular top and handle (no visible text or symbols)

Obr. 1

1. Po skončení mixovania spotrebič vypnite. Vytiahnite prívodný kábel zo zásuvky.

2. Stlačením tlačidiel na uvol'nenie nadstavca uvol'nite tyčový nadstavec (Obr. 2) a pod tečúcou teplou vodou ho ihned' opláchnite. Dbajte na to, aby voda nenatiekla dovnútra nadstavca do priestoru hnacieho hriadela. Ak sa tak stane, nechajte tyčový nadstavec uschnút' a do priestoru hnacieho hriadela kvapnite niekolko kvapiek jedlého oleja pre l'ahší chod ložiska tyčového nadstavca.

PRÍKLAD RECEPTU NA PRÍPRAVU MAJONÉZY

200 – 250 ml oleja

1 vajce (žítok aj bielok)

Black handheld device with a circular top and handle, shown with directional arrows pointing to the left side (no text or symbols visible)

Obr. 2

Close-up of a black and white kitchen brush tool with a glass base (no visible text or symbols)

Close-up of a black and silver kitchen whisk with a wire, no visible text or symbols

Close-up of a black and silver electric shaver with control knob (no visible text or symbols)

Rys. 1

Close-up of a black handheld device with a circular top and handle, shown with directional arrows pointing to the left side (no text or symbols visible)

Rys. 2

PRZYKŁADOWY PRZEPIS PRZYGOTOWANIA MAJONEZU

200 - 250 ml oleju

Close-up of a black and white kitchen brush with a clear plastic cup (no text or symbols visible)

Close-up of a black whisk with a metallic handle, no visible text or symbols

Close-up of a black and silver kitchen brush head with no visible text or symbols

Black handheld device with a circular top and handle, shown with directional arrows pointing to the left side (no text or symbols visible)

1. att.

Close-up of a black and white kitchen brush tool with a glass base (no visible text or symbols)

Close-up of a black and silver electric whisk with a wire, no visible text or symbols

TİRİŞANA UN APKOPE

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that all other people using the machine are familiar with the contents of the instruction manual.

Technical parameters
Voltage 220-240 V ~ 50/60 Hz
Power demand 400 W
Noise level with the stick attached 66 dB(A)
Noise level with the chopper extension (only TM 4620 series) 76 dB(A)
Noise level with the whisker extension (only TM 4620 series) 74 dB(A)
Maximum time of uninterrupted operation	1 minute

The noise levels indicated above represent the level of acoustic performance A relative to the reference acoustic performance 1 pW.

IMPORTANT SAFETY INSTRUCTIONS:

• Do not use this equipment in a manner different from the instructions in this manual.
• Remove all packing and marketing materials from the appliance before you use it for the first time.
• Make sure the connecting voltage corresponds to values on the unit type label.
• Close supervision is necessary when the unit is on or plugged into the socket.
• Place the machine on a stable, heat-resistant surface, away from sources of heat.
• Disconnect the machine from the electrical socket when you are not using it.
• Never hold the power cord when disconnecting the machine from the socket; grasp and pull the plug, not the cord.
• Do not allow children or people with reduced capabilities to handle the unit. Use the machine out of the reach of these people.
• People with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person who is aware of these instructions.
  • Exercise utmost caution when using the unit while children are nearby.
• Do not allow the appliance to be used as a toy.
  • To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.
• Do not use the unit out of doors or on wet surfaces, as such locations give rise to the risk of electric shock.
• Do not use any other accessories except those recommended by the manufacturer.
• Never use the machine if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.
• Never pull the supply power cord or use it to carry the machine.
• Keep the machine away from any sources of heat such as radiators, ovens, etc. Do not expose the machine to direct sunlight or moisture.
• Do not touch the unit if your hands are damp or wet.
• Before mounting any accessories, cleaning, or in the case of a defect, turn the unit off and remove the plug from the electrical socket.
• The unit is intended for household use only; it is not designed for commercial application.
• Never immerse the power cord, the plug, or the machine in water or any other liquid.
• Check the unit and its power cord regularly for damage. Never turn the unit on if it is damaged.
• Keep your hair, fingers and clothing out of reach of the moving parts during operation.
• Be careful when handling the extensions, as the blades are very sharp and may cause injury.

• Do not use machine accessories in a microwave oven.

• Some parts may keep moving for a while after the motor has been switched off and the power cord has been disconnected from the socket. Wait until the movement stops completely.

• Use the unit solely for food processing.
• The maximum allowed temperature of the processed ingredients is 80 °C. Do not use the beater for very hot food!
• Do not attempt to repair the unit by yourself. Contact an authorised service centre for repair.

Failure to follow the manufacturer's instructions may invalidate the warranty.

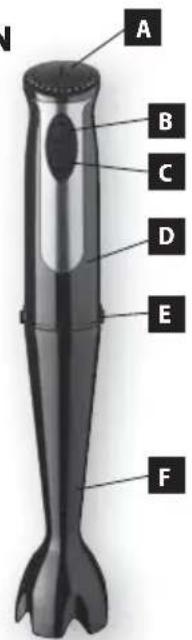

PRODUCT DESCRIPTION

Unit body

A – Speed control (only 4620 series)

B - Switch

C - Turbo

D - Unit body

E - Extension release buttons

F - Stick extension

Accessories (only 4620 series)

G - Cover with transmission

H – Chopping knife

I – Chopping bowl

J - Transmission

K-Whisker

L - Mixing bowl

OPERATING INSTRUCTIONS

NOTICE

Before mounting or removing accessories onto or from the machine, always pull the plug out of the electrical socket!

Prior to using a new unit, wipe the surface with a wet cloth and wash the removable accessories in warm water for hygienic reasons.

The unit is designed for short operation periods. Do not use it for periods of longer than 1 minute at a time. Allow the unit to cool down for at least 10 minutes after use.

Never let the appliance run idle for more than 10 seconds.

MIXING

The stick extension is designed for making sauces, toppings, soups, mayonnaise, baby food, mixed drinks and milkshakes.

1. Put the food in the mixing bowl or another tall kitchen vessel.
2. Mount the unit body onto the shaft of the extension stick.
3. Uncoil the whole length of the power cord. Make sure the cord does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.
4. Hold the body with one hand and the mixing bowl with the other.
5. Select the desired speed (the 4620 series), insert the unit into the mixing bowl and push the power switch to initiate operation. While mixing, use circular

Close-up of a black and silver kitchen brush head with control knob (no text or symbols visible)

Fig. 1

movements on the bottom of the bowl. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

1. Switch the unit off after mixing. Disconnect the cable from the socket.
2. Push the extension release buttons (Fig. 1) to release the stick extension from the body and wash it under running lukewarm water immediately. Make sure the water does not get inside the extension to the driving shaft area. If this happens, leave the stick extension to dry, and apply a few drops of vegetable oil to ease the operation of the stick bearings.

EXAMPLE - MAYONNAISE RECIPE

200 - 250 ml oil

1 whole egg

1 teaspoon lemon juice or vinegar salt and pepper

Close-up of a black handheld device with a circular top and handle, shown with directional arrows (no text or symbols visible)

Fig. 2

Put all the ingredients in the mixing bowl in the above-mentioned order. Insert the stick extension to the bottom of the mixing bowl. Switch ON, and hold the unit in this position until the oil creates an emulsion. Move the operating unit up and down slowly, until the mayonnaise has the required density.

CHOPPING (only TM 4620 series)

The chopping bowl is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, dried plums, etc.

Do not attempt to chop extremely hard foodstuff s such as nutmeg, coff ee beans, or cereals.

Items like meat, cheese, onions, garlic, carrots, or frozen food must be cut before chopping.

Remove the stems from herbs and all nutshells.

Remove bones, cartilage and tendons from the meat.

1. Fill the chopping bowl with the ingredients and close it with the cover that holds the transmission.

2. Mount the unit body on the lid with the transmission.

3. Uncoil the whole length of the power cord. Make sure it does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body with one hand and the chopping container with the other.

5. Select the required speed and push the button to start the machine. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

6. Switch the unit off after chopping. Use the release buttons to disconnect the unit body from the lid with the transmission. Disconnect the cable from the socket.

7. Wipe the lid with the transmission using a wet cloth. Do not immerse in water or wash in running water!

Close-up of a black and white cleaning brush with a glass base (no text or symbols visible)

Recommended amount of food and preparation times

Food Maximum quantity Approximate cutting time
Meat (1 cm pieces) 200 g 15 s
Cheese (1 cm pieces) 200 g 15 s
Nuts	200
Herbs 40 g 10 s
Onions	200 g
Garlic	40 g	10 s
Carrots (1 cm pieces) 200 g 15 s
Hard-boiled eggs	2 eggs	15 s
Bread (1 cm pieces)	1 slice	15 s

WHISKING (only TM 4620 series)

The whisk extension may only be used for whisking cream, egg whites, for preparation of thin sponge cake dough, and cold desserts.

Use a wide container.

The maximum amount of cold cream (minimum fat content 30 %, 4-8 °C) for whisking is 400 ml.

The maximum amount of egg whites to be whisked is four.

1. Put the food in a wide container.
2. Mount the unit body onto the shaft of the whisking extension stick.

3. Uncoil the whole length of the power cord. Make sure the cord does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body with one hand and the whisking container with the other.

5. Select the desired speed, insert the unit into the whisking bowl and push the

Close-up of a black and silver kitchen brush with a whisk, no visible text or symbols

power switch to initiate operation. To whisk the contents, apply circular, clockwise movement at the bottom. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

1. Switch the unit off after whisking. Disconnect the cable from the socket.

2. Push the extension release buttons to release the whisking extension. Remove the whisk from the transmission. Wipe the transmission with a damp cloth. Do not immerse the transmission in water or wash in running water! You can wash the whisk under running warm water or immerse in water and soak.

CLEANING AND MAINTENANCE

Switch the unit off and pull the plug from the socket prior to cleaning and after use of the unit.

Clean the unit body with a wet cloth.

Do not use steel wool, abrasive agents or solvents to clean the unit.

The transmissions must not be exposed to water! Wipe them with a damp cloth only.

Do not immerse the stick extension in water! Just rinse it. Make sure the water does not enter the extension where the driving spindle is. If this happens, leave the stick extension to dry and apply a few drops of vegetable oil to ease the operation of the extension bearings.

Wash the vessels and blades in tepid water with detergent and rinse in clean water; you can use a dishwasher.

Some of the plastic parts may change colour when you process ingredients with a higher pigmentation level (e.g. carrots). To remove the colour, apply vegetable oil to these parts and let it work for a couple of minutes before washing.

The warranty conditions do not apply to defects caused by improper or inadequate maintenance of the equipment.

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.
