RM-3260 - Blender Concept - Free user manual and instructions

Product Type	Chopper/Blender
Brand	Concept
Model	RM-3260
Rated Voltage	220-240 V ~ 50 Hz
Power Input	200 W
Bowl Material	Plastic
Blade Material	Stainless Steel
Maximum Capacity (dry ingredients)	200 g (onion)
Maximum Capacity (liquids)	0.3 L
Maximum Continuous Operation	20 seconds
Cool Down Time	At least 2 minutes
Maximum Food Temperature	80°C
Operation	Pulse mode (press switch intermittently)
Safety Features	Overheat protection, automatic shut-off
Cleaning	Hand wash plastic parts; body wipe with damp cloth; dishwasher safe for bowl and lid
Accessories Included	Lid with motor, stainless steel chopping blade, chopping bowl, serving cover
Suitable For	Chopping fruits, vegetables, meat, nuts, herbs, hard-boiled eggs, biscuits, cheese, ham
Not Suitable For	Very hard foods (coffee beans, ice cubes, seasoning, chocolate)
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - RM-3260 Concept

How do I use the Concept RM-3260 chopper?

Rinse all parts before first use. Place the stainless steel blade onto the center shaft carefully. Add food into the bowl, put the lid on, plug in, and press the switch intermittently for impulse chopping. Do not run continuously for more than 20 seconds.

What is the maximum capacity for onions?

The maximum amount for onions is 200 g, cut into eighths. Use pulse mode for 5-10 seconds.

Can I chop ice or coffee beans with this blender?

No. The stainless steel blade is not designed for hard foods like coffee beans, ice cubes, seasoning, or chocolate. Doing so may damage the blade or motor.

How do I clean the chopper?

Unplug the unit. Clean the motor body with a damp cloth. Wash the bowl, lid, blade, and cover in warm soapy water or in a dishwasher. Dry all parts thoroughly before reassembling.

What should I do if the motor stops working?

The motor may have overheated. Unplug the unit and allow it to cool for at least 2 minutes. Also check that the air vents are not blocked. If the problem persists, contact an authorized service center.

Can I operate the blender continuously for more than 20 seconds?

No. The appliance is designed for short bursts. Running it longer than 20 seconds may cause overheating and damage. Always let it rest for at least 2 minutes between uses.

Is the bowl dishwasher safe?

Yes, the plastic parts (bowl, lid, cover) can be washed in a dishwasher. However, the motor unit should only be wiped with a damp cloth.

What foods can I chop with the RM-3260?

You can chop onions, fruit compote, garlic, biscuits, cheese, almonds, hazelnuts, walnuts, hard-boiled egg yolks, meat, ham, and herbs. Maximum liquid capacity is 0.3 L.

Is it safe to leave the blender unattended while plugged in?

No. Never leave the appliance unattended when it is turned on or plugged into the socket. Always unplug after use and keep away from children.

What does the warranty cover?

The warranty covers manufacturing defects. It does not cover damage from misuse, such as chopping hard foods or operating longer than recommended. Contact an authorized service center for repairs.

USER MANUAL RM-3260 Concept

RM 3260

CZ EN DESK PL LV

PODĚKOVÁNÍ

INSTRUKCJA OBSŁUGI:

ROZWIĄZYWANIE PROBLEMÓW:

EKSPLUATĀCIJAS NORĀDĪJUMI:

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220-240 V ~ 50 Hz
Input 200 W

IMPORTANT SAFETY INSTRUCTIONS:

• Do not use this appliance in a way that differs from the instructions in this manual.
• Remove all packaging and marketing materials from the appliance before you use it for the first time.
  • Make sure that the connecting voltage corresponds to the values on the appliance type label.
• Do not leave the appliance unattended when turned on or plugged into the electric socket.

- When the appliance is not being used, disconnect the appliance from the electrical socket.

- Never pull the supply cable when disconnecting the appliance from the electrical socket; pull the plug instead.

- Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of these people

- People with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person acquainted with these instructions.

- Pay the utmost attention when using the unit close to children.

- Do not let anyone use the appliance as a toy.

- To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.

- Do not use the appliance outdoors or on wet surfaces as there is a threat of electric shock in these places.

- Do not use any other accessories except those recommended by the manufacturer.

- Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.

- Never pull the supply power cord or use it to carry the appliance.

- Keep the appliance away from heat sources (such as radiators, ovens, etc.). Protect the appliance from direct sunlight and moisture.

- Do not touch the appliance with moist or wet hands.

- Before fixing any accessories, cleaning or in the case of a defect, turn off the appliance and pull the plug out of the electrical socket.

• The appliance is intended for household use only (not for commercial use).

- Do not immerse the supply cable, the plug or the appliance itself into water or any other liquid.

• Regularly check the appliance and the supply cable for any damage. Never turn the appliance on if it is damaged.

- Do not touch the moving parts of the appliance during operation.

- Keep your hair, fingers and clothing out of reach of the moving parts during operation.

- Be careful when handling the extensions, as the blades are very sharp and may cause injury.

• The accessories shall not be used in a microwave oven.
- Some parts may keep moving for a while immediately after the motor has been switched off and the power cord has been disconnected from the socket. Wait until the movement stops completely.
• Use the unit solely for food processing.
- The maximum allowed temperature of the processed food is 80°C. Do not use the beater for very hot food!
- Never repair the appliance by yourself. Contact an authorised service centre.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

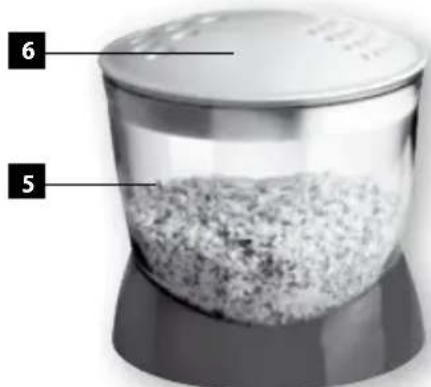

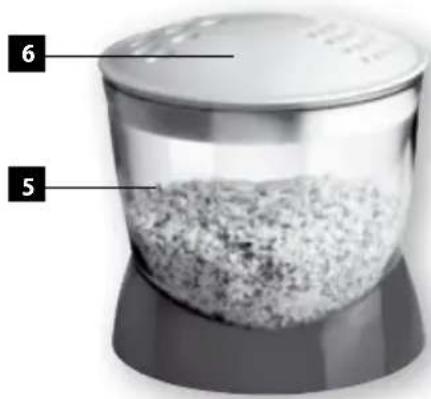

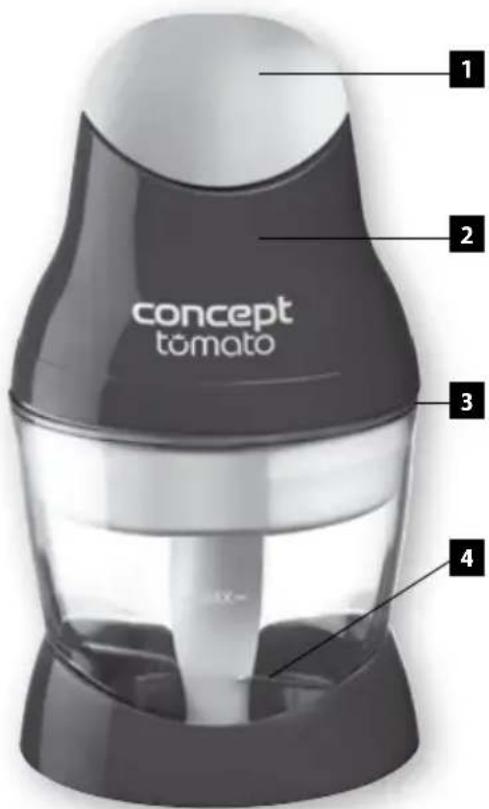

PRODUCT DESCRIPTION

1. Switch
2. Lid with motor
3. Top
4. Stainless steel chopping blade
5. Chopping bowl
6. Cover for serving

Close-up of a small transparent ice cream jar with granular contents, labeled parts 5 and 6 (no text or symbols on the jar itself)

OPERATING INSTRUCTIONS:

The chopper is intended for chopping fruits, vegetables, meat, nuts, herbs etc.

Rinse the entire attachment and bowl well before using the device for the first time.

1. The blade is very sharp and should be held by the upper plastic part. Place the blade onto centre shaft carefully.
2. Insert food into the chopping bowl according to the processing guide.
3. Place lid onto bowl.
4. Uncoil the entire cord and plug into the outlet. Press the lid switch interruptedly for impulse chopping. Prevent overprocessing food in this manner.
5. Unplug the cord from the outlet after you are finished chopping. Only afterwards should you remove the part containing the motor and lid.
6. Carefully remove the stainless steal blade and take out the processed food.

PROCESSING GUIDE:

INGREDIENT MAX. AMOUNT (g) MAX. TIME (g)

Onion 200 g (cut into eighths) 5 - 10 seconds in pulse mode

Fruit compote 150 g (about 5 g / piece) 10 seconds

Garlic 150 g 5 - 10 seconds in pulse mode

Biscuits 20 g 15 seconds

Cheese 80 g 15 seconds

Almonds 80 g 15 seconds

Hazelnuts 80 g 15 seconds

Walnuts 80 g 15 seconds

Hard-boiled eggs 4 egg yolks

5 - 10 seconds in pulse mode

Meat 150 g (about 5 g / piece) 10 seconds

Ham 150 g 10 seconds

Liquids 0.3 l

10 seconds

Note:

1. Do not operate the appliance continuously for more than 20 seconds. Allow it to cool down for at least 2 minutes before using it again. Otherwise the appliance will overheat and become damaged.

2. Do not use the stainless steel chopping blade on hard foods, such as coffee beans, ice cubes, seasoning or chocolate.

TROUBLESHOOTING

Problem	Cause	Solution
The motor is not running.	The plug is inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket is not receiving electricity.	Check for voltage, e.g. by connecting a different appliance.
The motor has stopped working.	The motor is overloaded, the heat fuse has been activated.	Disconnect the power supply cable from the socket. Check and clear the air passage at the inlet/outlet grills.Let the unit cool.

CLEANING AND MAINTENANCE

Turn off the unit and disconnect the power cord from the wall outlet before cleaning and after use.

Clean the appliance body with a wet cloth.

Do not use steel wool, abrasive agents or solvents to clean the unit.

Wash the other plastic parts in water with detergent and rinse in clean water; you may use a dishwasher.

SERVICING

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.
