EVKS 16165 - Refrigerator AMICA - Free user manual and instructions

Product Type	Refrigerator with freezer compartment
Energy Class	A+
Annual Energy Consumption	128 kWh
Net Usable Volume (Fridge)	206 L
Climate Range	N-ST (+16°C to +38°C)
Noise Level	41 dB(A)
Supply Voltage	220-240 V ~50 Hz
Dimensions (H x W x D)	1224 x 540 x 540 mm
Weight	42 kg
Lighting Type	LED
Number of Glass Shelves	4 + 1 above vegetable compartment
Vegetable Compartment	1
Door Shelves	2 medium, 1 large, 1 bottle tray, 1 egg tray
Defrosting	Automatic defrost (frost-free system)
Temperature Adjustment	Rotary knob from OFF to 7 (1 warmest, 7 coldest)
Door Reversible	Yes (left or right opening)
Refrigerant	Isobutane (R600a)
Installation Clearances	30 mm from electric/gas ovens, 300 mm from oil/coal ovens
Accessories Included	Egg tray, bottle tray, ice cube tray (not specified)

Frequently Asked Questions - EVKS 16165 AMICA

What should I do if the refrigerator does not work?

First, check if the plug is properly inserted into the socket. Ensure the power cable is not damaged and that the socket has voltage (test with another device like a lamp). Also, verify that the thermostat knob is set above 0 (OFF).

Why is the temperature inside my fridge not cold enough?

Possible causes: incorrect thermostat setting (turn knob to a higher number), the ambient temperature is outside the N-ST range (+16°C to +38°C), the appliance is near a heat source or in direct sunlight, too much warm food was loaded at once, or air circulation is blocked (e.g., food touching the rear wall).

How can I reverse the door opening direction?

Unplug the appliance and remove all food. Using screwdrivers, remove the hinge caps and hinges (upper, middle, lower). Tilt the appliance up to 40°, then reattach the lower hinge on the opposite side. Align and reattach the door(s) and middle/upper hinges. Finally, replace hinge caps and switch the appliance on.

Why is water collecting at the bottom of the fridge?

This is usually due to a clogged water discharge opening. Clean the opening using the cleaning plug (see manual chapter 'Defrosting the fridge'). Also ensure food and containers are not blocking the rear wall, hindering air circulation.

What are the different temperature zones in the fridge?

The coldest area is directly above the vegetable drawers, ideal for fish, meat, poultry, and prepared foods. The warmest area is the top door shelf, suitable for butter and cheese. Store delicate items in the coldest zone and vegetables in the designated compartment.

How do I clean and maintain the refrigerator?

Disconnect the appliance before cleaning. Use a mild detergent dissolved in lukewarm water for interior surfaces and accessories. Do not let water enter the control panel or light. Clean the door gasket with water and dry it. Clean dust from the rear air vents once or twice a year.

Why is my refrigerator making unusual noises?

Common noises include cracking (due to temperature expansion), gurgling (coolant flow), and clicking (thermostat/compressor). These are normal. If noise is excessive, check if the appliance is level (adjust front feet), not touching furniture, and drawers/shelves are properly inserted. Bottles may also clink.

What foods should not be stored in the refrigerator?

Avoid storing cold-sensitive fruits like bananas, avocados, papayas, passion fruit, aubergines, peppers, tomatoes, and cucumbers. Also, unripe fruit and potatoes should be kept outside the fridge.

How do I adjust the temperature correctly?

Use the rotary knob inside the fridge. Settings: 0 = OFF, 1 = warmest, 7 = coldest. Optimal temperature is typically between 2 and 6. Do not change settings due to season; the sensor adjusts automatically. After loading large amounts of warm food, wait 72 hours for temperature to stabilize.

What is the correct way to transport or move the fridge?

When moving, do not tilt the fridge more than 40° from vertical. If tilted, wait at least 2 hours after placing it upright before switching on. Do not hold the door handles or pull the condenser. Use the original packaging (polystyrene and film) if available.

USER MANUAL EVKS 16165 AMICA

PL - INSTRUKCJA OBSŁUGI....2
DE - GEBRAUCHSANWEISUNG......22
EN - OPERATING MANUAL....42
CZ - NÁVOD K OBSLUZE....61
SK - NÁVOD NA OBSLUHU....81
BG - ИНСТРУКЦИЯ ЗА УПОТРЕБА....101
HU - HASZNÁLATI ÚTMUTATÓ....121
RO - INSTRUCTIUNI DE FOLOSIRE....141

Szanowni Państwo,

3

Panel sterujący

Cover Glühbirnen
Temperaturregelung

4

7

4

7

The Amica appliance is a combination of exceptional user-friendliness and excellent efficiency. Prior to dispatch, each unit was carefully checked for its safety and operating capabilities.

Before starting the appliance, please read this operating manual carefully.

Note!

This fridge is intended for use at home only.

The manufacturer reserves the right to introduce modifications, which do not affect the operation of the appliance. The changes in the equipment, as well as the inside and outside decoration, which do not affect its functionality and safety are permissible.

TABLE OF CONTENTS

Construction and equipment of the appliance....44

Guidelines concerning the safety of use....46

Change in the door hinging....47

Installation....48

Operation and functions....50

Using the refrigerator efficiently....52

Defrosting, washing and maintenance....54

Trouble-shooting....56

Environmental protection....58

Specification....59

Example: model BC203.3 / EVKS 16165

Additional equipment

The accurate description of the equipment for the model of the fridge purchased by you may be found in the tables on next pages.

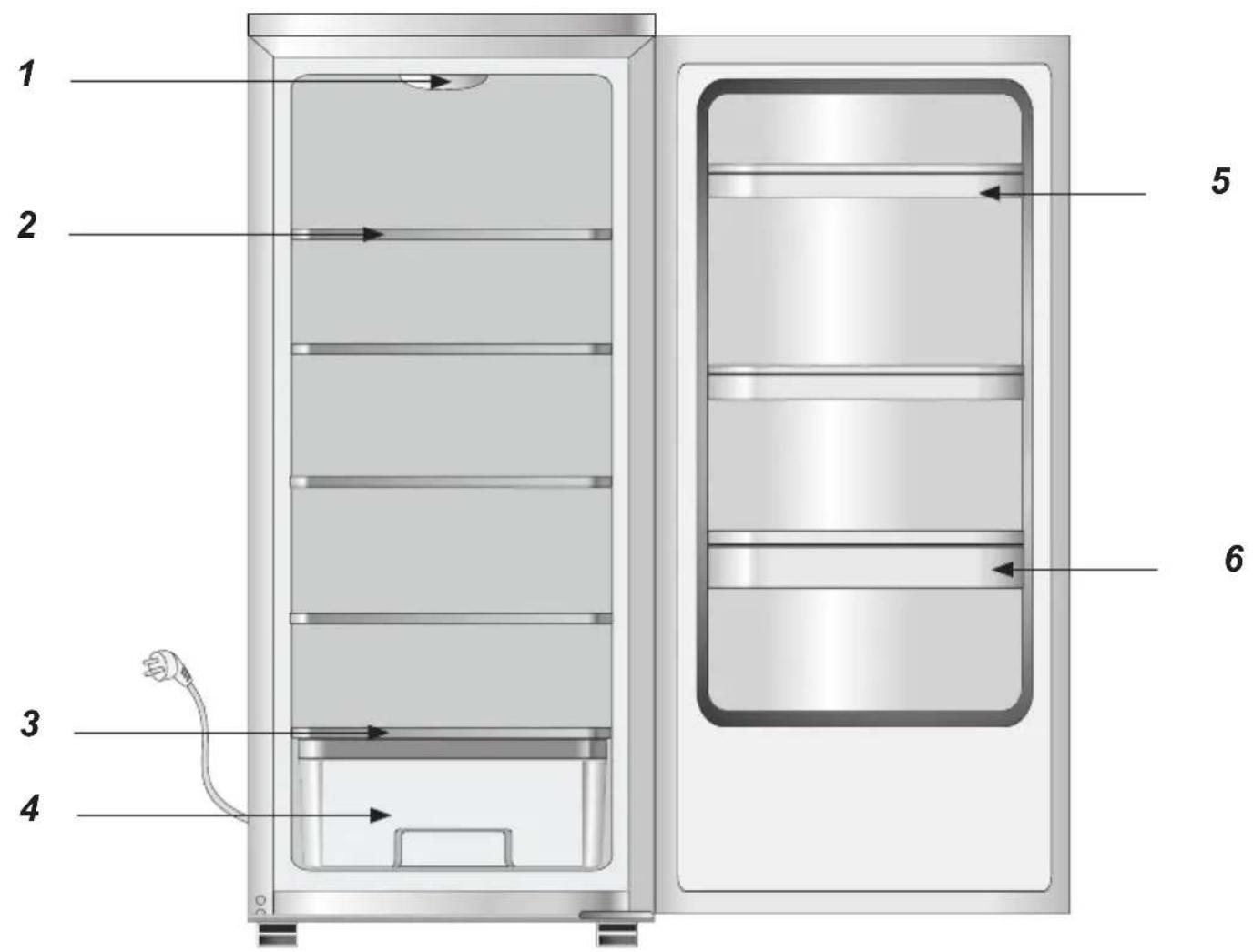

1 Control panel

2 Glass Shelf

3 Glass shelf above the vegetable compartment

4 vegetable compartment

5 Medium door shelf

6 Large door shelf

7 Egg tray

8 Bottle tray

Items of equipment	BC203.3 / EVKS 16165
Glass Shelf 4
Glass shelf above the vegetable compartment	1
Vegetable compartment 1
Large door shelf 1
Medium door shelf 2
Egg tray 1
Bottle tray 1
Lighting type LED

• The Manufacturer shall not be held liable for the damage arising from the failure to observe the principles contained in this manual.
• Keep this manual for future reference, or to pass it over to the possible next user.
• This appliance is not intended for use by persons (including children) with limited physical, sensual or psychical capabilities and persons who lack experience or familiarity with the appliance, unless attended or in accordance with the operating manual for the appliance delivered by persons responsible for their safety.
• Do not allow the unattended children to use the appliance. Do not allow them to play with the appliance. They must climb inside the drawers and swing on the doors.
• The fridge operates properly at the N-ST ambient temperature. Do not use it in the cellar, unheated summer cottage during autumn and winter.
• When placing, moving, lifting the appliance, do not hold the door handles, pull the condenser at the rear part of the refrigerator and touch the compressor unit.
• When transporting, moving or placing the fridge do not tilt it by more than 40° from the vertical position. Should such a situation occur, the appliance may be switched on after minimum 2 hours from its placement in the right position (fig.1).

1

• Pull the plug out from the mains socket before each maintenance activity. Do not pull the cord, but hold the body of the plug instead.
• The cracking-like sound, which the appliance may emit is caused by expansion and shrinking of parts as a result of temperature variations.
• For safety reasons do not repair the appliance on your own. Repairs carried out by persons who do not have required qualifications may constitute a serious hazard for the user of the appliance.
  ● Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m3) in case of the damage of the cooling system.
  ● Make sure you do not damage the cooling system, by punching the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant splashes are flammable. Rinse the eyes with clean water and call for medical assistance immediately in case of their contact with the refrigerant.

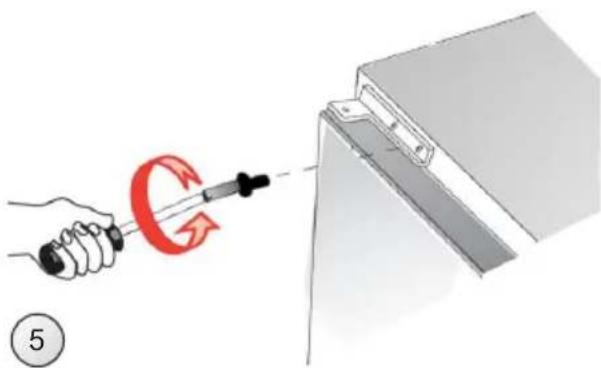

REVERSING THE DOOR OPENING DIRECTION

1. Before reversing the door opening direction, unplug the appliance and remove all food.
2. Using a flat screwdriver pry and remove hinge caps.
3. Using a Phillips screwdriver remove the door upper hinge while holding the door (Fig. 2).
4. Using a Phillips screwdriver remove the middle hinge while holding the upper door*
5. Set the door aside in a safe place.

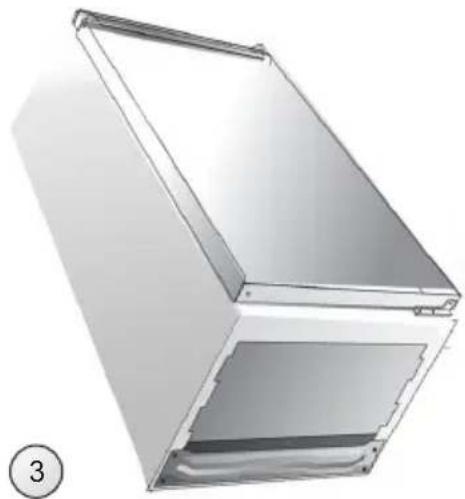

6. Tilt the appliance (up to 40 degrees) so as to have sufficient access to the lower hinge (Fig. 3).
7. Using a Phillips screwdriver remove lower door hinge

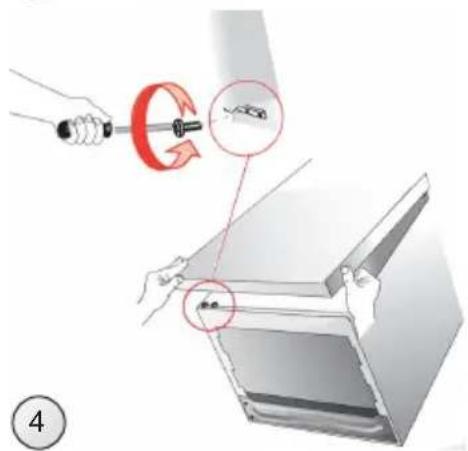

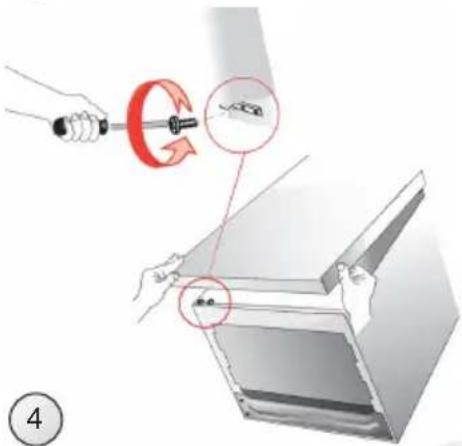

8. Attach the lower hinge on the other side (Fig. 4).
9. Position the door assembly in such a way so that pin of the lower hinge is aligned with the appropriate hole of the lower door bracket.
10. Attach the middle hinge on the other side of the appliance so that the lower pin of the middle hinge is aligned with the appropriate hole of the upper door bracket. Position the second door assembly so that the upper pin of the middle hinge is aligned with the appropriate hole of the lower door bracket.*
11. Attach the upper hinge so that the hinge pin is aligned with the appropriate hole of the upper door bracket.* (Fig. 5).
12. Check that doors are properly aligned with the appliance body.
13. Replace the hinge caps.
14. Switch on the appliance as described in the relevant section of its operating instructions.

* This action applies to appliances with both refrigeration and freezer chambers.

Installation before using the appliance for the first time

1. Take the product out of the package, remove the scotch tapes protecting the door and the equipment. The possibly remaining adhesive stains may be removed with a mild washing agent.
2. Do not throw away the polystyrene elements of the packaging. In the case of the necessity to transport the fridge, pack it in the polystyrene elements and film, as well as protect it with a scotch tape.
3. Clean the interior surface of the fridge and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
4. Place the fridge on an even, flat and stable surface, in dry, aired and shadowy room, far from the heat sources such as an oven, cooktop, central heating radiator, central heating pipe, hot water installation, etc.

Minimal distances from the heat sources

• from the electric gas and other ovens
• 30 mm,
• from oil or coal fired ovens - 300 mm,
• from in-built ovens - 50 mm

If there is no possibility to ensure the above-mentioned distances, provide an appropriate insulation board.

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

It is prohibited to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened and wound.

If the capillary tube is damaged by the user the guarantee will be void (fig. 2).

Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have VDE/GS safety certificate.

2

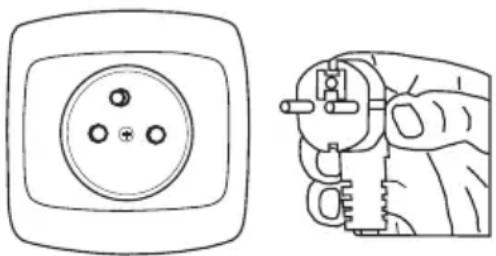

Mains connection

Before the appliance is connected to the mains, set the adjustment knob to the "0" position.

• The appliance should be connected to AC 230V, 50Hz supply socket. The socket must be fitted properly and must be supplied with an earthing conduit and 10 A fuse.

• The earthing of the appliance is required by the law. The manufacturer will not be held liable for any damage, which can be incurred by persons or objects as a consequence of the failure to fulfil the requirement imposed by this regulation.

• If the extension lead (with a protection ring and a safety symbol) is applied, its socket must be located at a safe distance from sinks and may not be exposed to water and other wastewater flooding.

• The data is provided on the rated plate located at the bottom of the wall inside the chamber.

Mains disconnection

- Ensure the possibility of disconnecting the appliance from the mains by pulling out the plug or switching the two-pole switch off (fig. 3).

3

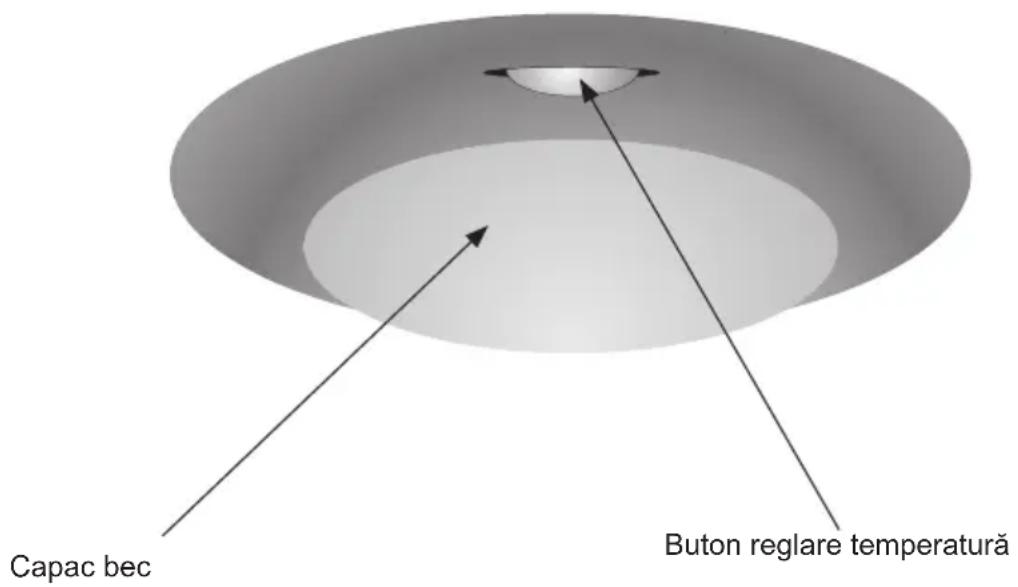

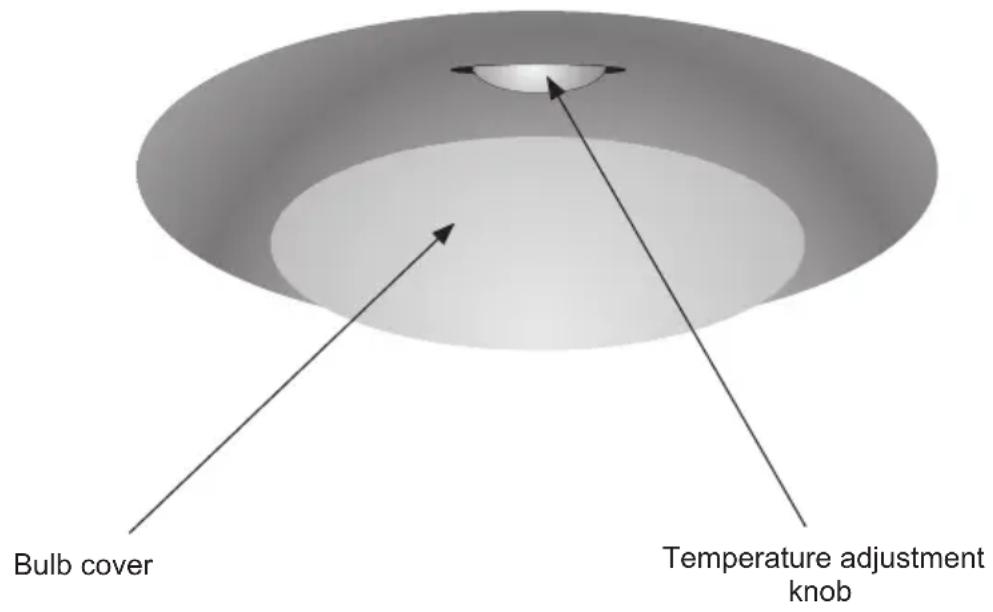

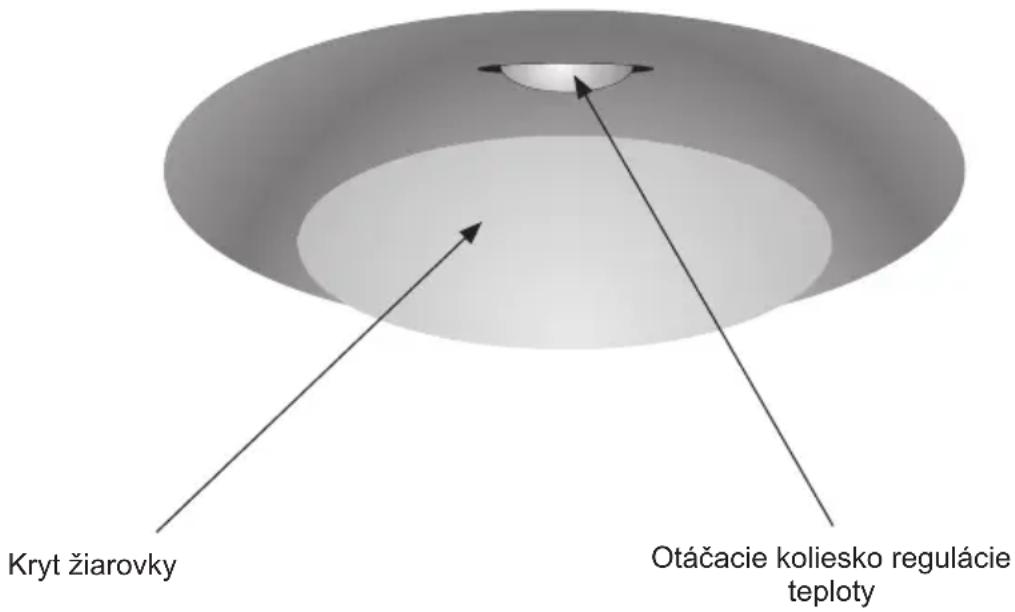

Control panel

Temperature adjustment

Change in the knob adjustment causes temperature change in the fridge. Possible knob adjustment:

● appliance switched off - OFF setting
● maximum temperature - setting 1
● optimal temperature - 2-6 setting
● minimum temperature - 7 setting

Do not put food into the fridge before it has reached its operating temperature, which takes minimum 4 hours.

Temperature inside the fridge

Do not change the temperature settings due to the change in the season of the year. The ambient temperature increase will be detected by the sensor and the compressor will be switched on automatically for a longer period of time in order to maintain the temperature set inside the chambers.

Minor changes in temperature

The slight changes in temperature are perfectly normal and may occur, for instance during the storage of great quantities of fresh products in the fridge, or when the door is open for a longer period of time. This will not affect the condition of the stored foodstuff, and the temperature will quickly return to its set value.

Storage of food in the fridge

Observe the following recommendations to ensure the food remains fresh.

• The products should be placed on plates in containers or packed in food wrap.
  Distribute them evenly all over the she- lves.
• Pay attention whether the food contacts the rear wall, if so, it may cause frosting or wetting of the products.
• Do not put dishes with hot content into the fridge
  ● Products which take over foreign flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
  ● Storage of vegetables containing significant quantity of water will cause the deposition of water steam on the vegetable containers, it does not impact the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
  ● Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food they contain and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it doesn't warm up too much.
• Wipe out the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Don't allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it won't shut properly. Always replace broken seals.

Understanding the stars

* Temperature is at least -6°C; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.
** Food can be stored at -12°C or below for 1-2 weeks without losing their taste. Not suitable for freezing food.
*** Mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.
****This appliance is suitable for storing foods at -18°C or below and freezing larger quantities of fresh foods.

USING THE REFRIGERATOR EFFICIENTLY

Storage zones in the refrigerator

- Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. - The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.

• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4° C.

- The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

● Not all food is suitable for storing in the refrigerator. These include:

• Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.
• Fruit which is not yet ripe
• Potatoes

Defrosting the fridge

Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 4).

4

- The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall).

Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.

• Do not use defrosting aerosols. They may cause the formation of explosive mixture, or contain slovents which may damage the plastic components of the appliance and even be harmful to health.
  ● Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).

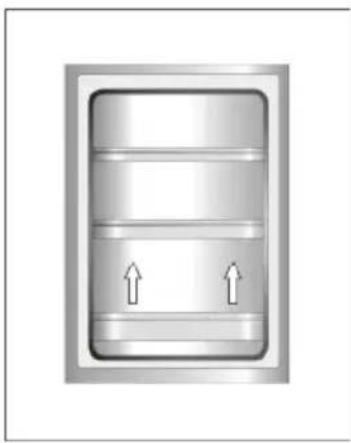

Taking out and putting in the shelves

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 5).

5

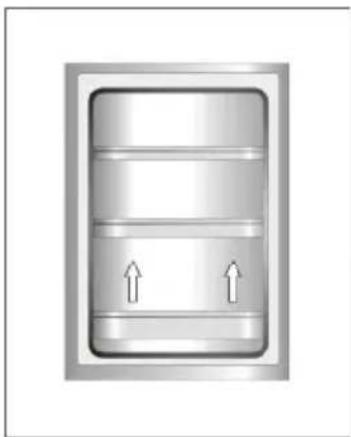

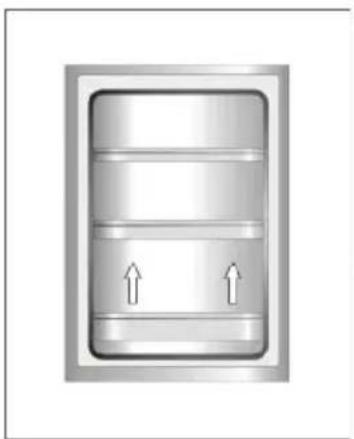

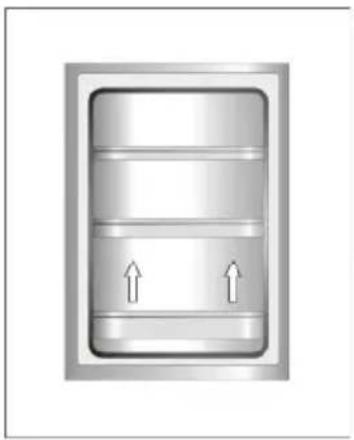

Taking out and putting in the door shelf

Lift the door shelf, remove it and put it back from the top into its required position (fig. 7).

7

Do not use bulbs of greater or smaller power, apply only the bulbs of parameters given above.

TROUBLE-SHOOTING

Problems Possible	causes Remedies
The appliance does not work	Electric circuit rupture -	check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
Temperature inside the appliance is not low enough	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the N-ST climate range	- the appliance is adapted to operation in the N-ST climate range.
	The appliance is located at the sunlit place or near the heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation hindered	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is hindered	- move the appliance min. 30 mm away from the wall
	Too much white frost accumulated on the freezing elements	defrost the freezer chamber
	The door of the fridge- are opened too often and/or remain open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed

TROUBLE-SHOOTING

Problems Possible causes	Remedies
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than 16°C
	Door gasket inserted incorrectly	- press the gasket in
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged	- clean the discharge opening (see the operating manual – chapter entitled "Defrosting the fridge")
	Internal air circulation hindered	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance touches furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
  ●sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

Ozone layer protection

The refrigerants and fo-aming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we help protecting the ozone layer and prevent the greenhouse effect increase. On the other hand, the innovative technology and environmentally friendly insulation help in reducing energy consumption.

Recycling of the packaging

Our packaging are made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

Elimination / disposal of the equipment

If the appliance is no longer in use, cut the connecting conduit off the used equipment before its scrapping.

This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment properly contributes to the avoidance of consequences harmful to the human health and natural environment, resulting from the presence of hazardous substances and improper storage and processing of such equipment.

TYPE	BC203.3 / EVKS 16165
Manufacturer	AMICA WRONKI S.A.
Type of the appliance fridge
Energy class 1 A+
Annual power consumption kWh/year) 2	128
Net usable volume (l)
Fridge 206
Climate range 4	N-ST
Noise level [dB(A) re1pW] 41
Supply voltage V/Hz 220-240V~/50Hz
H x W x D 1224 x 540 x 540
Appliance weight (kg) 42

SPECIFICATION

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate range Permissible ambient temperature
SN from +10°C do +32°C
N from +16°C do +32°C
ST from +16°C do +38°C
T from +16°C do +43°C

Manufacturer's declaration

The manufacturer hereby declares that the appliance fulfils the requirements of the following European directives:

● The Low Voltage Directive 2006/95/EC,
● The Electromagnetic Compatibility Directive 2004/108/EC,

and therefore it has been marked with a € and assigned a declaration of conformity, which is made available to the market supervising authorities.

Vážení klienti,

3

Ovládací panel

Cover Glühbirnen
Temperaturregelung

Regulace teploty

4

7

3

Ovládací panel

Storage of food in the fridge

Odmrazovanie chladničky

4

Vyt'ahovanie a vkladanie priehradky

Nadvihnút' priehradku, vytiahnut' a nasadit' odhora spät' do požadovanej polohy (obr. 7).

7

8

3

Панел на управление

7

3

Vezérlőpanel

Hűtő leolvasztása

7

3

Panoul de comandă

7
