7000 AP72AB21DB - Broom AEG - Free user manual and instructions

Product type	Cordless stick vacuum with emptying station
Brand	AEG
Model	7000 AP72AB21DB
Power supply	Rechargeable lithium-ion battery
Charging time	Up to 4.5 hours
Battery type	Lithium-ion, removable
Emptying system	Automatic via emptying station (S-bag)
Bag capacity (S-bag)	Standard AEG (replacement needed when full)
Filtration type	Pre-filter and washable fine particle filter
Wash function	Yes, with wet nozzle and water tank
Spray function	Yes, activation by long press on speed button
Included nozzles	PowerPro Multi-surface nozzle, PowerPro Hard floor nozzle, wet nozzle
Display	Yes, on the manual unit (level indicator, obstructions)
Electronic protection	Against overcurrent, overheating and battery temperature
Routine maintenance	Automatic emptying, cleaning filters, replacing S-bag
Spare parts available	S-bag, filters, battery, nozzles (on www.electrolux.com)
Repairability	Electrolux authorized service center
Recycling	Do not dispose of with household waste - take to recycling center
Recommended operating temperature	5°C to 35°C
Warranty	See Electrolux general terms

Frequently Asked Questions - 7000 AP72AB21DB AEG

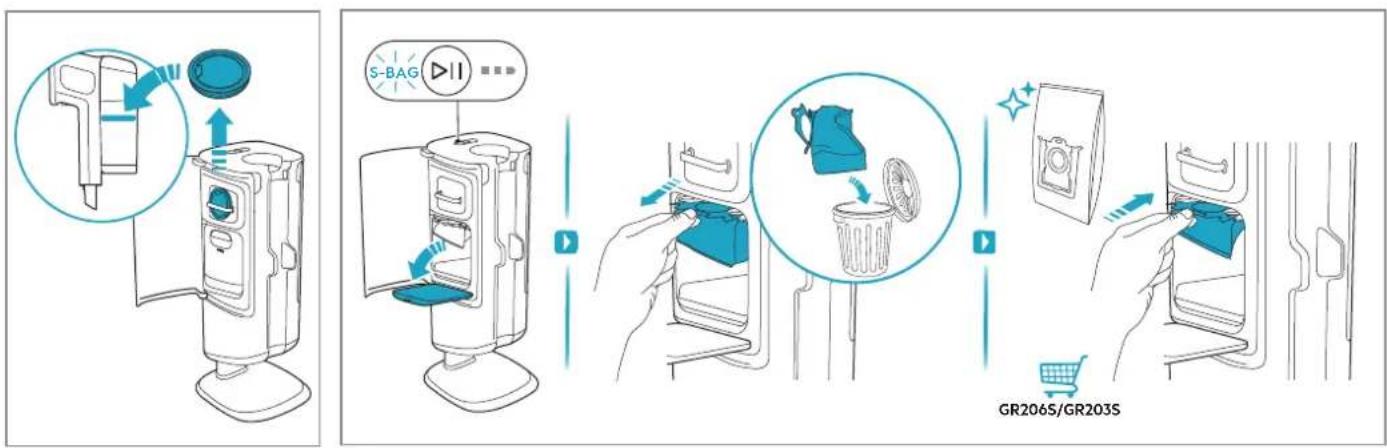

Why does the S-bag icon appear and the emptying not work?

The S-bag is probably full. Replace it with a new one. Also check that the S-bag and the compartment door are properly in place.

The station does not empty automatically when I insert the cleaner, what to do?

The station may be in manual mode. Press and hold the Start/Pause button until it flashes to switch to automatic mode. If the cleaner was lifted too briefly, wait 15 seconds before replacing it.

The station battery does not recharge, why?

The station prioritizes charging the cleaner's battery. Wait until it is fully charged (up to 2.5 hours), then the station will start charging.

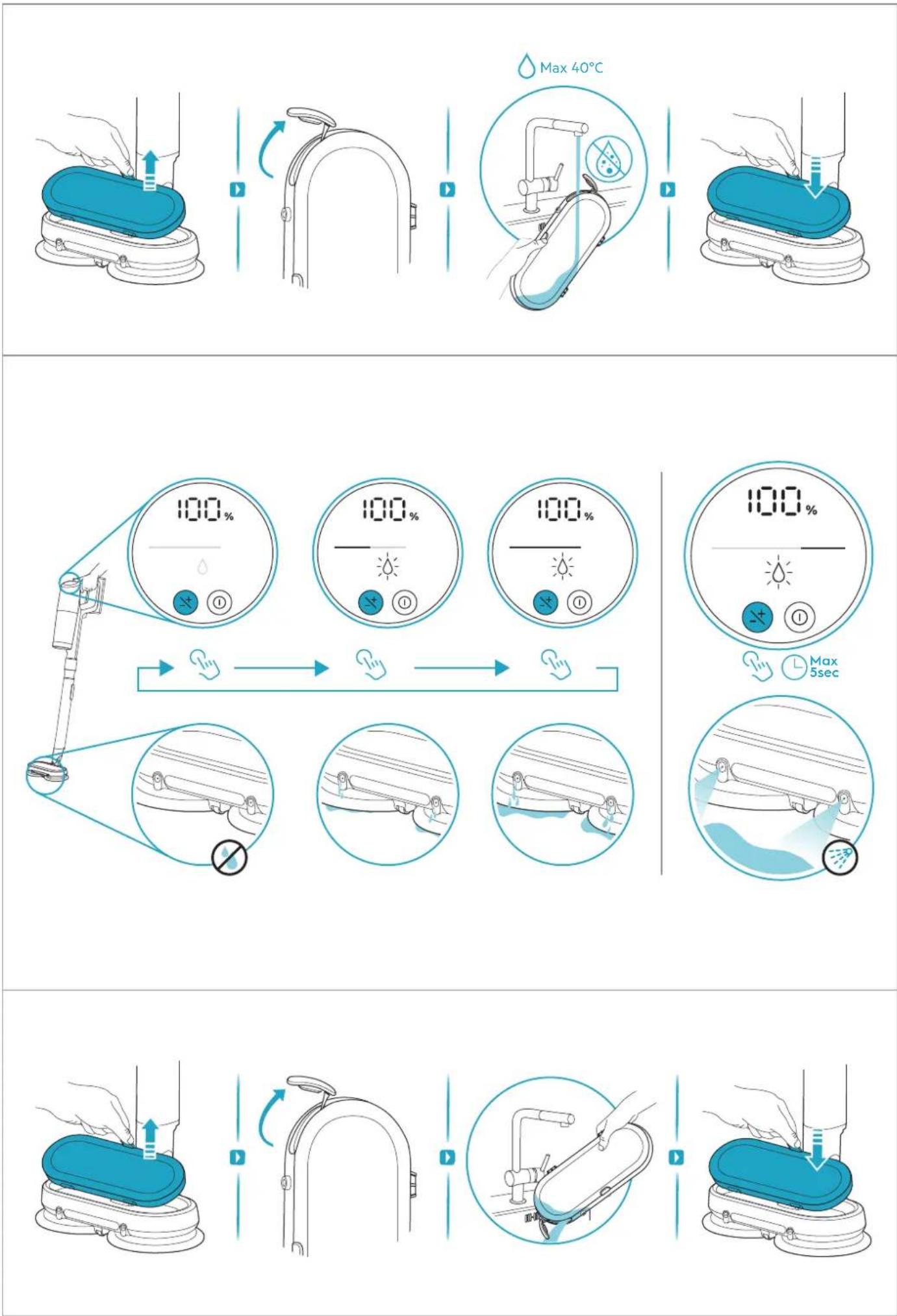

The wet nozzle does not produce water, what should I check?

Check that the water tank is not empty. If the water supply is blocked, make sure to use only clean water. You can activate the spray function (long press on the speed button) to purge air from the hose.

How to improve loss of suction power?

Clean or replace the filters (pre-filter and fine particle filter). Empty the dust container and check that there is no obstruction in the tube or nozzle. Replace the S-bag if it is almost full.

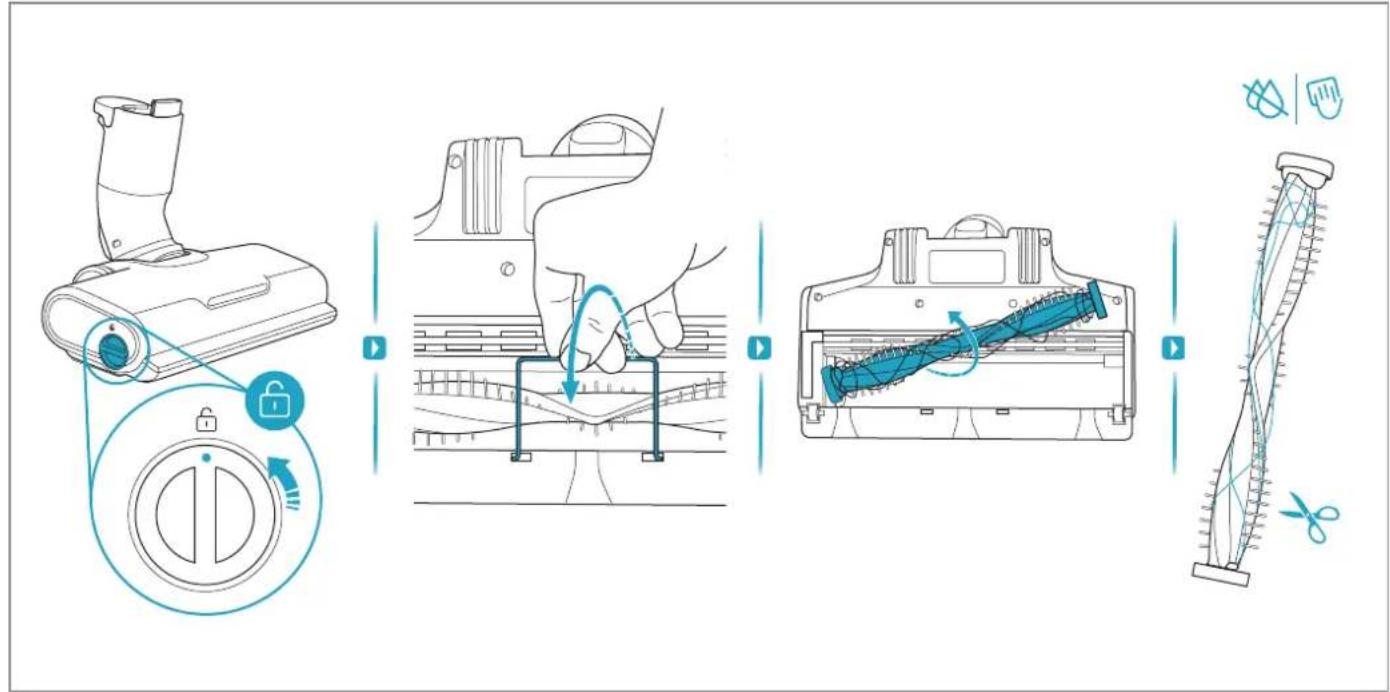

The roller brush does not rotate, what to do?

The roller brush may stop for safety reasons when changing nozzles. Turn the cleaner off and then on to reactivate rotation. If it is obstructed, remove it and clean it.

The product does not charge and no indicator lights up, why?

Make sure the product is correctly placed on the charging stand and the contact plates are touching. Check that the adapter is plugged in. If the ambient temperature is below 5°C or above 35°C, charging is inhibited to protect the battery.

A warning triangle appears on the display, what does it mean?

This indicates overheating of the motor or battery, or an obstruction. Let the product cool down and check for obstructions in the nozzle or tube.

The wet nozzle jumps on the floor, how to fix it?

The cleaning pads are not attached to the center of the rotating disks. Reattach them correctly.

How to store the battery if I do not use the appliance for a long time?

Charge the battery to 20-70% before storage. Disconnect it from the cleaner and store it in a dry place between 10 and 25°C. After a long period, fully recharge it for up to 10 hours before use.

USER MANUAL 7000 AP72AB21DB AEG

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

*Actual product may differ from illustration.

For indoor use only.
Note: This instruction book should be read together with safety precaution booklet.

Carpet

Hard Floor

support.emea.aeg.com
www.a@com

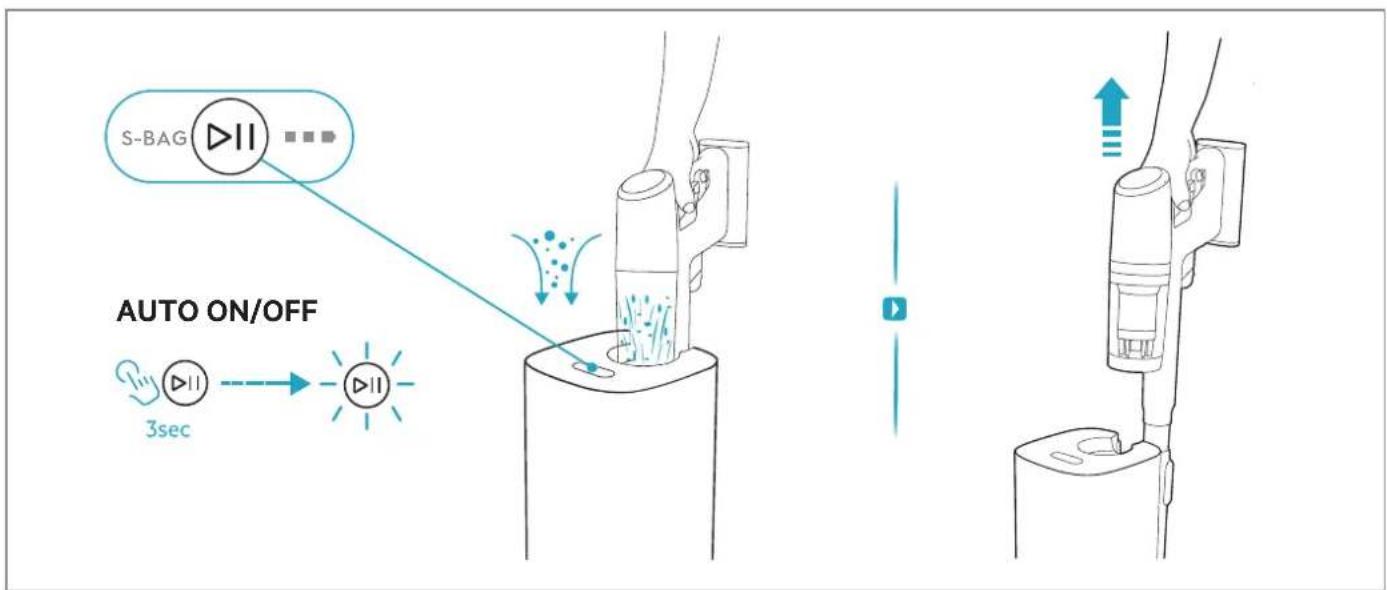

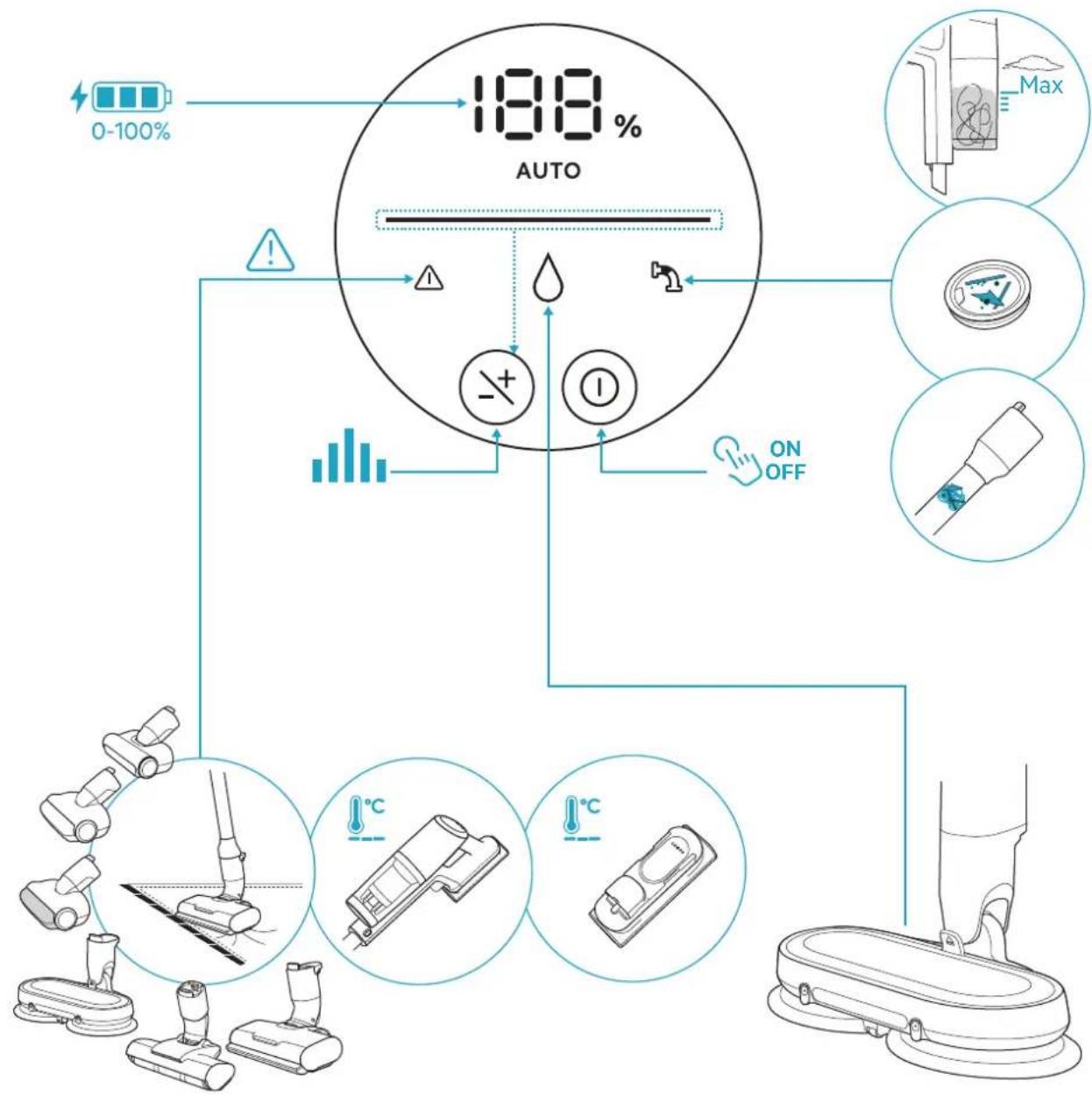


Line drawing of a hand using a tool to lift a component on a sofa (no text or symbols)

Line drawing of a hand using a tool to lift a glass on a table (no text or symbols)

Line drawing of a hand pouring liquid from a cylindrical container onto a small table with a cup (no text or symbols)

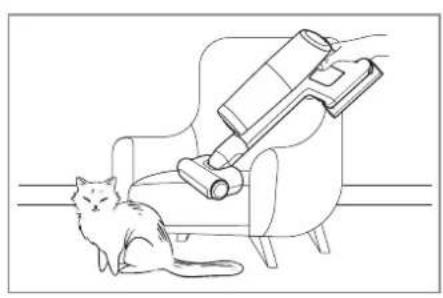

Line drawing of a cat sitting on an armchair next to a vacuum cleaner (no text or symbols)

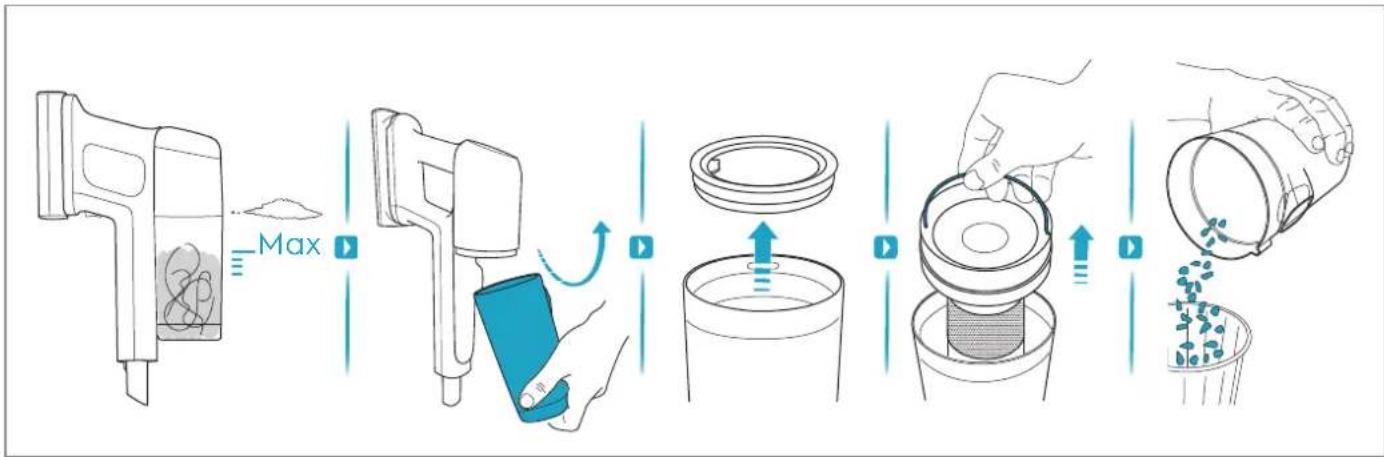

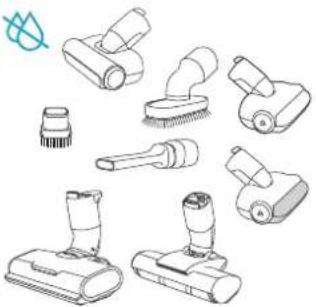

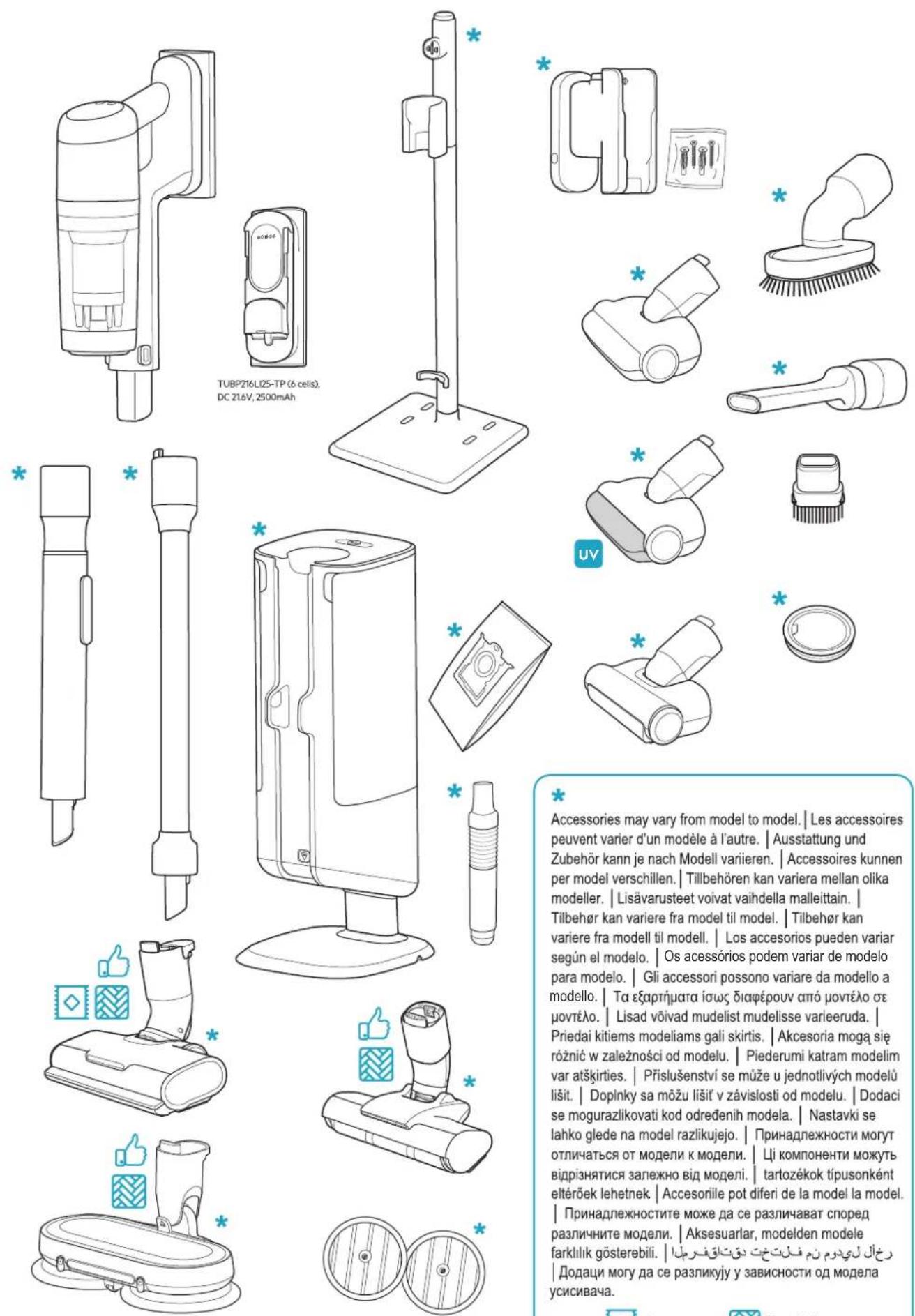

www.aeg.com

ESKW7

900 923 814

Performance Kit

AZE155

900 923 388

PetPro+

AZE149

900 923 389

BedProPower+

AZE156

900 923 391

PowerPro

Hard Floor Nozzle

ZE194

900 923 815

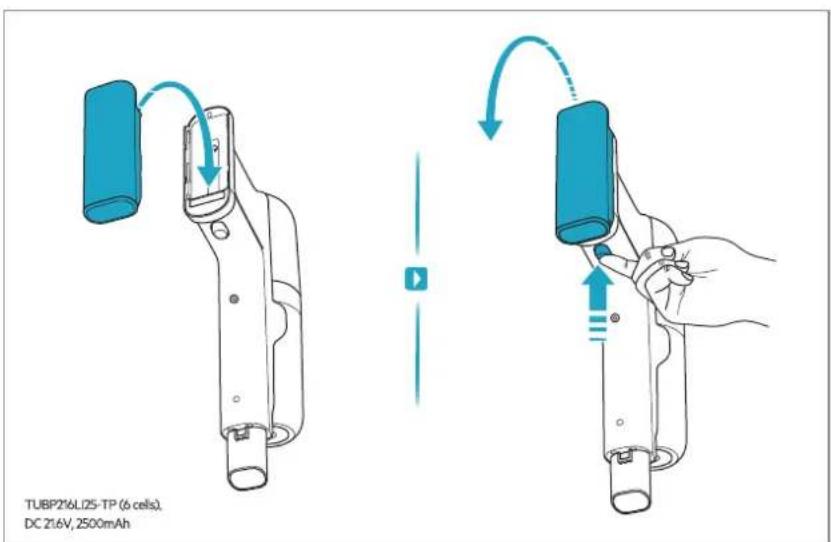

Extra Battery

AKIT23

900 923 392

Home and Car Kit

AKIT22

900 923 360

Duster Kit

ZE177

900 923 744

PowerProMop+ Nozzle

AZE158

900 923 441

Standard Pads

GR206S

900 168 476

S-bag® Hygiene Anti-Allergy

for Emptying Station

GR203S FLD1

900 168 475

S-bag® Anti-Odour

for Emptying Station

900 923 782

Detergent

*Accessories may vary by market.

Troubleshooting

Problem Cause Solution
The S-bag icon appears on the display and emptying function doesn't work after the main unit is inserted into emptying station, even when the Start button is pressed	The S-bag is full	Replace it with a new S-bag
	The S-bag or the door of S-bag cabin is not in place	Ensure that the S-bag is properly positioned and that the door is closed properly.
The station does not start emptying automatically when the cleaner is inserted	The station is in manual mode	Press and hold the Start/Pause button on the station until it starts blinking to switch between manual and auto mode.
	The duration for which the cleaner was lifted was too short; it's likely unnecessary to empty it	If emptying is necessary, press the Start/Pause button on the station, or wait more than 15 seconds before returning the cleaner to the station
The battery within the station appears to be unable to charge	The station gives priority to charging the battery on the cleaner	Wait until the battery on the cleaner is fully charged; afterward, the station will commence charging.
		Exchange the batteries to prioritize the alternate one.
Stick unit cannot be charged on Empty station	Stick unit was not placed back to Empty station properly, female and male contact plate didn't touch with each other	Push the stick unit downward with some extra force, rotate the unit a little bit unit you see charging indication on HU display pops out
The mop is not sufficiently humid to effectively remove stains or dirt	Water dripping is insufficient to effectively remove stains or dirt	Use the spray function to directly apply water to the stain. Press and hold the speed button to activate the spray for maximum 5 seconds
No water is dripping from the wet nozzle	The water tank is empty	Add water in the water tank
	The water inlet is obstructed by large articles	Examine the water inlet and ensure that only clean water is being loaded into the water tank
	There is air in the inner hose	Use the spray function at the beginning. Press and hold the speed button to activate the spray for maximum 5 seconds
Water is leaking from the wet nozzle tank after it has been installed onto the nozzle	The water tank is not completely sealed	Ensure the inlet is properly sealed before reinstalling it onto the wet nozzle
Performance degradation	After multiple cycles of cleaning long hair, hair became tangled around the metal mesh inside the dust bin.	Remove the metal mesh and manually clear any hair tangled around it.
	After prolonged use, hair and debris accumulated around the dust bin inlet, while the filters became clogged with fine dust.	Remove the hair/rubbish manually and clean or replace the filters as instructed. Use a new S-bag if it is close to full.
Dust/hair inside dust bin cannot be thoroughly cleaned	The S-bag is full, or the dust bin is overloaded, with contents reaching or exceeding the maximum indicated level	Clean the dust bin more frequently and clean dustbin with the hose. Regular cleaning before the bin is full enhances the overall performance.If the S-bag is nearly full, replace it with a new one to maintain optimal functionality.Clean or replace the disaster filter (located below S-bag) to ensure effective cleaning.
The lower lid of dust bin failed to open or close properly.	Small metal chips got stuck around the magnet.The main unit had been lifted up from emptying station before emptying cycle finished.	Remove the metal chips around the magnet and clean that area thoroughly Ensure the main unit to be lifted up from emptying station after emptying cycle has finished.
Long hair is caught between the bottom lid and the skirt of the dust bin	Long hair is tangled around the metal mesh inside dust bin	Cut the stuck hair or remove tangled hair manually
The elastic hose in the emptying station disconnects from the suction port during vacuum cleaning	The hose was not properly inserted in the suction port.	Insert the hose firmly until it securely connects with the suction port.
Nozzle stops automatically (mainly on carpet)	Over current/temperature protection Was triggered (especially after running on carpet for some minutes) was triggered	1. Rest for some minutes, allow nozzle motor to cool down2. Carpet is too thick or with too long hair, try lower down speed setting
Hard to detach skirt from metal mesh inside dust bin	Metal mesh and lower skirt part was locked firmly with snap hook to Achieve better performance	Pull out skirt a little bit, bent it sideways and then pull it out
The product stops or doesn't start	The battery is empty	Charge the cleaner
	Water/Liquid has been sucked into the product	Stop use of product and take out filters and let it dry for 48h. Do not put the product in the charging stand. If the product is still not working after 48h contact authorized Electrolux service center. Note: Damage to the motor caused by water or liquids is not covered by the warranty.
	Cleaner has fallen onto the floor unintentionally (Do note there is no self stand function for the product).	1. to hold hand unit firmly while using the appliance2. to lay the unit on wall or any other holding shelf firmly, before releasing it from Hand3. to place the appliance back to charging stand always while it is not running.
Loss of suction power	Nozzle does not pick up dust or dirt as aspected	Make sure to use a correct nozzle for each floor type. Some models may contain the PowerPro Multi-surface nozzle and/or the PowerPro Hard Floor nozzle. The PowerPro Hard Floor nozzle is not recommended for thick carpets, but it is ideal for hard floors. The PowerPro Multi-surface nozzle is suitable for all floors.

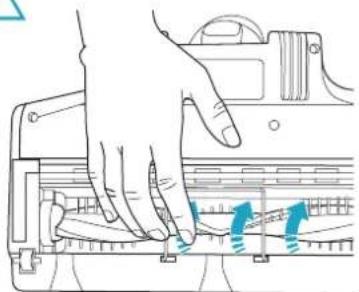

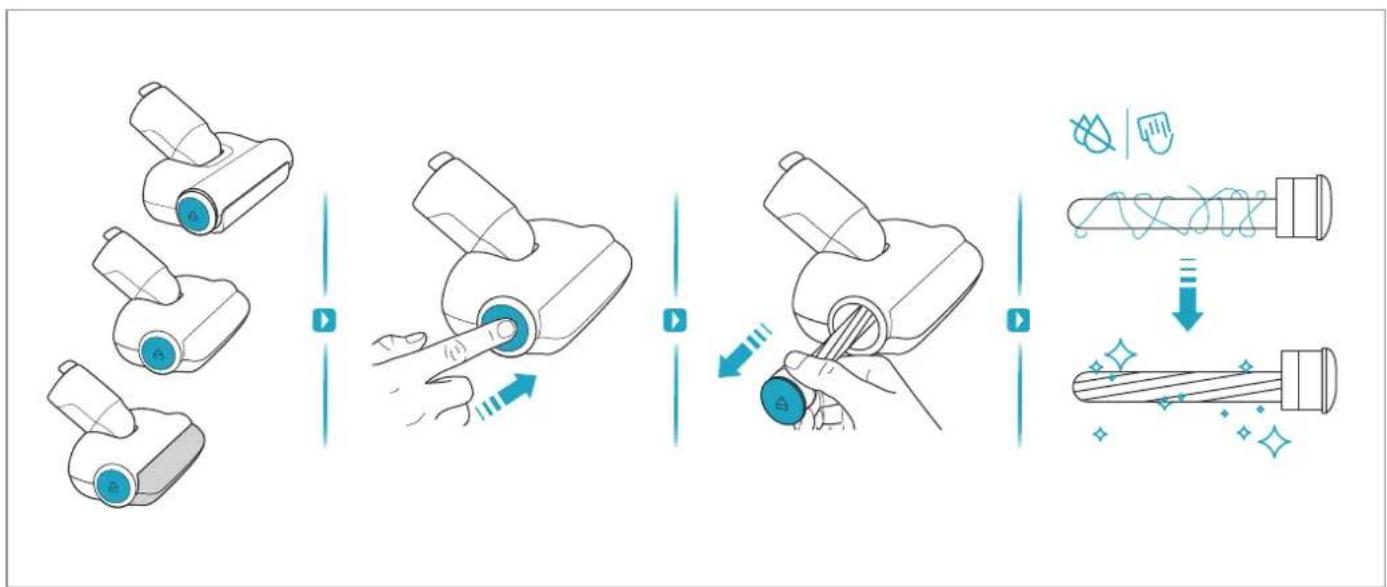

	Nozzle brush or fluffy roll is blocked with hair and dirt.	Remove floor nozzle and clean brush roll according to instruction manual
	Tube and/or nozzle neck is blocked.	Check if any clogging happened in nozzle/tube
	Pre-filter and/or fine dust filter have been clogged or are dirty. Dust bin is full.	Empty dust bin and wash filters according to instruction manual. If need to replace and buy new filters at (www.electrolux-com)

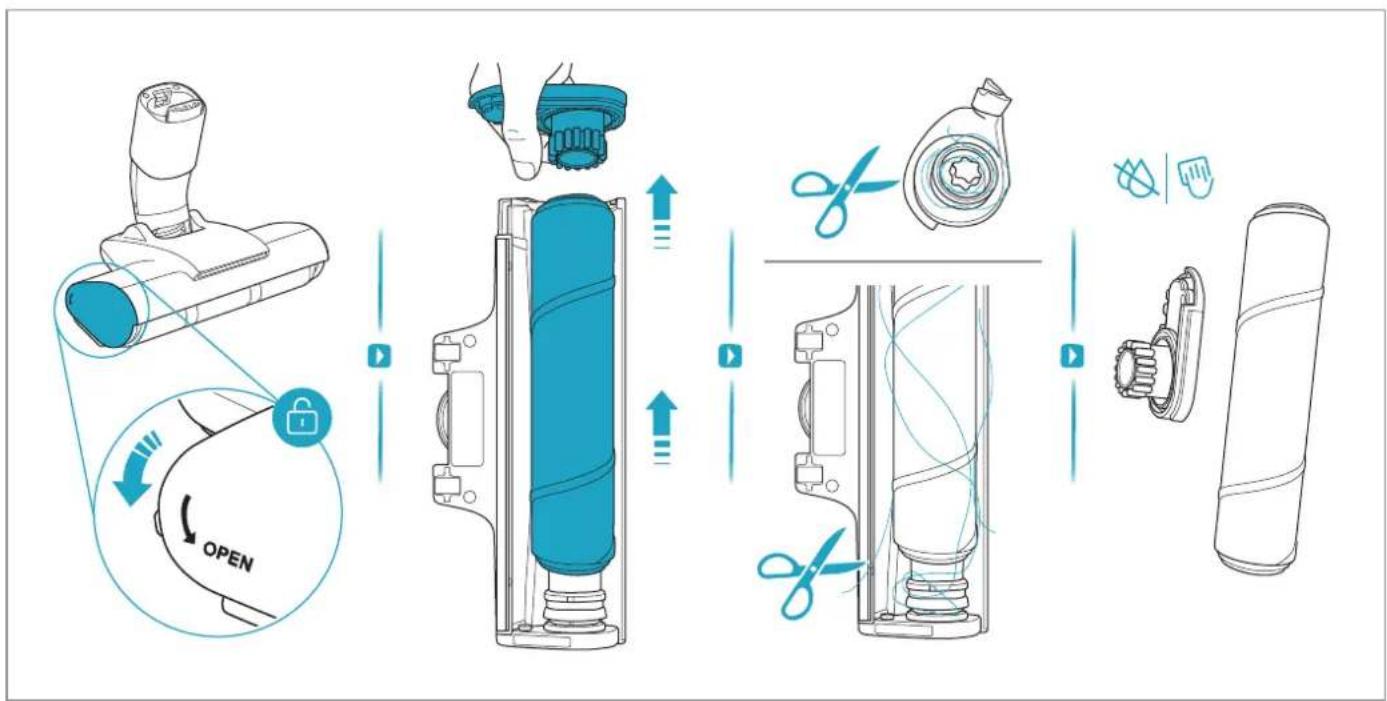

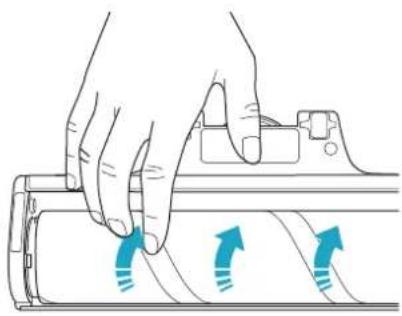

Brush roll doesn't rotate	Brush roll stops when user detaches the previous nozzle & changes to another nozzle while the vacuum cleaner is still on. This is a protection mode.	Turn off cleaner and re-start "ON" button to activate the brushroll spinning.
Product is not charging/No charging indication on hand unit display	Product is not placed correctly in the charging stand.	Make sure that the contact plates on the back side of vacuum cleaner are in contact with contact plates on charging stand.
	Charger plug is not plugged in	Make sure the adaptor plug is connected to the charging stand socket and the charging adaptor is plugged into a wall socket.
	Charging will not occur if room temperature is below 5°C or over 35°C to protect battery and electronics	Store/charge the product indoor and in room temperature between 5-35°C
	Hand unit display is dark and all LED are off after battery pack is fully charged	Take out cleaner from charging stand, press the on/off button or +/- speed button to view battery level indication. Put cleaner back in charging stand.
	Battery Pack temperature is too high (-45°C)/low (-5°C),charging not yet startedHand unit battery pack is not fully charged and will not start charging extra battery pack on charging stand until hand unit battery pack is fully charged (up to 2.5 hours)	Put appliance at ambient temperature condition, wait until temperature cool down/ raised upThis can only happen to products with possible to charge in the base plate of charging stand.Battery pack on hand unit will always start charging first and then charging will start for the battery pack in charging stand base and the LED indication should start to light up.
No charging indication on charge stand	Battery pack not fully inserted	Take out battery pack and insert again
	Battery Pack temperature is too high (~45°C)/low (~5°C), charging not yet started	Put appliance at ambient temperature condition, wait until temperature cool down/ raised up.
	Battery pack is broken, need to be replaced.	Contact Electrolux service center. If need to replace and buy new battery pack (www.electrolux.com)
	Wrong battery pack is being used for this product.	Make sure correct battery pack is being used.
Clogging indication appear on hand unit display	Clogging indication that filters needs to be cleaned	Clean filters according to instruction manual.
Warning triangle appear on hand unit display	The product may be overheated in motor or battery pack	Let product rest and cool down
	Nozzle or tube can be clogged	Check if any clogging happened in nozzle/tube

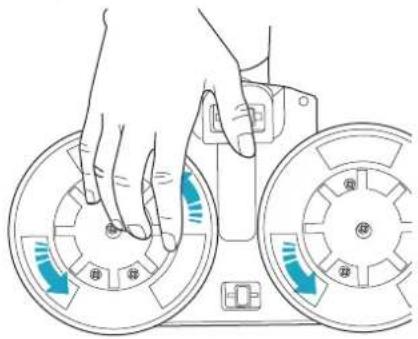

Wet nozzle is wobbling/jump-ing on floor	Mopping pads are not attached in the center of rotation discs.	Re-attach the pads in the center of rotation discs.
Charging is taking more than longer than 4.5 hours	Room temperture is over 35°C	Charging time will be longer if temperature is high, which is normal, Store/charge product in a normal room temperature.
Headlights on floor nozzle do not work	Brush roll is jammed Remove brush roll and clean brush roll from hair and fibers.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📋. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol facility or contact your municipal office. ✉ with the household waste. Return the product to your local recycling

① For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.chseconds
