USER MANUAL FX914ST AEG

www.aeg.com/productregistration

Image showing a person using a video player and a QR code, likely for mobile payment or scanning.

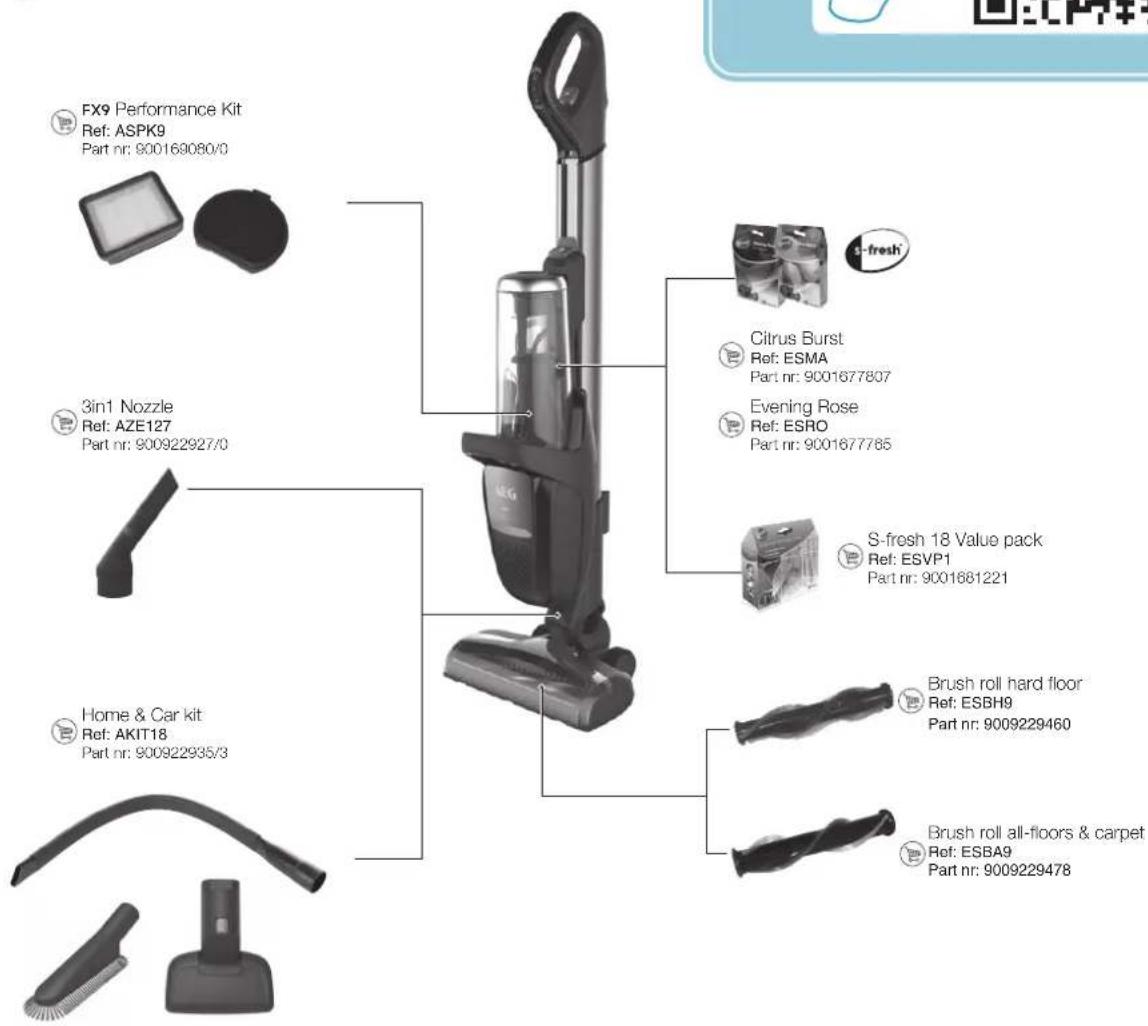

CONSUMABLES & ACCESSORIES

www.aeg.com/shop

FX9 Performance Kit Ref: ASPK9 Part nr: 900169080/0 3in1 Nozzle Ref: AZE127 Part nr: 900922927/0 Home & Car kit Ref: AKIT18 Part nr: 900922935/3 S-fresh 18 Value pack Ref: ESVP1 Part nr: 9001681221 Citrus Burst Ref: ESMA Part nr: 9001677807 Evening Rose Ref: ESRO Part nr: 9001677785 Brush roll hard floor Ref: ESBH9 Part nr: 9009229460 Brush roll all-floors & carpet Ref: ESBA9 Part nr: 9009229478

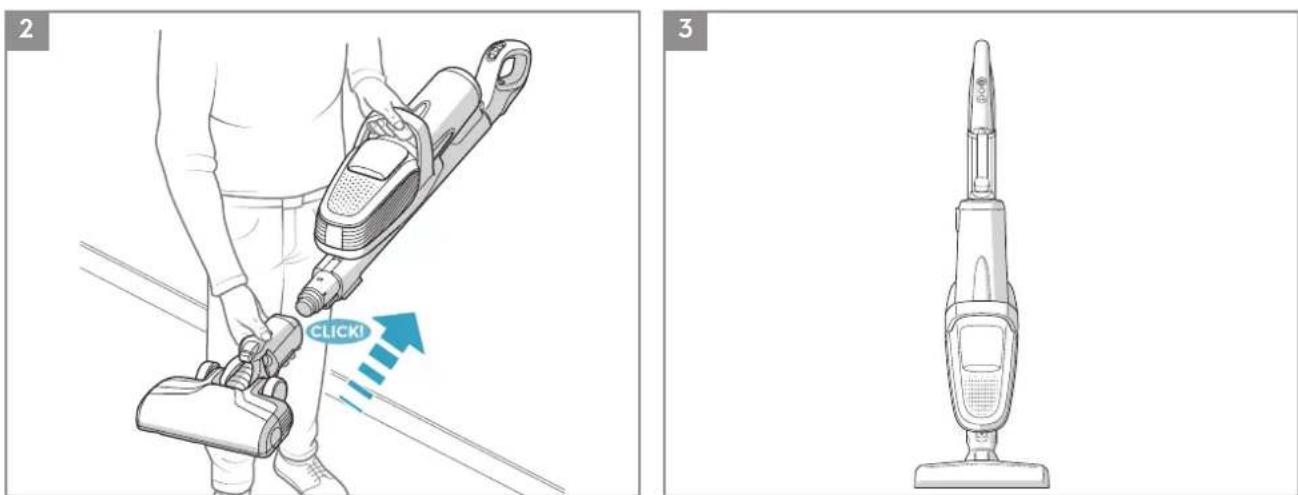

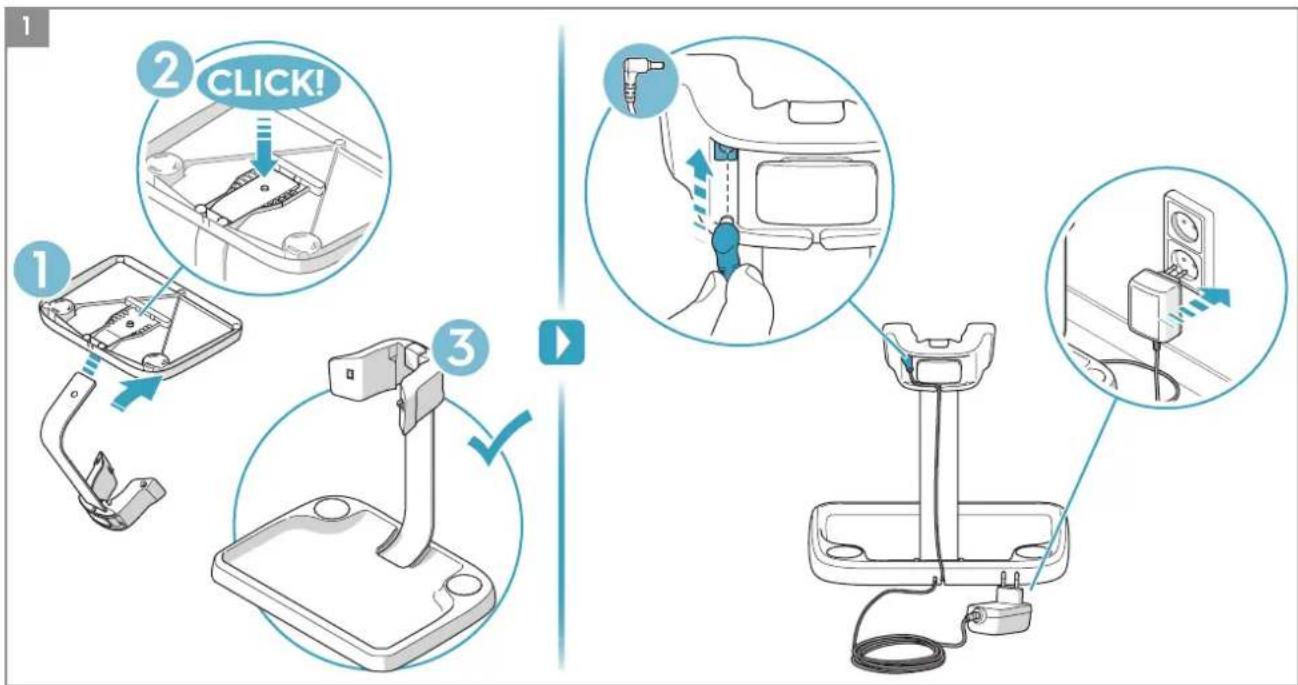

1 2 CLICK! ① ③ ▶

2 CLICK! 3

Illustration showing two-step procedure: one using a tool to press a circular component, the other adjusting a clamp device (no text or symbols present)


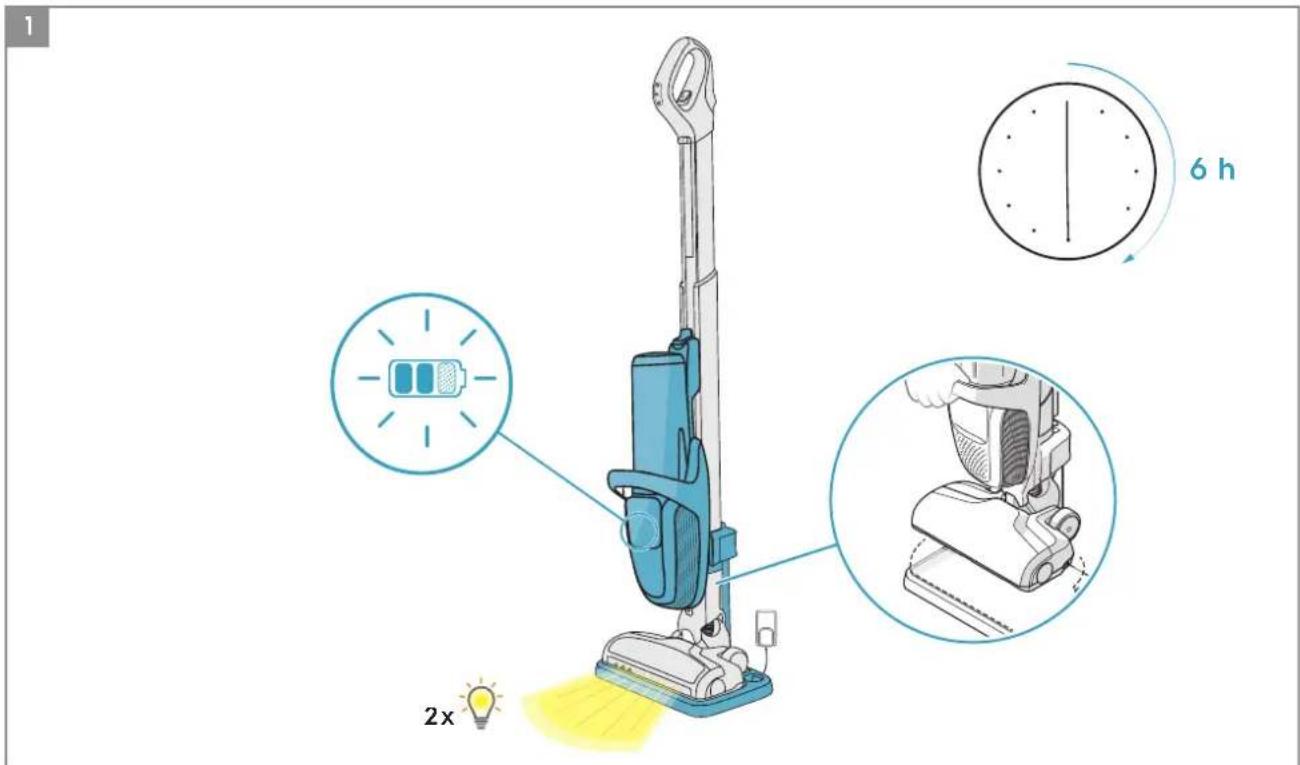

1 6 h 2x

2 × × × 2

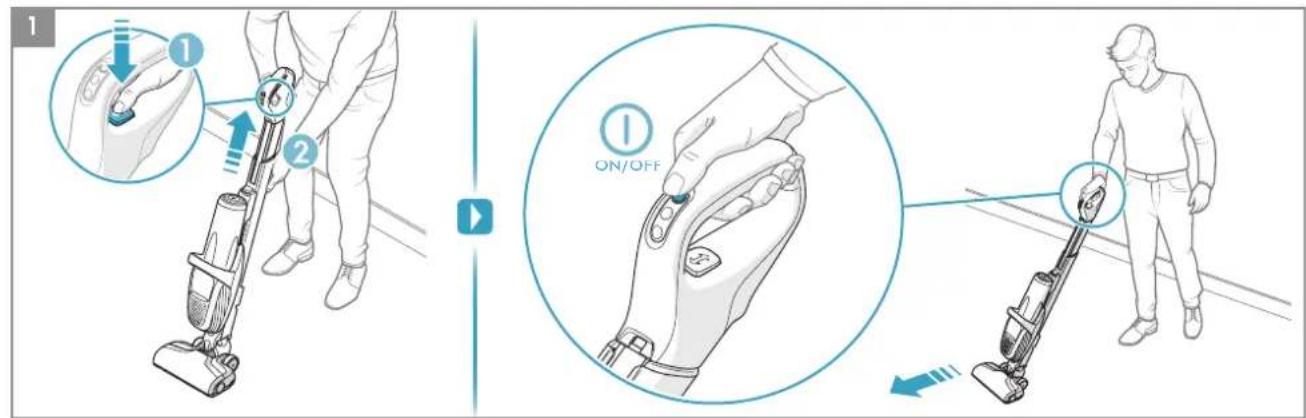

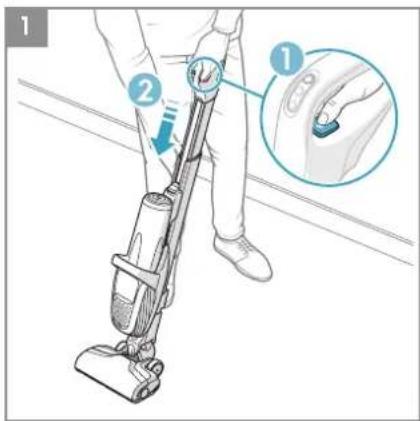

Illustration showing a hand holding a vacuum cleaner with two labeled steps and a close-up of the action, including 'ON/OFF' button.

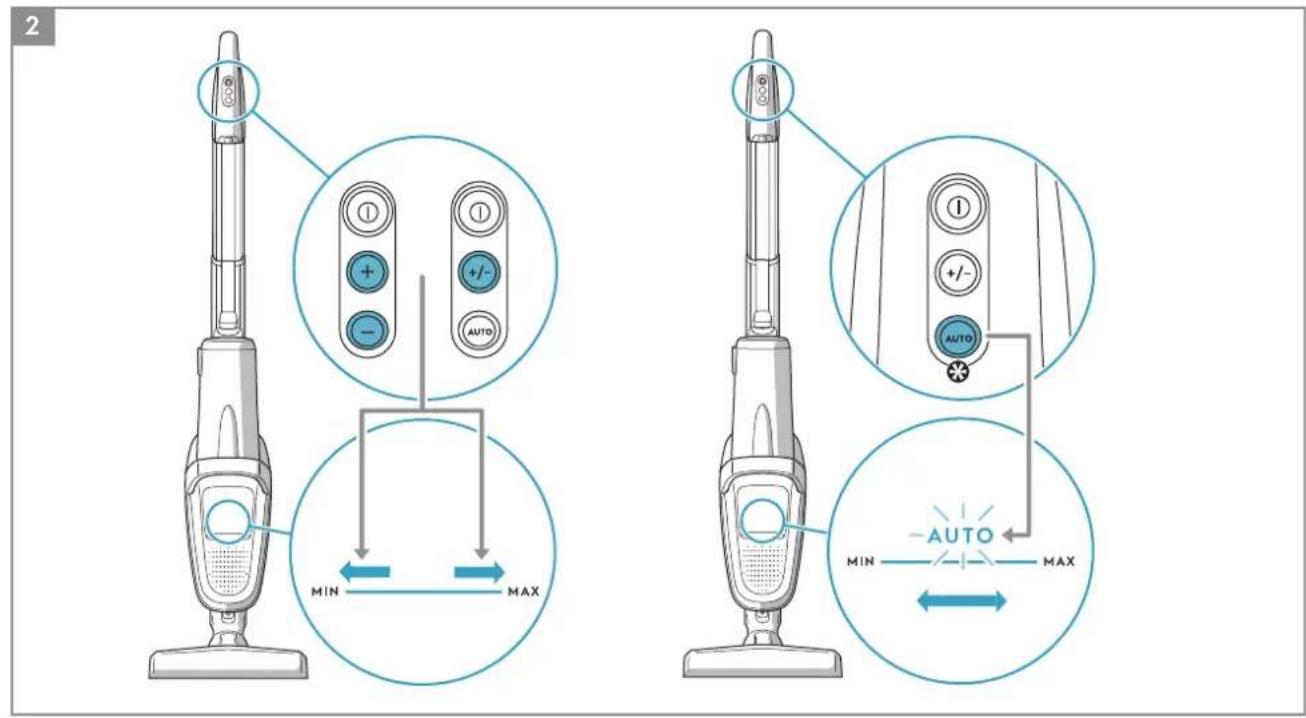

2 ① + - AUTO ① + - AUTO MIN MAX AUTO MIN MAX

1 CLICK!

Illustration showing a person using a vacuum cleaner to lift a handbag, with step-by-step instructions and a close-up of the step labeled 1 through 6.

5

Illustration showing a person using a vacuum cleaner with labeled parts and a magnified inset highlighting the foot area.

2 CLICK!

3

Diagram illustrating the step-by-step installation of a hairbrush tool, showing how to remove or adjust the brush.

Illustration of a person using a handheld vacuum cleaner with a blue arrow indicating direction (no text or symbols present)

Line drawing of a person using a vacuum cleaner to clean or store floor (no text or symbols)

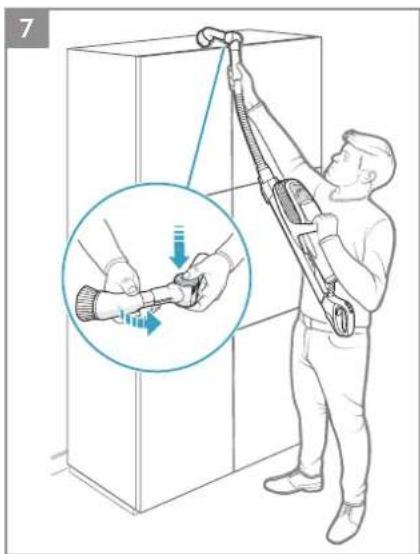

Illustration of a person using a mechanical tool to lift a wall-mounted hose, with an inset showing hand positioning and adjustment arrows (no text or symbols)

Medical illustration showing a hand holding a device with labeled parts and directional arrows indicating motion or procedure.

Illustration of a person using a handheld tool to lift or stand on a wall (no text or symbols visible)

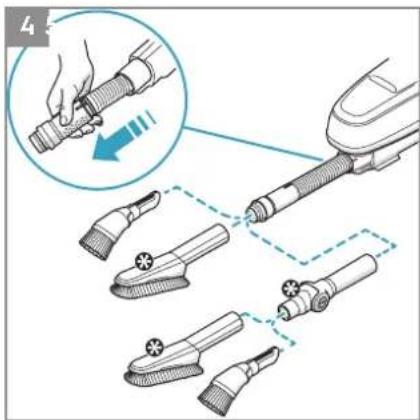

* Certain models only

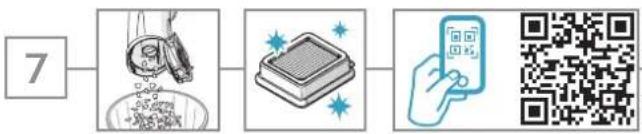

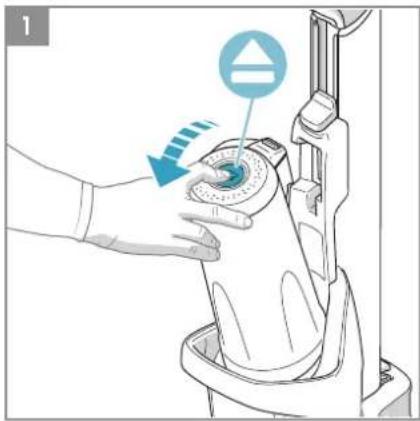

Diagram showing a hand pressing a circular component with a directional arrow and a warning symbol, likely illustrating a mechanical or electrical process.

2

Illustration of hands assembling a mechanical component with a blue arrow indicating direction (no text or symbols)

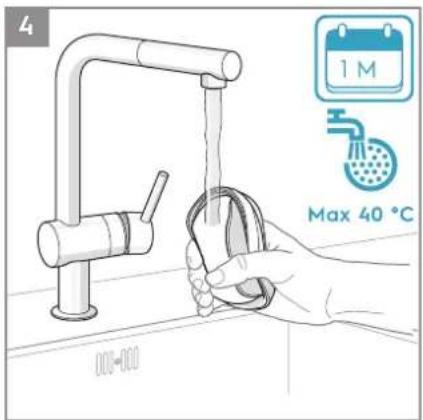

4 1 M Max 40 °C 000-000

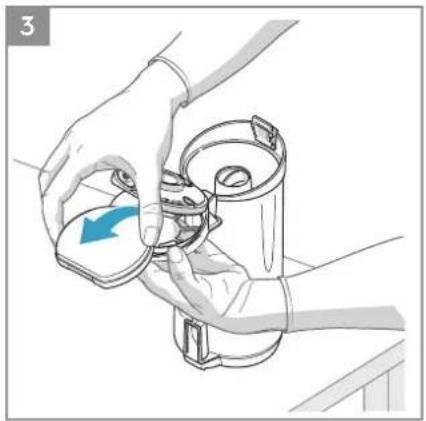

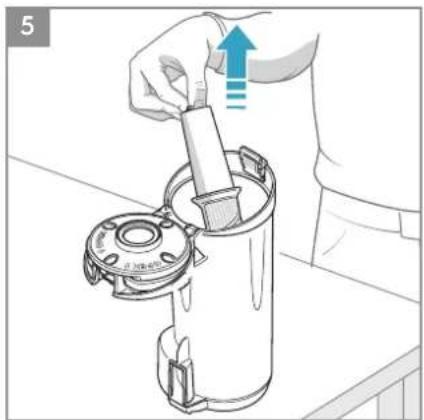

Illustration of a hand using a tool to clean or brush inside a cylindrical container (no text or symbols visible)

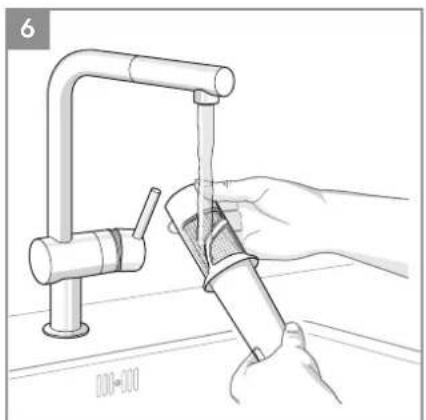

Illustration of a hand using a tool to clean or wash the faucet (no text or symbols present)

Illustration of a hand placing a trash bin into a recycling bin with a blue arrow indicating the waste (no text or symbols present)

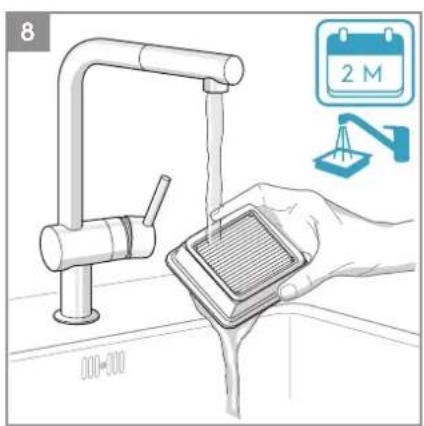

8 2 M 000-000

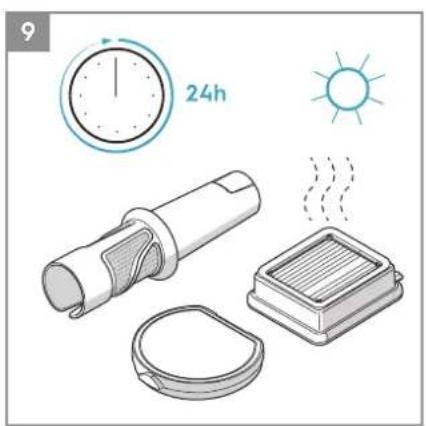

Illustration of household appliances including a timer, sun, and a device with heat dissipation (no text or symbols)

Medical illustration showing a person using a medical device to lift a patient's feet, with an inset close-up highlighting the device's internal structure.

Line drawing of a person using a vacuum cleaner on a bed (no text or symbols)

Line drawing of a person using a vacuum cleaner on a small table (no text or symbols)

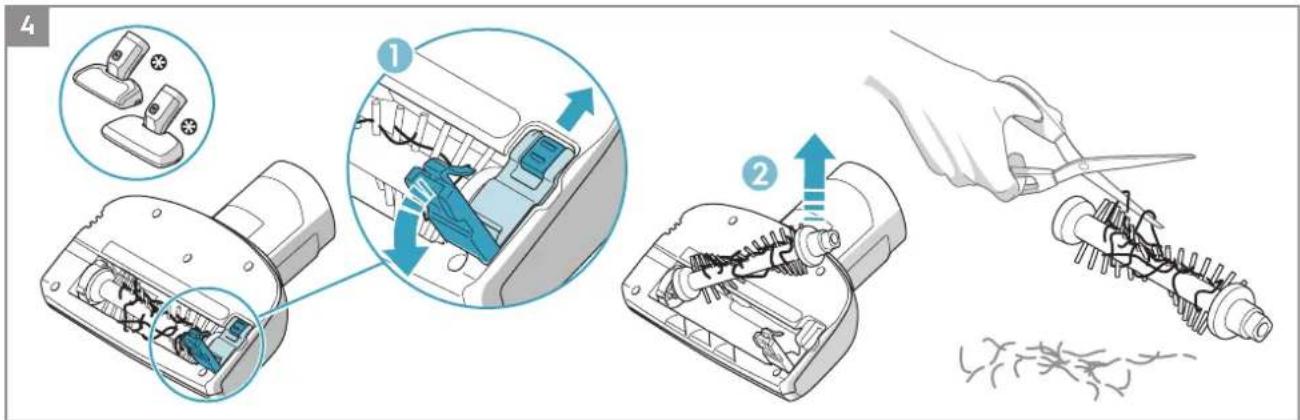

Diagram illustrating the step-by-step installation of a hair dryer, showing disassembly and hair cutting process with labeled steps 1 and 2.

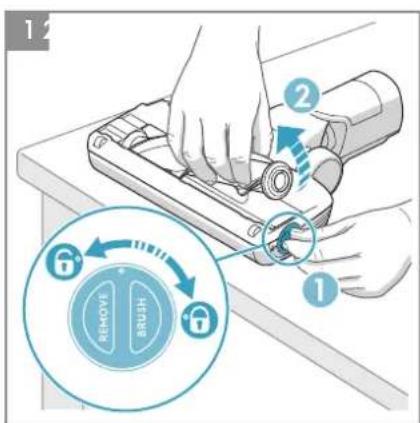

1 2 6 REMOVI BRUSH 1

Line drawing of hands using scissors to cut a piece of hair on a table (no text or symbols)

Illustration of hands installing a mechanical component with blue arrows indicating direction (no text or symbols)

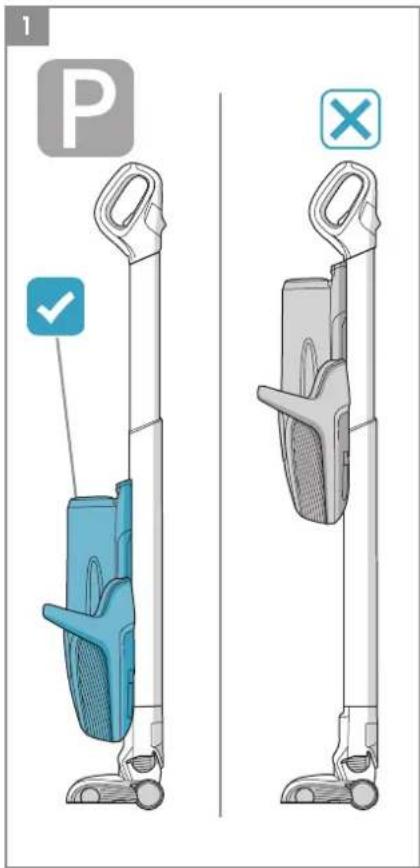

1 P ✓ ×

Illustration of a hand using a handheld device to press or install a cable, with directional arrows indicating motion (no text or symbols)

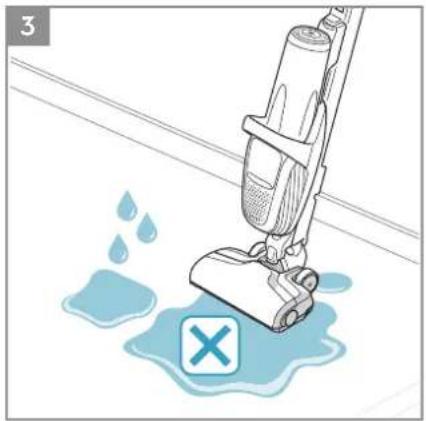

Illustration of a vacuum cleaner spraying water with a 'X' symbol (no text or labels)

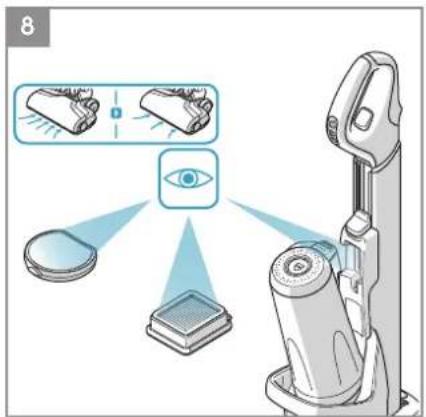

Diagram illustrating a vacuum cleaner's inspection process with labeled steps and error indicators

5 × ×

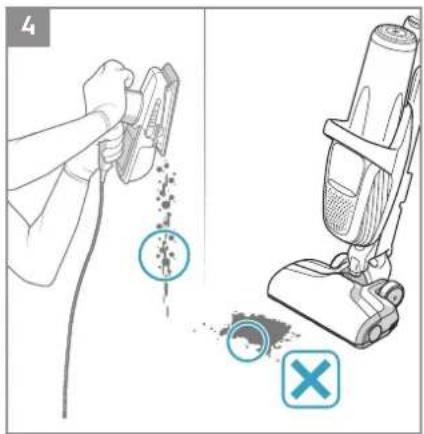

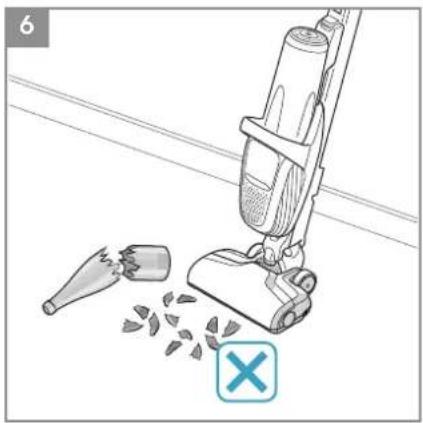

Line drawing of a vacuum cleaner emitting debris with a warning symbol (no text or labels)

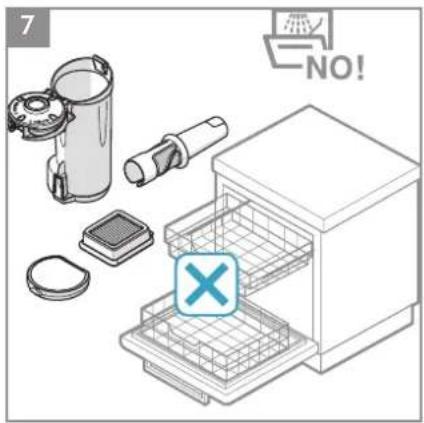

7 NO!

8

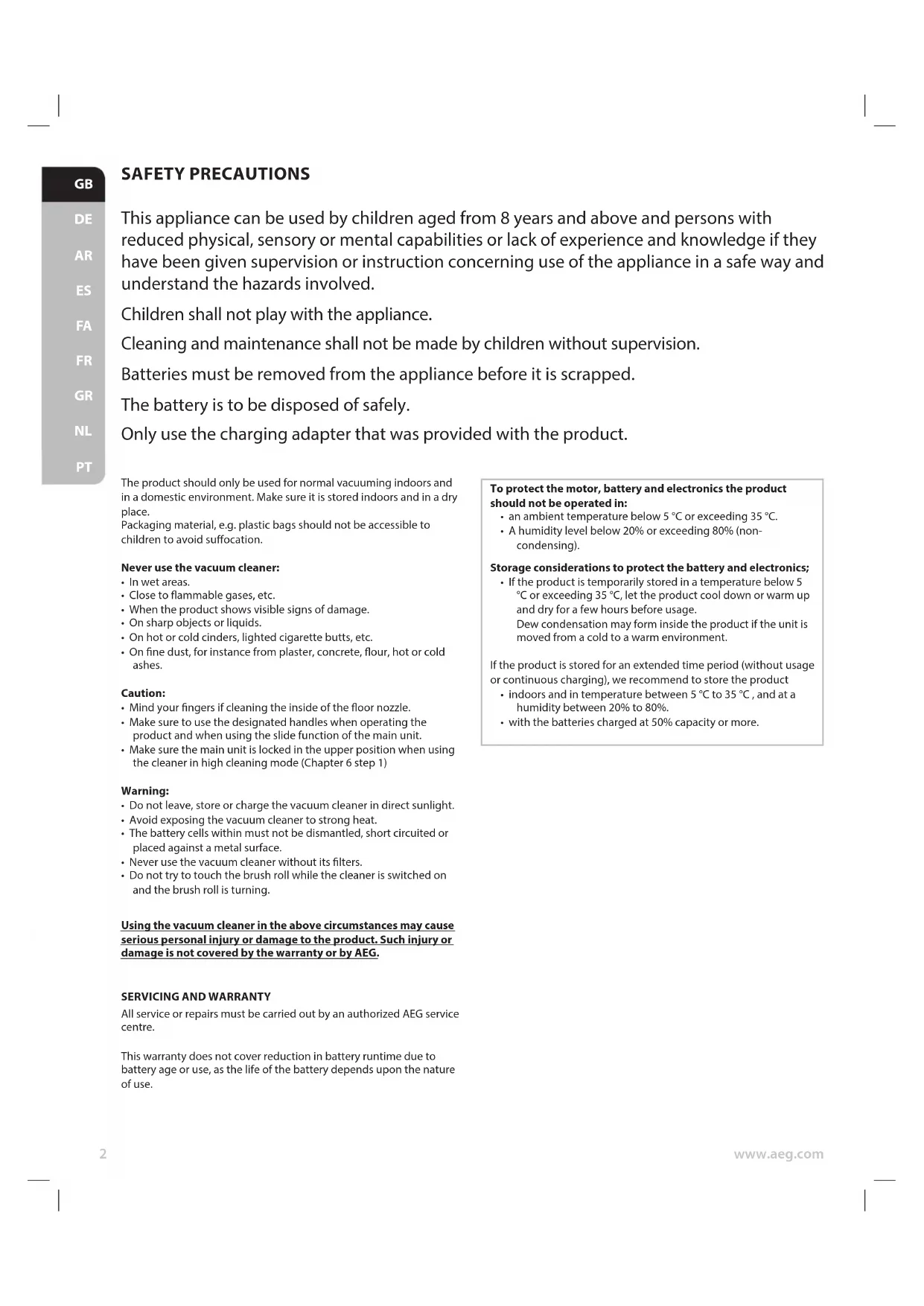

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

The product should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored indoors and in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

• In wet areas.
• Close to flammable gases, etc.
• When the product shows visible signs of damage.
• On sharp objects or liquids.
• On hot or cold cinders, lighted cigarette butts, etc.
• On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Mind your fingers if cleaning the inside of the floor nozzle.
• Make sure to use the designated handles when operating the product and when using the slide function of the main unit.

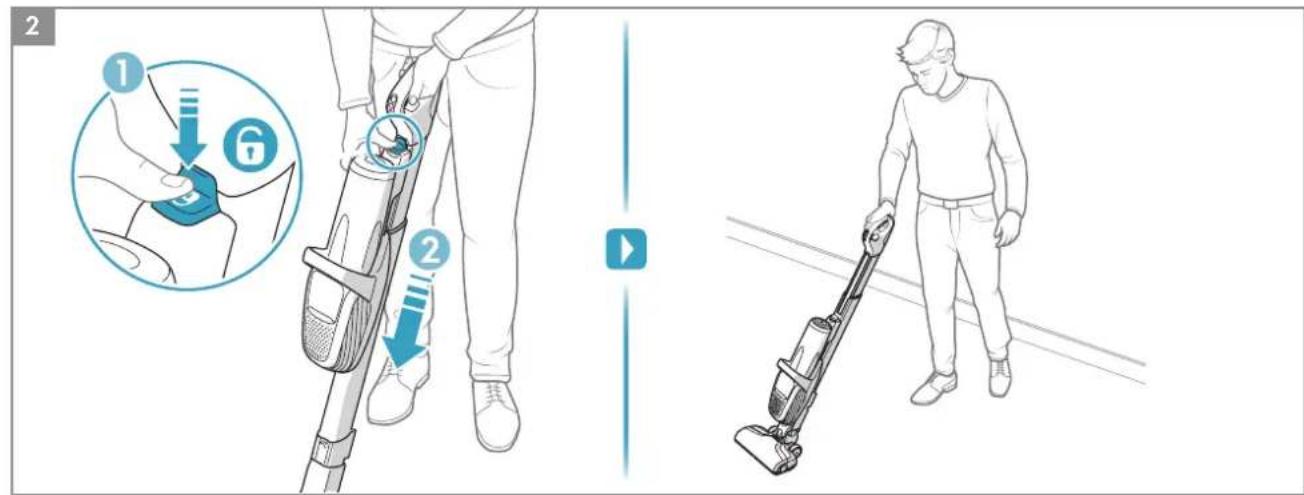

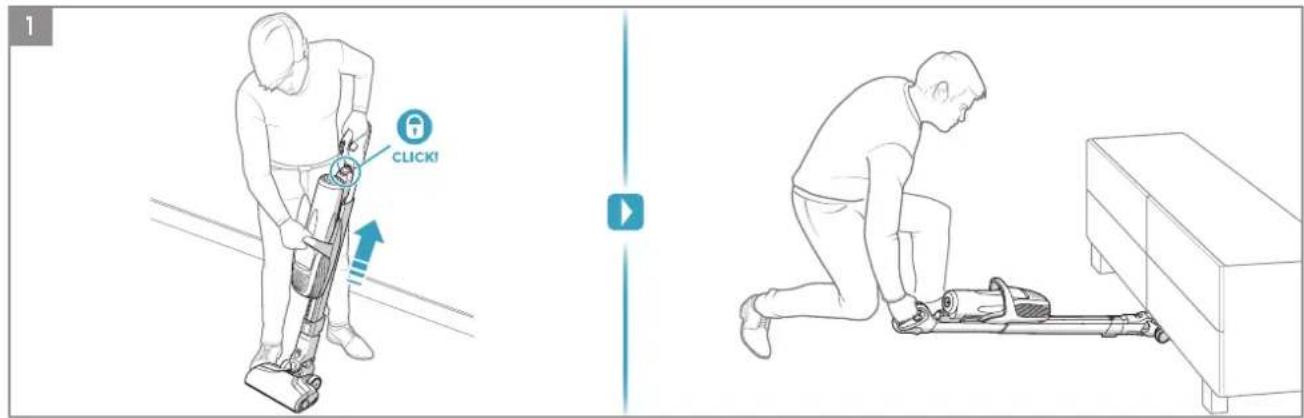

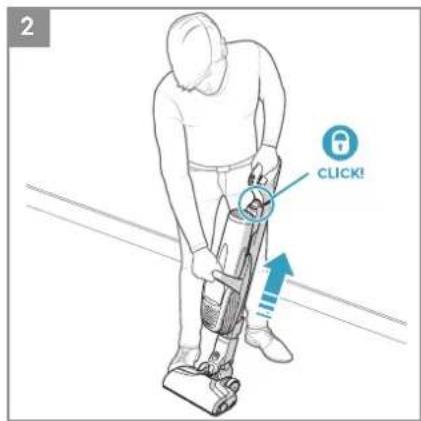

• Make sure the main unit is locked in the upper position when using the cleaner in high cleaning mode (Chapter 6 step 1)

Warning:

• Do not leave, store or charge the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by AEG.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized AEG service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the nature of use.

To protect the motor, battery and electronics the product should not be operated in:

• an ambient temperature below 5^ or exceeding 35^ .
• A humidity level below 20% or exceeding 80% (non-condensing).

Storage considerations to protect the battery and electronics;

- If the product is temporarily stored in a temperature below 5 °C or exceeding 35 °C, let the product cool down or warm up and dry for a few hours before usage.

Dew condensation may form inside the product if the unit is moved from a cold to a warm environment.

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product

• indoors and in temperature between 5^ to 35^ , and at a humidity between 20% to 80% .
  • with the batteries charged at 50% capacity or more.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

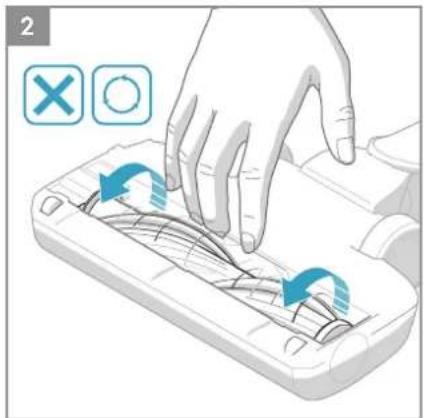

The product stops or does not start	The brushroll is blocked	Clean and remove entangled hair, threads and fibres from the brush roll.
	The product might be overheated	Turn off the vacuum cleaner. Then check if the nozzle, tube, hose or filters are blocked and/or dirty. Let the product cool down for minimum 2 hours on the charging stand before starting it again. If the product still is not working, please contact an authorized AEG Service Centre.
	The battery is empty (last LED blinks)	Charge the vacuum cleaner.
Reduction or no suction power	Filters / Nose Cone is dirty or missing	- Clean or wash the filters and put them back (See also Instruction book section 7).- Change or replace the filters (www.aeg.com/shop).
	Air Channel / Cyclon is blocked	- Remove the dust container and check the air channel and air inlet in the dust container to see if something is stuck.
	Floor nozzle is blocked	- Remove Floor nozzle and check if something is stuck in the nozzle.
	Hose is blocked	- Remove Floor nozzle and check if something got stuck in the hose. If so use a stick to remove the obstacle. However, be careful in case the obstruction.Note: The warranty does not cover any damage to the hose caused by cleaning it.
Water or other liquids has been sucked into the product		- Stop the product and let it dry for 48h (do not put it in the charging stand!).If the product is not working anymore it will be necessary to replace the motor at an authorized AEG service centre.Note: Damage to the motor caused by the penetration of water is not covered by the warranty.

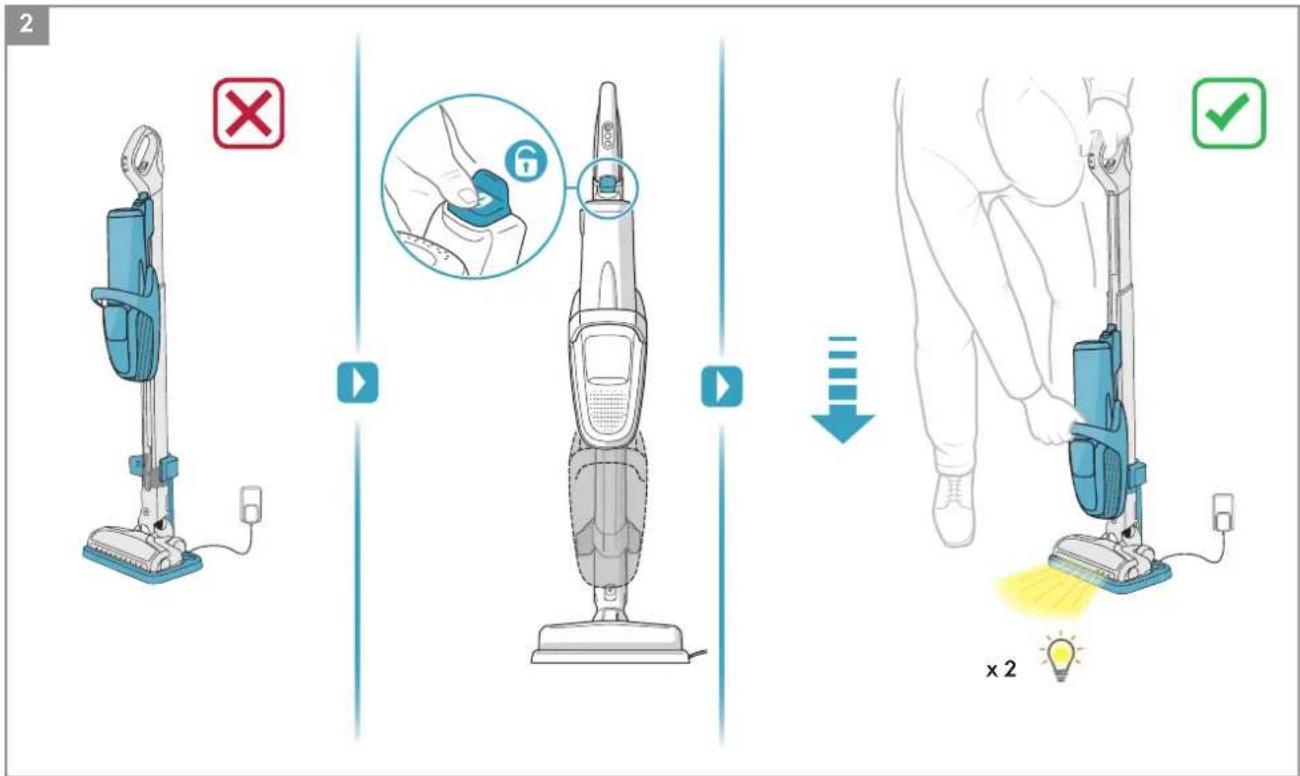

The product is not charging	Main unit is in wrong position	Push the main unit down to the lowest position. It should not be locked in the upper position and/or in between.
	Product is placed wrong in the charging stand	Check if the connectors from the back of the main unit are connected to the charging stand.
	Charging pin is not plugged in	Make sure charging pin is connected in the back of the charging stand, and charging adapter is plugged in the socket.
	Wrong or no nozzle attached	Make sure the main floor nozzle is attached to the product or it will not charge.
	To protect the battery and electronics, charging will not occur if room temperature is below 5°C or over 35°C.	Store and charge the product indoor and in a room temperature between 5 - 35°C.
Charging is taking longer than 6 hours	Room temperature is over 35°C	Charging time will be longer if the temperature is high, which is normal. Store and charge the product in a normal room temperature.
		Please also see Instruction book chapter 2.
Brushroll is not rotating	Changing the floor nozzle while product is running	After changing the nozzle restart the product.

BATTERY LAMPS INDICATION

Charging What does it mean? During usage What does it mean?
[YG5]	Blink slowly = 100 % fully charged 75 - 100 % capacity
	50 – 95 % charged 50- 75 % capacity remaining
	0 – 50 % charged 25 – 50 % capacity remaining
			FX9° needs to be recharged.

RUNNING TIMES FOR FX9

	36V 32,4 V
High power mode	prox. 17 min* Approx. 15 min*
Normal mode	30 min* Approx. 25 min*
Long runtime mode	prox. 60 min* Approx. 55 min*
*based on AEG Internal Testing

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

This symbol on the product indicates that this product contains a built-in rechargeable battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

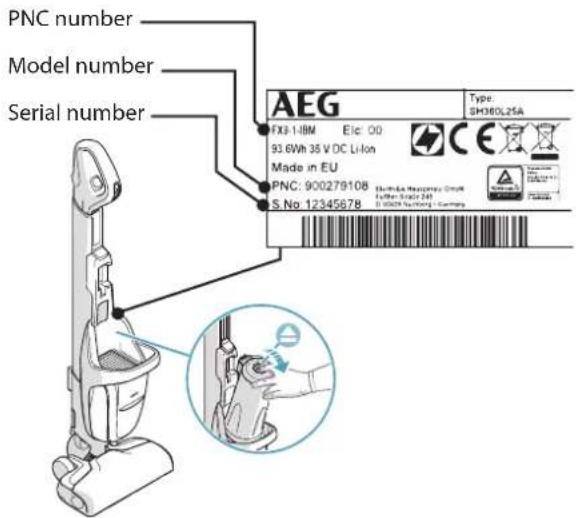

CUSTOMER CARE AND SERVICE

When contacting the AEG service center, ensure that you have following data available:

- Model number,

- PNC number

- Serial number

The information can be found on the rating plate.

PNC number Model number Serial number AEG FX3-1-IBM Elec. 00 93.6Wh 35 V DC Lilon Made in EU PNC: 900279108 S.No 12345678 Type: SH360L25A Eurora Macropiniu GmbH Kathen-Szack 243 S. No 12345678 0.0000 Nuchang - Germany

ASSISTÊNCIA E GARANTIA

Illustration of a mechanical device with a blue arrow indicating motion or change, no text or symbols present.

Technical diagram illustrating car seat assembly and steering mechanism, with labeled parts and directional arrows

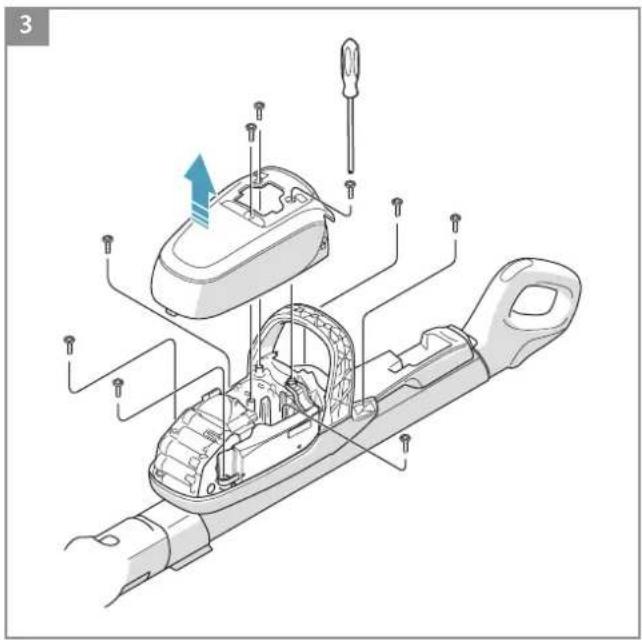

Technical diagram of a mechanical device with labeled parts and an upward arrow indicating motion or assembly.

Technical diagram illustrating car seatbelt installation steps with labeled components and directional arrows

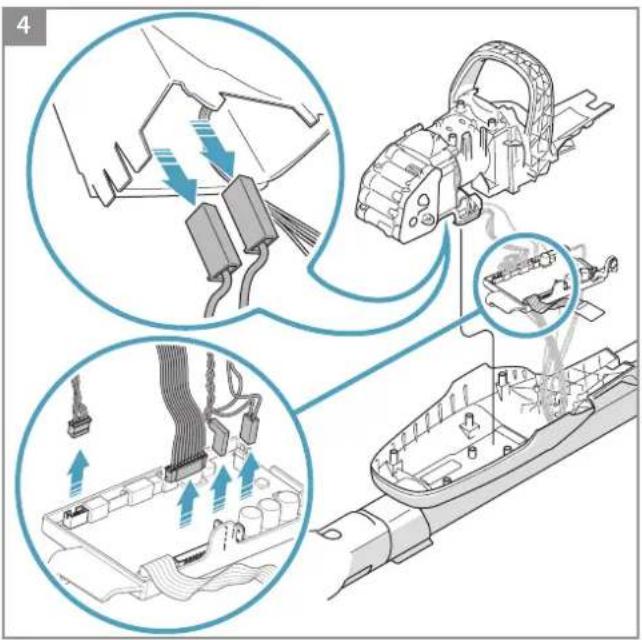

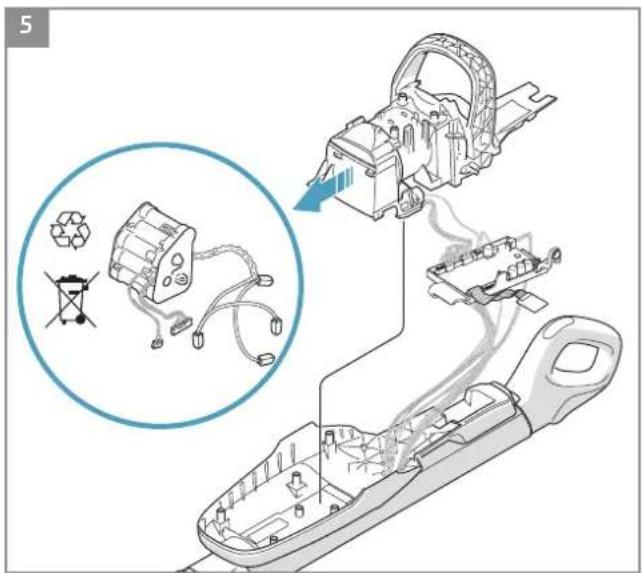

Technical diagram illustrating a mechanical assembly with labeled components and a magnified inset showing internal wiring connections.
