USER MANUAL DSCC2401 0101 Vacmaster

Line drawing of a portable washing machine with coiled tubing and top-mounted sensors (no text or symbols)

Spot Cleaner / Limpiador de Manchas/Nettoyeur de Taches

Important Safety Instructions....3

Warranty....7

Technical Data....7

Getting To Know Your Spot Cleaner....8

General Assembly Instructions....10

Operating Instructions....16

Maintaining Your Spot Cleaner....23

Troubleshooting....26

Thank you for purchasing this Vacmaster ^® spot cleaner. With it you are obtaining a high-quality product that is engineered for optimal performance.

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual and your sales check (receipt) in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS SPOT CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

- Use your spot cleaner only as described in this Use & Care Guide. Use only manufacturer's recommended attachments.

- Fully assemble before operating.

- Do not expose to rain. Store indoors.

- Do not immerse. Use only on carpet moistened by cleaning process.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Do not handle the battery pack and charger, including charger plug, and charger terminals with wet hands.

- Do not use charger with a damaged cord or plug. If the spot cleaner, charger or battery pack is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and contact the after sales helpline 1-866-384-8432 for assistance.

- Do not pull or carry charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run spot cleaner over cord. Keep cord away from heated surfaces.

- Do not unplug charger by pulling on cord. To unplug charger, grasp the plug, not the cord.

- Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the spot cleaner from falling, always place spot cleaner at bottom of stairs or on floor. Do not place spot cleaner on stairs or furniture, as it may result in injury or damage.

- Do not put on chairs, tables, etc. Keep on floor.

- Do not use spot cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

IMPORTANT SAFETY INSTRUCTIONS

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use the spot cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the spot cleaner or tanks.
• Do not use sharp objects to clean out hose as they can cause damage.
• Do not use spot cleaner without tanks in place.
• Do not charge the battery pack outdoors.
• Put the spot cleaner away after use to prevent tripping accidents.
• Disconnect the battery pack before making any adjustments, changing accessories or storing product. Such preventative measures reduce the risk of starting the product accidentally.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• For use only with 24LFC18-ETL charger.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• For use only with 24LB2004-CN/24LB4005-CN battery pack.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush affected area with water. If liquid contacts eyes, seek medical help.
• Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not immerse the spot cleaner, charger or battery packs in water or other liquids.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.

IMPORTANT SAFETY INSTRUCTIONS

• Follow all charging instructions and do not charge the battery pack outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• While there is no shock hazard from electrical terminals located on the spot cleaner, a burn could result from metal objects being inserted into the terminal areas. Spot cleaner terminals should always be kept free of objects.
• Store charger indoors in a cool, dry area, not exposed to weather to avoid electrical shock and/or damage to the spot cleaner.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store the spot cleaner with solution in tanks.
• Use only Vacmaster® cleaning solutions intended for use with this appliance to prevent internal component damage.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• You are responsible for making sure that your spot cleaner is not used by anyone unable to operate it properly.

Product Disposal

This product contains a Lithium-ion battery pack formulated from environmentally sensitive materials. This product must be disposed of properly with due care for the environment. Do not dispose of product with household garbage. Consult your local waste authority for information regarding available recycling or disposal options.

Li-ion

RECYCLE OR DISPOSE OF IN ACCORDANCE WITH FEDERAL AND LOCAL REGULATIONS.

WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio / TV technician for help.

SAVE THESE INSTRUCTIONS

Household use only

WARRANTY

FOR ONE YEAR from the date of sale (or, for deliveries in the State of California, one year from the date of delivery), this product is warranted against defects in material or workmanship when it is assembled, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call 1-866-384-8432.

• This warranty does not cover filters or belt, which are expendable parts that can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household purposes.
• This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TECHNICAL DATA

Spot Cleaner

Model: DSCC2401 0101

Voltage: 24V MAX DC

Battery Charger

Model: 24LFC18-ETL

Input: 120VAC 60Hz 55W

Output: 24V=1.5A

Battery

Model: 24LB2004-CN

Capacity of Battery: 2.0Ah

Battery Type: Lithium-Ion

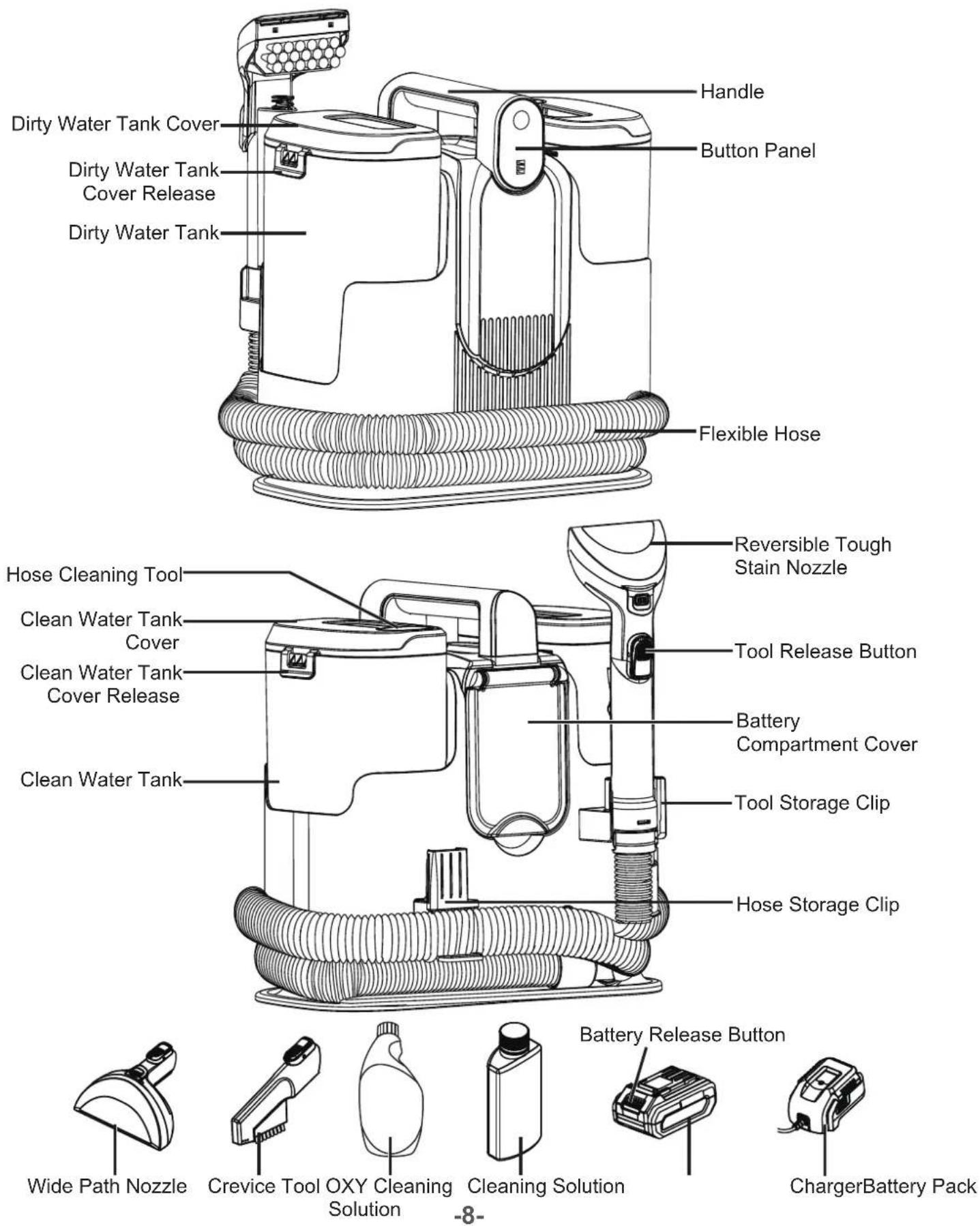

GETTING TO KNOW YOUR SPOT CLEANER

Handle Button Panel Dirty Water Tank Cover Dirty Water Tank Cover Release Dirty Water Tank Flexible Hose Hose Cleaning Tool Clean Water Tank Cover Clean Water Tank Cover Release Clean Water Tank Reversible Tough Stain Nozzle Tool Release Button Battery Compartment Cover Tool Storage Clip Hose Storage Clip Wide Path Nozzle Crevice Tool OXY Cleaning Solution Cleaning Solution Battery Release Button ChargerBattery Pack -8-

Replacement Parts

Item Part No.
Tool Storage Clip	671021102
Dirty Water Tank	671008102
Clean Water Tank	671008103
Reversible Tough Stain Nozzle	661004101
Wide Path Nozzle	661004102
Crevice Tool	661004103

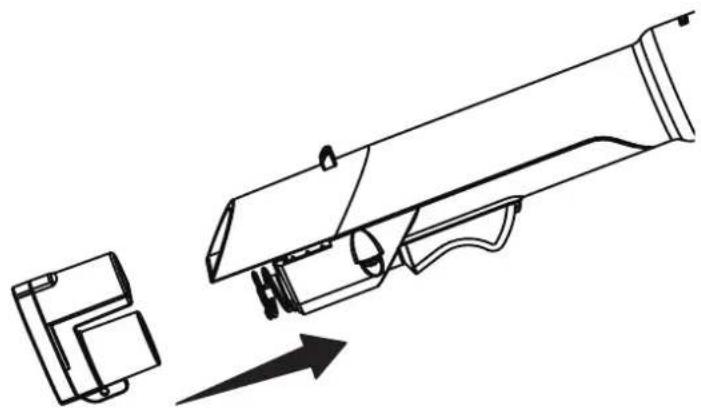

Hose Cleaning Tool	671011109
Hose Storage Clip	671021101
Charger	221045102
Battery Pack	221043108

Available online at www.vacmaster.com or call 1-866-384-8432.

Button Panel

Power/Speed Button Battery Status Indicator

GENERAL ASSEMBLY INSTRUCTIONS

A Phillips head screwdriver is required.

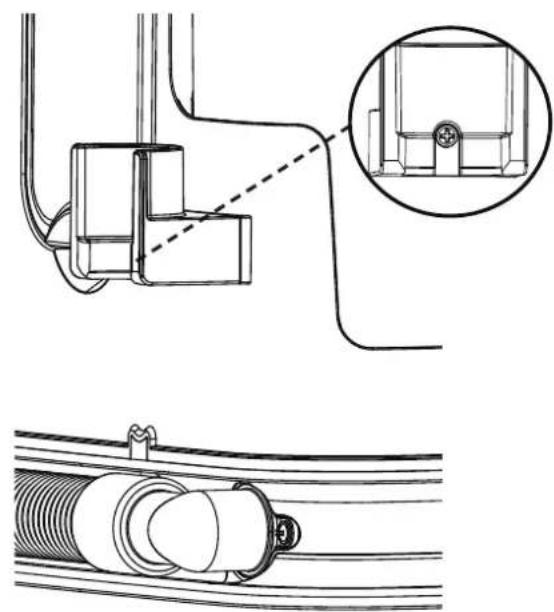

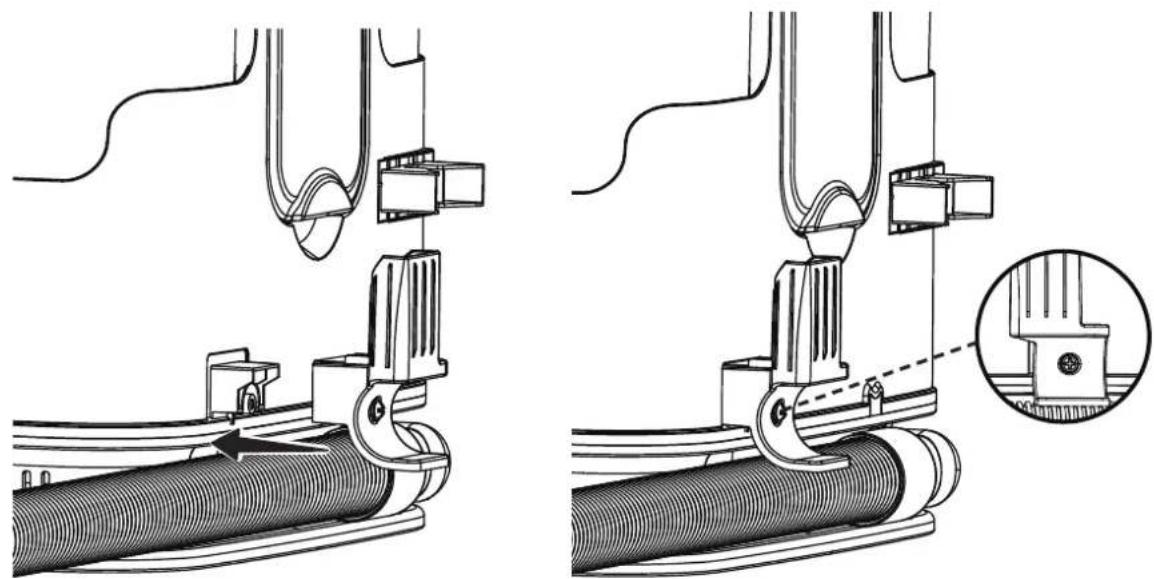

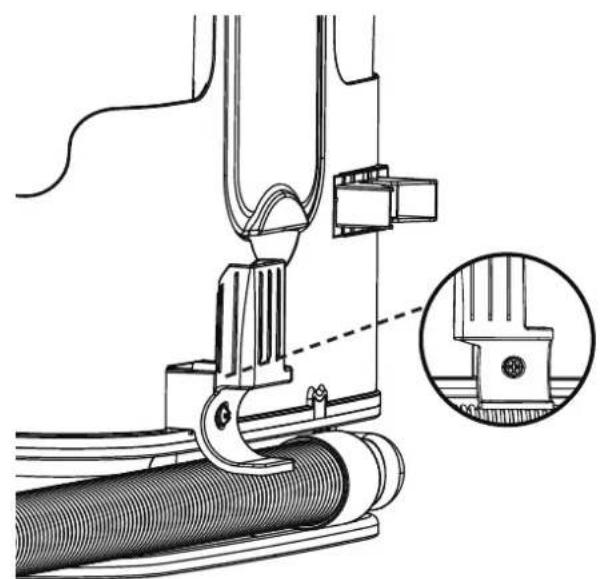

1. Attach the hose storage clip to the spot cleaner as shown and secure it with the provided screw.

NOTE: Tighten the screw with a Phillips head screwdriver. Ensure that the screw is secured.

Technical illustration of mechanical assembly with two views showing pipe connection and a close-up detail (no text or symbols)

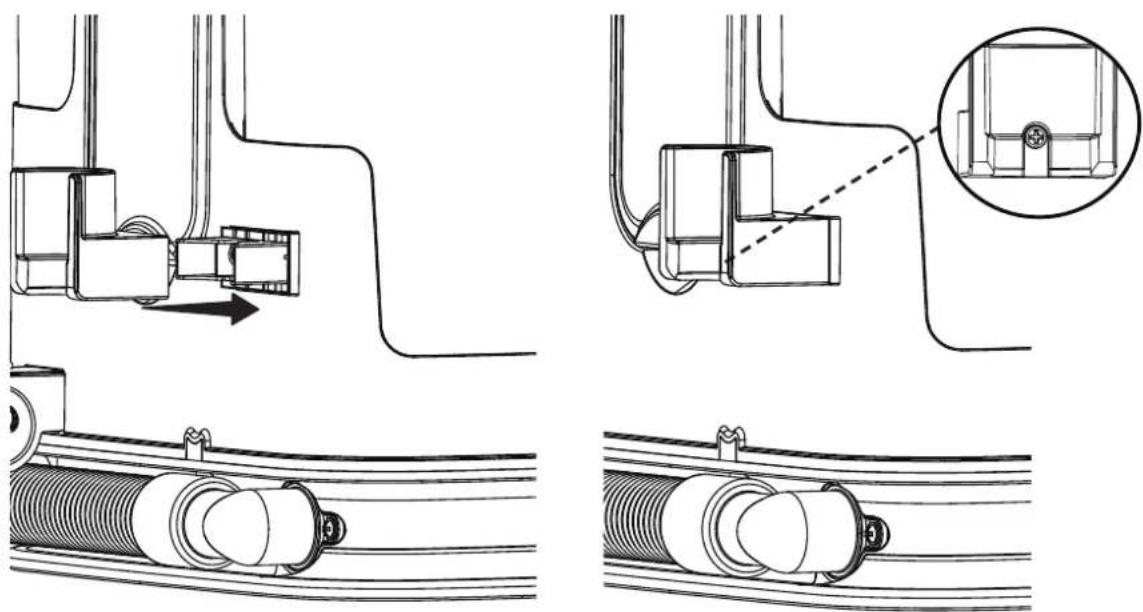

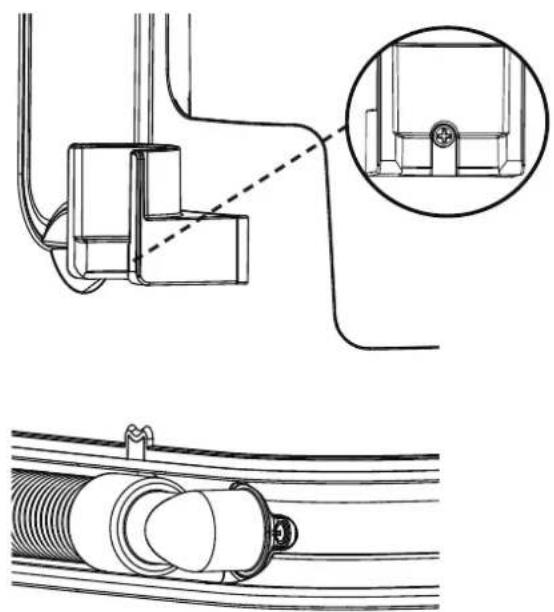

1. Attach the tool storage clip to the spot cleaner as shown and secure it with the provided screw.

Technical line drawing showing mechanical assembly and component alignment (no text or symbols)

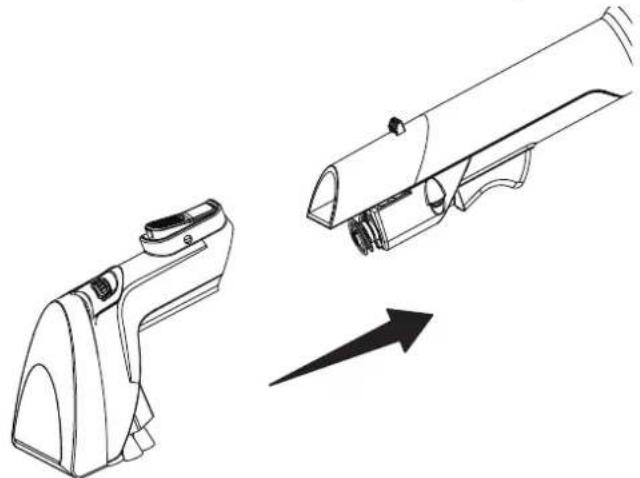

1. Choose the desired tool and slide it onto the end of the hose until it clicks into place.

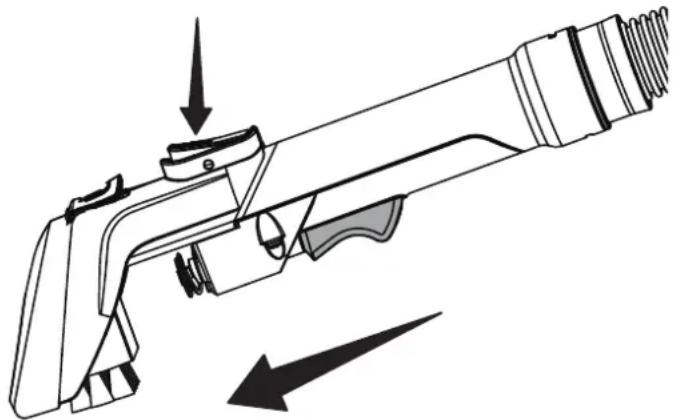

To remove: Press the tool release button and pull away the tool.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

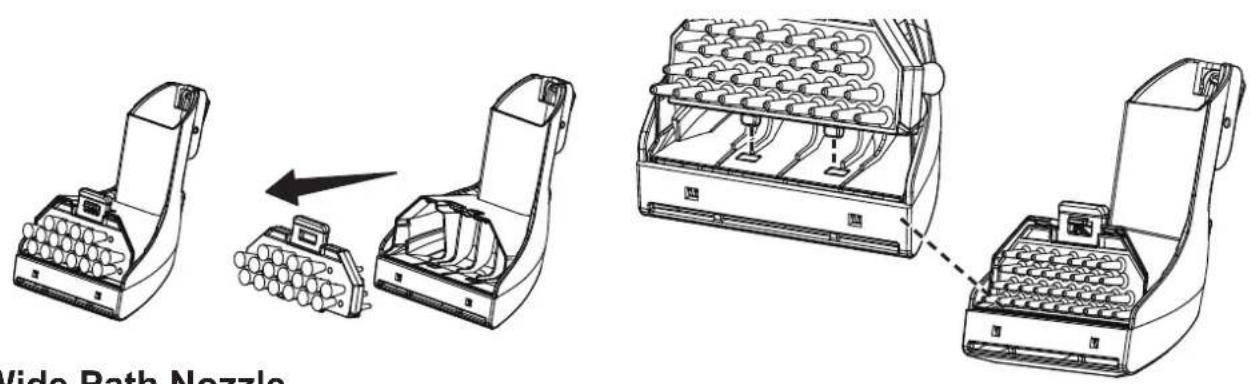

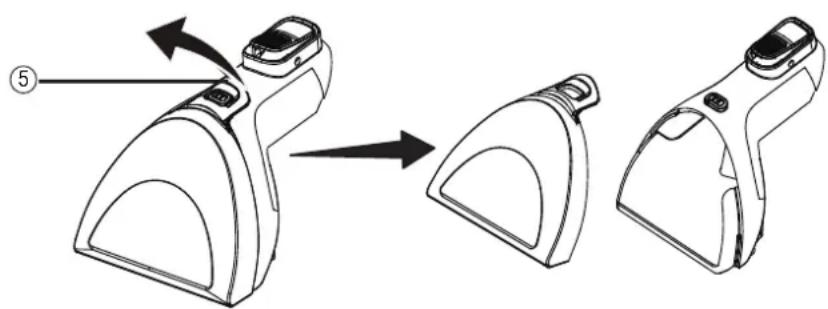

Reversible Tough Stain Nozzle

This tool is designed with two sides, a bristle brush and a rubber brush.

Use the bristle side to scrub and lift stains, dirt, or pet messes from carpets, upholstery, and fabric surfaces.

Use the rubber side to remove embedded pet hair and debris from upholstery, pet beds, and more.

Flip the tool as needed to switch for more effective cleaning results. Insert the two tabs in the slots first and secure brush in place.

Wide Bath Nozzle

Wide Path Nozzle

Use for cleaning stairs and larger furniture areas.

Crevice Tool

Use for cleaning narrow or hard-to-reach areas. Use this tool to remove dirt, or liquid from tight spaces such as between car seats, along baseboards, corners, or around furniture edges.

NOTE: Put the flexible hose onto the hose storage clip. Snap the end of the hose with the tool installed into the tool storage clip when not in use.

Technical line drawing of a vacuum cleaner with coiled tubing and directional arrows indicating assembly (no text or symbols)

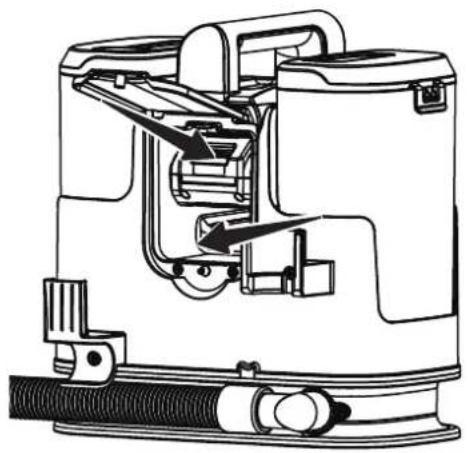

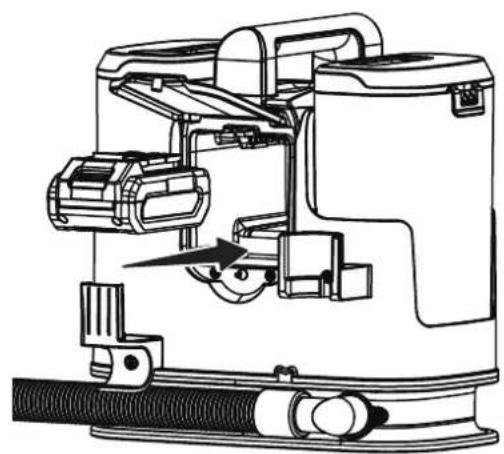

1. Lift the battery compartment cover and insert the battery pack into the battery compartment until you hear a 'click'. Make sure the battery pack firmly snaps into place and put down the cover.

To remove: Press battery release button on the battery pack, grasp the battery pack firmly and pull it out of battery compartment.

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical device with hoses and internal components (no text or symbols)

Charging

NOTE: Please fully charge before first use.

WARNING

Use only with the charger recommended by the manufacturer.

LED CHARGER STATUS

1. If the battery is not inserted into the charger, a continuous red LED light indicates that the charger is plugged into a power supply socket and is now ready to begin charging.
2. Charging: A flashing green LED on the charger indicates that the battery is charging normally.
3. Charged: Continuous green LED on the charger indicates that the battery is ready for use.

The indicator lights on the charger show the charging status:

SYMBOL INDICATOR LIGHT STATUS
	Red, flashing	Charging paused, see instructions below.
	Red, continuous Connected to power supply (Standby)
	Green, flashing Charging
	Green, continuous Fully charged

1. The intelligent charger ensures maximum battery life, because it measures the existing charge level of the battery and then charges with the required current and voltage. Charge battery fully before storage.

2. Charging paused: A flashing red LED light on the charger indicates that the battery temperature is not within the charging temperature range of 40^ F ( 4^ C) and 100^ F ( 38^ C). As soon as the permitted temperature is reached, the battery charger will automatically switch to charging.

3. If the temperature range is correct and flashing red LED light continues, then remove and reinstall the battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery charges normally, dispose of the defective battery pack (see Environmentally Safe Battery Disposal section).

4. If the flashing red light continues after installing the second battery (ensure the battery temperature is normal), the charger may be defective. Replace with a new one.
5. After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal and does not indicate a technical defect of the battery charger.

BATTERY LED PANEL

1. Check the battery pack capacity by pressing the LED button.
2. When the LED button is pressed, the number of illuminated lights indicates the state of battery pack capacity. See Table below.

NUMBER OF LIGHTED LEDs CAPACITY
1 LED (red only) 0%-25%
2 LEDs (yellow & red) 25%-50%
3 LEDs (yellow, red & 1 green) 50%-75%
4 LEDs (yellow, red & 2 green) 75%-100%

CHARGING THE BATTERY PACK

WARNING

If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury.

Check the voltage! The voltage must comply with the information on the rating label.

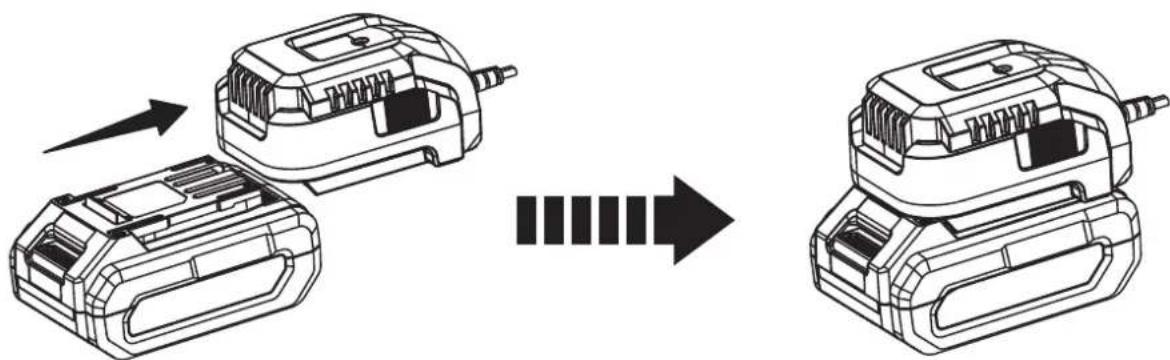

1. Align the slot of the battery pack with the rail on the charger. Slide the battery onto the rail until the battery pack secures into place.
2. Connect the charger to the power supply.
3. Allow sufficient charging time, and then disconnect the charger from the power supply.
4. Press the release button on the battery pack and remove it from the charger.

NOTE: It is normal for the battery pack and the charger to become warm (but not hot) during charging process. If the battery does not charge properly, check to make sure the electrical outlet is operational. Always charge the battery before storage!

Technical line drawing of a mechanical component before and after assembly, showing internal structure and alignment (no text or symbols)

OPERATING INSTRUCTIONS

Filling the Clean Water Tank

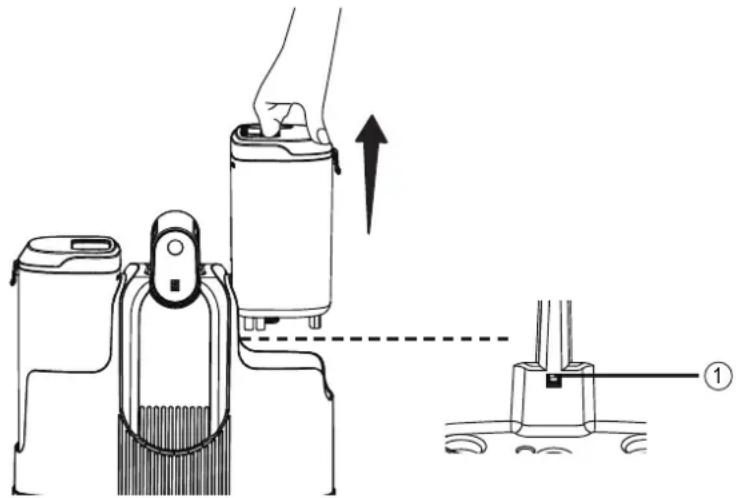

1. Lift up the clean water tank from the side of the unit. A security latch (①) is positioned to keep the clean water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards.

Diagram showing a hand operating a blender with an arrow indicating the process, and a separate view of the blender's base with a numbered label.

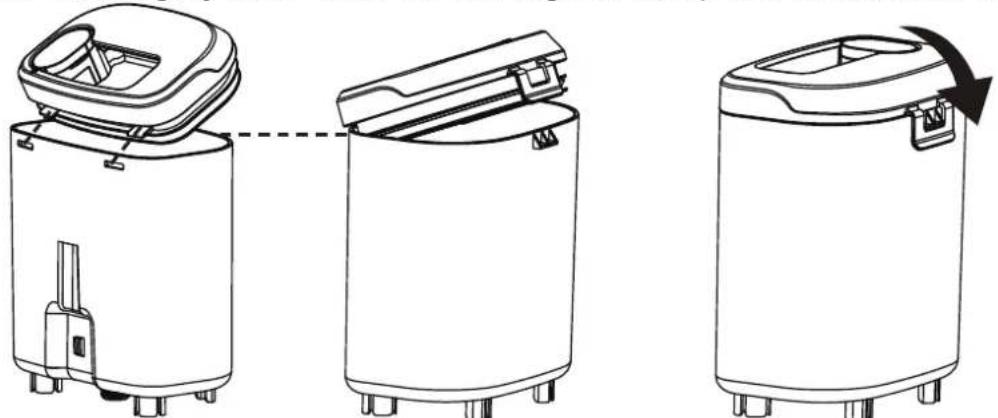

1. Remove the clean water tank cover by undoing the clean water tank cover release.

Line drawing of a four-legged washing machine with a curved top and side legs, showing no text or symbols.

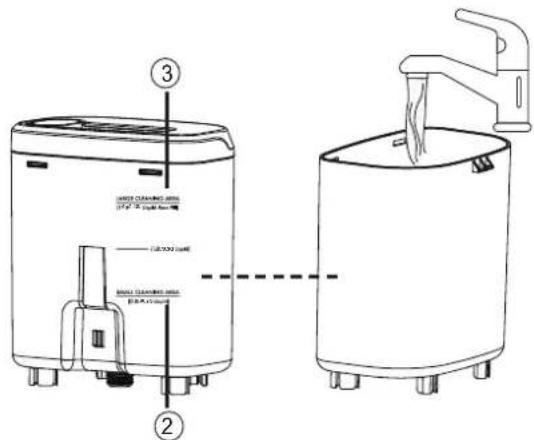

1. Fill the tank with room temperature water to the desired cleaning area fill lines. Choose the desired solution and add it to the tank according to your needs. Mix the solution and water mixed correctly according to the solution label.

Room Temperature Water Cleaning Solution		OXY Cleaning Solution
SMALL CLEANING AREA – 0.8L/0.2G Liquid (2)	3 caps	The formula-to-water ratio is 1:15.
LARGE CLEANING AREA – 1.6L/0.4G Liquid (3)	6 caps

NOTE: The included OXY cleaning solution uses an oxygen-based formula to break down tough stains and odors effectively.

3 2 WATER CLEANING ASIS (1/2" - 100 gm / kg) FLOOR CLEANING ASIS WATER CLEANING ASIS ELEVATION ASIS ELEVATION ASIS

Do not exceed filling the clean water tank over the maximum fill line indicated on the clean water tank.

CAUTION

Do not fill with water above 104^ F ( 40^ C).

NOTE: An 8oz bottle of solution and an 8.45oz bottle of OXY cleaning solution are provided with this spot cleaner. Ensure the solution and water are mixed correctly. Once the sample is depleted, use only Vacmaster® cleaning solutions (Available online at www.amazon.com) intended for use with this appliance to prevent internal component damage.

CAUTION

The cleaning solution can cause skin and eye irritation. Wash affected area cautiously with water for several minutes. If irritation persists, seek medical attention immediately. Individuals with sensitive skin should wear rubber gloves. Wash hands thoroughly after use. Do not ingest. Keep out of reach of children.

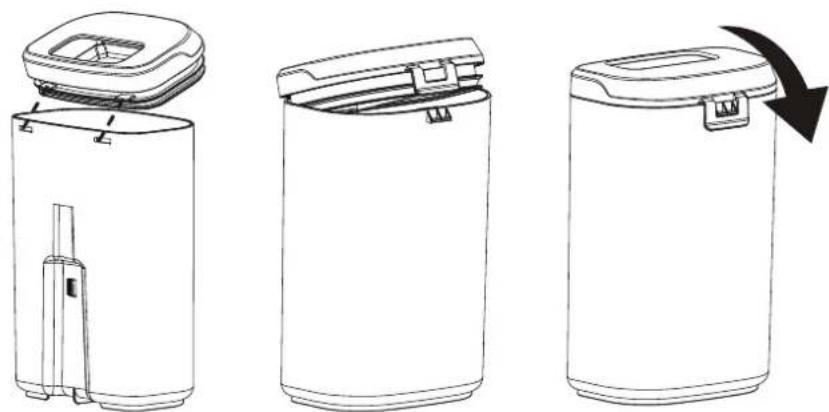

Three line drawings of industrial waste bins with a dashed arrow indicating a process (no text or symbols)

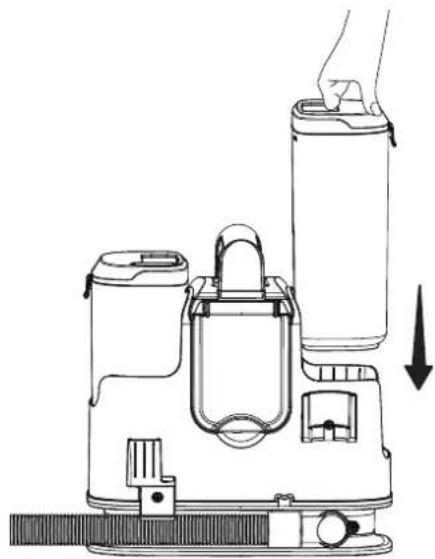

1. Insert the locking tabs into the slots of the clean water tank first and then secure the clean water tank cover back into place until a click is heard.

2. Slide the clean water tank back onto the unit. The security latch will automatically secure once the clean water tank is in position. A click will be heard when correctly installed.

Using the Spot Cleaner

IMPORTANT! Before using the spot cleaner, thoroughly vacuum the area to be cleaned. Always test a small hidden area for colorfastness and pile distortion.

Test Colorfastness - Gently rub surface with a dampened white cloth containing cleaning solution. Wait 10 minutes and check for color removal with a white paper towel. If color changes, do not use.

NOTE: To prevent staining, please use plastic, wax paper or aluminum foil to protect wood or metal surfaces from possible water spray.

To protect the wooden floors underneath rugs, place protective material (e.g. plastic) underneath them before cleaning.

NOTE: Always refer to and follow the manufactures care guidelines before using spot cleaning solution and spot cleaner.

1. Unwrap the hose from the unit. Select the preferred tool and make sure it is attached securely.

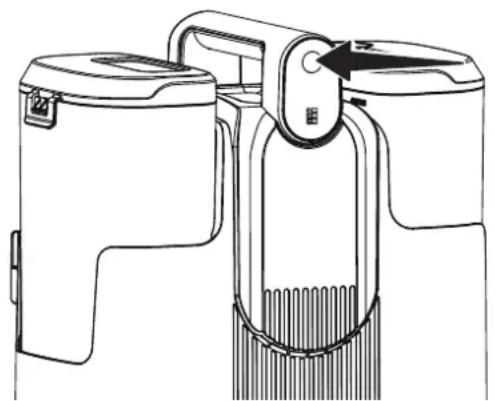

2. Press the power/speed button to turn the spot cleaner on. The spot cleaner starts in normal speed mode by default.

Line drawing of a mechanical device with a handle and internal structure (no text or symbols)

1. Select the desired cleaning mode by pressing the power/speed button. Pressing the power/speed button will switch the spot cleaner into: Normal Speed Mode → High Speed Mode Turn Off.

For ordinary stains, select the Normal Speed Mode.

For stubborn stains, select the High Speed Mode.

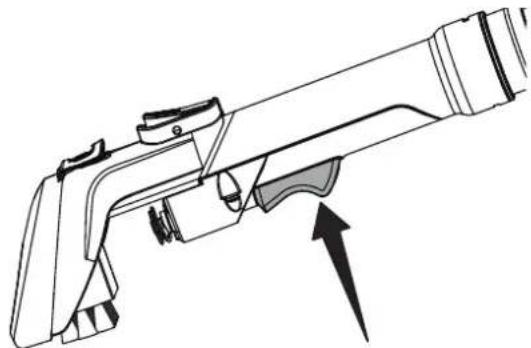

1. Hold the tool about 1 inch over the stain to be cleaned. Squeeze the spray trigger to spray a generous amount of cleaning solution over the soiled area. Use the brush on the tool to agitate stains by scrubbing in a back and forth motion.

Line drawing of a firearm with an arrow pointing to the grip (no text or symbols present)

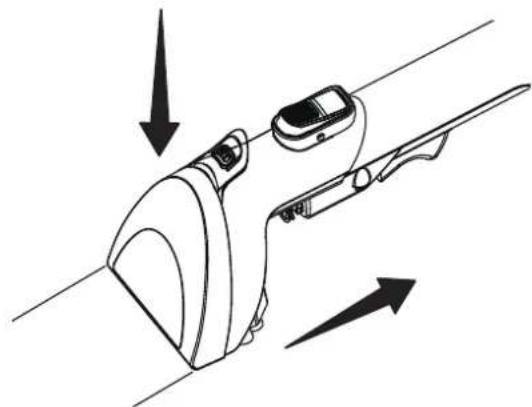

1. To lift away the stain, apply downward pressure on the front of the cleaning tool and pull the tool backward slowly to vacuum up excess dirty liquids. Repeat as necessary.

Diagram of a handheld device with directional arrows indicating movement or force (no text or symbols present)

1. Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. See instructions in the Emptying the Dirty Water Tank (page 20-22).

2. Once you have completed cleaning, press the power button; and disconnect the battery pack from the spot cleaner.

WARNING

Personal Injury and Product Damage Hazard

- When any abnormality/failure occurs, stop using the product immediately and remove the battery pack.

BATTERY STATUS INDICATOR

The battery status indicator will light up to indicate the battery power.

Battery Status Indicator

Battery Status Indicator	Battery Capacity
3 LEDS, Continuous	67%~100%
2 LEDS, Continuous	34%~66%
1 LED, Continuous	5%~33%(Recharge recommended)
1 LED, Flashing	0~5%(Recharge required)

Emptying the Dirty Water Tank

Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. During normal use, debris may accumulate in the dirty water tank. In order to keep the spot cleaner functioning properly, rinse out the dirty water tank with clean water after each use.

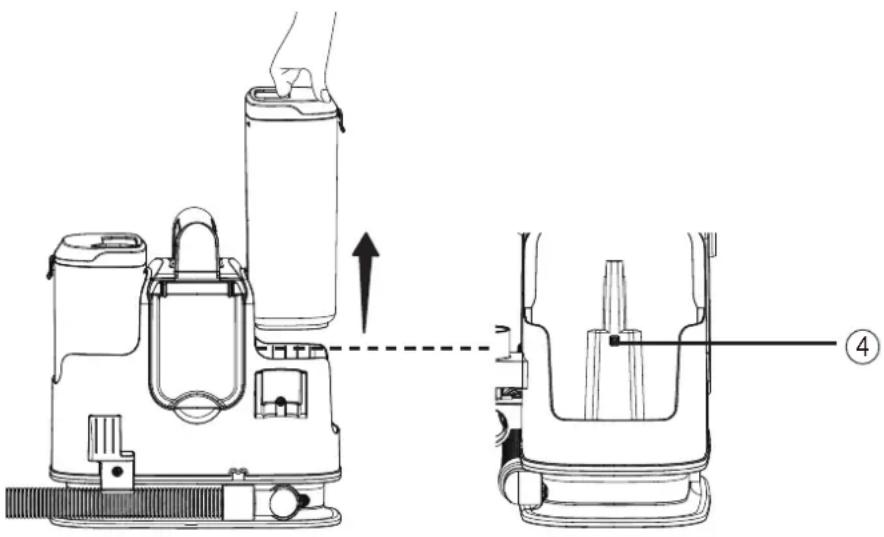

1. Lift up the dirty water tank from the side of the unit. A security latch (④) is positioned to keep the dirty water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards.

Technical diagram showing a hand operating a vacuum cleaner with labeled component 4

1. Remove the dirty water tank cover by undoing the dirty water tank cover release.

Line drawing of a cylindrical trash bin with a lid and arrow indicating rotation (no text or symbols)

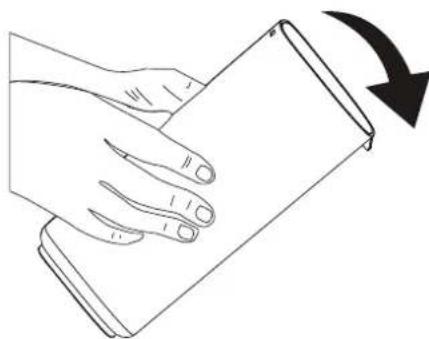

1. Empty the tank into a sink or toilet. Rinse the tank thoroughly with clean water. If continuing to use after emptying the dirty water tank, be sure to dry the outside of the tank before reinstalling.

Line drawing of a hand holding an open book with a black arrow indicating rotation (no text or symbols)

1. Insert the locking tabs into the slots of the dirty water tank first and then secure the dirty water tank cover back into place until a click is heard.

Line drawings of three different kitchen or appliance containers with a right-hand arrow indicating rotation (no text or symbols present)

1. Reinstall the dirty water tank back onto the unit. The security latch will automatically secure the dirty water tank in position. A click will be heard when correctly installed.

Line drawing of a portable air conditioner unit with handle and control panel, showing internal components and a downward arrow indicating motion (no text or symbols)

WARNING

The motor noise changes to a higher pitch when the dirty water tank is full or blocked. Stop the spot cleaner immediately and empty the dirty water tank.

WARNING: Electrical Shock and Personal Injury Hazard

Disconnect the battery pack from the spot cleaner before servicing or cleaning the spot cleaner. Failure to do so could result in electrical shock or personal injury from spot cleaner suddenly starting.

Cleaning Exterior and Attachments

1. Turn off and disconnect the battery pack from the spot cleaner. DO NOT drip water on spot cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.

Cleaning Tools

It is recommended to clean tools with water after each use.

1. Press the tool release button to remove the attachment from the hose.

Line drawing of a firearm with arrows indicating movement or force direction (no text or symbols)

1. Pull up the cover release tab (⑤) on the nozzle to remove the cover.

Diagram showing a device with labeled parts and directional arrows indicating motion or assembly steps.

1. Rinse thoroughly with clean water. Allow the parts to dry before reinstalling.

2. Reinstall the nozzle cover and then insert back into place until a click is heard.

Hose Cleaning Tool

1. Remove the clean water tank and fill with warm water (Max 40°C).

2. Ensure the accessory is removed. Attach the hose cleaning tool to the flexible hose.

Technical line drawing of a firearm with an inset showing internal components and an arrow indicating motion (no text or symbols)

1. Make sure both the clean water and dirty water tanks are secured on the unit.

2. Press the power button to turn the spot cleaner on and hold the spray trigger for 30 seconds. The clean water will rush through the suction hose, effectively cleaning and removing any trapped dirt and debris in the hose which may build up over time. Repeat as needed. Let the machine run for 5-10 seconds before turning off.

Technical line drawing of a firearm component with an arrow indicating motion (no text or symbols)

1. Turn off and disconnect the battery from the spot cleaner.

Cleaning the Filter Grill

1. Remove the dirty water tank from the side of the unit.

2. Remove any dirt and debris from the filter grill ^① as shown.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Removing the Hose Blockage

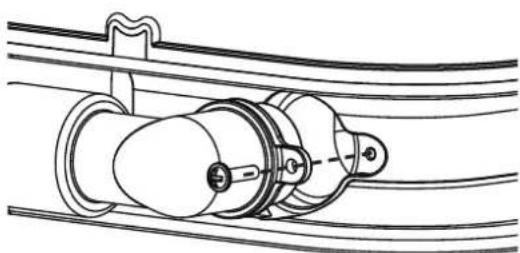

1. Use a Phillips screw driver to unscrew the hose and remove it from the spot cleaner. Do not pull the hose excessively.
2. Check and remove any clogs.
3. Ensure the sealing ring is positioned on the hose properly. Reattach the hose onto the spot cleaner and tighten the screw.

NOTE: Do not use scissors or other sharp objects to remove blockages from the hose as these may damage the hose.

Technical line drawing of a mechanical assembly with pipes and components (no text or symbols)

Storage

1. Replace suction hose and attachments in storage position.
2. Empty the clean water tank (if necessary). Rinse it out before replacing on the unit. Open the clean water tank cap to allow it to air dry.
3. Empty the dirty water tank then rinse, clean and dry before placing back on the unit.
4. Store the spot cleaner in a dry and cool indoor area.

Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues.

WARNING

Disconnect the battery pack before performing maintenance to the spot cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION

	Battery may be depleted.	Charge the battery as instructed on page 15.
The spot cleaner is not operational.	Wrong charger being used.	Be sure to use only the charger supplied with your product.
	The motor is damaged.	Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
	The battery is damaged.
	Charger is not plugged into outlet firmly.	Be sure the charger is plugged in properly to the outlet, and the battery is correctly installed on the charger.
		Check with a good appliance. Be sure the power cord plug is fully plugged into an electrical outlet.
The battery will not charge.	Defective power outlet.
	The charger is damaged.
	The battery is damaged.	Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
	The LEDs on battery are damaged.
The spot cleaner turns off on its own.	Battery may be depleted.	Charge the battery as instructed on page 15.
		Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
	The battery is damaged.
PROBLEM	POSSIBLE CAUSE SOLUTION
The spot cleaner turns off on its own.	Motor protection activated.	Empty the dirty water tank and restart the spot cleaner. Once the dirty water tank is full, turn off the spot cleaner and empty the dirty water tank in time.
	The motor is damaged.	Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
Battery status indicator does not illuminate when using the spot cleaner.	Battery may be depleted.	Charge the battery as instructed on page 15.
	The battery status indicator is damaged.	Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
Poor pick-up performance.	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation.
	Dirty water tank is full. Empty the	dirty water tank.
	The suction hose is clogged. Clean the hose. Refer to page 25.
	Float valve is activated.	Empty the dirty water tank and ensure the float valve is moving freely.
Water escapes from the spot cleaner.	Dirty water tank is full. Empty the	dirty water tank.
	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation.
Reduced or no spray through nozzle of the cleaner.	Clean water tank is empty. Fill the	clean water tank.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation.
PROBLEM	POSSIBLE CAUSE SOLUTION
Hose nozzle will not spray after filling the clean water tank.	Air is trapped in the pump and hose.	Turn on the spot cleaner. If hose does not spray, prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute.
Motor noise becomes high-pitched.	Dirty water tank is full. Empty the	dirty water tank.
	The suction hose is clogged. Clean the hose. Refer to page 25.
	The float in the dirty water tank has been activated.	Empty and clean the dirty water tank.

TABLA DE CONTENIDO

SECCIÓN

PÁGINA

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a cable or hose assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Boquilla reversible para manchas difíciles

Technical line drawing of a vacuum cleaner with coiled tubing and directional arrows indicating assembly (no text or symbols)

Technical line drawings of mechanical components, showing two views of a device with no visible text or symbols.

CARGA

Technical line drawing of a mechanical component before and after assembly, showing internal components and alignment (no text or symbols)

Diagram of a hand operating a blender with an arrow indicating upward motion, showing internal components and a numbered step (1) — no text or symbols present.

Line drawing of a cylindrical appliance with lid and wheels, no text or symbols present

Line drawings of three different kitchen appliances with a dashed line indicating a change or transformation (no text or symbols present)

Line drawing of a mechanical device with a handle and internal structure (no text or symbols)

Line drawing of a firearm with an arrow pointing to the handle (no text or symbols present)

Diagram of a handheld device with directional arrows indicating movement or force (no text or symbols)

Technical diagram of a hair dryer with labeled component and directional arrow indicating assembly or positioning

Line drawing of a cylindrical container with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Three line drawings of a portable water heater with a lid, showing internal components and a downward arrow indicating rotation (no text or symbols)

Line drawing of a portable washing machine with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols)

ADVERTENCIA

Line drawing of a firearm with arrows indicating movement or force direction (no text or symbols)

Diagram showing three stages of a device with labeled parts and directional arrows indicating movement or change.

Technical line drawing of a firearm with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a firearm component with an arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled component 6

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with a magnified inset showing a detail (no text or symbols present)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a cable or hose assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a portable air purifier with coiled tubing and a handle (no text or symbols)

Technical line drawings of two mechanical components with internal mechanisms and no visible text or symbols

CHARGEMENT

Technical line drawing of a mechanical component before and after assembly, showing internal structure and alignment (no text or symbols)

INSTRUCTIONS D'OPÉRATION

Diagram showing a hand operating a blender with an arrow indicating upward motion, and a close-up of the device's handle with a numbered label.

Line drawing of a four-legged washing machine with a curved arrow indicating rotation (no text or symbols)

Line drawing of three different kitchen appliances with a dashed line indicating a step, showing no text or symbols.

Technical line drawing of a mechanical device with a right-hand arrow indicating rotation (no text or symbols)

Line drawing of a handheld device with directional arrows indicating movement or force (no text or symbols)

Technical diagram of a hair dryer with labeled component and directional arrow indicating assembly or positioning

Line drawing of a cylindrical water dispenser with a scroll arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Three line drawings of a portable water heater with a lid, showing internal structure and a black arrow indicating rotation (no text or symbols)

Line drawing of a portable dishwasher with handle and control panel, showing internal components and a downward arrow indicating motion (no text or symbols)

AVERTISSEMENT

Line drawing of a firearm with arrows indicating movement or force direction (no text or symbols)

Diagram showing three stages of a device with labeled parts and directional arrows indicating motion or transformation.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a firearm component with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

Entreposage
