Technical data

Parameter description	Parameter value
Product name	Dry ice maker
Model	RC-DR-02	RC-DR-03
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	10
Power adaptor	24V DC / 1.5 A
Capacity	120 s	25 s
Dimensions [width x depth x height; mm]	190 x 190 x 235	190 x 190 x 165
Weight [kg]	4.85	4.65

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! A general warning sign concerning a given situation.

Wear protective gloves.

ATTENTION! Electric shock warning!

Only use indoors.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Dry ice maker

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.

b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.

c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.

d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!

e) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.

f) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.

g) Use the device in a well-ventilated space.

h) Only connect and disconnect the CO _2 line when the valve is closed.

i) Do not cut off the supply of CO _2 by crushing or bending pressure hoses.

j) When starting the device, increase the CO _2 supply to the device gradually in order to ensure that it is functioning properly.

k) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

I) Keep packaging elements and small assembly parts in a place not available to children.

m) Keep the device away from children and animals.

n) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) Use personal protective equipment as required for working with the device, specified in section 1 "Legend". The use of correct and approved personal protective equipment reduces the risk of injury.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Make sure the CO 2 line is disconnected before attempting any adjustments, accessory replacements or doing any work on the device. Such a preventive measure reduces the risk of an accident.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device in perfect technical condition. Before each use check for general damage. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Do not move, adjust or rotate the device in the course of work.
i) Do not leave this appliance unattended while it is in use.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) Only use CO 2 to supply the device, do not use any other gases.
I) Before each use ensure the nozzle is correctly installed in the device and that the hose is correctly attached and undamaged.
m) Do not carry or hang the device by the CO _2 line.
n) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
p) Keep the device away from sources of fire and heat.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The machine is used to produce dry ice using liquid CO2 from a pressure vessel.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

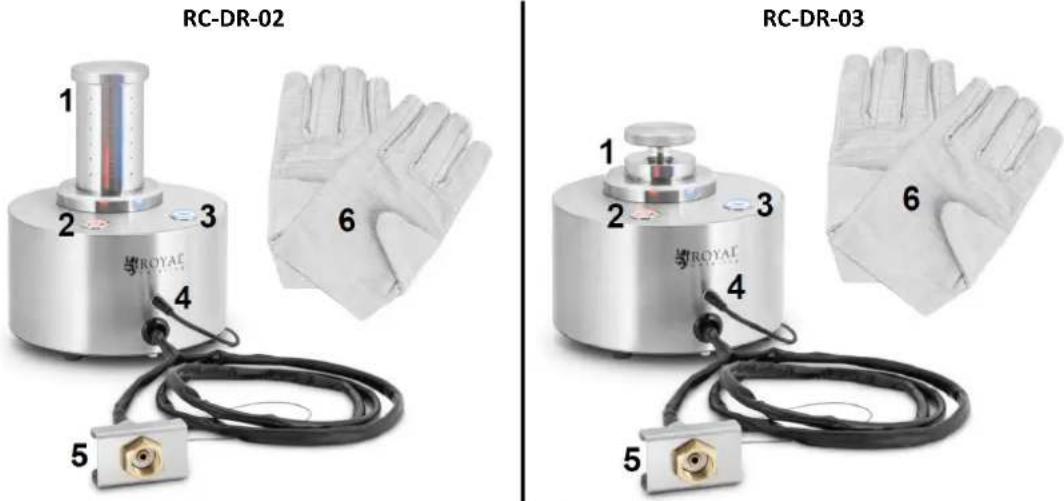

RC-DR-02 1 2 3 4 5 6 RC-DR-03 1 2 3 4 5 6

1 - Cylinder
2 - Power button
3 - Dry ice production button
4 - Power supply cable
5 - CO2 connection
6 - Protective gloves

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

WARNING: This product only works with liquid CO2, do not use other high pressure or non-liquid

CO2 compressed gas cylinders. A liquid CO2 cylinder with a siphon tube is recommended for effective delivery of liquid CO2. The product should be installed in a well-ventilated area to facilitate drainage of excess CO2.

WARNING: Dry ice can cause burns or other injuries if not handled properly. When handling dry

ice, always use personal protective equipment such as gloves

CAUTION: Do not use the machine when any part of it is wet.

1. Place the unit on a level surface at a height comfortable for the operator.

2. Place the steel connection hose around the CO2 tank.

3. Place the rubber sealing rings inside the nut of the connection hose and then connect it to the CO2 tank.

4. Tighten the nut by hand and then with a spanner.
   CAUTION: do not over tighten.

5. Connect the unit to the power supply.
6. Screw the cylinder into the unit.
7. Slowly open the CO2 tank, making sure there are no leaks.
8. Press and release the power button (2) to switch the unit on.
9. Press and release the dry ice production button (3) to start dry ice production.
   NOTE: Do not press the dry ice making button if the cylinder is not fully fixed / tightened.
10. After approximately 2-3 minutes dry ice will be produced in the cylinder.
11. Using gloves, unscrew the cylinder and remove the dry ice from the cylinder using gravity.
12. When finished, switch off the unit and close the CO2 tank.

CO2 cylinder replacement:

If the unit does not produce a complete block of dry ice, this means that the cylinder needs to be replaced.

1. Close the shut-off valve of the CO2 cylinder.
2. Press the dry ice production button (3) until excess pressure is released.
3. Loosen the cap on the CO2 cylinder and remove the CO2 cylinder.
4. Replace with a full CO2 cylinder.
5. Place the steel connecting tube around the CO2 tank.
6. Add rubber sealing rings to the inside of the connecting hose nut and then connect to the CO2 tank.
7. Tighten the nut by hand and then with a spanner.

NOTE: do not over tighten.

1. Slowly open the CO2 tank, making sure there are no leaks.
2. Press the dry ice production button (3) to make sure the unit is working.

Troubleshooting

Problem	Remedy
It does not produce a full block of dry ice.	Replace the CO2 tank with a full one.
Suchy lód nie jest gęsty lub pełny.	Dry ice is not dense or full.
It does not produce dry ice at all.	Ensure that the appliance is plugged into a suitable socket and that the fuse for the power circuit is operational.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft cloth for cleaning.

k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

RC-DR-02 RC-DR-03

RC-DR-02 RC-DR-03

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
