USER MANUAL Modernist DRR24G7400APDA Dacor

Undercounter Beverage Refrigerator

DRR24G7400**

Contents

Important Information 4

Before You Begin 4

Safety Information 5

Important Safety Symbols and Precautions: 6

State of California Proposition 65 Warning 6

Important safety precautions 6

Severe Warning Signs for Transportation and Site 7

Critical InstallationWarnings 8

Installation Cautions 10

Critical Usage Warnings 11

Usage Cautions 13

Cleaning Cautions 14

Critical Disposal Warnings 15

Before disposal of the appliance 15

Before Using Your Refrigerator 16

Installation of Your Refrigerator 16

Attention 17

Ambient Room Temperature Limits 17

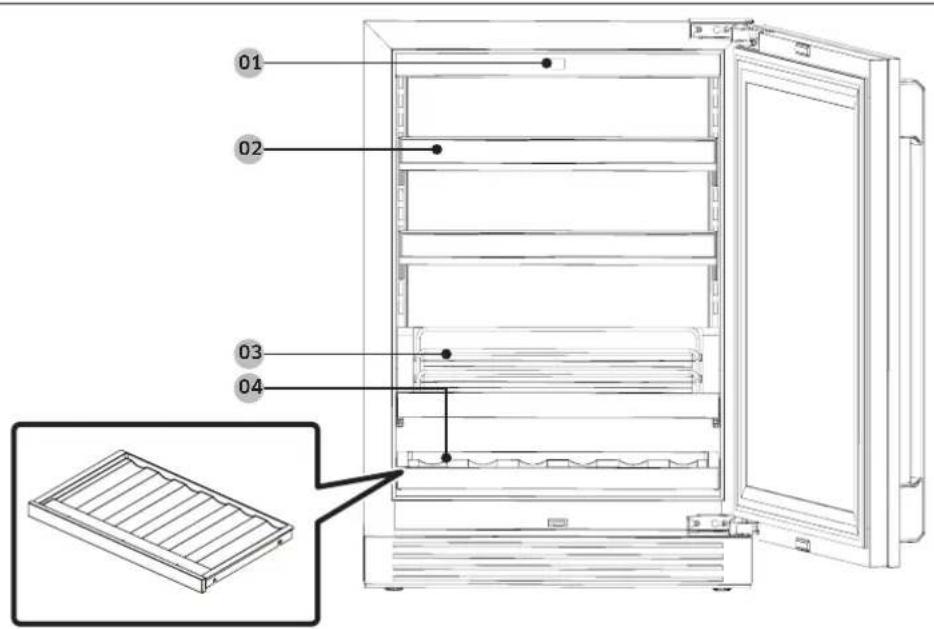

What's Included 18

Inside Parts, Storage, and Shelving 18

Wine Shelf 18

Operations 19

Control Panel 19

Using Other Functions 21

Storage Diagram 22

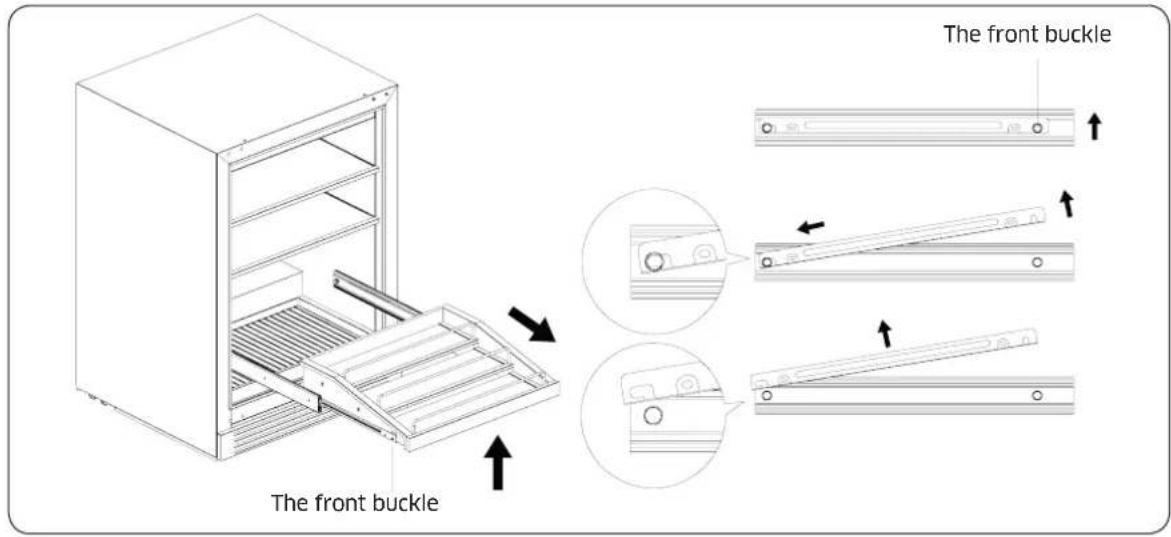

Beverage Shelf 23

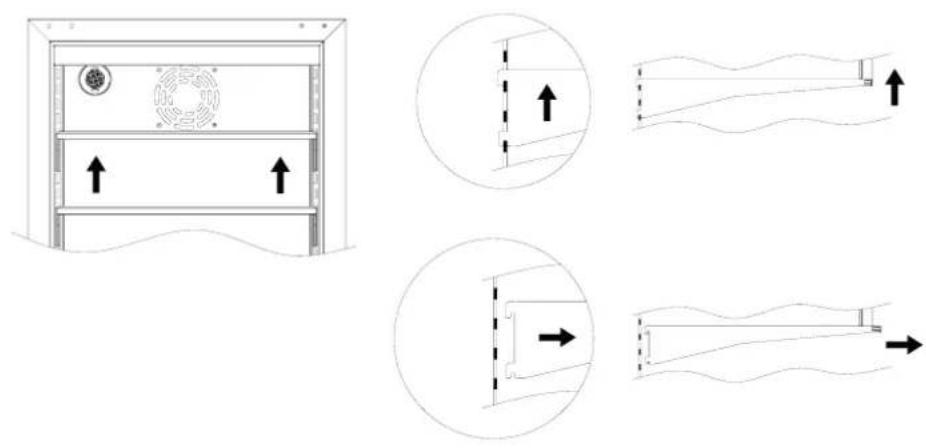

Adjusting the Glass Shelf 24

Replacement 25

English2

Care and Maintenance 26

Cleaning 26

Power Failure 26

Vacation Time 26

Moving Your Refrigerator 26

Energy Saving Tips 26

Troubleshooting 27

Troubleshooting Guide 27

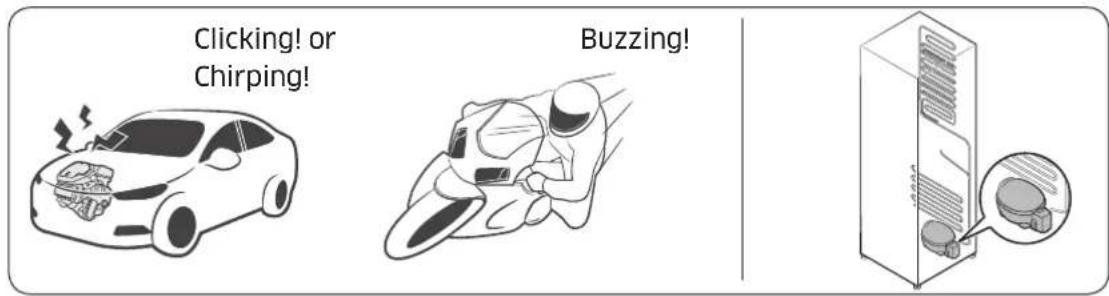

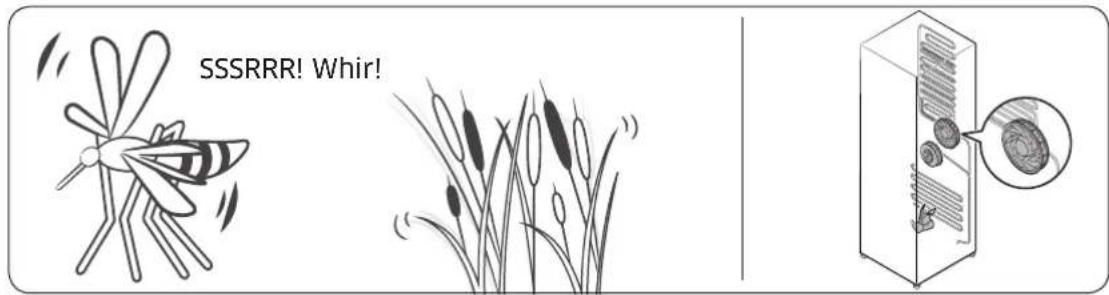

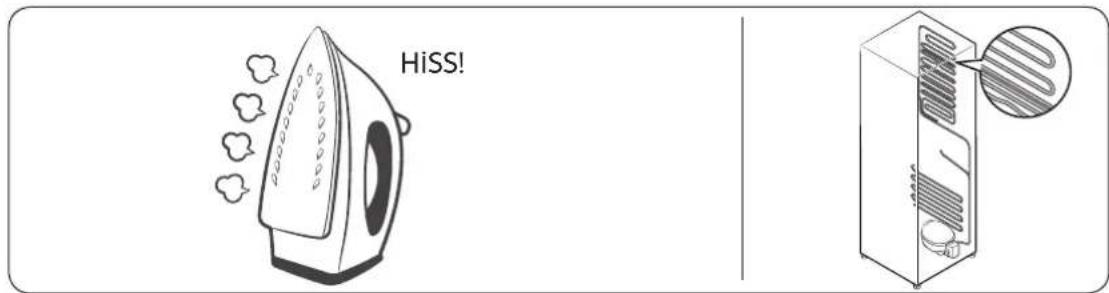

Abnormal Sounds 28

Warranty 30

United States - Warranty 30

CANADA - Warranty 34

Important Information

Before You Begin

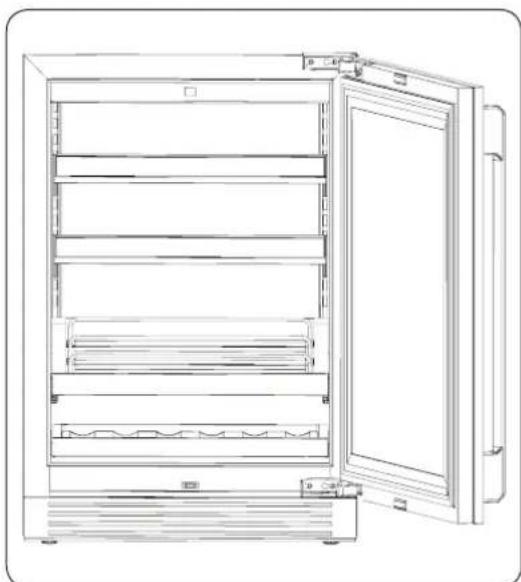

Line drawing of an open refrigerator with shelves and a door open (no text or symbols)

- The overall design and/or accessories may differ with the model.

Installer

- Leave these Use and Care instructions with the appliance.

Consumer

- Please read this Use and Care Manual completely before using your Refrigerator. Save it for future reference.

Retain your sales receipt or canceled check. Proof of original purchase date is required for warranty service.

Have the complete model and serial number identification of your appliance ready.

These numbers are found on the label located inside of the Refrigerator wall. Record these numbers below for easy access.

Model Number
Serial Number
Date of Purchase

English4

Safety Information

• Before using your new Dacor refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your Refrigerator may differ slightly from the Refrigerator described in this manual.
• It is hazardous for anyone other than an authorised Service Person to service this appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.

WARNING

• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft ^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven, radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

Warning; Risk of fire / flammable materials

English 5

Safety Information

Important Safety Symbols and Precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the Refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Important safety precautions

WARNING

• Fill with potable water only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.
• Connect to potable water supply only.

English6

WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

CAUTION

• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing.
• Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting to Service This Product. All Safety Precautions Must Be Followed.
• Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.
• Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.
• To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

Severe Warning Signs for Transportation and Site

WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
• This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility but also flammable.

English 7

Safety Information

Critical Installation Warnings

WARNING

• Do not install the Refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this Refrigerator in direct sunlight or expose it to heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same power strip. The Refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the Refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock or fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, insert the power cord between objects, or push the power cord into the space behind the appliance.
• Never unplug your Refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
• Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not install this appliance near flammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This Refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the Refrigerator.

English8

- Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if a child puts the packing materials on his or her head.

- The appliance must be positioned so that the plug is accessible after installation.

- Failing to do so may result in an electric shock or fire due to electric leakage.

- Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).

- Deteriorated insulation on electrical parts may cause an electric shock or fire.

- If large amounts of dust or water enter the Refrigerator, turn off the power switch and contact your Dacor service center.

- Otherwise there is a risk of fire.

- You need to remove all the protective plastic film before you initially plug the product in.

- Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.

- There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

- The Refrigerator must be safely grounded.

- Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

- Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.

- You must ground the Refrigerator to prevent any power leakages or electric shocks caused by current leakage from the Refrigerator.

- This may result in an electric shock, fire, explosion, or problems with the product.

- Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

- Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

- If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.

Safety Information

• Only a qualified technician or service company should be allowed to change the fuse in the Refrigerator.
• Failing to do so may result in an electric shock or personal injury.
• The wall socket must be easily accessible so that the appliance can be quickly disconnected from the wall socket in an emergency.
• It must be outside the area of the rear of the appliance.
• When positioning the appliance, ensure the power cord is not trapped or damaged.
• Do not locate multiple socket-outlets or power supplies at the rear of the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Installation Cautions

CAUTION

• Allow sufficient space around the Refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• After you have installed the Refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with beverage and wine.
• It is strongly recommended you have a qualified technician or service company install the Refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

English10

Critical Usage Warnings

WARNING

- Do not insert the power plug into a wall socket with wet hands.

-This may result in an electric shock.

- Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

- Do not insert hands, feet or metal objects (such as utensils, etc.) into the bottom or the back of the Refrigerator.

- This may result in an electric shock or injury.

- Any sharp edges may cause a personal injury.

- Do not put a container filled with water on the Refrigerator.

- If spilled, there is a risk of fire or electric shock.

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the Refrigerator.

- This Refrigerator is for storing beverage and wine only.

- This may result in fire or explosion.

• Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- o not let children hang on the door. A serious injury may occur.

- Do not let children go inside the Refrigerator. They could become trapped.

- Do not insert your hands into the area under the appliance.

- Any sharp edges may cause personal injury.

- Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the Refrigerator.

- Products that require strict temperature controls must not be stored in the Refrigerator.

- Do not place or use electrical appliances inside the Refrigerator, unless they are of a type recommended by the manufacturer.

- If you smell smoke, turn off the power switch immediately, and then contact your Dacor service center.

- If large amounts of dust or water enter the Refrigerator, disconnect the power plug and contact your Dacor service center.

- Otherwise there is a risk of fire.

- Do not leave the door of the Refrigerator open while the Refrigerator is unattended and do not let children enter the Refrigerator.

- It can cause death from suffocation by entrapment or personal injury.

English 11

Safety Information

• Do not overfill the Refrigerator with beverage and wine.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the Refrigerator.
• Do not use a hair dryer to dry the inside of the Refrigerator. Do not place a lighted candle in the Refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.
• Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
• Use only the LED lamps provided by the manufacturer or its service agents.
• Do not attempt to repair, disassemble, or modify the Refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your Refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Dacor service center.
• If the Refrigerator emits a burning smell or smoke, unplug the Refrigerator immediately and contact a Dacor service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the Refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Dacor service center.

English12

• If the product is equipped with LED lamps, do not disassemble the lamp covers and LED lamps yourself.
• Contact a Dacor service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• Do not expose the interior accessories, such as wine racks, bottle presenters, and shelf to direct sunlight for long.

Usage Cautions

CAUTION

• To get the best performance from the product:

- Do not place beverage and wine too close to the vents at the rear of the Refrigerator as this can obstruct free air circulation in the Refrigerator compartment

• Service warranty and modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Dacor warranty service, nor is Dacor responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the Refrigerator.

• Service warranty and modification.

• If the air vents are blocked, especially with a plastic bag, the Refrigerator can be over cooled.
• If the Refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the Refrigerator, turn off the power switch and contact a Dacor service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- If the Refrigerator is flooded, shut off the power to the Refrigerator and contact your nearest Dacor service center.

- There is a risk of electric shock or fire.

English 13

Safety Information

Cleaning Cautions

CAUTION

• Do not spray water directly on the inside or outside the Refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the Refrigerator.
• Do not place a lighted candle in the Refrigerator to remove bad odors.
• This may result in an electric shock or fire.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power and contact your nearest service center.

- Failing to do so may result in an electric shock or fire.

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

- Do not clean the appliance by spraying water directly onto it.

- Do not use benzene, thinner, or Clorox (bleach) to clean the Refrigerator.

- They may damage the surface of the appliance and may cause a fire.

- Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failing to do so may result in an electric shock or fire.

English14

Critical Disposal Warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the Refrigerator are damaged prior to disposal.
• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a bag over his or her head, the child could suffocate.

Before disposal of the appliance

1. Disconnect the main plug from the main socket.
2. Cut off the main power cord and discard it.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop or the shop where you purchased the product.

Safety Information

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Before connecting the Refrigerator to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surfaces with lukewarm water using a soft cloth.
  • This appliance is intended to be used in households and similar applications such as
• staff kitchen areas in shops, offices and other work settings;
• farmhouses and by clients in hotels, motels and other residential settings;
• bed and breakfasts and similar settings;
• catering and similar non-retail applications.
• When disposing of your appliance, please choose an authorized disposal site.

Installation of Your Refrigerator

• This appliance is designed for free-standing or built-in (fully recessed) installation (see sticker location at the back of this appliance).
• This appliance is intended to be used exclusively for the storage of beverage and wine.
• Place your Refrigerator on a floor that is strong enough to support it when it is fully loaded. To level your Refrigerator, adjust the front leveling leg at the bottom.
• This appliance uses flammable refrigerant, and so the cooling pipework must never be damaged during transportation. Install the Refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electricity consumption. Extremely cold ambient temperatures may also degrade the appliance's performance.
• Avoid installing the appliance in moist areas.
• Plug the Refrigerator into a dedicated, properly installed/grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician or an authorized Dacor service center.

English16

Attention

• Store beverage in sealed bottles.
• Do not overload the cabinet.
• Only open the door when necessary.
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the Refrigerator remain unused for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors.

Ambient Room Temperature Limits

This appliance is designed to operate in ambient temperatures between 60 °F and 90 °F (16 °C and 32 °C).

What's Included

Inside Parts, Storage, and Shelving

01 02 03 04

01 Control Panel

02 Adjustable Glass Shelf

03 Beverage Shelf

04 Bottom Wine Shelf

Wine Shelf

CAUTION

• Beverages stored on the wine shelf may be kept at higher temperatures than those in the beverage zone and may not last as long.
• Please store foods that are likely to be affected by long-term storage or temperature changes on the upper shelf.

NOTE

The wine shelf is a space for storing wine.

English18

Operations

Control Panel

0102030406070507 88°C °F - + Light °C/°F(3 sec) Lock (3 sec)

1. Bytton

Press and hold this button for 3 seconds to power on; press and hold this button for 3 seconds to power off.

2. Display Window

Shows the set temperature.

3. Temperature Down Button

• A (short press): When you press the button, the system immediately flashes and displays the current set temperature. Each press decreases the set temperature value by 1 °C (or 1 °F). Once the minimum possible set temperature is reached (such as 1 °C / 34 °F), the value no longer changes.
• B (press and hold for more than 1 second): When you press the button, the system immediately flashes and displays the current set temperature. When you press and hold the button, the set temperature will decrease by 1 °C (or 1 °F). Once the minimum possible set temperature is reached (such as 1 °C / 34 °F), the value no longer changes.

4. Temperature Up Button

• A (short press): When you press the button, the system immediately flashes and displays the current set temperature. Each press increases the set temperature value by 1 °C (or 1 °F). Once the maximum possible set temperature is reached (such as 10 °C / 50 °F), the value no longer changes.
• B (press and hold for more than 1 second): When you press the button, the system immediately flashes and displays the current set temperature. When you press and hold the button, the set temperature will increase by 1 °C (or 1 °F). Once the maximum possible set temperature is reached (such as 10 °C / 50 °F), the value no longer changes. Setup ends after you stop pressing the button.

Operations

5. Light Brightness and °C/°F Conversion Button

- A: When you touch this button, the appliance will beep and the chamber will show the light brightness level. If you do not want to change the brightness level, do not touch the control. The display will then switch to temperature after 3 seconds. If you want to change the brightness level, press this button once to increase the brightness by one level (level 0 > 1 > 2 > 3 > 0 ...). The display will return to temperature 3 seconds after you finish adjusting. This change will turn off the display lighting at levels 0-2.

0 (OFF) Turn off the light
1 (Level 1)	33 % brightness
2 (Level 2)	65 % brightness
3 (Level 3)	100 % brightness

When set to level 0/1/2, the display will be on when the door is open. If no button is pressed for 2 minutes, the display will turn off. If you close the glass door once the display is off, the display will remain off. If you close the glass door within 2 minutes, the display will turn off after 10 seconds.

When set to level 3, the display will always be on regardless of whether the door is open or closed.

- B: Press and hold for 3 seconds to toggle the temperature unit between ^ C and ^ F.

6. Lock Button

When the power is turned on and no button is pressed for 1 minute, the lock icon is displayed and the system automatically enters Lock mode to lock the control panel. The system will not operate when buttons are pressed in Lock mode. The lock icon will blink 5 times and a buzzer will sound.

If you press and hold the lock icon for 3 seconds while in Lock mode, the lock icon will blink 3 times and turn off, and the control panel will unlock.

Press and hold the Light + Lock buttons for 3 seconds. The "Sb on" code will be displayed in the window. The system will enter Sabbath operating mode and will run according to the preset temperature with no beeping, button actions, interior light, or door alarm.

Press and hold the Light Lock buttons for 3 seconds while in Sabbath mode to exit Sabbath mode. The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

8. + + Demo Mode

Demo mode is designed for use by retailers when they are displaying Refrigerator on a retail floor. In Demo mode, the fan motor and lights operate normally, but the compressors do not run so the wine cellar does not get cold.

English20

• To enter Demo mode, press and hold Temperature Up Button + and Lock simultaneously for 3 seconds. The fridge chime sounds and the temperature display shows "oF".
• To exit Demo mode, press and hold Temperature Up Button+ and Lock simultaneously for 3 seconds again. The fridge chime sounds and the temperature display shows the current temperature.

Note

If the Lock indicator turns on, you must first deactivate Lock.

Using Other Functions

The default temperature setting is 43 °F (6 °C).

The default temperature unit is °F.

The temperature can be set as low as 34 °F ( 1 °C ) or as high as 50 °F ( 10 °C ).

The actual temperature inside the appliance may vary depending on ambient temperature, how often the door is opened and how many warm bottles have recently been added to the appliance.

Temperature memory function

In the event of a power interruption, the Refrigerator can remember the previous temperature settings, and when the power is restored, the Refrigerator temperature will remain the same as it was when the appliance lost power.

If the door is open for 2 minutes, an alarm will sound.

If the door remains open after the initial alarm, the alarm sounds every minute. The door open alarm sounds from inside the Refrigerator.

CAUTION

If the unit is unplugged or power is lost or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Refrigerator will not start. If the Refrigerator is being used for the first time or has not been used for a long time, the temperature will differ from the set temperature shown on the LED display. The temperature will revert back after the Refrigerator has run for a period of time.

English 21

Operations

Storage Diagram

42

42

30

14

||

total 128 cans (max)

berverage

English22

Beverage Shelf

• To avoid damaging the door gasket, ensure the door is fully opened when pulling shelves out of the Refrigerator.
  • To remove beverage shelves:
• Fully extend the shelf you wish to remove.
• Lift the front of the shelf.
• Holding the shelf track, push the shelf in, then up to release it from the rear dampers.

The front buckle The front buckle

Operations

Adjusting the Glass Shelf

Lift the frame, pull it forward to remove it, and then place it where you want it.

English24

Replacement

Replacing the filter

1. Open the door and remove the shelves. Turn the filter as in Fig. A.
2. Turn the filter to find the notch as in Fig. B.
3. Remove the filter as in Fig. C.
4. Install the new filter.

NOTE

The filter should be replaced every 3-6 months depending on the unit's exposure level to odor. If the unit is placed in the kitchen, regular replacement every 3 months is ideal.

Fig. A Fig. B Fig. C

Care and Maintenance

Cleaning

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with warm water and a mild detergent solution.
• Wash the shelves with a mild detergent solution.
• Drain excess water out of the sponge or cloth when cleaning around the controls or any electrical parts.
• Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a long period of time, ensure you take the proper steps to protect your contents.

Vacation Time

• Short vacations: leave the Refrigerator operating during vacations of less than three weeks.
• If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, propping it open if necessary.

Moving Your Refrigerator

• Remove all items.
• Take out the loose items inside the Refrigerator (such as shelves), or use foam to hold the loose items in place.
• Turn the adjustable legs up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also, protect the appliance exterior with a blanket or similar item.

Energy Saving Tips

- The Refrigerator should be located in the coolest area of the room, away from heat-producing appliances, and out of direct sunlight.

English26

Troubleshooting

Troubleshooting Guide

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

Symptom Possible causes
The Refrigerator does not operate	· The appliance is not plugged in.· The appliance is turned off.· The circuit breaker is tripped or a fuse is blown.
The Refrigerator is not cold enough	· Check the temperature control setting.· A higher setting may be required depending on the Refrigerator's surroundings.· The door is opened too often.· The door is not completely closed.· The door gasket does not seal properly.
Turns on and off frequently	· The room temperature is hotter than usual.· The cabinet is overloaded.· The door is opened too often.· The door is not completely closed.· The temperature control is not correctly set.· The door gasket does not seal properly.
The light does not work	· The appliance is not plugged in.· The circuit breaker is tripped or a fuse is blown.· The bulb has burned out.· The light button is "OFF".
Vibrations · Check to ensure that the Refrigerator is level.
Too much noise	· A rattling noise may come from the flow of the refrigerant, which is normal.· As each cycle ends, you may hear gurgling.· Contraction and expansion of the inside walls may cause popping and crackling noises.· The Refrigerator is not level.
The door will not close properly	· The Refrigerator is not level.· The door was reversed and not properly installed.· The gasket is dirty.· The shelves are out of position.

Troubleshooting

Abnormal Sounds

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the Refrigerator may make sounds similar to a car engine starting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

- While the fan is operating, these sounds may occur. When the Refrigerator reaches the set temperature, no fan sound should occur.

SSSRRR! Whir!

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HiSS!

English28

- As the Refrigerator cools refrigerant gas moves through sealed pipes, causing bubbling sounds.

Simple line drawing of a kettle with smoke rising (no text or symbols)

Bubbling!

Diagram of a refrigerant unit with heat exchanger and cooling fins, showing internal structure (no text or labels)

- As the Refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Diagram showing a tree branch with leaves and a lightning bolt, no text or symbols present

Cracking!

- Due to pressure equalizing when opening and closing the Refrigerator door, whooshing sounds may occur.

Warranty

Customer Service

Before you request help or schedule service:

1. Try the Solutions offered in the Problem–Solution table in the “Troubleshooting” section.
2. Become familiar with the warranty terms and conditions of your product.
3. If none of these tips or suggestions resolves your problem, visit dacor.com or call our Customer Service center at [phone] (United States), [phone] (Canada)

United States - Warranty

CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - UNITED STATES:

FULL TWO-YEAR WARRANTY

This warranty covers any defects in materials or workmanship in the Dacor-branded new appliance purchased from a Dacor Authorized Dealer or other seller authorized by Dacor.

This full warranty runs for two years starting from the date of delivery or closing date for new construction, whichever period is longer. Dacor will repair or replace your product.

LIMITED WARRANTY

After the Full Warranty period has ended, this product is warranted against defects in materials or workmanship reported to us during the applicable warranty periods as follows:

Years 3-6 of your ownership - Parts and Labor on Sealed System	For the third through sixth years of your ownership, we will pay for factory specified parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system (the compressor, evaporator, condenser, dryer and connecting tubing).
Years 7-10 of your ownership - Parts only on the Sealed System	For the seventh through tenth years of your ownership, we will pay for factory-specified parts only to correct defects in the sealed refrigeration system.
Years 7-10 of your ownership - Parts only on the Compressor	For the seventh through tenth years of your ownership, we will pay for factory-specified parts only to correct defects in the compressor.

English30

Cosmetic Defects. In addition, for 60 days from the date of delivery, your product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, “as-is” or refurbished products are specifically excluded.

COVERAGE LIMITATIONS

Service will be provided by a Dacor designated service company during regular business hours. Please note service providers are independent entities and are not agents of Dacor.

The owner must provide proof-of-purchase, proof of delivery, and/or a closing statement for new construction upon request. All Dacor products must be accessible for service.

Warranty will be null and void on product that has altered, defaced, or missing serial numbers and tags.

Warranty is null and void if non-CSA approved product is transported from the U.S.A.

Warranty

WHAT IS NOT COVERED

·Due to differences in painted parts, kitchen lighting, product placement, and other factors; this warranty does not apply to color variation.	·Service calls to educate the customer on proper use and care of the product.
·Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses.	·Consequential or incidental damage, including but not limited to: food or medicine loss, time away from work, or restaurant meals.
·Commercial, business, or rental use, or any application other than residential consumer use.	·Failure of the product caused by improper product installation.
·Replacement of house fuses, fuse boxes, or resetting of circuit breakers.	·Damage caused by accident, fire, flood, power interruption, power surges, or acts of God.
·Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects.	·Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect.
·Except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the purchaser.

English32

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

Warrantor: Samsung Electronics America, Ridgefield Park, NJ, 07660

Warranty

CANADA - Warranty

CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - CANADA:

This Limited Warranty covers only those Products supplied and distributed in Canada by us and delivered new, in the original carton or packaging, to the original consumer purchaser that are purchased from an authorized reseller or distributor, except as otherwise stated herein. Except where prohibited by applicable provincial law, only the original consumer purchaser of the Product has any rights under this Limited Warranty and this Limited Warranty may not be transferred or assigned.

Any additional statements such as dealer advertising or presentation, whether oral or written, that make additional warranties or modifications to this Limited Warranty do not constitute warranties by us and should not be relied upon.

1. WHAT IS COVERED AND FOR HOW LONG

We warrant to the original purchaser (“Purchaser”) that your Dacor Refrigerator purchased from an authorized reseller or distributor in Canada (the “Products”) is free from defects in material and workmanship encountered in normal use for the warranty period identified below, effective as of the date of purchase or closing date for new construction, whichever period is longer.

Dacor Product or Part Warranty Period and Warranty Coverage
Refrigerator Two (2) Years: Parts and Labour
Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing)	Six (6) Years: Parts and Labour
Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing)	Ten (10) Years: Parts Only
Refrigerator Compressor	Ten (10) Years: Parts Only

Cosmetic Defects. For sixty (60) days from the date of purchase, the Product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, "as-is" or refurbished products are specifically excluded.

English34

2. COVERAGE LIMITATIONS

If the Product fails to operate according to the Product's specifications during the applicable warranty period and the failure is due to improper workmanship or defective material, we will repair or replace, at our sole option, and without charge to the Purchaser, the Product or any defective component part of the Product. We may, at our sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product. If the same model Product or part is not available for replacement, we may, at our sole option, replace the Product or part with any rebuilt, refurbished, reconditioned or new Product or part of similar utility and value to the Product or part being replaced.

We expressly reserve the exclusive right, at our sole option, and in lieu of any service, repair or replacement of a Product under this Limited Warranty, to offer the Purchaser a partial refund of the original purchase price paid by the Purchaser for that Product (a "Partial Refund"). The amount of any Partial Refund to be offered shall be determined in our discretion based on the fair market value of the Product given its age and condition. If Purchaser accepts that offer of a Partial Refund, the Purchaser shall be deemed to have released us from any claim or liability whatsoever under this Limited Warranty or under any other applicable express or implied warranty or condition in respect of that Product.

All repaired parts or replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer.

3. WHAT IS NOT COVERED

The remedies provided for in this Limited Warranty are available only within Canada.

This Limited Warranty does not cover any defect, malfunction, failure or damage caused by or resulting from any of the following:

(a) removal, installation, re-installation, maintenance, or service of the Product that was not authorized by us; (b) accident, fire, flood, power interruption, power surges, incorrect line voltage or supply or electrical current, fuses, house wiring, circuit breakers, connectors not supplied by us, unusual electrical or electromechanical stress, acts of God, or acts of nature; (c) misuse, abuse, neglect, mishandling, misapplication, alteration or modification of the Product or any part of the Product; (d) use of the Product in conjunction with products, equipment, utilities, services, parts, supplies, accessories, applications, external wiring, connectors, or ancillary or peripheral equipment not supplied or authorized by us; (e) uses for which the Product was not intended.

Warranty

Further, this Limited Warranty does not cover: (i) any Product or part from which the serial number has been removed or on which the serial number has been made illegible. Removing the serial number on any Product or rendering it illegible on any Product will immediately void the Limited Warranty for that Product; (ii) any damage whatsoever that occurs during shipment of the Product once the Product has been accepted by the Purchaser; (iii) any damage whatsoever resulting from any failure to follow operating, maintenance or environmental instructions contained in any instruction booklet or owner's manual available in connection with the Product; (iv) service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses; (v) replacement of house fuses, fuse boxes, or resetting of circuit breakers; (vi) liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects; (vii) the cost of service calls for instructions, for the correction of installation errors, for customer adjustments that are explained in the Product owner's manual, or where the Product operates according to the Product's specifications. There may be a service charge for service calls made for issues not covered under this Limited Warranty; (viii) breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect; (ix) except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the Purchaser; (x) commercial, business, or rental use, or any application other than residential consumer use; (xi) colour variation due to differences in painted parts, kitchen lighting, product placement, and other factors;

We do not warrant or guarantee uninterrupted or error-free operation of the Product.

English36

4. WHAT ARE THE LIMITATIONS ON IN-HOME WARRANTY SERVICE?

In-home service is subject to availability, and it is not available in all areas of Canada. In-home service will only be provided if the Product is unobstructed and easily accessible from floor level to service personnel. If repair cannot be completed during in-home service or if in-home service is not available in your area, you may be directed to deliver the Product to a Dacor Authorized Service Center for warranty service. The cost of transportation of the Product to and from a Dacor Authorized Service Centre shall be paid by the Purchaser unless we elect to provide that transportation at our discretion.

To receive in-home service, the Purchaser must first contact Dacor Customer Care for problem determination and service procedures. All in-home warranty repairs must be performed by a Dacor Authorized Service Center. Valid proof of purchase must be presented to us at the time that service is requested and before warranty services are rendered.

When in-home service is not available, the Purchaser must return the Product to a Dacor Authorized Service Center for analysis. Assistance on where to deliver the Product can be obtained by contacting our Customer Service center. The cost of transporting the Product to or from the Authorized Service Center must be paid by the Purchaser.

5. WHAT ARE THE LIMITS OF OUR LIABILITY?

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, OUR LIABILITY IS SUBJECT TO THE FOLLOWING LIMITATIONS:

(A) THE PURCHASER TAKES THE PRODUCT "AS IS" AND WE MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.
(B) THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, WITH RESPECT TO THE PRODUCT
(C) IN PARTICULAR, AND WITHOUT LIMITING THE GENERALITY OF THE FOREGOING PARAGRAPHS (A) AND (B), WE MAKE NO WARRANTY, CONDITION OR REPRESENTATION AS TO ANY OF THE FOLLOWING: (i) THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; (ii) TITLE OR NON-INFRINGEMENT; (iii) DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT; (iv) THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; (v) COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING TO THE PRODUCT.
(D) NOTHING CONTAINED IN ANY INSTRUCTION MANUAL OR OWNER'S MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.

Warranty

THE PROVISIONS FOUND IN PARAGRAPHS (E) AND (F) BELOW DO NOT APPLY IN CIRCUMSTANCES WHERE THIS LIMITED WARRANTY IS GOVERNED BY THE LAWS OF THE PROVINCE OF QUEBEC.

(E) ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING ANY APPLICABLE IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THIS LIMITED WARRANTY. SOME PROVINCES PROHIBIT LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND THE LIMITATION ON THE DURATION OF THE IMPLIED WARRANTY WILL NOT APPLY TO THE EXTENT THAT THE LIMITATION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.
(F) WE SHALL NOT BE LIABLE FOR DAMAGES OF ANY KIND (INCLUDING, WITHOUT LIMITATION, ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES) THAT RESULT OR ARISE DIRECTLY OR INDIRECTLY FROM ANY OF THE FOLLOWING: (i) THE PURCHASE, USE, OR MISUSE OF THE PRODUCT; (ii) ANY LOSS OF USE OF THE PRODUCT OR INABILITY TO USE THE PRODUCT; (iii) ANY BREACH OF THE EXPRESS WARRANTY; (iv) ANY LOSS OF ANTICIPATED PROFITS OR BENEFITS; (v) ANY LOSS OF FOOD OR CONSUMABLES; (vi) ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY US, ITS AGENTS OR EMPLOYEES; (vii) ANY BREACH OF CONTRACT; (viii) ANY CLAIM BROUGHT AGAINST THE PURCHASER BY ANY OTHER PARTY. SOME PROVINCES PROHIBIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THE ABOVE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES WILL NOT APPLY TO THE EXTENT THAT THE EXCLUSION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.
(G) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM PROVINCE TO PROVINCE. THIS LIMITED WARRANTY STATES THE PURCHASER'S EXCLUSIVE REMEDY. EXCEPT WHERE PROHIBITED BY APPLICABLE PROVINCIAL LAW, THIS LIMITED WARRANTY IS NOT TRANSFERABLE WITHOUT OUR EXPRESS CONSENT.
(H) IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY.

If the Product is purchased from a non-authorized reseller or distributor or purchased outside of Canada, this Limited Warranty does not apply except that the above limitations specified in Sections 5(A) through 5(I) shall apply.

Warrantor in Canada: Samsung Electronics Canada Inc., Mississauga, ON, L5N 0B9 Canada

English38

OUTSIDE THE UNITED STATES AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part.

All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser.

Contact Dacor

If you have any questions or comments relating to Dacor appliances, please contact the Dacor Customer Service Center.

Country Contact Center Web Site
U.S.A 1-833-353-5483 www.dacor.com
CANADA 1-844-509-4659 www.dacor.com

dacor.

DRR24_UM_Rev02_EN+ES+FR

dacor®

Manual del usuario

Line drawing of a refrigerator with open door and side drawers (no text or symbols)

Technical diagram showing airflow or ventilation system with labeled components and directional arrows

Español24

Reemplazo

Aleteo Runrún

Simple line drawing of a kettle with smoke rising from its side (no text or symbols)

Diagram of a refrigerant unit with heat exchanger and cooling fins (no text or labels)

Line drawing of a refrigerator with open door and side drawers (no text or symbols)

Technical diagram showing airflow or ventilation system with labeled components and directional arrows

Français24

Remplacement

Illustration of a steam iron with steam bubbles (no text or symbols)

Diagram of a refrigerator with ventilation slots and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a kettle emitting smoke (no text or symbols)

Diagram of a refrigerator interior showing heat exchanger and ventilation duct (no text or labels)

Diagram of a tree trunk with leaves and a lightning bolt symbol, no text or labels present
