USER MANUAL Galileo Linear A830 FABER

Technical line drawing of a structural assembly with layered components and internal channels (no text or symbols)

EN 3
FR 17
IT 32
ES 47
DE 62
RU 77
PL 93
GR 108
BG 124
SI 139
HR 153
ET 167
CZ 180

EN

1. SAFETY INFORMATION

For your own safety and correct operation of the appliance, please read this manual carefully before installation and operation. Always keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users are familiar with all the appliance's operating and safety characteristics. These hobs have induction systems that comply with the requirements of EMC standards and with the EMF directive, and they should not interfere with other electronic devices. Pacemaker wearers and those using other electronic implants must consult their doctor or the manufacturer of the implanted device to assess whether or not it is sufficiently resistant to interference.

Electrical connections must be performed by a trained technician. Before making the electrical connection, please read the section on ELECTRICAL CONNECTION.

For appliances with a power supply cable, the terminals or section of wire between the cable anchor point and the terminals must be laid out so that they allow the live wire to be extracted before the earth wire if it comes loose.

• The manufacturer cannot be held responsible for any damage resulting from incorrect or inadequate installation.
• Check that the mains power supply corresponds to the one indicated on the rating plate affixed to the inside of the product.
• The cut-out devices must be installed in the fixed system according to the wiring system regulations.
• For Class I appliances, check that the domestic power supply has a suitable earthing connection.
• Connect the suction hood to the flue using a suitable pipe. Refer to the purchasable accessories indicated in the installation manual (for circular pipes: minimum diameter 120 mm). The length of the discharge piping must be as short as possible.
• Connect the product to the mains using an omnipolar switch.
• The air venting regulations must be complied with.
• Never connect the suction appliance to ducts carrying combustion fumes (heaters, fireplaces, etc.).
• If the suction hood is used alongside non-electrical appliances (e.g. appliances with gas burners), it is necessary to guarantee a sufficient level of ventilation in the room, to

prevent any exhaust backflow. When the cooking appliance is used together with other appliances using non-electrical power sources, the negative pressure in the room must not exceed 4 Pa, to prevent the fumes being sucked back into the room by the cooking appliance.

• The air must not be discharged into a pipe that is also used as a flue for appliances powered by gas or other fuels.
• If the power cable is damaged, it must be replaced by the manufacturer, an authorised service centre or a qualified technician, to avoid any risk of danger.
• Connect the appliance plug to a socket that complies with current regulations and is in an accessible area.
• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be followed carefully.

WARNING: Remove the protective films before installing the appliance.

- Only use the screws and other hardware elements supplied with the appliance.

WARNING: Failure to install the screws or fixing devices as described in these instructions may lead to a risk of electric shocks.

• Cleaning and maintenance must not be carried out by children, unless they are supervised by an adult.
  • Children must be supervised to ensure that they do not play with the appliance.
• This appliance must not be used by persons (including children) with limited physical, sensory or mental abilities, or by inexperienced or untrained persons, unless closely supervised and instructed in the safe use of the appliance by a person responsible for their safety.
• This appliance may be used by children over the age of eight and by persons with limited physical, sensory or mental abilities or with insufficient experience and knowledge, provided they are closely supervised and instructed on the safe use of the appliance and on the dangers that it involves. Do not allow children to play with the appliance.

WARNING: The appliance and its accessible parts become extremely hot during use.

Take great care not to touch the heating elements.

Keep children under 8 years of age well away from the appliance, unless they are under constant supervision.

- Clean and/or replace the filters after the period indicated (danger of fire). See the para-

graph on Cleaning and maintenance.

• Always guarantee adequate ventilation of the room when the appliance is used in conjunction with other appliances powered by gas or other fuels (this does not apply to appliances that only recirculate the air within the room).

WARNING: If the surface shows any signs of cracking, turn the appliance off to prevent any risk of electric shock.

• Do not turn the device on if the surface is cracked or any damage is visible in the thickness of the material.
• Do not touch the appliance if your hands or body are wet.
• Do not use steam appliances to clean the product.
• Do not rest metal objects such as knives, forks, spoons and pan lids on the surface of the hob, as they might overheat.
• Use the relevant control to turn the hob off after use; do not rely on the pan indicators.

WARNING: Unsupervised cooking on a hob using oil and grease may be dangerous and could cause a fire. NEVER attempt to put flames out with water. Turn the appliance off and suffocate the flames by covering them with a pan lid or a fire blanket, for example.

WARNING: The cooking process must be supervised. A short cooking process must be constantly monitored.

- The appliance is not designed to be started using an external timer or a separate remote-controlled system.

WARNING: Danger of fire: do not place objects on the cooking surfaces.

• The appliance must be installed to allow it to be cut off from the electrical power supply with a contact opening (3 mm) that ensures complete disconnection under over-voltage category III conditions.
• The appliance must never be exposed to the elements (rain, sun).
• Ventilation of the appliance must comply with the manufacturer's instructions.
• Keep the packaging away from children and animals.
• Kitchen hoods and other cooking fume extractors can affect the safe operation of appliances which burn gas or other fuels (including those in other rooms) due to the backflow of combustion gases. These gases can cause carbon monoxide poisoning. After installing a kitchen extractor hood or any other cooking fume extractor, make sure that the gas appliances are tested by a certified technician to guarantee that there is no backflow of combustion gases.

2. USE

• The suction hood has been designed solely to eliminate cooking fumes during domestic use.
• Never use the appliance for purposes other than those for which it has been designed.
• Deep fryers must be continuously monitored during use: overheated oil could catch fire.
• Do not operate the appliance using an external timer or separate remote controlled system.
• The appliance must never be installed behind a decorative door, to prevent it from overheating.
• Never stand on the appliance, as this may damage it.
• Do not rest hot pots and pans on the frame, as this may damage the silicone seals.
• Do not cut or prepare foodstuffs on the surface and do not drop hard objects onto it. Do not drag pans or plates over the surface.

3. CLEANING AND MAINTENANCE

• Switch the appliance off or disconnect it from the electricity supply before any maintenance work.

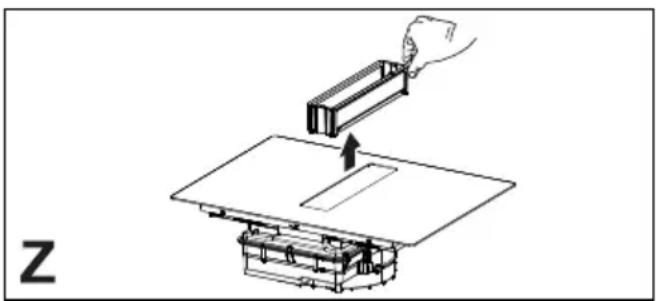

• The grease filters must be cleaned every 2 months of use, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher. Do not wash the grilles in the dishwasher. (Z).

Diagram of a hand holding a rectangular object above a mechanical device with an arrow indicating motion (no text or symbols)

General recommendations

• Never use abrasive sponges, wire wool, hydrochloric acid or other products that might scratch or mark the surface.
• Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be consumed.

Cleaning the device

• Clean the hob after each use to prevent any food residues from carbonising. It is much harder work to remove encrusted and burnt-on dirt.
• For day-to-day dirt, use a soft cloth or sponge and a suitable detergent. Follow the manufacturer's recommendations regarding detergents to be used. The use of protective detergents is recommended.
• Remove encrusted dirt, for example milk that has overflowed during boiling, using a scraper pad suitable for vitreous ceramic, while the hob is still hot. Follow the manufacturer's recommendations regarding scraper pads to be used.
• Remove food containing sugar, for example jam that has spilt during cooking, using a scraper pad suitable for vitreous ceramic, while the hob is still hot. If you do not, the residue may damage the vitreous ceramic surface.
• Remove any melted plastic using a scraper pad suitable for vitreous ceramic, while the cooker hob is still hot. If you do not, the residue may damage the vitreous ceramic surface.
• Remove limescale using a small amount of limescale remover solution, for example vinegar or lemon juice, once the cooker hob has cooled down. Then, clean again with a damp cloth.

4. INSTALLATION REQUIREMENTS

The installation process must comply with the laws, ordinances, directives and standards (electrical safety rules

and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!

• Do not use silicon sealant between the appliance and the worktop. The cooker hob is designed to be fitted flush with the kitchen worktop, on a kitchen unit with a width of 600 mm or more.
• If the appliance is mounted on flammable materials, the guidelines and regulations relating to low voltage installations and fire prevention must be followed strictly.
• For built-in units, the components (plastic materials and veneered wood) must be mounted with heat-resistant adhesives (min.100°C): the use of unsuitable materials and adhesives can cause deformation and detachment.
• The kitchen unit must have sufficient space to allow for electrical connection of the device. Wall-mounted units above the device must be installed at a sufficient distance to leave the space required to work in comfort.
• The use of decorative hardwood borders around the worktop behind the device is allowed, provided the minimum distance always complies with the indications provided in the installation drawings.
• The minimum distance between the fitted device and the rear wall is indicated in the installation drawing for the flush-fitted device (150 mm for the side wall, 40 mm for the rear wall and 500 mm for any wall-mounted units above it).
  • To prevent infiltration of liquids between the edge of the cooker hob and the worktop, fit the adhesive seal supplied along the whole outer edge of the cooker hob prior to installation.

5. ELECTRICAL CONNECTIONS

Illustration showing two workers with boxes and a crossed-out box, one pointing at a broken box and the other holding a briefcase.

WARNING: All electrical connections must be carried out by an authorised installer.

• Follow the connection diagram (underneath the product).
• This appliance has a Y-type connection. We recommend using an H05V2V2-F power cable measuring 5 x 2.5 mm², SINGLE AND TOW-PHASE connection: minimum wire section: 2.5 mm². External cable diameter: min 8 mm - max 12 mm.
• The connection terminals can be accessed by removing the junction box cover.
• Check that the domestic power supply characteristics (voltage, maximum power and current) are compatible with those of the appliance.
• Connect the appliance as outlined in the installation manual (in compliance with the standard supply voltages in force under national law).

Attention! Do not weld any of the cables!

6. ENVIRONMENTAL ASPECTS

Disposal of household appliances

The symbol on the product or packaging indicates that the product must not be disposed of with normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By ensuring that this product is disposed of correctly, you will help prevent possible negative consequences for the environment and health that might result from its improper disposal. For more detailed

information on how to recycle this product, please contact your local municipal offices, local waste disposal service or the shop from which the product was purchased.

The appliance complies with directive 2012/19/EU relating to reduction in the use of dangerous substances in electrical and electronic appliances and waste disposal.

Disposal of packaging materials

Materials with the symbol can be recycled. Dispose of the packaging in special recycling collection bins.

Energy saving

You can save energy during everyday cooking if you follow hints outlined below.

• When you heat water, only use the quantity you require.
• If it is possible, always put the lids on the cookware.
• Place the pan on the hob before you switch it on.
• Put smaller pans on the smaller cooking areas.
• Put the pans directly in the centre of the cooking area.
• Use residual heat to keep the food warm or melt it.

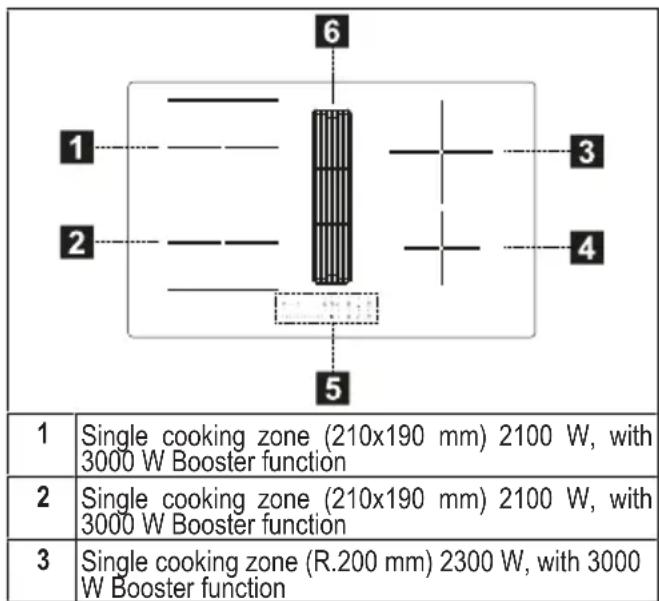

7. PRODUCT DESCRIPTION

1 2 3 4 5 6 Single cooking zone (210x190 mm) 2100 W, with 3000 W Booster function 2 Single cooking zone (210x190 mm) 2100 W, with 3000 W Booster function 3 Single cooking zone (R.200 mm) 2300 W, with 3000 W Booster function

4	Single cooking zone (R.145 mm) 1400 W, with 1850 W Booster function
5	Control panel
6	Extractor
1 + 2	Bridge cooking area (220 x 395 mm) 3000 W, with 3700 W Booster function.

INDICATORS

Pan detection

Each cooking zone is equipped with a system that detects the presence of a pan on the hob.

The detection system is able to recognise pans with a magnetisable bottom of a type suitable for use on induction hobs.

If the pan is removed during operation or an unsuitable pan is used, the symbol u appears on the display.

Residual heat indicator

The residual heat indicator is a safety feature, indicating that the surface of the cooking area is still at a temperature of 50^ C or above, which may cause burns if touched with bare hands. The digit for the corresponding cooking area indicates H

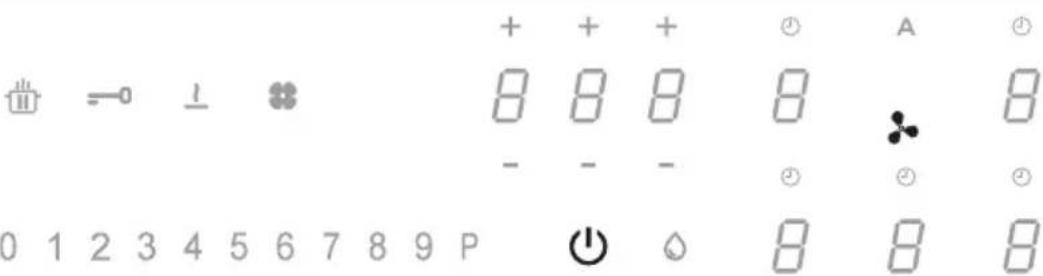

8. CONTROL PANEL

12 11 10 9
13
1	On/Off
2	Grease filter saturation indicator
3	Cooking zone power level indicator
4	Extractor power level indicator
5	Extractor timer control
6	Extractor controls zone symbol
7	Cooking zone timer control
8	Timer management zone
9	Activated carbon filter saturation indicator
10	Melting
11	Lock key
12	Pause key
13	Scroll keypad

A | Auto key

The cooking zones can be activated by pressing the reference digit 8 The digit becomes brighter to confirm the operation.

When a pan is placed on one of the 4 cooking areas, the hob automatically detects its presence and lights up the corresponding digit to activate it.

If there are no pans or other objects on the hob, the digits are not visible.

The functions which can be selected are always visible on the control panel, but with a dimmed light. Select the functions by touching the corresponding symbol.

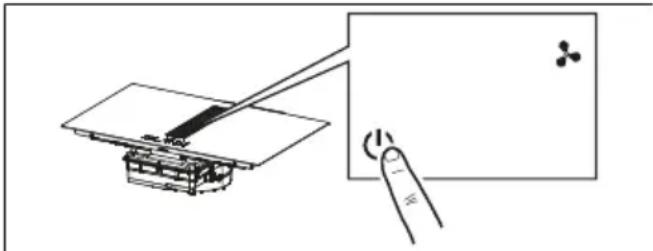

Turning on the appliance:

Diagram showing a mechanical assembly with a tool interacting with a screen, no text or symbols present

Press and hold the On/Off button for 2 seconds to turn the hob on and activate its functions.

At this point the hob is on but all the cooking zones and the hood are at zero power. The Hob will switch off automatically after 20 seconds if it is not being used.

Warning: For safety reasons the hob can always be turned off using the On/Off button.

Warning: The functions that can be selected will always be the ones that are illuminated/visible on the control panel, and these will always be the only ones that can be activated.

The controls for the cooking areas, suction hood and timer can be activated by pressing on the reference Digit.

The Digit lights up more intensely to confirm the operation.

9. POWER LIMITATION

When connecting to the household power supply for the first time, the installer must set the power of the cooking zones based on the actual capacity of the household power supply.

If this is not necessary, the hob can be turned on directly using ⏻ otherwise, follow the operations below to access the menu.

Before carrying out the procedure, it is advisable to read the entire paragraph.

Connect the hob to the domestic mains power.

1. All the digits light up for a few seconds, then switch off and only keeps flashing.
2. Press and hold : the digits in the cooking area indicate 5.
3. While holding down, start pressing the zone digits, proceeding anticlockwise.

The rear left digit indicates C and a number indicating the type of menu. The front left digit indicates a number which depends on the parameters indicated in the selection.

Select the digit with C and press "8" in the power bar.

Select the front left digit and select the correct setting.

See the following table for the specifications:

Value on the power bar	KW	Notes
0	7.4	Standard initial setting
1	4.5
2	3.5
3	2.8

Once the correct value has been entered, confirm by touching and holding ⏻.

10. HOB FUNCTIONS

Child lock	This function prevents accidental use of the appliance. This cannot be used during a cooking operation
	To enable: remove all cookware from the appliance, turn the appliance off. If there is no pan on the hob, press and hold for 3 seconds one of the 5 digits (not visible) next to the point on the left side. Release and slowly swipe along the power bar from 0 to BOOST. All the digits that indicate L.The operations described must be completed within 10 seconds.
	To disable: turn the appliance on and then press and hold any of the 5 digits for 3 seconds. Re-lease and slowly swipe along the power bar from BOOST to 0. The 5 digit displays will lit up indicat-ing and 0 power level.The operations described must be completed within 10 seconds.
Lock	It is possible to lock the hob functions during use, e.g. to clean the hob. The function is enabled even if the hob is switched off and on again.If the electricity supply is cut, the function is disabled.
	To enable: press and hold for 1 second.
	To disable: press -0
Boost function	Every cooking area can be set to an additional power level for a maximum of 5 minutes.
	To enable: select one of the 4 cooking areas and select "P" on the power bar. The corresponding digit indicates P.
	To disable: select one of the other possible values on the power bar.
Cooking zone timer	The timer allows a specific cooking area to be switched off when the set time expires.The cooking areas can be programmed individually because each one has its own timer.
	To enable: With the cooking area in operation, press to access the timer management controls for that zone.The 3 digits indicate "0 0 0". Press "+" or "-" to set the timer countdown.8 8 8Hours - Tenths - MinutesTo confirm the set time, do not touch anything for 10 seconds.When the countdown has finished, the digits are reset and an audible signal is emitted. The func-tion can be interrupted by pressing any key.If the timer is enabled for more than one cooking area, the 3 digits will always show whichever timer is about to finish first.
	To deactivate: with the cooking area in operation, press to access the timer management controls for that zone.Set the three digits to "0 0 0" using "+" or "-" or press the On/Off key.
Timer (generic)	Timer with alarm for generic use.
	To enable: switch on the hob making sure there are no pans or active cooking areas.The 3 digits to control the timer show “- - -”.Press the digit to access the timer menu and display “0 0 0”.Press “+” or “-” to set the timer countdown.Hours - Tenths - MinutesTo confirm the set time, do not touch anything for 10 seconds.When the countdown has finished, the digits are reset and an audible signal is emitted. The function can be interrupted by pressing any key.Repeat the steps described to change the countdown value.
	To disable: switch on the hob making sure there are no pans or active cooking areas.Press the digit to access the timer menu and use “+” and “-” to set the display to “0 0 0” “-” or press the On/Off key.
Melting	To enable: select one of the 4 cooking zones and pressThe digit of the selected zone shows
	To disable: press or press .
Heating function	This function is used to heat a pan to the maximum power before continuing to cook at a selected level. The time interval for which the cooking zone is held at maximum power depends on the final cooking level that has been set. See the table:
	Power level Timer (seconds)
	1	48
	2 144
	3 230
	4 312
	5 408
	6 120
	7 168
	8 216
	9 Not available
	P Not available
	To enable, with a pan on the hob and the cooking zone selected, press and hold the selected value (from 1 to 8) on the power bar for 3 seconds. The display of the corresponding cooking zone indicates “A”.The cooking level can be increased, but the function is disabled if it is decreased.It can also be disabled by touching and holding down the key of the cooking zone in question for 3 seconds.
Pause function	This function allows you to pause/restart any active function on the hob, by reducing the power available in the cooking zone and resetting all the functions. If the Pause function is not disabled with 10 minutes, the hob automatically switches off.
	To enable: With a pan on the hob and the cooking zone selected, press and hold the Pause function key at least 1 second. All the displays show .
	To disable: press and hold at least 1 second until it starts flashing. Press any other key within 10 seconds. The function is disabled and the hob continues with the previous settings.
Recall function	This function is used to recall the function settings of the hob if it is switched off by mistake or the electricity is unexpectedly cut off.
	When the hob is switched off, if it is switched on again with 6 seconds by touching , the key flashes for 6 seconds. Press the way to recall the functions set previously. A beep is emitted to confirm the operation.
Combo mode (“bridge function)	“This function allows 2 cooking areas to be combined to use and control them as if they were one and have a bigger cooking area at your disposal. This function allows you to use pans with a wider base.Only the cooking zones on the left can be selected for use with this function.
	To enable/disable: press the digits of the left-hand cooking areas at the same time to select the 2 areas be combined until the digit appears to show that the function has been enabled. The other digit is used to set the power level.
AUTO function “A”	The standard setting when the hob/suction hood is switched on is for the hood to start up in automatic mode with the LED “A” brightly lit. The Hood comes into operation if the power in the cooking areas is greater than “1”.It is deactivated by pressing the LED “A” which changes intensity from bright to dim in confirmation. It can also be deactivated by pressing a value, higher than “1” on the power bar, which is confirmed by the fact that the LED “A” changes intensity from bright to dim.It is reactivated by pressing the LED “A” which changes to brightly lit.

1. COOKING TABLE

Power level C	Cooking method To be used for
1	Melting, heating gently Butter, chocolate, gelatine, sauces
2	Melting, heating gently Butter, chocolate, gelatine, sauces
3	Warming up Rice
4	Prolonged cooking, thickening, stewing Vegetables, potatoes, sauces, fruit, fish
5	Prolonged cooking, thickening, stewing Vegetables, potatoes, sauces, fruit, fish
6	Prolonged cooking, braising Pasta, soups, braised meat
7	Light frying Rösti (potato fry-ups), omelettes, breaded and fried foods, sausages
8	Frying, deep fat frying Meat, chips
9	Quick frying at high temperature Steak
P	Quick heating	Boiling water

1. SUCTION HOOD FUNCTIONS

The controls for the cooking areas, suction hood and timer can be activated by pressing on the reference Digit.
“9”	Press “9” on the power bar to set INTENSIVE 1 speed. This setting is timed to operate for 10 minutes. Once this time has passed, the system will automatically return to the speed set previously. It is deactivated by selecting a different speed.
“P”	Press “9” on the power bar twice to set INTENSIVE 2 speed. This setting is timed to operate for 5 minutes. Once this time has passed, the system will automatically return to the speed set previously. It is deactivated by selecting a different speed.
Function Delay	This function is only available if Automatic mode is deactivated. Automatic mode is deactivated by pressing “A”.Press the suction hood Digit and set a speed on the power bar.Press the Timer management Digit, which was displaying “CL” but will change to the countdown. This is pre-set to 15 minutes.

	Timer symbolAfter selecting the suction hood Digit, press the Timer Management Digit to set the countdown.
	Grease filter maintenance symbolThe grease filter cleaning signal is displayed by LED and it is always enabled.Filter reset and reactivationAfter having carried out maintenance on the filter: press and hold for 5 seconds. - The LED of the grease filter will turn off and the countdown will restart.
	Charcoal filter maintenance symbolThe hood is set by default to ducting mode. With no loads on, press the Hood controls digit to enable the suction hood. Press and hold the Digit again for 5 seconds to:Activate the charcoal filter:The charcoal (odour) filter symbol lights up for 1 second.Deactivate the charcoal filter:The charcoal (odour) filter symbol flashes twice. After activation, the icon will light up to indicate that maintenance must be carried out on the charcoal (odour) filter.Reset and reactivation of the charcoal filterAfter having carried out maintenance on the filter: press and hold for 5 seconds. - The LED of the anti-odour filter will turn off and the countdown will restart.

13. POWER MANAGEMENT FUNCTION

This product has an electronically controlled power management function.

This function controls the delivery of the maximum power of 3700 W between the combined cooking areas (left side and right side), optimising the power distribution and avoiding system overload situations.

To do this, the total power is monitored continuously, and reduced when necessary. If it is not possible to supply the total power required, a control element reduces by a predefined amount the power in another cooking element so that it is at a level immediately below its respective power curve. This ensures that the current absorption of 16 A is not exceeded.

In this case the generator detects the last command with the highest priority sent by the user interface and, if necessary, reduces the previous settings activated for another cooking element.

The Power management function is first activated when the presence of a pan is detected on the cooking element.

Example:

If boost level (P) is selected for hob 1, hob 2 cannot exceed level 9 at the same time and will be automatically limited."

14. GUIDE TO PAN USE

Which pans to use

Only use pots and pans with the bottom made from ferromagnetic material which are suitable for use with inductions hobs:

• cast iron
• enamelled steel
• carbon steel
  • stainless steel (including partial)
• aluminium with ferromagnetic coating or ferromagnetic plate

To determine if a pot or pan is suitable, check for the symbol (usually stamped on the bottom). You can also hold a magnet to the bottom. If it clings to the underside, the pan can be used on an induction hob.

To ensure optimum efficiency, always use pots and pans with a flat bottom that distributes the heat evenly. If the bottom is not perfectly flat, this will affect power and heat conduction.

How to use

Minimum diameter of pot/pan base for the different cooking areas.

To ensure that the hob functions properly, the pan must cover one or more of the reference points indicated on the surface of the hob, and must be of a suitable minimum diameter.

Always use the hob that best corresponds to the diameter of the bottom of the pan.

Cooking areas	Pan base diameter
	∅ min.(recommended)	∅ max (recommended)
Combined left	190 mm	230 mm
Single left	110 mm	190 mm
Single front right	110 mm	145 mm
Single rear right	110 mm	200 mm

Empty pots/pans or with thin base

Do not use empty or thin-based pots/ pans on the hob as it will be unable to detect the temperature or turn off automatically if the temperature is too high, thus damaging the pan or the hob surface.

If this occurs, do not touch anything and wait for all components to cool down.

If an error message appears, refer to "Troubleshooting".

Normal working noises in the hob

Induction technology is based on the creation of electromagnetic fields. These electromagnetic fields generate heat directly on the bottom of the pan. Pots and pans may produce a variety of noises or vibrations, according to their construction.

These types of noise can be described as follows:

Light buzz (like the noise made by a transformer)

This noise is produced when cooking with a high level of heat, and it is determined by the amount of energy transferred by the hob to the pans. The noise will stop or decrease when the heat level is reduced.

Light whistle

This noise is produced when the pot or pan is empty, and stops as soon as it is filled with water or food.

Crackle

This noise occurs with pans made from layers of numerous different materials, and is caused by vibration of the surfaces where the different materials meet. The noise comes from the pans, and may vary according to the quantity of food and preparation method being used.

Loud whistle

This noise occurs with pans made up of layers of different materials, and also when these are used at maximum level and on two cooking areas. The noise will stop or decrease when the heat level is reduced.

Fan noises

For the electronic system to operate correctly, the temperature of the cooker hob must be regulated. To do this, the hob is equipped with a cooling fan that is activated to reduce and regulate the temperature in the electronic system. The fan may continue to operate after the appliance has been turned off, if the temperature of the cooker hob is still detected to be too high.

Rhythmic sounds like a clock ticking

This noise only occurs when at least three cooking areas are operating, and it disappears or decreases when some of them are turned off.

The noises described are a normal feature of induction technology and are not to be considered as defects.

1. TROUBLESHOOTING

Error code Description Possible causes of the error Solution
“Acoustic signal upon ignition. No error code displayed”	The hood command does not work	LIN cable damaged or badly connected to the hood electronic board	Please check the connection. If the error persists, please contact After Sales Service
ER03	Hob switches off after 10 sec.	Continuous key activation detected. Water or pan placed on the control panel.	Remove water or pan from the ceramic glass surface and control panel.
ER21	Hob switches off.	The internal temperature of electronic parts is too high.	Let the hob cool down.Please check if the hob has sufficient ventilation.If the error persists, please contact the After-Sales Service.
E2	Corresponding cooking area switches off.	Empty or unsuitable pan.Pan or ceramic glass surface temperature too high.Electronic component temperature too high.	Let the hob cool down.Use a suitable pan.Do not heat empty pans.
E3	Corresponding cooking area switches off.	Unsuitable pan.The pan is losing its magnetic properties and may damage the induction hob.	Use a suitable pan.The error is automatically cancelled after 8 seconds and the cooking area can be used again.If any other errors occur, the pan must be changed.If the error persists, please contact the After-Sales Service.
E6	Hob does not switch on.	Power supply voltage and/or frequency is out of range.	Check mains voltage and/or frequency.If necessary, contact the After-Sales Service.
E8	Cooking areas are turned off.	Fan fault.Fan blocked by dust or fibres.	Clean and remove foreign bodies from the fan.If the error persists, please contact the After-Sales Service.
E4-E5-E7-E9-ER20-ER22-ER31-ER36-ER47-EA-EH	Disconnect the hob from the power supply.Wait a few seconds, then reconnect the hob to the power supply.If the problem persists, call the After Sales Service and specify the error code that appears on the display.

16. MAINTENANCE - REPAIR AND CONFORMITY

• Make sure that maintenance on electrical components is only carried out by the manufacturer or by the service technicians.
• Make sure that damaged cables are only replaced by the manufacturer or by the service technicians.

When contacting the service department, please provide the following information:

• Type of fault
  • Device model (Art./Cod.)
• Serial number (S.N.)

This information can be found on the identification plate. The identification plate is affixed to the bottom of the device.

Information on the product pursuant to EU regulation no. 66/2014

Reference standards:

EN/IEC 60350-2

EN/IEC 50564

CE

This appliance has been designed, manufactured and sold in compliance with the EEC directives.

17. TECHNICAL DATA

Product identification

Type: 4300

Please see the identification plate affixed to the bottom of the product.

The manufacturer makes continual improvements to products. For this reason, the text and illustrations in these instructions for use may change without warning.

Further information on the technical data is available on the website: www.faberspa.com

MODEL	GALILEO LINEAR A830
Total maximum power (hob and hood)	7.62 Kw (basic setting)
Total maximum power (hob and hood)	4.72 Kw
Total maximum power (hob and hood)	3.72 Kw
Total maximum power (hob and hood)	3.02 Kw

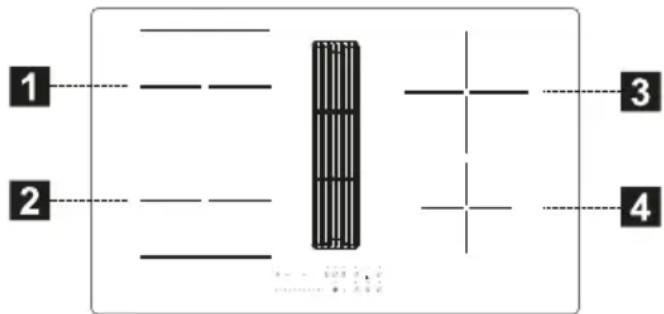

1 2 3 4

1,2 Flexible cooking area 1 + 2 In bridge3,4 Flexible cooking area
Parameter	Value	Dimensions(mm)
Working dimensions	-	830 × 520 (W x D)
Power supplyvoltage/frequency	220-240 V, 50 Hz; 220V, 60 Hz 2N~ 380-415V, 50 Hz;2N~ 380 V, 60 Hz
Electrical and heating element data
Cooking area 1,2	2100 W; Power Boost: 3000 W	210 x 190
Parameter Value Dimensions(mm)
Cooking area 3 2300	W; Power Boost:3000 W	R 200
Cooking area 4 1400	W; Power Boost:1850 W	R 145
Flexible cookingarea1+2	3000 W; Power Boost:3700 W	210 x 390
Parameter Value Dimensions(mm)
Weight of the device	21 kg
Number of cookingareas	4
Heat source induction

FR

1. INFORMATIONS SUR LA SÉCURITÉ

Diagram of a hand holding a rectangular object above a mechanical device with a cutout, labeled 'Z' (no text or symbols on the diagram itself)

Illustration showing two scenarios: one with a crossed-out box and sun, the other with a person handling boxes and a briefcase.

Diagram showing a mechanical assembly with a tool interacting with a screen, and a finger pointing to a small object (no text or symbols present)

Diagram showing a hand pressing down on a mechanical component with a rectangular block and a tray (no text or symbols)

Illustration showing a person crossed out of boxes with a crossed-out box and another person handling a box, both labeled with dollar signs.

Diagram showing a robotic arm interacting with a device and a screen, with a finger pointing to the screen (no text or symbols present)

Diagram showing a hand pressing a rectangular component onto a tray, with no visible text or symbols

Illustration showing a person crossed out of a box with a warning symbol, and another person handling boxes with a tool.

Diagram showing a mechanical setup with a lever and a finger, no text or symbols present

Diagram showing a hand pressing down an object into a tray, with no visible text or symbols

Illustration showing two scenarios: one with a crossed-out box and another with a person handling boxes, both marked with symbols.

Diagram showing a mechanical assembly with a tool and a screen, no text or symbols present

Diagram showing a hand pressing down an object onto a tray with a handle, labeled 'Z' (no text or symbols on the diagram itself)

Общие рекомендации

Illustration showing a person crossed out of a box with a warning symbol, and another person using a tool to adjust boxes with a dollar sign.

Diagram showing a mechanical assembly with a rotating component and a separate plate (no text or symbols)

Diagram of a hand holding a rectangular object above a mechanical assembly (no text or symbols visible)

Zalecenia ogólne

Illustration showing two scenarios: one with a crossed-out box and another with boxes being handled, both marked with dollar signs.

Diagram showing a robotic arm interacting with a device and a finger, no text or symbols present

Diagram of a hand holding a rectangular object above a tray with a slot, showing mechanical assembly (no text or symbols)

Γενικές συστάσεις

Illustration showing a person using a tool to cut boxes with a warning symbol, while another person holds a box labeled '50' and others observe.

Diagram showing a mechanical assembly with a rotating component and a finger pointing to it (no text or symbols present)

Diagram of a hand holding a rectangular object above a mechanical assembly (no text or symbols visible)

Общи препоръки

Illustration showing a person crossed out of a box with a warning symbol and another person handling boxes, implying a safety or hazard scenario.

Diagram showing a mechanical device interacting with a screen, with a finger pointing to it (no text or symbols present)

Diagram of a hand holding a rectangular object above a mechanical device with a handle, labeled 'Z' (no text or symbols on the diagram itself)

Splošna priporočila

Illustration showing two workers handling boxes with a crossed-out box, one marked with a sun and the other with a person holding a briefcase.

Diagram showing a robotic arm interacting with a device and a finger, no text or symbols present

Diagram showing a hand pressing down an object into a tray, with no visible text or symbols

Općenite preporuke

• Nikada nemojte upotrebljavati abrazivne spužvice, željeznu vunu, solnu kiselinu ni druge proizvode koji bi mogli izgrebati površinu ili ostaviti trago-ve na njoj.
• Hrana koja slučajno padne ili se odloži na površinu, funkcijske ili ukrasne elemente ploče za kuhanje ne smije se jesti.

Čišćenje uređaja

Illustration showing two workers with boxes and a crossed-out box, one pointing at a broken box and the other holding a briefcase.

UPOZORENJE: Sve električne priključke mora izvesti ovlašteni električar.

• Pridržavajte se sheme spajanja (nalazi se na donjoj strani proizvoda).
• Ovaj aparat predstavlja spajanje tipa „Y“, savjetuje se da koristite kabel za napajanje H05V2V2-F da 5 x 2,5 mm², povezivanje JEDNOFAZNO i DVOFAZNO: minimalni presjek provodnika: 2,5 mm². Vanjski promjer kabela za napajanje: min 8 mm - maks 12 mm.
• Priključnim stezaljkama može se pri- stipiti ako se ukloni poklopac razvod- ne kutije.
• Provjerite jesu li karakteristike kuć-nog električnog sustava (napon, maksimalna snaga i struja) kompatibilne s karakteristikama uređaja.
• Spojite aparat kako je prikazano u priručniku za postavljanje (sukladno referentnim normama za napon mreže koje su važeće na državnoj razini).

Pozor! Nemojte zavarivati kabele!

6. ASPEKTI OKOLIŠA

Zbrinjavanje električnih kućanskih aparata

Simbol na proizvodu ili na njegovu pakiranju označava da se proizvod ne smije zbrinjavati zajedno s uobičajenim kućnim otpadom. Proizvod se mora zbrinuti u specijaliziranom centru za reciklažu električne i elektroničke opreme. Brigom za pravilno zbrinjavanje proizvo-da pridonosite sprječavanju potencijal-nih negativnih posljedica po okoliš i zdravlje koje bi inače mogle proizići iz neodgovarajućeg zbrinjavanja. Za de-

Diagram showing a mechanical setup with a lever and a finger, no text or symbols present

Diagram of a hand holding a rectangular object above a mechanical assembly (no text or symbols)

Üldised soovitused

Illustration showing two scenarios: one with a crossed-out box and another with tools, both depicting a person handling boxes.

Diagram showing a robotic arm interacting with a device and a screen, with a finger pointing to the screen (no text or symbols present)

Diagram of a hand holding a rectangular object above a tray with a slot, showing mechanical assembly (no text or symbols)

Illustration showing a person crossed out of boxes with a warning symbol, and another person using a tool to adjust boxes, both with human silhouettes.

Diagram showing a device interacting with a screen, with a finger pointing to the screen (no text or symbols present)
