USER MANUAL P1515EPN BE Power Equipment

Black industrial water pressure pump with attached hose and control panel (no visible text or symbols)

P1515EPN

User Manual

BEPOWEREQUIPMENT

COM

TABLE OF CONTENTS

Introduction

4 Using the Operators Manual

Product Identification

5 Pressure Washer

Safety

6 Understanding the Machine Safety Decal

7 Safety Rules

7 Hazard Symbols and Meanings

Features

11 Description

11 Specifications

12 Components

Installation

13 Connection of High Pressure Hose

13 Connection to Water Supply

14 Connection to Electrical Supply

Operation

15 Starting The Machine

15 Checking and Changing the Oil

15 How to use the Variable Nozzle

16 Checking the Water Filter

16 How to use the Detergent Kit

17 General Precautions for Use

Troubleshooting

18 Trouble Shooting Chart

Maintenance Notes

19 Maintenance Notes

Attention: Read through the complete manual prior to the initial use of your pressure washer.

Using the Operator's manual

The operating manual is an important part of your pressure washer. It should be read thoroughly before initial use and referred to often to make sure adequate safety and service concerns are being addressed.

Reading the owner's manual thoroughly will help avoid any personal injury or damage to your machine. The information in this manual will offer you the most effective tools for cleaning as well as the safest. By knowing how best to operate this machine you will be better positioned to show others who may also operate the unit.

Notice

Actual pressure released at the point of discharge may very by machine due to varying factors including: Volume of water being fed to the machine by the water source, the inclusion of a Chemical injector in the line, or variations in Engine performance

Record Identification Numbers

Pressure Washer

If you need to contact an Authorized Dealer or Customer Service line (1-866-850-6662) for information on servicing, always provide the product model and identification numbers.

You will need to locate the model and serial number for the machine and record the information in the places provided below.

Date of Purchase:

Dealer Name:

Dealer Phone:

Product Identification Numbers

Model Number:

Serial Number:

UNDERSTANDING THE MACHINE SAFETY LABELS

The machine safety label shown below is placed on your machine to draw attention to potential safety hazards.

CAUTION Gun kicks back - Hold with both hands. WARNING Risk of explosion - Do not spray flammable liquid.

CAUTION To reduce risk of injury, read operating instructions carefully before using.

WARNING Risk of injection or injury to persons or animals - Do not direct discharge stream at persons or animals.

STORE INDOORS, COLD WATER USE ONLY, CONNECT TO INDIVIDUAL BRANCH CIRCUIT ONLY

Save these Instructions

SAFETY RULES

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

The safety alert symbol (▲) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

NOTICE indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

Hazard Symbols and Meanings

EXPLOSION

FIRE ELECTRIC

SHOCK TOXIC FUMES

KICKBACK

HOT SURFACE FLYING OBJECTS SLIPPERY

FALL FLUID

INJECTION MOVING PARTS READ MANUAL

WARNING
	Use of pressure washer can create puddles and slippery surfaces.Kickback from spray gun can cause you to fall.
·Operate pressure washer from a stable, level surface.·The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.·Be extremely careful if you must use the pressure washer from a ladder, scaffolding, or any other similar location.·Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back.

WARNING
	The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.
DO NOT allow CHILDREN to operate pressure washer.NEVER repair high pressure hose. Replace it.NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.NEVER connect high pressure hose to nozzle extension.Keep high pressure hose connected to pump and spray gun while system is pressurized.ALWAYS point spray gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine.NEVER aim spray gun at people, animals, or plants.DO NOT secure spray gun in open position.DO NOT leave spray gun unattended while machine is running.NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.Always be certain spray gun, nozzles and accessories are correctly attached.

WARNING
	Risk of electrocution.Contact with power source can cause electric shock or burn.
· NEVER spray near power source.· NEVER use the pressure washer in the rain.· Use only extension cords that are intended for outdoor use and the socket must be watertight.

WARNING
	Starter and other rotating parts can entangle hands, hair, clothing, or accessories.
· NEVER operate pressure washer without protective housing or covers.· DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.· Tie up long hair and remove jewelry.

WARNING
	Risk of eye injury.Spray can splash back or propel objects.
·Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.·Before starting the pressure washer, be sure you are wearing adequate safety goggles.·NEVER substitute safety glasses for safety goggles.

NOTICE

High pressure spray may damage fragile items including glass.

• DO NOT point spray gun at glass when using red 0° spray tip.• NEVER aim spray gun at plants.

WARNING

• Stay alert and attentive.
• Do not use when fatigued or under the influence of alcohol or drugs.
• Pressure washer must be in upright position during use.

NOTICE

Improper treatment of pressure washer can damage it and shorten its life.

• If you have questions about intended use, ask dealer or contact nearest authorized dealer.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
  ■ Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on unit.
• Correct all defects before operating pressure washer.
• Use clean water and neutral detergent only.
• The rating voltage (V/Hz) of the appliance has to be in compliance with the local power supplying voltage.
• Only a professional electrician should reconnect or change plug or wire.
• Do not pluck the wire.
• Keep the wire away from heat and sharp edges.
• If the pressure washer stops working, immediately turn the power off.
• Make sure to turn the power switch to off before unplugging the power cord.
• Only use spare parts from the manufacturer.

WARNING

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

Features

DESCRIPTION

This lightweight, portable high-pressure washer makes the toughest clean-up tasks faster and easier. Weighing only 49 pounds, you can take it virtually anywhere. Ideal for light industrial applications and for home owners to wash the car, the boat, the pool and patio. Use it to clean rain gutters, driveways, lawn equipment and recreational vehicles.

Each unit comes complete with a 25-foot high-pressure hose, gun and lance with variable spray nozzle (up to 45 o), and low-pressure soap injection system.

Easy to carry - easy to use. Just remove the travel plug, attach to a garden hose, and plug into a standard 230V-13 amp circuit. Then you're ready to make short work of any cleaning project!

SPECIFICATIONS

Pressure Washer ModelP1515EPN
Maximum Volume1.6 GPM
Maximum Pressure1500 PSI
Single Phase Motor Power1.5 HP
Motor ProtectorCurrent Thermal Overload
Motor Protection GradelSO IP54
Maximum Inlet Temperature140°F
Maximum Suction Depth3.3 ft.
Hose Length25 ft.
Cord Length23 ft. Power Cord
Weight49.0 lbs.
Oil Capacity14 oz.
Oil Type15W-40 SAE
Dimensions16.5" x 11.8" x 11.0"

COMPONENTS

Technical diagram of an electric motor with labeled components and parts, including hoses, motors, and a pressure gun.

1. Inlet
2. Outlet
3. Pressure Adjustment Knob
4. Chemical Injector
5. Chemical Filter
6. Oil Dipstick
7. Auto-start System
8. Oil Level Indicator
9. Metal Gun
10. Variable Nozzle
11. High Pressure Hose

Installation

CONNECTION OF HIGH PRESSURE HOSE

NOTICE

The machine must be placed on a stable, level surface. Failure to do so can cause oil to spill or damage to your pressure washer.

Replace the red oil travel plug (1) with the yellow dipstick (2).

Technical line drawing of a mechanical device with a circular component and internal components (no text or symbols)

Check that the oil in the sight glass is at the halfway level.

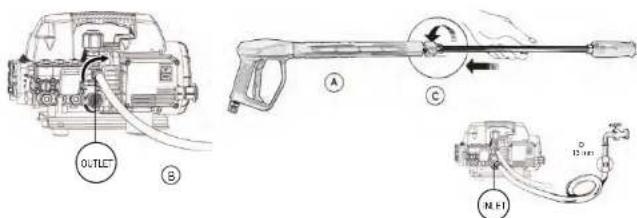

1. Connect one end of the high pressure hose to the gun (A) and the other to the outlet connection on the pump (B).
2. Assemble the lance by pushing the two halves together and then fix by turning the connector until the connection is tight (C).

CONNECTION TO WATER SUPPLY

1. The maximum temperature of the inlet water must not exceed 140°F.
2. Connect the water supply to the INLET port by means of a reinforced hose (200 PSI) with internal diameter of no less than 13 mm (1/2").
3. Considering that the water flow decreases in accordance with the length of the hose, make sure that the quantity of water reaching the machine is at least 2.7 GPM.

OUTLET B A C N-H1

INSTALLATION

OPERATION

CONNECTION TO ELECTRICAL SUPPLY

1. Make sure that the main voltage is the same as shown on the identification label on the machine.
2. Make sure that the plug complies with your local regulations, and that it is provided with ground connection.
3. The power outlet must be protected by a residual current circuit breaker that has a sensitivity of 30 milli-amp.
4. Do not connect other appliances to the same outlet.
5. Insert the plug after making sure that the switch on the machine is in the OFF position.

Operation

STARTING THE MACHINE

WARNING

In case of power failure during operation, turn the machine OFF for safety reasons.

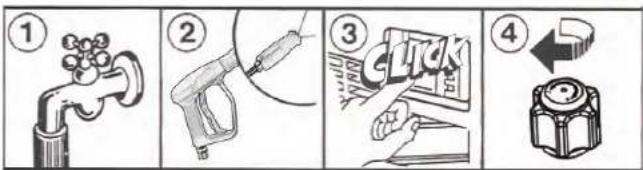

1. Turn on the water supply.
2. Set the pressure to zero by turning the nozzle counterclockwise.
3. Switch the unit on.
4. Hold the gun trigger down for a few seconds to allow the air to escape from the hoses and gun assembly.
5. Use the unloader knob (shown in step 4 below) to adjust pressure.

CHECKING AND CHANGING THE OIL

• The level of the oil must be checked periodically.
• The first important oil change must be carried out after the first 20 hours of use. It
  should be changed every 150 hours of use afterwards.
• We recommend that the oil is changed at least once a year.
• Oil type: 30W Non-Detergent

HOW TO USE THE VARIABLE NOZZLE

A) Selection of high or low pressure by push-pull action. The selection of the pressure must be carried out with the gun in closed position (1).

B) Adjustment from straight (4) to fan (5) of water jet by simple turning of the NOZZLE.

CHECKING THE WATER FILTER GENERAL PRECAUTIONS FOR USE

It is important to check the filter before using the machine. Remember that a well-cleaned filter means better performance and an extended life for your washer.

1. Keep the machine out of the reach of children.
2. High pressure water jets are potentially dangerous if used incorrectly. In particular, the jet must not be directed against persons or animals, electrical equipment or the machine itself. DO NOT USE the machine when persons and/or animals are within the reach of the jet.

3. The user must operate the machine in safe conditions and situations avoiding any situations of potential danger to themselves or other persons. In particular, the user will have to:

4. Avoid operating in unstable balance conditions.

5. Remember that the high pressure jet generates a recoil when the gun is opened. The force of this recoil is less than 3.0 pound-force.
6. Use adequate protective clothing.
7. Wear protective goggles and anti-slip rubber shoes.

8. Avoid contaminating the environment with polluting, toxic or harmful substances.

9. This machine is build in compliance with the requirements of the current safety regulations. The use of electrical appliances involves the respect of some basic rules:

10. Do not touch electrical parts or components.

11. All operations of inspection, maintenance or repair must be made by qualified personnel only. ALWAYS disconnect the plug before proceeding to any of the above mentioned operations.

12. Do not pull power cord to unplug. Do not pull high pressure hose to move unit.

13. Before using the machine, inspect power cord to make sure it is not damaged. If it is damaged, have it replaced by qualified personnel. Replace power cord only with a cable of the same type as the original, this can be identified by the marking on the outer sleeve. Do not damage or effect risky repair on power cord.
14. Before using the machine, inspect high pressure hose to make sure it is not damaged. In case of replacement make sure the new hose has at least the same specifications as the original. Technical specifications (maximum working pressure, date of manufacture, name of manufacturer) must be marked on the outer sleeve of hose.
15. While the machine is running, do not cover it and do not place it in an enclosed space with insufficient ventilation.
16. Do not leave the machine running for more than 5 minutes with the gun closed. Should it run for a longer period, the temperature of the recirculating water will increase rapidly and could risk damaging the pump and pump seals.
17. When the machine is not in use, lock gun trigger in safe position to prevent it from being opened by accident.
18. For the sake of safety use only approved spare parts and accessories.

TROUBLESHOOTING MAINTENANCE NOTES

Troubleshooting

TROUBLESHOOTING CHART

Problem Cause Correction
Pump running normally but pressure does not achieve rated values	Pump is sucking in airValves worn or dirtyUnloader packing wornNozzle incorrect or wornWorn piston packingDirty filter	Check that hoses and fittings are air tightCheck, clean or replaceCheck and replaceCheck and replaceCheck and replaceCheck and clean
Fluctuating pressure Valves worn or stuck	Pump sucking airWorn piston packingDirty filter	Check, clean or replaceCheck that hoses and fittings are air tightCheck and replaceCheck and clean
Pressure drops after period of normal use	Nozzle wornValves worn, dirty or stuckUnloader packing wornWorn piston packingDirty filter	Check and replaceCheck, clean or replaceCheck, clean or replaceCheck and replaceCheck and clean
Pump noisy Pump sucking air	Valves dirty or wornWorn bearingsWater top hotDirty filter	Check that hoses and fittings are air tightCheck, clean or replaceCheck and replace if necessaryReduce temperatureCheck and clean
Presence of water in oil High humidity in airPiston packing and oil seal worn		Check and change oil twice as oftenCheck and replace
Water dripping from under pump	Piston packing wornThe o-rings of piston guide or retainer worn	Check and replaceCheck and replace
Oil dripping Oil seal worn Check and replace
The motor does not start when switched on	The plug not well connected or lack of power supply Check plug, cable and switch
When switching on the unit, the motor hums but does not turn on	The main voltage is insufficient, lower than the minimum requiredThe pump is stuck or frozenIncorrect extension cord	Check that the main power supply is adequateCheck, clean or replaceCheck and replace

BE

THE POWER YOU NEED.

If you need assistance with the assembly or operation of your Pressure Washer please call

1-866-850-6662
