USER MANUAL BW-4798 TRISTAR

Three different cushion pillows with textured surfaces, no visible text or symbols

CordlessHeating Pillow

BW-4791

BW-4792

BW-4798

BW-4799

EN User manual 3
NL Gebruiksaanwijzing 9
FR Manuel de l'utilisateur 16
DE Benutzerhandbuch 23
ES Manual del usuario 31
PT Manual do utilizador 38

IT Manuale dell'utente 46
SV Bruksanvisning 53
PL Instrukcja obsługi 59
cs Uživatelská příručka 66
SK Používatel'ská príručka 73

A 1 2 3 4 5

B 7 8 6

User manual

Cordless Heating Pillow

About this document

This user manual is part of the item BW-4791 / BW-4792 / BW-4798 / BW-4799 (hereinafter referred to as "the device" or "the appliance").

This user manual contains all the information for correct, safe, and efficient use of the appliance.

Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

Original instructions

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
	This product complies with conformity requirements of the applicable European regulations or directives.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	This symbol can be found on batteries/rechargeable batteries which contain hazardous substances. Batteries/rechargeable batteries must not be disposed of with household waste! The batteries must be removed from the appliance. Take spent batteries to the appropriate collection point or to a dealer. Your town or local authority can provide information about public collection points.
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations.

APPLIANCE DESCRIPTION

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• farmhouses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

3User manual

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Cordless Heating Pillow
Appliance name Cordless Heating	Pillow
Article number BW-4791 / BW-4792 /BW-4798 / BW-4799
Product size 45 x 45 CM	60 x 45 CM
Heating area 25 x 25 CM
Voltage 5V / 2A
Power 10W
Powerbank capacity 5.000 mAh

Powerbank
Appliance name Powerbank
Output (Type USB) 5V / 2.1A
Input (Type USB-C & Micro) 5V / 2A
Total output power 10W
Capacity 5.000 mAh

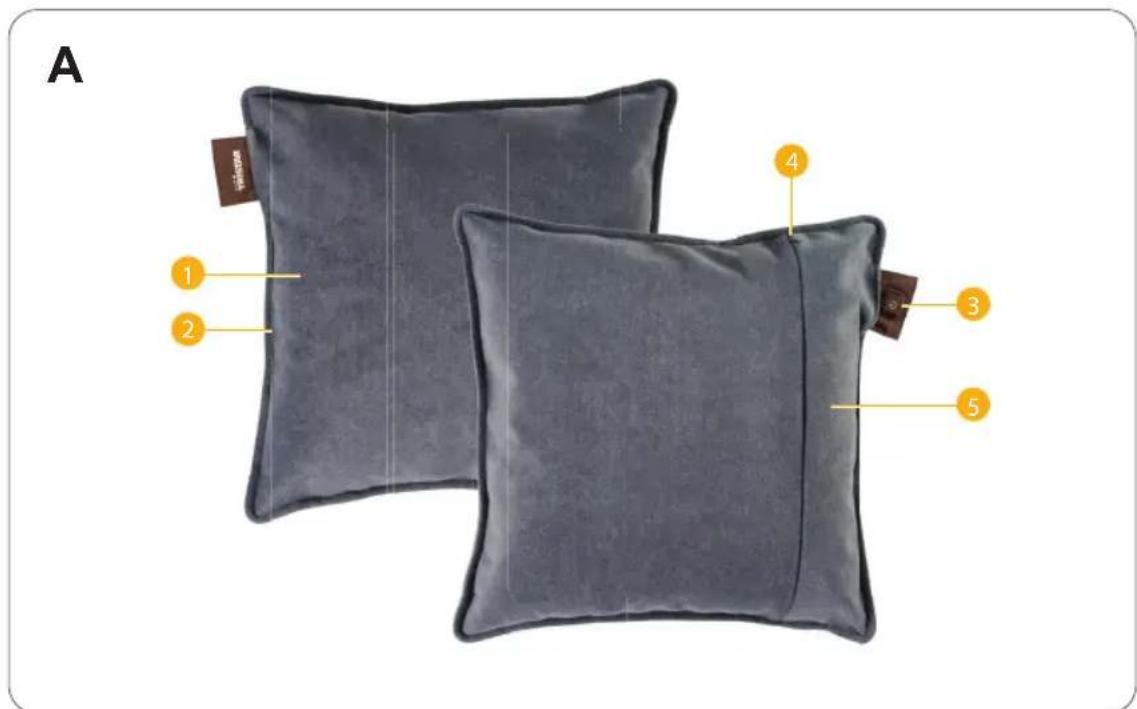

Main parts (see image A)

1 Inner heating cushion
2 Outer cover
3 ON/OFF button with LED light

4 Zipper
5 Build-in pocket for powerbank

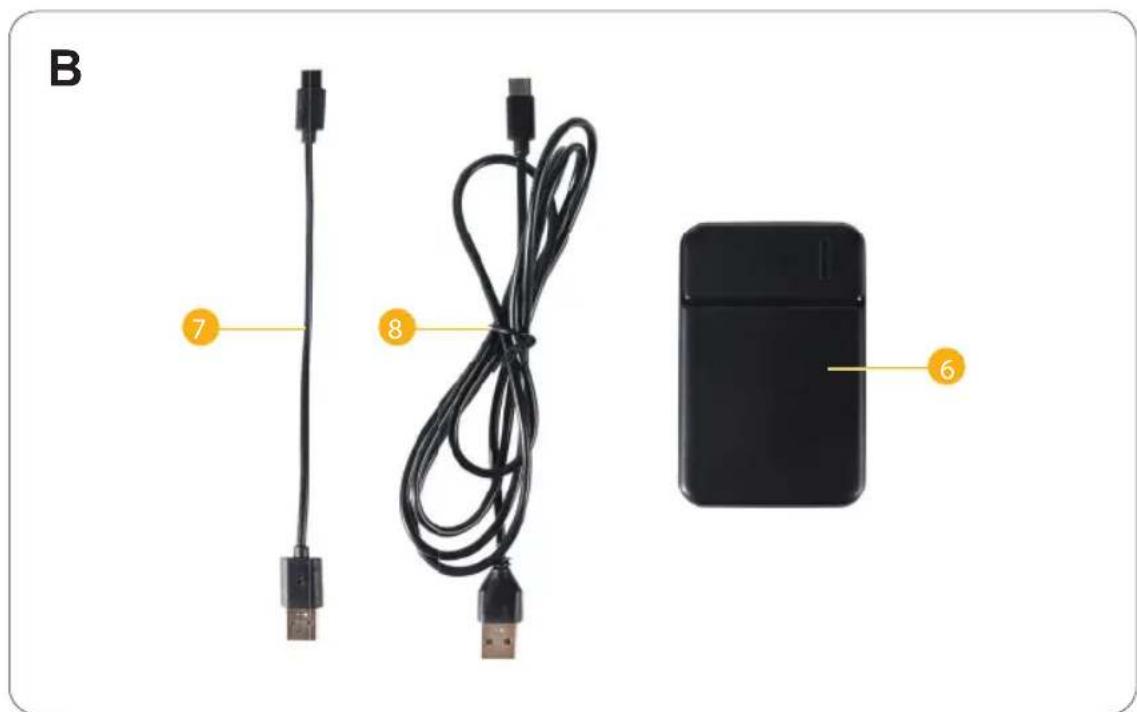

Main parts (see image B)

6 Powerbank
7 0.2m USB cable

8 2m USB cable

SAFETY

Safety precautions

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• For the first operation, it is advisable to read the manual carefully beforehand and keep it properly for future use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4Tristar Europe B.V. | Cordless Heating Pillow

• Repairs to electrical appliances must only be carried out by qualified persons. Incorrect repairs can lead to considerable danger for the user. In the event of repairs, please contact our customer service or an authorized dealer.
• Do not drop/modify/open/crush the powerbank.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• Do not use this cordless heating pillow on helpless persons, small children or persons insensitive to heat.
• Should you have any concerns about health issues, consult your doctor before using the cordless heating pillow.
• It is not allowed to use the cordless heating pillow If you are fitted with a cardiac pacemaker, implant or other aid.
• Individuals with pacemaker should consult their doctor before use.
• If abnormal noise, smell, smoke or any other failure or breakage is found during the operation, you should turn off the switch and unplug it.
• Do not use with other heating appliances.
• Carefully check the cordless heating pillow before each use.

WARNING

Safety hazard due to unintended use:

• Only use the appliance as described in this user manual.
• Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.
• Never make any adjustments to the appliance. Adjustments may affect safety, warranty and proper operation.
• Never use the appliance during a thunderstorm.

5User manual

Electric shock hazard due to short-circuiting:

• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.
• Do not insert objects into any opening.

Safety hazard for children:

• Keep the appliance and accessories out of reach for children.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not allow small children to play with the foil as there is a danger of suffocation!

Fire hazard due to overheating:

• Do not activate the appliance when it is still packed in the box. Extensive heat can occur and cause fire.
• Do not tuck in.
• Keep the mains lead away from hot surfaces.
• Never leave the appliance unattended when in use. Only use the appliance under supervision.
• Do not cover the appliance with any other cushions.
• Do not place the appliance under inflammable objects, especially not under paper or curtains.

Fire hazard due to short-circuiting:

• Never use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.
• Do nut use the powerbank in excess of the output rating, overloading may result in fire or injury.
• Keep the powerbank away from water and do not use if contact is made.
• Keep the powerbank away from heat sources.
• Do not charge the powerbank when using it to charge another device.
• Do not leave the powerbank charging overnight or unattended.
• Do not use the appliance when wet.
• Never touch a device that has fallen into water.
• Do not place the unit in a damp room and at a distance of less than 1,5 m away from a water source.
• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the

appliance if the appliance has been dropped.

Physical harm due to overheating

• Prolonged use of the appliance at a high setting could lead to skin burns.
• Do not use the appliance to heat animals.

NOTICE

Risk of damaging the appliance:

• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.
• Keep the appliance away from heat, direct sunlight, water, moisture, sharp edges etc.
• Do not use the device too long. Extensive use could lead to a shorter lifetime.
• Do not fold or crease the appliance during use before connecting the device to your power supply.
• Neither pierce the appliance with, nor attach safety pins or other spiky or sharp objects to the appliance.

BEFORE FIRST USE

1. Remove all packaging materials from the device.
2. Check that there is no visible damage.
3. Read the Instruction Manual.
4. Make sure the powerbank is charged (If the powerbank is empty, charge the powerbank in an area that is well lit and ventilated).

USE

1. Connect cable B7 to the label of the pillow.
2. Connect the other side of cable B7 to the powerbank B6.
3. On the back of the device, there is a zipper A④. If you unzip the pillow, you will find a pocket A⑤ to store the powerbank B⑥.
4. Turn on the powerbank E6 by pressing the on/off button A3 once.
5. Turn on the cordless heating pillow by pressing the on/off button for 3 seconds.
6. The LED light of the ON/OFF button A3 will turn red which means maximum heat setting. By pressing the ON/OFF button A3 you can choose between the 3 heat settings.
7. Orange means medium heat setting and white means lowest heat setting.
8. The sequence is red (high) - orange (medium) - white (low) and than it will go back to red (high) again.
9. To turn OFF the pillow, press the ON/OFF button A3 for 3 seconds. The LED lights of the ON/OFF button A3 will go OFF. The LED lights on the powerbank B6 will also go OFF after a few seconds

NOTE:

The pillow is vacuum packed. After unpacking it needs some time to regain it's original shape.

Only use the appliance with the supplied powerbank B6.

This appliance is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use. The LED light on the ON/OFF button A3 on the heating cushion and the white

7User manual

LED light on the powerbank B⑥ will go off. You can switch the appliance on again by pressing the ON/OFF button A③.

The appliance is fitted with a SAFETY SWITCH-OFF function. The SAFETY SWITCH-OFF stops the appliance from overheating by automatically switching it off in the event of a fault. Once the SAFETY SWITCH-OFF has taken place, the LED light on the ON/OFF button A 3 and the white LED light on the powerbank B 6 remain illuminated. After cooling, the heating cushion switches on again automatically Please note that the powerbank B 6 must be protected against extreme cold to maintain its full performance.

CLEANING AND MAINTENANCE

Washing instructions

Pillow

30°

The outer cover of pillow can be washed in the washing Machine. However, hand wiping will prolong the life of the pillow.

Put the outer cover in a net bag. Use a small amount of detergent and set the washing machine to a "Delicate Wash" with a maximum temperature of 30^ . When washed, remove the pillow from the net bag and drape it over a clothes line to dry.

Do not use clothes pegs to secure it.

Allow the appliance to dry naturally.

Powerbank

The powerbank must never come into contact with water or other liquids as this may cause damage. To clean the powerbank, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

WARNING

Don't connect the device to power supply to dry it.

Don't dry it in the sun or iron it, which will cause safety problems because of the aging of the insulating layer.

Do not use an appliance such as a hair dryer to dry it

Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.

STORAGE

WARNING

Store the device only if it is dry.

Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused, return it to the supplier prior to any further use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Never store the device when connected to the powerbank

Please allow the heating pillow to cool down before storing, otherwise the heating cushion may be damaged.

To avoid sharp folds in the heating pad, do not place any heavy objects on top of it while it is being stored.

8Tristar Europe B.V. | Cordless Heating Pillow

Place the powerbank in a dry, dust-free and cool place, away from direct sunlight.

The powerbank should be charged once a year to retain its capacity.

Do not store the powerbank in extremely high or low temperatures (storable temperature: 0-25°C)

DISPOSAL

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Support

You can find all available information and spare parts at www.tristar.eu!
