USER MANUAL CDBW4400SB Crosley

HYBRID TUB DISHWASHER OWNER'S MANUAL

GUIDE D'UTILISATION DU LAVE-VAISSELLE AVEC

CUVE EN PLASTIQUE

MANUAL DEL PROPIETARIO DEL LAVAVAJILLAS CON

TINA DE PLÁSTICO

Table of Contents/Table des matières/Índice

DISHWASHER SAFETY 3

Dishwasher Safety 3

DISHWASHER MAINTENANCE AND

CARE 5

User-Maintenance Instructions .....5

INSTALLATION REQUIREMENTS .....6

Tools and Parts 6

Location Requirements 8

Cabinet Opening Dimensions....8

Drain Requirements 8

Water Supply Requirements....9

Electrical Requirements 9

INSTALLATION INSTRUCTIONS .....9

Before You Begin.... 10

Prepare Cabinet Opening – New

Utilities 10

Install Optional Moisture Barrier

(Recommended for Wood

Countertops).... 10

Electrical Connection.... 11

Prepare Dishwasher.... 11

Remove Access Panel.... 12

Connect Water Line to Fill Valve..... 13

Connect Fill Hose to Fill Valve..... 14

Drain Hose Connection 14

Power Cord Connection 14

Install Door Handle (on some

models) 16

Place Dishwasher in Cabinet...... 17

Choose Anchor Attachment

Method....18

Final Installation Check 18

Secure Dishwasher in Cabinet

Opening....20

Direct Wire Connection 20

Connect Water Line to House Shutoff

Valve 22

Connect Drain Hose 22

Complete Installation 24

Install Access Panel 25

Check Operation 25

If Dishwasher Does Not Operate ..... 25

Additional Tips 26

SÉCURITÉ DU LAVE-VAISSELLE..... 27

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using your dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or wetting agents recommended for use in a dishwasher and keep them out the reach of children.
  ■ When loading items to be washed:
• Locate sharp items so that they are not likely to damage the door seal; and
• Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  ■ Do not touch the heating element during or immediately after use.
  ■ Do not operate your dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on a dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord

having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinance.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead of the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE AND CARE

User-Maintenance Instructions

Cleaning the Exterior

Clean the exterior of the dishwasher with only a soft, damp clot and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product can help to remove the residue. Monthly use of Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

Another method to remove white residue is to use a vinegar in. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour) 2 cups (500 mL) of white vinegar in a glass dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwash cleaning and daily care.

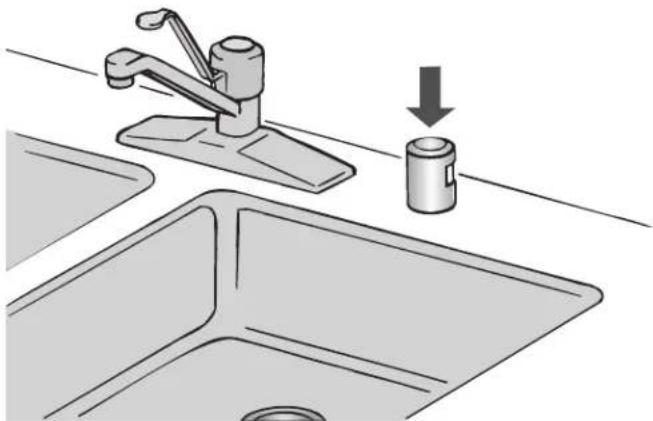

If you have a drain air gap, check and clean it if the dishwash not draining well.

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■ If the dishwasher will not be used during the summer months turn off the water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Cleaning the Filters

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

Recommended Time Interval to Clean Your Filter
Number of loads per week	If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8–12 Every two months	Every four months	Once per year
4–7 Every two months	Once per year	Once per year
1–3 Twice per year	Once per year	Once per year

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

^e Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the online "Troubleshooting" section.

NOTE: Online references can be found in the Quick Start Guide.

Filter Removal Instructions

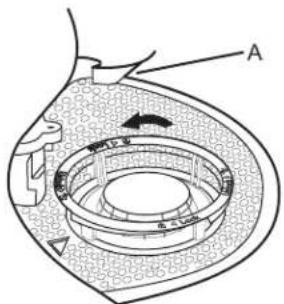

1. Turn the upper filter assembly 1/4 turn counterclockwise and lift out.
2. Separate the upper filter assembly by gently pulling apart.
3. Clean the filters as shown.

Technical diagram of a mechanical component with labeled parts A and B, showing internal structure and rotation arrow.

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

A. Locating tab

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

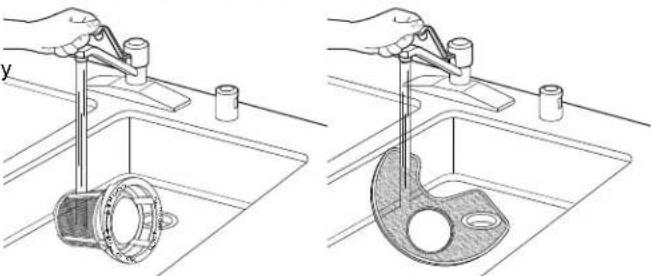

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Two technical illustrations showing hands using a tool to clean a mechanical component in a sink (no text or symbols present)

SÉCURITÉ DU LAVE-VAISSELLE

Illustration of a kitchen sink with a faucet and a cylindrical container, showing a downward arrow indicating a drop (no text or symbols present)

Technical diagram showing two views of a mechanical component with labeled parts (A and B), no readable text or symbols present.

Line drawing of a measuring tape (no text or symbols)

Simple line drawing of a double-ended wrench (no text or symbols)

Two technical illustrations showing hands using a tool to clean a mechanical component in a sink (no text or symbols present)

EXIGENCES D'INSTALLATION

Outils et pièces

Two line drawings of pliers (no text or symbols)

Line drawing of a screwdriver with a flat head and threaded shaft (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central button (no text or symbols)

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Line drawing of an adjustable wrench with a handle and screwdriver (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

ofond

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Two coiled rope or wire loops, no text or symbols present

Illustration of a coiled cable or hose with two connectors (no text or symbols)

Tuyau d'évacuation

Technical line drawing of a screw with two circular end caps (no text or symbols)

Tournevis cruciforme no 10 x 1/2 po (12,7 mm) (2)

Two identical mechanical component diagrams with mounting holes and mounting holes (no text or symbols)

Simple line drawing of a horizontal tool or handle (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with two nested squares (no text or symbols)

Simple line drawing of a light bulb with a screw and base (no text or symbols)

Line drawing of a pair of pliers with metal fasteners (no text or symbols)

Line drawing of a handheld electric drill bit (no text or symbols)

Line drawing of a pipe fitting with a flanged end (no text or symbols)

Technical line drawing of a mechanical component with threaded ports and a central circular housing (no text or symbols)

Two identical cylindrical objects with ribbed tops, shown side by side (no text or symbols)

Simple line drawing of a coiled spring or rope (no text or symbols)

Two interlocked metal rings with metal clips attached (no text or symbols)

Illustration of a coiled industrial pipe or hose with no visible text or symbols

Diagram showing a cable with three bands above and a circular ring inside, no text or symbols present.

Œillet pour armoire

Illustration of a simple electrical plug and its components including wires, connectors, and a screwdriver (no text or symbols)

Line drawing of a kitchen sink with faucet and three washers (no text or symbols)

A. Brise-siphon

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Il vous faut :

Technical diagram showing two labeled components A and B with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical diagram of a kitchen appliance with labeled parts A and B, showing structural components and directional arrows.

Simple line drawing of a 3D rectangular block with a flat top and vertical side (no text or symbols)

Diagram of a mechanical or electrical component with a rectangular block and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a tool and directional arrows indicating motion or force.

Technical diagram showing mechanical assembly with arrows indicating direction and a close-up of a drill bit (no text or symbols present)

Line drawing of a cabinet with multiple drawers, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Pieds arrière - B

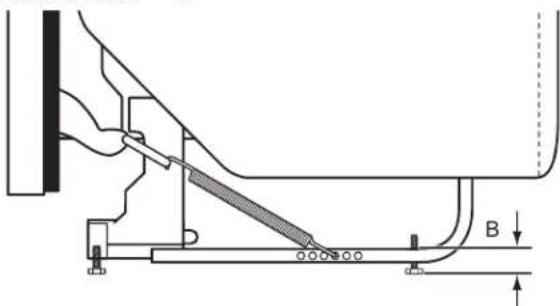

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force directions.

Simple line drawing of a coiled cable or wire with no text or symbols

Technical diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or force.

A. Écrou
B. Virole

Line drawing of a flexible hose with threaded ends and hexagonal connectors (no text or symbols)

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram showing labeled components A, B, C, D, and E connected to a cable or connector, with an inset view of a coiled cable.

Mechanical assembly diagram showing a rotating lever mechanism with a close-up view of the component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing wiring connections and a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A, showing no text or symbols

Three-panel illustration showing a hand holding a cable with a bulb, illustrating the process of cord closure or wire repair (no text or symbols present)

Technical diagram of an electrical component with wiring and a close-up view showing internal wiring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled components A, B, C, D and an inset circular component with rotational motion arrows.

A. Vis de calage

C. Poignée

Diagram of a mechanical or architectural component with a rotating arrow indicating rotation (no text or symbols present)

Diagram of a refrigerator with labeled parts A, B, and C showing internal compartments and an arrow indicating direction.

Line drawing of a cluttered office desk with drawers and a refrigerator (no text or symbols)

Diagram of a refrigerator with labeled parts A and B, showing internal compartments and a door mechanism.

Technical line drawing of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a hand using a pliers to lift a small object on a device (no text or symbols)

Diagram of a pliers tool with labeled parts A and B, showing a directional arrow indicating movement or force.

Line drawing of a kitchen appliance with an open drawer and a black arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and two inset diagrams illustrating tool application steps.

Technical diagram showing cable installation process with magnified views of cable assembly and wire connection details

Line drawing of a kitchen drawer with drawers and a scroll rack (no text or symbols)

Diagram showing a washing machine inside a kitchen with an inset close-up of its internal components (no text or symbols)

Technical line drawing of a mechanical clamp tool (A) and a wrench tool (B), showing assembly and mounting details without any text or symbols.

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Line drawing of a cabinet interior with doors, drawers, and storage racks (no text or symbols)

Technical diagram showing mechanical assembly with labeled component A and a spring mechanism diagram

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Architectural diagram showing door frame and ceiling structure with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with pipe connection and directional arrow (no text or symbols)

Technical illustration of mechanical components with no visible text or symbols

Technical line drawing of a mechanical assembly with wires and components, no visible text or symbols

Technical diagram of a mechanical assembly with labeled components A and B, showing wiring and components.

Three-panel illustration showing a medical procedure with tubing and connectors, no text or symbols present.

Technical line drawing of a mechanical assembly with coiled wires and connectors (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a pipe fitting with a valve and tubing (no text or symbols)

Technical diagram of a mechanical device with labeled parts A through G

Labeled diagram of a laboratory apparatus with components A, B, C, D, E, F, G

Diagram showing a cable inserted into a wall socket, with an inset magnified view of the socket (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Diagram showing two black arrows pointing downward on a wooden shelf or drawer structure (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a directional arrow and component symbols.

A. Déverrouillé

C. 1/4 de tour

B. Verrouillé

Diagram showing a door lock mechanism and a hanging door with drawers, no text or symbols present

Diagram showing two black arrows pointing downward on a wooden shelf or panel, with no text or symbols present.

Line drawing of a cabinet with drawers and a hanging lock, showing structural components without any text or symbols.

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

Technical diagram showing two views of a mechanical component with labeled parts (A and B), no readable text or symbols present.

Two-step diagram showing hand positioning a mechanical component on a sink, with no text or symbols present.

Two line drawings of pliers with no text or symbols

Simple line drawing of a screwdriver (no text or symbols)

za plana

Simple line drawing of a screwdriver (no text or symbols)

Destornillador Phillips Cuchillo multiusos

Simple line drawing of a flat tool with a handle and central grip (no text or symbols)

multiusos

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Llave de cubo hexagonal o llave de tuercas de 5/16" (8 mm) y 1/4" (6,35 mm)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Nivel pequeño

Line drawing of a measuring tape (no text or symbols)

Simple line drawing of a double-ended wrench (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Destornilladores Torx® T20® y, si va a instalar paneles frontales personalizados, Torx® T15® †

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Linterna Bandeja Ilana

Simple line drawing of a rectangular tray or container (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Two coiled rope or wire loops, no text or symbols present

Illustration of a coiled cable or hose with two connectors (no text or symbols)

Illustration of a screw with two circular heads and a threaded shaft (no text or symbols)

Two identical mechanical component diagrams with mounting holes, shown in side profile (no text or symbols)

Simple line drawing of a horizontal tool or bracket (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with two nested squares (no text or symbols)

Kit de panel lateral

Simple line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

Line drawing of a pair of pliers with metal handles (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Con sierras perforadoras de 1/2" (12,7 mm), 3/4" (19 mm), y 1 ^1/2 " (38,1 mm)

Line drawing of a pipe fitting with a flanged end (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular housing (no text or symbols)

Two identical line drawings of cylindrical objects with ridged surfaces, no text or symbols present.

Simple line drawing of a coiled spring or rope (no text or symbols)

Two interlocked metal rings with metal clips attached (no text or symbols)

Illustration of a coiled industrial pipe or hose with no visible text or symbols

Diagram showing a cable with three bands above and a circular ring inside a rectangle (no text or symbols)

Illustration of a power plug, coiled cable, and two small components (no text or symbols)

Line drawing of a kitchen sink with faucet and three washers (no text or symbols)

A. Purga de aire

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

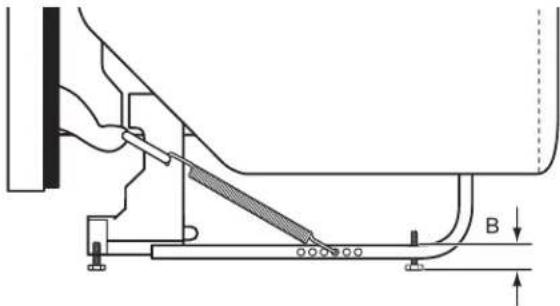

dusted debe tener:

Technical diagram showing two labeled components A and B with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

A. Gabinete de madera
B. Gabinete de metal

Technical diagram of a kitchen cabinet with labeled components A and B, showing directional arrows indicating movement or flow.

Simple line drawing of a rectangular box or container with no text or symbols

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a tool and directional arrows indicating motion or movement.

A. Desbloqueado

C. 1/4 de giro

B. Bloqueado

Mechanical assembly diagram showing a tool inserted into a workpiece with arrows indicating motion (no text or symbols present)

Line drawing of a cabinet with multiple drawers, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Patas traseras - B

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or force

Simple line drawing of a coiled cable or wire with no text or symbols

Technical diagram showing mechanical assembly steps with labeled components A and B, including directional arrows indicating movement or force.

A. Tuerca
B. Férula

Line drawing of a flexible hose with threaded ends and hexagonal connectors (no text or symbols)

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram showing mechanical assembly with rotating components and a close-up view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing electrical wiring connections and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Three-panel diagram showing a hand holding a tool with coiled wires and connectors, no text or symbols present.

Technical line drawing of a mechanical assembly with wiring and components, no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled components A, B, C, D and an inset circular component with angular notation.

Diagram of a mechanical assembly with a rectangular block and a curved dashed box, showing no text or symbols.

Diagram of a refrigerator with labeled parts A, B, and C showing internal compartments and directional arrow

A. Tubería de agua

Line drawing of a simple kitchen cabinet with drawers and a refrigerator (no text or symbols)

Diagram of a refrigerator with labeled parts A and B, showing internal compartments and a cabinet interior.

A. Manta aislante

B. Fije la manta

Technical line drawing of a mechanical assembly with a curved component and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a hand using a tool to press or install a component on a device (no text or symbols present)

Diagram of a pliers tool with labeled parts A and B, showing a directional arrow indicating movement or adjustment.

Line drawing of a kitchen appliance with a door open and a hanging rack, showing a black arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement

Technical diagram showing a device with internal grid structure and two magnified views of the cable being inserted.

Line drawing of a kitchen drawer with drawers and a handle (no text or symbols)

Diagram showing a screw being inserted into a refrigerator drawer, with magnified views of the interior (no text or symbols present)

Technical line drawing of a mechanical clamp device (A) and its corresponding disassembled clamp device (B), both without any text or symbols.

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component labeled '1013' and a circular arrow indicating rotation.

Architectural line drawing of a cabinet interior showing door, door lock, and rack rack (no text or symbols)

Technical diagram showing mechanical assembly with labeled component A and a close-up of a spring-loaded component.

A. Atornille al gabinete lateral

Technical diagram showing a mechanical assembly with a bolt and rotating component, no visible text or symbols

Architectural diagram showing door frame and ceiling structure with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with a pipe fitting and a rotating component (no text or symbols)

Technical illustration of mechanical components with no visible text or symbols

Technical line drawing of a mechanical assembly with wires and connectors (no text or symbols)

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and wiring.

Three-panel illustration showing a hand holding a device connected to cable loops, with no visible text or symbols.

Technical line drawing of a mechanical assembly with wires and connectors (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a pipe fitting with a flanged handle and valve (no text or symbols)

Technical diagram of a plumbing drain with labeled components A through G

Labeled diagram of a plumbing or plumbing system with components A, B, C, D, E, F, G

Technical diagram showing a cable installation detail with an inset magnified view of the cable being inserted (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Diagram of a door handle assembly with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A and B, including a directional arrow and component callouts.

Technical diagram showing a mechanical component being inserted into a wall, and a close-up of a door handle assembly (no text or symbols present)

Diagram of a door latch with two black arrows indicating force or movement, no text or symbols present

Technical line drawing of a cabinet or drawer assembly with a handle and mechanical component (no text or symbols)

©2025 All rights reserved. Used under license in Canada.
