DO1041FR - Deep fryer DOMO - Free user manual and instructions

USER MANUAL DO1041FR DOMO

Modern white Domo French food kitchen with a stainless steel stand and side grater (no visible text or symbols)

DO1041FR

Handleiding Friteuse
Mode d'emploi Friteuse
Gebrauchsanleitung Fritteuse
Instruction booklet Deep fryer

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book with stacked pages (no text or symbols)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 10
DE Deutsch 17
EN English 24

GARANTIE

Geachte klant,

Labeled diagram of a food appliance with numbered parts including a microwave oven, grating, and kitchen stand.

Close-up of a hand holding a metal tool next to a mesh wire mesh (no text or symbols visible)

GEBRUIK

Close-up of a device's internal components and top-down view of a circular electronic component (no text or symbols visible)

MILIEURICHTLIJNEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a hand holding a metal tool next to a mesh wire mesh (no text or symbols visible)

UTILISATION

Circular object with evenly spaced circular indentations and a white arrow pointing to it (no text or symbols visible)

MISE AU REBUT

FR

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a food kitchen appliance with numbered parts including a microwave oven, grating, and stand mixer.

Close-up of a hand holding a metal tool next to a mesh wire mesh (no text or symbols visible)

GEBRAUCH

Circular object with evenly spaced circular holes and a white arrow pointing to it, no visible text or symbols.

ENTSORGEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• This appliance should be positioned in a stable situation with the handles positioned to avoid spillage of the hot liquids.
  · The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
  · Never leave the appliance unattended while it is functioning.
  · Do not use or store this appliance outdoors.
• Do not move the appliance while in use or when the oil is still hot. Allow to cool before moving the appliance.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• This appliance is to be operated filled with frying oil to at least the minimum oil level and not exceeding the maximum level marked on the appliance.
• We only recommend the use of frying oil for this appliance. Use frying fat at your own risk. Neither the manufacturer, importer, or the supplier may be held liable for any injury or damage caused by the usage of wrong oil or fat.
  · Only use the connector or unit with incorporated thermostat delivered with the appliance.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
  · To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
  · Do not place on or near a hot gas or electric burner or sink, or in a heated oven.
• Do not place near flammable materials, gases or explosives.
  · Do not place near objects that may catch fire such as curtains, towels ...

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- It is necessary to replace the oil after 7 to 10 frying sessions.

· Do not use the appliance if there is any water in it or if the parts are still wet after cleaning.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- During frying, hot steam may come through the filter, or slight splashes may be occur. Keep hands and face at a safe distance during operation.

· To avoid oil splashes, you must first remove the excess ice from frozen foods.

- In case of fire, never try to extinguish with water. Remove the cord, close the lid and smother the flames with a damp cloth.

· Any injury or damage caused by failure to comply with these rules are at your own risk Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

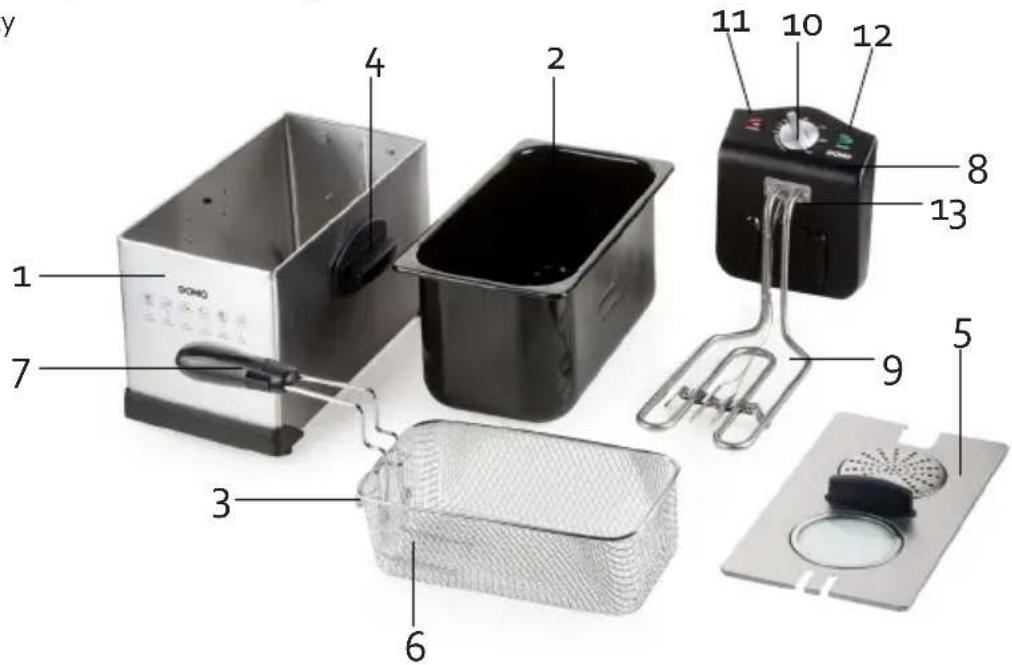

PARTS

1. Stainless steel body
2. Oil container
3. Support
4. Handles
5. Lid with handle, viewing window and filters
6. Frying basket
7. Foldable basket handle
8. Control panel
9. Heating element
10. Temperature knob
11. Red "power on" indicator light
12. Green temperature indicator light
13. Safety

1 2 3 4 5 6 7 8 9 10 11 12 13 DONO

BEFORE THE FIRST USE

1. Remove all packaging materials.
2. Before first use clean the deep fryer according to the instructions.
3. Place the deep fryer on a horizontal, heat resistant surface.

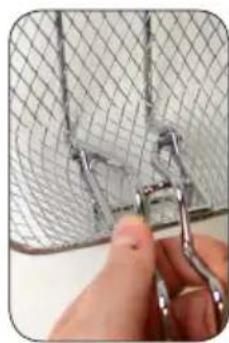

4. Open the lid and remove the basket. Attach the handle to the basket. To do this: squeeze the two metal ends together, insert the 2 pins into the 2 openings in the basket and release the 2 ends. Place the handle in a horizontal position until it clicks.
5. Fill the oil container with liquid oil, suitable for heating, until the oil level is situated between the "MIN" and "MAX" level indicated in the oil container. Don't ever use the appliance when there is too much or too little oil in the container.

Close-up of a hand holding a metal tool next to a mesh wire fence (no text or symbols visible)

USE

1. Place the basket back into the container.
2. Place the plug in the outlet. The red light will light up.
3. Switch on the appliance by turning the temperature knob.
4. Select the desired temperature with the temperature knob. The oil will start to heat up. The green light will go on when the desired temperature is reached. The deep fryer is now ready for use. When the temperature of the oil drops, the temperature indicator light will go out and will go on again when the desired temperature is reached again.

5. Place the basket with the support onto the edge of the fryer and place the food you wish to fry in the basket. For an optimal baking result, only fill half of the basket. Carefully place the basket back into the oil. The lid can be placed on the fryer during operation to prevent any odour nuisance. The viewing window allows you to follow the baking process.
   Note: to preserve the quality of the oil, it is recommended to spice up the food after frying.

6. Remove the basket from the oil and check if the food is thoroughly cooked.

7. Let the food drip for 10 to 12 seconds.

AFTER USE

1. Turn the temperature knob to the minimum.
2. Remove the plug from the outlet.
3. Place the basket back in the oil container.
4. Close the lid.
5. Wait for the deep fryer to cool down completely before storing it.

ADVICE

OIL

As oil quickly loses its optimal quality, it is best to change the oil regularly.

· Groundnut oil after using the fryer 8 to 10 times
· Vegetable oil after using the fryer 10 to 12 times
· Olive oil after using the fryer 8 to 10 times

· Certainly replace the oil if it begins to smell, turns a dark colour, tastes strange, becomes thick or begins to foam. Refresh the oil in one go, do not mix old oil with new oil.

• Some preparations such as breadcrumb coated products or strongly spiced/herbed products and meat preparations may cause the oil to decrease in quality faster than expected. Take this into account.
  · A regular change of oil will make cleaning of the oil reservoir and basket easier.
• Prolonged heating reduces the quality of the oil. Always switch your fryer off immediately after use.

FRENCH FRIES

1. Use thick, not too new potatoes. Cut them up in sticks. Clean the sticks under running water and dry them off.
2. Bake your fries in two times. Let the fries cool down after the first frying, before baking them for the second time:

- First frying: 150-160°C: 5 to 10 minutes (depending on the amount)

· Second frying: 175^ C: 2 to 5 minutes

1. Let them drip thoroughly before serving.

FROZEN FOODS

• Frozen foods cool of the oil or fat strongly. Therefore don't use any large portions.
• Shake the foods above the sink to remove most of the ice.
• Set the temperature knob to 175^ C . Place the basket slowly and gently into the frying pan, to prevent strong bubbling of the oil.

CLEANING AND MAINTENANCE

• Always pull the plug from the electric socket first and wait until the oil has cooled off completely before you start cleaning.
• Do not use harsh or abrasive cleaning agents. Never use sharp objects to remove dirt.
• Pour the oil out of the reservoir and clean the inside with kitchen paper. Use a damp cloth for the outside of the appliance. Dispose of the waste oil at a waste disposal unit for oil.
• The oil reservoir, the lid and the basket can be cleaned in warm water with washing up liquid. Thoroughly dry the parts. The outside casing should only be cleaned with a cloth.
  · Never immerse the control panel in water.
• Assemble the appliance after cleaning. Make sure that the control panel is correctly placed; otherwise your appliance will not work.
• Make sure that no water can get into the oil reservoir or is present on the lid before you fill the appliance with oil.

Note: there is a safety feature near the recess for the cord storage. If the oil in the appliance becomes too hot, this safety will be activated. This means that the device will turn itself off. Allow the appliance to cool and then press this button again to reset the appliance. It will then be possible to use the fryer again.

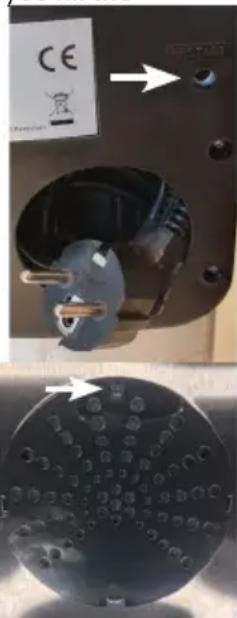

FILTERS IN THE LID

There are 2 filters in the lid: at the top a carbon filter and at the bottom a dust/grease filter. These are easy to replace by unscrewing the screw in the lid. The filters are available in our web shop or from the after sales service.

Close-up of a device's internal components and a circular component with holes, showing no visible text or symbols.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
