USER MANUAL IceAge Klarstein

ICE AGE 36 | 42 | 88

Kühlschrank

Fridge

Frigorífico

Réfrigérateur

Frigorifero

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

10036065 10036066 10046246 10046247

10046248

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

Technical diagram of a refrigerator with labeled parts including door, cabinet, and side panels

Diagram showing a fan device with a grid and control panel, alongside a circular button with an arrow (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 16

Device Overview 20

Commissioning and Operation 21

Care and Maintenance 22

Troubleshooting 23

Hints on Disposal 24

TECHNICAL DATA

Item number	10036065, 10046246	10036066, 10046247	10046248
Power supply 220 - 240 V ~ 50 Hz
Dimensions(width x height x depth)	475*520*435 mm	595*690*520 mm	570*500*500 mm

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

Information on the safety of children and persons at risk

• This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised during use or have received instruction in the safe use of the appliance and understand the risks involved.
  • Children aged 3 to 8 years may fill refrigerators with food and remove food.
• Ensure that children do not play with the appliance.
• Cleaning and maintenance of the appliance may only be carried out by children if they are at least 8 years old and supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When you dispose of the appliance, unplug it from the wall outlet, cut the power cord and remove the door. This will prevent children playing on the appliance from injuring themselves, getting hit or getting trapped.
• If this machine replaces an older machine with a spring lock and latch on the door or lid, disable the spring lock and latch before disposing of the old machine. This will prevent children from getting trapped and suffocating.

General advice

• Keep ventilation openings in the unit housing or in the built-in cabinet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances, such as ice machines, inside refrigeration appliances unless they are approved for this purpose by the manufacturer.
• If there is a light bulb inside the appliance, do not touch it. If it has been switched on for a long time, it can become very hot. The light bulb supplied with this unit is a special bulb that may only be used with the unit supplied. This light bulb is not suitable for household lighting. Do not use the unit without the light bulb.
• When setting up the machine, take care not to pinch or damage the power cord.
• Do not store explosive substances such as spray cans containing a flammable propellant in this appliance.

• During transport and installation of the unit, take care not to damage any components of the refrigerant circuit.

• Avoid naked flames and sources of ignition near the unit.

• Thoroughly and regularly ventilate the room in which the unit is located.
• It is dangerous to modify this product in any way. Any damage to the cable may cause a short circuit, fire or electric shock.
• All electrical components such as the plug, power cord and compressor must be replaced by a certified service centre or by qualified service personnel.
• The power cord must not be extended.
• Be careful not to pinch or damage the power plug. A pinched or damaged power plug may overheat and cause a fire.
• Make sure that you can reach the power plug of the machine at any time.
• Do not pull on the power cord.
• If the power outlet is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• This machine is heavy. Be careful when moving it.
• Do not touch the freezer compartment if your hands are damp or wet, as this may cause skin abrasions or cold burns.
• Do not place the unit in direct sunlight.

• This appliance is intended for use in the home and similar environments. These include:

• Staff kitchens in shops, offices and other working environments

• Farms, hotels, motels and other residential facilities
• Pensions that offer breakfast (Bed & Breakfasts)
• Catering and similar applications outside the retail trade

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Notes on daily use

• Do not put hot food in the machine.
• Do not place food directly against the rear panel.
• Frozen food must not be refrozen after defrosting.
• Store packaged frozen food according to the instructions of the frozen food manufacturer.
• Do not place carbonated fizzy drinks in the freezer compartment as the pressure they generate can cause them to explode and damage the appliance.
• Open the door as rarely as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories, such as drawers, shelves or racks in the appliance.

Notes on installation

• Unpack the machine and check for damage. Do not connect the machine if it is damaged. Report any damage immediately to the manufacturer. Save the original packaging for possible return shipment.
• Wait at least four hours before connecting the unit to allow the coolant to distribute itself in the cooling circuit.
• Ensure that there is sufficient air circulation around the unit. Otherwise, the unit may overheat.
• If possible, the spacers on the unit should rest against the wall. This prevents burns caused by touching the hot compressor or condenser.
• The unit must not be installed near radiators or cookers.
• Make sure that the mains plug is always accessible after the unit has been installed.
• Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate:

SN	Low	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

Notes on cleaning and maintenance

• Before cleaning and maintenance, switch the machine off and unplug the power cord from the wall outlet.
• Do not clean the machine with metal objects. Do not use sharp objects to remove frost from the machine. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

Special instructions for freezers and chest freezers

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the machine, make sure that the mains cable is not pinched or damaged.
• Ensure that there are no multiple sockets or power supply units on the rear of the machine.

To avoid contamination of food, please follow the instructions below:

• Prolonged opening of the door can cause a significant temperature rise in the compartments of the unit.
• Clean surfaces that may come into contact with food regularly. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip onto other foods.

Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.
• If the refrigerator is left empty for a long period of time, switch it off, let it defrost, clean it, dry it and leave the door open to prevent mould from forming in the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

DEVICE OVERVIEW

Technical diagram of a 3D oven with labeled parts including door, vent, and side panels

1	Thermostat and light switch (on the back of the unit)	3	Shelf
2	Glass door	4	Adjustable feet

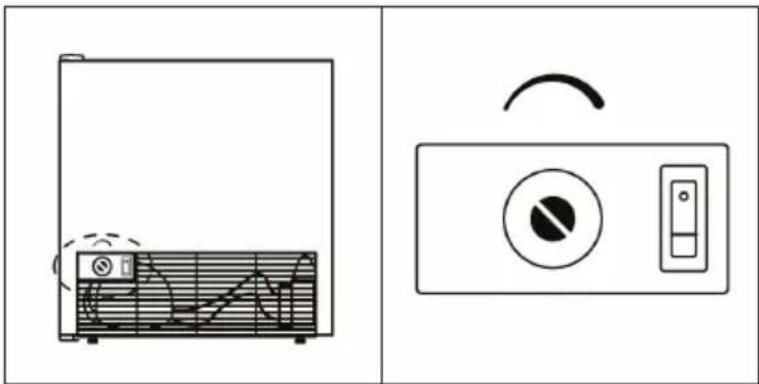

Thermostat and light

• The thermostat is located on the back panel of the unit, near the power cord. Select the desired target temperature by turning the knob clockwise to lower the temperature or counterclockwise to raise it. In summer, when the ambient temperature is high, the indoor temperature should be set low. In winter, the situation is reversed.
• Turn the interior light on/off by operating the switch to the right of the thermostat.

Diagram showing a fan with a grid and a control panel, alongside a circular dial indicator (no text or symbols)

COMMISSIONING AND OPERATION

Before first use

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the unit in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
• The top space of the refrigerator shall be greater than 30 cm, and The refrigerator should be placed against a wall with a free distance more than 10 cm to facilitate heat dissipation.
• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.
• Spare enough space for convenient opening of the doors and drawers.

CARE AND MAINTENANCE

Defrosting

• Frost may accumulate on the inside of the unit and defrost automatically during the compressor cycle.
• The water is led through the drain opening into the collecting tray above the compressor where it evaporates.
• Make sure that the drain hole is cleaned regularly so that the water can escape from the storage compartment.

Cleaning the Unit

• Remove all shelves and the vegetable compartment. First remove the lower door compartment so that you can remove the vegetable compartment.
• Wipe the inside of the appliance with a damp cloth and a little detergent. Then wipe with clear, warm water.
• Wash the shelves and the vegetable compartment in water with detergent and dry them before putting them back into the appliance. Clean the outside of the appliance with a damp cloth.
• The condenser grille on the back of the unit and the adjacent components can be vacuumed with a soft brush attachment.

Cleaning Tips

Condensation may form on the outside of the unit. This may be due to a change in the room temperature. Wipe off the condensation water. If the problem persists, contact a qualified technician.

Maintenance

• When you move the unit, hold it by the sides or floor. Do not hold it by the edges of the top.
• The unit should be serviced by an authorized technician and only original spare parts should be used. Do not attempt to repair the unit yourself. Repairs by inexperienced persons may result in injury or serious malfunction.
• If the unit is not to be used for an extended period of time, disconnect it from the power supply. Remove all food and clean the appliance. Leave the door open to prevent unpleasant odours.

TROUBLESHOOTING

Problem Possible cause and suggested solution
Failed operation. Check whether the appliance is connected to power or whether the plug is in well contact.
Odor. Odorous foods shall be tightly wrapped.
Long-time operation of the compressor.	Long operation of the refrigerator is normal in summer when the ambient temperature is high.
	It is not suggestible having too much food in the appliance at the same time.
	Food shall get cool before being put into the appliance.
	The doors are opened too frequently.
Doors cannot be properly closed.	The door is stuck by food packages Too much food is placed.
	The refrigerator is tilted.
Loud noise. Check whether the floor is level and whether the refrigerator is placed stably.
Door seal fails to be tight.	Remove foreign matters on the door seal.
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Water pan overflows. There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.
Hot housing. Heat dissipation of the built-in condenser via the housing, which is normal.
Surface condensation. Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
