USER MANUAL DO9115KR DOMO

Modern kitchen mixer with a light green model and metallic bowl (no visible text or symbols)

DO9115KR

Piet Huysenfcayt by DOMO

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original

till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Three metallic mechanical components with threaded ends, labeled '14' below (no text or symbols on components)

Three black metal kitchen utensils with wire mesh heads, labeled 10, 9, and 11 (no text or symbols on the items themselves)

Product assembly of a stainless steel kitchen tool with various components and parts (no visible text or labels)

Close-up of a mechanical component with a metallic tool inserted, no visible text or symbols

Close-up of a mechanical press or cutting tool in operation, showing a metallic component and a cylindrical shaft (no visible text or symbols)

Close-up of a kitchen sink with a metallic faucet and water filter (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart device with a logo and metallic casing (no visible text or symbols)

Close-up of a mechanical device with a central circular component and a rectangular housing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular opening, labeled with number 3 (no text or symbols on the object itself)

Close-up of a mechanical device with a black box and metallic ring (no visible text or symbols)

Close-up of a mechanical component with circular flange and bolted joints (no visible text or symbols)

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

Close-up of a modern stainless steel coffee maker with a logo, no visible text or symbols on the device itself.

Close-up of a black and white mechanical component with a circular aperture and mounting holes (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and a white cylindrical part inserted (no visible text or symbols)

Two metallic mechanical components: a gear-like component with threaded shaft and a cross-shaped tool (no text or symbols visible)

Close-up of three metallic pipe fittings and a mechanical component, no visible text or symbols

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a central hole, labeled '6' in the corner (no other text or symbols)

Simple grayscale gear icon with no text or symbols

Close-up of a metal mixing presser with a textured tray and lever (no visible text or symbols)

Black plastic mechanical component with a circular top and tapered shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a conical tool, threaded shaft, and flanged screw (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting tools including a T-shaped tool, helical screw, plastic components, and a meshing knob (no text or symbols visible)

Close-up of a mechanical tool or device with metallic components and a black handle (no visible text or symbols)

Three metallic mechanical components arranged horizontally on a plain surface (no text or symbols visible)

Close-up of a black mechanical device with a circular lens and control buttons (no visible text or symbols)

Three black metal kitchen utensils with wire mesh heads, labeled 9 and 10, shown in different orientations (no text or symbols on the items themselves)

1 2 3 4 5 6 7 8

Product lineup showing five mechanical parts with numbered labels (12), no visible text or symbols on the items themselves.

EN OPTION

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

Collection of industrial kitchen components including a cutter, plunger, and filter (no text or labels visible)

AVANT LE PREMIER USAGE

Pétrir/hacher/battre

Close-up of a mechanical component with a circular feature, possibly a valve or knob, in grayscale (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical device with metallic components and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with a cylindrical shaft and mounting bracket (no visible text or symbols)

Three-step diagram showing a device with a sensor or sensor module, labeled 1, 2, and 3 (no text or symbols on the device itself)

Close-up of a modern stainless steel coffee maker with a handle and logo (no visible text or symbols)

Close-up of a black and silver camera lens with a circular aperture, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and internal gear assembly (no visible text or symbols)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with a central hole, labeled '6' in the top right corner (no other text or symbols visible)

Simple grayscale icon of a circular mechanical component with six protrusions, no text or symbols present.

Close-up of a stainless steel robotic arm with a meshed base and central hub (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Collection of metallic mechanical components including a T-junction, threaded shaft, flange, and conical end (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

Product photo of various mechanical components including a T-shaped tool, threaded screw, plastic housing, and circular components (no text or symbols visible)

Close-up of a mechanical device with metallic components and a cylindrical shaft (no visible text or symbols)

Three metallic mechanical components arranged horizontally (no text or symbols visible)

Close-up of a black and white electronic device with a circular lens and control buttons (no visible text or symbols)

Three black metal kitchen utensils with wire mesh designs, labeled 10, 9, and 11 (no text or symbols on the items themselves)

1 2 3 4 5 6 7 8

Product lineup showing five cylindrical containers with different patterns and designs, one labeled '12' (no text or symbols on containers)

OPTIONELL

Three metallic mechanical components with threaded ends, labeled '14' below (no text or symbols on components)

Exploded view of a kitchen tool set including a cutter, washer, and filter components (no text or symbols visible)

VOR DEM ERSTEN GEBRAUCH

Close-up of a mechanical component with a circular feature and metallic shaft (no visible text or symbols)

Close-up of a mechanical press or cutting tool in operation, no visible text or symbols

Close-up of a stainless steel kitchen sink with water flowing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern robotic device with a metallic lid and control panel (no visible text or symbols)

Close-up of a black and white mechanical device with a circular lens or aperture (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and internal part (no visible text or symbols)

Three circular metal components with perforated surfaces, labeled 5 and 8 (no text or symbols on the objects themselves)

Close-up of a perforated metal component with circular holes, labeled 'Flei' and 'n.' (no other text or symbols)

Simple grayscale icon of a gear or knob with no text or symbols

Close-up of a stainless steel meat processing machine with a side cover and handle (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a T-junction, threaded shaft, gear, and conical tip (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Product photo of a metal kitchen tool with various mechanical components (no visible text or labels)

Close-up of a mechanical device with a metallic cylindrical component and a black cap (no visible text or symbols)

Three metallic cylindrical mechanical components with threaded ends, arranged horizontally on a plain background (no text or symbols visible)

Close-up of a black mechanical device with a circular lens and mounting holes (no visible text or symbols)

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and that they know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Carefully read the instructions before using your appliance.
• Switch off the appliance before fitting and removing the attachments.
• Keep your fingers away from moving parts and the opening of the attachment.
• Only use the appliance for its intended domestic use, the manufacturer will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.
• Never leave the appliance to run unsupervised, especially when young children or handicapped persons are present.
• Make sure that the voltage rating of the appliance does in fact match with that of your electrical system. Any connection error will nullify the guarantee.
• The appliance must be plugged into an earthed electrical socket.
• If you have to use an electrical extension lead, it must be earthed and placed in a way that no-one can trip over it.
• Unplug the appliance as soon as you have finished using it and before cleaning.
• Do not use your attachment and/or appliance if it has been damaged. You should contact an approved service centre.

• Any work on the appliance other than normal care and cleaning by the customer must be carried out by an approved service centre.

• Do not immerse the appliance, the power cord or the plug in water or any other liquid.

• Do not allow the power cord to hang within the reach of children, to come close to or into contact with the hot parts of your appliance, any other source of heat or any sharp edge.
• If the power cord or the plug is damaged, do not use your appliance. To avoid any risk, these must be replaced by an approved service centre.
• Do not put any accessories containing metal in a microwave oven.
• Switch off the appliance and disconnect from the power supply before changing accessories or approaching parts that move in use.
• Do not touch the whisk, mixer blade or kneading hook while the appliance is operating.
• Only use one attachment at a time.
• Do not operate the appliance for more than 10 minutes at one time. Allow 30 minutes rest before the next use.
• Do not use any other accessories than the ones delivered with the appliance or recommended by the manufacturer.

SPECIFICATIONS

220-240V\~50/60Hz 1000W

Speeds: OFF

1 - 8: speed control (min - max)

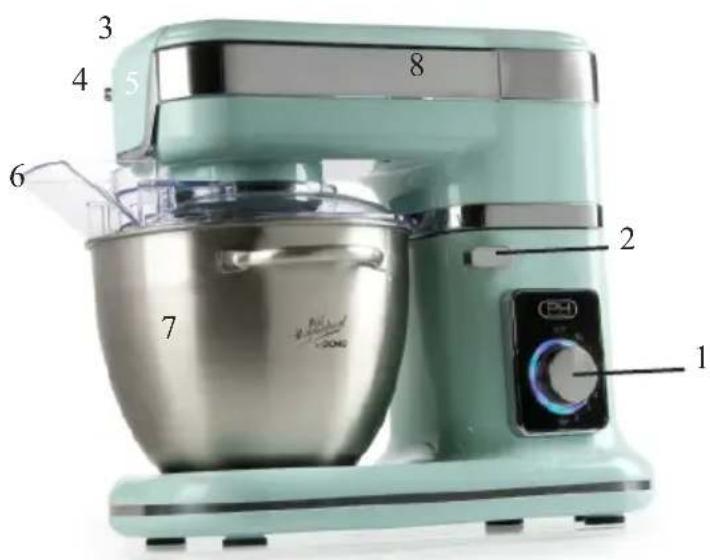

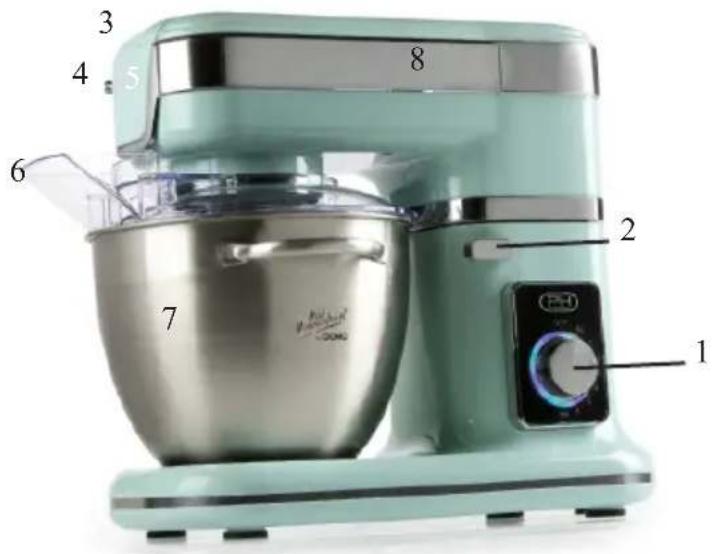

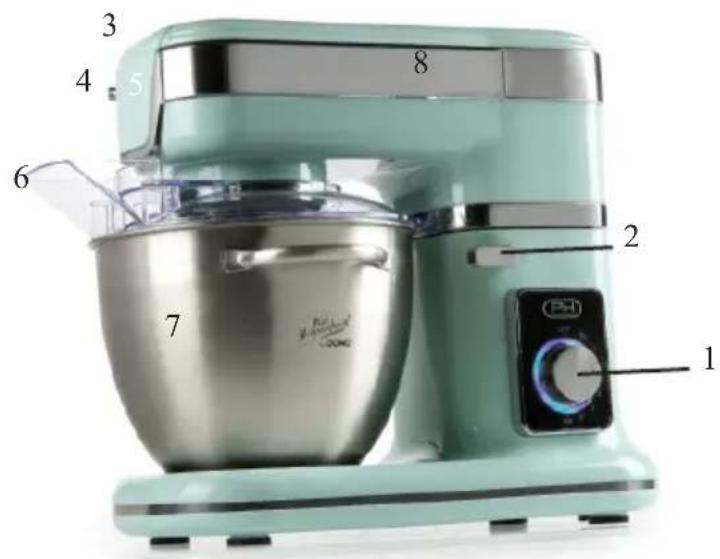

COMPONENTS

1. Speed control
2. Release button for multifunctional head
3. Connection accessories lid
4. Release button for lid accessories

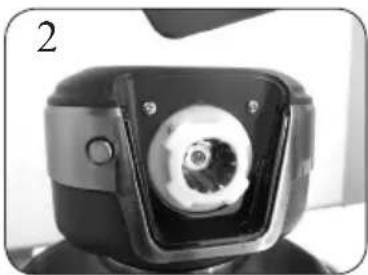

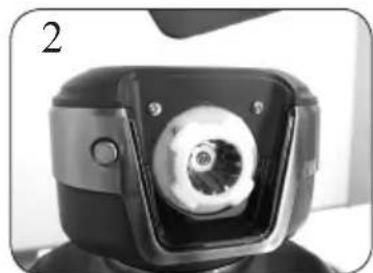

5. Connection for accessories (under lid)
6. Mixing bowl lid
7. Stainless steel mixing bowl
8. Multifunctional head

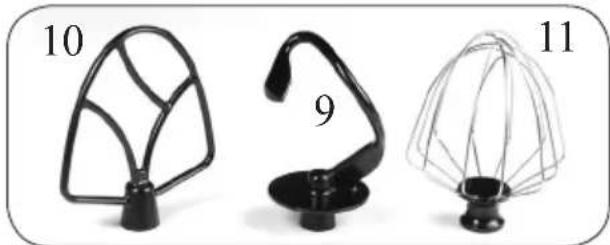

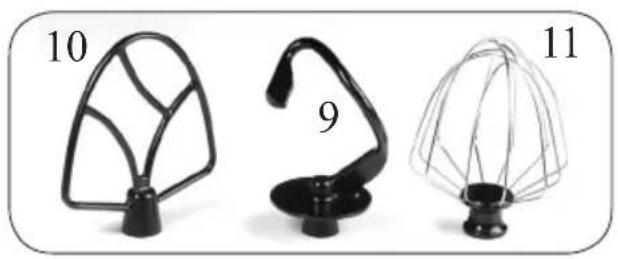

9. Dough hook
10. Beater
11. Whisk

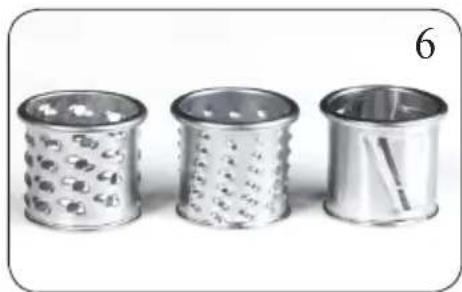

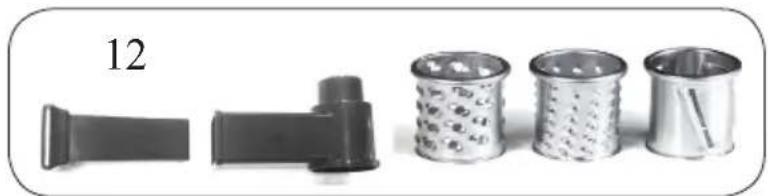

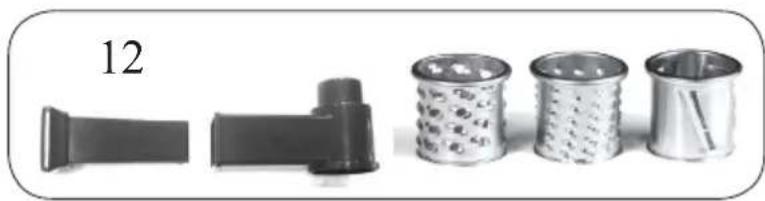

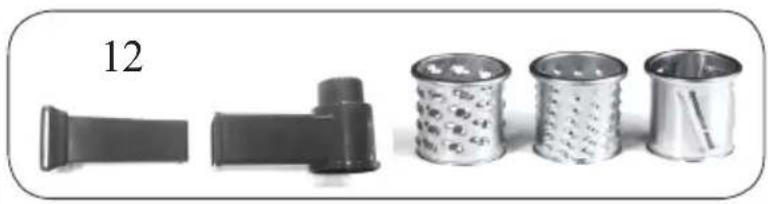

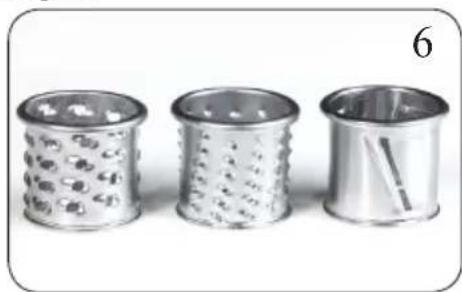

12. Vegetable cutter with components

Three black metal mixing devices labeled 10, 9, and 11, shown from different angles (no text or symbols on the devices themselves)

1 2 3 4 5 6 7 8

Product lineup showing five different plastic containers with varying internal patterns (no text or symbols visible)

OPTIONAL ACCESSORIES

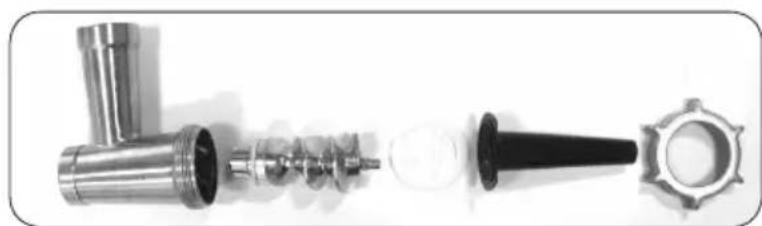

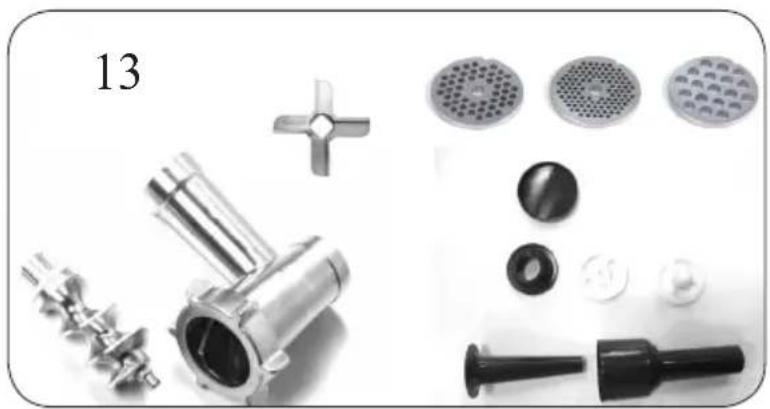

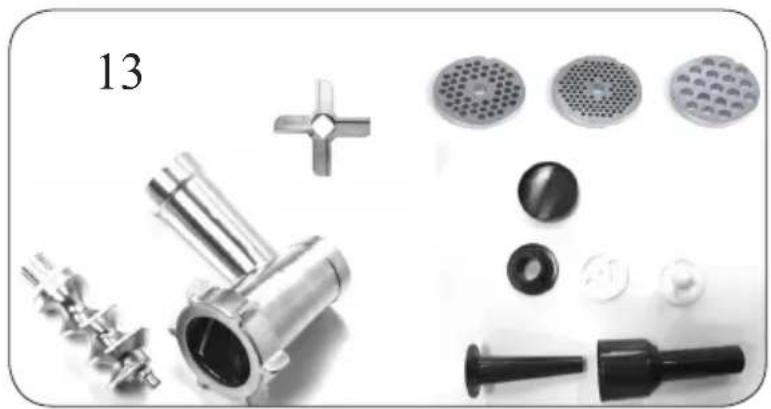

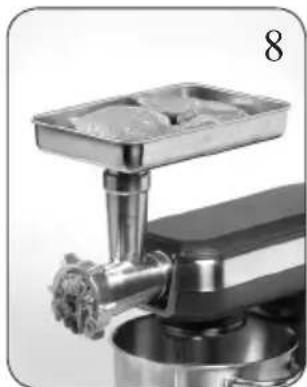

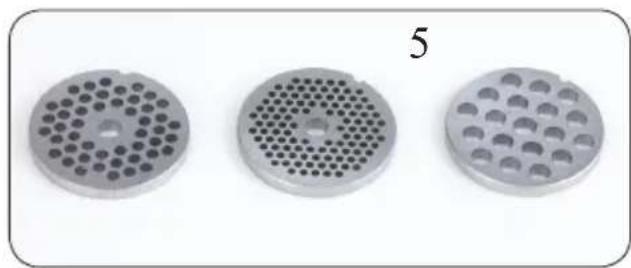

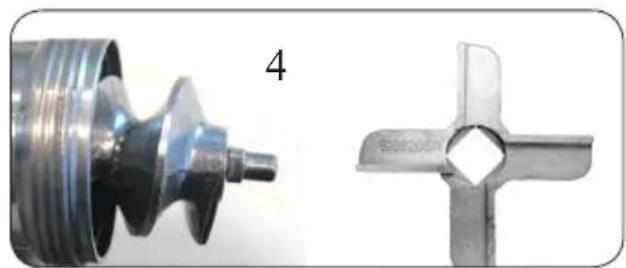

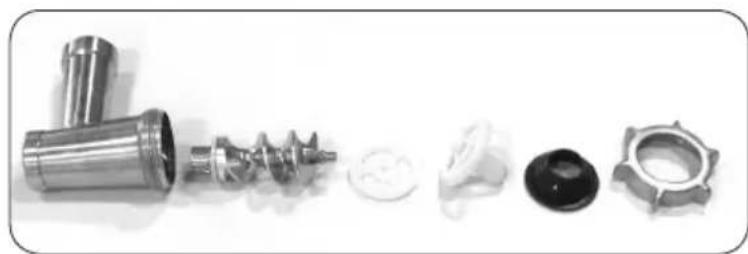

1. Meat grinder with components

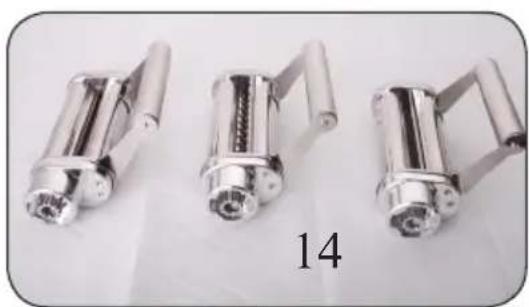

2. Pasta set

Three metallic mechanical components with no visible text or symbols, labeled '14' at bottom (no other text or symbols)

Collection of industrial kitchen components including a cutter, washers, and gauges (no text or symbols visible)

FIRST USE INSTRUCTIONS

• Remove the unit and accessories from the packaging.
• Wash all components with soap in warm water and dry carefully.
• Never immerse the engine unit in water, in order to prevent electrocution.

INSTALLATION AND USAGE

Kneading / grinding / beating

Depending on the nature of the ingredients, the mixing bowl and lid allow for the making of 2 kg of dough.

1. Make a quarter turn with the release button (2) to release the head, then push the head upward until you hear a click.

2. Put the bowl (7) on the base and turn it clockwise to tighten it. Place the ingredients in the bowl.

3. Select the preferred accessory: dough hook, beater or whisk.

a. Attach the hook to the head by moving it upward and sliding it around the shaft.
b. Turn the hook by a quarter in an anti-clockwise direction.
c. Position the hook so that it falls into the lock position.

Close-up of a mechanical component with a metallic handle and circular base (no visible text or symbols)

Close-up of a mechanical press or cutting machine component (no visible text or symbols)

Close-up of a stainless steel kitchen sink with water pump and control panel (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

1. Turn back the release button (quarter turn) so that the head falls down. Push the head back into its original position until you hear a click.

2. Put the lid on the bowl with the opening at the front of the unit.

3. While it is operating, you can add ingredients through the opening in the lid.

4. In order to make the device stop, you turn the speed control to OFF.

5. Place the device on a clean and dry surface. Put the plug in the socket and select the desired speed by turning the speed control.

DISASSEMBLING

1. Remove the plug from the socket.

2. Remove the lid from the bowl.

3. Make a quarter turn on the release button, then push the head upwards until you hear a click.

4. Remove the hook from the lock position and turn it a quarter in a clockwise direction. Then slide the hook off the drive shaft and remove the hook. Remove the hook gently as accidents with sharp edges may occur.

5. Turn the bowl in an anti-clockwise direction from the lock position and remove the bowl.

6. Make a quarter turn backwards with the release button so that the head falls down. Then push the head back into its original position until you hear a click.

CLEANING

1. Always remove the plug from the socket before cleaning the device.
2. Never immerse the engine unit in a bowl of water or under running water. Clean the engine unit with a soft damp cloth.
3. Disassemble all accessories according to the user instructions in the section "Disassembling".
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories. Both the dough hook and beater are dishwasher safe, but the balloon whisk, vegetable slicer, meat grinder and pasta maker are not and need to be manually cleaned.

FITTING VEGETABLE SLICER DO907OKR-V

Turn the device off, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and push it upwards.
2. The connecting point for accessories is now shown.
3. Place the vegetable cutter at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your vegetable cutter is now in a perfect vertical position.

Close-up of a modern, sleek, metallic device with a handle and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular component and a central hub (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular opening, labeled with number 3 (no text or symbols on the object itself)

1. With the pushing rod you can safely place vegetables in the vegetable cutter.

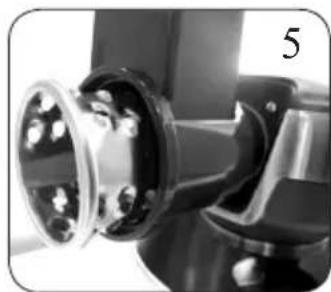

2. Push the grater or slicer fully into the opening of the vegetable cutter.
3. You can choose between a cutter and two types of graters.

Close-up of a mechanical device with a metallic component and a black housing (no visible text or symbols)

Close-up of a mechanical component with circular and rectangular features, no visible text or symbols

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

To remove the vegetable cutter, press the release button. Make a quarter turn clockwise on the vegetable cutter. Clean all parts thoroughly and dry carefully before using them again.

OPTIONAL ACCESSORIES: FITTING MEAT GRINDER DO907OKR-M

Turn off the device, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and pushing the lid upwards.
2. The connecting point for accessories is now shown.
3. Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your meat grinder is now in a perfect vertical position.

Close-up of a modern stainless steel coffee maker with a logo, no visible text or symbols on the device itself.

Close-up of a black and white electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and internal cavity (no visible text or symbols)

1. For grinding meat insert in succession: the worm wheel and the cutting knife.

Two metallic mechanical components: a gear-like mechanical part and a cross-shaped tool with a central hole (no text or symbols visible)

Close-up of three metallic pipe fittings and a mechanical component, no visible text or symbols

1. Then make a selection from the grinding discs: fine, medium or coarse.
2. Position the notch on the disc at the height of the projecting catch.
3. Connect it altogether with the screw ring.

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with circular holes, no visible text or symbols

Simple grayscale icon of a gear or knob with a central hole and six teeth, no text or symbols present.

1. Position the bowl in the best way possible so as to put your meat in it.
2. You can use the pushing rod to press the meat firmly inside.

Close-up of a stainless steel robotic feeder with a flat blade and central handle (no visible text or symbols)

Black plastic mechanical component with a circular top and tapered shaft, labeled '9' in the corner (no other text or symbols)

For sausage making, insert the following components:

Close-up of various metallic mechanical components including a conical tool, threaded shaft, and flanged component (no visible text or symbols)

Close-up of a metallic mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

For making stuffed meatballs, insert the following components:

Product photo of a kitchen knife and various mechanical components (no text or symbols visible)

Close-up of a mechanical tool or device with metallic components and a black cylindrical component (no visible text or symbols)

To remove the meat grinder, press the release button. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using them again.

CLEANING

Do not use the dishwasher for cleaning the meat grinder.

OPTIONAL ACCESSORIES: PASTA DO907OKR-L-T-S

There are three accessories:

• a roller for lasagna
• a tagliatelle cutter
- a spaghetti cutter

Three metallic mechanical components with threaded ends, arranged horizontally (no visible text or symbols)

Close-up of a black mechanical device with a circular lens and mounting bracket (no visible text or symbols)

To make spaghetti or tagliatelle, you must first use the lasagna roller to flatten sheets of pasta.

PREPARATION OF PASTA

Basic recipe

• 500 grams of flour
  • 4 eggs
• a pinch of salt
• 2,5 ml oil
• optionally water

For whole-wheat pasta replace the regular flour with whole-wheat flour. For pasta rossa replace one egg with 75 g tomato paste.

• Put the ingredients in the bowl.
• Mix with the dough hook n speed 1-2 for 2 to 3 minutes. Add water if the dough is too dry.
• Stop your food processor and knead the dough by hand until it is smooth.
• Let it rest in a kitchen towel for 15 minutes.
• Put the pasta roller into the connector for accessories.
• First, use the pasta roller to make flat sheets of pasta as for lasagna making.
• Enter these pasta sheets through the pasta cutter for spaghetti or tagliatelle.
  • Fill a large pan full of water with a pinch of salt.
• Add some olive oil in order to prevent the pasta stick together
• Bring water to boil and add the pasta. Let simmer for 2 to 4 minutes depending on your personal preference.

CLEANING

Clean the pasta accessories with a damp cloth and wipe dry. Do not immerse in water or use the dishwasher for cleaning.

PRECAUCIONES IMPORTANTES

Three black metal mixing devices labeled 10, 9, and 11, shown side by side without any text or symbols on the devices themselves.

Product lineup showing five different mechanical components, one being cut with a labeled part (12), others covered with plastic cups or containers.

OPCIONAL

Three metallic mechanical components with protruding pins, labeled '14' below (no text or symbols on components)

Collection of industrial kitchen components including a cutter, flourer, and washers (no text or labels visible)

Close-up of a mechanical component with a metallic shaft and curved base (no visible text or symbols)

Close-up of a mechanical press or cutting machine component (no visible text or symbols)

Close-up of a mechanical device with metallic components and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart device with a logo and handle (no visible text or symbols)

Close-up of a black and silver electronic device with a circular lens or aperture, labeled '2' in the top-left corner (no other text or symbols visible)

Close-up of a mechanical component with a metallic shaft and circular opening, labeled with number 3 (no text or symbols on the object itself)

Three-panel image showing a kitchen tool, a mechanical component with circular features, and three metal grates (no text or symbols visible)

Three-panel image showing a device with labeled parts: top view, front view, and close-up of internal components (no visible text or symbols)

Three views of a mechanical component: external gear, cross-shaped tool, and threaded pipe assembly (no text or symbols visible)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a central hole and a label '6' (no readable text or symbols beyond the number)

Close-up of a metallic gear or knob with six teeth, no visible text or symbols

Close-up of a metal mixing tool with a textured top and base, no visible text or symbols

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a conical tip, threaded shaft, and flanged end (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and cylindrical head (no visible text or symbols)

Collection of industrial cutting gears and mechanical components (no text or symbols visible)

Close-up of a mechanical tool or pump component with metallic and black components (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a black and silver mechanical device with a circular lens or aperture (no visible text or symbols)

Three black metal kitchen utensils with wire mesh heads, labeled 9 and 10, shown in different orientations (no text or symbols on the items themselves)

Product lineup showing four types of plastic containers: a flat plastic holder, a black plastic holder, two perforated cylindrical cups with visible contents, and one metallic cylindrical container (no text or symbols)

ZVLÁŠTNÍ PŘÍSLUŠENSTVÍ

Three metallic mechanical components with protruding rods, labeled '14' below (no text or symbols on components)

Product assembly of a kitchen knife and various mechanical components (no text or symbols visible)

PŘED PRVNÍM POUŽITÍM

Close-up of a metallic mechanical component with a curved handle, possibly part of a tool or device (no visible text or symbols)

Close-up of a mechanical press or cutting tool with no visible text or symbols

Close-up of a kitchen sink with faucet and water supply (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of mechanical components including a cylindrical tool, threaded shaft, gear, and conical tip (no text or symbols visible)

Close-up of a metallic mechanical component with a pointed shaft and cylindrical shaft (no visible text or symbols)

Product photo of various mechanical parts including a T-shaped tool, threaded screw, plastic components, and a circular knob (no text or symbols visible)

Close-up of a mechanical device with a metallic cylindrical component and a black cap (no visible text or symbols)

Three metallic mechanical components arranged in a row (no visible text or symbols)

Close-up of a black and white mechanical device with a circular lens or aperture (no visible text or symbols)

PŘÍPRAVA

Four-panel image showing milk containers, food items, and a ceramic pitcher (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
