USER MANUAL DO9073KR DOMO

Red modern kitchen mixer with a stainless steel bowl and control panel (no visible text or symbols)

DO9073KR

Handleiding Keukenrobot

Mode d'emploi Robot de cuisine

Gebrauchsanleitung Küchenmaschine

Instruction booklet Stand mixer

Manual de instrucciones Robot de cocina

Návod k použití Kuchyňský robot

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original

till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Recycling symbol icon with three arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Three black metal mesh head models labeled 10, 9, and 11, shown from different angles (no text or symbols on the models themselves)

Three metallic mechanical connectors with metal fittings, labeled '14' below (no text or symbols on the devices themselves)

Product photo of kitchen utensils including a cutter, plunger, and filter components (no text or labels visible)

Product image showing a mechanical component and four cylindrical containers with textured surfaces (no text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a mechanical device with a metallic component and a cylindrical shaft (no visible text or symbols)

Close-up of a stainless steel kitchen sink with a piping bag (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart water heater device with a logo, no visible text or symbols on the device itself.

Close-up of a mechanical device with a circular component and a rectangular housing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

Close-up of a mechanical device with a metallic component and a flat top, labeled '4' in the corner (no readable text or symbols on the device itself)

Close-up of a mechanical component with metallic parts and a numbered label '5' (no readable text or symbols)

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

Close-up of a modern robotic device with a metallic head and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular component and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and internal cavity (no visible text or symbols)

Two metallic mechanical components: a gear-like mechanical part and a cross-shaped tool with a diamond-shaped hole (no text or symbols visible)

Close-up of three metallic pipe fittings and a mechanical component, no visible text or symbols

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with a small hole, labeled '6' in the top-left corner (no other text or symbols visible)

Close-up of a metallic gear or knob with a circular cutout and radial teeth (no text or symbols visible)

Close-up of a stainless steel meat processing machine with a side cover and handle (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of various mechanical components including a T-junction, threaded shaft, conical tip, and flange (no text or symbols visible)

Close-up of a metallic mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

Collection of industrial kitchen components including a T-shaped tool, threaded screw, plastic housing, and circular components (no text or symbols visible)

Close-up of a mechanical tool or device with metallic components and a black cylindrical top (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a mechanical device with a circular lens and mounting bracket (no visible text or symbols)

BEREIDING PASTA

Basisrecept

Three black metal kitchen utensils with numbered labels (10, 9, 11) for identification.

3 4 5 6 7 8 2 DOMO 1

EN OPTION

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

Product photos of kitchen utensils and filter components, labeled 12 and 13 (no text or symbols on parts)

AVANT LE PREMIER USAGE

Pétrir/hacher/battre

Close-up of a mechanical component with metallic parts and a circular feature (no visible text or symbols)

Close-up of a mechanical assembly or machine component (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern smart device with a sleek, metallic top and transparent casing (no visible text or symbols)

Close-up of a mechanical component with a circular aperture and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular opening, labeled with number 3 (no text or symbols on the object itself)

Three-panel image showing a mechanical device with labeled parts: 4, 5, and 6 (no visible text or symbols)

Three-panel image showing a device with a sensor and internal components, no visible text or symbols.

Three views of a mechanical component: a spiral impeller, a cross-shaped tool, and a threaded pipe assembly (no text or symbols visible)

DO9073KR

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with a small protrusion and the number 6 visible (no text or symbols on the object itself)

Simple grayscale gear icon with no text or symbols

Close-up of a metal mixing tool with a textured tray and central shaft (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a knuckle, threaded shaft, and conical tip (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

Product photo of a metal cutting tool with various mechanical components (no visible text or labels)

Close-up of a mechanical tool or device with metallic components and a cylindrical shaft (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a mechanical component with a circular aperture and metallic frame (no visible text or symbols)

Three black metal mixing devices labeled 10, 9, and 11, shown side by side without any text or symbols on the devices themselves.

3 4 5 6 7 8 2 DOMO 1

OPTIONELL

Three metallic mechanical components with threaded ends, labeled '14' at bottom (no other text or symbols)

Assorted kitchen components including a metal mixer, screwdriver, and various circular components (no text or symbols visible)

Product lineup showing a brush tool, a mechanical component, and four cylindrical containers with textured surfaces (no text or symbols)

VOR DEM ERSTEN GEBRAUCH

Close-up of a mechanical component with metallic parts and a curved handle (no visible text or symbols)

Close-up of a mechanical press or cutting machine component (no visible text or symbols)

Close-up of a stainless steel kitchen sink with water pipes and a handle (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a modern, sleek, ergonomic device with a transparent hood and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular aperture and central hub (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

Close-up of a mechanical device with a lid and base, no visible text or symbols

Close-up of a mechanical component with circular flange and mounting bracket (no visible text or symbols)

Three metallic cylindrical containers with patterned surfaces, arranged horizontally (no text or symbols visible)

Close-up of a modern smart water heater device with metallic casing and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular aperture and metallic frame (no visible text or symbols)

Close-up of a mechanical component with a metallic housing and a small cylindrical part inserted (no visible text or symbols)

Close-up of mechanical components including a gear and a cross-shaped tool (no visible text or symbols)

Close-up of three metallic pipe fittings and a mechanical component, no visible text or symbols

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal component with a small hole and a number 6 label (no readable text or symbols)

Simple grayscale gear icon with no text or symbols

Close-up of a metal cutting tool with a textured base and central handle (no visible text or symbols)

Black plastic mechanical component with a circular cap and tapered shaft, labeled with number 9 (no text or symbols on the object itself)

Close-up of metallic mechanical components including a T-junction, threaded shaft, flange, and conical end (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting tools including a T-shaped tool, helical screw, plastic components, and a meshing gear (no text or symbols visible)

Close-up of a mechanical tool or device with metallic components and a black cylindrical component (no visible text or symbols)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Close-up of a mechanical device with a circular lens and central hub (no visible text or symbols)

ZUBEREITUNG PASTA

Grundrezept

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and that they know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

1. Carefully read the instructions before using your appliance.
2. Switch off the appliance before fitting and removing the attachments.
3. Keep your fingers away from moving parts and the opening of the attachment.
4. Only use the appliance for its intended domestic use, the manufacturer will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.
5. Never leave the appliance to run unsupervised, especially when young children or handicapped persons are present.
6. Make sure that the voltage rating of the appliance does in fact match with that of your electrical system. Any connection error will nullify the guarantee.
7. The appliance must be plugged into an earthed electrical socket.
8. If you have to use an electrical extension lead, it must be earthed and placed in a way that no-one can trip over it.
9. Unplug the appliance as soon as you have finished using it and before cleaning.
10. Do not use your attachment and/or appliance if it has been damaged. You should contact an approved service centre.

11. Any work on the appliance other than normal care and cleaning by the customer must be carried out by an approved service centre.

12. Do not immerse the appliance, the power cord or the plug in water or any other liquid.

13. Do not allow the power cord to hang within the reach of children, to come close to or into contact with the hot parts of your appliance, any other source of heat or any sharp edge.
14. If the power cord or the plug is damaged, do not use your appliance. To avoid any risk, these must be replaced by an approved service centre.
15. Do not put any accessories containing metal in a microwave oven.
16. Switch off the appliance and disconnect from the power supply before changing accessories or approaching parts that move in use.
17. Do not touch the whisk, mixer blade or kneading hook while the appliance is operating.
18. Only use one attachment at a time.
19. Do not operate the appliance for more than 10 minutes at one time. Allow 30 minutes rest before the next use.
20. Do not use any other accessories than the ones delivered with the appliance or recommended by the manufacturer.

SPECIFICATIONS

220-240V\~50/60Hz 1000W

Speeds: OFF

1 - 8: speed control (min - max)

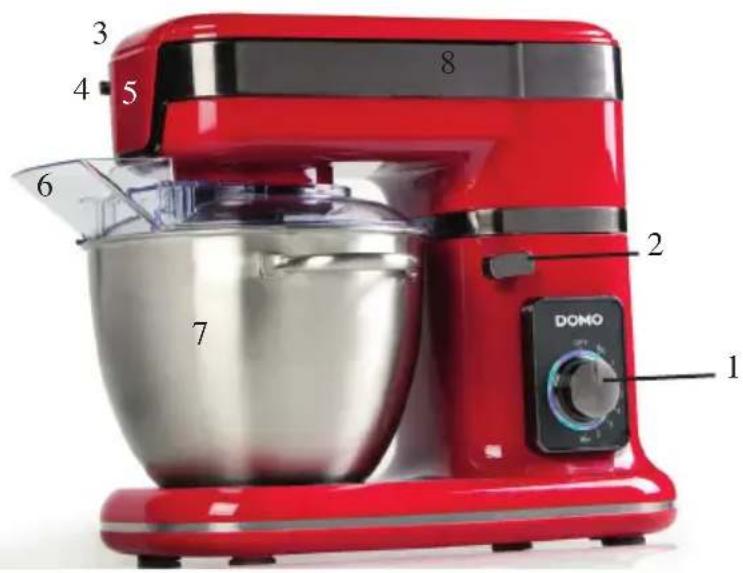

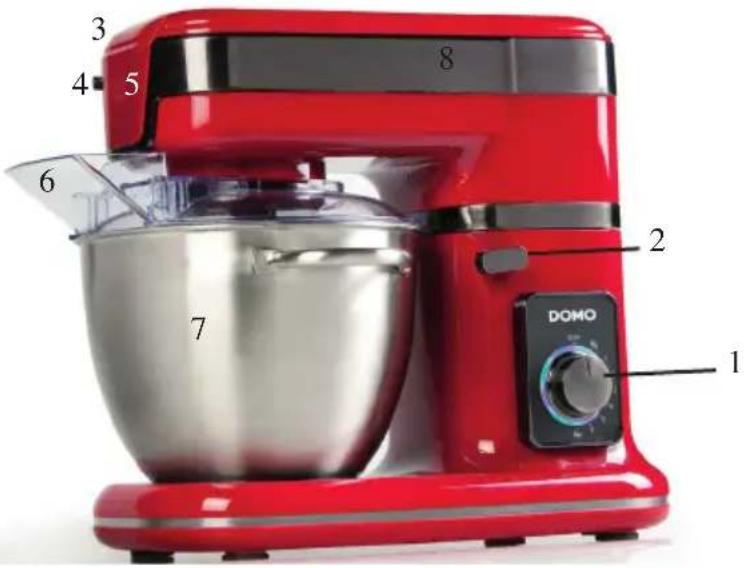

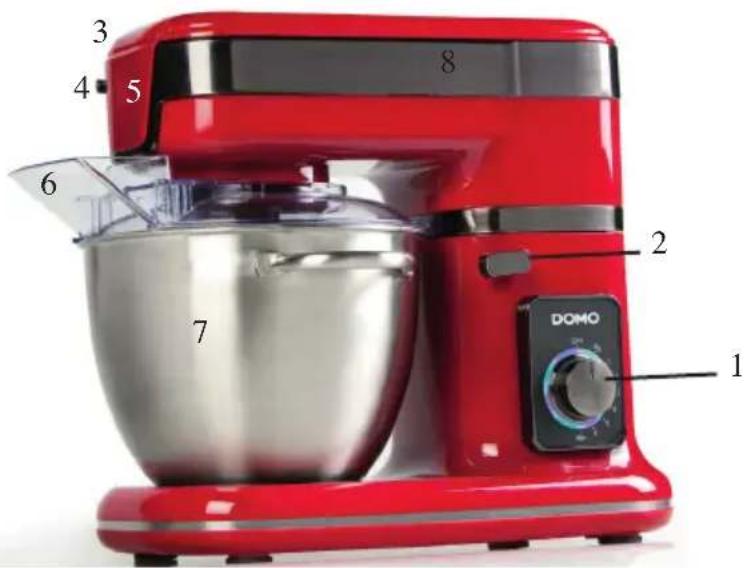

COMPONENTS

1. speed control
2. release button for multifunctional head
3. connection accessories lid
4. release button for lid accessories
5. connection for accessories (under lid)
6. mixing bowl lid
7. stainless steel mixing bowl
8. multifunctional head

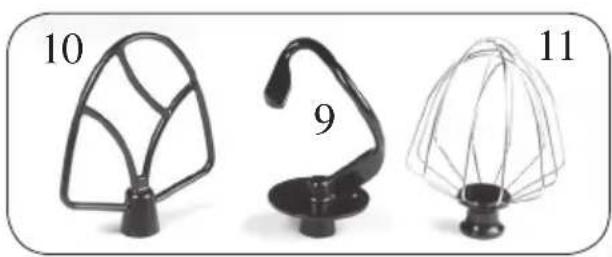

9. dough hook
10. beater
11. whisk

Three black metal kitchen utensils with numbered labels (10, 9, 11) showing different designs and sizes (no text or symbols on the items themselves)

3 4 5 6 7 8 2 DOMO 1

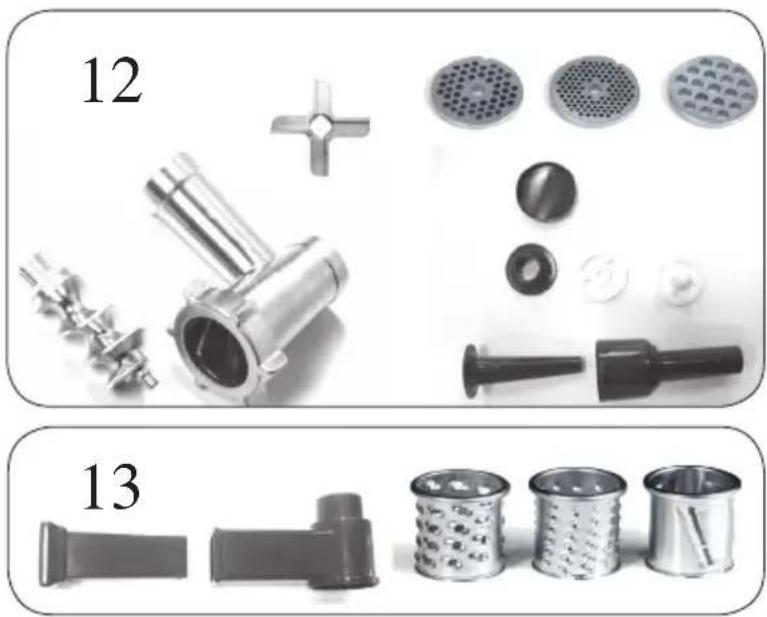

OPTIONAL ACCESSORIES

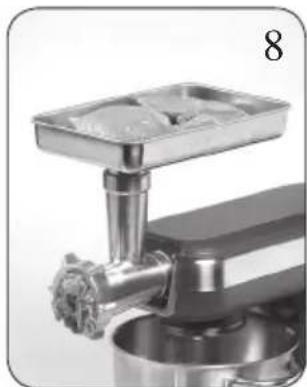

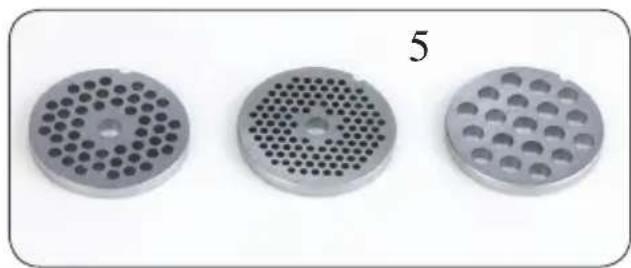

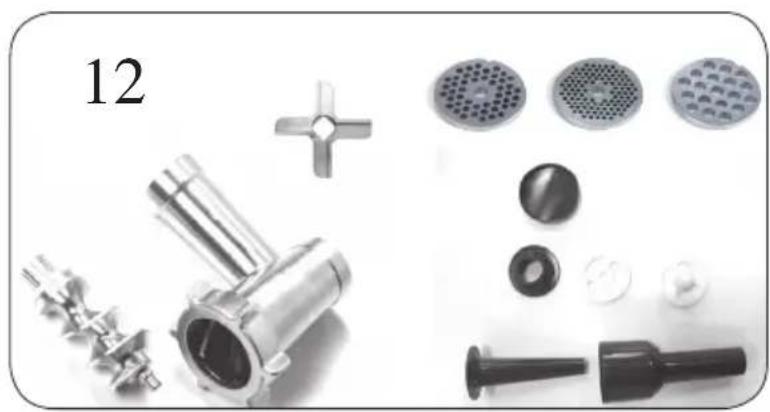

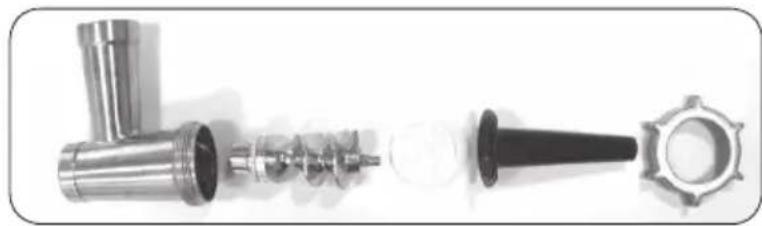

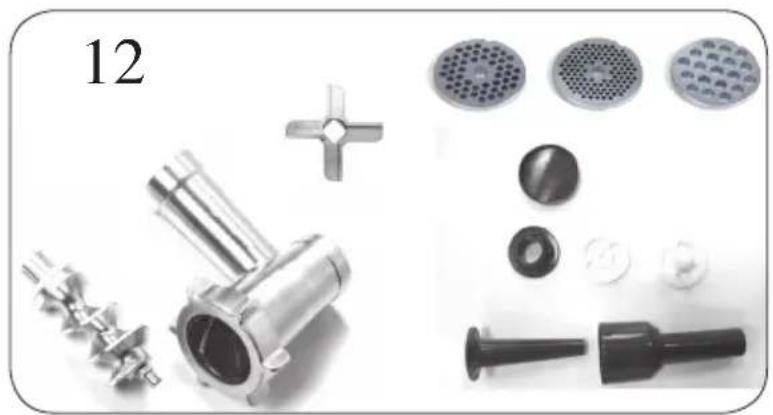

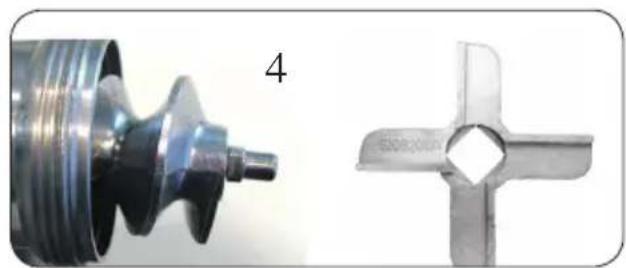

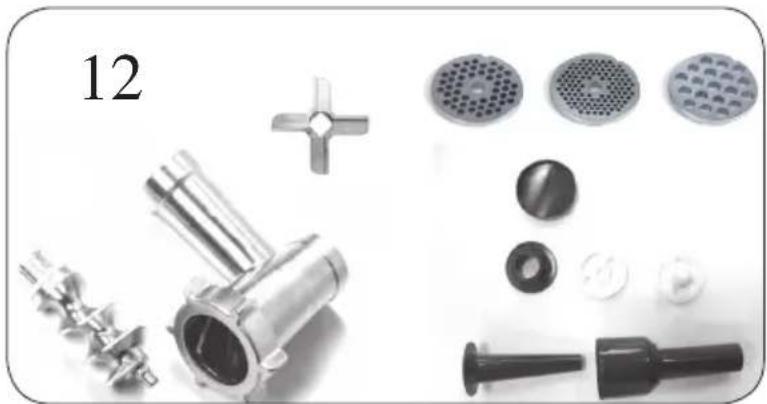

1. meat grinder with components

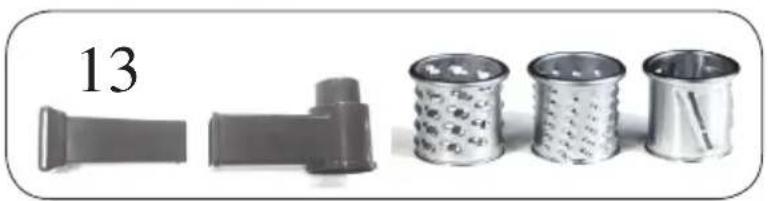

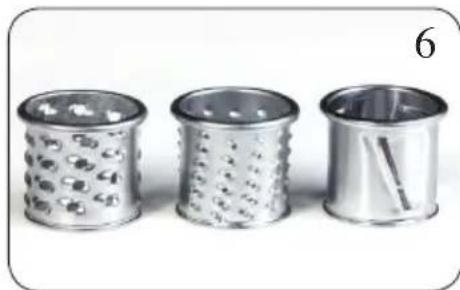

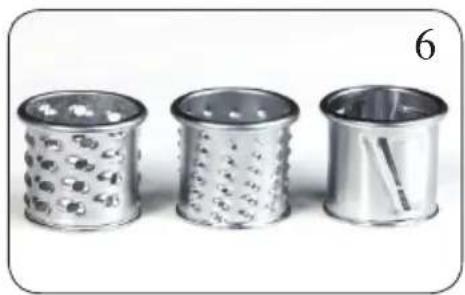

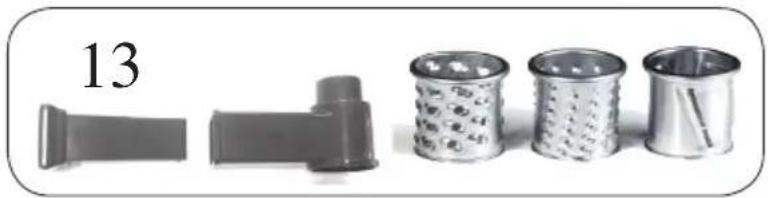

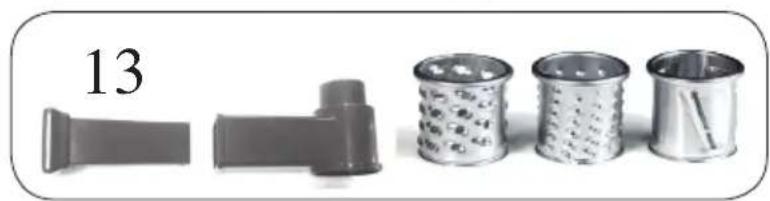

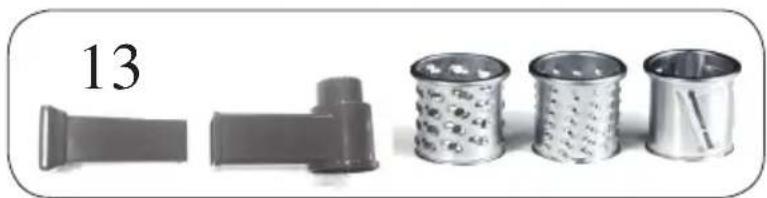

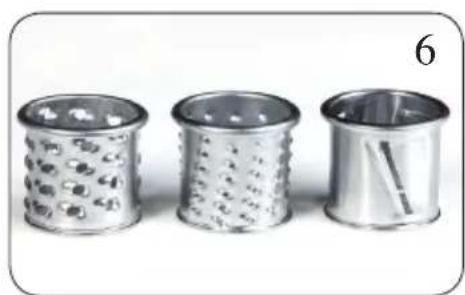

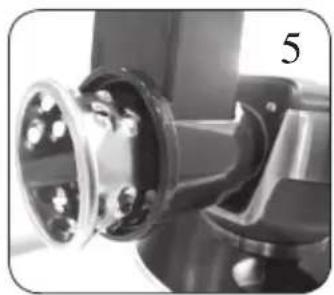

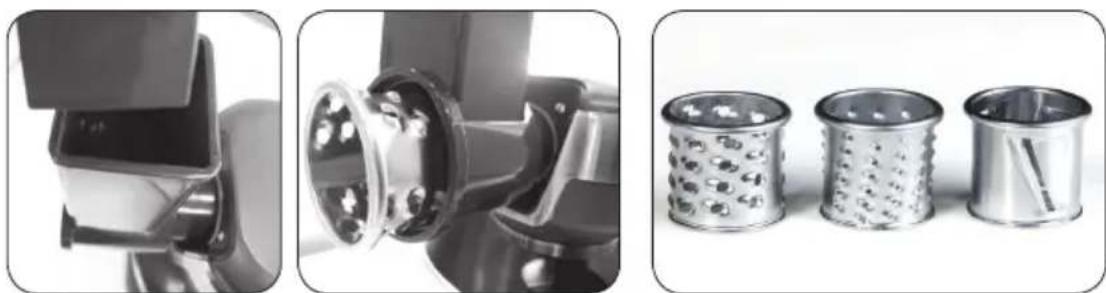

2. vegetable cutter with components

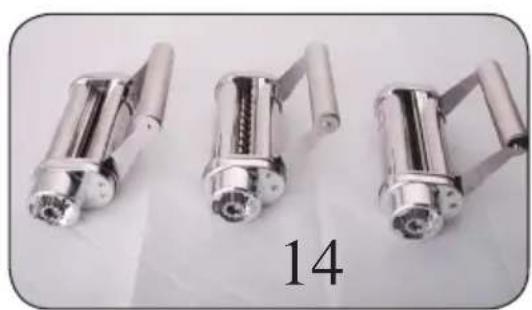

3. pasta set

Three metallic mechanical components with threaded ends, labeled '14' below (no text or symbols on components)

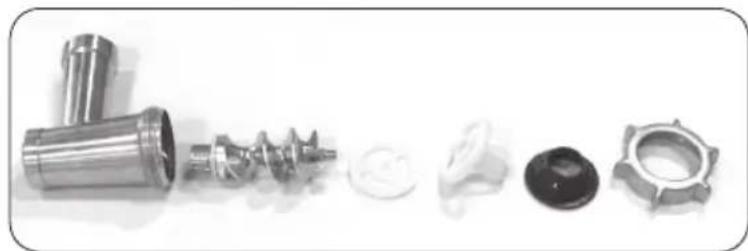

Exploded view of mechanical components including a cutting tool, flange, and various washers (no text or symbols visible)

Five different types of plastic containers, including a pen and three cylindrical containers with textured surfaces (no text or symbols visible)

FIRST USE INSTRUCTIONS

Remove the unit and accessories from the packaging.

Wash all components with soap in warm water and dry carefully. Never immerse the engine unit in water, in order to prevent electrocution.

INSTALLATION AND USAGE

Kneading / grinding / beating

Depending on the nature of the ingredients, the mixing bowl and lid allow for the making of 2 kg of dough.

1. Make a quarter turn with the release button (2) to release the head, then push the head upward until you hear a click.

2. Put the bowl (7) on the base and turn it clockwise to tighten it. Place the ingredients in the bowl.

3. Select the preferred accessory: dough hook, beater or whisk.

a. Attach the hook to the head by moving it upward and sliding it around the shaft.

b. Turn the hook by a quarter in an anti-clockwise direction.

c. Position the hook so that it falls into the lock position.

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a mechanical component or tool with no visible text or symbols

Close-up of a mechanical component with metallic parts and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

1. Turn back the release button (quarter turn) so that the head falls down. Push the head back into its original position until you hear a click.

2. Put the lid on the bowl with the opening at the front of the unit.

3. While it is operating, you can add ingredients through the opening in the lid.

4. In order to make the device stop, you turn the speed control to OFF.

5. Place the device on a clean and dry surface. Put the plug in the socket and select the desired speed by turning the speed control.

DISASSEMBLING

1. Remove the plug from the socket.

2. Remove the lid from the bowl.

3. Make a quarter turn on the release button, then push the head upwards until you hear a click.

4. Remove the hook from the lock position and turn it a quarter in a clockwise direction. Then slide the hook off the drive shaft and remove the hook. Remove the hook gently as accidents with sharp edges may occur.

5. Turn the bowl in an anti-clockwise direction from the lock position and remove the bowl.

6. Make a quarter turn backwards with the release button so that the head falls down. Then push the head back into its original position until you hear a click.

CLEANING

1. Always remove the plug from the socket before cleaning the device.
2. Never immerse the engine unit in a bowl of water or under running water. Clean the engine unit with a soft damp cloth.
3. Disassemble all accessories according to the user instructions in the section "Disassembling".
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories.

OPTIONAL ACCESSORIES: VEGETABLE SLICER DO907OKR-V

Turn the device off, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and push it upwards.
2. The connecting point for accessories is now shown.
3. Place the vegetable cutter at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your vegetable cutter is now in a perfect vertical position.

Close-up of a modern smart device with a transparent hood and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular aperture and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

1. With the pushing rod you can safely place vegetables in the vegetable cutter.
2. Push the grater or slicer fully into the opening of the vegetable cutter.
3. You can choose between a cutter and two types of graters.

Close-up of a mechanical device with a metallic component and a flat top, labeled '4' in the corner (no readable text or symbols on the device itself)

Close-up of a mechanical component with circular flange and bolted joints (no visible text or symbols)

Three metallic cylindrical containers with patterned lids, arranged horizontally (no text or symbols visible)

To remove the vegetable cutter, press the release button. Make a quarter turn clockwise on the vegetable cutter. Clean all parts thoroughly and dry carefully before using them again.

OPTIONAL ACCESSORIES: FITTING MEAT GRINDER DO907OKR-M

Turn off the device, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and pushing the lid upwards.
2. The connecting point for accessories is now shown.
3. Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your meat grinder is now in a perfect vertical position.

Close-up of a modern stainless steel coffee maker with a logo, no visible text or symbols on the device itself.

Close-up of a mechanical device with a central circular component and a rectangular housing (no visible text or symbols)

Close-up of a mechanical component with a metallic handle and internal cavity (no visible text or symbols)

1. For grinding meat insert in succession: the worm wheel and the cutting knife.

Two metallic mechanical components: a gear-like mechanical part and a cross-shaped tool (no text or symbols visible)

Three metallic pipe fittings and a mechanical component, shown from different angles (no text or symbols visible)

1. Then make a selection from the grinding discs: fine, medium or coarse.
2. Position the notch on the disc at the height of the projecting catch.
3. Connect it altogether with the screw ring.

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with a small hole, labeled '6' in the top right corner (no other text or symbols visible)

Simple grayscale icon of a gear or knob with no text or symbols

1. Position the bowl in the best way possible so as to put your meat in it.
2. You can use the pushing rod to press the meat firmly inside.

Close-up of a stainless steel meat processing machine with a side-mounted blade and central handle (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 9 (no text or symbols on the object itself)

For sausage making, insert the following components:

Close-up of metallic mechanical components including a knuckle, threaded shaft, and flange (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

For making stuffed meatballs, insert the following components:

Collection of industrial cutting tools including a T-shaped tool, helical screw, and mechanical components (no text or labels visible)

Close-up of a mechanical tool or device with a metallic handle and central shaft (no visible text or symbols)

To remove the meat grinder, press the release button. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using them again.

CLEANING

Do not use the dishwasher for cleaning.

OPTIONAL ACCESSORIES: PASTA DO907OKR-L-T-S

There are three accessories: a roller for lasagna, a tagliatelle cutter and spaghetti cutter.

To make spaghetti or tagliatelle, you must first use the lasagna roller to flatten sheets of pasta.

Three metallic mechanical components arranged horizontally (no text or symbols visible)

Close-up of a mechanical component with a circular aperture and mounting holes (no visible text or symbols)

PREPARATION OF PASTA

Basic recipe

• 500 grams of flour
• 4 eggs
• a pinch of salt
• 2,5ml oil
• optionally water

For whole-wheat pasta replace the regular flour with whole-wheat flour.

For pasta rossa replace one egg with 75g tomato paste.

• Put the ingredients in the bowl.
• Mix with the dough hook n speed 1-2 for 2 to 3 minutes. Add water if the dough is too dry.
• Stop your food processor and knead the dough by hand until it is smooth.
• Let it rest in a kitchen towel for 15 minutes.
• Put the pasta roller into the connector for accessories.
• First, use the pasta roller to make flat sheets of pasta as for lasagna making.

• Enter these pasta sheets through the pasta cutter for spaghetti or tagliatelle.

• Fill a large pan full of water with a pinch of salt.

• Add some olive oil in order to prevent the pasta stick together
• Bring water to boil and add the pasta. Let simmer for 2 to 4 minutes depending on your personal preference.

CLEANING

Clean the pasta accessories with a damp cloth and wipe dry. Do not immerse in water or use the dishwasher for cleaning.

PRECAUCIONES IMPORTANTES

Three black metal wire mesh models labeled 10, 9, and 11, showing different mechanical components (no text or symbols on the models themselves)

3 4 5 6 7 8 2 DOMO 1

OPCIONAL

Three metallic mechanical components with no visible text or symbols, labeled '14' below (no other text or symbols)

Collection of kitchen utensils and components including a cutter, plunger, and filter (no text or symbols visible)

Product lineup showing five metal containers with different designs, one labeled '13' (no text or symbols on containers)

Close-up of a mechanical component with a metallic handle and curved base (no visible text or symbols)

Close-up of a mechanical press or cutting machine component (no visible text or symbols)

Close-up of a kitchen sink with a metal faucet and water pipe (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a futuristic robot head with a sleek metallic design and visible branding (no text or symbols)

Close-up of a mechanical component with a circular aperture and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a white cylindrical part inserted, labeled '3' (no text or symbols on the object itself)

Three-panel image showing a kitchen tool, a mechanical component with a central hub, and three metallic food containers (no text or symbols visible)

Three-panel image showing a device with a sensor and internal components, labeled 1, 2, 3 (no readable text or symbols)

Three views of a mechanical component: external gear, cross-shaped tool, and threaded pipe assembly (no text or symbols visible)

Three circular metal components with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a perforated metal object with circular holes, no visible text or symbols

Close-up of a metallic gear or knob with a circular cutout and six teeth (no text or symbols)

Close-up of a stainless steel meat processing machine with a side cover and handle (no visible text or symbols)

Black plastic mechanical component with a circular cap, shown against a white background (no text or symbols)

Close-up of various mechanical components including a T-shaped tool, threaded fastener, and conical tip (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting tools including a T-shaped tool, helical screw, and various mechanical components (no text or labels visible)

Close-up of a mechanical tool or device with a metallic handle and central shaft (no visible text or symbols)

Three metallic mechanical connectors or connectors arranged side by side on a plain white background (no text or symbols visible)

Close-up of a mechanical component with a circular aperture and mounting holes (no visible text or symbols)

Three types of kitchen utensils: a mesh fan, a curved hook, and a wire-wrapped head (no text or symbols visible)

3 4 5 6 7 8 2 DOMO 1

ZVLÁŠTNÍ PŘÍSLUŠENSTVÍ

Three metallic cylindrical electronic components with connectors, labeled '14' below (no text or symbols on components)

Collection of industrial kitchen components including a cutter, plunger, and filter (no text or symbols visible)

Five different types of plastic containers, including a pen holder and cylindrical bins with textured surfaces (no text or symbols visible)

PŘED PRVNÍM POUŽITÍM

Close-up of a mechanical component with a metallic ring and curved base (no visible text or symbols)

Close-up of a mechanical press or cutting tool with no visible text or symbols

Close-up of a kitchen sink with a stainless steel kitchen handle (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Three-panel black-and-white photo showing a robotic device with a sensor and control panel, no visible text or symbols.

Three-panel image showing a kitchen tool, a mechanical component with a lid, and two metallic gridded containers with different designs (no visible text or symbols)

DODATKOVÉ PŘÍSLUŠENSTVÍ: MLÝNEK NA MASO DO907OKR-M

Close-up of metallic mechanical components including a T-junction, spring, conical tip, and hexagonal bolt (no text or symbols visible)

Close-up of a mechanical component with a metallic shaft and flange (no visible text or symbols)

Collection of industrial cutting tools including a T-shaped tool, helical screw, and various mechanical components (no text or labels visible)

Close-up of a mechanical tool or device with a metallic shaft and flanged base (no visible text or symbols)

Three metallic mechanical components arranged horizontally (no text or symbols visible)

Close-up of a mechanical device with a circular aperture and control buttons (no visible text or symbols)

PŘÍPRAVA

Two cylindrical white objects with a small protrusion on top, placed side by side on a plain white background (no text or symbols visible)

Three product photos: square cards, a clear glass coffee maker, and a rectangular baking pan (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
