USER MANUAL DO1177TP DOMO

Plated grating with various seafood dishes including grilled meat, mushrooms, and shrimp (no text or symbols visible)

NL Handleiding Teppanyaki

Read all instructions carefully. Save this instruction manual for future reference.

NL Nederlands 4

FR Français 12

DE Deutsch 20

EN English 28

GARANTIE

Beste klant,

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Labeled diagram of a portable grating with three parts shown: a thermosier, a flat plate, and a power plug.

Close-up of a black industrial electrical switch with a circular dial and cable (no visible text or symbols)

TEMPERATUURINSTELLING

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Labeled diagram of a grating with three components: a thermocouple, a flat plate, and a coiled-coated tray.

AVANT LA PREMIÈRE UTILISATION

Close-up of a black industrial sensor or switch with a dial and cable, no visible text or symbols.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Diagram of a portable grating with labeled parts, including a close-up view and numbered parts 1, 2, and 3.

Close-up of a black industrial sensor or switch component with a coiled cable (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: the appliance gets very hot during use and stays hot for some time after use. Keep the power cord away from hot parts and don't cover the appliance.

• The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.
• Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.
  • Always clear the area around the appliance.
• Make sure the appliance is placed on a stable even surface that is not sensitive to heat, i.e. not on a glass plate, painted table, plastic tablecloth, etc. And ensure it is at least 20 cm from any wall.
• Protect glass tables: a thermal or mechanical shock can cause the table top to break.
• Make sure that the air can circulate freely around the appliance.
• A short power cable has been included to reduce the risk of someone becoming entangled in it or tripping over it.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of counter, or touch hot surfaces.

• Do not allow the power cord supply to run underneath or around the unit.

• Avoid sudden abrupt movements near the device when in use that might affect the stability of the appliance.

• Use only heat-resistant utensils to prepare food on the grill plate.
• Never use metal utensils. These can damage the non-stick coating of the grill plate.
• Do not use any sharp objects to remove any remains.
• Never leave the appliance switched on when the grill plate is empty, except during the warm-up period.
• Do not use this appliance with charcoal or similar flammable fuels.
• Never use this device as a heating element.
  • Take care with the hot griddle, splashing grease and steam escaping alongside the appliance to avoid injury, burns, or fire.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

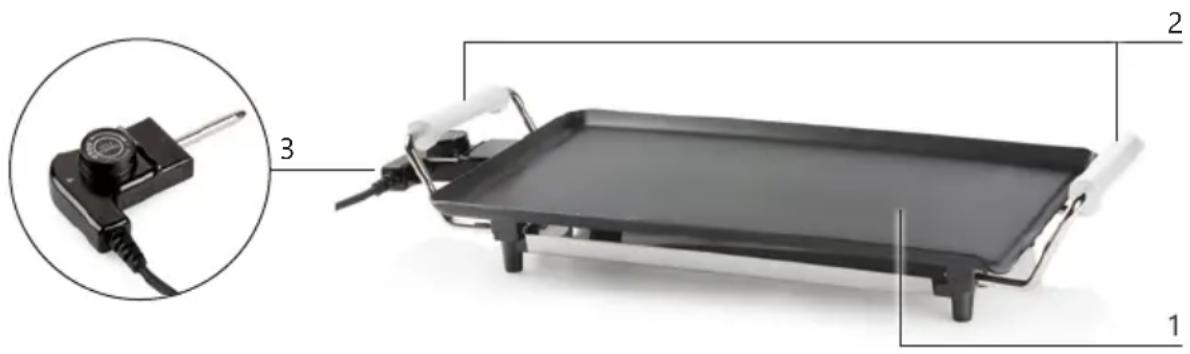

PARTS

1. Backing surface with non-stick Teflon coating
2. 'Cool touch' handles
3. Removable adjustable thermostat plug with indicator light

Labeled diagram of a grating or flatboard device with numbered parts and an inset showing a plug-in socket component.

BEFORE THE FIRST USE

• Wipe the teppanyaki clean with a damp cloth and properly dry the appliance afterwards.
• Place the teppanyaki on a flat, heat-resistant surface. Ensure adequate ventilation around the appliance.
• Turn the teppanyaki plate on for 10 minutes without putting any food on it. There will be a small amount of smoke and a slight odour that will disappear quickly. This is normal.
• It is recommended that you grease the griddle with a small amount of oil when using it for the very first time.

USE

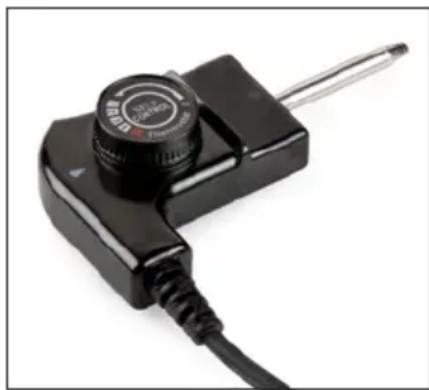

1. Set the temperature controller to 0 and insert the thermostat plug into the appliance. Then plug the plug into the electrical socket.
2. Turn the temperature regulator to the desired position. The indicator lamp will turn on indicating that the grill plate is heating up.
3. Allow the appliance to preheat for about 10 minutes before starting to cook on it.

Close-up of a black industrial electrical switch with a rotary knob and cable (no visible text or symbols)

SETTING THE TEMPERATURE

• You can set the temperature of the appliance as desired. The temperature ranges from a minimum of (0) to a maximum of (5). The recommendation is to set the temperature to the middle position for normal use. Use a low setting for slow grilling of delicate dishes such as fish fillets, and a high setting for searing meat, grilling vegetables and cooking whole fish
• This switch is also the on/off switch, and 0 is the off position.

TIPS

• Defrost frozen food before laying it on the teppanyaki.
• If you only need to use a part of the teppanyaki, then place the food in the middle to obtain the ideal cooking result.
• The grill plate is provided with a non-stick layer which enables you to prepare food in a healthy way without using butter or oil.

Make sure that sharp objects such as forks do not damage the special coating on the teppanyaki. Small fragments could become loose and your appliance could get irreparably damaged. Always use wooden spatulas or a heat-resistant plastic model.

CLEANING AND MAINTENANCE

• Set the thermostat to minimum (0), remove the plug from the socket and wait until the teppanyaki has cooled down completely.
• It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.
• Wipe the baking tray clean with a soft cloth or kitchen roll. For the removal of dried food residues, use a soft sponge with hot water and a small amount of dish-washing detergent.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️Do not use any corrosive or abrasive products or brushes.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The indicator lamp does not turn on.The grill plate does not get hot.	Make sure the adjustable thermostat is connected properly to its connector on the appliance.Check that the plug is in the socket and that a fuse in your fuse box has not been tripped.Make sure the thermostat is not set to '0' but the desired temperature is selected.
Food does not cook properly.• The selected temperature is not high enough for the food. Turn the temperature regulator to a higher position.
The food sticks and burns immediately.• The selected temperature is too high for the food. Turn the temperature regulator to a lower position.

SPECIFICATIONS

Model DO1177TP
Voltage 220-240 V~ 50-60 Hz
Power 1800 W
Energy consumption in off-mode after 0 minutes 0 W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]
