DO1116TP - Teppanyaki plate DOMO - Free user manual and instructions

USER MANUAL DO1116TP DOMO

Modern Domino grater with black and white design, featuring a circular cutout and a small mouse (no text or symbols visible)

DO1116TP

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Close-up of a black plastic device handle with a curved strap, labeled with number 5 (no text or symbols on the object itself)

Close-up of a black electrical plug with a red circular knob and two metallic pins (no text or symbols visible)

HOT ZONE

Close-up of a black plastic tray with a curved handle, showing a white object on a light surface (no text or symbols visible)

MILIEURICHTLIJNEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black plastic electronic component with a curved handle and labeled part '5' (no text or symbols on the object itself)

AVANT LA PREMIÈRE UTILISATION

Close-up of a black electrical plug with a red circular knob and metallic tip (no text or symbols visible)

ZONE CHAUDE

Close-up of a black plastic tray with a curved handle and arrow indicator (no text or symbols)

MISE AU REBUT

FR

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black plastic tray or holder with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

Close-up of a black electrical plug with a red circular component and two metallic pins (no visible text or symbols)

HOT ZONE

Close-up of a black plastic device handle with an arrow pointing to it (no text or symbols visible)

ENTSORGEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

- The appliance is to be connected to a socket-outlet having an earthing contact.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

- Never leave the appliance unattended while it is functioning.

- Do not use or store this appliance outdoors.

· Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.

- Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Only use the utensils delivered with the appliance.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

- Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of counter, or touch hot surfaces.

- Do not allow the power cord supply to run underneath or around the unit.

- Do not place on or near a hot gas or electric burner or sink, or in a heated oven.

- Do not place near flammable materials, gases or explosives.

- Do not place near objects that may catch fire such as curtains, towels...

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position then remove plug from wall. Never pull the cord or appliance to remove the plug from the socket.

· Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Do not use the product on a surface which could be damaged by heat or steam.

· Always place the appliance on a flat and stable surface.

· Any injury or damage caused by failure to comply with these rules are at your own risk.
- Neither the manufacturer, importer or the supplier may be held liable.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

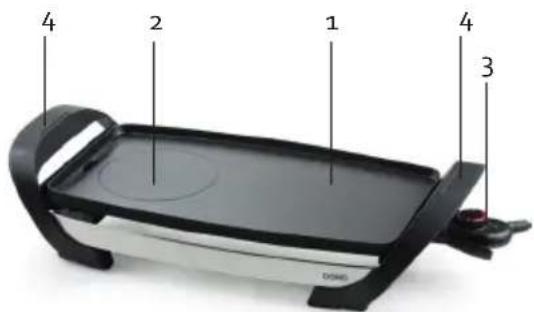

PARTS

1. Baking surface with non-stick coating
2. Hot zone
3. Removable adaptor with thermostat and indicator light
4. 'Cool touch' handles
5. Catch basin for fat and moisture

4 2 1 4 3

Close-up of a black plastic tray or holder with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

BEFORE THE FIRST USE

• Remove all packaging materials and clean the appliance carefully before using for the first time (see "Cleaning and maintenance").
• The appliance heats up during use, so place the appliance on a heat-resistant surface and never put it on a plastic table or plastic tablecloth.
• Make sure there is adequate ventilation around the appliance. Turn the teppanyaki plate on for 10 minutes without putting any food on it. There will be a small amount of smoke and a slight odour that will disappear quickly. This is normal. Clean the teppanyaki plate with absorbent paper or a clean dry cloth to remove any residue.
• It is recommended that you grease the griddle with a small amount of oil when using it for the very first time.

Make sure that sharp objects such as forks do not damage the special coating on the teppanyaki. Small fragments could become loose and your appliance could get irreparably damaged. Always use wooden spatulas or a heat-resistant plastic model.

USE

Set the thermostat to o and plug the adaptor into the appliance. Put the plug in the socket.

SETTING THE TEMPERATURE

• You can set the temperature of the appliance as desired. The temperature ranges from a minimum of 'o' to a maximum of '5'. A medium temperature is recommended.
• This switch is also the on/off switch, and o is the off position.
• Turn the temperature regulator to the desired position. The red indicator light will light up to show that the appliance is in use.

Close-up of a black electrical plug with a red circular component and two metallic pins (no visible text or symbols)

HOT ZONE

The teppanyaki grill plate is equipped with a 'hot zone'. This zone becomes hotter than the rest of the teppanyaki grill plate – up to 250^ C – and can be used for cooking food quickly, while the rest of the teppanyaki grill plate can be used for slower preparation of other foods.

TIPS

• Defrost frozen food before laying it on the teppanyaki.
• In order to grill meat adjust the thermostat to maximum and make sure that the appliance is thoroughly heated before laying the meat on the griddle.
• If you only need to use a part of the teppanyaki, then place the food in the middle to obtain the ideal cooking result.

CLEANING AND MAINTENANCE

• Set the thermostat to minimum (o), remove the plug from the socket and wait until the teppanyaki has cooled down completely.
• It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.
• Do not immerse any part of the teppanyaki plate in water or any other liquid. Should water get on the electrical contacts, dry them off carefully.
• Wipe the baking tray clean with a soft cloth or kitchen roll. For the removal of dried food residues, use a soft sponge with hot water and a small amount of dish-washing detergent.
• The catch basin for fat and moisture can be removed for easy cleaning. Clean it in hot water using a mild detergent.
• Do not use any corrosive or abrasive products or brushes.

Close-up of a black plastic tray with a curved handle and arrow indicator (no text or symbols)

ENVIRONMENTAL GUIDELINES

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black plastic tray or holder with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

Close-up of a black electrical plug with three leads and a red circular component (no visible text or symbols)

ZONA CALIENTE

Close-up of a black plastic tray or holder with a curved handle and an arrow pointing to it (no text or symbols visible)

Prohibition sign with a trash bin crossed by two crossed lines and a black rectangular block below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black plastic tray or holder with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

PRIMA DELL'USO

Close-up of a black electrical plug with two leads and a red circular connector (no text or symbols visible)

HOT ZONE

Close-up of a black plastic tray with a curved handle and arrow indicator (no text or symbols)

MISURE AMBIENTALI

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black plastic tray or holder with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

PŘED PRVNÍM POUŽITÍM

Close-up of a black electrical plug with a red circular component and metallic tip (no visible text or symbols)

HOT ZONE - RYCHLÉ PEČENÍ

Close-up of a black plastic tray or holder with a curved handle, no visible text or symbols

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black plastic object with a curved handle and label '5' pointing to it (no text or symbols on the object itself)

PRED PRVÝM POUŽITÍM

Close-up of a black electrical plug with a red circular component and two metallic pins (no text or symbols visible)

HOT ZONE - RÝCHLE PEČENIE

Close-up of a black plastic tray with a curved handle and arrow indicator (no text or symbols)

OHL'AD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Four-panel image showing milk products: two with clear fill, four with patterned covers and a glass pitcher, and one with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
