USER MANUAL 304568 Liam&Daan

Diagram showing a recording setup with a tripod-mounted device and a desktop microphone, both labeled with component numbers 1 and 5.

Thank you for choosing a LIAM&DAAN product. Please read the following user manual carefully so as to get the most from the product you have purchased.

SCOPE OF DELIVERY

• LIAM&DAAN "MICRO-1"
- Pop protection
- Desktop holder
- Connection cable
- User manual

TECHNICAL SPECIFICATIONS

Take the product out of the package and re-

Port USB
Sensitivity	-47dB~-29dB +/-3dB (0dB=1V/Pa at 1KHz)
Max. Sound pressure level	125 dB
Frequency response 20 Hz	- 20 kHz
Signal-to-noise ratio > 74 dB	dB
Sampling Rate up to 192 kHz	Hz
Cable length approx. 2.5 m
Features	• Pop protection• Table bracket

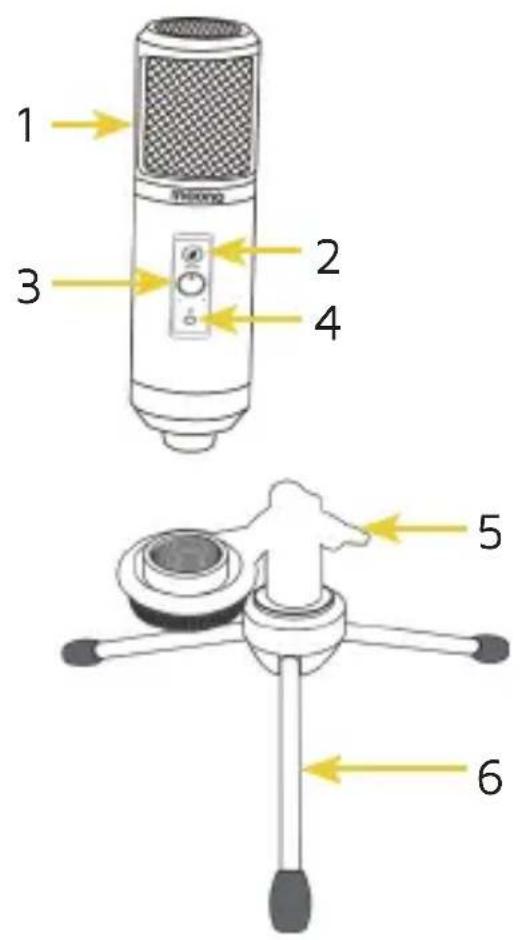

No. Discription
1 Microphone
2 Mute button
3 Volume control
4 Headphone port
5 Microphone holder
6 Base of the microphone holder

5 6 1 5

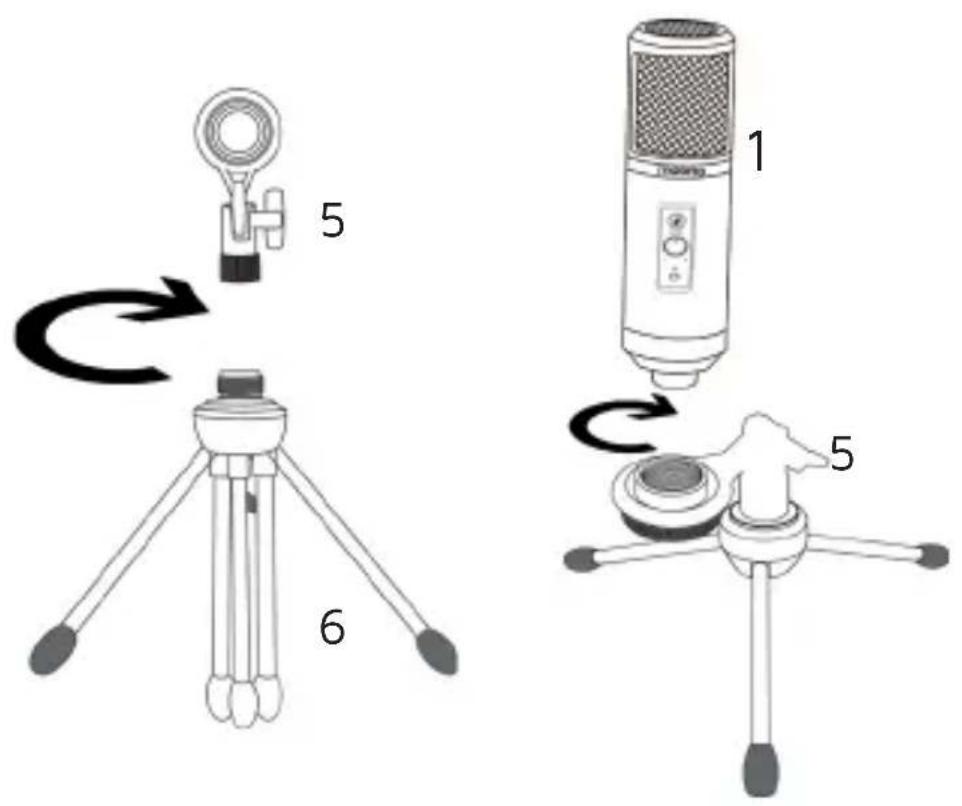

move all the packaging material for this purpose. First, mount the microphone holder (5) to the base of the microphone holder (6). Ensure that it is attached correctly (see picture).

Now insert the microphone (1) properly into the microphone holder (5) and then connect it using the supplied USB cable.

Caution! Always make sure that the microphone with the logo faces the direction in which you want to record the sounds!

Finally, mount the pop shield on the microphone. To do this, simply slide the pop shield over the microphone.

• You can mute the microphone using the "Mute" button (2).
• You can adjust the volume using the volume control (3).
• You can connect a headphone using the headphone jack (4).

NOTE:

To ensure optimum performance of your microphone, we advise you to test the device in the studio at different positions.

IMPORTANT SAFETY INFORMATION

SOUND	LEVEL IN DB	EFFECT
Whispering 30 harmless
normal conversation, sewing machine	55-60	harmless but may impair concentration
Lawn mower 70 mostly harmless
Hand grinder, mixer	85-90	hearing may be damaged above 85 dB
Circular saw 100		dangerous if exposed continuously.Do not to expose yourself for more than 15 minutes to this level without hearing protection
Chainsaw 110		dangerous if exposed continuously
Rock concert, jet engine starting	110-130	Pain threshold above approximately 120 dB

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

Do not use headphones in noisy dangerous environments.
