USER MANUAL 304569 Liam&Daan
Thank you for choosing a LIAM&DAAN product. Please read the following user manual carefully so as to get the most from the product you have purchased.
SCOPE OF DELIVERY
• LIAM&DAAN "MICRO-2"
- Pop shield
- Connection cable
- User manual
TECHNICAL SPECIFICATIONS
| Port USB | |
| Sensitivity | -35dB +/-3dB (0dB=1V/Pa at 1KHz) |
| Max. Sound pressure level | 110 dB |
| Frequency response 20 Hz | -20 kHz |
| Signal-to-noise ratio >70 dB | dB |
| Sampling Rate 44.1kHz/48 kHz;16bit | |
| Cable length approx. 1.8 m | |
| Features | • Pop protection• Stand |

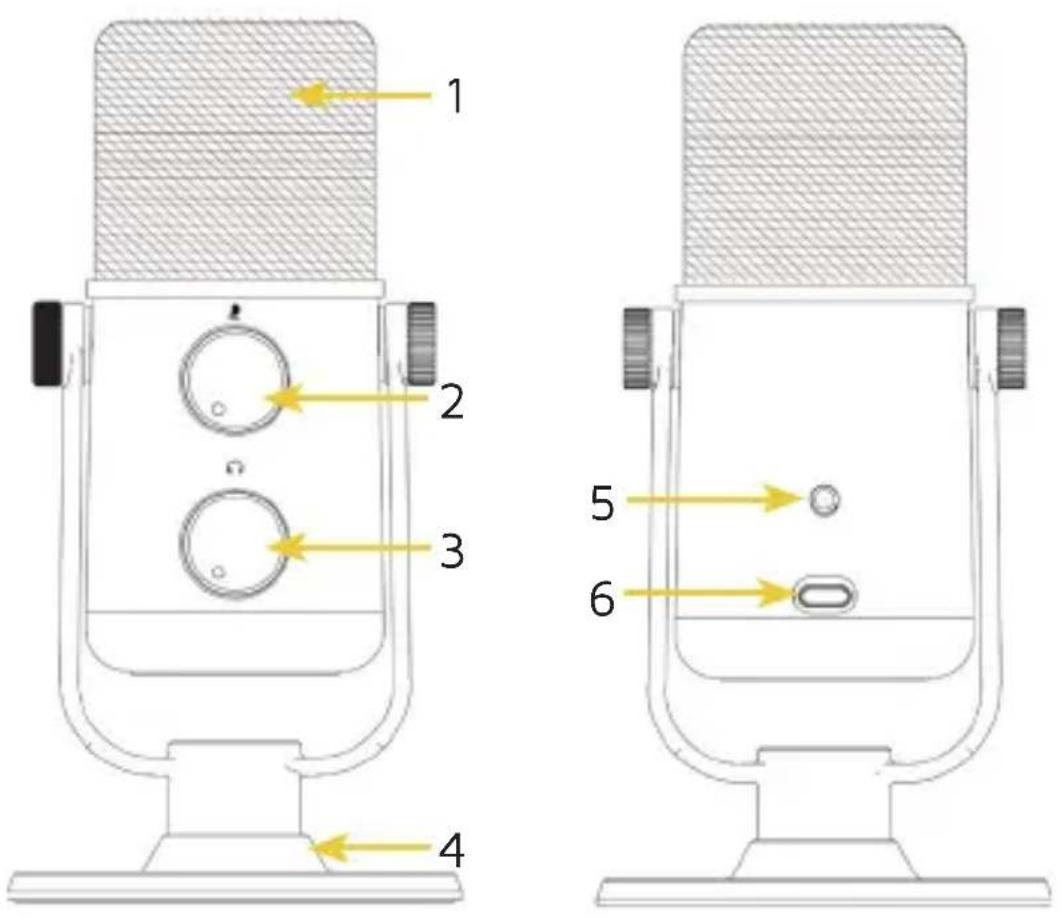

| No. Discription | |
| 1 Microphone | |
| 2 Microphone volume control | |
| 3 Monitoring volume control | |
| 4 Stand | |
| 5 Headphone jack (3.5mm) | |
| 6 USB-C port |
Take the product out of the package and remove all the packaging material.
Connect the USB-C cable to the microphone and the desired device.
Caution! Always make sure that the micro-phone with the logo faces the direction in which you want to record the sounds!
Finally, mount the pop shield on the microphone. Just slide the pop shield over the microphone.
- You can adjust the microphone level using the "Microphone volume control"(2).
• You can connect a headphone using the headphone jack (5). - You can adjust the volume for monitoring using the monitoring volume control (3).
To ensure optimum performance of your microphone, we advise you to test the device in the studio at different positions.
IMPORTANT SAFETY INFORMATION
| SOUND | LEVEL IN DB | EFFECT |
| Whispering 30 harmless | ||
| normal conversation, sewing machine | 55-60 | harmless but may impair concentration |
| Lawn mower 70 mostly harmless | ||
| Hand grinder, mixer | 85-90 | hearing may be damaged above 85 dB |
| Circular saw 100 | dangerous if exposed continuously.Do not to expose yourself for more than 15 minutes to this level without hearing protection | |
| Chainsaw 110 | dangerous if exposed continuously | |
| Rock concert, jet engine starting | 110-130 | Pain threshold above approximately 120 dB |
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.
Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.
Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.
Do not use headphones in noisy, hazardous environments.
In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal
DISPOSAL INSTRUCTIONS
of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.
WEEE directive 2012/19/EU WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the device 304569/20200512SZ215 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
