USER MANUAL US09AB2BEA HAIER

Installation Instructions

Ductless Single Zone with One-Way Cassette Indoor Unit

Technical line drawing of a front panel with ventilation grilles and mounting bracket (no text or symbols)

IMPORTANT SAFETY INFORMATION....3

Step 1 - Preparation 14

Step 2 - Installation of Indoor Unit 16

Step 3 - Installation of Outdoor Unit 24

Step 4 - Final Check....25

LIMITED WARRANTY 26

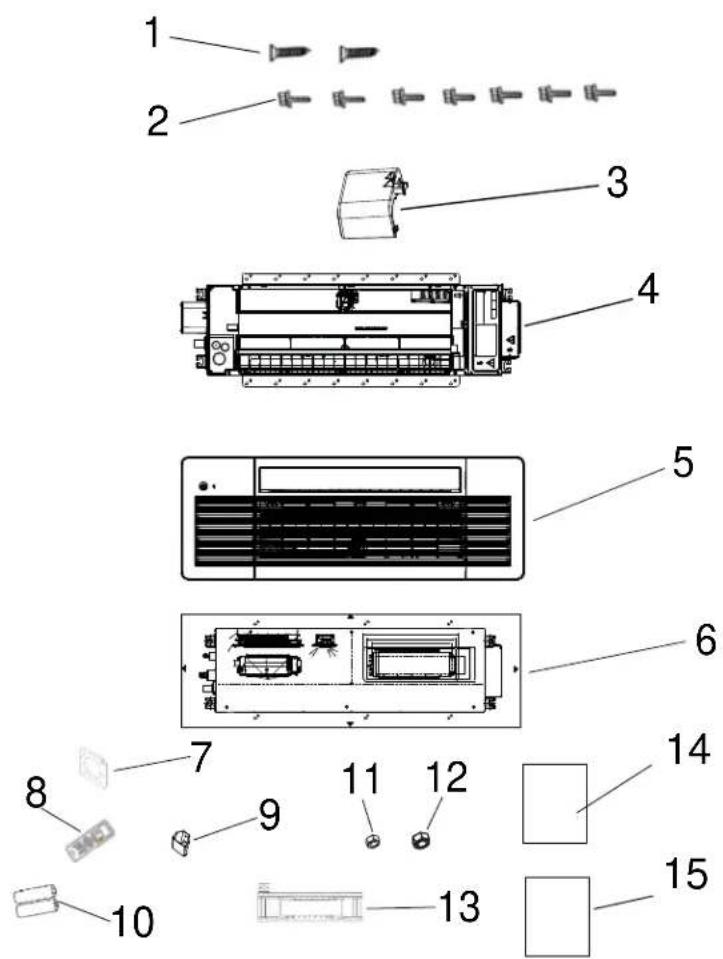

Package Contents

Item No.	Description Qty

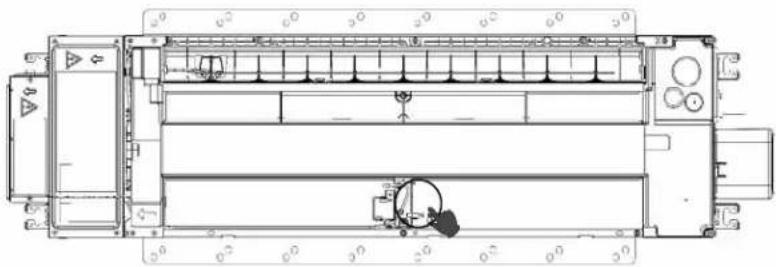

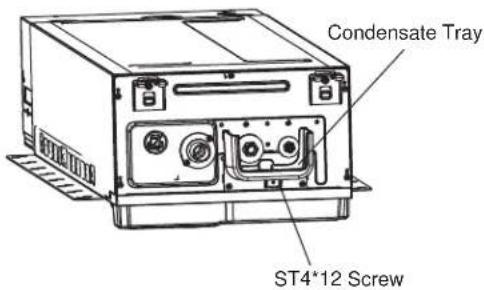

1	Screws ST4*12 for Condensate Tray (3) and Refrigerant Leak Sensor	2
2 Screws M5*25 for Panel (5) 7
3 Condensate Tray 1
4 Indoor Unit 1
5	One way Cassette Panel 1
6	Installation Cardboard Template	1

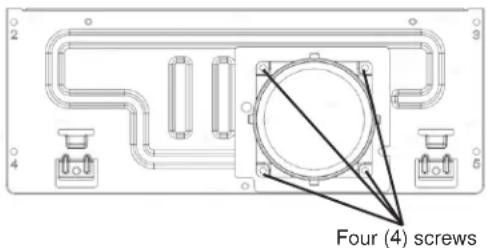

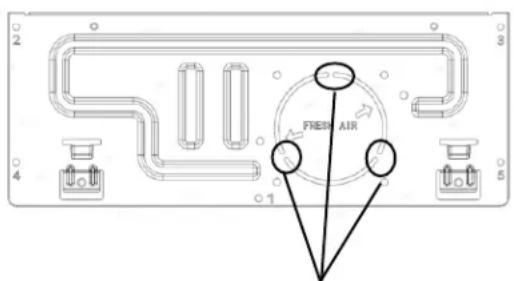

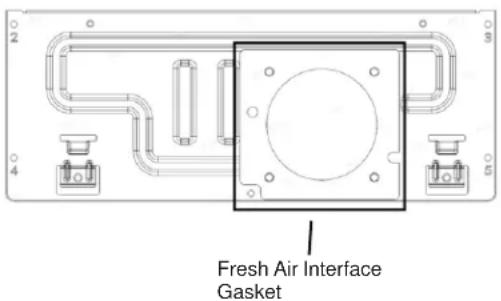

7	Fresh Air Interface Gasket	1
8	Remote Control	1
9	Remote Control Holder	1
10	Batteries for Remote Control (8)	2
11	Flare Nut for Liquid Tube	1
12	Flare Nut for Gas Tube	1

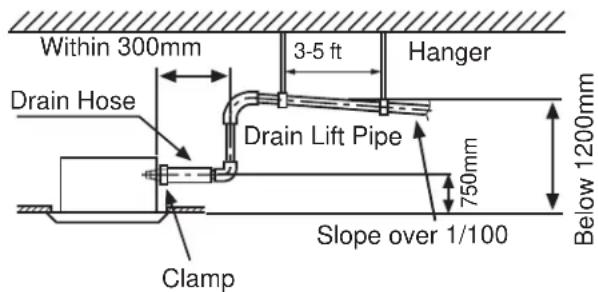

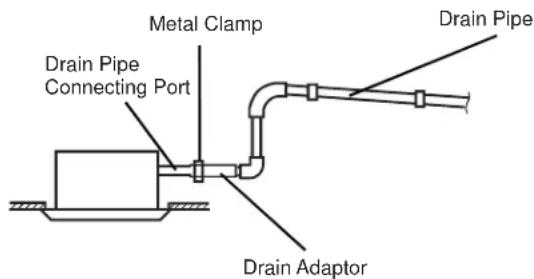

13	Drain Pipe Adaptor	1
14 Owners Manual 1
15	Installation Instructions	1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

For your safety; the information in this manual must be followed to minimize the risk of fire,

electric shock, or personal injury.

• Use this equipment only for its intended purpose as described in this manual.
• This heat pump must be properly installed in accordance with these instructions before it is used.
• All wiring should be rated for the amperage value listed on the rating plate. Use only copper wiring.
• All electrical work must be completed by a qualified electrician and completed in accordance with local and national building codes.

For any service which requires entry into the refrigerant sealed system, Federal regulations require that the work is performed by a technician having a Class II or Universal certification.

• All air conditioners contain refrigerants, which under federal and/or local law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal.
  • These R454B heat pumps systems require that contractors and technicians use tools, equipment and safety standards approved for use with this refrigerant.
• DO NOT use equipment certified for R22,R32 or R410A refrigerant only.

WARNING

RISK OF ELECTRIC SHOCK. Could cause injury or death.

• An adequate ground is essential before connecting the power supply or charging with refrigerant.
• Disconnect all connected electric power supplies before servicing.
• Aluminum building wiring may present special problems - consult a qualified electrician.
• The surrounding conditions (ambient temperature, direct sunlight, and rainwater) shall be noticed during electrical wiring, with effective protective measures being taken.
• The dedicated branch circuit must be used, and leakage protector with sufficient capacity must be installed.
  • Repair or replace immediately all electrical wiring that

has become frayed or otherwise damaged. Do not use wiring that shows cracks or abrasion damage along its length or at either end.

• When the unit is in the STOP position, there is still voltage to the electrical controls.
• Copper wire cable in line with local standards shall be used as the power line and connector wire.
• Both the indoor unit and outdoor unit shall be reliably earthed.
• Wiring for the outdoor unit shall be made first and then the indoor unit. The air conditioner can only be powered on after wiring and pipe connection.

WARNING

RISK OF FIRE. Could cause injury or death.

- Do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

ATTENTION

• Please do not use extension cords in this system.
• Aluminum building wiring may have special problems, please consult a licensed electrician.
• If the unit has the leak detection system installed, the unit must be powered except for service.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

For more help, visit geappliancesairandwater.com or call the technical support line at 1.844.487.9443

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
  . IMPORTANT — Observe all governing codes and ordinances.
• Note to installer – Be sure to leave these instructions with the Consumer.
• Note to consumer – Keep these instructions for future reference.
• Skill level – A licensed certified technician (to handle refrigerant, recovery, etc) and a qualified electrician are required for installation and service of this split heat pump system.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the limited warranty.
• For personal safety, this system must be properly grounded.
• Protective devices (fuses or circuit breakers) acceptable for installation are specified on the nameplate of each unit.
• Make sure to minimize wiring or plumbing inside the wall when installing.

WARNING

• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the product.
• Ensure that the unit shall be installed in accordance with local and national wiring codes.

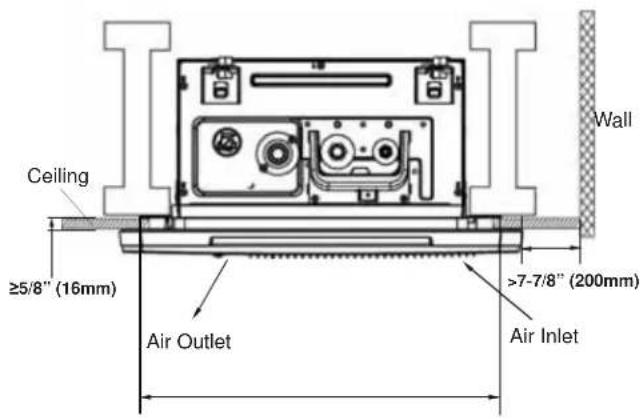

• For the dimensions of the space necessary for correct installation of the appliance, including the minimum permissible distances to adjacent structures, refer to this document.
• Ensure only approved units are connected together and that all refrigerant line dimensions and refrigerant charging requirements are followed to prevent exceeding the maximum operating pressure.
• ONLY connect units that are labeled with the same refrigerant.
• Any damage of electrical supply must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Means for disconnection must be incorporated in the fixed wiring in accordance with wiring rules. Disconnect ampere rating must be at least 115% of the Minimum Circuit Ampacity listed on the rating plate for this product. Disconnect must be installed within sight and readily accessible. Refer to local and national electric code for any additional requirements specified in your region of install.

Safety Awareness

1. Procedures: Operation shall be made as per controlled procedures to minimize the probability of risks.
2. Area: Area shall be divided and isolated appropriately, and operation in an enclosed space shall be avoided. Before the refrigeration system is started or energized, ventilation or opening of the area shall be guaranteed.
3. Site inspection: The refrigerant shall be checked.
4. Fire control: A fire extinguisher and a "No Smoking" sign shall be placed in the installation area during installation. The installation area shall remain free from fire/ignition sources during installation.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

Unpacking Inspection

Indoor unit: nitrogen is sealed during the delivery of indoor units (inside the evaporator), and the red sign at the top of the green plastic seal cap on the evaporator air pipes of the indoor unit shall be checked first after unpacking. In case the sign is raised, the nitrogen sealed still exists. Afterwards, the black plastic seal cap at the joint of evaporator liquid pipes of the indoor unit shall be pressed, to check whether nitrogen still exists. In case no nitrogen is released, ensure the indoor unit does not have a leak before continuing with installation.

Inspection on Installation Environment

1. Power supply, switches or other high-temperature articles such as the ignition source and oil heater shall be avoided below the indoor unit.
2. The power supply shall be provided with grounding wire and be reliably grounded.
3. User shall verify in advance whether water/electricity/gas pipelines are hidden in the wall in locations that may be punctured with an electric drill. It is recommended that the through-wall holes reserved shall be used as much as possible.

Safety Principles of Installation

1. Favorable ventilation shall be maintained at the place of installation (doors and windows are opened).
2. Open fire or high-temperature heat source (including welding, smoking and oven) higher than 548^ F is not allowed within the scope of flammable refrigerant.
3. Anti-static measures shall be taken, such as the wearing of cotton clothes and cotton gloves.
4. The place of installation shall be convenient for installation or maintenance and cannot be adjacent to heat source and flammable and combustible environment.
5. In case of refrigerant leakage of the indoor unit during installation, the valve of the outdoor unit shall be closed immediately, and windows shall be opened, and all the personnel shall be evacuated. After the leakage of refrigerant is handled, the indoor environment shall be subject to concentration detection. Further handling is not allowed until the safety level is reached.
6. In case the product is damaged, it must be delivered to the maintenance point. Welding of refrigerant pipelines at the user's site is not allowed.
7. The installation position of air conditioner shall be convenient for installation or maintenance. Barriers shall be avoided around the air inlet/outlet of the indoor/outdoor unit, and the electrical appliance, power switches, sockets, valuables, and high-temperature products within the scope of both sidelines of the indoor unit shall be avoided.

CAUTION

• Refrigerant should be only added or removed by a licensed HVAC technician.
• Before adding additional refrigerant, perform air purging from the refrigerant pipes and indoor unit using a vacuum pump, then charge additional refrigerant.

READ AND SAVE THESE INSTRUCTIONS

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odor.

Warning; Flammable Materials, Refrigerant class per ISO 817

Owner's Manual; Operating Instructions

Read Owner's Manual

Service Indicator; Read Technical Manual

General

– During installation, due to the extended refrigerant pipes, additional REFRIGERANT may be charged. Please complete the REFRIGERANT label provided in the manual, and securely paste it near the appliance marking.
- Handling, installation, cleaning, servicing and disposal of refrigerant must comply with the local regulation and the instruction.
– Servicing shall be performed only as recommended by the manufacturer.

- Spaces where refrigerant pipes are allowed shall comply with the below requirement:

- that piping material, pipe routing, and installation shall include protection from physical damage in operation and service, and be in compliance with national and local codes and standards, such as ASHRAE 15, IAPMO Uniform Mechanical Code, ICC International Mechanical Code, or CSA B52. All field joints shall be accessible for inspection prior to being covered or enclosed.

- that the installation of pipe-work shall be kept to a minimum.

- that mechanical connections made at joints that made in the installation between parts of the refrigerating system in shall be accessible for maintenance purposes.

- that protection devices, piping, and fittings shall be protected as far as possible against adverse environmental effects, for example, the danger of water collecting and freezing in relief pipes or the accumulation of dirt and debris.

- that piping in refrigeration systems shall be so designed and installed to minimize the likelihood of hydraulic shock damaging the system.

- that precautions shall be taken to avoid excessive vibration or pulsation.

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

General (cont.)

- that after completion of field piping for split systems, the field pipework shall be pressure tested with an inert gas and then vacuum tested prior to refrigerant charging, according to the following requirements:

- The minimum test pressure for the low side of the system shall be the low side design pressure and the minimum test pressure for the high side of the system shall be the high side design pressure, unless the high side of the system, cannot be isolated from the low side of the system in which case the entire system shall be pressure tested to the low side design pressure.

- The test pressure after removal of pressure source shall be maintained for at least 1 hour with no decrease of pressure indicated by the test gauge, with test gauge resolution not exceeding 5% of the test pressure.

- During the evacuation test, after achieving a vacuum level specified in the manual or less, the refrigeration system shall be isolated from the vacuum pump and the pressure shall not rise above 1500 microns within 10 min. The vacuum pressure level shall be specified in the manual, and shall be the lessor of 500 microns or the value required for compliance with national and local codes and standards, which may vary between residential, commercial, and industrial buildings.

- that field-made refrigerant joints indoors shall be tightness tested according to the following requirements: The test method shall have a sensitivity of 5 grams per year of refrigerant or better under a pressure of at least 0.25 times the maximum allowable pressure. No leak shall be detected.

- The appliance shall be stored so as to prevent mechanical damage from occurring.

- Non-duct connected appliances containing A2L refrigerants with the supply and return air openings in the conditioned space may have the body of the appliance be installed in open areas such as false ceilings not being used as return air plenums, as long as the conditioned air does not directly communicate with the air of the false ceiling.

Qualification of workers

Every working procedure that affects safety means shall only be carried out by competent persons.

Examples for such working procedures are:

- breaking into the refrigerating circuit;

- opening of sealed components;

- opening of ventilated enclosures.

The competent persons are trained by the national training organizations or manufacturers that are accredited to teach the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate.

Information on servicing

Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the REFRIGERATING SYSTEM, the below requirement shall be completed prior to conducting work on the system:

– Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapor being present while the work is being performed.

– All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.

- The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i. e. non-sparking, adequately sealed or intrinsically safe.

- If any hot work is to be conducted on the refrigerating equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

Information on servicing (cont.)

• No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.
• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
• Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer's technical department for assistance.

- The following checks shall be applied to installations using FLAMMABLE REFRIGERANTS:

• the actual REFRIGERANT CHARGE is in accordance with the room size within which the refrigerant containing parts are installed,
• marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
  – Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

– Initial safety checks shall include:

• that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• that no live electrical components and wiring are exposed while charging, recovering or purging the system;
  • that there is continuity of earth bonding.

Repairs to sealed components, intrinsically safe components

– Sealed electrical components shall be replaced.
– Intrinsically safe components must be replaced.
- Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

Detection of flammable refrigerants

• Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
• The following leak detection methods are deemed acceptable for all refrigerant systems.

• Electronic leak detectors may be used to detect refrigerant leaks but, in the case of FLAMMABLE

REFRIGERANTS, the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25 % maximum) is confirmed.

- Leak detection fluids are also suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

NOTE: Examples of leak detection fluids are:

• bubble method,
• fluorescent method agents.

- If a leak is suspected, all naked flames shall be removed/extinguished.

- If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall be according to the manual.

Removal and evacuation

- When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, for flammable refrigerants it is important that best practice be followed, since flammability is a consideration. The following procedure shall be adhered to:

a) safely remove refrigerant following local and national regulations;
b) evacuate;
c) purge the circuit with inert gas;
d) continuously flush or purge with inert gas when using flame to pen circuit;
e) open the circuit by cutting or brazing.

- The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not allowed by local and national codes. For appliances containing flammable refrigerants, the system shall be purged with oxygen-free nitrogen to render the appliance safe for flammable refrigerants. This process might need to be repeated several times.

- Compressed air or oxygen shall not be used for purging refrigerant systems.

Charging procedures

– In addition to conventional charging procedures, the following requirements shall be followed.
- Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
- Cylinders shall be kept in an appropriate position according to the instructions.
- Ensure that the REFRIGERATING SYSTEM is earthed prior to charging the system with refrigerant.
- Label the system when charging is complete (if not already).
– Extreme care shall be taken not to overfill the REFRIGERATING SYSTEM.
– Prior to recharging the system, it shall be pressure-tested with the appropriate purging gas. The system shall be leak-tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

Decommissioning

– Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure, ensure that:

• mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• all personal protective equipment is available and being used correctly;
• the recovery process is supervised at all times by a competent person;
• recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with instructions.
h) Do not overfill cylinders (no more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another REFRIGERATING SYSTEM unless it has been cleaned and checked.

Labeling

– Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing FLAMMABLE REFRIGERANTS, ensure that there are labels on the equipment stating the equipment contains FLAMMABLE REFRIGERANT.

Requirements for Operation, Service and Installation of Appliances Using Flammable Refrigerants

Recovery

• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i. e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, FLAMMABLE REFRIGERANTS. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that FLAMMABLE REFRIGERANT does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

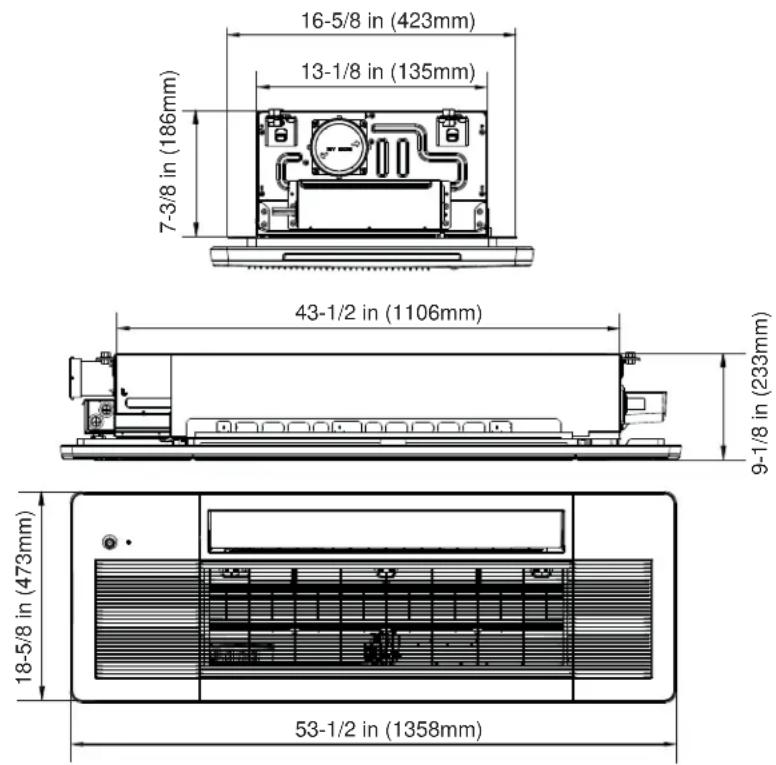

UNIT DIMENSIONS

Supplied by Installer

Refrigerant Line Set: For sizing, please refer to the Outdoor Unit Rating Plate

• Refrigerant Piping (Line Set)
• Indoor and Outdoor Connection Wire
  • Outdoor Power Supply Cord
• Drain Pipe
• Pipe and Cable Wrapping Tape
  • Wall Hole Sleeve and Cover
• Putty
• Wiring U-Lugs

- Suspension Bolts and necessary hardware to hang Indoor Unit (if choosing to hang the unit over the ceiling)

- At least six lag screws (5/16in*2in or ST8.0*50) (if choosing to use joist installation)

Requirements For Operation

Required Tools for Installation

• 5/8" (16mm), 7/8" (22mm), 1" (25mm) or adjustable wrench
• Adhesive tape
• Conduit cable clamp 1/2
  • #2 phillips screwdriver
• Drill
  • R454b flaring tool
• Hammer
• Hex wrench
• Hole saw 2 14 "
• Refrigerant scale
• Level
• Manifold gauge set
• Measuring tape
• Micron gauge

• Mini-split adapter ( ^5/16 " F to ^1/4 " M)

• Nitrogen*

• Pipe cutter
• Razor knife
• Reamer
• Saddle clamp (L.S.) w/ screws
• Sealant, non-expanding (for lineset hole)
• Soap/water solution* or gas leakage detector
• Stud finder
• Torque wrench
• Vacuum pump
• Wire Crimpers
• Wire strippers
• All usual and customary HVAC hand and power tools, meters, and testing devices
  * consumable

IMPORTANT

NOTE: This air conditioner is designed to be operated under condition as follows and performance may be reduced outside of these operating temperatures.

Operating Range	Cooling	Endure	23°F~115°F(-5°C~46°C)
		Altitude
	Heating	Altitude	-15°F~75°F(-26°C~24°C)
		Endure

NOTE: To achieve most efficient operation, operate the indoor unit with fan speed in Auto mode. In Cooling mode, use a set temperature of 78^ F ( 25.5^ C) or higher. In Heating mode, use a set temperature of 73^ F ( 22.5^ C) or lower.

Step 1 - Preparation

A. Before installing the indoor unit, determine allowable room size ^1 .

Refer to the outdoor unit installation instructions for calculating the total refrigerant charge. Measure the area of the space that will be conditioned by the indoor unit, and refer to the below table :

One-Way Cassette with Refrigerant Leak Sensor installed
Maximum Charge	Ibs ≤3 . 9 4			4 . 5 5			5 .	5	6	6 .	5	7	7	.	5	8
	oz ≤62.4 64 72 80 88 96 104 11			2 120 128 136 144 1			52 160
Minimum Room Size ft ^2 No restriction 60 68 75 83 90 98 105 1							13 120 128 135 142 150

One-Way Cassette without Refrigerant Leak Sensor installed
Maximum Charge	Ibs ≤3	.	9	4	4	.	5	5	5	.	5	6	6	.	5	7	7	.	5	8
	oz ≤62.4	64	72	80	88	96	104	11	2	120	128	136	144	152	160
Minimum Room Size ft2	No restriction 60	68	75	83	90	98	105	1	13	120	128	135	142	154

Installation in rooms smaller than the minimum sizes listed above are not allowed based on the standard of UL60335-2-40 Edition 4 ^4 .

1: Calculated based on a minimum install height of 7 ft 3 inches (2.2 m) measured from the floor to the bottom of the indoor unit.
2: UL60335-2-40 Edition 4 has been adopted by majority of state and local codes. A limited number of local and state codes may require compliance to UL 60335-2-40 Edition 3. Please refer to our website at GEAppliancesAirandWater.com for guidance on installations in those localities.

NOTE: Additional room area may be needed for different installation altitudes. Please use Altitude Adjustment Factor table below by multiplying minimum room size by the altitude adjustment factor based on install altitude.

Altitude Adjustment Factor

Altitude (m)	0	200	400	600	800	1000	1200	1400	1600
Altitude (ft)	0	660	1310	1970	2620	3280	3940	4590	5250
Adj. Factor	1	1	1	1	1.02	1.05	1.04	1.1	1.12
Altitude (m)	1600	1800	2000	2200	2400	2600	2800	3000	3200
Altitude (ft)	5250	5910	6560	7220	7870	8530	9190	9810	10500
Adj. Factor	1.12	1.15	1.18	1.21	1.25	1.28	1.32	1.36	1.4

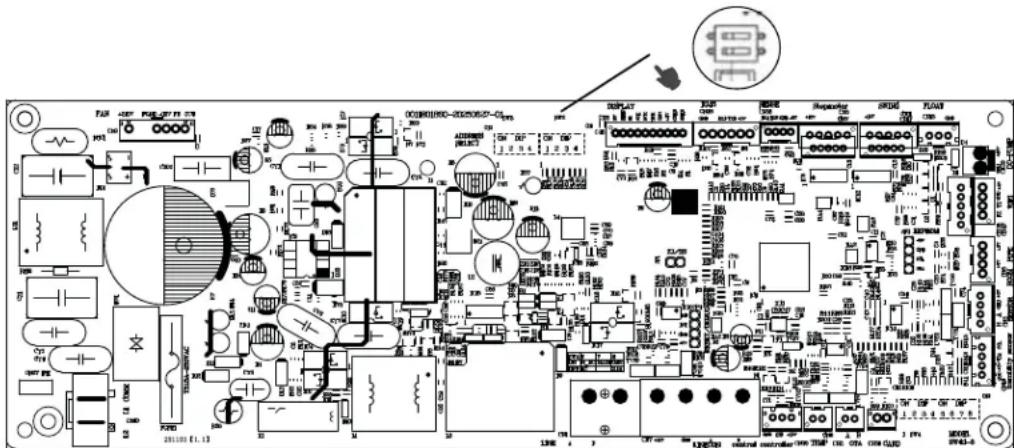

B. If leak sensor is not needed or installed, make sure to flip dip switch 2-2 to OFF (see right picture).

If leak sensor is needed, please go to step C.

Electrical circuit board diagram with component labels and annotations, including a close-up of a device labeled 'SWE' and a magnified inset showing its connection.

NOTE: The default factory state of DIP switch 2-2 is OFF.

Step 1 - Preparation (cont.)

C. Install the Leak Sensor.

Step 1: Find the bracket and pull out the leak sensor wire harness terminal from the clip..

Leak sensor bracket is in the middle of the drain pan, wiring for the sensor is already built-in in the factory and its terminal is fixed by a clip as shown in the figure below.

Technical line drawing of a mechanical assembly with no visible text or symbols

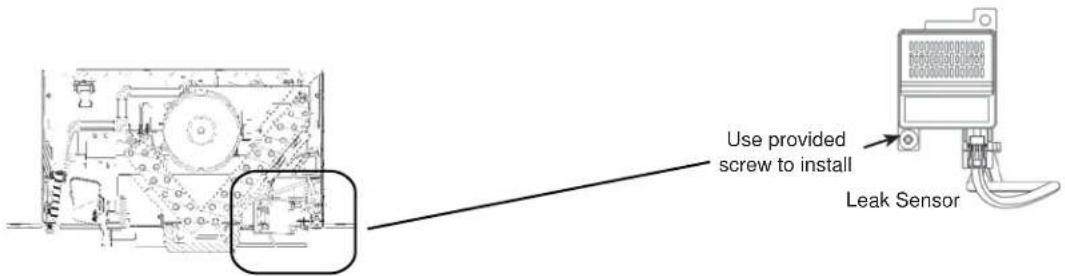

Step 2: Plug the leak sensor wire harness into the leak sensor, then install the leak sensor on the right side of the bracket with a provided ST4*12 screw.

Use provided screw to install Leak Sensor

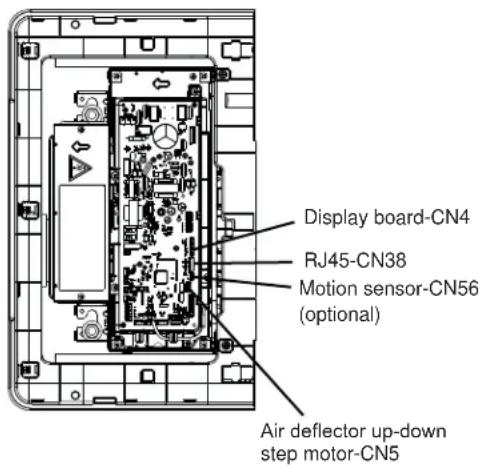

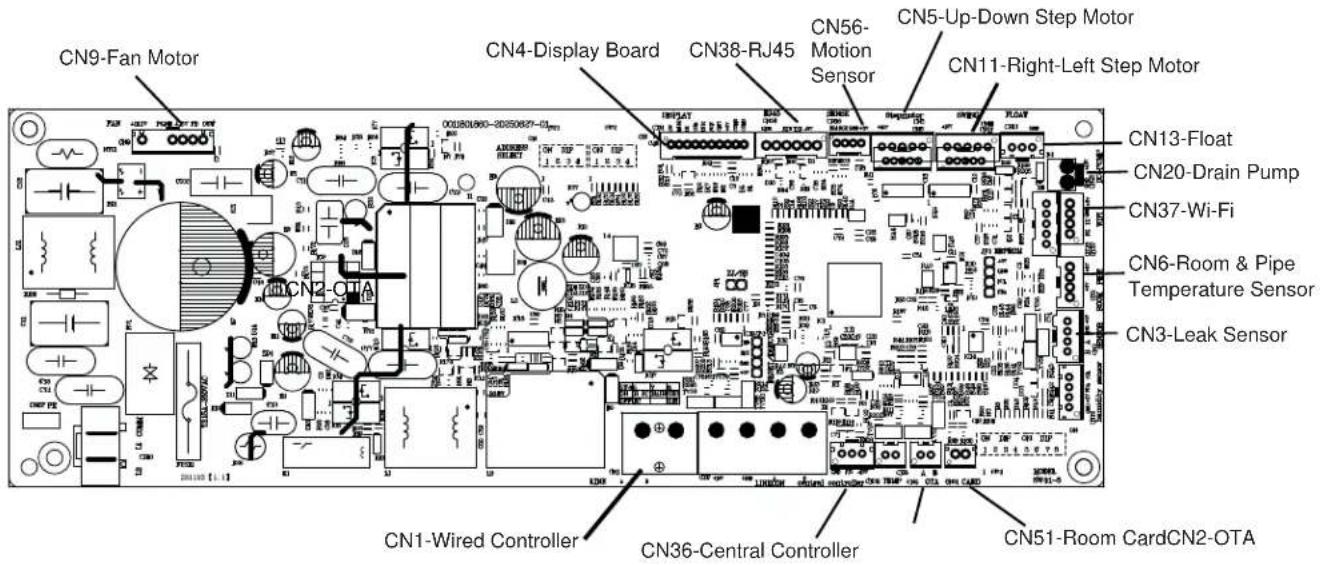

NOTE: The refrigerant leak sensor connector on the PCB is CN3 as shown in the figure below.

CN9-Fan Motor CN4-Display Board CN38-RJ45 CN56-Motion Sensor CN5-Up-Down Step Motor CN11-Right-Left Step Motor CN13-Float CN20-Drain Pump CN37-Wi-Fi CN6-Room & Pipe Temperature Sensor CN3-Leak Sensor CN1-Wired Controller CN36-Central Controller CN51-Room CardCN2-OTA

Step 2 - Installation of the Indoor Unit

A. Select the Indoor location:

Before installing the indoor unit, you must choose an appropriate location. The following standards must be met for an appropriate location for the unit:

• Mounting surface is horizontal
  • Good air circulation
• Convenient drainage
• Noise from the unit will not disturb other people
• Firm and solid - the location will not vibrate
  • Strong enough to support the weight of the unit
• A location at least five (5) feet (1.5m) from all other electrical devices (e.g., lights, speakers)
  • Install the unit at least 10 ft. (3 m) away from TV or radio antennas. Operation of the unit may interfere with antenna reception in areas where the signal is weak. An amplifier may be needed for affected devices.

DO NOT install unit in the following locations:

• Near any source of heat, steam, or combustible gas
• Near flammable items such as curtains or clothing
• Near any obstacle that might block air circulation
- Near a doorway
• In a location subject to direct sunlight

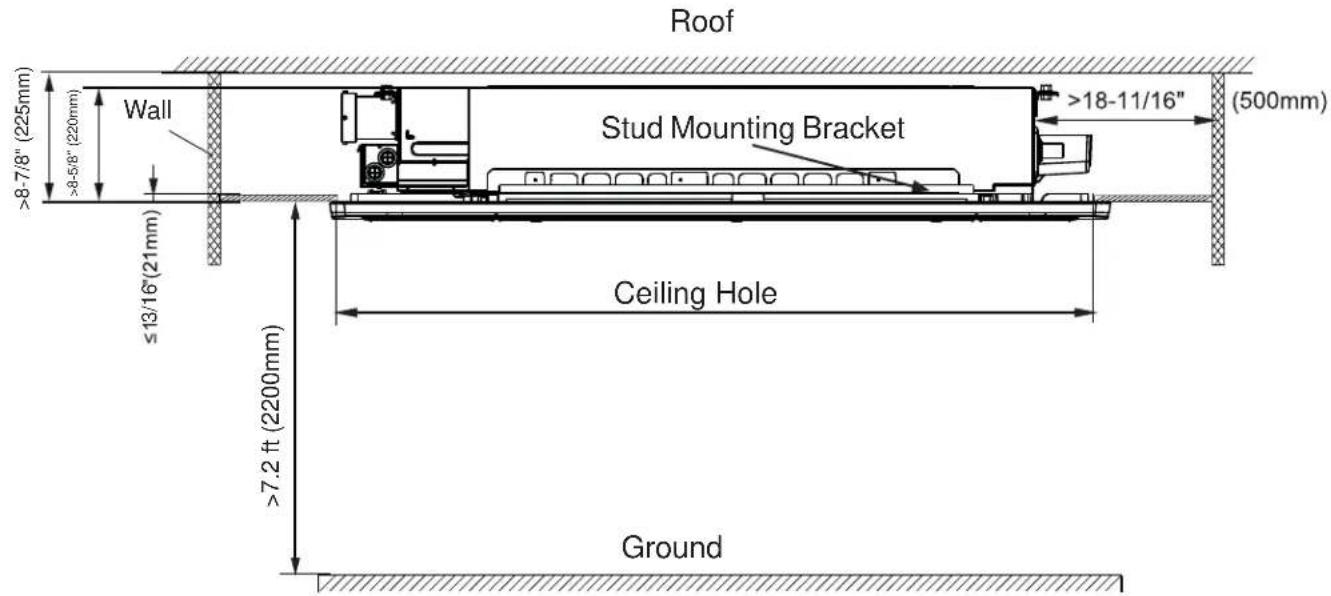

Refer to the following diagrams to ensure proper distance from walls, ceiling and other units:

Ceiling ≥5/8" (16mm) Air Outlet >7-7/8" (200mm) Air Inlet Wall

Roof >8-7/8" (225mm) >8-5/8" (220mm) ≤13/16" (21mm) Wall Stud Mounting Bracket >18-11/16" (500mm) Ceiling Hole >7.2 ft (2200mm) Ground

NOTE: The recess between ceiling surface and bottom of the two stud mounting brackets rather than the drain pan is ≤13/16"(21mm).

Step 2 - Installation of the Indoor Unit (Cont.)

B. Install The One-Way Ceiling Cassette:

The ceiling cassette can be installed with screws on ceiling joists or hung up in the ceiling with suspension bolts.

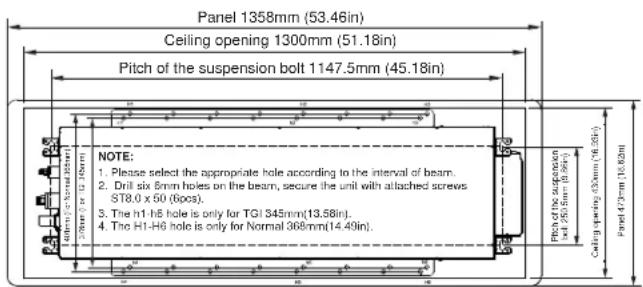

Panel 1358mm (53.46in) Ceiling opening 1300mm (51.18in) Pitch of the suspension bolt 1147.5mm (45.18in) NOTE: 1. Please select the appropriate hole according to the interval of beam. 2. Drill six 8mm holes on the beam, secure the unit with attached screws ST8.0 x 50 (6pcs). 3. The h1-h8 hole is only for TGI 345mm(13.58in). 4. The H1-H6 hole is only for Normal 368mm(14.49in). Pitch of the suspension and 25.5mm (9.95in). Ceiling opening 430mm (96.25in) Panel 47-ment (18.62m)

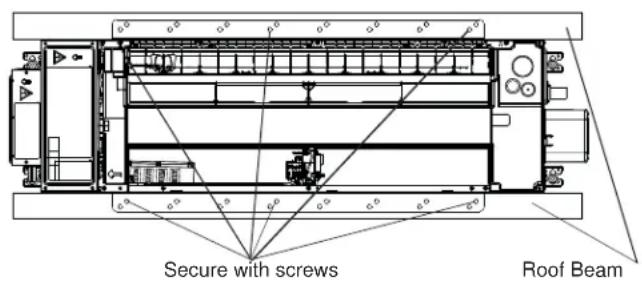

Option 1: Joist Installation

To install the unit between ceiling joists, do the following:

• Use the included template to cut a rectangular hole in the ceiling between two ceiling joists, leaving at least 8"(203mm) space from the walls on all sides. The ceiling opening must be slightly larger than the cassette body and smaller than the panel for the components to install correctly.
• With two (2) people, use the provided holes running along the long side of the cassette to screw the cassette to the ceiling joists. Use six (6) 5/16in*2in or ST8.0*50 lag screws.

Secure with screws Roof Beam

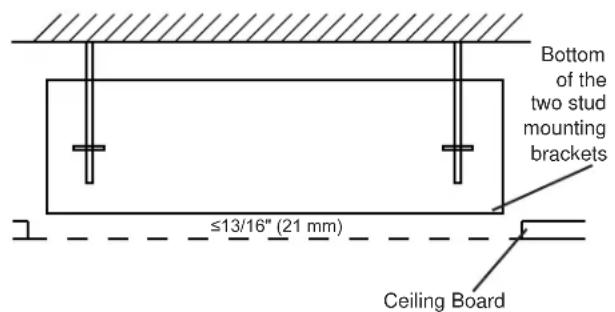

Option 2: Hanging Installation

To hang the unit from suspension bolts, do the following:

• Use the included paper template to cut a rectangular hole in the ceiling, leaving at least 8"(203mm) space from the walls on all sides. The ceiling opening must be sly larger than the cassette body and smaller than the panel for the components to install correctly.
• Carefully measure and mark the locations where the ceiling holes will be drilled for the suspension bolts.
• Drill four holes at least 5" deep in the internal ceiling for each of the required suspension bolt anchors (field supplied). For MDF ceiling, extra caution may be required. Make sure to hold the drill at a 90° angle to the ceiling.
• Secure the suspension bolt anchors as per the manufacturer's instructions.
  • Install the four suspension bolts.
• Mount the indoor unit. Using two people to lift and secure it, insert the suspension bolts into the unit's hanging bracket holes and secure in place with washer and double nuts on both sides. Make sure the unit is level and the bottom of the unit is <=13/16"(21mm) higher than the ceiling board to accommodate the unit's panel.

Bottom of the two stud mounting brackets ≤13/16" (21 mm) Ceiling Board

Step 2 - Installation of the Indoor Unit (Cont.)

C. Electrical Connections for the Indoor Unit:

Before performing any electrical work. Read these regulations

• All wiring must comply with local and national electrical codes and regulations, and must be installed by a licensed electrician.
• Make wire connections at each terminal according to the wiring diagram. Take note of the color of the wire at each terminal and ensure the wires are connected to the outdoor unit accordingly.
• If there is a serious safety issue with the power supply, stop work immediately and contact a licensed electrician. Do not continue with the installation until the safety issue is properly resolved.
• Power voltage should be within 90-110% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.
• Only connect the unit to an individual branch circuit outlet. Do not connect another appliance to that outlet.
• Make sure to properly ground the air conditioner.
• Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.
• Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
• To avoid getting an electric shock, never touch the electrical components soon after the power supply has been turned off. After turning off the power, always wait 10 minutes or more before you touch the electrical components.

Use the right cable

- Wire connecting indoor and outdoor: 14/4 stranded, unshielded for 1,2,3 and ground + 16/2 stranded shield cable for H1/H2.

Prepare the wire for connection:

• Using a wire crimper, crimp u-lugs to the ends of the wires.
• Spade terminals are recommended. If spade terminals are not used then the cables should not be twisted prior to connecting to the screw terminals.

To connect the signal cables to the indoor unit circuit breaker, do the following:

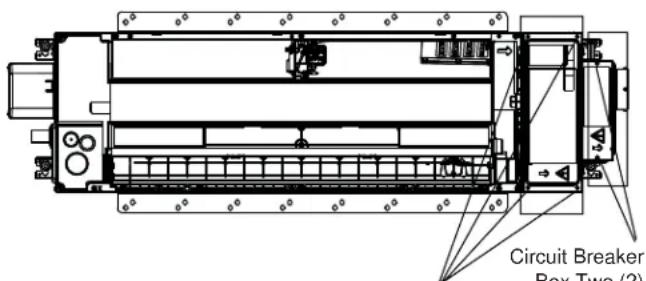

1. Remove the four (4) screws to open the indoor control box and the two (2) screws to open the circuit breaker box.

Circuit Breaker Box Two (2)

Indoor Control Box Four (4) Screws
Circuit Breaker Box Two (2) Screws

Step 2 - Installation of the Indoor Unit (Cont.)

C. Electrical Connections for the Indoor Unit (cont):

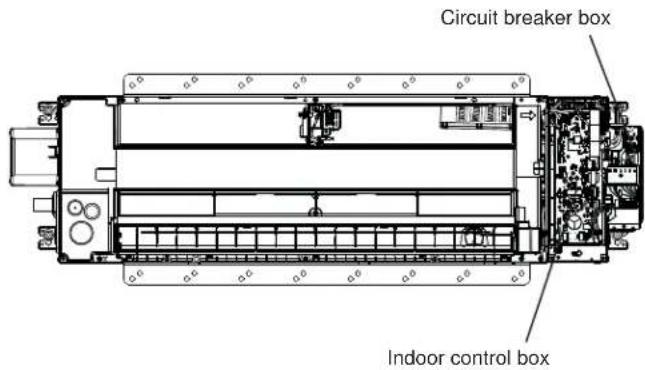

Circuit breaker box Indoor control box

1. Connect the cables to PCB and terminal according to the wiring diagram. Ensure the ground wire is screwed in tightly. Ensure each wire is under the screw terminal plate and the plate is tightened with no fraying.

2. Close the electrical box cover and the indoor control box cover.

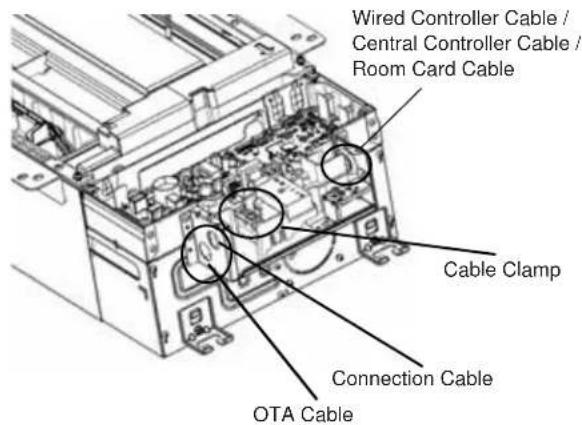

3. Loosen the screw on the cable clamp, direct the OTA cable/connection cable /wired controller cable/central controller cable/room card cable through the holes of rubber grommet as shown in the figure below.

Indoor Unit Control Wiring

H1 H2 1 2 3

Wired Controller Cable / Central Controller Cable / Room Card Cable Cable Clamp Connection Cable OTA Cable

NOTE: When making the H1 and H2 connection to the outdoor unit, use 16/2 stranded shield cable.

Step 2 - Installation of the Indoor Unit (Cont.)

D. Connect Drain Pipe:

The drain pipe is used to drain condensate water away from the unit. Improper installation may cause leaks and unit or property damage.

1. Connect a 1" drain pipe (field supplied) to the unit's connecting port using the drain adaptor and metal worm clamps provided. Make sure it is secured tightly and can not be easily pulled loose.

Metal Clamp Drain Pipe Connecting Port Drain Pipe Drain Adaptor

1. The drain pipe must be installed with a downward slope of at least a 1/100 gradient to prevent water from flowing back into the unit. To keep the drain pipe from sagging, install hanging wires. For heat insulation, wind the drain pipe with sealing gaskets.

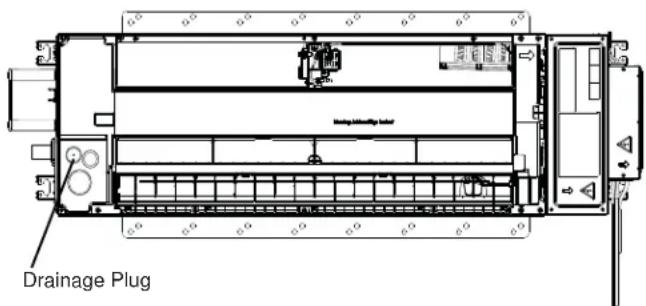

NOTE: The indoor unit has a build-in condensate pump (CN20) and water level safety switch (CN13). There is no option for gravity drain.

1. This unit is equipped with a drain pump that allows the outlet of the drain pipe to be higher than the pipe's connecting port. The vertical lift pipe must be installed no higher than 47 1/4" (1200mm) from the ceiling board. Install hanging wires every 3-5' to keep the drain pipe from sagging, and wrap the indoor portion of the pipe with foam pipe insulation to prevent condensation. Incorrect installation can cause water to flow back into the unit and leaks.

Within 300mm Drain Hose 3-5 ft Hanger Drain Lift Pipe 750mm Slope over 1/100 Clamp Below 1200mm

1. If connecting multiple drain pipes, install the pipes as illustrated below.

Above 100mm T-Joint Confluent Drain Pipe

1. Pass the drain pipe through the wall hole to the outside. The end of the pipe should be at least 2" (50mm) above the ground. If it touches the ground, the pipe may become blocked. Make sure the water drains to a safe location where it will not cause water damage or a slipping hazard.

Step 2 - Installation of the Indoor Unit (Cont.)

E. Drill Wall Hole For Connective Piping:

1. Determine the location of the wall hole based on the location of the outdoor unit.
2. Using a 3 1/2" (90mm) core drill, drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 3/16 - 1/4* (5mm to 7mm). This will ensure proper water drainage.

3/16-1/4" (5-7mm)

1. Place the protective wall hole sleeve (field supplied) into the hole. This protects pipes and cables from sharp edges and will help seal the opening when you finish the installation process. After the sleeve is inserted through the wall, connect the wall hole sleeve cover to the wall sleeve on the outside end. Make sure the cover is flush with the outside wall.

F. Prepare Refrigerant Piping:

1. If pre-existing refrigerant piping is already embedded in the wall, proceed directly to Step I. Install Panel.
2. If there is no pre-existing piping, connect the indoor unit's refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connections section of the outdoor unit's installation manual for detailed instructions.

▲WARNING

Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit's performance.

G. Wrap pipes and cable

Before passing the refrigerant piping, drain pipe, and the signal cable through the wall hole, you must bundle them together to save space, protect them, and insulate them.

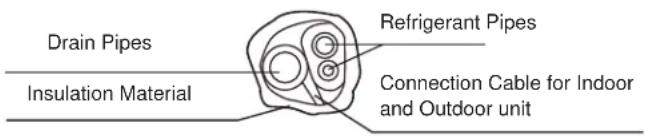

1. Bundle the drain pipe, refrigerant pipes, and signal cable as shown below:

Drain Pipes Insulation Material Refrigerant Pipes Connection Cable for Indoor and Outdoor unit

NOTE:

The drain pipe MUST be at the bottom of the bundle. Putting the drain pipe at the top of the bundle can cause the drain pan to overflow, which can lead too fire or water damage.

NOTE:

DO NOT intertwine the connection cable with any of the other wires while bundling these items together.

1. Using adhesive vinyl tape, attach the drain pipe to the underside of the refrigerant pipes.
2. Using insulation tape, wrap the signal wire, refrigerant pipes, and drain pipe tightly together. Double-check that all items are bundled.

NOTE:

When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to the Electrical and Gas Leak Checks section of the outdoor unit's Installation Instructions).

Step 2 - Installation of the Indoor Unit (Cont.)

H. Attach Condensate Tray:

Attach the condensate tray to the indoor unit using the ST4*12 screw.

Condensate Tray ST4*12 Screw

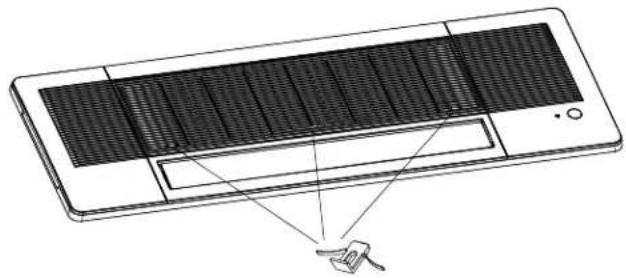

I. Install panel

▲WARNING

DO NOT place the panel face down on the floor, against a wall, or on uneven surfaces. Damage to the panel may result.

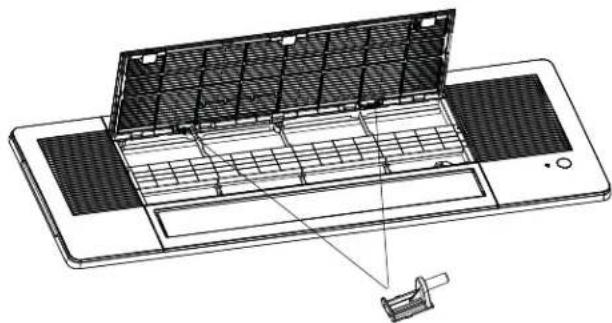

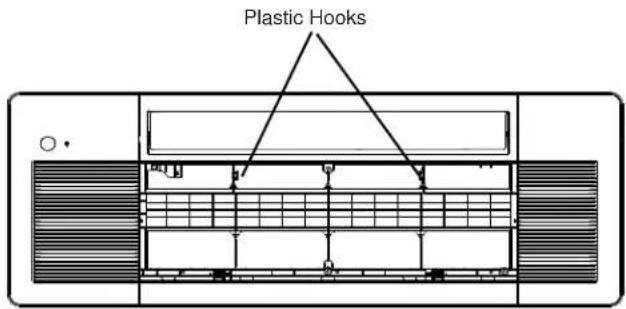

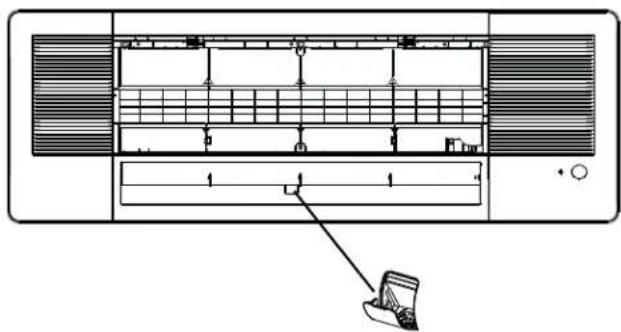

1. Press the three (3) embedded switches to open the grill.

Line drawing of a rectangular electronic device with a grid-patterned panel and a small connector (no text or symbols)

1. Hold open the grille and push the two latches on each side toward the middle to unlock the grille.

Technical line drawing of a computer keyboard with ventilation grilles and a connector (no text or symbols)

1. Fix the panel to the one-way cassette by two (2) plastic hooks.

Plastic Hooks

1. Press the circle indentation on the screw cover to open. Manually rotate the air deflector and fix the panel to the indoor unit by using 4xM5*25 screws.

NOTE: One screw shown in the figure below is behind the cover.

Technical diagram of an air conditioner unit with ventilation grilles and a hand pointing to a device (no text or labels)

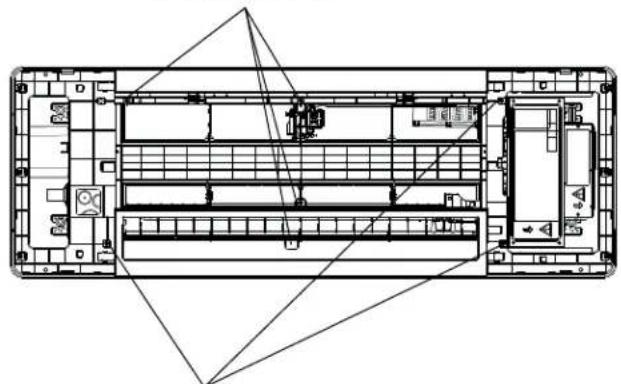

1. Open the two covers on both sides of the panel, fix the panel to the indoor unit by using 3x M5*25 screws.

Four (4) screws (Step 4)

Architectural floor plan of a multi-level electronic device showing internal components and wiring (no text or labels)

Three (3) screws (Step 5)

Step 2 - Installation of the Indoor Unit (Cont.)

I. Install Panel (cont)

1. Connect the molex plugs below from panel board to the unit's main control board.

Display board-CN4 RJ45-CN38 Motion sensor-CN56 (optional) Air deflector up-down step motor-CN5

1. Install the control box cover.
2. Close the two (2) plastic covers, located on both sides of the panel.
3. Reinstall the grille by pushing it into the latch to lock it.
4. Reinstall the screw cover.

J. Complete A Water Discharge Test

Before the test, make sure that the water discharge pipeline is sloped smoothly and check that each connection is sealed properly. Conduct the water discharge test in the new room before the ceiling is installed.

1. Connect the power supply and set the air conditioner to operate in the cool mode. Check the running sound of the drainage pump.
2. Keep cool mode running for at least 10 min.
3. Stop the air conditioner. Wait for three (3) minutes, and then check if there is anything unusual. If the water discharge piping layout is not correct, the excessive water flow will cause the water level error and "E12" error code will be displayed on the display panel. There may even be water overowing from the water pan.
4. Add water by slowly spraying it into the condensate tray under the refrigeration tubing, until the alarm for excessive water levels is triggered. Check if the drainage pump drains water immediately. After five (5) minutes, if the water level does not fall below the warning level, the unit will shut down. At this time, you need to turn off the power supply and drain away the accumulated water, using the drainage plug located on the bottom of the unit directly under the drainage tube outlet, before you can turn on the unit normally.
5. If the water is not draining properly, check the rise height and slope of the drain tubing. Also check to make sure there is not an obstruction

NOTE:

The drainage plug at the bottom of the unit body is used to discharge accumulated water from the drain pan when the air conditioner malfunctions. When the air conditioner is operating normally, make sure the drainage plug is properly plugged to prevent water from leaking.

Drainage Plug

Step 2 - Installation of the Indoor Unit (Cont.)

K. Install Fresh Air (optional)

NOTE: The fresh air option will allow installer to induce outside air into the return air side of the unit.

1. Use a cutting tool to cut off the three connection points of the fresh air baffle and remove the fresh air baffle.

2 3 4 1 FINEER AIR 5

Three (3) Connection Points on the Fresh Air Baffle

1. Attach the fresh air interface gasket which is in the indoor unit accessory bag to the side plate as shown in the following figure:

Fresh Air Interface Gasket

NOTE: The middle circular hole of the gasket needs to be aligned with the fresh air shear circular hole, the corner gap needs to be aligned with the middle screw position on the bottom of the side plate, and the four corner screw holes need to be aligned with the four holes on the side plate.

1. Install the fresh air interface (field supplied) and fix it with 4 screws.

Four (4) screws

Step 3 - Installation of the Outdoor Unit

Please refer to outdoor installation manual in outdoor carton.

Step 4 - Final Check

Explaining Operation to the End User

• Using the User Manual, explain to the user how to use the air conditioner/heat pump, (the remote controller, adding/removing the air filters, placing or removing the remote controller from the remote control holder, cleaning methods, precautions for operation, etc.)
  • Review precautions for operation.
• Recommend that the user read the Operating Instructions carefully.

Check Items for Test Run

☐ No gas leak from linesets?
□ Are the linesets insulated properly?
☐ Are the connecting wirings of indoor and outdoor firmly inserted to the terminal block?
☐ Is the connecting wiring of indoor and outdoor fixed?
□ Is condensate draining correctly?
☐ Is the ground wire securely connected? Is the indoor unit securely fixed?
☐ Is power source voltage correct according to local code?
□ Is there any odd noise?
☐ Does the cooling temperature drop between 20-30°F?
☐ Does the heating temperature raise between 35-40°F?
□ Is the room temperature display accurate?

Verify Refrigerant Leak Sensor Function

When a refrigerant leak or other leak sensor related error is detected, the indoor fan will turn on at high speed, and the compressor on the outdoor unit will turn off. These functions can be verified by temporarily disconnecting the leak sensor from the indoor unit and waiting up to 30 seconds for the system response. The leak sensor connects to connector CN3 on the indoor PCB (see section C for reference). When the system is powered on and the leak sensor is disconnected, the indoor unit should display "Ac," turn on the fan at high speed, and turn the compressor in the outdoor unit off. When the system is powered off, the leak sensor is disconnected, and the system is powered on, the indoor unit should display "bA," turn on the fan at high speed, and turn the compressor on the outdoor unit off.

Software Notice

To ensure product is functioning optimally and with the latest feature set, connect AC unit to WiFi and update with latest software. Refer to Owner's Manual on how to connect WiFi.

GEAppliancesAirandWater.com

Please save your receipt showing the date of original purchase and the date of installation.

For the product models listed on Attachment 1 (the "Product"), this Standard Limited Warranty is provided to the Original Owner of the Product:

For the Period of:
1 Year Remote Controller Warranty From the date of the original installation	If the Remote Controller proves to be defective due to improper workmanship and/or material for a period of one (1) year from the date of installation, GE Appliances, a Haier Company ("Haier") will provide a new or refurbished controller, as Haier's sole discretion.
5 Year Limited Parts Warranty From the date of the original installation	If any parts should prove to be defective due to improper workmanship and/or material for a period of five (5) years from the date of installation, Haier will replace any defective parts without charge for the part. Parts used for replacement may be new or refurbished parts, determined at Haier's sole discretion, and provided to your licensed HVAC technician installer.
10 Year Registered Limited Parts Warranty From the date of the original installation(ONLINE REGISTRATION REQUIRED at GEAppliancesAirandWater.com)	If any of the parts should prove defective due to improper workmanship and/or material for a period of ten (10) years from the date of installation, Haier will replace any defective parts without charge for the part. The replacement part is warranted for the remainder of the original ten (10) year warranty period. Parts used for replacement may be new or refurbished parts, determined at Haier's sole discretion, and provided to your licensed HVAC technician installer. This Registered Limited Parts Warranty requires online registration within sixty (60) days from the original date of installation or occupancy.
MUST BE A RESIDENTIAL SINGLE FAMILY HOME	NON-RESIDENTIAL/COMMERCIAL APPLICATIONS ARE NOT ELIGIBLE FOR THIS REGISTERED LIMITED PARTS WARRANTY.

LABOR NOT COVERED

These limited warranties DO NOT include labor or any other costs incurred for service, maintenance, repair, removing, replacing, installing, complying with local building or electrical codes, shipping or handling, replacement of the system, compressors or other parts.

EXCLUDED COMPONENTS

The following components are not covered by this warranty: cabinets, cabinet pieces, air filters, driers, refrigerant, refrigerant line sets, belts, wiring, fuses, oil nozzles, unit accessories and any parts not affecting unit operation.

WHAT IS THE DATE OF PURCHASE

The “Date of Purchase” is the date the Product is purchased by the Original Owner. The “Date of Installation” is the date that the original installation was completed, and all Product start-up procedures were properly completed and verified on the installer’s invoice. If the installation date cannot be verified, then the Date of Installation will either be sixty (60) days after the manufacture date, as determined by the Product’s serial number or thirty (30) days from the Date of Purchase. You should keep and be able to provide your original sales receipt from the installer as proof of the Date of Purchase and the Date of Installation. For new construction, the Date of Purchase will be the date of purchase of the residence by the Owner from the builder.

WHO IS COVERED

Owner occupied: The “Original Owner” means the original owner (and his or her spouse) of a residential single family where the Product was originally installed.

Non-Owner occupied: The “Non-Owner occupied” is defined as a) single family or multi-family residential buildings that are not Owner Occupied, or b) light commercial applications, (such as office buildings, retail establishments, hotels/motels).

For Non-owner occupied, this limited warranty requires that the Product be installed and maintained annually by a licensed HVAC technician (proof of annual maintenance is required).

HOW CAN YOU GET SERVICE

Contact your licensed HVAC technician installer. All installation and service must be performed by a licensed HVAC technician. Failure to use a licensed HVAC technician for installation of this Product voids all warranty on this Product.

What GE Appliances, a Haier Company Will Not Cover:

■ Improper service or installation.
■ Damage in shipping.
■ Defects other than manufacturing defects (i.e., other than workmanship or materials).
■ Damage from misuse, abuse, accident, alteration, lack of proper care and/or regular maintenance
■ Damage resulting from floods, fires, wind, lightning, accidents or similar conditions.
■ Product that was not installed or serviced by a licensed HVAC technician.
■ Labor and related services for repair or installation of the Product.
■ A product purchased from an unauthorized online retailer.
■ Damage as a result of subjecting Product to an atmosphere with corrosives or high levels of particulates (such as soot, aerosols, fumes, grease).
■ Modification, change or alteration of the equipment, except as directed in writing by Haier.
■ Use of contaminated or refrigerant not compatible with the unit
■ Operation with system components (indoor unit, outdoor unit, and refrigerant control devices) which are not an AHRI match or meet the specifications recommended by Haier.
■ A Product sold and/or installed outside of the 50 United States, the District of Columbia, or Canada.
■ Batteries for the controller and other accessories provided with the Product for installation (e.g., plastic hose).

■ Normal maintenance, such as cleaning of coils, cleaning filters, and lubrication.
■ For Product installed in Non-Owner Occupied applications, Product that has not been maintained annually by a licensed HVAC technician (proof required).
■ Damage caused by a used or unapproved component or part by Haier (e.g., a used and/or unapproved condenser / air handler).
■ Component or parts not provided by Haier.
■ Product that has been moved from its original installation to a new residence or building.
■ Accident, or neglect or unreasonable use or operation of the equipment including operation of electrical equipment at voltages other than the range specified on the unit nameplate (includes damages caused by brownouts).
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this product.

LEGAL RIGHTS

Some states and provinces do not allow warranty terms to be subject to registration. In those states and provinces, the 10 year Registered Limited Parts Warranty applies. In addition, if allowed by the law of the state or province where the Product is installed, the subsequent owners of the residence or building may have additional rights or longer warranty terms.

REGISTERED LIMITED PARTS WARRANTY COVERAGE REQUIREMENTS

• The unit is a GE Appliances or a Haier branded unit
• The unit is installed in a residential application
- The unit is properly registered at (GEAppliances.com) within 60 days after the original date of installation or occupancy.
- The unit is part of a complete AHRI matched system and installed by a state certified or licensed contractor in accordance with the unit installation, operation, and maintenance instructions provided with the unit.
- Indoor and outdoor ductless units are covered only when they are branded GE Appliances and are purchased and installed as a system along with a qualifying unit. (Third party coils are not covered).
• Installation is in compliance with applicable laws, regulations, codes, and ordinances.
- Unit was not ordered via the internet. Proof of purchase may be required.

EXCLUSION OF IMPLIED WARRANTIES

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THIS LIMITED WARRANTY IS EXCLUSIVE AND GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

UNDER NO CIRCUMSTANCES SHALL HAIER BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUE OR PROFITS, WORK STOPPAGE, SYSTEM FAILURE, IMPAIRMENT OF OR DAMAGE TO OTHER EQUIPMENT OR GOODS, COST OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OF OR RELATED TO THE SYSTEM. HAIER'S TOTAL LIABILITY, IF ANY, UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE INVOICE VALUE PAID BY THE CUSTOMER FOR THE SYSTEM WHICH IS THE SUBJECT OF A CLAIM OR DISPUTE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ALLOW DISCLAIMERS OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO THE CUSTOMER. THIS LIMITED WARRANTY GIVES THE CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMERS MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages. Some states and provinces do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you. Some states and provinces do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary by state and province. This warranty covers Products within the 50 United States, the District of Columbia and Canada.

This warranty is provided by:

GE Appliances, a Haier company

Louisville, KY 40225

For US Customers: This limited warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska and Hawaii, the limited warranty does not include the costs of shipping units. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

ATTACHMENT 1

Product is defined as a GE Appliances or Haier branded Ductless Split Units. The Product contains 2 sub-categories of goods: "Indoor and Outdoor Products" and "Selected Installation Products," which are further defined below: "Indoor and Outdoor Products" can further be identified by the following model number descriptions:, 1Q*, 2Q*, 3Q*, 4Q*, 5Q*, 1G*, 2G*, 3G*, 4G*, 5G*, QS*, QA*, GA* GS*, US*

Record Keeping

Thank you for purchasing this GE Appliances product. This installation manual will help you get the best performance from your new heat pump.

For future reference, record the model and serial number located on the label on the side of your air conditioner/heat pump, and the date of purchase. Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

To register your new GE Appliances Duct Free system, go to geappliancesairandwater.com and input the model/serial number information on this page.

Model number

Serial number

Date of purchase

AIR&WATER

SOLUTIONS

Technical line drawing of a front-mounted air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Table Des Matières

CONTENU DE L'EMBALLAGE 2

INFORMATION DE SÉCURITÉ 3

CONDITIONS DE FONCTIONNEMENT 6

INSTRUCTIONS D'INSTALLATION 12

Electrical circuit board layout diagram with component labels and connections

Technical line drawing of a mechanical assembly with no visible text or symbols

3/16-1/4" (5-7mm)

Line drawing of a rectangular electronic device with a grid and indicator lights, no text or symbols present

Technical line drawing of a laptop chassis with internal grid layout and a small component inserted (no text or symbols)

Technical line drawing of an air conditioner unit with ventilation grilles and a door handle (no text or symbols)

FREM AIR 1 2 3 4 5

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with no visible text or symbols

Quatre (4) vis

GE Appliances, a Haier company

Louisville, KY 40225

Garant : GE Appliances, a Haier company

Louisville, KY 40225

ANNEXE 1 :

Technical line drawing of a microwave oven with ventilation grilles and cooling fins (no text or symbols)

Índice

Electrical circuit board layout diagram with component labels and connections

Technical line drawing of a mechanical assembly with no visible text or symbols

3/16-1/4" (5-7mm)

Line drawing of a rectangular air conditioner unit with heat sinks and a small sensor or connector (no text or symbols)

Technical line drawing of a computer keyboard with ventilation grilles and a small mechanical component (no text or symbols)

Technical line drawing of an air conditioner unit with ventilation grilles and a close-up of the front panel (no text or symbols)

FRESH AIR

Pure electrical circuit lines without any symbols

Technical diagram of a mechanical or electrical component with labeled parts (no readable text or symbols)

Cuatro (4) tornillos

Paso 5 – Control Final

GE Appliances, a Haier company Louisville, KY 40225

Louisville, KY 40225

ADJUNTO 1:
