DO-7244S - Vacuum Cleaner DOMO - Free user manual and instructions

Brand	Domo
Model	DO-7244S
Product type	Canister vacuum with bag and HEPA filter
Color	Gray and black (estimate)
Power	800 W (estimate)
Power supply	Mains, 220-240 V ~ 50-60 Hz
Dust bin capacity	2 L (estimate)
Filtration	Washable HEPA filter, prefilter and air outlet filter
Suction power	Variable with adjustment on handle
Cable length	5 m (estimate)
Operating radius	7 m (estimate)
Weight	4.5 kg (estimate)
Dimensions (L x W x H)	30 x 25 x 40 cm (estimate)
Noise level	76 dB (estimate)
Included accessories	Universal brush nozzle, flat nozzle, small nozzle, hose, chrome telescopic tubes
Functions	Foot on/off, automatic cord rewind, suction power adjustment
Maintenance and cleaning	Transparent bin, water-washable filters, replace HEPA filter every 6 months
Safety	Do not use unattended, keep out of reach of children under 8 years, unplug before cleaning
Warranty	2 years

Frequently Asked Questions - DO-7244S DOMO

How to assemble the hose of the Domo DO-7244S vacuum cleaner?

Insert the hose into the air inlet grille at the front of the appliance. Press until you hear a click, indicating it is properly positioned. Always unplug the appliance before handling accessories.

How to empty the dust bin of the vacuum cleaner?

Press the button on the dust bin to remove it from the appliance. Then press the side button to open the bottom of the bin over a trash can. You can also remove and clean the black plastic prefilter by turning it counterclockwise.

How to clean the HEPA filter of the DO-7244S?

Remove the dust bin, then pull the black tab of the HEPA filter upward to dislodge it. Clean the filter under running water and let it dry completely in the air before replacing it. Replace the HEPA filter every 6 months.

What to do if the vacuum cleaner stops working or lacks suction?

Check that the dust bin is not full, the filters (HEPA and prefilter) are not clogged, and the hose or tubes are not blocked. If the cord is damaged, have it replaced by a professional.

How to use the automatic cord rewinder?

After use, unplug the appliance. Hold the plug with one hand and press the rewind button with the other. The plug retracts automatically. Do not let the plug whip to avoid damaging it.

Can I use the vacuum cleaner on wet surfaces?

No, the DO-7244S vacuum cleaner is designed for household use on dry floors. Never use it outdoors or on wet surfaces to avoid the risk of electric shock.

What accessories are available for the Domo DO-7244S?

The vacuum cleaner is supplied with a universal brush nozzle, a flat nozzle, a small nozzle, a hose and chrome telescopic tubes. You can use these accessories to clean various surfaces (floors, furniture, corners).

How often should I replace the filters?

The HEPA filter and the air outlet filter should be replaced every 6 months. The plastic prefilter can be reused after cleaning. Regularly check the condition of the filters to maintain good suction.

Is the vacuum cleaner safe for children?

This appliance can be used by children aged 8 years and older under supervision. Keep the appliance and cord out of reach of children under 8 years. Never leave the vacuum cleaner unattended when plugged in.

Where can I find the full manual for the DO-7244S?

The complete user manual is available free of charge in PDF format on the website notice-facile.com. You can download it or request a translation in your language.

USER MANUAL DO-7244S DOMO

Close-up of a white and gray vacuum cleaner with a coiled hose, showing internal components (no text or symbols visible)

DO-7244S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

RECYCLING INFORMATIONEN

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

VOORZORGSMAATREGELEN

ATTENTION

VORSICHTSMASSNAHMEN

This appliance can be used by children, starting from the age of 8 and up. And by persons with a physical or sensory limitation as well as, mentally limited persons or persons with a lack of experience and knowledge. On the condition that these persons have received the necessary instruction on how to use this appliance in a safe way and they must also know the dangers that can occur in using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance, cannot be done by children younger than 8 year old.

This appliance is suitable to be in an household environment and in similar surroundings such as :

• Kitchen for personnel of shops, offices or other similar professional surrounding.
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention : This appliance can not be used with external timer or separate remote control.

WARNING INSTRUCTIONS

1. Don't every leave the vacuum cleaner unattended when it is plugged in. Remove the plug from the socket when the vacuum cleaner isn't in use or while cleaning.
2. To prevent the risk of electrocution, don't use the vacuum cleaner out doors or on wet surfaces.
3. The vacuum cleaner is not a toy. Strickt supervision is necessary when the vacuum cleaner is used near or by children.
4. Only use the vacuum cleaner as discribed in the instruction booklet. Only use accessories recommended by the manufacturer.

5. Don't use the appliance when the plug or cord is damaged. When the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left out side or has been dropped in water. Take your vacuum cleaner to a service centre for control and/or repair.

6. Don't pull the cord. Don't use the cord as a handle. Don't jam the cord between a door or don't pull it around corners or sharp edges. Don't pull the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

7. Don't remove the plug from the socket by pulling the cord. Take hold of the plug to remove it from the socket.

8. Don't touch the plug or the vacuum cleaner when you have wet hands.

9. Don't put any objects in the openings of the vacuum cleaner. Don't use the appliance when an opening is blocked.

10. Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner en from moving parts.

11. Be extra careful when cleaning the stairs.

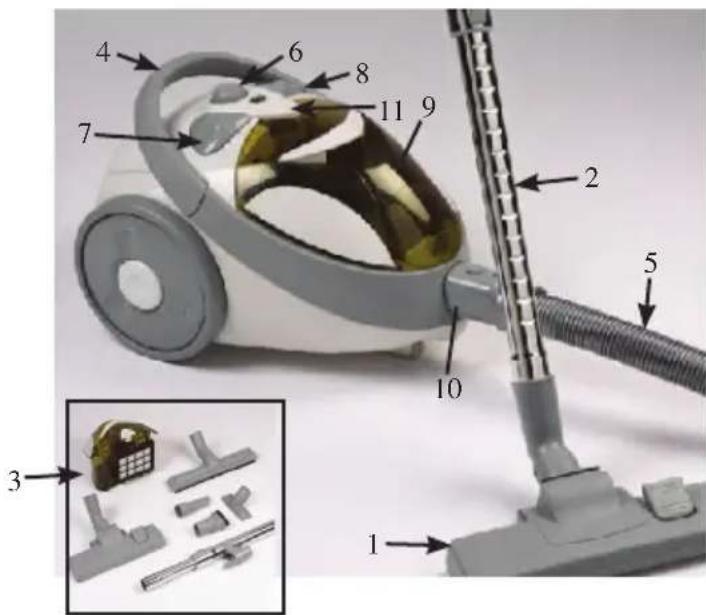

PARTS

1. Universal floorbrush
2. Chrome telescopic tubes
3. Accessories
4. Handle
5. Flexible hose
6. Suction control
7. On/off button
8. cord rewinding button
9. Transparant dust container
10. Flexible hose connection
11. Release button dust container

PRECAUTIONS

When the floorbrush or tubes are blocked, you turn off the vacuum cleaner immediately.

Remove the blockage before turning on the unit again.

Don't use the vacuum cleaner close to heating appliances or radiators.

When putting the plug in the socket, make sure your hands are dry.

Before vacuum you need to remove all large and sharp objects from the floor, to prevent damage on the filter.

When removing the plug from the socket, take hold of the plug don't pull the cord.

ASSEMBLY

Always remove the plug from the socket before adding or removing accessories.

Flexible hose : Attache the flexible hose to the air intake opening at the front of the vacuum cleaner. Press the hose until it clicks into position.

Metal tubes : attach the metal tubes to the handle. Attache the floor brush to the metal tubes.

Accessories : cervical/dust brush and small floor brush.

INSTRUCTIONS FOR USE

Before using the appliance unwind the power cord. Put the plug into the socket. A yellow marking on the cord indicates the ideal lenght for unwinding the cord. On the power cord is also a red marking, never unwind the power cord futher than this marking.

Press the on/off button to turn on the unit.

To wind the cord, remove the plug from the socket en hold it while pressing the rewind button with the other hand. You need to hold the plug while rewinding to prevent damage during rewinding.

On the handle that is attached to the tubes, is a small slide button for extra suction control.

CLEANING DUST CONTAINER AND FILTERS

Before cleaning your vacuum cleaner or accessories, always turn off the appliance and remove the plug from the socket.

Dust container

Take hold of the handle of the dust container, press the release button for the dust container and pull the dust container gently towards you. The dust container slides out of the appliance.

On the side of the dust container is located a knob.

Keep the container above the dust bin. Press the button on the side of the dust container. The bottom will open and the dust will fall out. The dust compartment also contains a prefilter, which can be cleaned. Remove the prefilter from the dustcontainer by turning it clockwise. Pull the prefilter out of the dustcontainer and clean it.

HEPA filter

You can now clean the HEPA filter which is situated on the outside of the dust container. Pull the black lever at the top of the HEPA filter. The filter holder will come loose. In front of the HEPA filter is also a black filter Both filters can be cleaned under running water. Let the filters dry in open air before replacing it in the vacuum cleaner.

Air outlet filter

This filter will clean the air before leaving your vacuum cleaner. The air outlet filter is situated at the back of the vacuum cleaner. Remove the grill and take out the filter.

Clean under running water, let it dry thoroughly before replacing into the vacuum cleaner.

During a normal cleaning it will do to just beat out the filters. You can also rinse out the filters. Dry them completely or if necessary you can also replace them. After cleaning and drying the filters, place them back in the vacuum cleaner.

ATTENTION : After 6 months you need to replace both HEPA filter and air outlet filter.

Always use the vacuum cleaner with the filters in place.

If not, this can lead to loss of power or damage to the motor.

Remove the plug from the socket before cleaning the filters.

Don't place the filters in the dishwasher.

Don't use a hair dryer to dry the filters.
