USER MANUAL DO-7243S DOMO

PRODUCT OF LINEA 200

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, such as brushes and batteries, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handedover to the applicable collection point for recycling of electrical and electronic equipment. by ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WAARSCHUWINGEN

1. Don't every leave the vacuum cleaner unattended when it is plugged in. Remove the plug from the socket when the vacuum cleaner isn't in use or while cleaning.
2. To prevent the risk of electrocution, don't use the vacuum cleaner out doors or on wet surfaces.
3. The vacuum cleaner is not a toy. Strickt supervision is necessary when the vacuum cleaner is used near or by children.
4. Only use the vacuum cleaner as discussed in the instruction booklet. Only use accessories recommended by the manufacturer.
5. Don't use the appliance when the plug or cord is damaged. When the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left out side or has been dropped in water. Take your vacuum cleaner to a service centre for control and/or repair.
6. Don't pull the cord. Don't use the cord as a handle. Don't jam the cord between a door or don't pull it around corners or sharp edges. Don't pull the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
7. Don't remove the plug from the socket by pulling the cord. Take hold of the plug to remove it from the socket.
8. Don't touch the plug or the vacuum cleaner when you have wet hands.
9. Don't put any objects in the openings of the vacuum cleaner. Don't use the appliance when an opening is blocked.
10. Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner en from moving parts.
11. Be extra careful when cleaning the stairs.

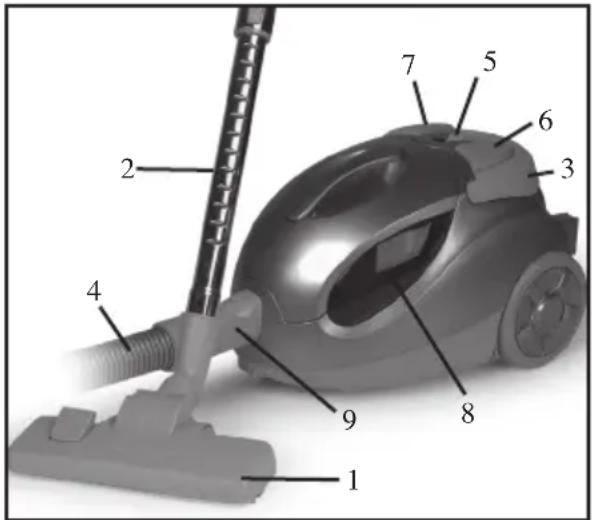

PARTS

1. Universal floorbrush
2. Chrome telescopic tubes
3. Handle
4. Flexible hose
5. Suction control
6. On/off button
7. cord rewinding button
8. Transparant dust container
9. Flexible hose connection

PRECAUTIONS

When the floorbrush or tubes are blocked, you turn off the vacuum cleaner immediately.

Remove the blockage before turning on the unit again.

Don't use the vacuum cleaner close to heating appliances or radiators.

When putting the plug in the socket, make sure your hands are dry.

Before vacuum you need to remove all large and sharp objects from the floor, to prevent damage on the filter.

When removing the plug from the socket, take hold of the plug don't pull the cord.

ASSEMBLY

Always remove the plug from the socket before adding or removing accessories.

Flexible hose : Attache the flexible hose to the air intake opening at the front of the vacuum cleaner. Press the hose until it clicks into position.

Metal tubes : attach the metal tubes to the handle. Attach the floor brush to the metal tubes.

Accessories : cervical/dust brush and small floor brush.

INSTRUCTIONS FOR USE

Before using the appliance unwind the power cord. Put the plug into the socket. A yellow marking on the cord indicates the ideal lenght for unwinding the cord. On the power cord is also a red marking, never unwind the power cord further than this marking.

Press the on/off button to turn on the unit.

To wind the cord, remove the plug from the socket en hold it while pressing the rewind button with the other hand. You need to hold the plug while rewinding to prevent damage during rewinding.

On the handle that is attached to the tubes, is a small slide button for extra suction control.

CLEANING DUST CONTAINER AND FILTERS

Before cleaning your vacuum cleaner or accessories, always turn off the appliance and remove the plug from the socket.

Dust container

Take hold of the handle of the dust container and pull it up gently. The dust container slides out of the appliance.

On the side of the dust container is located a knob.

Keep the container above the dust bin. Press the button on the side of the dust container. The bottom will open and the dust will fall out.

HEPA filter

You can now clean the HEPA filter inside the dust container. Round the HEPA filter is a protection screen, to prevent the dust concentrating inside the HEPA filter. If you want to clean the HEPA filter. Remove the top lid of the dust container, take out the HEPA filter and clean it under running water. Let the filter dry in open air before replacing it in the vacuum cleaner.

Air outlet filter

DO-7243S

This filter will clean the air before leaving your vacuum cleaner. The air outlet filter is situated at the back of the vacuum cleaner. Remove the grill and take out the filter. Clean under running water, let it dry thoroughly before replacing into the vacuum cleaner.

During a normal cleaning it will do to just beat out the filters. 3 to 4 times a year you can rinse out the filters. Dry them completely or if necessary you can also replace them. After cleaning and drying the filters, place them back in the vacuum cleaner.

Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor. Remove the plug from the socket before cleaning the filters. Don't place the filters in the dishwasher. Don't use a hair dryer to dry the filters.
