USER MANUAL F7EIK36BA1 Fulgor Milano

Before Starting Installation 2

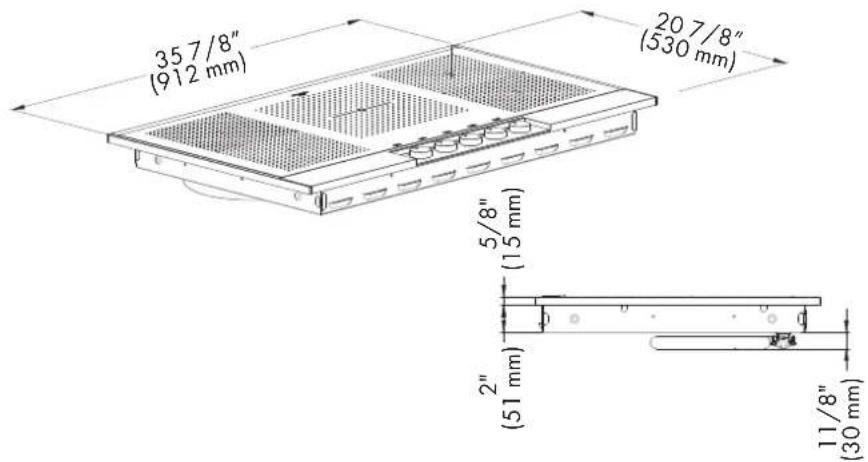

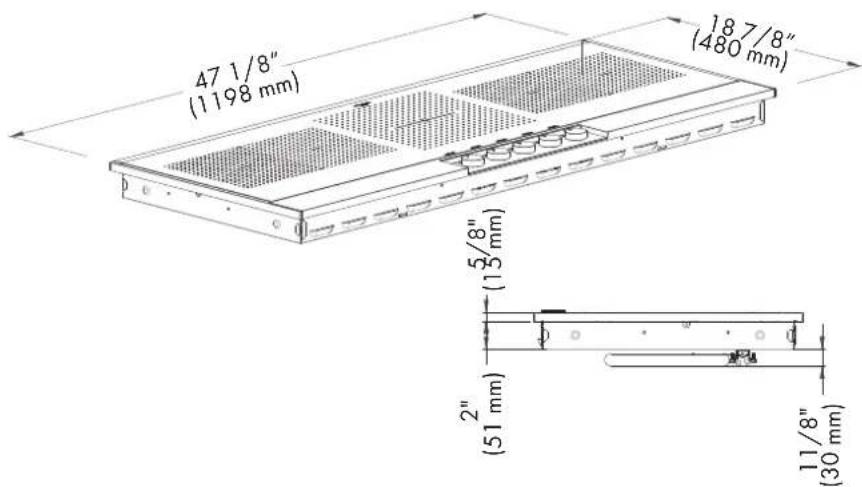

2- Product Dimensions and Cutout Requirements 3

Important Preparation Suggestions 5

3 - Cooktop Installation 7
4 - Cooktop Installation Over a Single Oven 10
5 - Electrical Connections 13

General information 13
3-Wire branch circuit 14
4-Wire branch circuit 14

IMPORTANT: Save these instructions for the local electrical inspector use.

INSTALLER: Please leave this manual with owner for future reference.

OWNER: Please keep this manual for future reference.

Pay attention to these symbols present in this manual:

DANGER

You can be killed or seriously injured if you don't IMMEDIATELY follow instructions.

WARNING

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

You can be killed or seriously injured if you don't follow these instructions.

WARNING

If the information in this manual is not followed exactly, a fireorexplosion may result in personal injury or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

IMPORTANT INSTRUCTION

Please read all instructions before using this appliance.

Proper installation is your responsibility.

Have a qualified technician install this cooktop.

IMPORTANT

• Observe all governing codes and ordinances.
• Write down the model and serial numbers before installing the cook top. Both numbers are on the serial rating plate located on bottom of cooktop housing.

Before Starting Installation

WARNING

It is the customer's responsibility to contact a qualified electrical installer to ensure that the electrical installation is adequate and in conformity with national electrical code: ANSI/NFPA 70-latest edition or CSA standards C22.1-94, Canadian Electrical Code, part No.0-M91 - latest edition* and all local codes and ordinances.

Copies of the standards listed may be obtained from:

** National Fire Protection Association One Batterymarch Park Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland, OH 44131-5575

To eliminate the risk of burns by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5^ (12,7 cm) beyond the outer edge of the cabinet.

36"

48

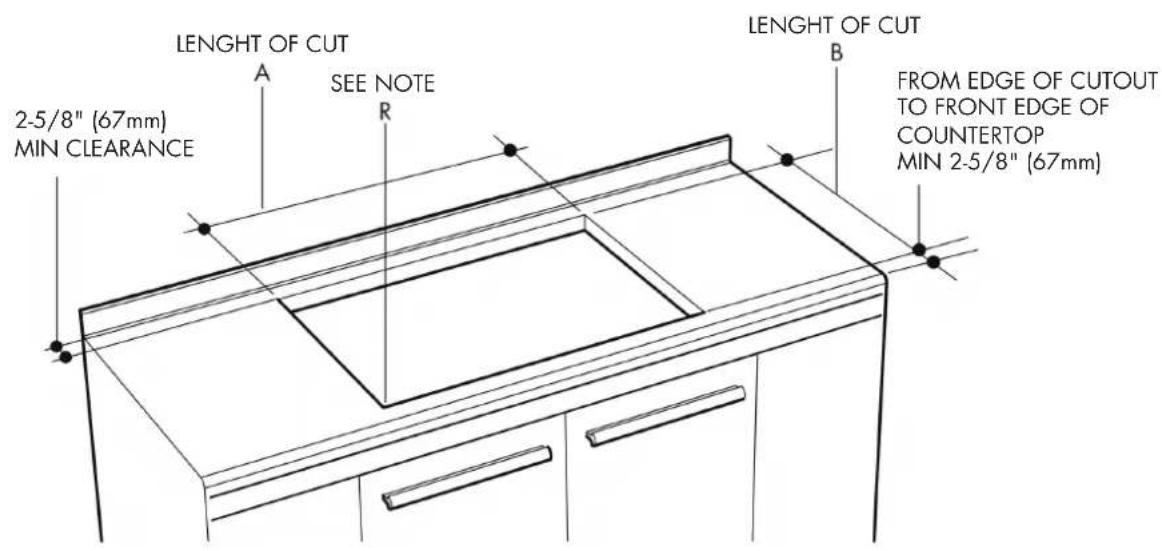

CUTOUT DIMENSION

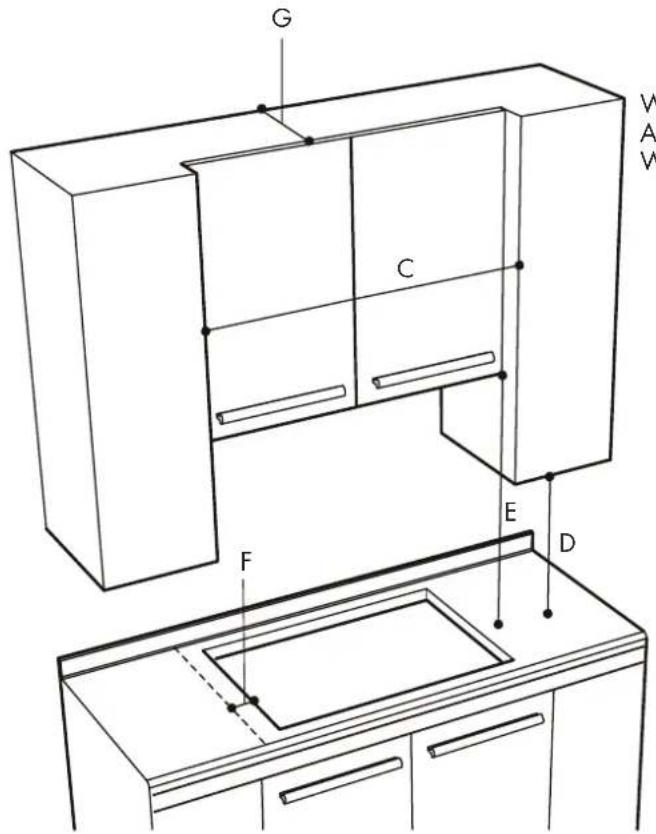

CUTOUT REQUIREMENTS

WALL COVERING CABINETS, AND COUNTERTOP MUST WITHSTAND HEAT UP TO 93^ (200^)

Cutout width	A B C
36" (914mm)	MIN 33-1/8" (840mm) MAX 33-1/4 (844mm)	MIN 19-3/4" (500mm) MAX 19-7/8" (504mm)	36" (914mm)
48" (1219mm)	MIN 46-1/4" (1175mm) MAX 46-5/8" (1184mm)	MIN 18-1/4" (465mm) MAX 18-1/2" (469mm)	48"(1219mm)

Cutout width	DEFG
36" (914mm)	18" (45.7 cm) min Height from countertop to nearest cabinet on either side of unit	30" (76.2 cm) min. (see note*) Clearance from countertop to unprotected overhead surface	2" (5 cm) min Clearance from cutout to side wall on the left and right of the unit	13" (33 cm) Depth of unprotected overhead cabinets
48" (1219mm)

IMPORTANT

Under the cooktop it is necessary to install a partition, as shown

NOTE: 24^ (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1 / 4^ (0.6 cm) flame retardant millboard covered with no less than No. 28 MSG sheet steel 0.015^ (0.04 cm) stainless steel, or 0.024^ (0.06 cm) aluminum or 0.020^ (0.05 cm) copper. 30^ (76.2 cm) min. clearance between top of cooking platform and bottom of unprotected wood or metal cabinet.

Important Preparation Suggestions

1. Chamfer all exposed edges of decorative laminate to prevent damage from chipping.
2. Radius corners of cutout and file to ensure smooth edges and prevent corner cracking. Recommend 1/4'' or 3/8'' diameter drill to start cut at each corner.
3. Rough edges, inside corners which have not been rounded and forced fits can contribute to cracking of the countertop laminate.

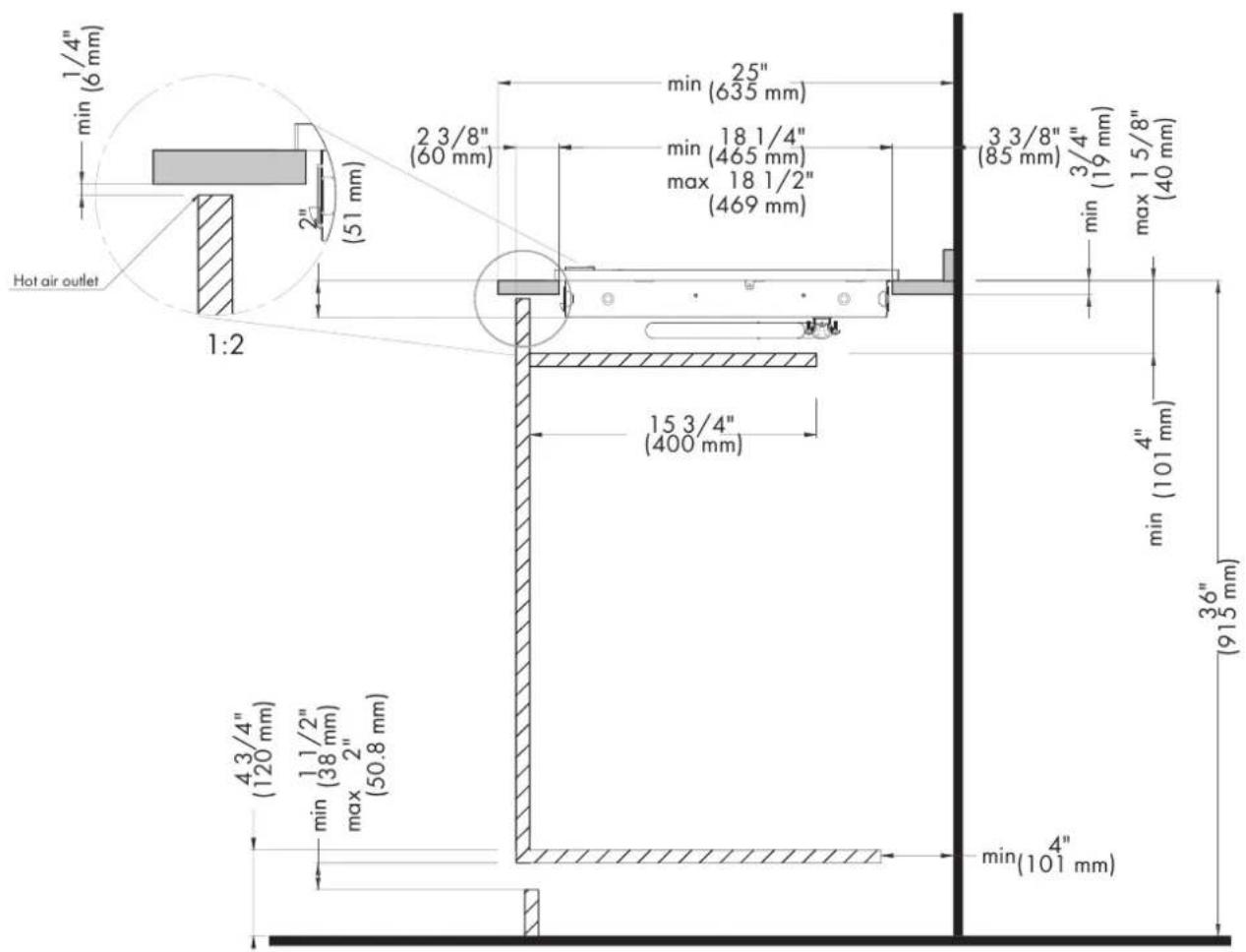

VERTICAL CLEARANCES

• The ventilation opening is to extend the full length of the cooktop cutout.

36" ENOVA COOKTOP CUT-OUT

• The ventilation opening is to extend the full length of the cooktop cutout.

VERTICAL CLEARANCES

• The ventilation opening is to extend the full length of the cooktop cutout.

48" ENOVA COOKTOP CUT-OUT

WARNING

Excessive Weight Hazard

Use two or more people to move and install cooktop. Failure to do so can result in back or other injury.

Cut Hazard

Beware of sharp edges. Use the polystyrene ends when carrying the product. Failure to use caution could result in minor injury or cuts.

• Always consult the countertop manufacturer for specific instructions.
• Ensure the countertop is square and level and ensure no structural members interfere with space requirements.
• Prepare the cut-out according to the instructions (see cut-out dimensions).
• Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200^ F / 93^ C).

TOOLS WILL YOU NEED

STEP1

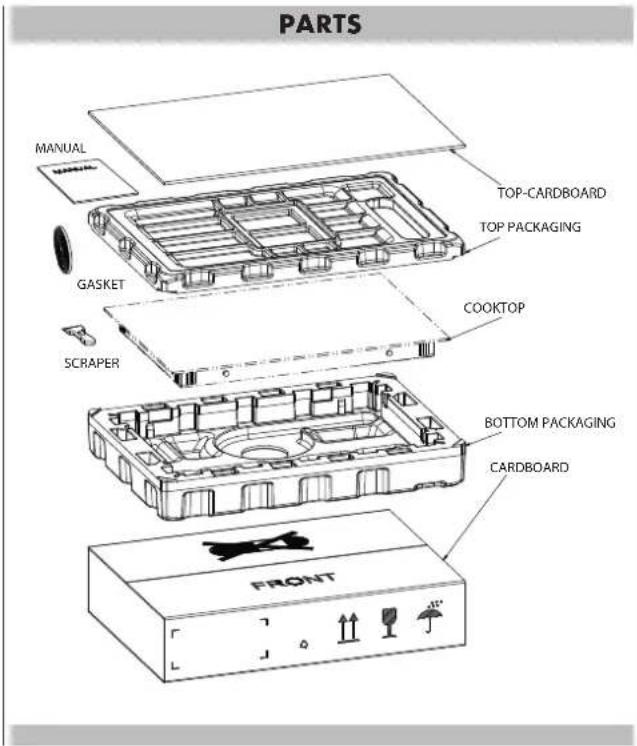

Remove packaging materials and literature package from the cooktop before beginning installation. Remove Installation Manual from literature pack and read them carefully before you begin.

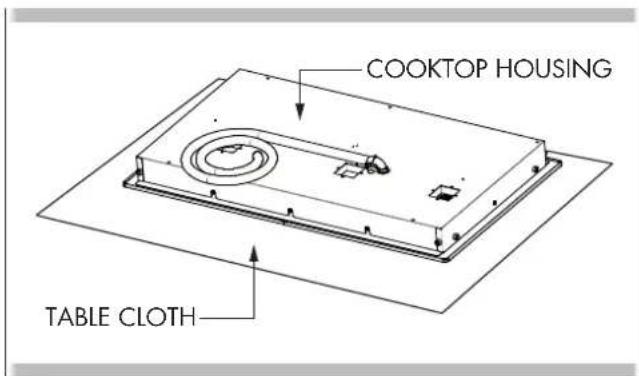

STEP2

Place a towel or table cloth onto the counter top. Lay the cooktop upside down onto the protected surface.

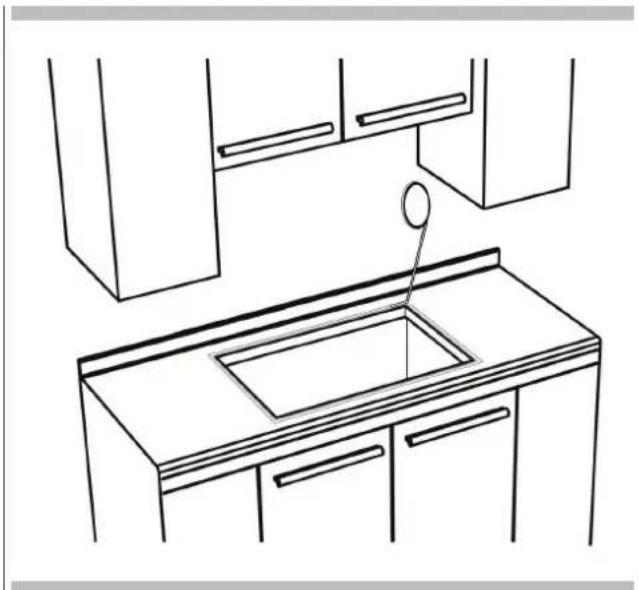

STEP3

Use foam tape to seal the cutout opening.

Ap to the edge of the cutout opening along the entire perimeter. Cut off the excess where the tape ends butt. Once the hob is installed, trim the foam tape on the front of the hob, taking care not to scratch the exposed front fascia.

STEP4

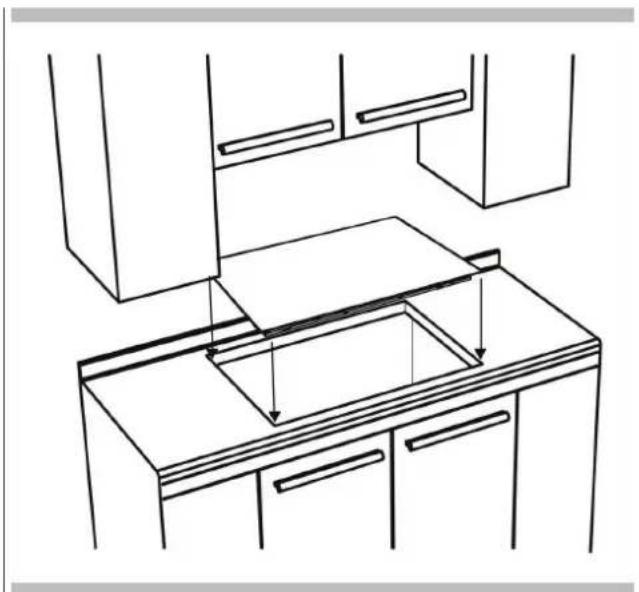

Insert the cooktop centered into the cutout opening. Make sure the front edge of the counter top is parallel to the cooktop. Make a final check that all required clearances are met.

STEP5

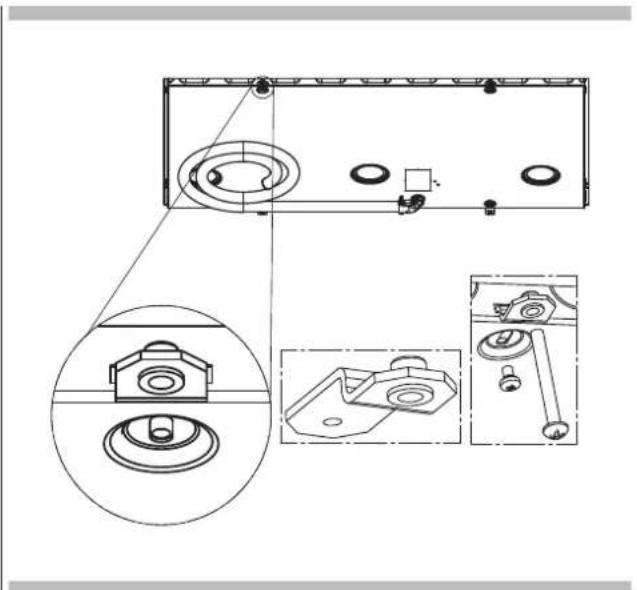

Four or six clamp brackets are provided to clamp the cooktop to the countertop. Tighten screws just enough to hold brackets in place when cooktop is put into cutout. Tighten screws securely.

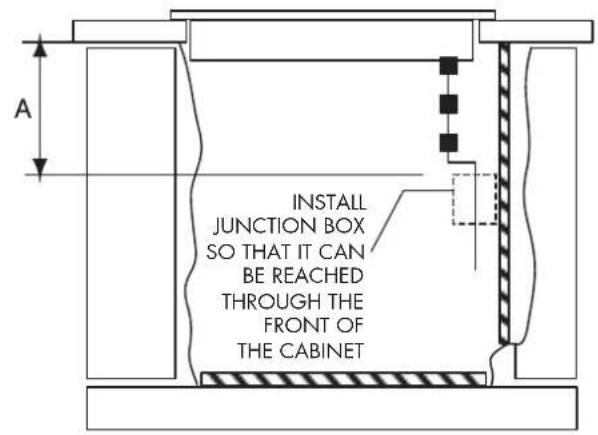

ELECTRIC OPENING

A: 12^ (30.5 cm) MIN FROM BOTTOM OF COUNTERTOP AND ADJACENT CABINET (RIGHT SIDE)

WARNING

THE ELECTRICAL CONDUIT IS 3 FEET LONG.

The junction box, must be located where it will allow considerable slack in the conduit for serviceability.

IMPORTANT

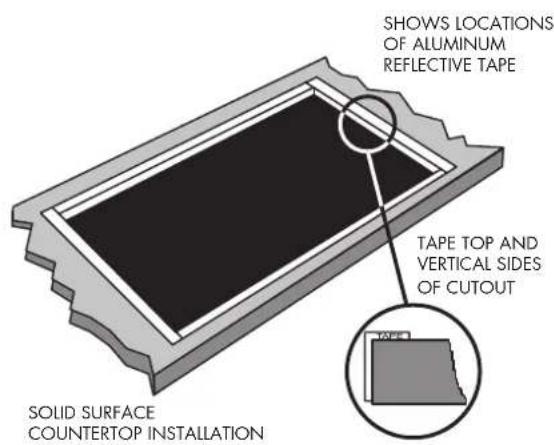

• For solid surface material installations such as Surel™ and Corian®, consult with solid surface manufacturer. Apply heat reflective tape such as Scotch® Aluminum Foil Tape #425 or #427 around the cutout so that it folds over on the top and sides.
• Do not wrap the tape underneath the cooktop. Be sure the tape extends beyond the outermost flange of the cooktop. All corners should be covered with tape.

CAUTION

• Use the countertop opening dimensions that are given with these Instructions.
• Check the cooktop base for an approved installation label. Verify approved oven model numbers that can be installed with your cooktop model number.

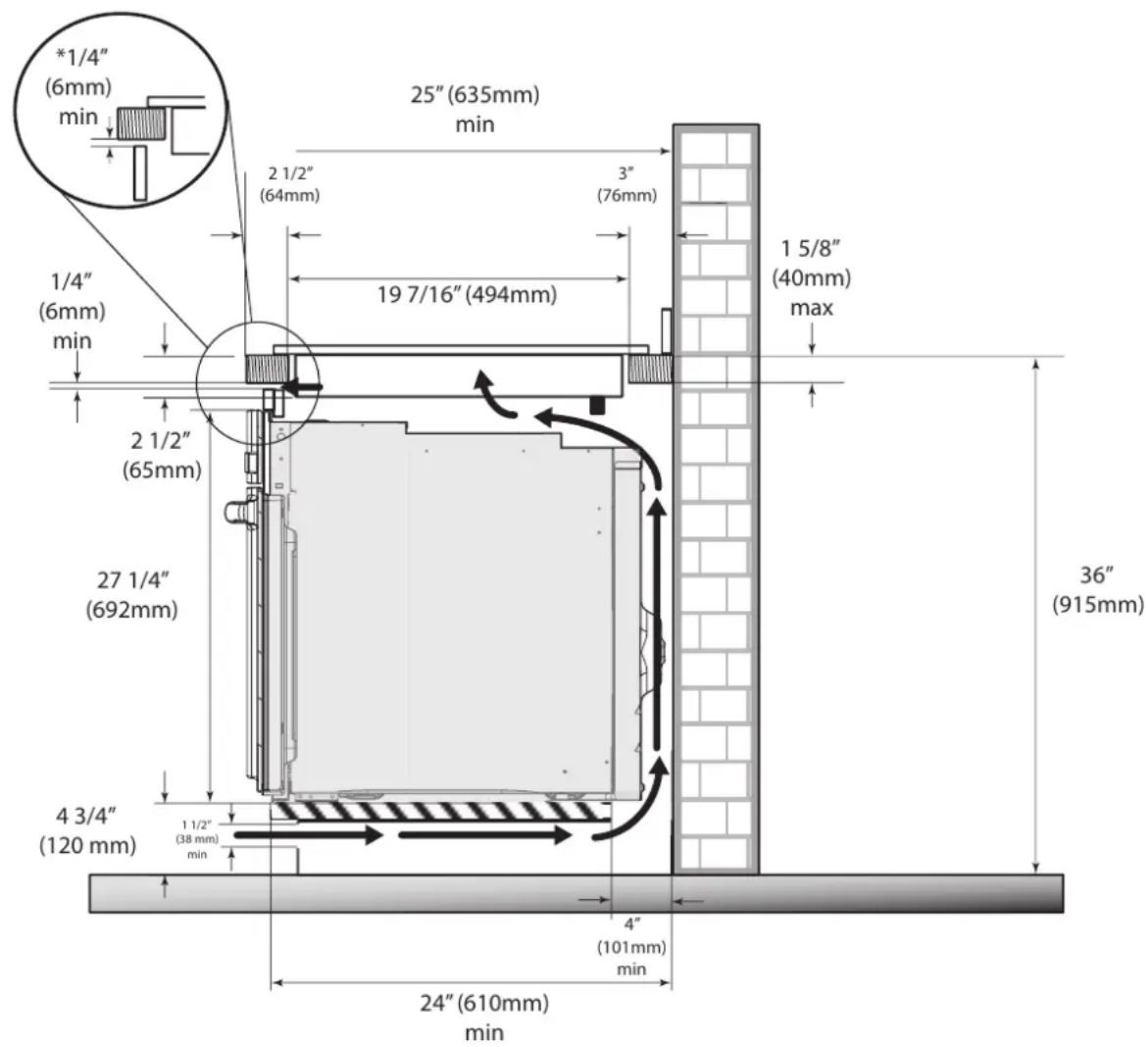

The cooktop may be installed over a single oven.
- The cooktop should be centred over the oven.
- Both the cooktop and the oven must be installed according to each specific installation instruction.

* The ventilation opening is to extend the full length of the cooktop cutout.

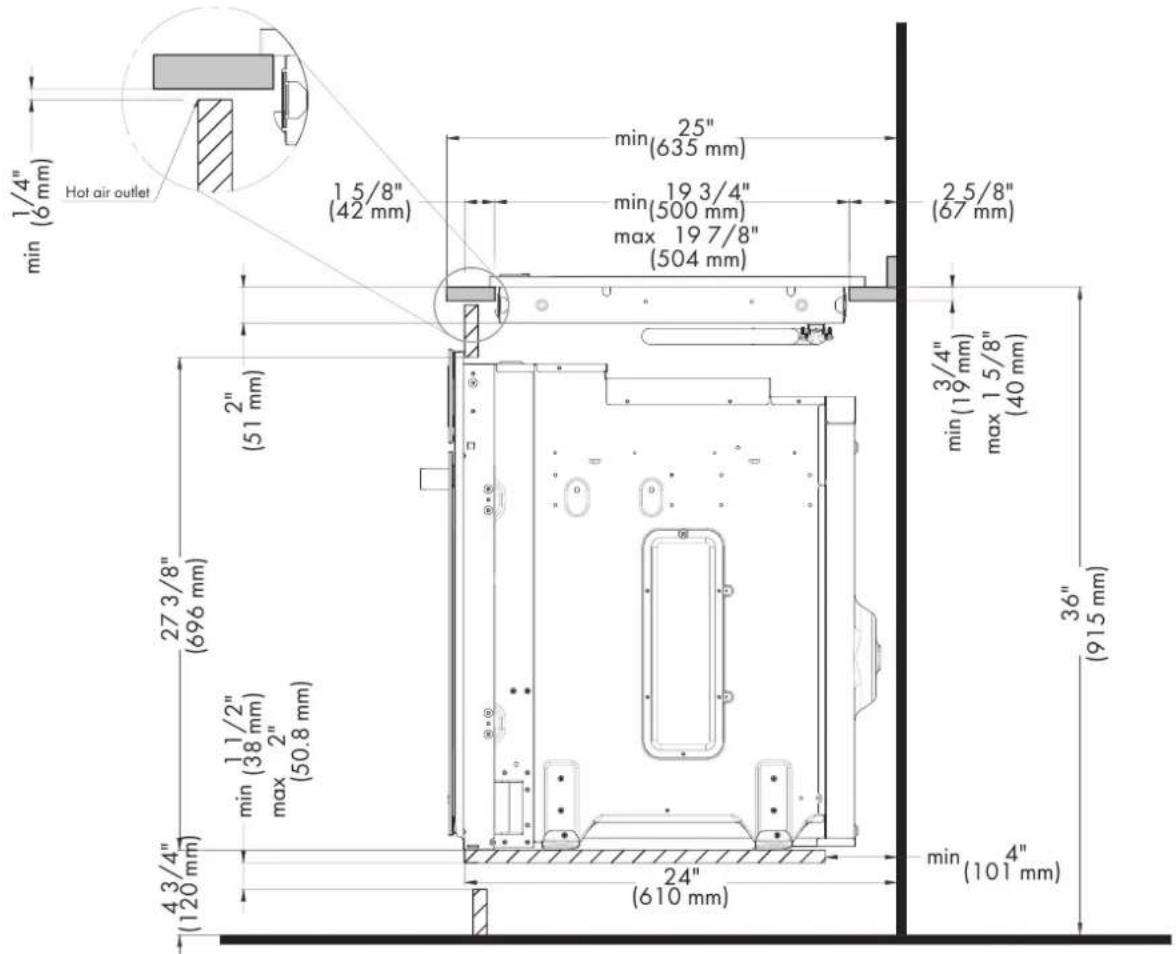

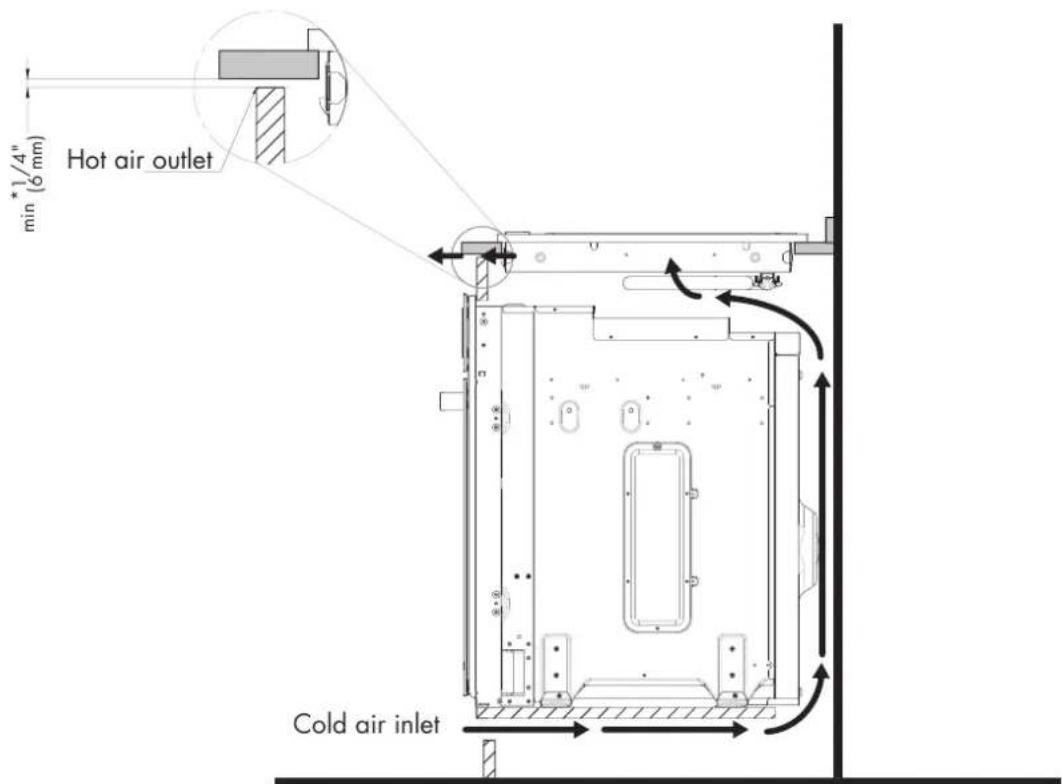

36" ENOVA COOKTOP + 30" OVEN CUT-OUT

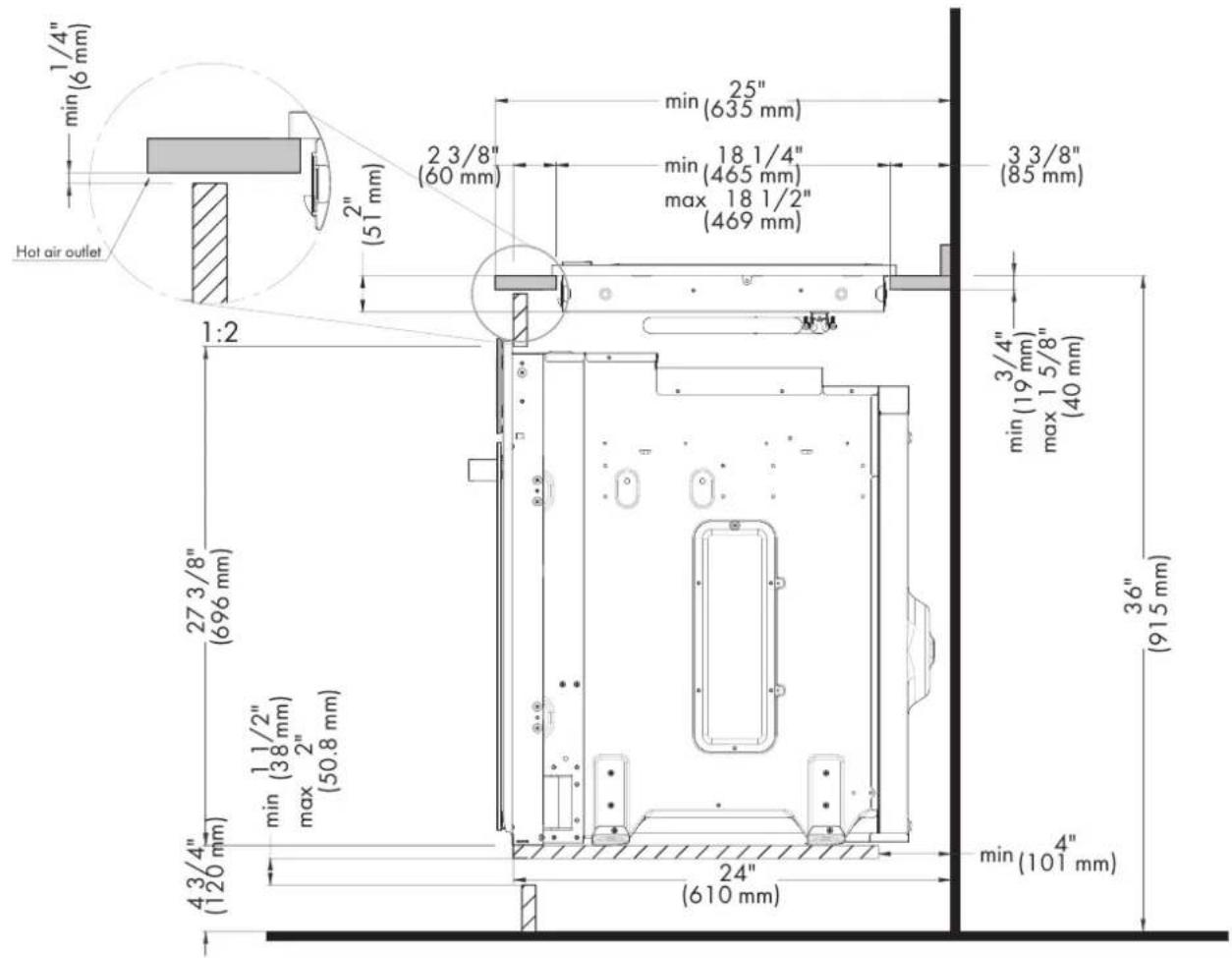

48" ENOVA COOKTOP + 30" OVEN CUT-OUT

DANGER

Disconnect power before servicing the product. Failure to do so could result in death or electrical shock.

General information

WARNING

The models may be powered at 240V or 208V.

This cooktop does not require a neutral connection. If the cooktop is to be completely enclosed in a cabinet, feed the cooktop cable through the opening in the cabinet. Make the electrical connection following the appropriate steps for your installation. Your cooktop must be connected to the proper electrical voltage and frequency as specified in the table on the right.

Location of serial tag

Connect with copper wire only

If the house has aluminum wiring, follow the procedure below:

1. Connect the aluminum wiring to the copper wire by using special connectors designed and Underwriters Laboratories listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure.
2. Aluminum/copper connection must conform with local codes and industry- accepted wiring practices.

The flexible conduit (supplied) 3 feet long (100cm) located at the right rear of the cooktop bottom box should be connected directly into a junction box. Do not cut the conduit. A U.L - or CSA - listed conduit connector must be provided at each end of the power supply cable (at the cooktop and at the junction box.) A time delay fuse or circuit breaker is recommended. Do not ground to a gas pipe. Do not have a fuse in the grounding or neutral circuit. Fuse both supply (phase) lines.

WARNING

Improper connection of aluminum house wiring to the copper leads can result in a serious problem such as an electrical fire.

Model Power	Supply
10,8 kW 45A	240 V 60 Hz		208 V 60 Hz		Approval code
9,4 kW 45A
36"	10,8kW	45A	9,4kW	45A	814V5**L
48"					814Z5**M

National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02169-7471

A three-wire, single phase, 240 Volt 60 cycle electrical system (properly circuit protected to meet Local Codes of NFPA No.70) must be provided. Unit must be properly grounded in accordance with local wiring code.

Be sure your appliance is properly installed and grounded by a qualified technician. Ask your dealer to recommend a qualified technician or an authorized repair service. This cooktop does not require a neutral connection. If the cooktop is to be completely enclosed in a cabinet, feed the cooktop cable through the opening in the cabinet. Make the electrical connection following the appropriate steps for your installation.

This appliance is manufactured with a green ground wire connected to the cooktop chassis. After making sure that the power has been turned off, connect the flexible conduit from the cooktop to the junction box using a U.L. listed conduit connector. The instructions provided below present the most common way of connecting the cooktops. Your local codes and ordinances, of course, take precedence over these instructions. Complete electrical connections according to local codes and ordinances.

DANGER

Risk of Electric Shock, frame grounded to neutral of appliance through a link.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor.

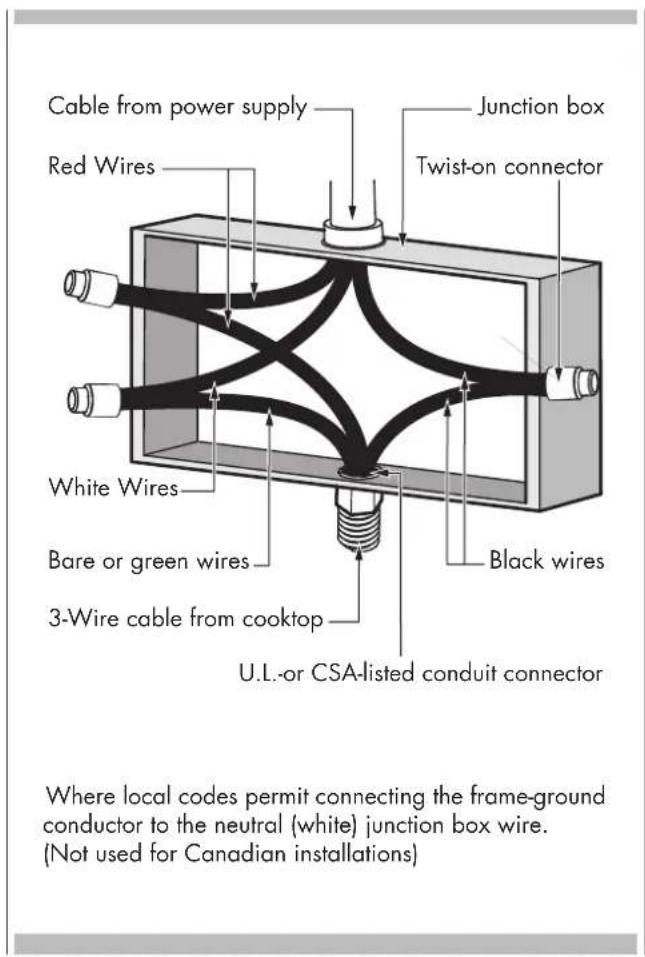

3-Wire branch circuit

Where local codes allow the connection of ground wire from the cooktop to the branch circuit neutral wire (gray or white colored wire) proceed as follows.

1. If local codes permit, connect the green GROUND wire from the cooktop to the branch circuit neutral wire (gray or white colored wire).
2. Connect the red and black leads from the cooktop to the corresponding leads in the junction box.

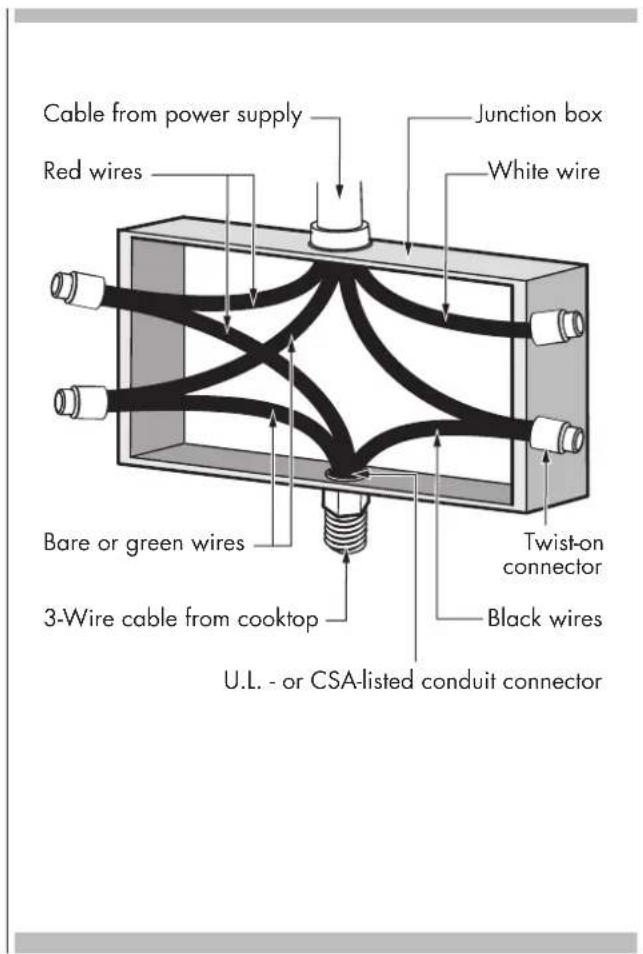

4-Wire branch circuit

1. Connect the green ground wire from the cooktop to the ground wire in the junction box (bare or green colored wire).
2. Connect the red and black leads from the cooktop to the corresponding leads in the junction box.
3. Terminate and insulate the neutral (gray or white colored wire) in the junction box.
